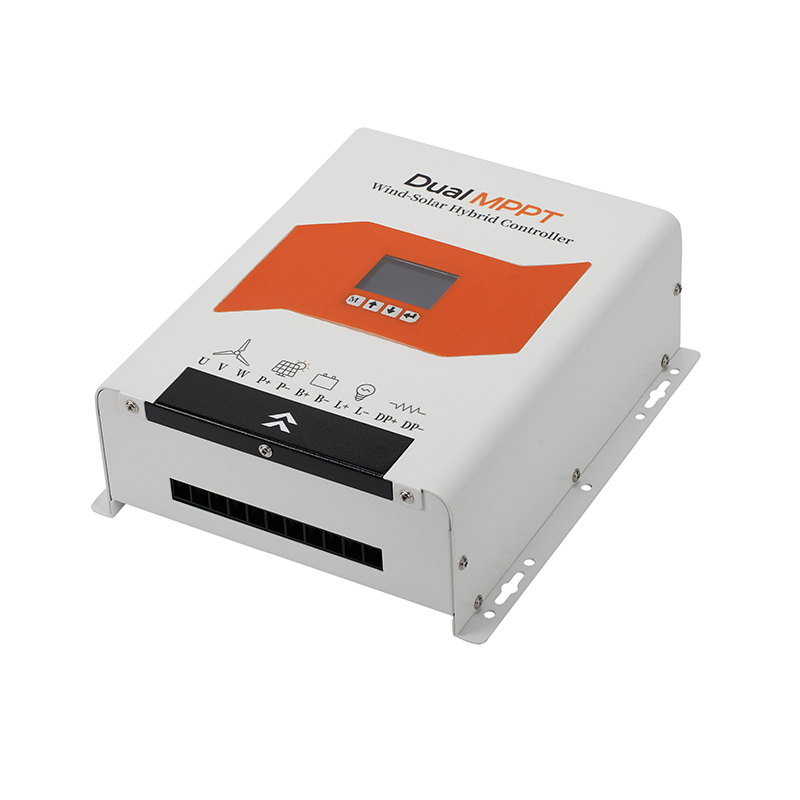

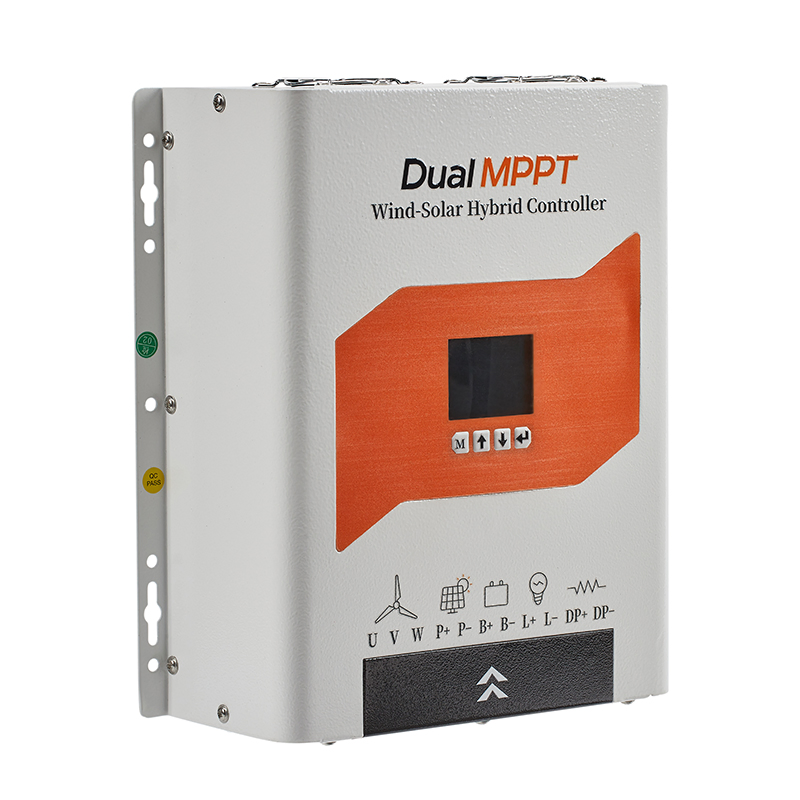

Solar System 1kw 2kw 3kw 5kw 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller
Solar System 1kw 2kw 3kw 5kw 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller
Solar System 1kw 2kw 3kw 5kw 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller
Solar System 1kw 2kw 3kw 5kw 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller
Solar System 1kw 2kw 3kw 5kw 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller
1 / 5
Solar System 1kw 2kw 3kw 5kw 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller
Solar System 1kw 2kw 3kw 5kw 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller
Solar System 1kw 2kw 3kw 5kw 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller
Solar System 1kw 2kw 3kw 5kw 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller
Solar System 1kw 2kw 3kw 5kw 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller

Solar System 1kw 2kw 3kw 5kw 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

Overview
Basic Info.
Model NO.
DH-48-W400/S600
Condition
New
Certification
ISO, CB, CE
Application
Solar System Controller, Charger Controller, Wind Controller
Rated Voltage
12V/24V/48V
Charge Mode
Wind-Solar Hybrid Controller
Communication
RS 485 Optional
Weight
4.6kg
Function
Rectifier, Control, DC Output
Heat Dissipation Method
Passive Cooling
Controller Power Supply Method
Battery or Photovoltaic Panel Power Supply
Work Environment Temperature
-20℃ ~55℃
Transport Package
Carton
Specification
345*280*140mm
Packaging & Delivery
Package Size
34.50cm * 28.00cm * 14.00cm
Package Gross Weight
4.600kg
Product Description
Solar System 1KW 2KW 3KW 5KW 12V/24V/48V Double MPPT Wind Solar Hybrid Charge Controller

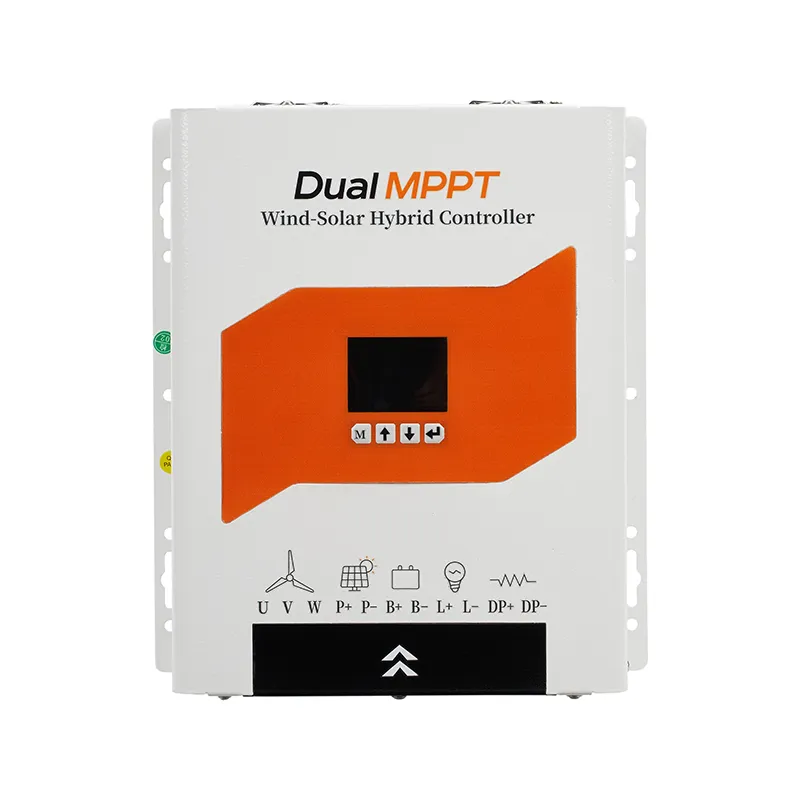

Solar System Wind Solar Hybrid Charge Controller Details 1

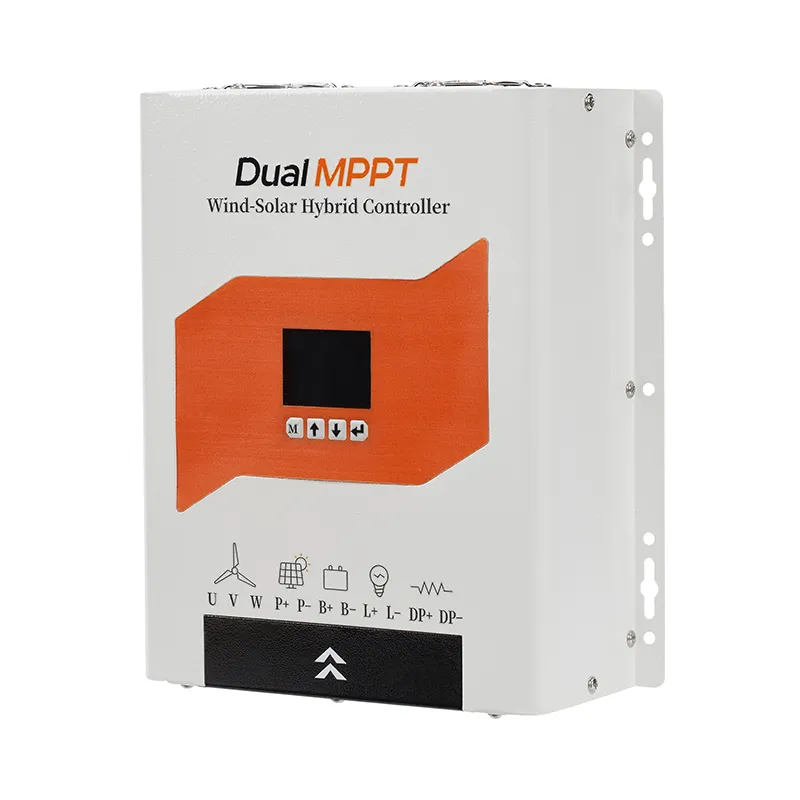

Solar System Wind Solar Hybrid Charge Controller Details 2
Solar System Wind Solar Hybrid Charge Controller Details 3

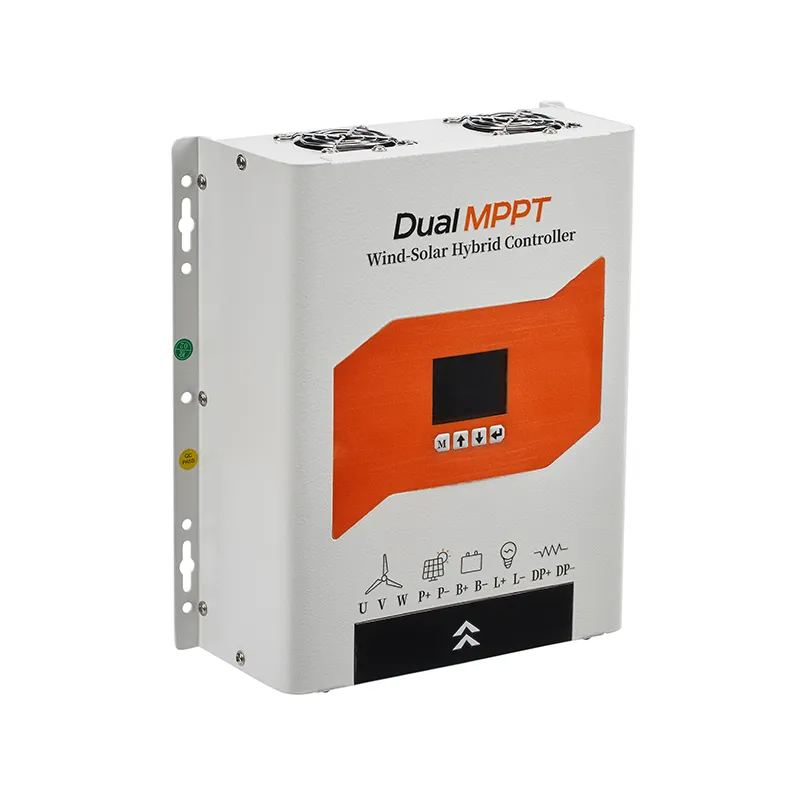

Solar System Wind Solar Hybrid Charge Controller Details 4
Solar System Wind Solar Hybrid Charge Controller Details 5

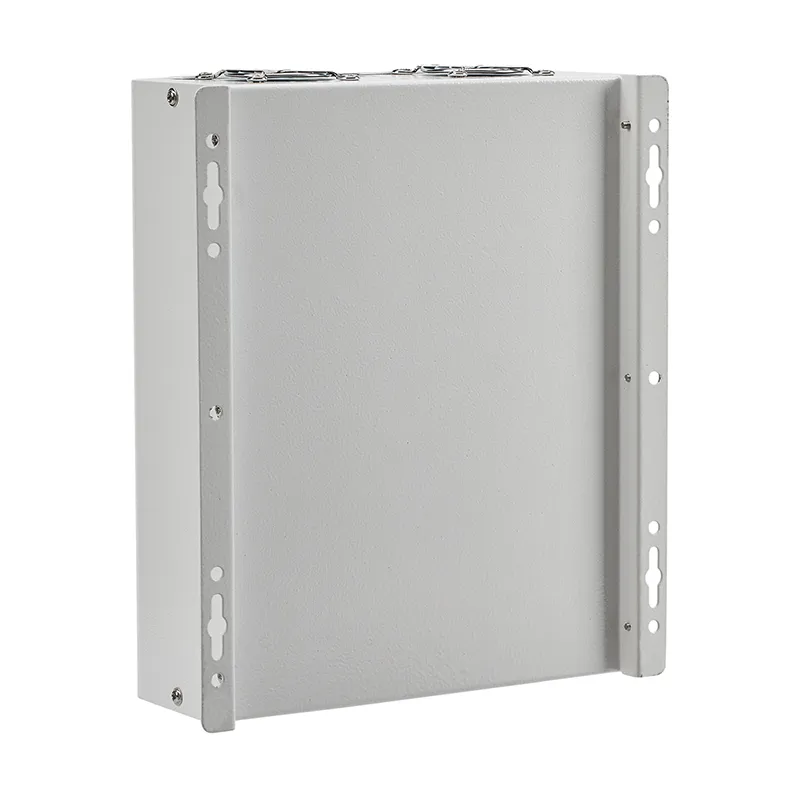

Solar System Wind Solar Hybrid Charge Controller Details 6

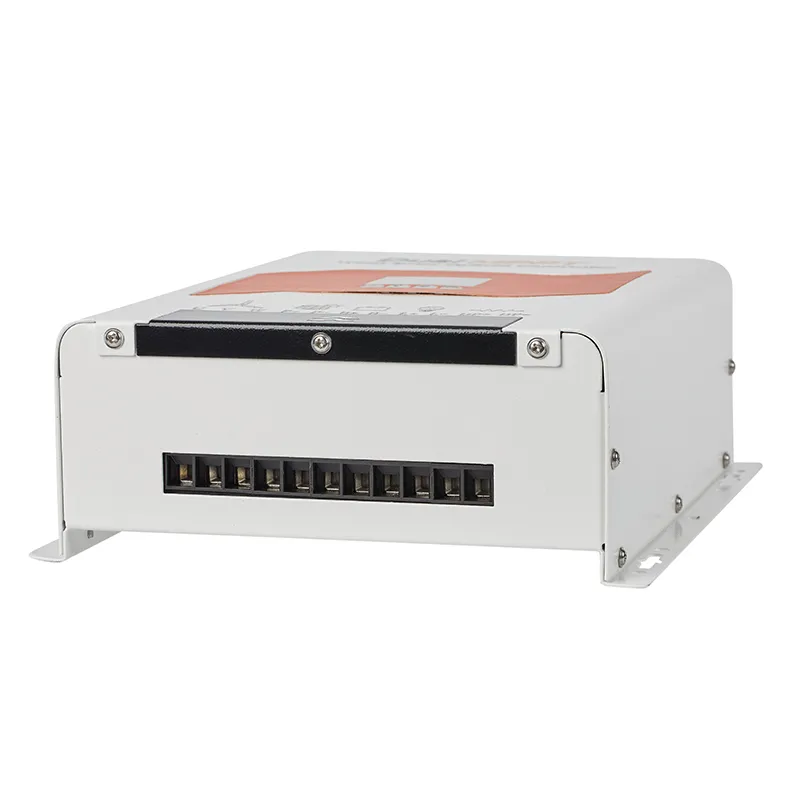

Solar System Wind Solar Hybrid Charge Controller Details 7

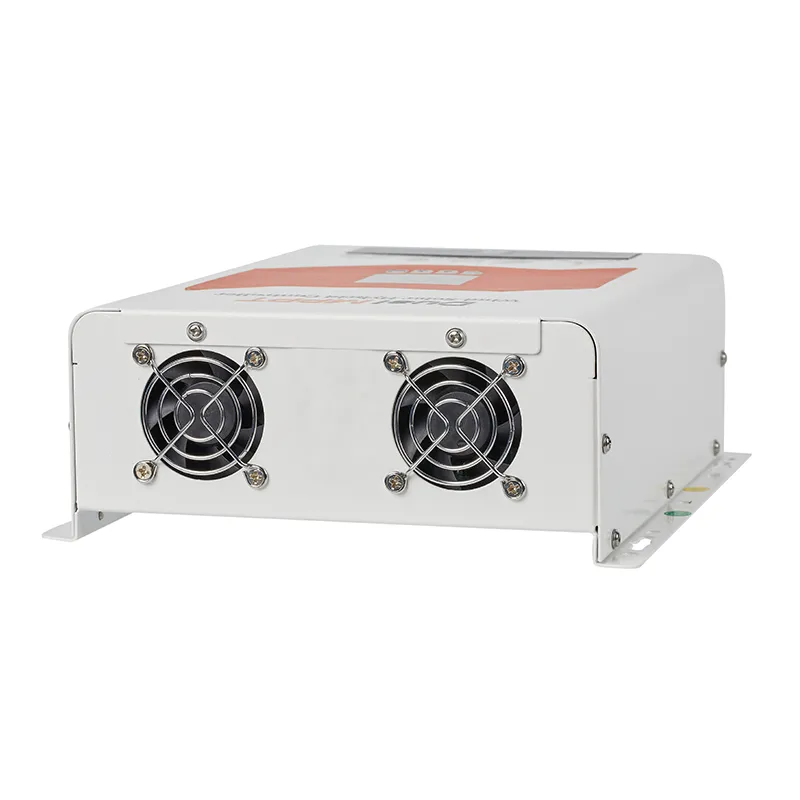

Solar System Wind Solar Hybrid Charge Controller Details 8
Solar System Wind Solar Hybrid Charge Controller Specifications Summary
Product Parameters
Parameter Type Specification Details
Wind Turbine Controller Parameters
Input Voltage Range 10-70V
Maximum Output Power 0.3kW-3kW Optional
Rated Input Voltage 12V/24V/48V (Automatic Detection)
Maximum Input Current Current range: Optional within 50A
Solar Charge Controller Specifications
Charging Mode MPPT Automatic Maximum Power Point Tracking
Charging Method MPPT, Float Charge
System Type Auto Voltage Recognition for DC12V/24V/48V
System Recognition Voltage 12V-DC9V~DC15V, 24V-DC18V~DC29V, 48V-DC40V~DC60V
Soft Start Time ≤1s
Overall Efficiency ≥98.1%
Dynamic Response Recovery Time 100us
PV Module Utilization Rate ≥99%
MPPT Operating Voltage & Range 12V System DC20V-80V; 24V System DC37V-105V; 48V System DC72V-160V
Maximum PV Input Power 12V System 400W/480W/600W/720W;
24V System 720W/960W/1200W/1440W;
48V System 1200W/1700W/2200W/2800W
Selectable Battery Types (Default: Gel) Sealed Lead-Acid (SLA) Battery, Flooded Lead-Acid Battery, Gel Battery, Nickel-Cadmium (NiCd) Battery (Customizable charging voltages)
Overcharge Protection Voltage 15V/30V/60V
Maximum Output Current 60A
Cooling Method Passive Cooling
Operating Temperature -20ºC~+55ºC
Storage Temperature -40ºC~+75ºC
Altitude 0-4000m
Package Size 345mm*280mm*140mm
Gross Weight 12V: 3.8kg; 24V: 4.2kg; 48V: 4.6kg
Application Areas

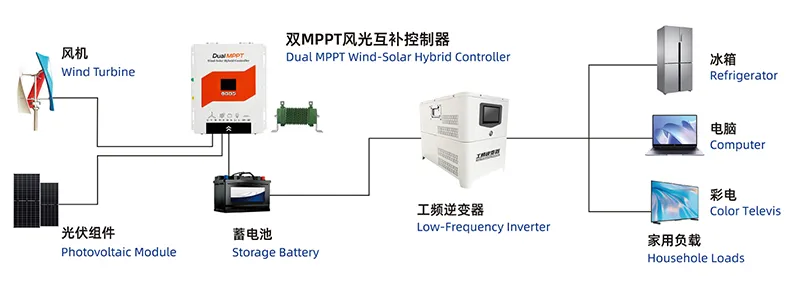

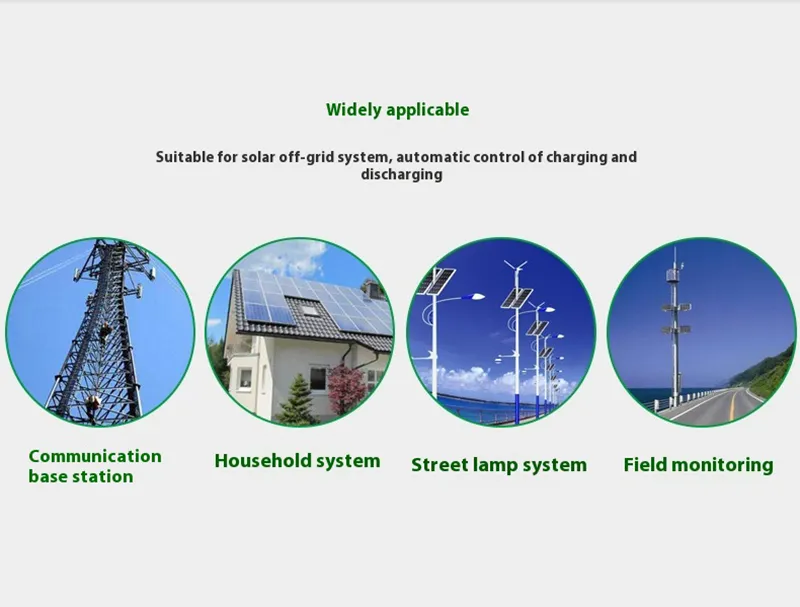

Wind Solar Hybrid Charge Controller Application Scenario Diagram
Company Profile
Factory Production Line Floor
Component Assembly Facilities

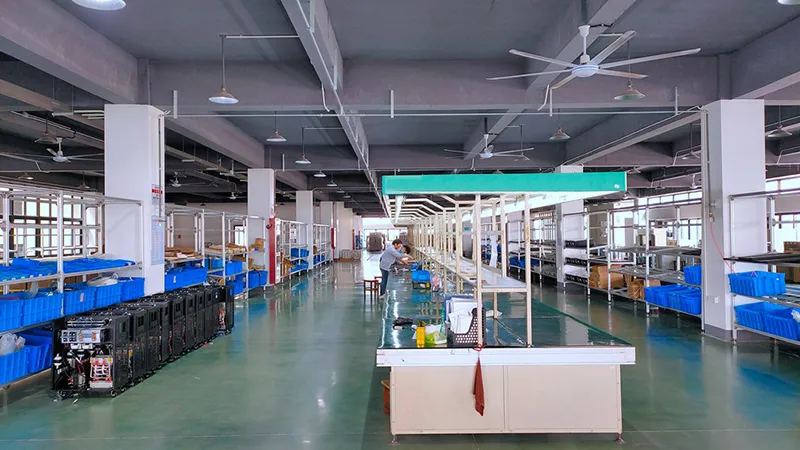

Testing and Quality Assurance Laboratory
Certifications
Product Quality Certifications Overview
Frequently Asked Questions
What is a Wind-Solar Hybrid Charge Controller?
It is an intelligent control device that regulates and manages power input from both wind turbines and solar panels simultaneously. It delivers optimized energy generation, safely charges connected batteries, and powers DC outputs under unified power system management.
Which battery types are compatible with this controller?
By default, the controller is optimized for Gel batteries. However, it also fully supports Sealed Lead-Acid (SLA) batteries, Flooded Lead-Acid batteries, and Nickel-Cadmium (NiCd) batteries. Charging profiles can also be customized with user-defined charging voltages.
How does MPPT technology improve efficiency?
MPPT (Maximum Power Point Tracking) technology dynamically tracks the optimal operating point of solar panels and wind turbines under changing weather conditions. This design delivers a PV module utilization rate of ≥99% and overall charging conversion efficiency of ≥98.1%.
Does the controller support remote monitoring and communication?
Yes. The controller is equipped with optional RS485 communication interfaces. This allows installers and system owners to connect data devices to monitor output voltages, inputs, battery health, and charge histories in real-time.
What cooling method does the controller use?
This hybrid charge controller uses a passive cooling system (natural heat dissipation). By eliminating mechanical fans, it maximizes operating reliability, reduces noise, prevents internal dust accumulations, and extends the overall service life of internal components.
