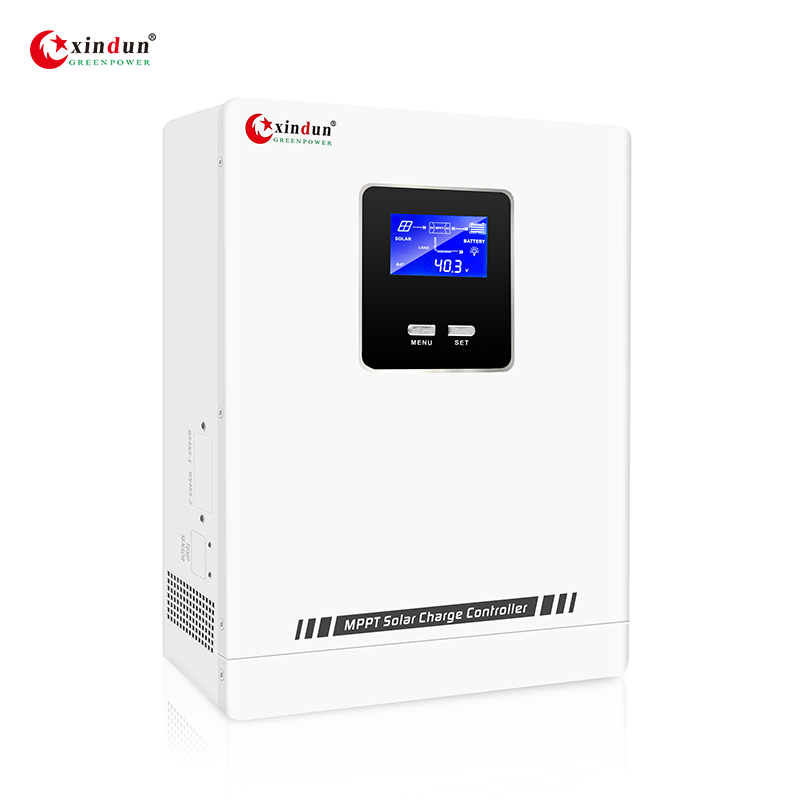

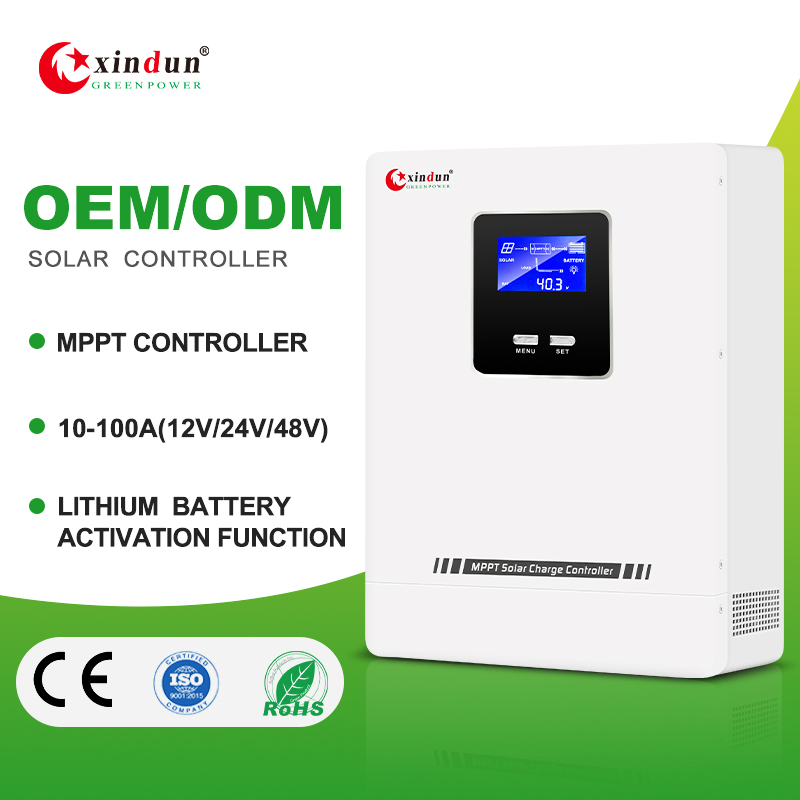

10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller

Customization:	Available
After-sales Service:	Free Parts
Warranty:	2 Years

Basic Information

Model NO.

XD-Wonder2

Condition

New

Certification

ISO, CE

Application

Collector/Charger/Voltage Controller, Solar Station

Rated Voltage

12V/24V/48V

Rated Current

10A to 100A

Color

White/OEM/ODM

OEM & ODM

Accepted

Work Time (H)

1~24h

Communication

RS485/APP (WiFi/GPRS Monitoring)

MPPT Tracking

>99% Efficiency

Type

MPPT Solar Charger Controllers

Function

Solar Charging

Max PV Power

140W~5600W

Charging Method

Three Stages (Constant Current, Constant Volt, Float)

Conversion Eff.

>98%

Protection

Over/Under-Voltage, Over-Temp, Anti-Reverse

Max PV Input Voc

120V/180V

N.W. Range

1.6 kg to 4.2 kg

Cooling Method

Intelligent Fan Control

Transport Package

Carton Packing

Specification

214*155*72.8mm to 315*210*106.5mm

Trademark

OEM/ODM

Origin

China

HS Code

8537109090

Production Cap.

50000 Pieces/Year

Inverter Features

1 Advanced MPPT tracking algorithm, with tracking efficiency up to 99%. Compared with ordinary PWM algorithm, the power generation efficiency can be improved by about 20%.
2 LCD graphic display of photovoltaic power generation data and simulation of power generation process.
3 Multiple load working modes can be set to adapt to different working occasions.

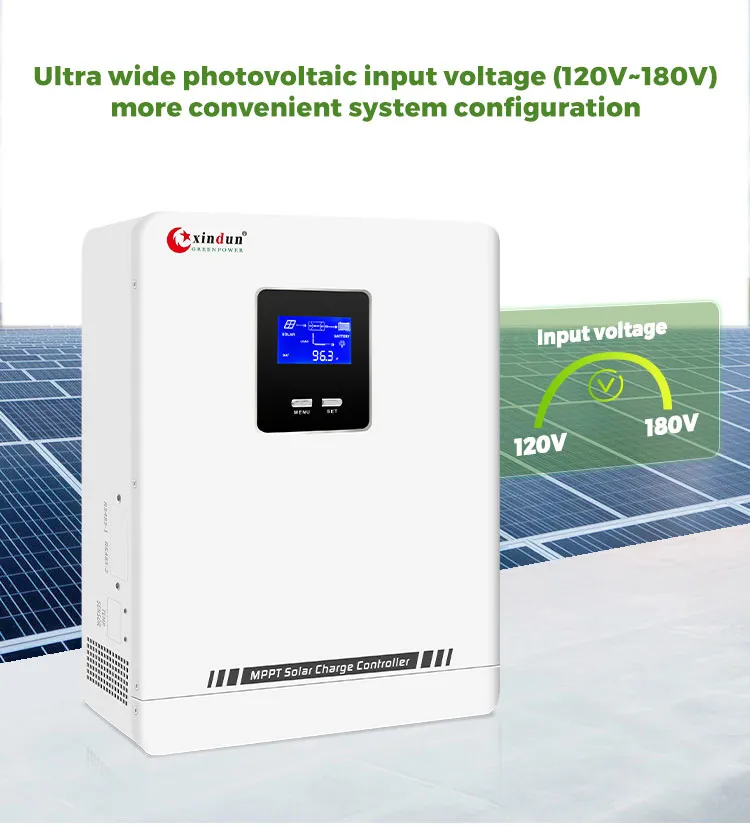

4 Ultra wide photovoltaic input voltage range, more convenient system configuration.
5 It supports a variety of lead-acid batteries and lithium batteries, and users can customize the charging and discharging parameters. Users are more flexible and convenient to use.
6 Lithium battery activation function.
7 Full range of electronic protection functions: battery anti-reverse connection, PV anti-reverse connection, charging over-current, DC output over-current, over temperature, over-voltage and undervoltage protection.
8 Intelligent battery management function, extending battery life.

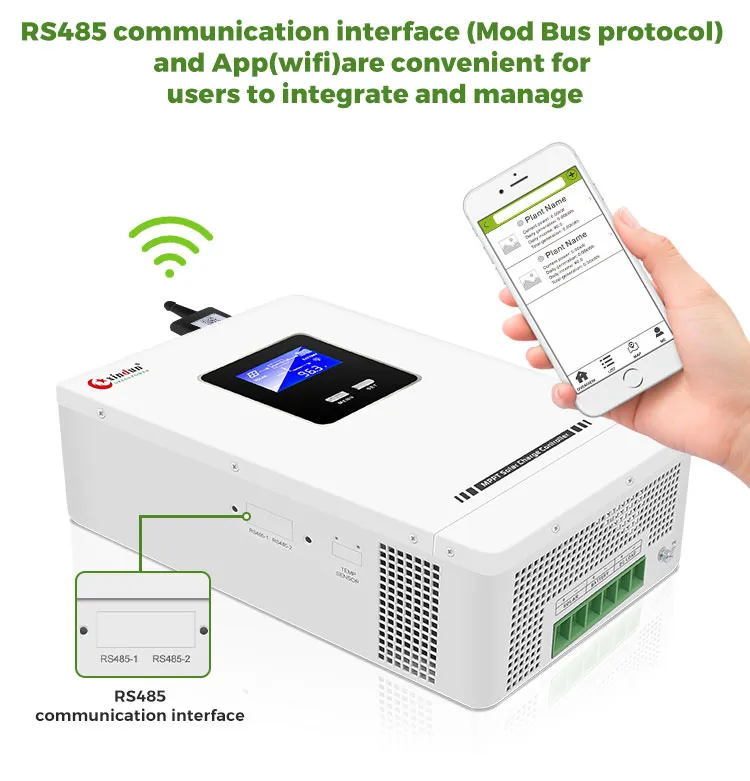

9 RS485 communication interface (Mod Bus protocol) and mobile phone APP are convenient for users to integrate and manage.

Product Highlights

MPPT Solar Hybrid Lithium Charge Controller

Technical Specifications

Model: Wonder2	10124, 20124, 30124	1048, 2048, 3048	40124, 50124, 60124	4048, 5048, 6048	80124, 100124	8048, 10048
Rated Current	10A/20A/30A		40A/50A/60A		80A/100A
Rated System Voltage	12V/24V	48V	12V/24V	48V	12V/24V	48V
Max PV Input Voltage(Voc)	120V	180V	120V	180V	120V	180V
MPPT Tracking Voltage Range	12V system: 15V-80V; 24V system: 30V-100V; 48V system: 60V-140V
Recommended Operating Range	12V system: 15V-30V; 24V system: 30V-60V; 48V system: 60V-90V
PV Array Max Power	12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A); 24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A); 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)
Battery Type	Lead acid battery/Lithium battery (Customizable parameter options)
Floating Voltage / Charge Voltage	Floating: 13.8V/Single battery \| Charging: 14.2V/Single battery
Protection Voltage (Charge/Recovery)	Charging Protection: 15V \| Recovery Voltage: 13.8V/Single battery
Low Voltage Disconnect Recovery	12.5V/Single battery
Discharge Limited Voltage	10.5V/Single battery
Temperature Comp. Coefficient	-3mV / ºC / 2V (25ºC base line) (Optional)
Charging Mode & Method	MPPT tracking; Three stages: constant current, constant voltage, floating charge
Conversion / MPPT Efficiency	Conversion Efficiency: >98% \| MPPT Tracking Efficiency: >99%
*Machine Size (LWHmm)*	21415572.8		23818082		315210106.5
*Package Size (LWHmm)*	243184115 (1pc) / 497379247 (8pcs)		267209124 (1pc) / 639278265 (6pcs)		344239149 (1pc) / 489355315 (4pcs)
N.W. / G.W. (kg)	N.W: 1.6 / G.W: 1.8		N.W: 2.4 / G.W: 2.7		N.W: 4.2 / G.W: 4.6
Operational Parameters
Display & Thermal Method	LCD Display \| Intelligent Fan Cooling
IP Protection Class	IP20
Operating & Storage Temp.	Operating: -15ºC~+50ºC \| Storage: -20ºC~+60ºC
Elevation & Humidity	Elevation: 5000m (Derating above 2000m) \| Humidity: 5%~95% (No condensation)

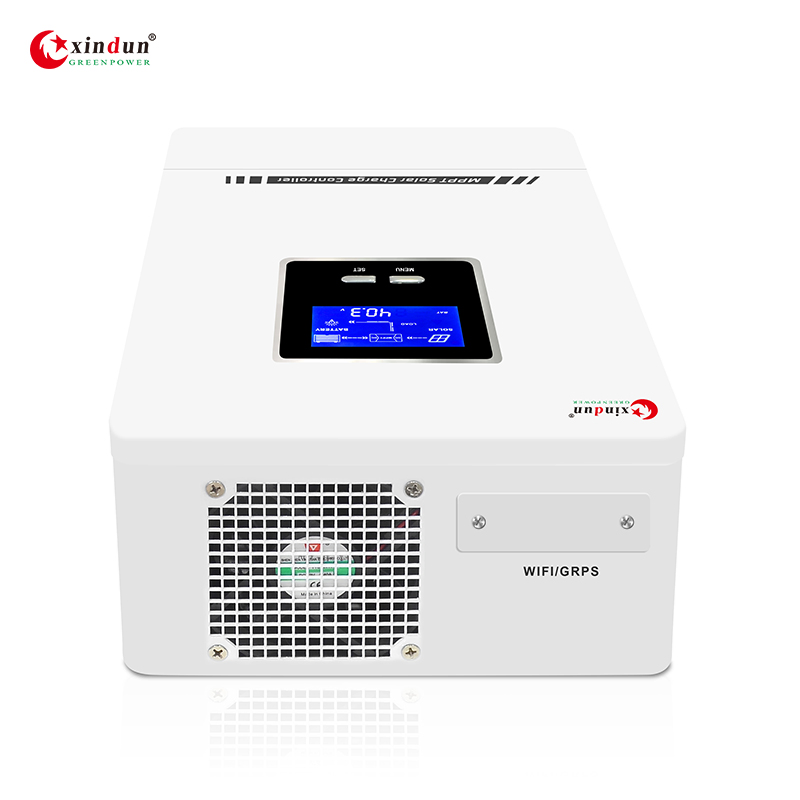

Communication Options	RS485 / APP (WiFi or GPRS monitoring options)

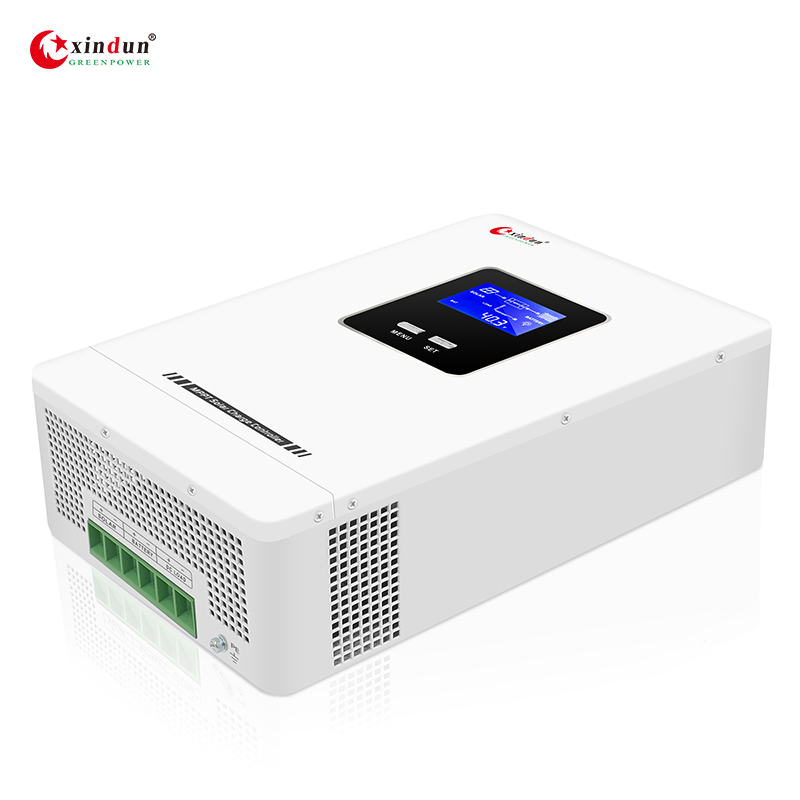

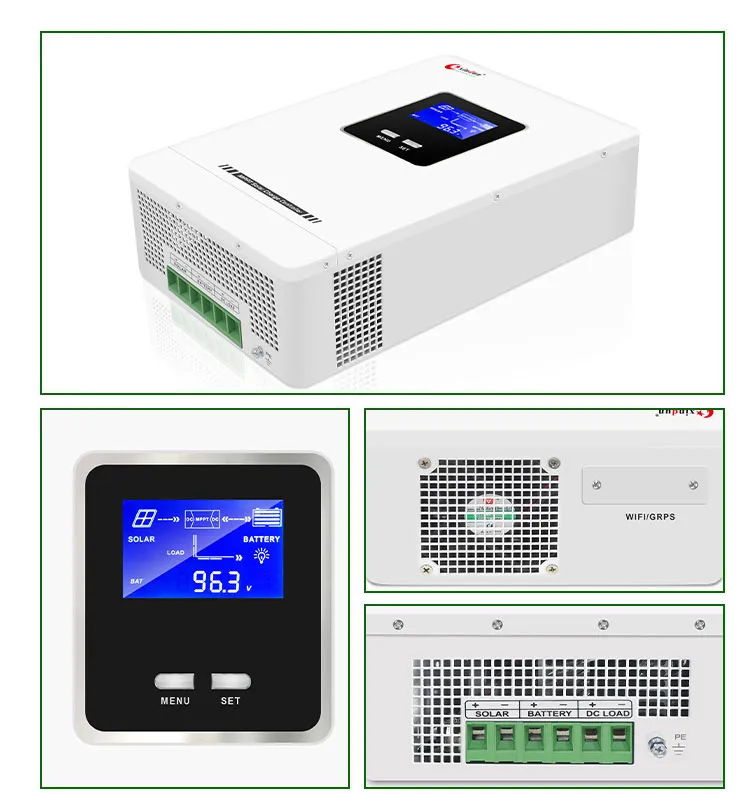

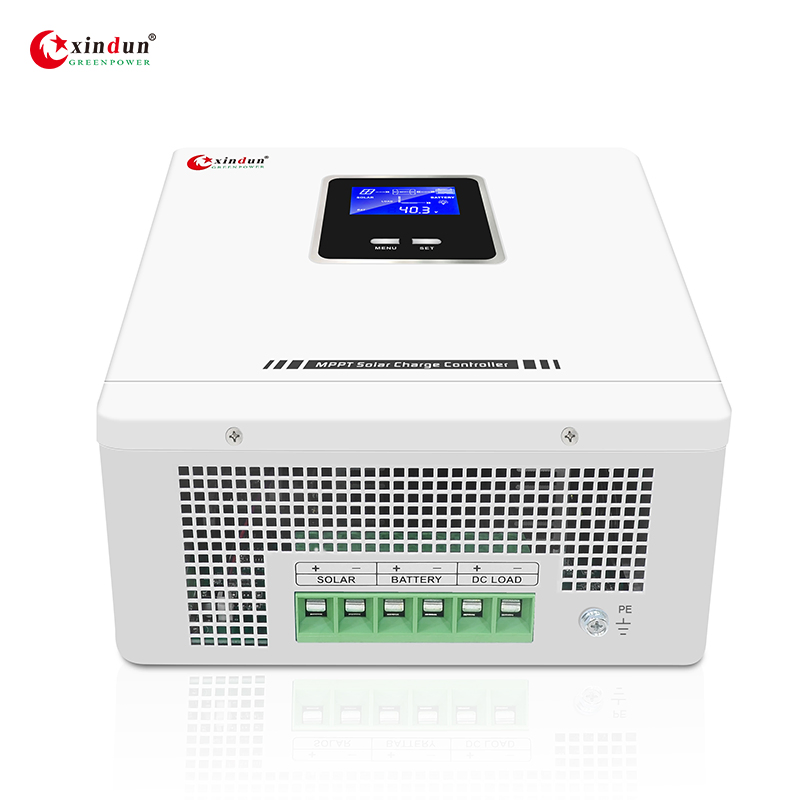

Product Detail View

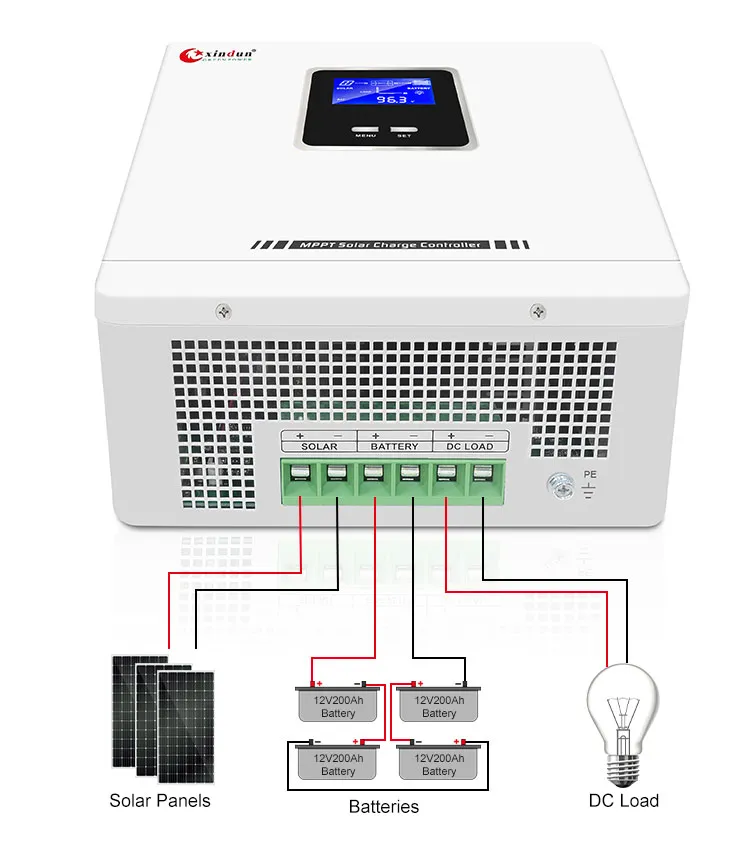

Wiring Diagram

Packing & Delivery

Package Protection

Carton Box packaging standard. Strong wooden box support advised for samples to guarantee safety during transportation.

Shipping Methods

FedEx / DHL / TNT / UPS for fast sample deliveries (door-to-door).
By air or by sea for large batch cargo shipments.
Customer designated freight forwarders or negotiable logistics options.
Delivery turnaround: 7 days for samples; 10 to 25 days for batch bulk order goods.

Production Showcase

Production Facility Quality Verification

Frequently Asked Questions (FAQ)

What is the efficiency of the MPPT tracking algorithm?

The advanced MPPT tracking algorithm achieves a tracking efficiency of up to 99%. Compared to traditional PWM controllers, this design can improve power generation efficiency by approximately 20%.

What types of batteries does the XD-Wonder2 controller support?

It supports a wide range of lead-acid batteries and lithium batteries. Additionally, it features customizable parameter settings so users can define charge and discharge profiles based on their specific battery specifications.

What protective systems are integrated into the controller?

The controller features comprehensive electronic protection, including battery anti-reverse connection, solar PV anti-reverse connection, charging over-current protection, DC output over-current protection, over-temperature protection, and over/under-voltage protection.

Can I monitor the solar controller remotely?

Yes, the unit provides an RS485 communication interface utilizing the Mod Bus protocol. Users can integrate it with a dedicated mobile application for WiFi or GPRS real-time monitoring and parameter management.

How does the cooling system work on this controller?

Thermal regulation is handled via an intelligent fan cooling system. The speed and activation of the built-in fan are controlled automatically based on system temperature, ensuring high conversion efficiency and quiet operation.

What packaging options and delivery terms are available?

Standard packages use carton boxes, with optional wooden box packaging recommended for sample protection during transit. Delivery is typically around 7 days for samples, and 10 to 25 days for larger batch production shipments.
