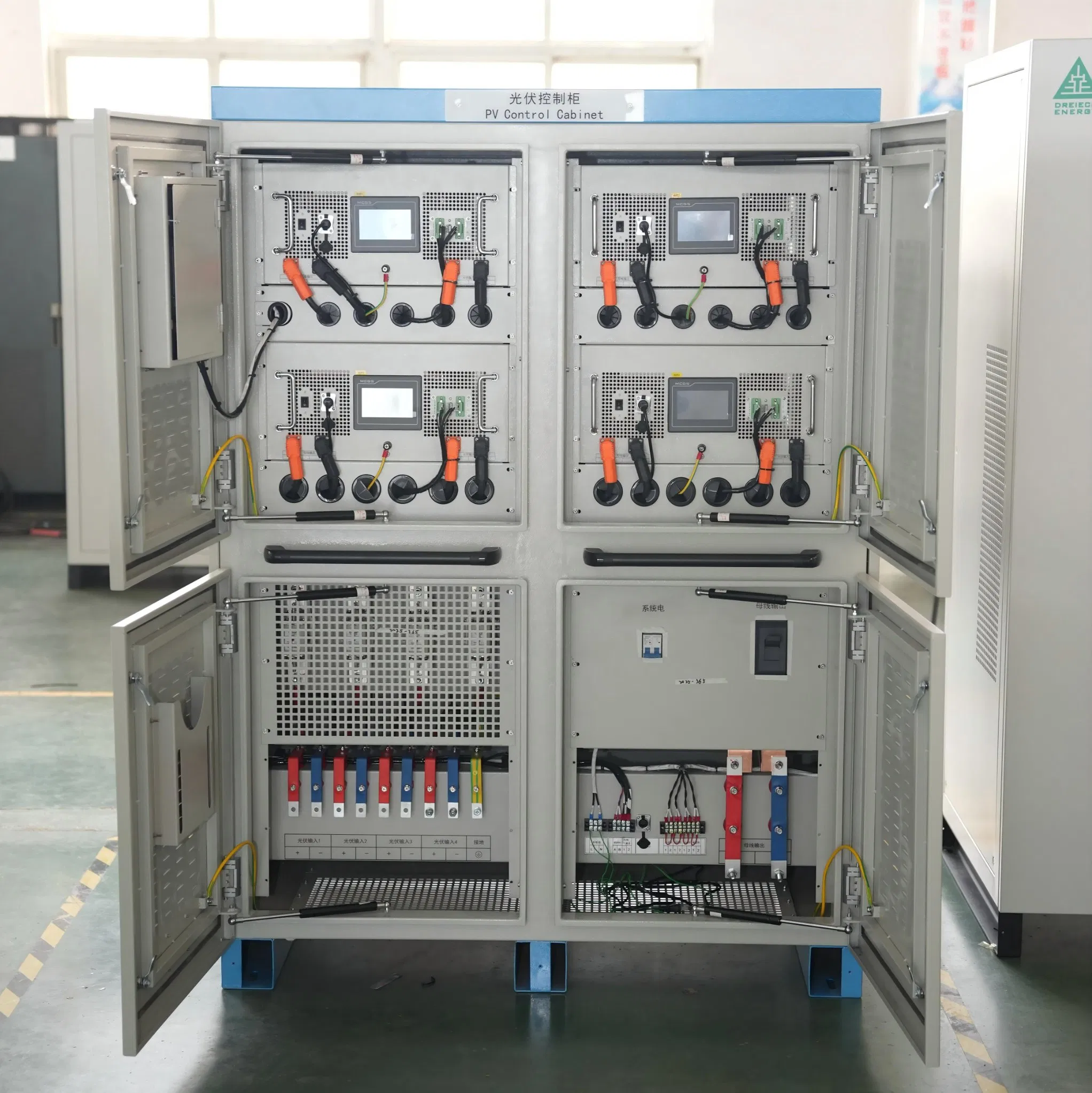

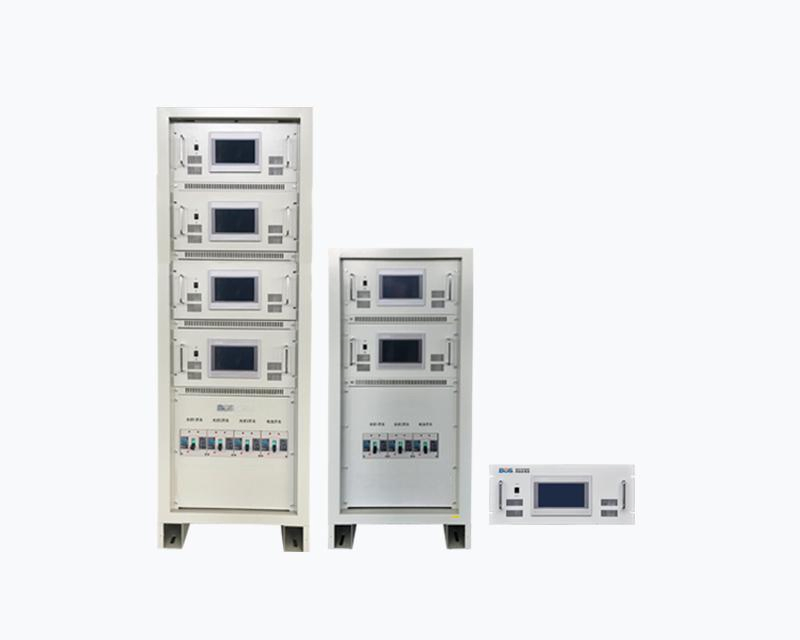

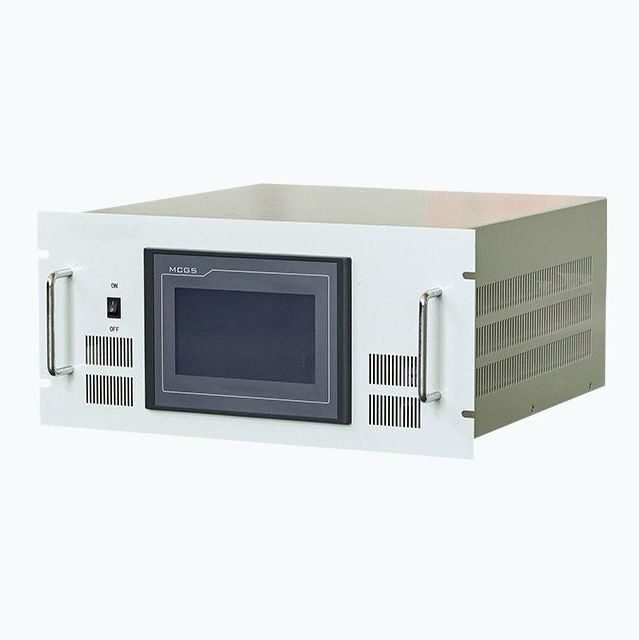

11kw-300kw Three Phase MPPT Solar Charge Controller - Wide Voltage & Low Start-up Voltage

Customization: Available
PV Input Voltage Range: DC 320V-550V/DC 300V-850V/DC 540V-900V
Battery Rated Voltage: DC 220V/DC 750V/DC 480V

Product Description

Basic Information

Model NO. HSD220 -50A
Battery Voltage DC 150V-300V/DC 50V-1000V/DC 300V-590V
Transport Package Standard Export Wooden Box
Specification 48.2*60*22.2cm
Origin China
HS Code 850440
Production Capacity 50000PCS/Year

Packaging & Delivery

Package Size 60.00cm * 70.00cm * 30.00cm
Package Gross Weight 80.000kg

Product Features

Equipped with a precise MPPT algorithm, it extracts the maximum power from the solar panels, significantly improving conversion efficiency.
A wider voltage range and lower starting voltage effectively increase the number of power generation hours.

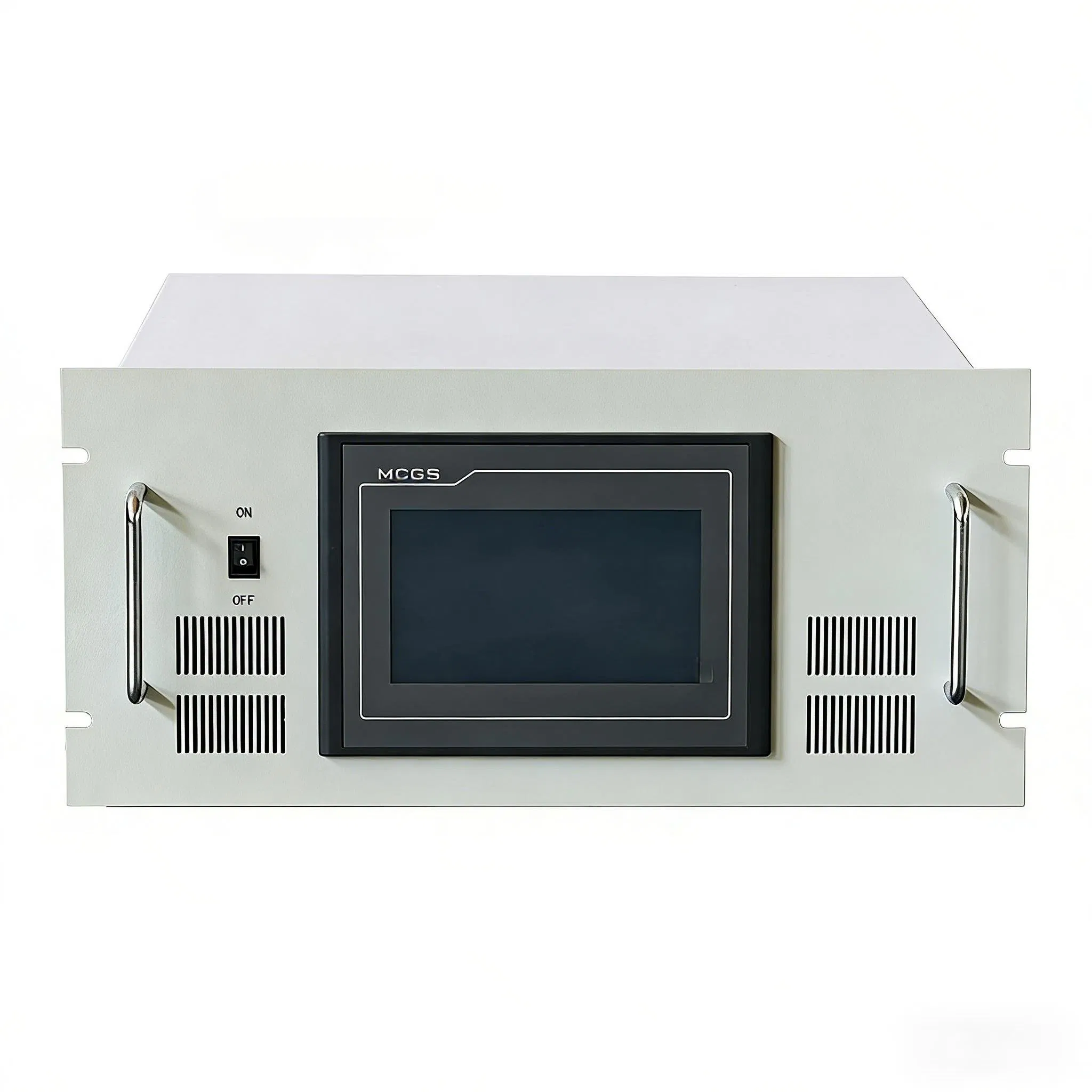

Rack-mounted design, compact and lightweight, with standard wiring for easy installation and maintenance.
Uses an LCD touchscreen to display various operating parameters and allows for setting relevant parameters.
Strong environmental adaptability, suitable for use in high-altitude, cold, and harsh natural environments.

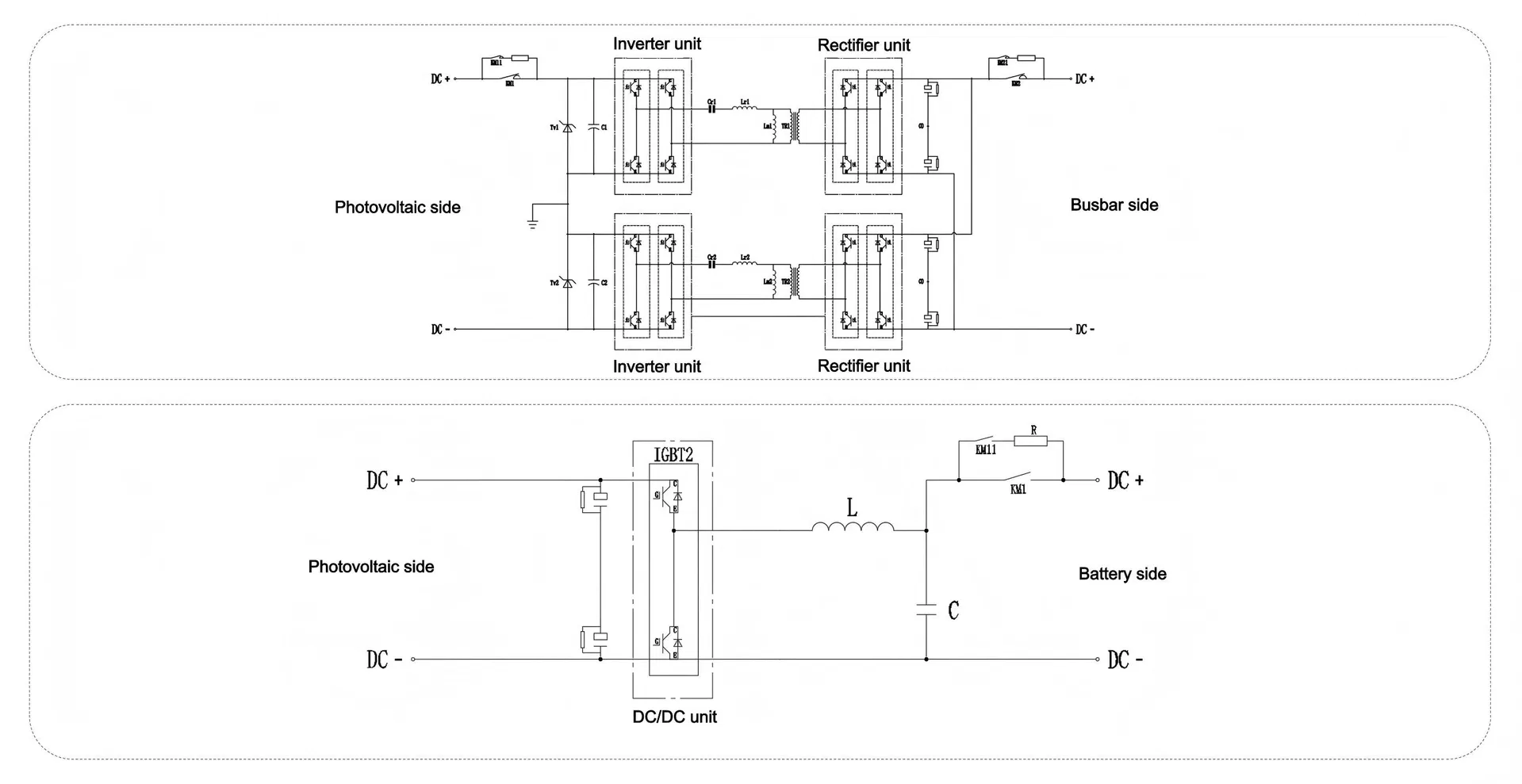

Circuit Block Diagram

Circuit Block Diagram

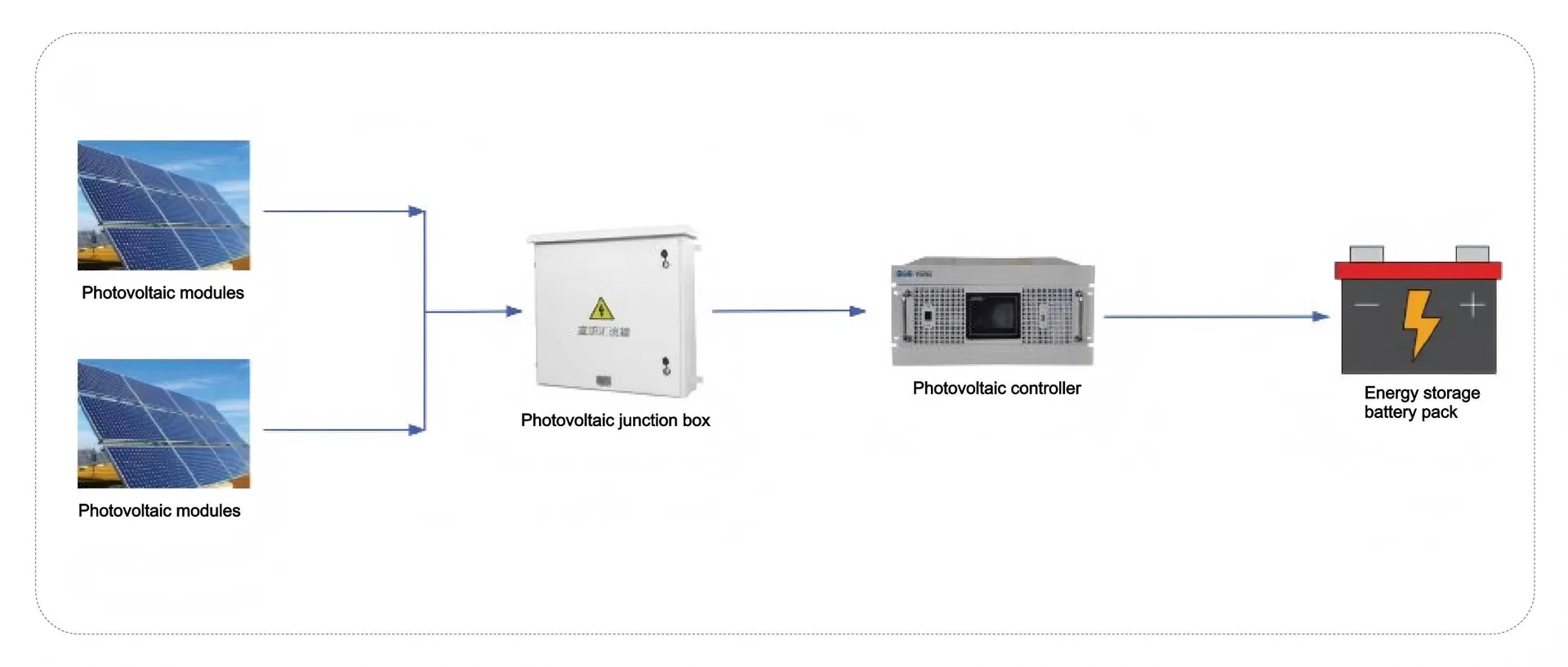

Product Application Topology

Product Application Topology

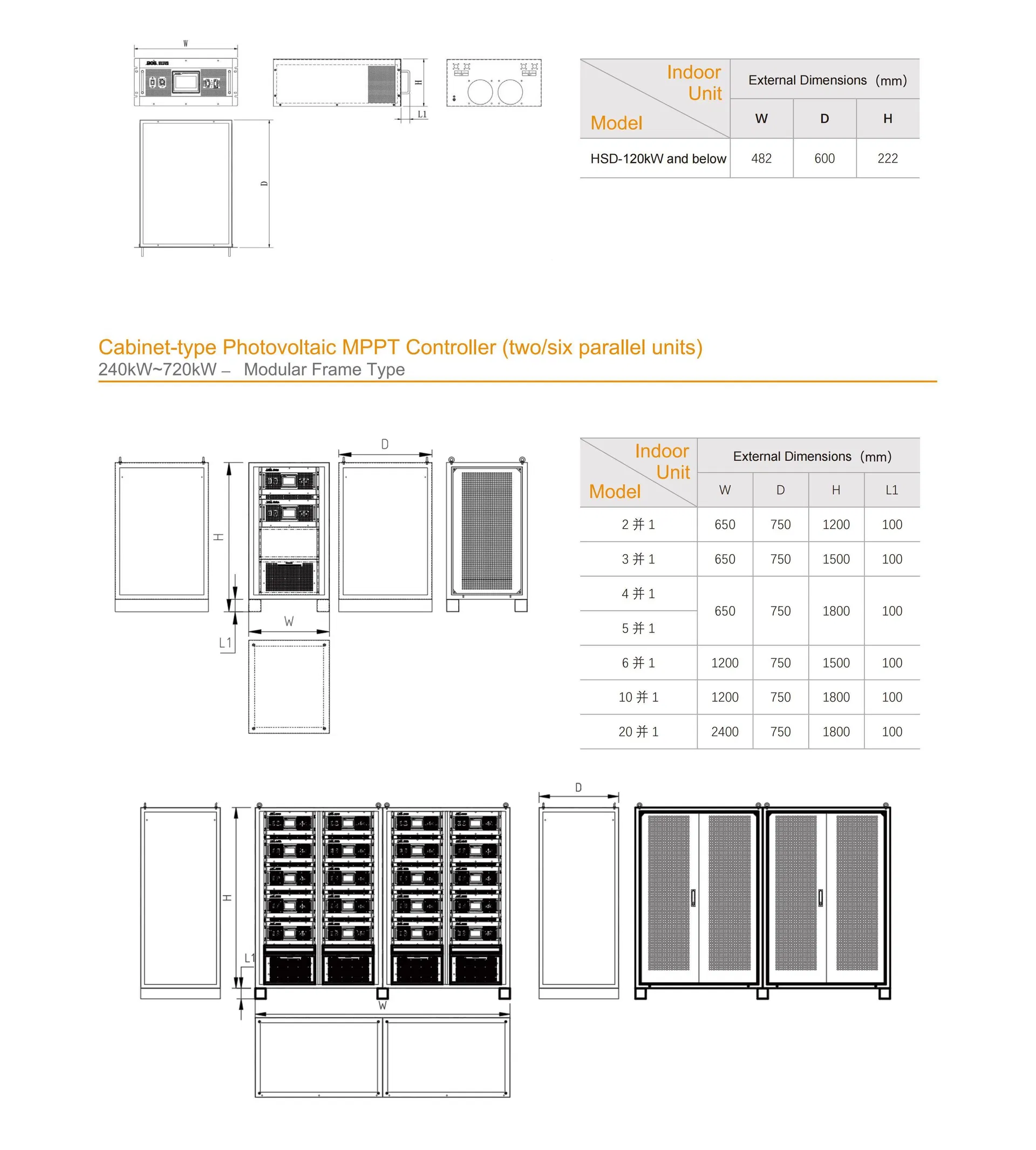

External Dimensions

External Dimensions

Specifications Table

Product Model HSD220-50A HSD220-100A HSD750-40A HSD750-53A HSD480-100A HSD480-200A HSD480-300A HSD480-600A
Input DC specifications
Equipment Power 11KW 22KW 30KW 40KW 48KW 96KW 144KW 300KW
PV input Voltage Range DC 320V-550V DC 300V-850V DC 540V-900V
Battery DC specifications
Battery Rated Voltage DC 220V DC 750V DC 480V
Output Rated Current 50A 100A 40A 53A 100A 100A * 2 routes 100A*3 routes 100A*6 routes
Maximum Efficiency ≥ 98%(Rated Power) ≥ 95%(Rated Power) ≥ 98%(Rated Power)
Self-loss Less than 60w
Protection Function Input reverse connection protection, over/under voltage protection, and overload protection; output overload and short circuit protection
Battery Specifications
Charging Method MPPT (Three-stage charging)
Battery Voltage DC 150V-300V DC 50V-1000V DC 300V-590V
Battery Float Charge Voltage Configurable
Display And Communication
Display functions LCD display No display screen LCD display
Communication Functions RS485 (standard) / RS232 (optional) / Ethernet port (optional)
Usage Environment
Working Environment It can operate continuously for 24 hours under ambient temperatures of -25 to 45 and relative humidity of 0-95%.
Protection Level ≤20 pC (standard) / ≤10 pC (optional) / ≤5 pC (optional)
Equipment Efficiency IP20
Cooling Method Fan-forced air cooling
Altitude ≤ 5000m (Reduced performance above 2000m altitude)
Other Features
Compressive Strength AC1500V/1min/No breakdown
Size(W*D*H)mm 482*600*222 650*750*1200 650*750*1500 1200*750*1500
