5KW 10KW 15KW On Grid Tie MPPT Wind Turbine Solar Hybrid Controllers Grid tie controller

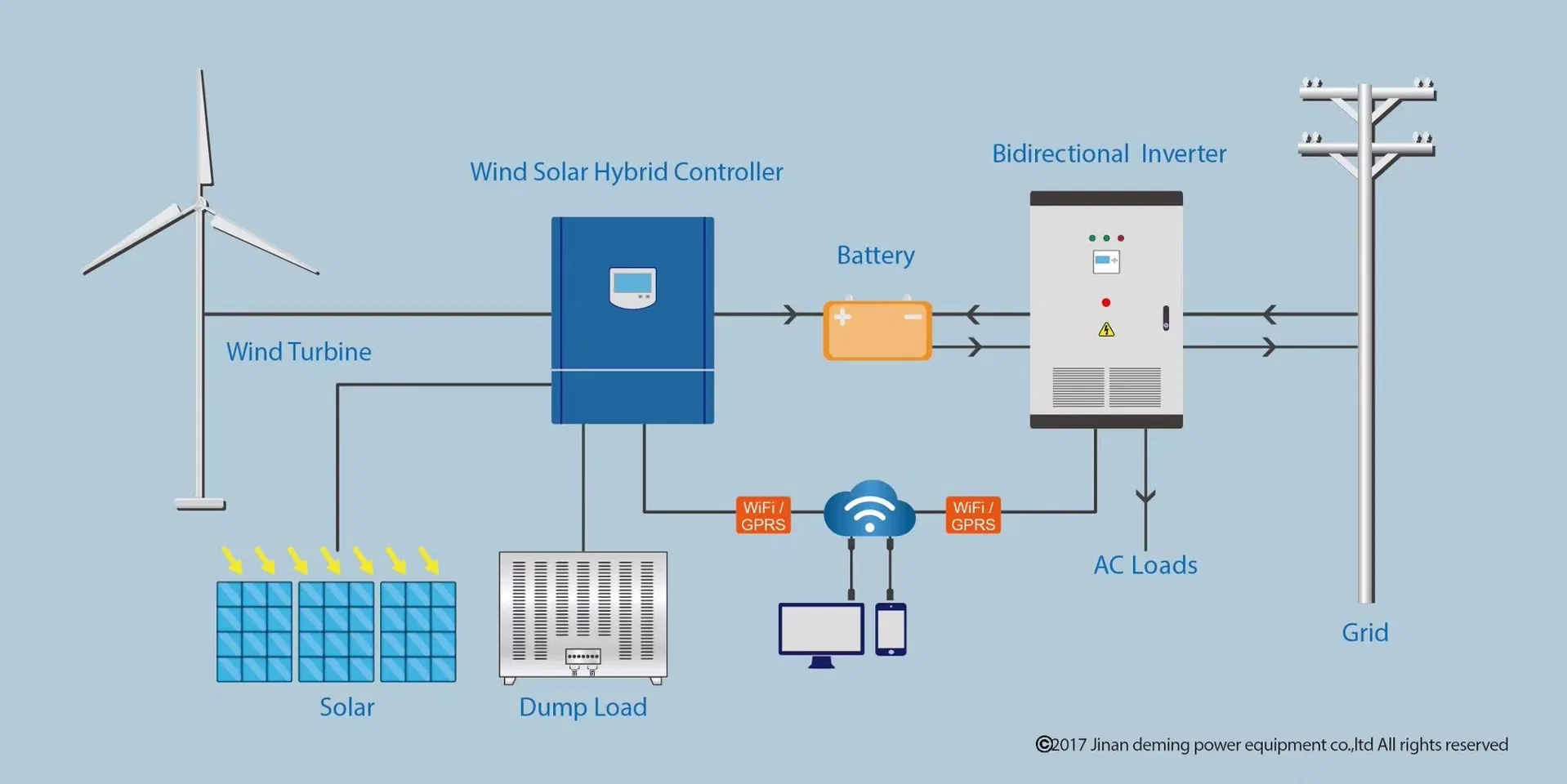

The On grid wind turbine system is composed of wind turbine, on grid controller, on grid inverter, metering device, and power distribution system. Wind energy is converted into AC electrical energy by the wind turbine, and then converted into DC electrical energy by the on grid controller, and then DC electrical energy is converted into AC electrical energy of the same frequency and phase as the grid by the on grid inverter, and part of the power is supplied to the local load. Surplus power is fed into the grid.
1
Produced according to the industry standard JB/T6939.1-2004 and national standard GB/T19115.1-2003, customizable to user specifications.
2
Color touch screen display visually shows working status with rich data (voltages, currents, and cumulative power generation).
3
Technical parameters of the controller can be dynamically adjusted through the touch screen to suit different wind turbines.
4
Employs dual control systems: PWM constant voltage/constant current system paired with a three-phase braking system.
5
Capable of expanding to integrate current control, wind speed control, and wind turbine speed control with adjustable parameters.
6
Provides constant voltage and constant current DC output in strong winds to guarantee stable and uninterrupted inverter operation.
7
Maintains constant voltage output when the on-grid inverter goes offline, waiting for the inverter to resume work.
8
Automatically applies wind turbine brake and halts grid output during grid failures. Releases brake when the grid resumes.
9
Equipped with internal surge protectors to bypass overvoltage and conduct strong lightning currents safely to the ground.
10

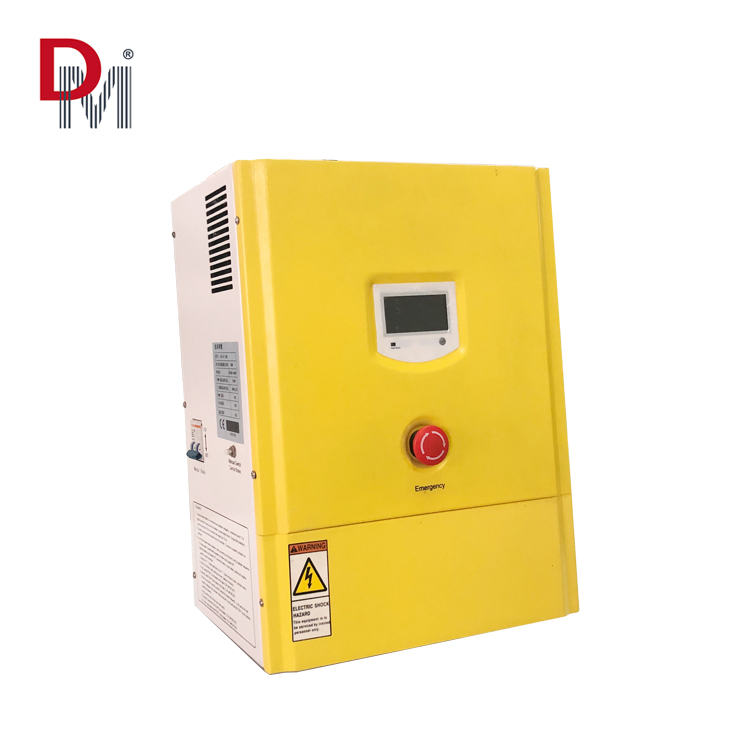

Front-panel emergency stop switch cuts off all power supply and immediately brakes the wind turbine in critical situations.
11
Features a manual brake switch on-demand to safely slow down or stop the wind turbine.
12
Uses Modbus communication protocol, allowing easy secondary development and system integration.
13
Supports RS485, WiFi, GPRS, and Ethernet for PC/mobile remote monitoring (Android and iOS compatible). IoT-ready.
14
Optional solar panel control system expansion can be integrated according to customer configuration requirements.
15
Configurable with yaw control, pitch control, mechanical folding tail, mechanical brake, hydraulic brake, or electromagnetic brake.
