| Certification | ISO, CB, CE |
| Application | Collector Controller, Water Heater Controller, Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller, Thermal Controller |
| Rated Voltage | 24V |
| Model Number | Mt3075 |
| Work Time (H) | 24h |
| Max PV Power | 390/780W |
| Max PV Voltage | 55V@-20℃,50V@25℃ |
| Max Solar Voltage | 55V |
| Charge Way | MPPT, Boost, Equalization, Float |
| Max Tracking Efficiency | >99.9% |
| Max Charge Conversion | 97.0% |
| Battery Type | Gel, AGM, Liquid, Lithium (Default: Gel) |
| Dimension | 182*187.5*64mm |
| Custom-Tailored, OEM | Yes |
| Grounding | Common Negative |
| Communication | RS485, BLE |
| Transport Package | Carton / Wooden Box |
| Specification | MPPT |
| HS Code | 8517699000 |
| Production Capacity | 50,000 Pieces/Year |
| Package Size | 182.00cm * 187.50cm * 64.00cm |
| Gross Weight | 12.000kg |
| Lead Time |
3 days (1 - 100 Pieces) To be negotiated (> 100 Pieces) |

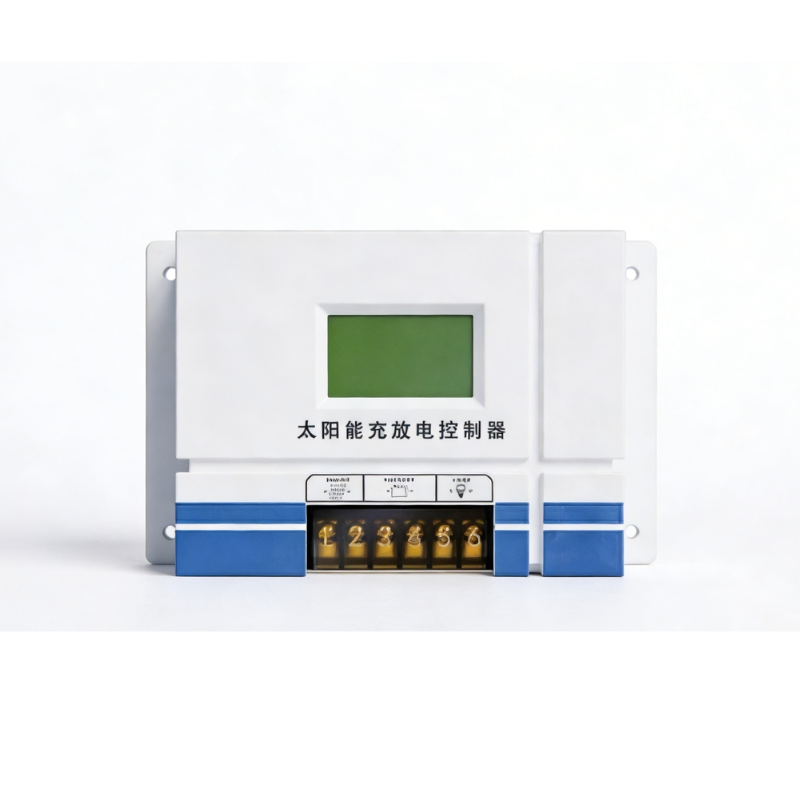

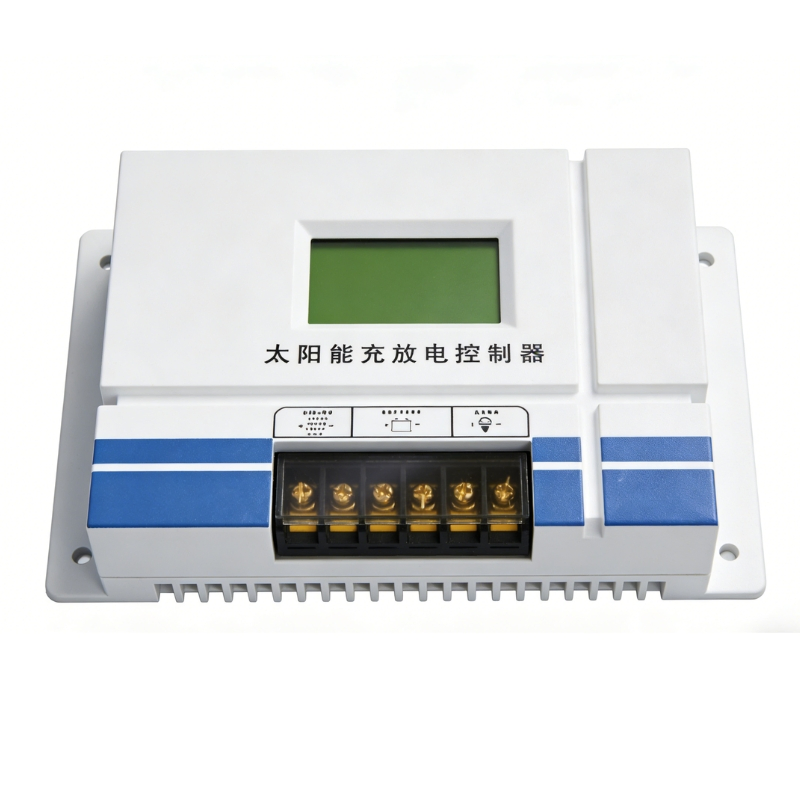

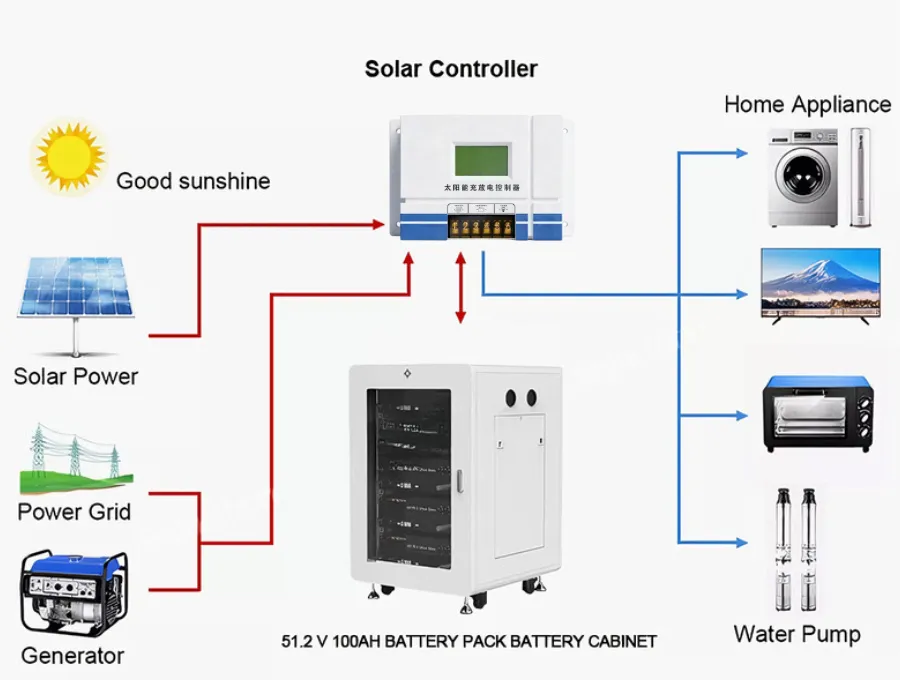

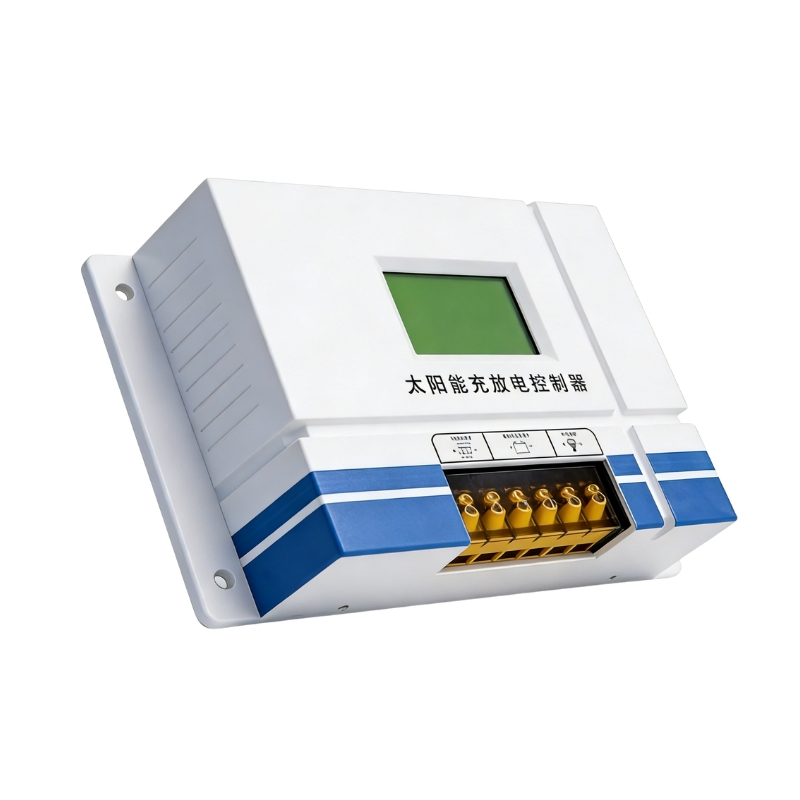

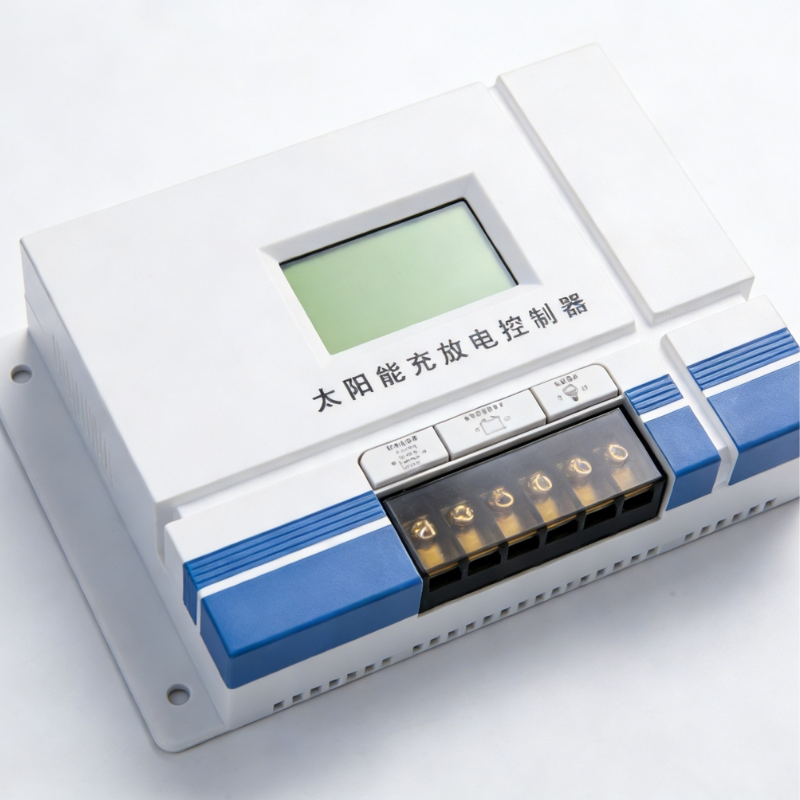

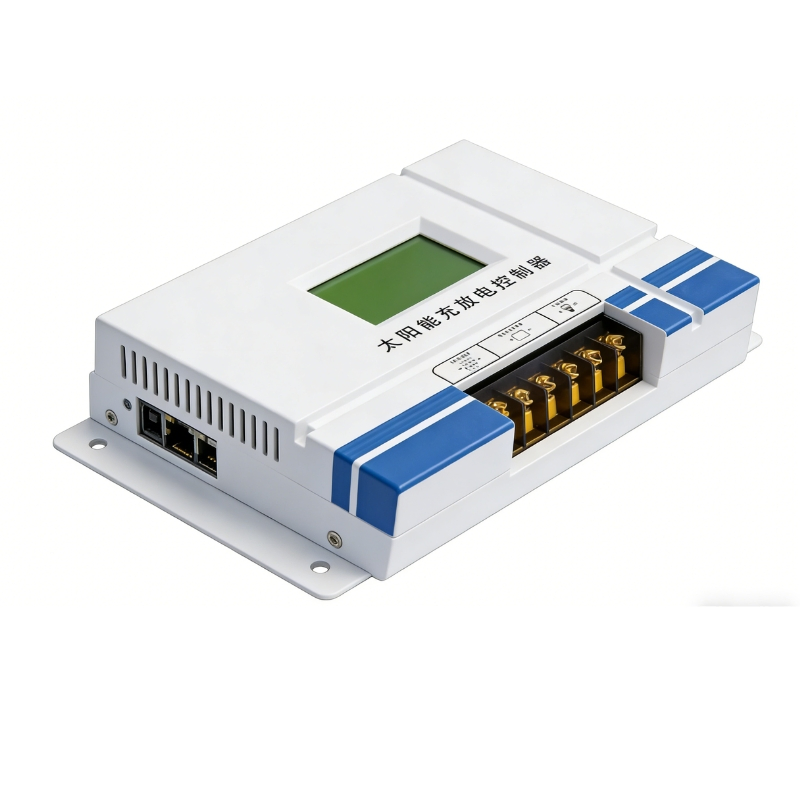

Our Solar Charge Controller is designed to optimize the performance and longevity of your solar energy systems. It efficiently manages the charging and discharging of solar batteries, ensuring maximum power utilization and battery protection. With advanced features like multiple current options, communication capabilities, and robust protection mechanisms, this controller is ideal for both residential and off-grid applications.
| Specification | spf-3000kw | spf-5000kw | spf-6000kw | |
|---|---|---|---|---|
| Battery voltage | 48VDC | |||
| Battery type | Lithium battery/lead-acid battery | |||
| Inverter Output | ||||
| Rated power | 6000VA/6000W | |||
| Parallel capability | Capable, up to 6 units | |||
| Output voltage (battery mode) | 230VAC±5%@50/60Hz | |||
| Surge power | 12000VA | |||
| Conversion efficiency | 93% | |||
| Wave form | Pure sine wave | |||
| Switching time | 10ms typical, maximum 20ms | |||
| Photovoltaic Controller | ||||
| Maximum photovoltaic array power | 8000W | |||
| MPPT operating voltage range | 120VDC~450VDC | |||
| Number of independent MPPT / strings per channel | 2/1 | |||
| MPPT maximum current | 16A | |||
| Maximum open circuit voltage of photovoltaic array | 500VDC | |||
| Maximum photovoltaic charging current | 100A | |||
| Communication Charger | ||||
| Charging current | 80A | |||
| Input rated voltage | 230VAC | |||
| Input voltage range | 170-280VAC (for personal computers); 90-280VAC (for household loads) | |||
| Input frequency range | 50/60Hz (adaptive) | |||
| Physical Characteristics | ||||
| Protection level | IP20 | |||
| Size (Height/Width/Thickness) | 460/395/132mm | |||
| Weight (Kg) | 13.5kg | |||
| Work Environment | ||||
| Relative humidity | 5% -95% (non condensing) | |||
| Altitude | >2000m | |||
| Working temperature | 0℃-55℃ | |||
| Storage temperature | -15℃-60℃ | |||
