Basic Info.
Condition
New
Certification
ISO, CE
Application
Solar System Controller
Rated Voltage
12V 24V
MPPT Efficiency
>99.5%
Conversion Efficiency
>98%
Operating Mode
Household Mode 24h
Working Temperature
-20celsius~50celsius
Storage Temperature
-30celsius~70celsius
Humidity
10%~90% No Condensation
Degree of Protection
IP30
Transport Package
Carton
Origin
China
Product Description

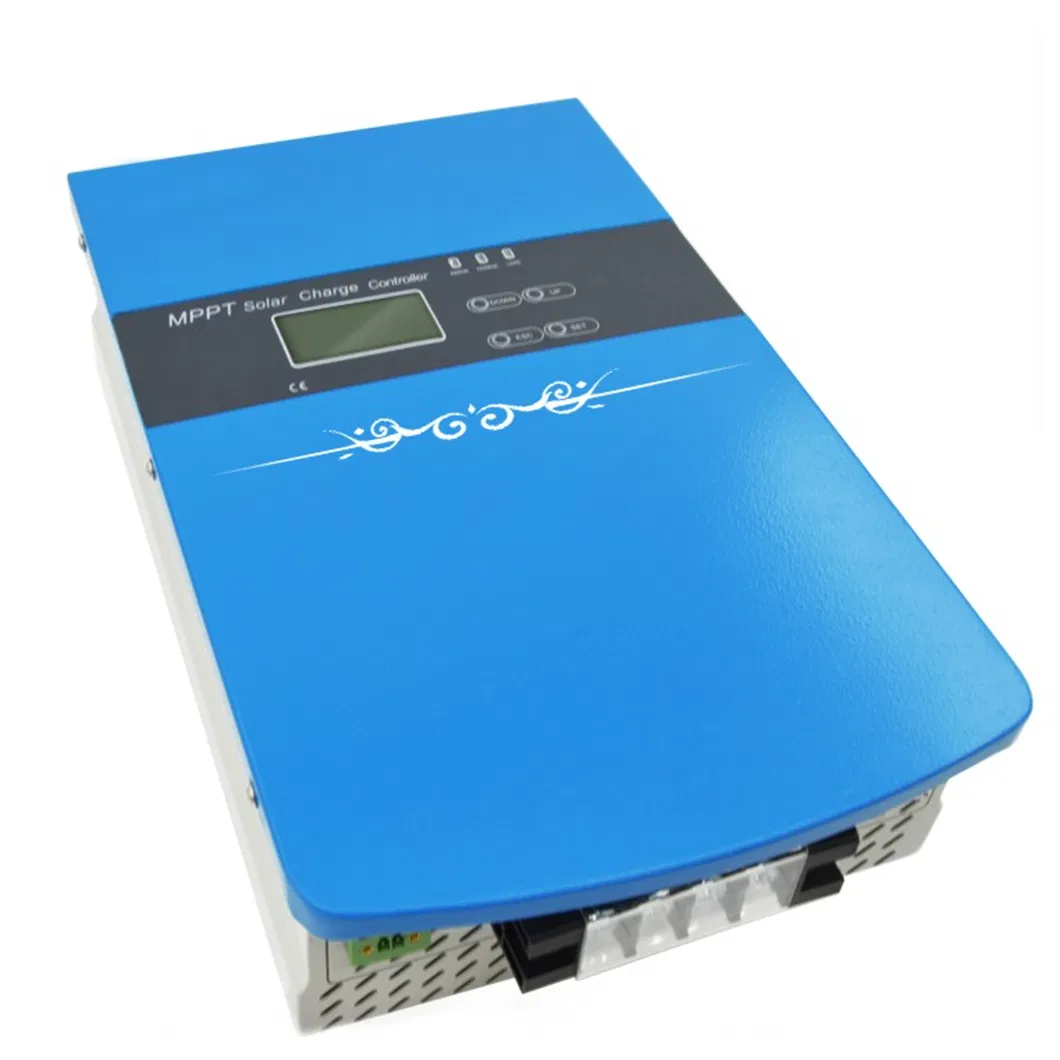

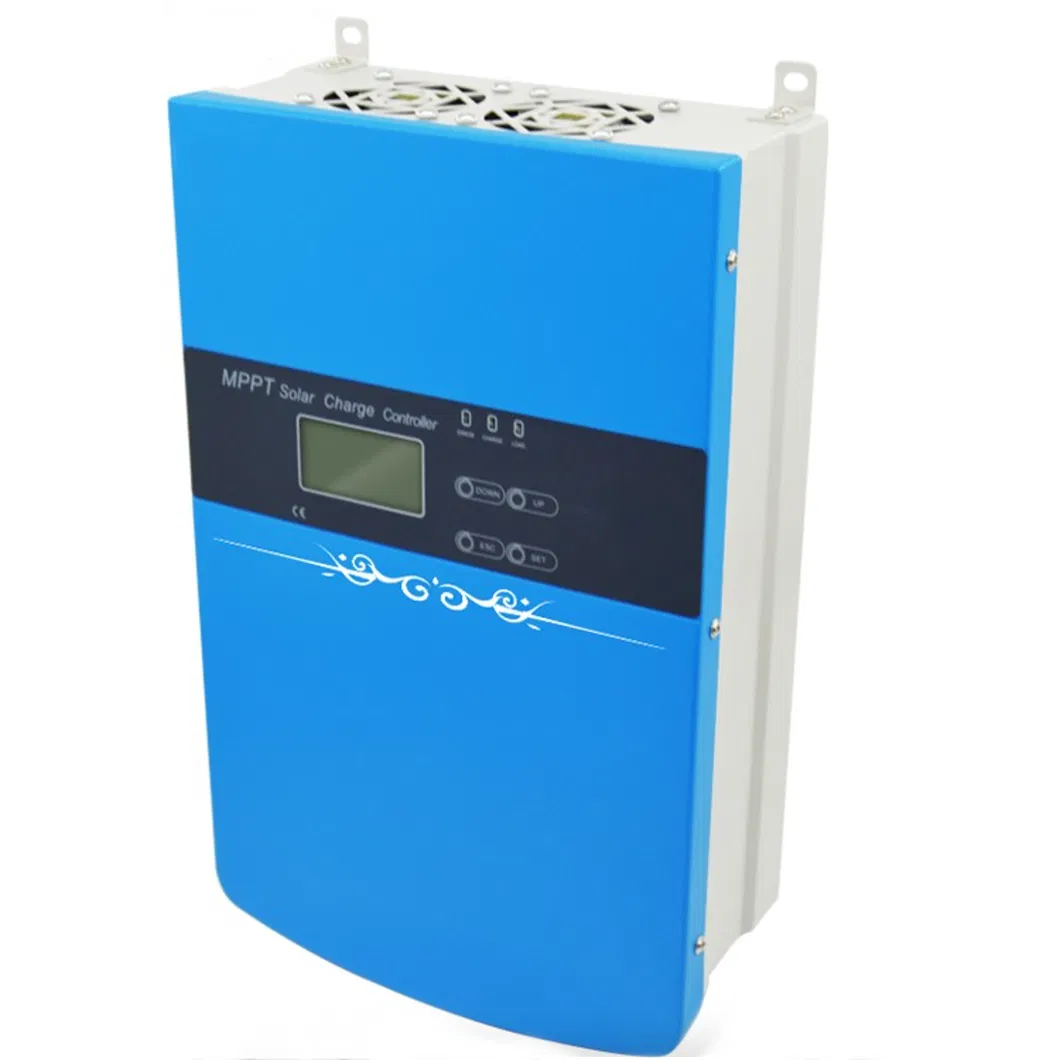

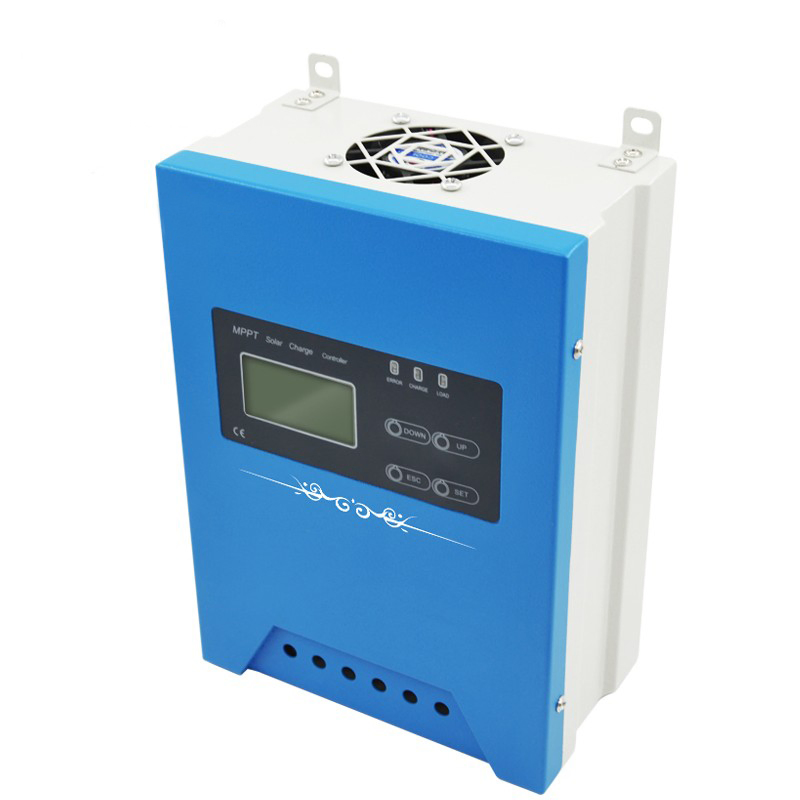

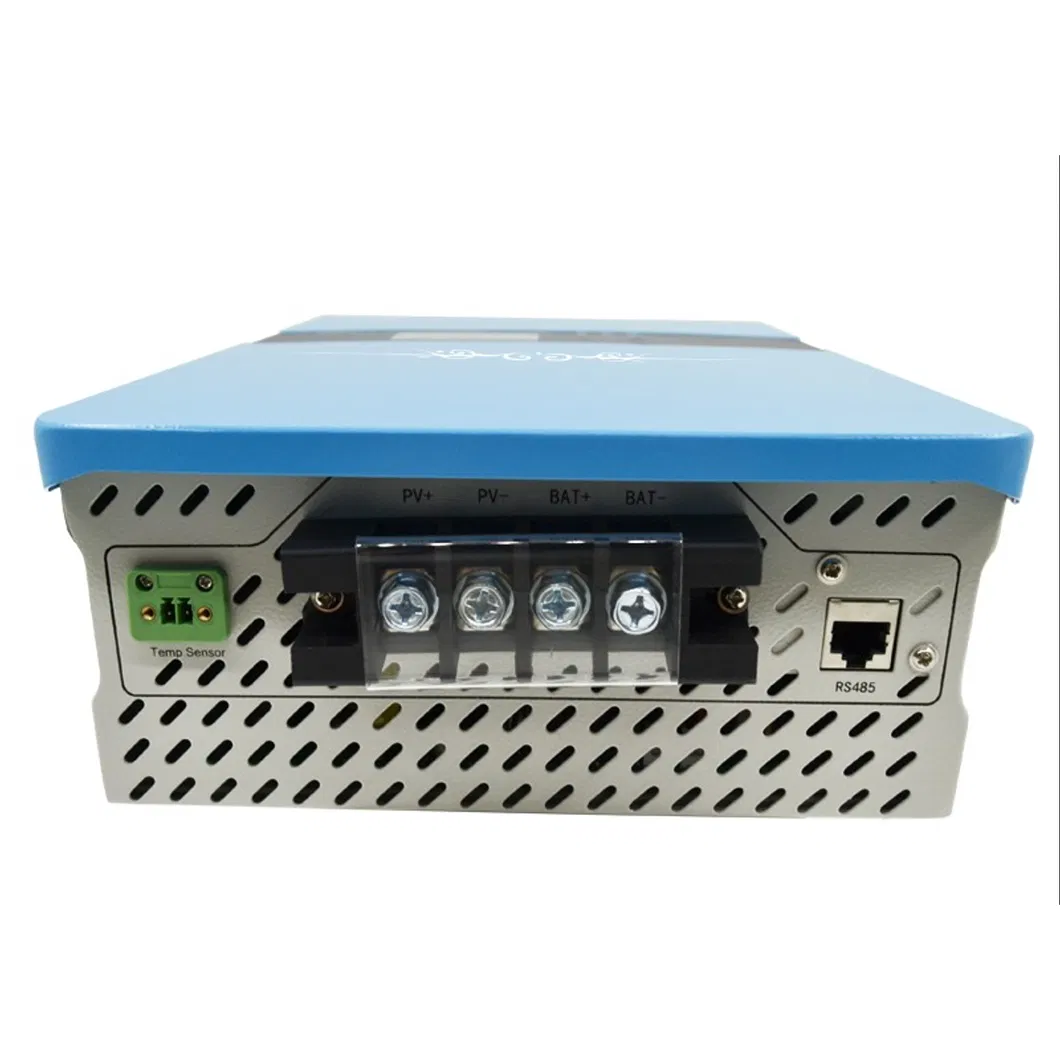

120A 12V 24V 48V 96V MPPT Solar Panel Power Charge Charging Controller with LED Driver
Product Features
- Advanced multi-phase synchronous rectification technology, also in low power charging environment has a high conversion efficiency.
- It has an ultra-wide operating voltage range for photovoltaic arrays.
- The system adopts common negative circuit design, which makes the system work more stable and reliable.
- Advanced MPPT maximum power point tracking technology, the tracking efficiency is not less than 99.5%, compared with the common PWM algorithm, the efficiency is increased by 15-20%.
- Using high-quality imported components and advanced power conversion circuits, the maximum conversion efficiency can reach more than 98%, and the full-load efficiency can reach 97%. The combination of multiple tracking algorithms can quickly track to the maximum power point.
- Three-stage charging method: MPPT-boost charging-floating charging.
- 12V/24V/48V battery system automatic identification function.
- RS485 communication can provide communication protocol, which is convenient for customers to integrate management and secondary development.
- You can view and set the operating parameters of the controller through the PC host computer and the mobile phone APP. For details, refer to the host computer and APP user manual (optional).
- With battery temperature compensation function.
- It has comprehensive protection functions such as overcharge, overdischarge, overtemperature, overload, reverse connection, etc.
- Compatible with lead-acid batteries, ternary lithium batteries, lithium iron phosphate and other battery types.
- Photovoltaic charging has the function of battery activation: when the lead-acid gel battery is severely depleted and the power is turned off, the photovoltaic can directly charge the battery supplies power and starts the power supply; when the lithium iron phosphate or ternary lithium battery is accidentally disconnected due to failure, etc., it can be connected to the photovoltaic to turn on the lithium battery pack, charge normally.
| Model |
| Current Level(A) |
10 | 20 |
10 | 20 | 30 | 40 | 50 |
30 | 40 | 50 | 60 | 70 |
50 | 60 | 80 | 100 | 120 |
| Maximum Charging Current(A) |
10 | 20 |
10 | 20 | 30 | 40 | 50 |
30 | 40 | 50 | 60 | 70 |
50 | 60 | 80 | 100 | 120 |
| PV Maximum Input Power(12V)(W) |
120 | 240 |
120 | 240 | 360 | 480 | 600 |
360 | 480 | 600 | 720 | 840 |
600 | 720 | 960 | 1200 | 1440 |
| PV Maximum Input Power(24V)(W) |
240 | 480 |
240 | 480 | 720 | 960 | 1200 |
720 | 960 | 1200 | 1440 | 1680 |
1200 | 1440 | 1920 | 2400 | 2880 |
| PV Maximum Input Power(48V)(W) |
- | - |
480 | 960 | 1440 | 1920 | 2400 |
1440 | 1920 | 2400 | 2880 | 3360 |
2400 | 2880 | 3840 | 4800 | 5760 |
| PV Maximum Input Power(96V)(W) |
- | - |
- | - | - | - | - |
- | - | - | - | - |
4800 | 5760 | 7680 | 9600 | - |
| Output Current(A) |
7 | 14 |
7 | 14 | 21 | 28 | 35 |
21 | 28 | 35 | 42 | 49 |
- | - | - | - | - |
| PV Panel Open Circuit Input Voltage Range(V) |
20V~80V (12V System) |
20V~100V (12V System) |
20V~100V (12V System) |
| 40V~145V (24V System) |
40V~145V (24V System) |
| 40V~80V (24V System) |
80V~145V (48V System) |
80V~145V (48V System) |
| 80V~240V (96V System) |
| System Identification Voltage Range(V) |
12V System |
DC9V-DC16V |
| 24V System |
DC18V-DC32V |
| 48V System |
DC42V-DC60V |
| 96V System |
96V Is An Independent System |
| MPPT Efficiency |
>99.5% |
| Conversion Efficiency |
>98% |
| Operating Mode |
The default is household mode 24H |
| Working Temperature |
-20Celsius~50Celsius |
| Storage Temperature |
-30Celsius~70Celsius |
| Humidity |
10%~90% No Condensation |
| Degree Of Protection |
IP30 |

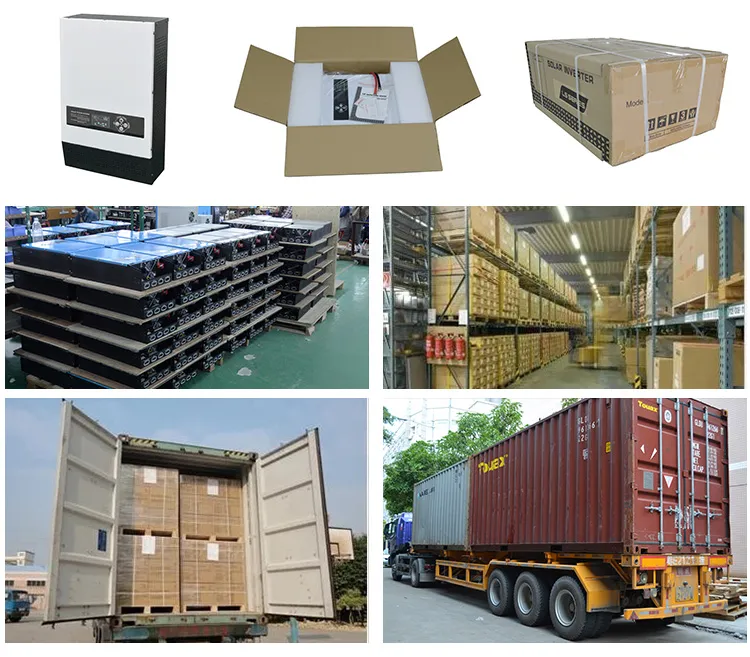

Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
A professional manufacturer engaged in the research & development, manufacturing & sales business of solar modules, inverters, energy storage batteries, solar power systems and supporting products for solar power stations, founded in 2010.
Deeply trusted by new and old professional customers around the world for its new energy products with reasonable design, sophisticated technology, rich categories and reliable quality, as well as professional, high-efficiency and refined service characteristics.
The annual production and sales of new energy products include: 3GW solar modules, 250,000 solar systems and 1.2GW solar power plant equipment. Customers are located in Europe, America, Asia, Africa and other regions. Brand, product and channel cooperation has been reached with many well-known manufacturers in the industry, providing stable OEM and ODM services for relevant well-known manufacturers, and providing more cost-effective Tier1 brand product sales services simultaneously.
Shipping
- Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
- By air or by sea for batch goods, for CFL, Air port/ Port receiving.
- Customers specifying freight forwarders or negotiable shipping methods.
- Delivery time: 7 days for samples; 10 to 25 days for batch goods.
Frequently Asked Questions
Are you a factory?
Yes, we are ISO9001:2015 manufacturing with qualifications of TUV, CE, ROHS & CCC. Our main products include inverters, solar controllers and solar energy system solutions.
Are your inverters pure sine wave output?
Yes, all of our inverters are pure sine wave output.
What kind of output voltage can you provide?
Normally, we produce inverters with 110v/ 50Hz, 120V/ 60Hz, 220v/ 50Hz, 230v/ 50Hz, 240V/50Hz. If you have special requirements, please contact us for engineering consultation.
What appliances can your inverters load?
Our inverters can load household appliances and other inductive loads such as refrigerators, air conditioners, water pumps, etc.
What is the difference between a low frequency and a high frequency inverter?
Low frequency inverters have various protections and a strong ability to adapt to the environment. They are more reliable and feature built-in voltage regulation.
What is the difference between pure sine wave and modified sine wave inverters?
Pure sine wave output inverters are just as good as the public power grid (or even better) with low repair rates, long lifespans, no harmonic pollution, and are environmentally friendly and safe for appliances. Modified sine wave output can have a negative impact on appliances and cannot load inductive loads like air conditioners or refrigerators.
