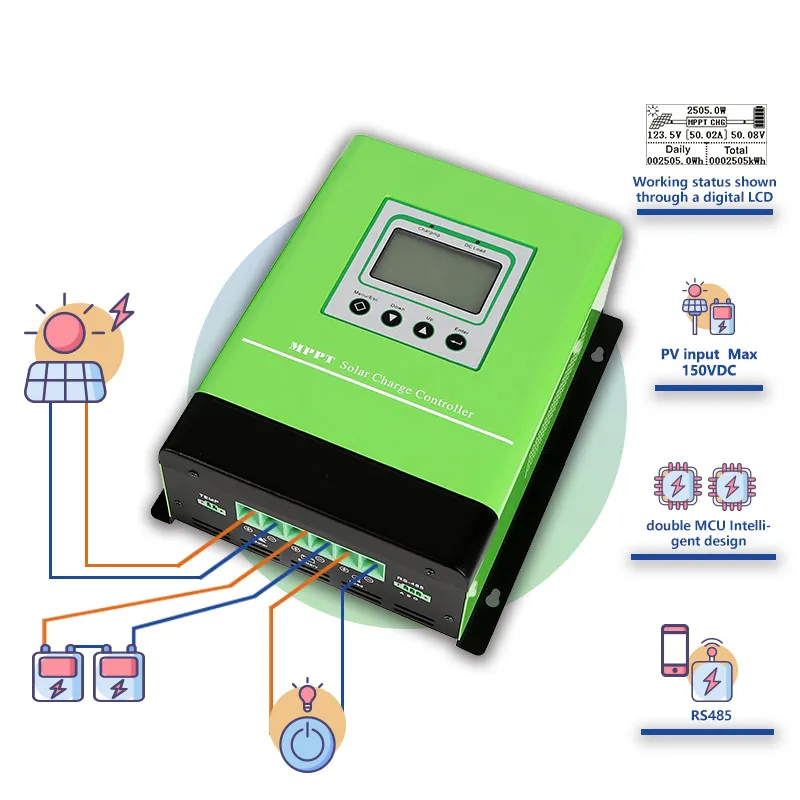

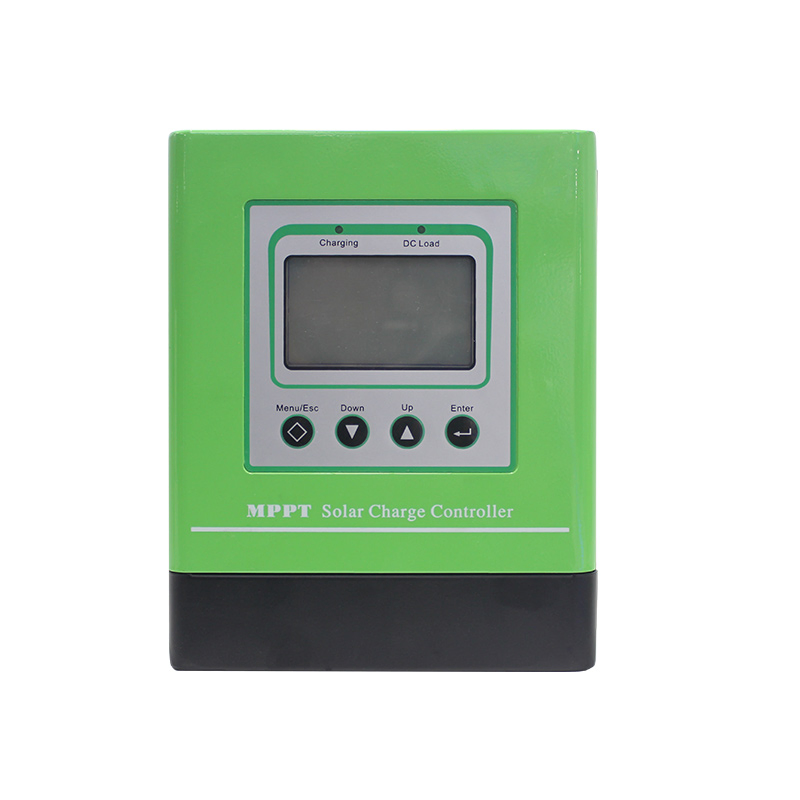

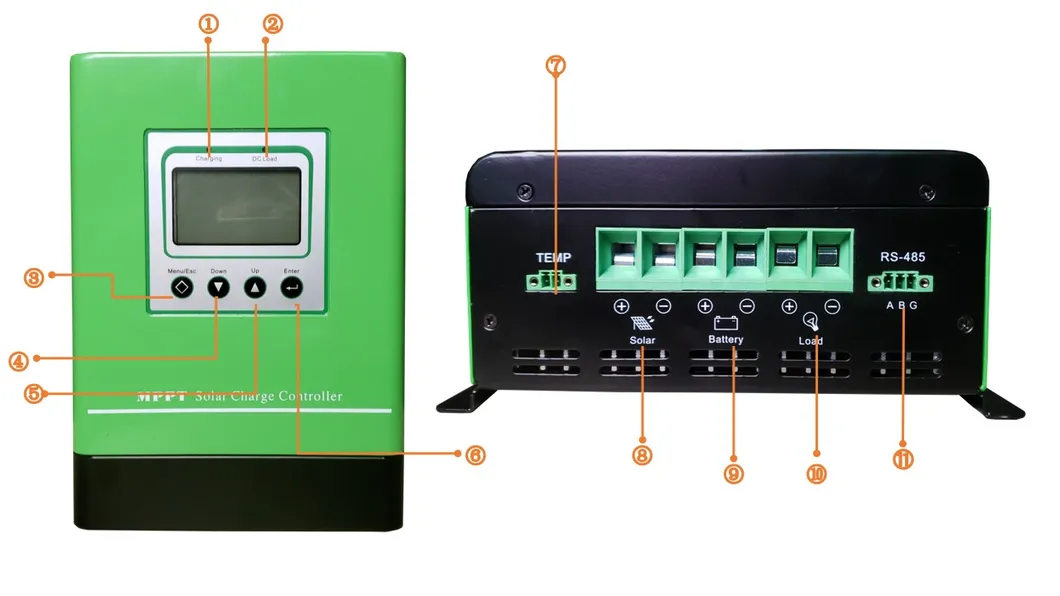

MPPT controller uses the maximum power point tracking technology to extract the maximum power from the solar array to charge the battery. Maximum power point tracking mode is completely automatic and does not require user adjustment.
When the maximum power point of the array varies with environmental conditions, the controller automatically tracks the maximum power point of the array to ensure that the maximum energy of the day can be obtained from the solar array.
| Model: MP-40/50/60 | 40A | 50A | 60A | ||
|---|---|---|---|---|---|
| Charging Mode | MPPT Automatic Maximum Power Point Tracking | ||||
| Charging Method | Three stages: Constant Current (MPPT), Balanced Charging, Floating Charge | ||||
| System Type | 48/60/72/96(V) | Automatic Identification/Manual Setting | |||
| System Identification Voltage Range | 48V System | DC36-DC60V | |||
| 60V System | Manual setting | ||||
| 72V System | Manual setting | ||||
| 96V System | DC72-DC96V | ||||
| Soft Start Time | 48/60/72/96(V) | <10s | |||
| Recovery Time | 48/60/72/96(V) | <500us | |||
| Static Power | 48/60/72/96(V) | <2W | |||
| Machine Efficiency | 48/60/72/96(V) | >96.5% | |||
| PV Utilization | 48/60/72/96(V) | 99.97% | |||
| MPPT Operating Voltage Range | 48V System | DC65-DC150V | |||
| 60V System | DC72-DC150V | ||||
| 72V System | DC80-DC150V | ||||
| 96V System | DC130-DC180V | ||||
| Limit Input Voltage | 48/60/72/96(V) | 48/60/72(160V) / 96V(235V) | |||
| Overvoltage Protection | 48/60/72/96(V) | 48/60/72(150V) / 96V(230V) | |||
| Overvoltage Recovery | 48/60/72/96(V) | 48/60/72(145V) / 96V(225V) | |||
| Maximum Solar Panel Input Power | 48V System | 2100W | 2650W | 3150W | |
| 60V System | 2650W | 3300W | 4000W | ||
| 72V System | 3200W | 4000W | 4800W | ||
| 96V System | 4250W | 5300W | 6400W | ||
| Optional Battery Type (Default is lead-acid battery) |
48/60/72/96(V) | Lead-acid maintenance-free Battery, Gel Battery, Liquid Battery, Lithium Battery (Can also be customized for other types of battery) | |||
A: The MOQ is 1 unit.
A: We are a professional manufacturer specializing in solar system solutions and products.
A: Yes, our professional technical team has extensive experience and can design customized solar power systems to meet your specific requirements.
A: Delivery is usually arranged within 15 days.
A: We offer a quality warranty for 2 years. Any replacement parts will be shipped free of charge during the warranty period.
A: It supports Lead-acid maintenance-free batteries, Gel batteries, Liquid batteries, and Lithium batteries. Customization options are also available for other battery types.
