High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller
High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller
High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller
High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller
High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller
1 / 5
High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller
High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller
High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller
High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller
High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller

High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller

Customization: Available
After-sales Service: Yes
Warranty: 2 Years
Send Inquiry

Product Description

Basic Info.
Model NO.
stin-480V
Condition
New
Certification
ISO, CE
Application
Solar System Controller, Charger Controller, Lighting Controller, Solar Working Station
Rated Voltage
480V
Transport Package
Wooden Case
Trademark
OEM/ODM
Origin
Changzhou
HS Code
9032899090
Production Capacity
20000PCS/Month
High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller
Product Features
High speed and high performance 32-bit processor with excellent EMC design.
Advanced MPPT tracking algorithm, tracking efficiency more than 99%.
High performance IGBT power module as electronic switch, with multiphase synchronous rectification technology.
Ultrafast maximum power point tracking speed to ensure tracking efficiency.
Accurate identification and tracking of multi-peak maximum power points.
With current-limiting charging function, friendly and compatible with various capacity batteries.
Widely PV arrays' voltage input, saving the cost of PV combiner box, wires, and construction.
Full enclosed duct design and high-speed fan for cooling, suitable for harsh environments.
Shows ambient temperature, with automatic temperature compensation and RTC real-time function.
Perfect battery protection function and multi-stage charging to improve battery life.
Statistical function of generating capacity to view daily, monthly, and total charging capacity.

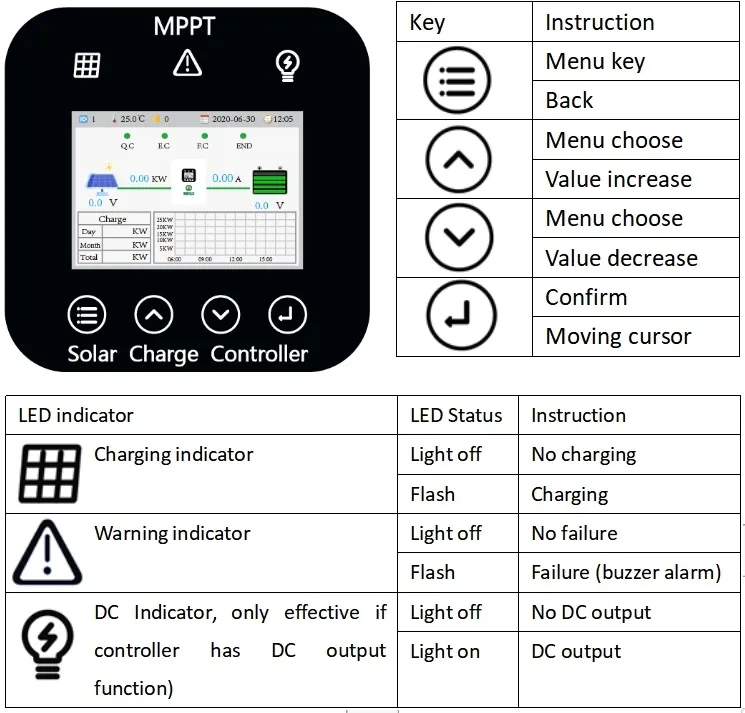

Complete menu display and user-friendly interface design for easier operation.
Compatible with GEL, LEAD-ACID, LITHIUM, and other battery types.
Double protection function to prevent battery damage when the power switch is off.
Parameter Specifications
Rated system voltage 192V 240V 288V 300V 360V 384V 420V 480V 540V
Rated Charging current 50A / 60A / 70A / 80A / 100A
Charging technology MPPT (Max. Power Point Tracking)
MPPT efficiency >99.9%
Max. input voltage 750V
Start charging voltage Vbat +10V
MPPT start voltage Vbat +20V
Charging method Four stages: MPPT fast charging, equalize charging (constant voltage), float charging, end charging
Over voltage disconnect (V) 256 320 384 400 480 512 560 640 720
Over voltage reconnect (V) 240 300 360 375 450 480 525 600 675
Equalize charging (V) 230.4 288 345.6 360 432 460.8 504 576 648
Equalize charging time 120 minutes (default setting)
Float charging (V) 220.8 276 331.2 345 414 441.6 483 552 621
Equalize charging recovery (V) 211.2 264 316.8 330 396 422.4 462 528 594
Over discharging warning (V) 168 210 252 262.5 315 336 367.5 420 472.5
Display LCD+LED
Language English
Connector type TC series barrier terminal
Altitude <3000 meter (power reduction required if altitude exceeds 3000 meter)
Ambient temperature -25 ~ 55 ℃
Protection level IP32 (indoor)
Dimension 494*384*197mm
Weight 27KG
High Quality Solar Working Station 2 Years Hybrid Power MPPT Charge Controller
Frequently Asked Questions
1 What are your main products?
We supply solar panels (monocrystalline and polycrystalline), solar batteries (gel and lithium-ion), solar systems (both on-grid and off-grid), solar inverters, and solar charge controllers (MPPT and PWM).
2 What is your advantage in solar products?
With more than 10 years of rich experience in the solar industry, we provide full-range professional support from initial project design to final installation.
3 Can you send free samples?
It depends on the product type. Generally, the sample fee will be refunded after you place a bulk order.
4 What is the shipping cost?
Once the quantity is confirmed, please let us know your preferred shipping method (by sea, air, or express couriers like DHL, FedEx, TNT, or UPS) and the destination port. We will provide you with the exact shipping cost and estimated delivery time.
5 What is your minimum order quantity?
Our minimum order quantity is 1 piece.
6 What payment methods do you accept?
We accept T/T, L/C, PayPal, and Western Union.
