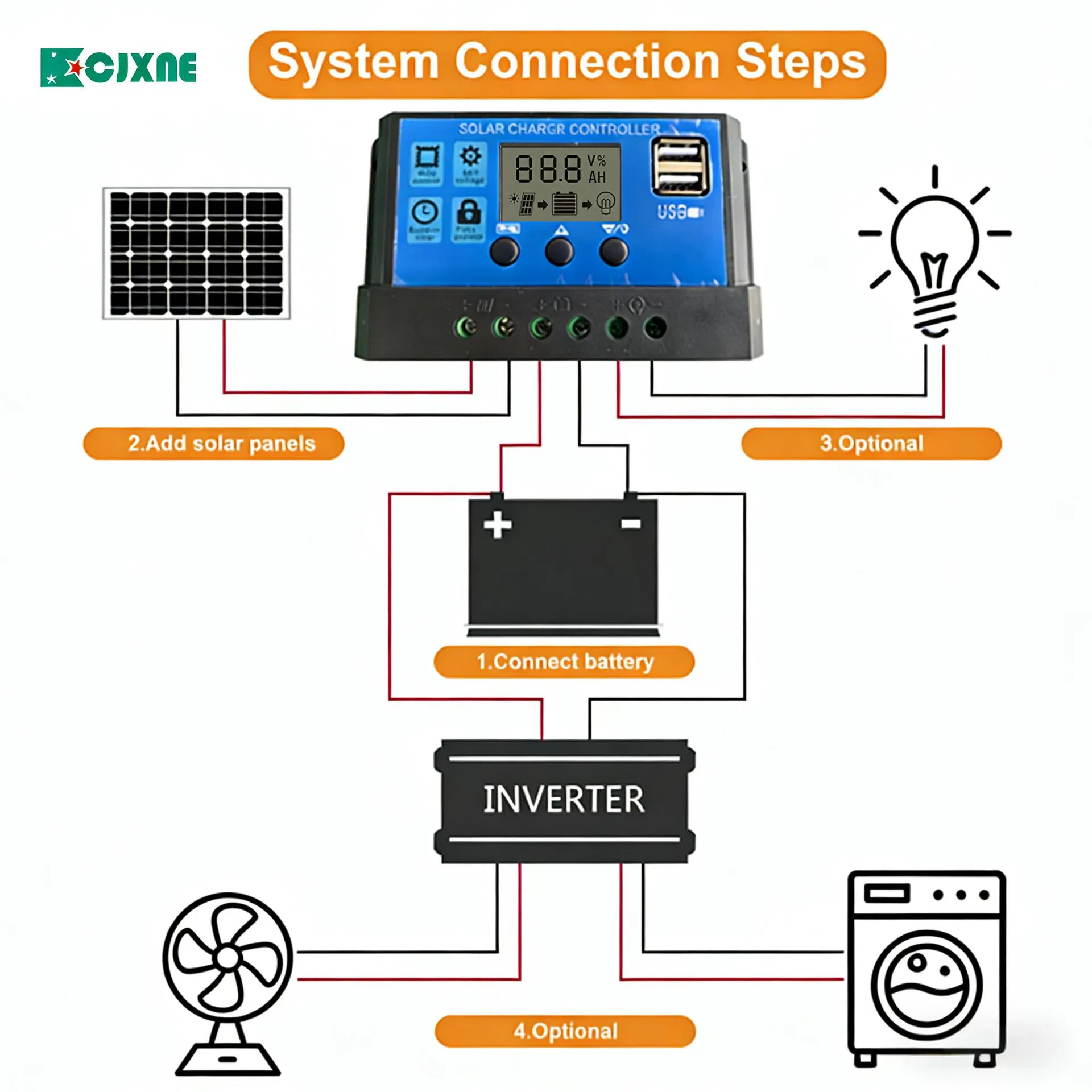

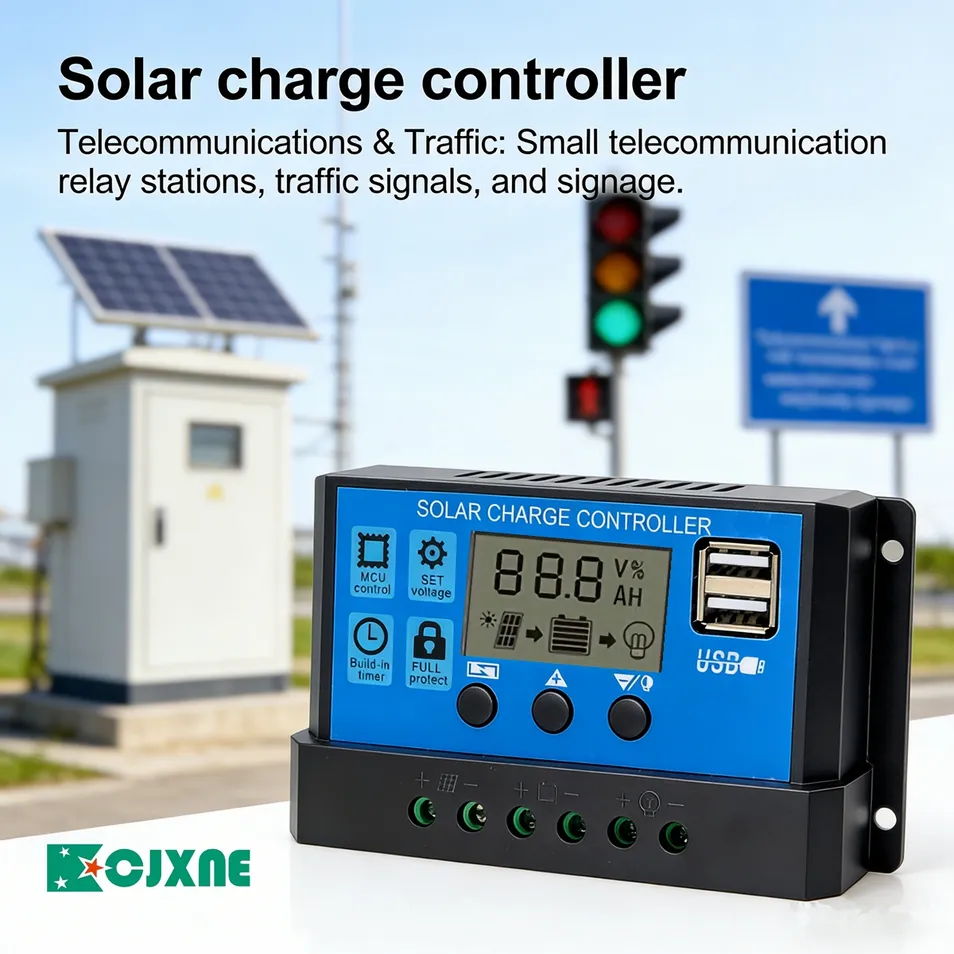

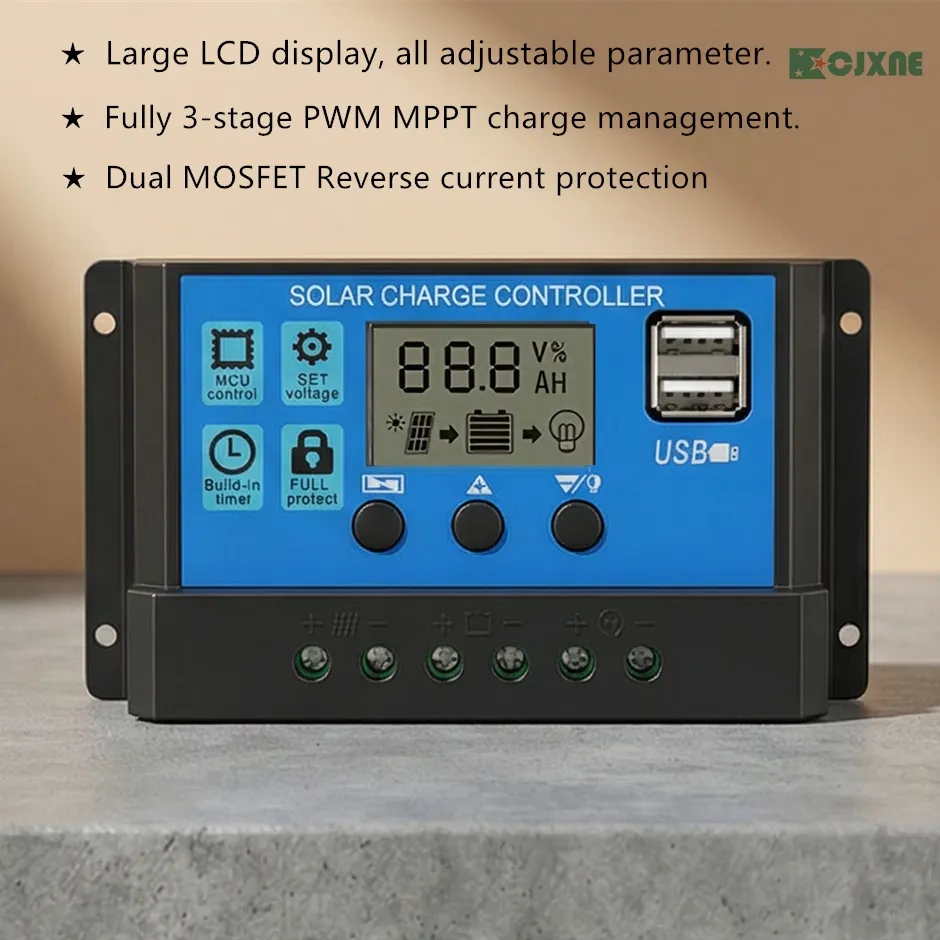

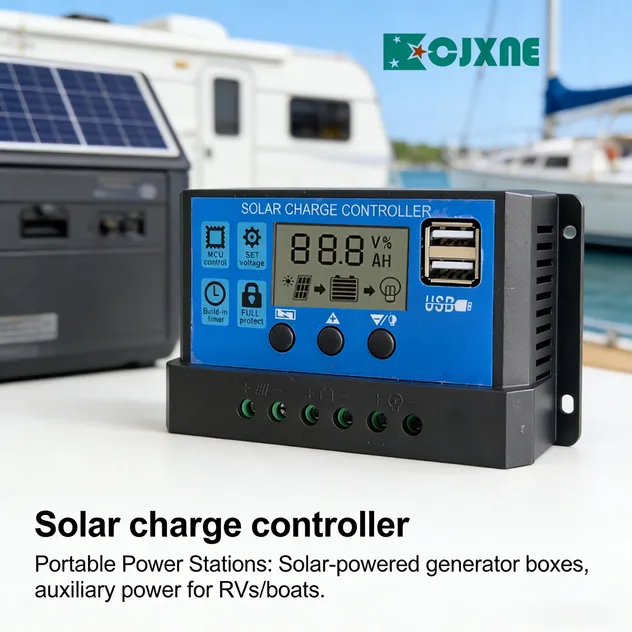

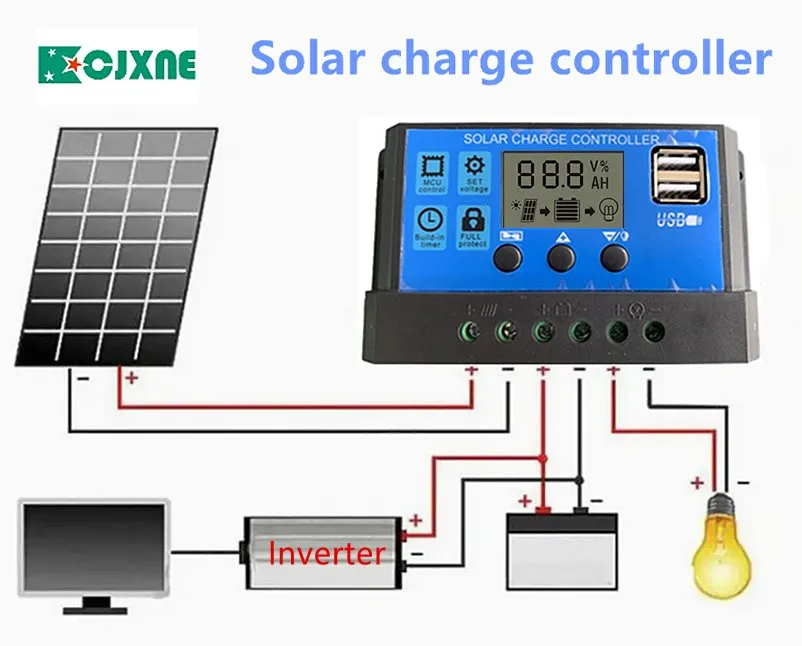

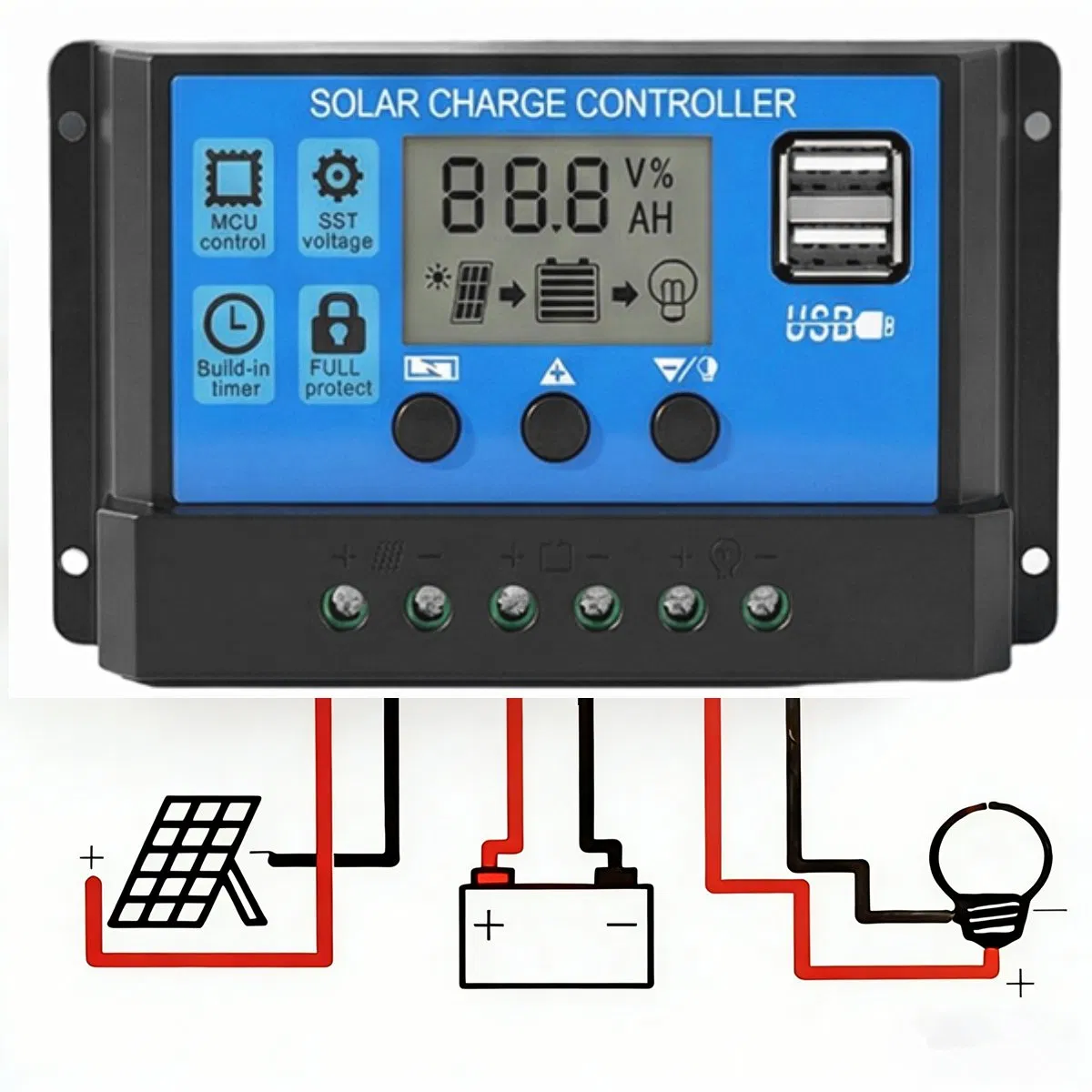

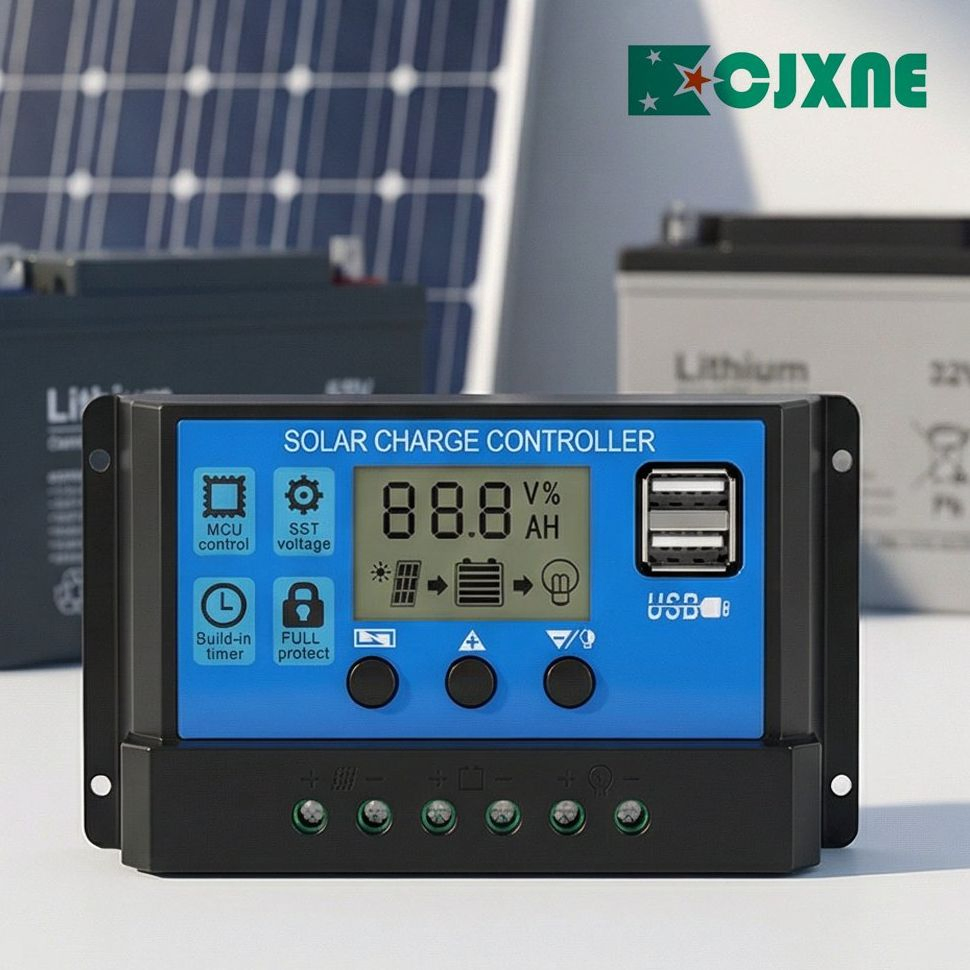

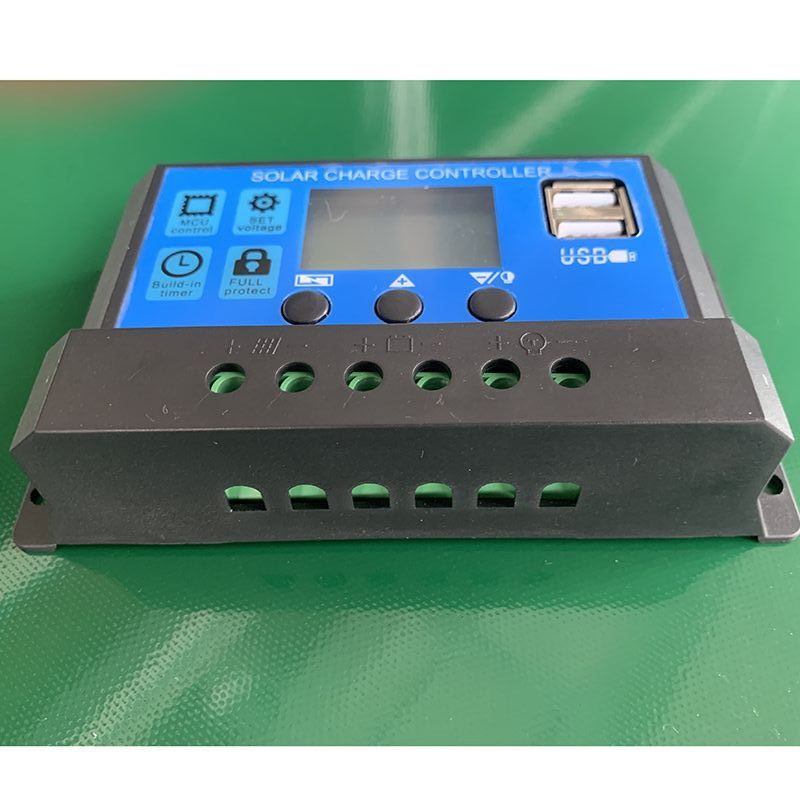

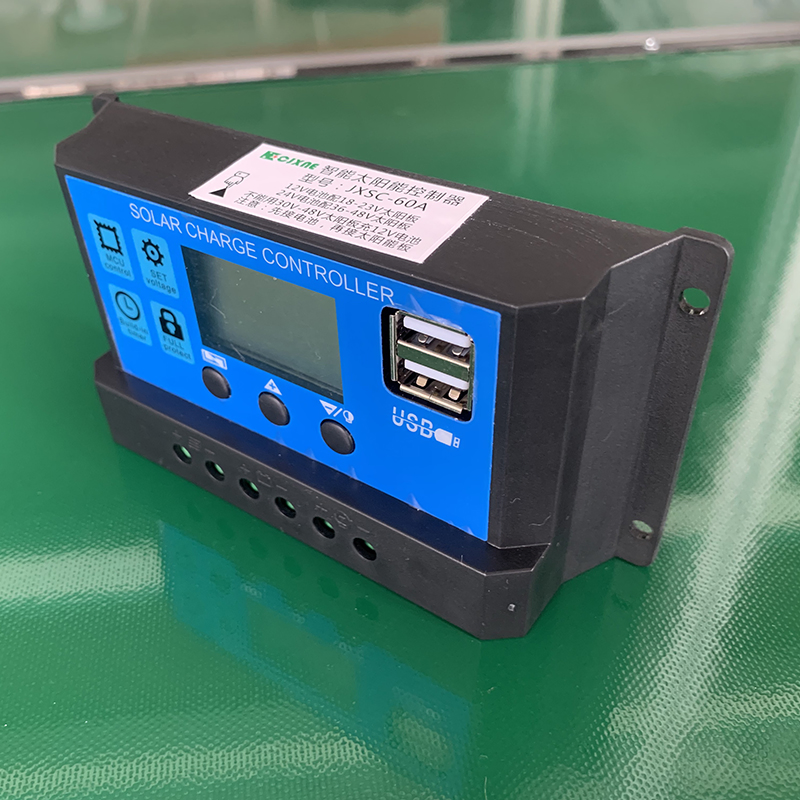

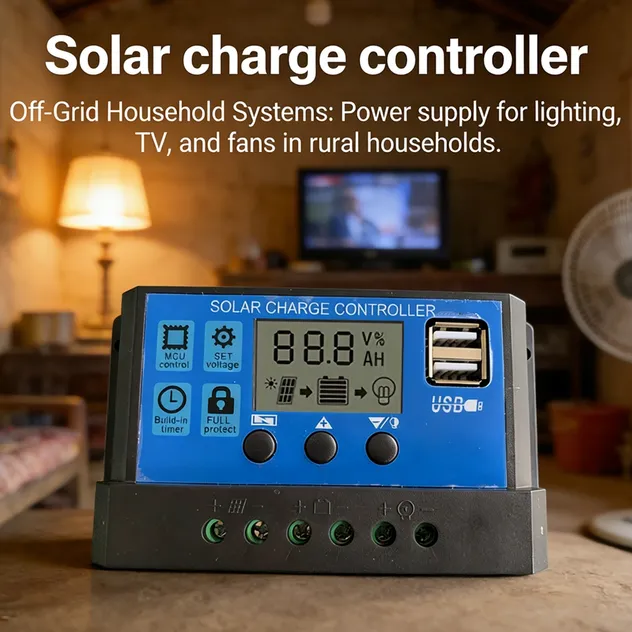

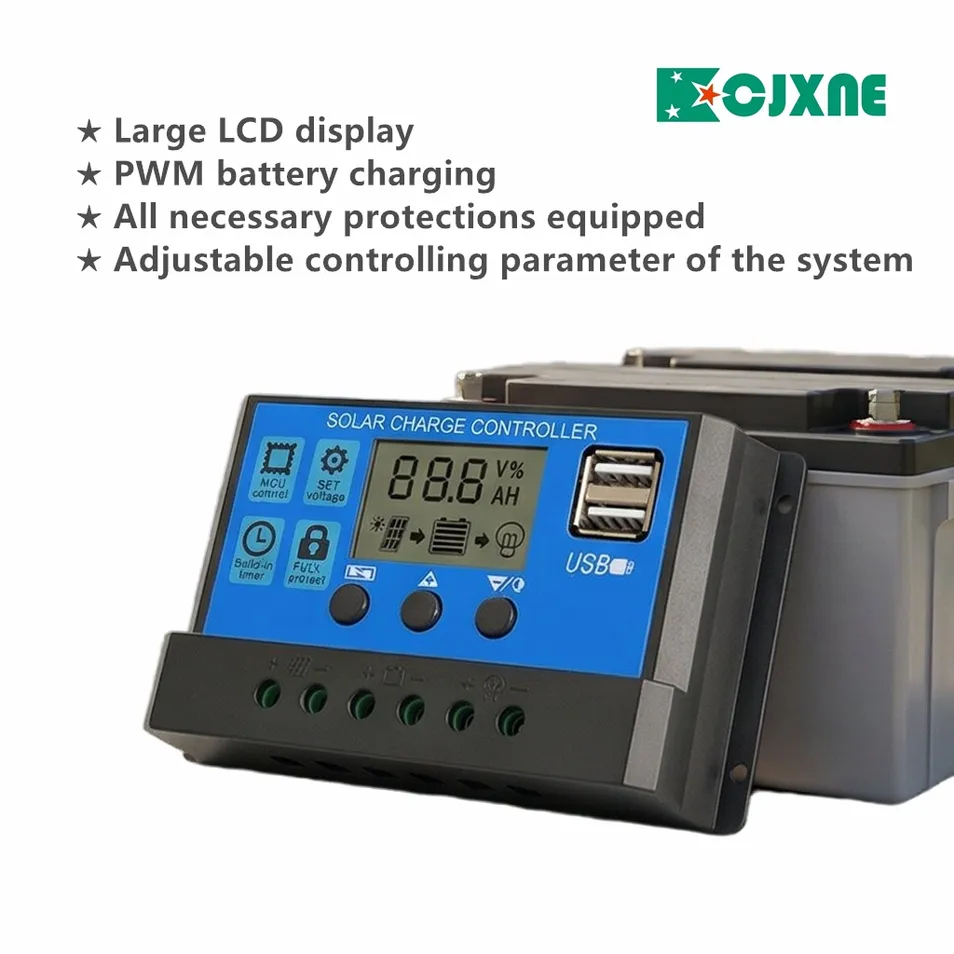

Our PWM Solar Charge Controller is the intelligent core of off-grid solar systems, designed to manage the charging process from solar panels to batteries with high efficiency, safety, and reliability. Utilizing advanced Pulse Width Modulation (PWM) technology, it intelligently regulates charging voltage and current to ensure batteries are charged under optimal conditions, significantly extending battery life while providing comprehensive circuit protection. With a rugged construction and easy installation, it is the ideal choice for household lighting, telecommunication base stations, security monitoring, and various small to medium-sized off-grid solar applications.
| Model | JXSC-10A | JXSC-20A | JXSC-30A | JXSC-40A | JXSC-50A | JXSC-60A |
|---|---|---|---|---|---|---|
| Battery voltage | 12V/24V adaptive | |||||
| Rated charging current | 10A | 20A | 30A | 40A | 50A | 60A |
| Discharge current | 10A | 10A | 10A | 10A | 10A | 10A |
| Max PV voltage | <41V | |||||
| Charging mode | BO1 lead-acid 14.4V | BO2 lithium 12.6V | BO3 Lithium iron 14.6V | BO1 lead-acid 14.4V | BO2 lithium 12.6V | BO3 Lithium iron 14.6V |
| Float charging voltage | 13.7V/27.4V | |||||
| Discharge cut-off voltage | 10.7V/21.4V | |||||
| Discharge recovery voltage | 12.6V/25.2V | |||||
| USB output | 5V/2A Max | |||||
| Standby current | <10mA | |||||
| Light control mode | Intelligent light control mode | |||||
| Protect function | Automatic power off / overcurrent protection / reverse polarity protection / short circuit protection | |||||
| Working temperature | -35℃ ~ +60℃ | |||||

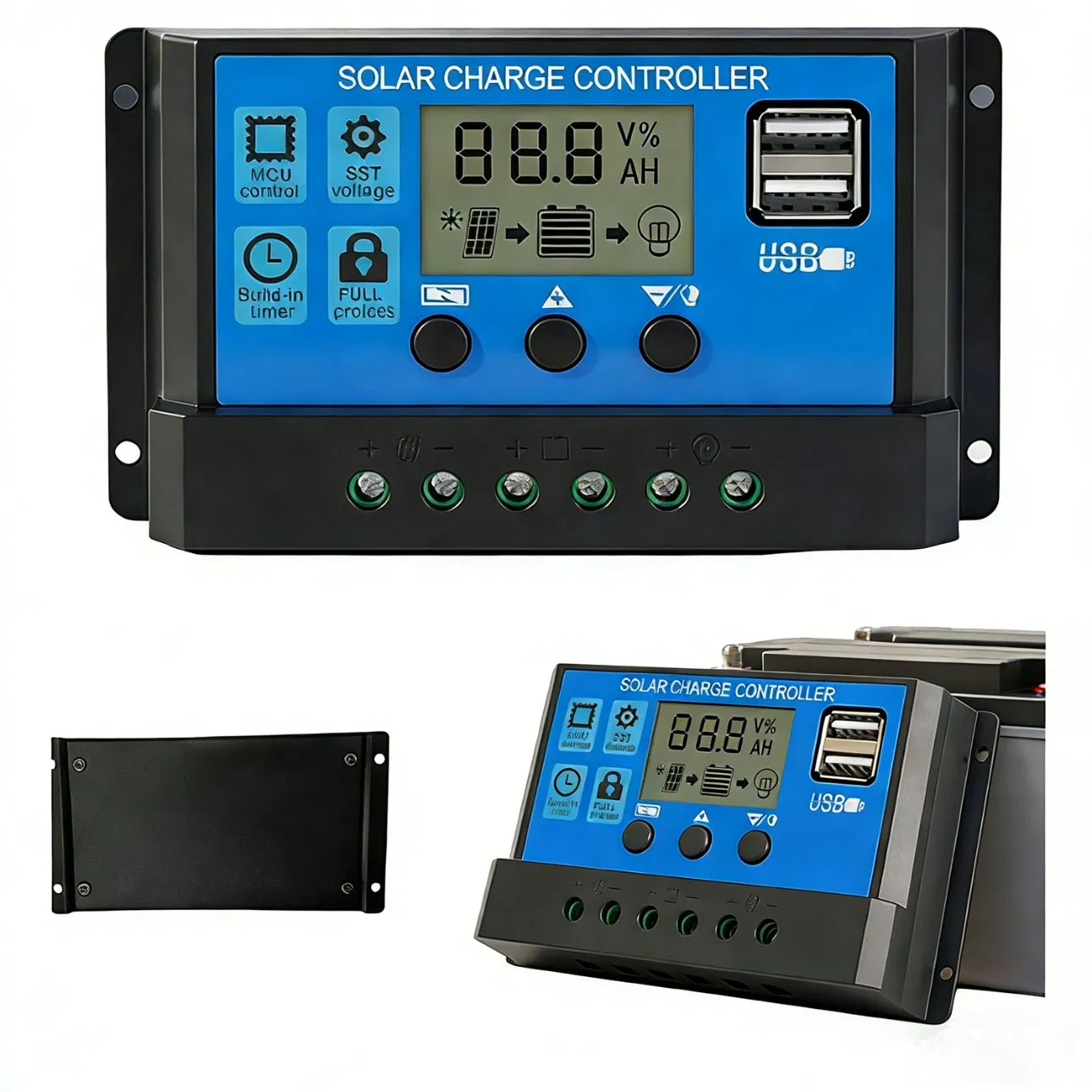

| Size / weight | 150*78*35mm / 150g | |||||

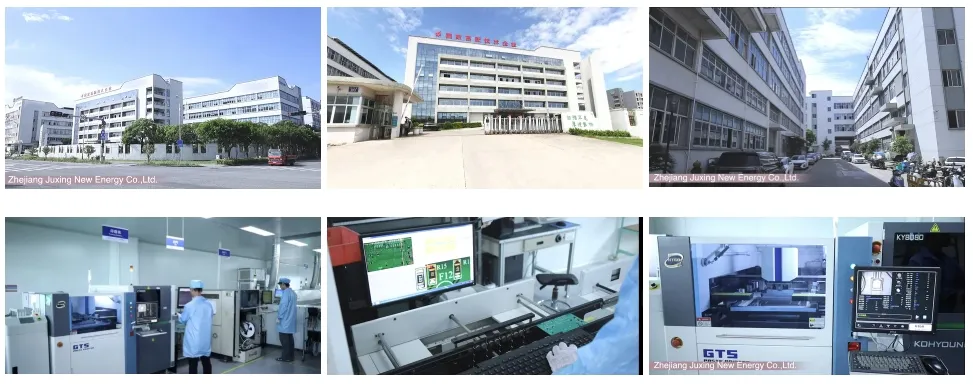

We specialize in designing, manufacturing, and distributing high-efficiency power inverters and converters for residential and industrial applications. Our high-quality, professional R&D team continues to make technological breakthroughs and product innovations in inverters, portable power stations, solar charge controllers, and step-up/step-down converters.
A: The production cycle varies depending on the product. Please share the specific product details with us, and we will reply as soon as possible with a detailed timeline.
A: Yes, OEM and ODM customization is accepted. Please let us know your specific requirements and design needs.
A: Yes, we can provide samples for quality evaluation. Please specify the product models and quantity needed, and we will arrange it accordingly.
A: We can provide samples if we have ready parts in stock. However, please note that the sample cost and shipping/delivery fees will be charged.
A: The regulator is suitable for lead-acid batteries (including OPEN, AGM, GEL), lithium-ion batteries (3 strings of 11.1V), and lithium iron phosphate batteries (4 strings of 12.8V).
A: It features built-in self-recovering protections including automatic power off, overcurrent protection, reverse polarity protection, and short circuit protection.
