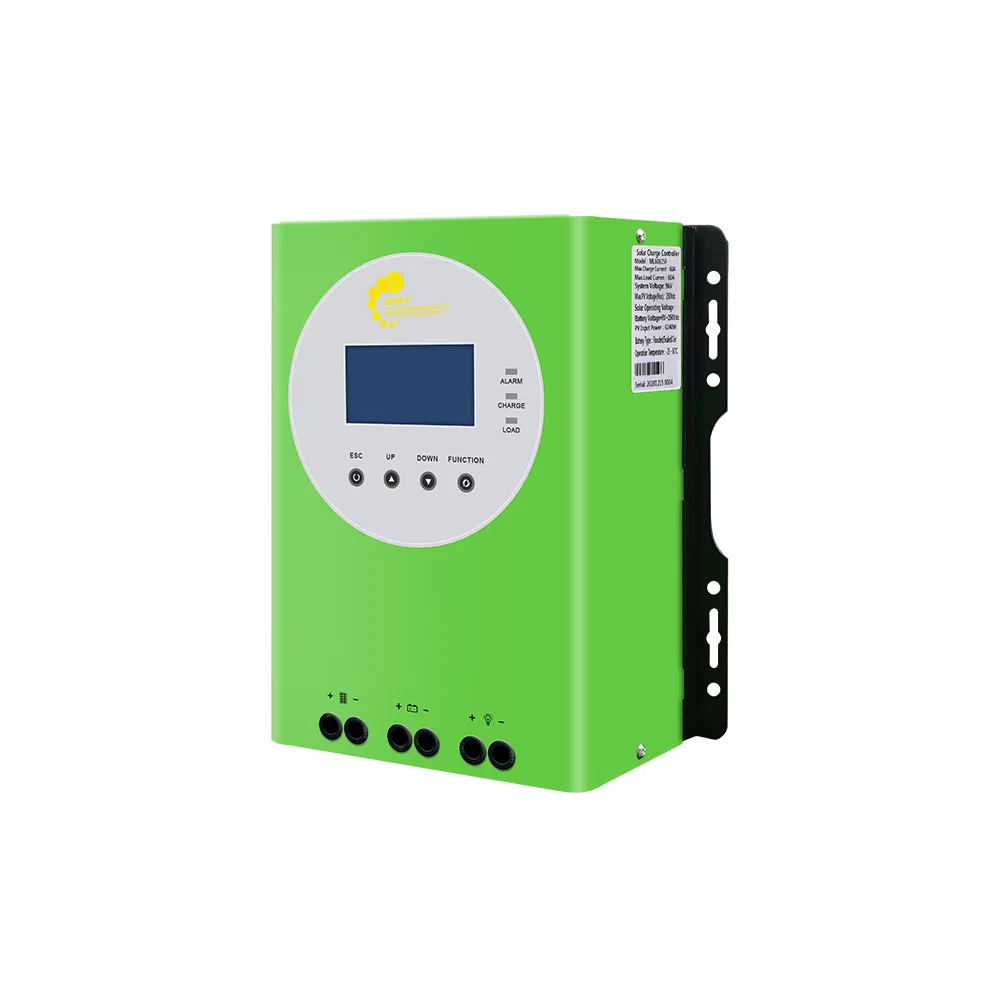

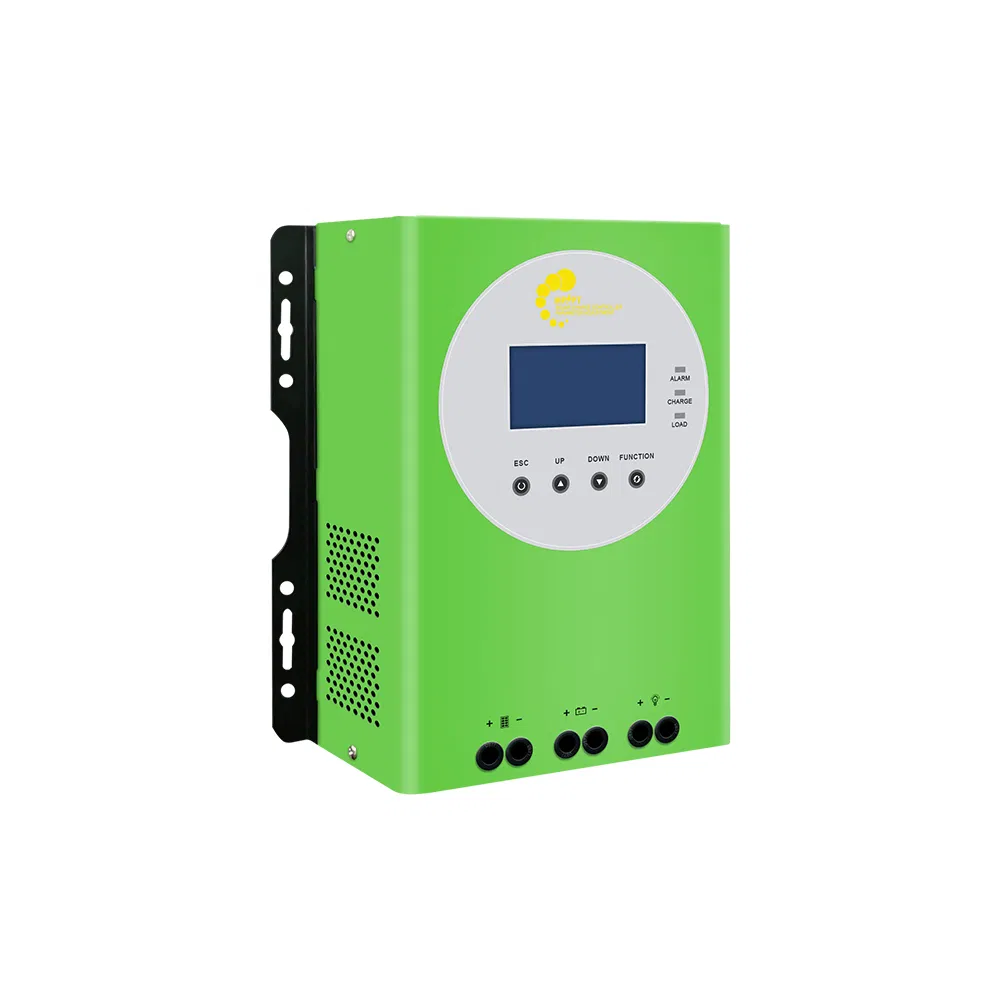

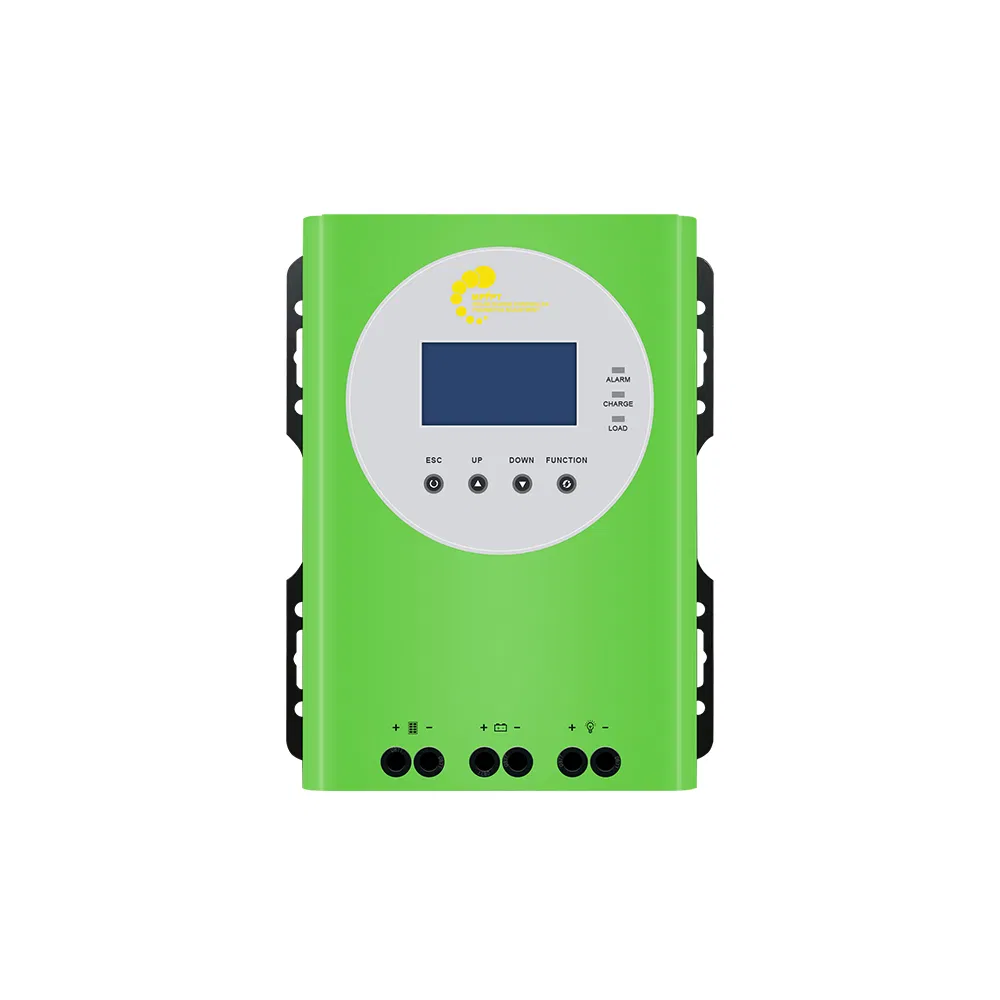

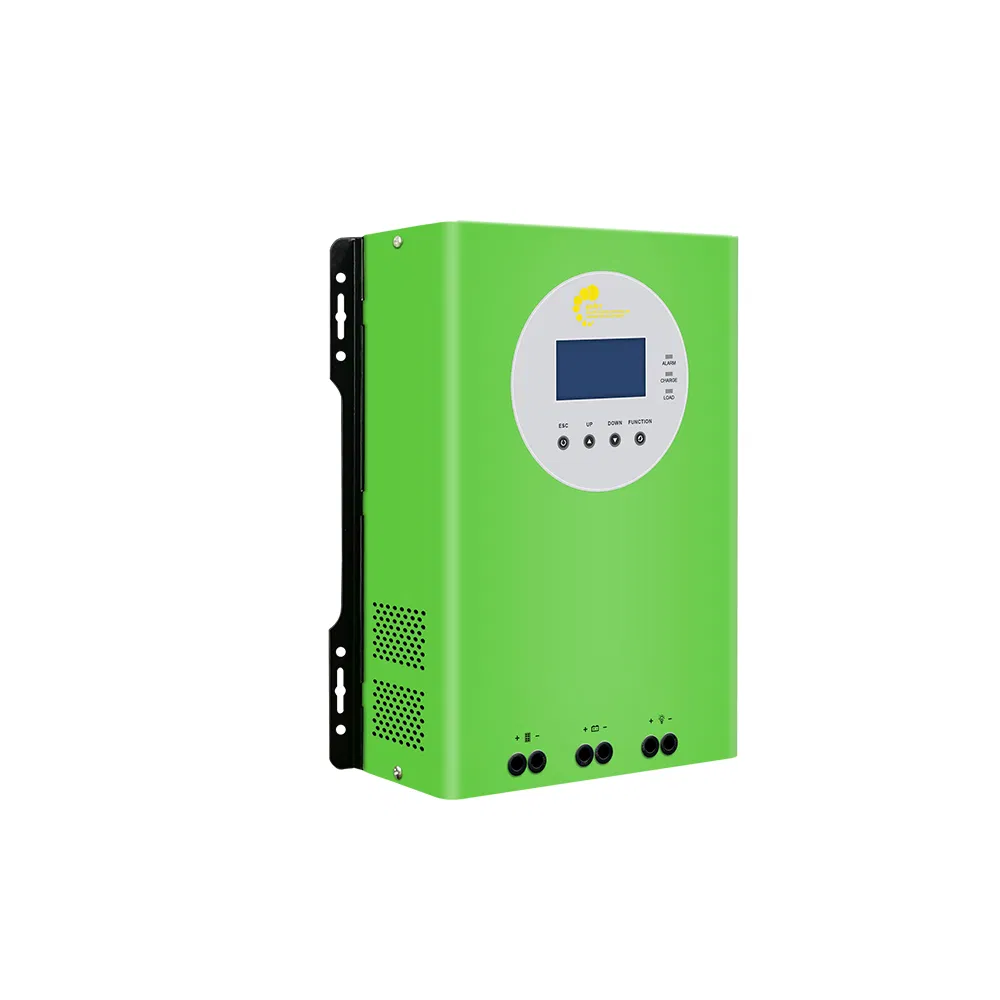

High Efficiency 12V 40A 540W MPPT Solar Charger Controller for Solar System
Basic Info
Model NO.
MPPT ML Series
Condition
New
Certification
CE
Application
Solar System Controller, Charger Controller
Rated Voltage
12V/24V/36V/48V
Rated Current
40A/60A/80A/100A
Charging Mode
MPPT Maximum Power Point Tracking
Tracking Efficiency
≥99.5%
Maximum Conversion Efficiency
≥98%
Heat-Dissipating Mode
Air Cooling
OEM & ODM
Accept
Transport Package
Carton
Specification
275*348*150mm
Origin
China
Packaging & Delivery
Package Size
27.50cm * 34.80cm * 15.00cm
Package Gross Weight
6.000kg
Product Description
Product Features
-
✔
WIFI/GPRS support optional
-
✔
12/24/36/48V Automatic adaptation
-
✔
Three-stage intelligent charging
-
✔
Parameters can be adjusted
-
✔
Can be connected to lead-acid batteries / lithium batteries / water batteries
Product Parameters
| Model |
ML40415 |
ML60415 |
ML80415 |
ML100415 |
ML40825 |
ML60825 |
ML80825 |
ML100825 |
| System voltage |
12V/24V/36V/48V (Adaptive) Automatic recognition |
96V |
| Rated current |
40A |
60A |
80A |
100A |
40A |
60A |
80A |
100A |
| Charging mode |
MPPT maximum power point tracking |
| Applicable battery type |
Can be connected to lead-acid batteries / lithium batteries / water batteries |
| Charging stage |
Three stages: Constant current, constant pressure, floating charge |
| PV input maximum open circuit voltage (VOC) |
DC150V |
DC250V |
| Startup time |
≤10s |
| Dynamic response recovery time |
≤500us |
| Static power consumption |
≤4W |
≤8W |
≤4W |
≤8W |
| Tracking efficiency |
≥99.5% |
| Maximum conversion efficiency |
≥98% |
| Operating voltage range identified by system |
8-64V |
72~128V |
| Working voltage at max power point |
12V |
20-150V |
128-250V |
| 24V |
36-150V |
| 36V |
48-150V |
| 48V |
64-150V |
| Rated charging power |
12V |
540W |
800W |
1040W |
1300W |
/ |
| 24V |
1080W |
1600W |
2080W |
2600W |
| 36V |
1620W |
2400W |
3120W |
3900W |
| 48V |
2160W |
3200W |
4160W |
5200W |
| 96V |
/ |
4160W |
6240W |
8320W |
10400W |
| On-load voltage |
Cobattery voltage |
/ |
| Rated load current |
40A |
| Load control method |
Normal on/normal off mode/time control mode/light control mode |
| Load undervoltage protection |
10.5V*N Default 10.5V*N (N is the number of batteries) adjustable parameters |
| Heat-dissipating mode |
Air cooling |
| Display mode |
HD LCD backlit display |
| Protection function |
Input-output over-voltage protection, input-output anti-reverse connection protection, machine over-temperature protection, load over-current protection |
| Temperature compensation coefficient |
-3mV/ºC/2V |
| Working temperature |
-20ºC ~ +50ºC |
| Storage temperature |
-40ºC ~ +70ºC |
| Noise (dB) |
≤50dB |
| Humidity |
0~90%RH |
| Altitude |
0~3000M |
| Dimension (mm) L×W×H |
219*260*10 |
275*348*109 |
219*260*10 |
275*348*109 |
| Net weight (kg) |
2.8KG |
4.6KG |
5.2KG |
2.8KG |
4.6KG |
5.2KG |
| Recommended connection |
7AWG/10mm² |
6AWG/16mm² |
4AWG/25mm² |
2AWG/35mm² |
7AWG/10mm² |
6AWG/16mm² |
4AWG/25mm² |
2AWG/35mm² |
Company Profile
Founded in 2017, after more than 6 years of development, it has become a comprehensive integration of industry and trade company, which engaged in design, development and production of various pipeline system and connectors professionally. The company provides the high-quality matched products and excellent services for various industries, such as electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation, railway transportation, automobile manufacturing, household appliances, electrical installations etc.
The excellence of every detail is the root of excellent quality. The company has strong technical force, the advanced technique of production and complete testing equipment. The company has maintained "Excellent quality, Exceeding customer needs" business purposes. We have established quality system according to the ISO9001 international standards, which applied in the whole process control of the product design, manufacturing and service. All our supply chains have obtained TUV Certification and the Quality Certification of ISO9001 international quality system which issued by the China Quality Certification Center. The products have passed EU CE Certification, conform to the ROHS standards and SGS Environmental Protection Certification, which sale from coast to coast and exported in the Middle East, Southeast Asia, the European Union, the United States, Australia, South America and other countries and regions.
We are engaged in the supply of electrical products with the quality of "Safe, Reliable, Suitable and Steady", observe the commitment of "Leader in science and technology, Honest operation, Quality and Customer first", and provide highest quality and the most sincere services for the new and old, domestic and foreign customers.
FAQ
Are you a factory or just a trading company?
Manufacturer, and we focus on the development and production of electrical industry for more than 10 years.
Is customized service available?
Of course, OEM & ODM both are available.
How can I get the quotation?
Leave us a message with your purchase requirements and we will reply to you within one hour during working hours.
Can I buy one as a sample?
Yes, of course.
How about your quality control?
Our professional QC will check the quality during the production and do the quality test before shipment. There will be an inspection report along with every shipment.
What types of batteries can this MPPT controller charge?
The controller is fully compatible with lead-acid batteries, lithium batteries, and water batteries.
