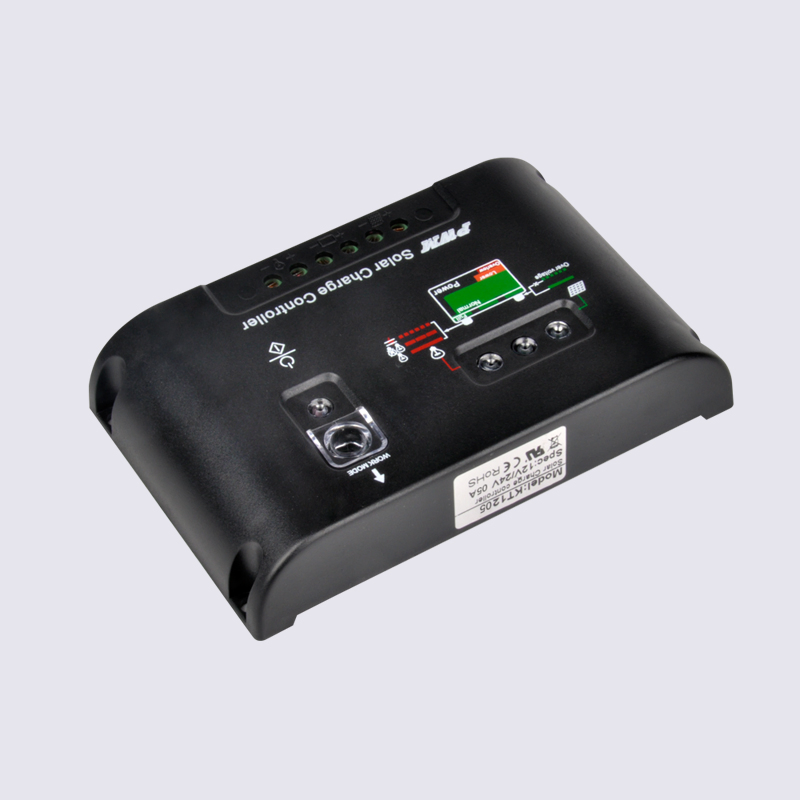

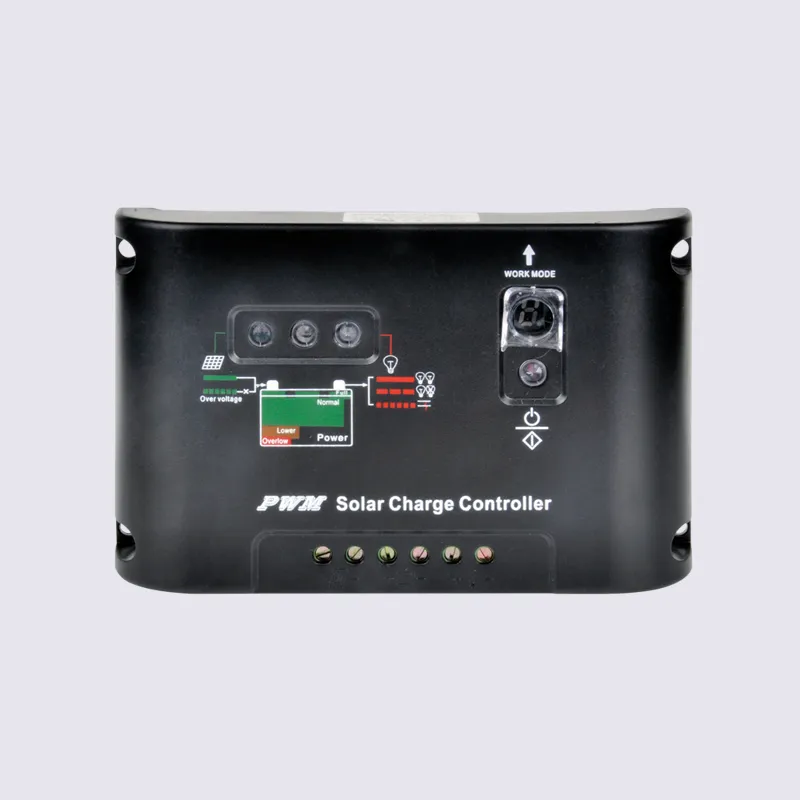

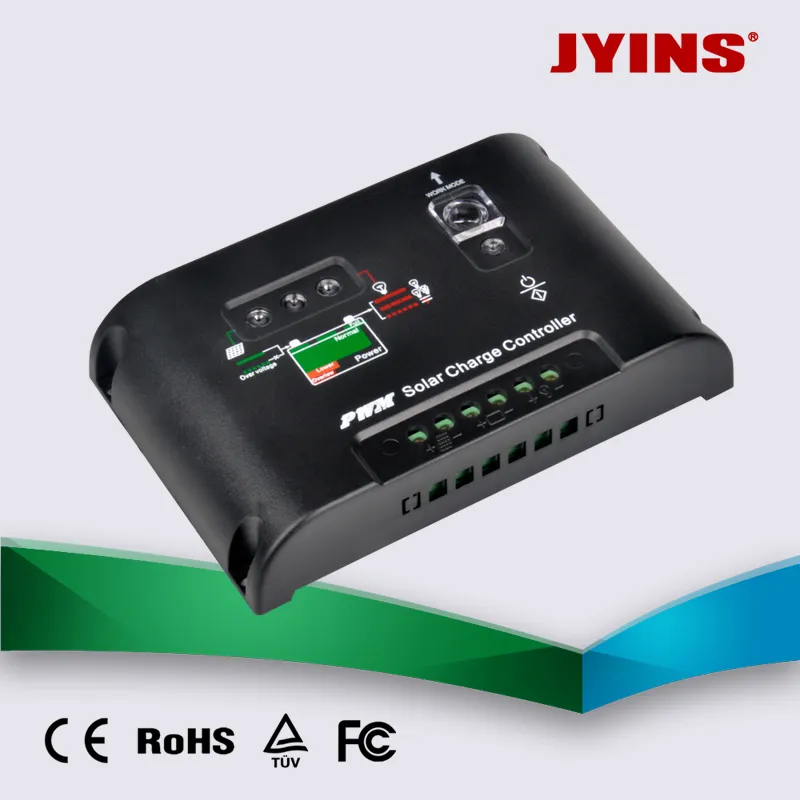

12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

1 / 3

12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

Customization:	Available
Condition:	New
Certification:	ISO, CE

Send Inquiry

Product Description

Basic Info

Model NO.

Application

Collector Controller, Solar System Controller, Charger Controller, Lighting Controller, Solar Working Station

Rated Voltage

12V/24V

Control Mode

PWM

Warranty

18 Months

Approval

CE & RoHS

ODM & OEM

Accepted

Weight

210g

Dimension(L*W*H)

140*90.5*28.5mm

Feature

Quick Start Instructions

Functions

Time & Light Control

Voltage

12V/24V Automatic

Solar Controller

Solar Charge Controller

Transport Package

Standard Exporting Carton

Specification

CE, RoHS

HS Code

8504403090

Production Capacity

10000 PCS/Months

Product Description

12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

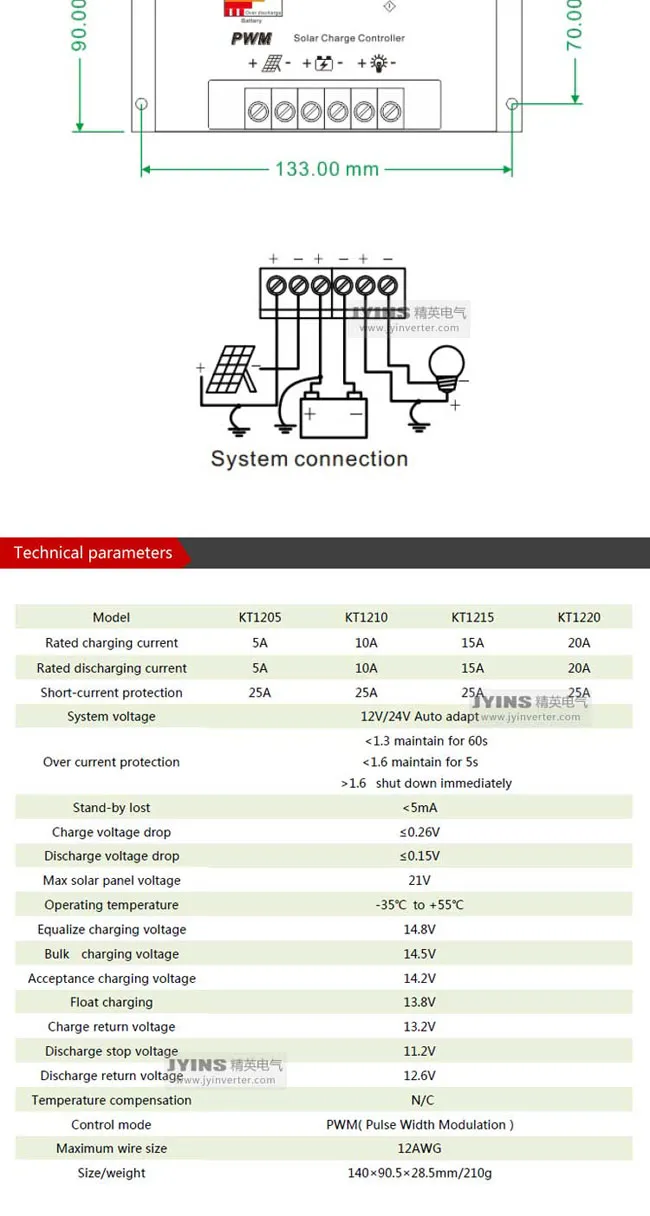

Technical Parameters

Model	KT1205	KT1210	KT1215	KT1220
Rated charging current	5A	10A	15A	20A
Rated discharging current	5A	10A	15A	20A
Short-current protection	25A	25A	25A	25A
System voltage	12V/24V Auto adapt
Over current protection	<1.3 maintain for 60s <1.6 maintain for 5s >1.6 shut down immediately
Stand-by lost	<5mA
Charge voltage drop	≤0.26V
Discharge voltage drop	≤0.15V
Max solar panel votlage	21V
Operating temperature	-35ºC to +55ºC
Equalize charging voltage	14.8V
Bulk charging voltage	14.5V
Acceptance charging voltage	14.2V
Float charging	13.8V
Charge return voltage	13.2V
Discharge stop voltage	11.2V
Discharge return voltage	12.6V
Temperature compensation	N/C
Control mode	PWM( Pulse Width Modulation )
Maximum wire size	12AWG
Dimensions / Weight	140×90.5×28.5mm / 210g

Attn:

1. All voltage are for 12V system, pls time 2 if you are using 24V system.
2. Voltage tolerance 1%.
3. Product specifications are subject to change without prior notice.

Why Choose Us

FAQ

Would you accept to use our logo?

If you have good quantity, it is absolutely no problem to do OEM.

What is the monthly capacity?

It depends on which model. For example, for relay type small capacity, monthly capacity can reach near 200,000pcs and big capacity near 30,000pcs.

Does the inverter connect with solar system?

Yes. Because of the unique feature which combines invert, charge and AC auto-transfer switch into one complete system, the inverter not only connects with solar system, but also could be used in office equipment, household items, power tools, etc.

What kind of certificate do you have?

The products are certified with CE and RoHS. Any certificate can apply for you.

How long of the warranty or guaranty?

18 months.

How to pay for solar controller?

We accept paypal, western union, T/T. If you have any good payment, we also can accept.
