| Parameter | Details |
|---|---|
| Application | Solar System Controller, Wind Controller, Solar Working Station |
| Main Product | Hybrid/off Grid Inverter/Wind System/DC Converter |
| Other Product | Solar Inverter/Power Supply/Frequency Converter |
| Color | Customized |
| Display | LCD+LED Display |
| Output Waveform | Pure Sine Wave |
| Protection | Short Circuit Overload Overvolt Overtemp |

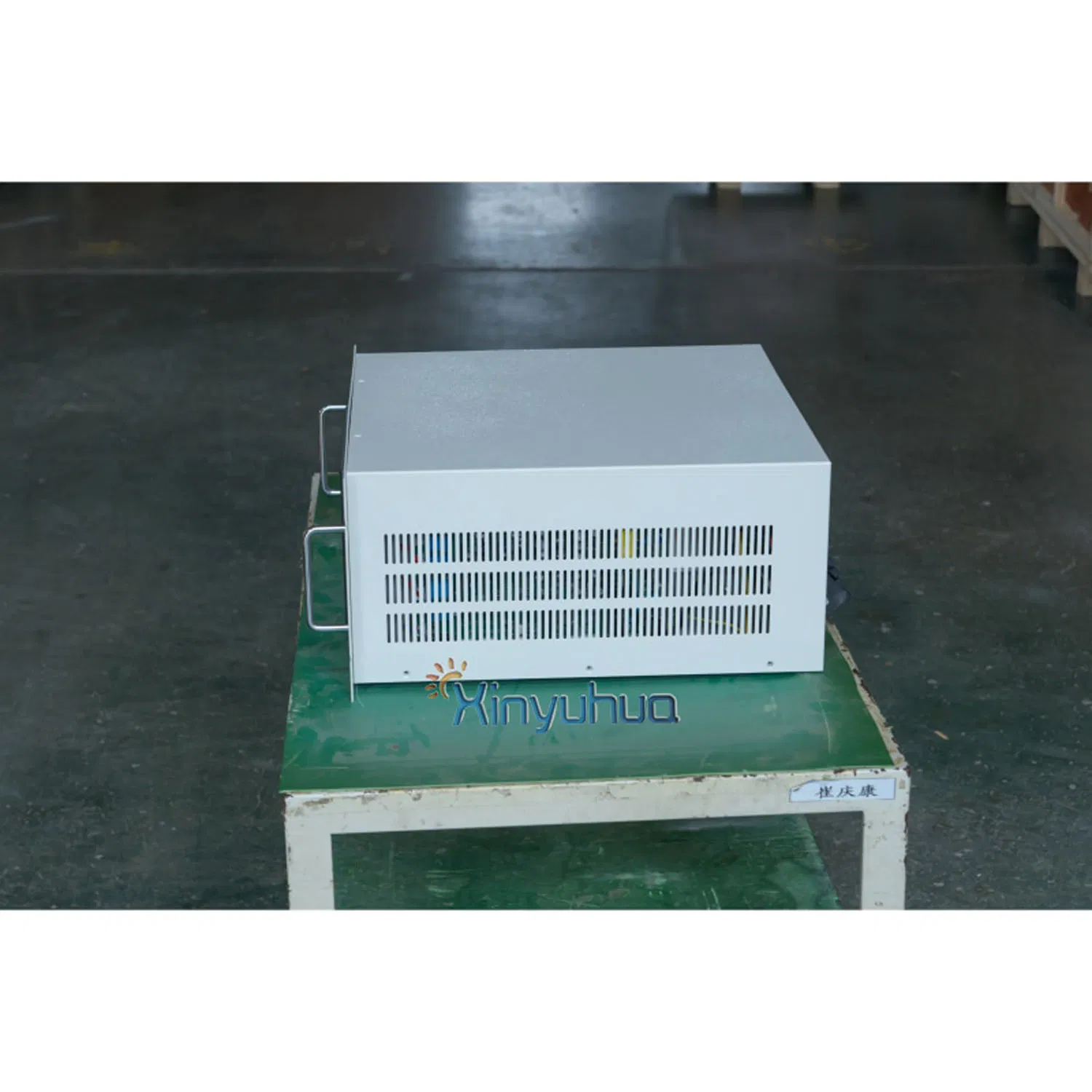

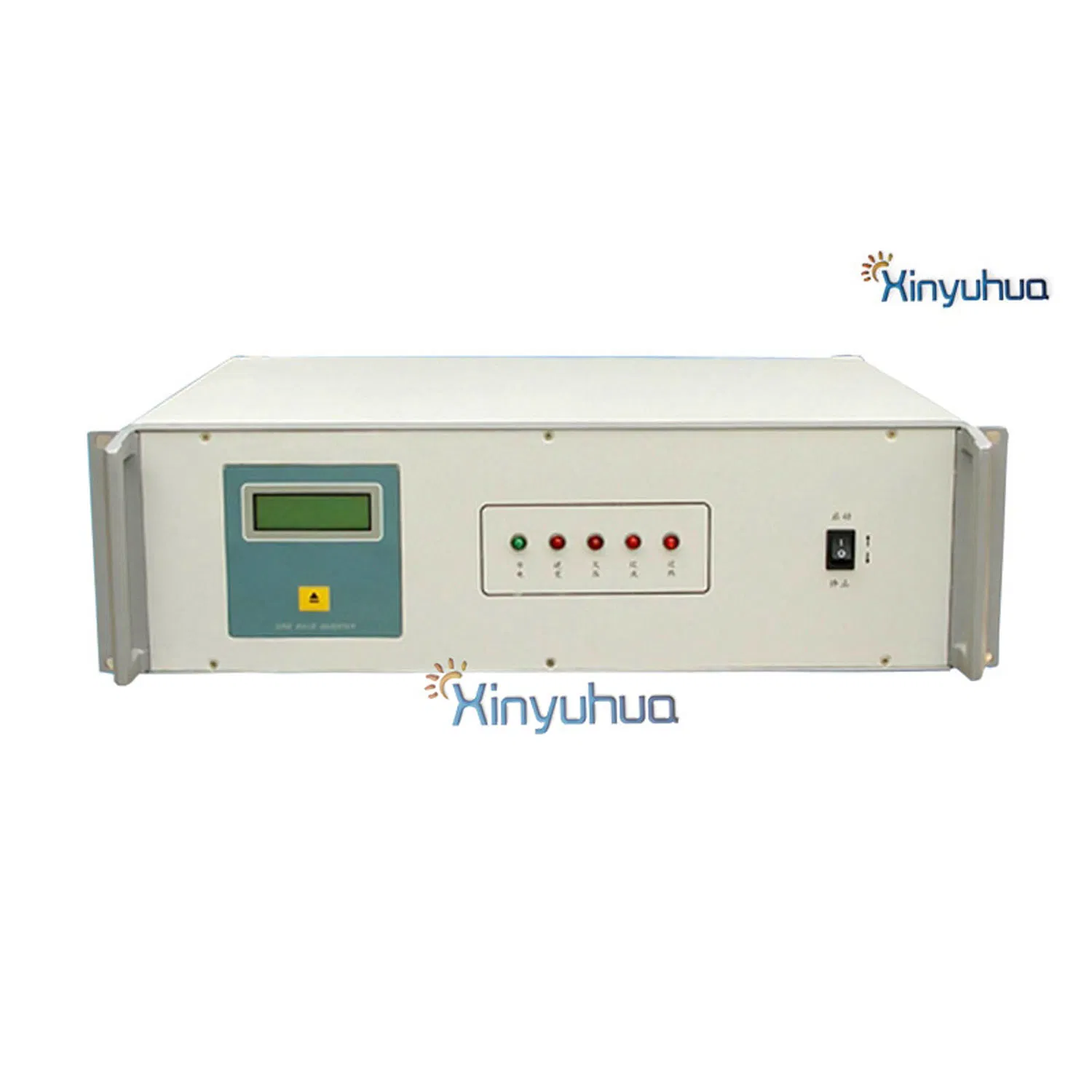

| Product Name | 30-100A Solar Inverter MPPT Charge Controller |
| Transport Package | Plywood |
| HS Code | 8504409990 |
| Production Capacity | 1000 sets |
| Model | XSD220-50A | XSD220-100A | XSD384-100A | XSD480-100A | |
|---|---|---|---|---|---|
| Controller Spec. | Rated Voltage (V) | 220 | 384 | 480 | |
| Rated Charging Current (A) | 50 | 100 | 100 | 100 | |
| Max. Input Voltage from Battery (V) | 300 | 550 | 600 | ||
| Max. Input Solar Voltage (V) | 500 | 850 | 900 | ||
| Max. Input Solar Power (W) | 11000 | 22000 | 38400 | 48000 | |
| Charging Mode | MPPT | ||||
| Battery Float Voltage (Vdc) | Configurable | ||||
| Battery Charging Average Voltage (Vdc) | 247 | 440 | 550 | ||
| Self Loss (mA) | <300 | ||||
| Communication | RS485 | ||||
| Rated Efficiency | ≥95% | ||||
| Protection Degree | IP20 | ||||
| Working Environment | Working Temperature | -20ºC ~ +50ºC | |||
| Relative Humidity | <90% Non-condensing | ||||
| Altitude | 4000m | ||||
| Pressure Endurance Insulation | 1500VAC, 1 minute | ||||
| Noise (1 meter) | ≤50dB | ||||
| Protection Function | Protection for input connecting contrary, input short of voltage, output overload, output short circuit and over heat. | ||||
| Protect Breaker | Need extra input and output breaker | ||||
| Dimension (W*L*H) mm | 482*450*222 (5U) | ||||

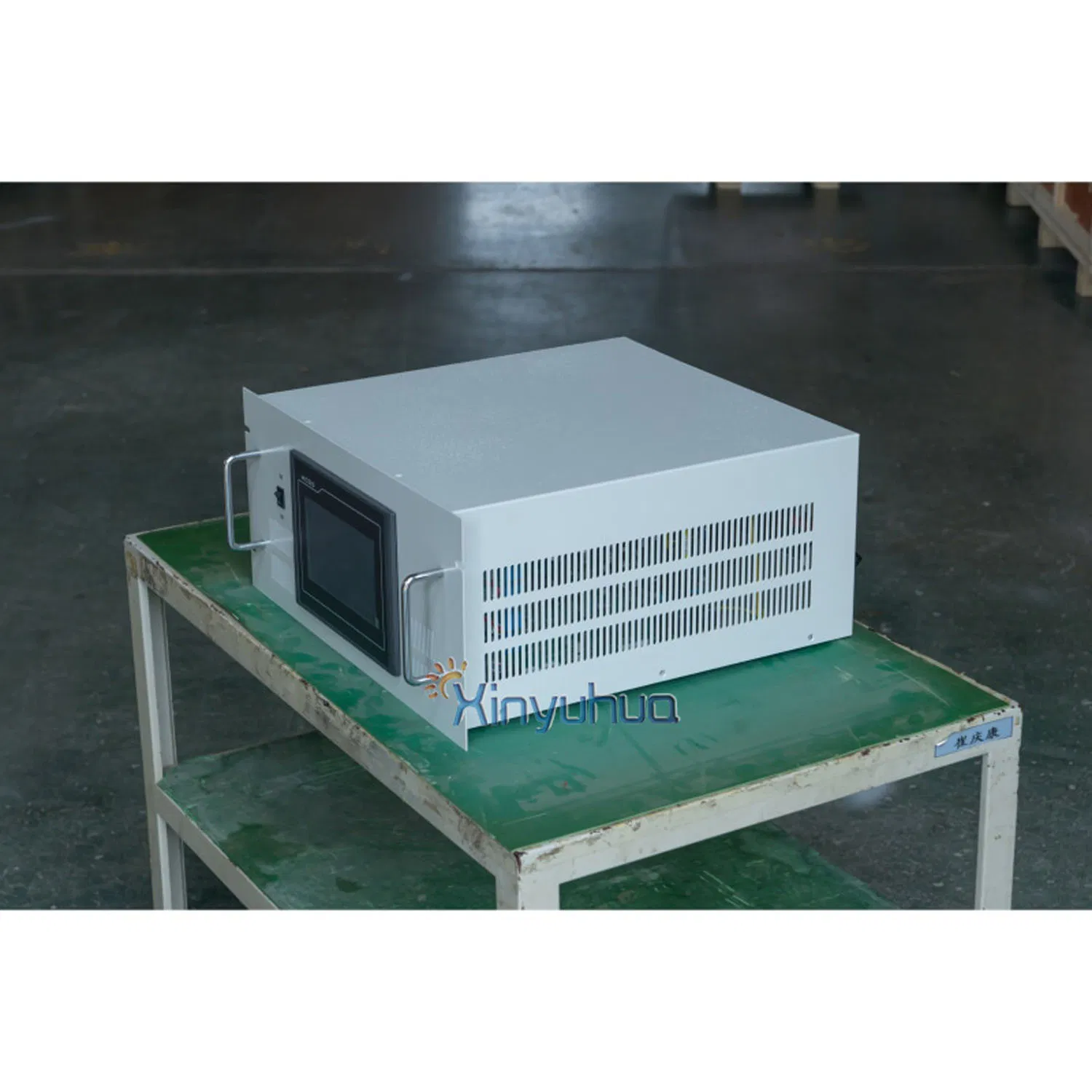

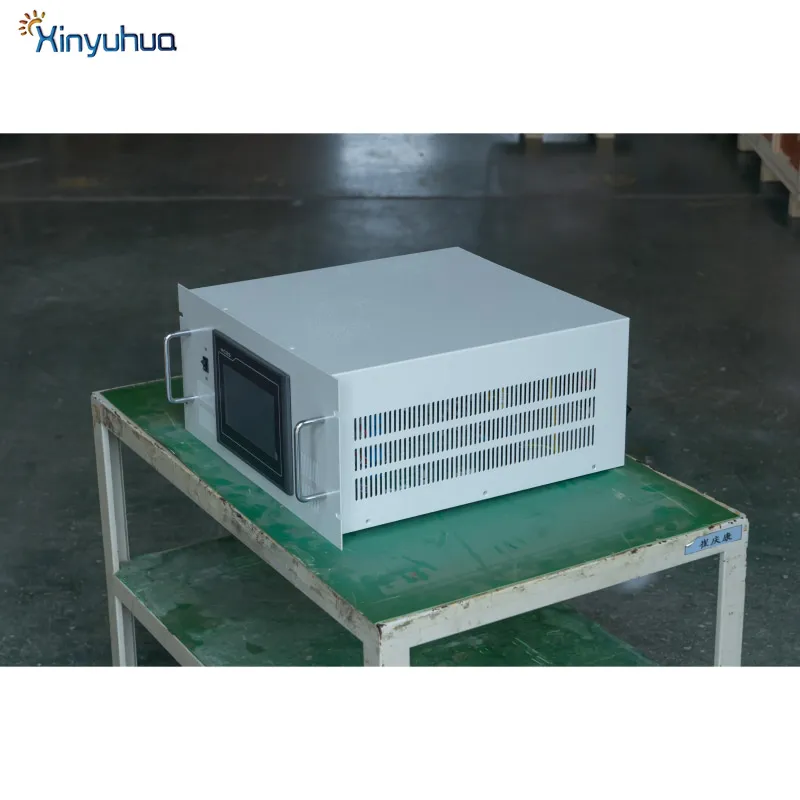

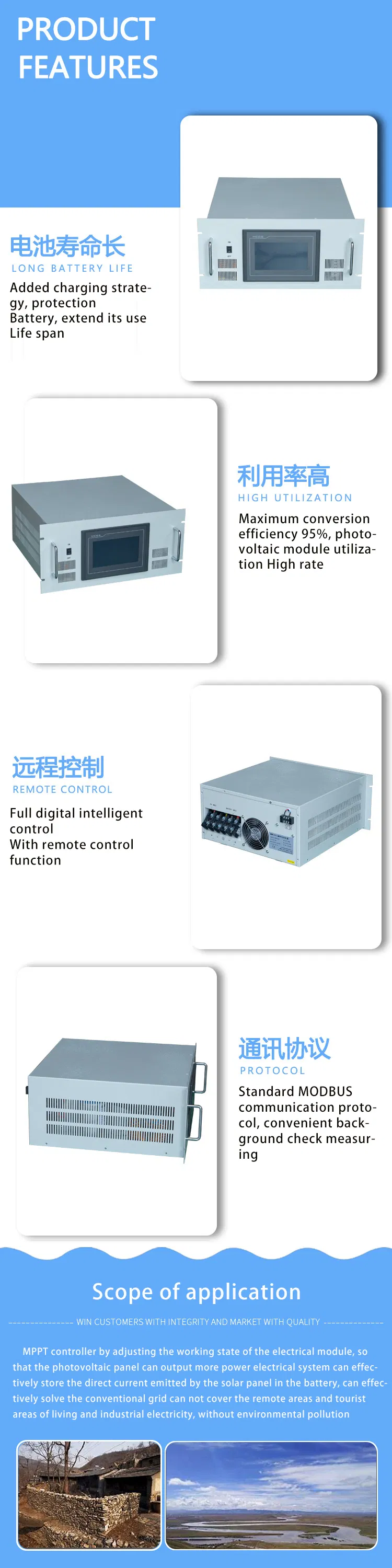

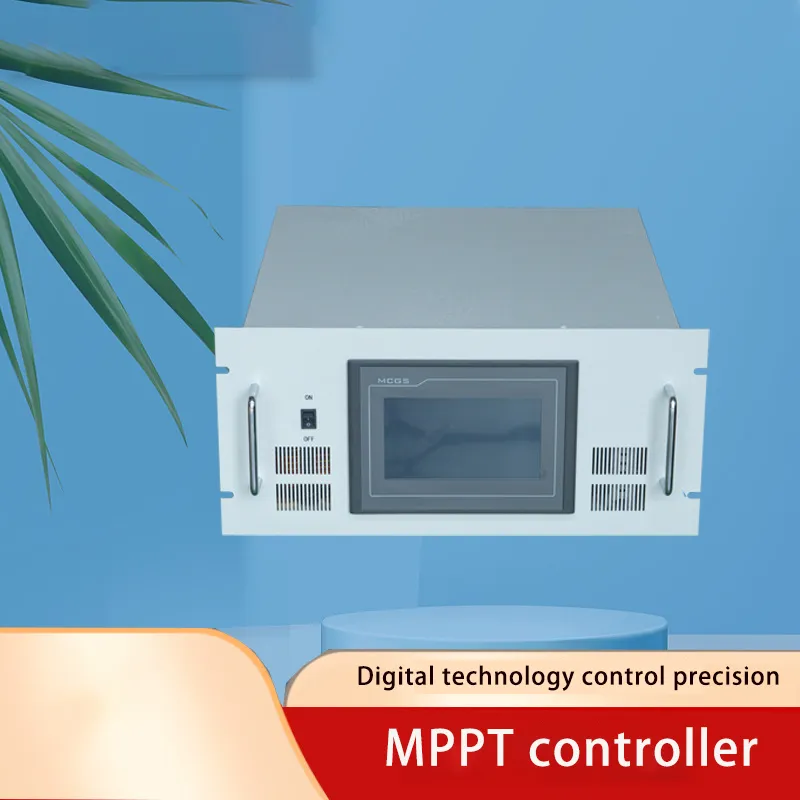

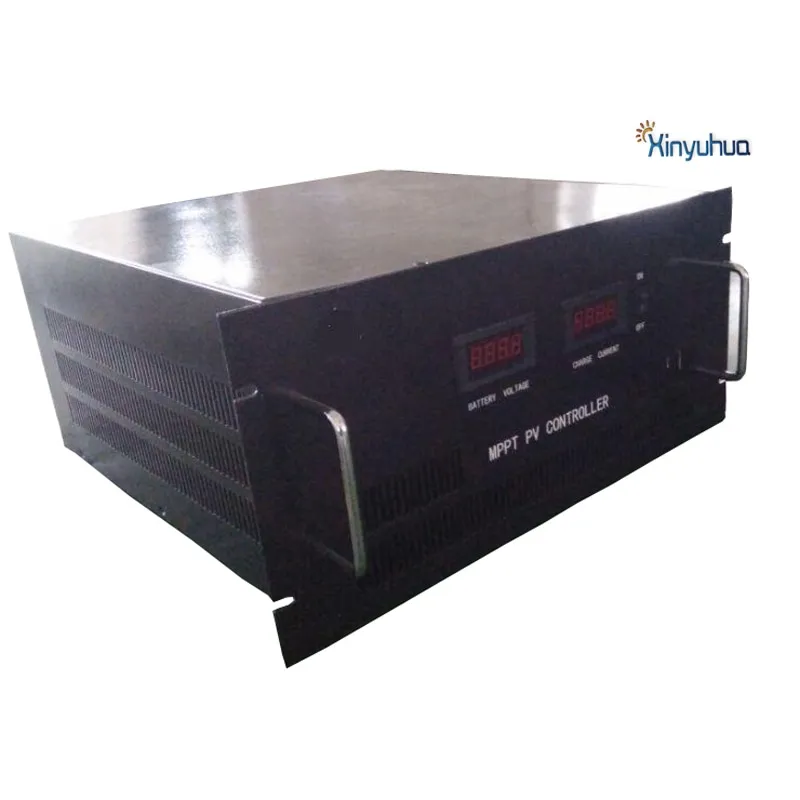

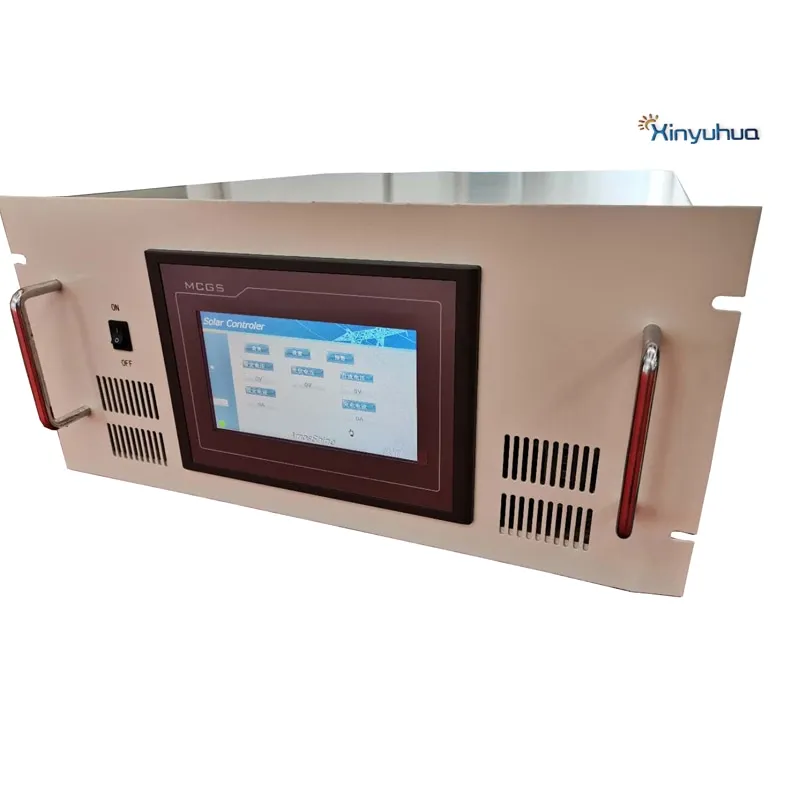

Designed for solar off-grid systems, solar power stations, and industrial applications. Powered by a new generation 16-bit digital signal processing chip, it employs an advanced all-digital intelligent tracking algorithm to lock onto the maximum power point of solar modules in real-time, ensuring optimal battery charging and high component utilization. At the same time, the system features robust short-circuit, overload, and automatic shutdown protections.
We firmly grasp the direction of a "low-carbon economy and green development," taking the establishment of a first-class new energy enterprise as our strategic goal. We carry forward an enterprise spirit of harmony, innovation, and the pursuit of excellence. We strive to contribute clean energy, improve power structures, and fulfill social responsibilities. We continue to serve with industry dedication, repay society with value, base our presence on market reputation, and gallop into the future with strength.
We are committed to the application of the new energy industry in industrial, civil, and military fields. Our product portfolio includes solar systems, wind turbine systems, marine shore power supply systems, DC power supplies, rectifiers, voltage/frequency stabilizers, and military power supplies.
Our business marketing network covers major international markets across Europe, North America, and the Asia-Pacific region, spanning more than 50 countries including Singapore, Indonesia, the Philippines, Bangladesh, Germany, Italy, Belgium, the United States, Spain, and Australia. We uphold the concept of "quality serving the world," sharing the value and growth of green energy globally.
As our customer, you enjoy comprehensive guarantee services:
Yes, installation is designed to be highly straightforward. Every customer can complete it independently. We supply all the necessary installation components along with a very detailed instruction manual.
Our wind generators are designed to start running at low wind speeds as low as 2.5m/s. If your local average annual wind speed is 5m/s or higher, it is highly suitable for generating power.
Please prepare the following details for our sales team: (1) The specific appliances you want to run, including their total wattage and active working hours. (2) Your local average annual wind speed. (3) The system configuration type you prefer (on-grid or off-grid).
Yes. For example, if you prefer to build the mounting tower locally, we can provide you with the full set of engineering tower drawings.
Under the same wind speed conditions and size specifications, horizontal axis wind turbines generally yield a higher power output efficiency than vertical axis designs.
We offer one year of free repair coverage for the complete machine, perpetual cost-price maintenance, lifetime technical support, and guaranteed feedback or responses within 24 hours of notification.
