Basic Info
Model NO.
ELT5000H
Rechargeable
Yes
Size
Large
Voltage
48V/51.2V
Capacity
100ah 200ah 300ah 400ah 500ah 600ah 700ah 800ah
Energy
5kwh, 10kwh, 15kwh, 20kwh, 30kwh, 40kwh, 50kwh
Certification
CE/RoHS/Un38.3/MSDS
Self Discharge Rate
<3%
Weight
44.6 Kg
Communication
Can/RS485/RS232
Cycle Life
≥ 6000 Cycles
Warranty
5 Years
Display Screen
Yes
Parallel Connection
Available
Features
Stackable/Wall Mounted
Application 1
Home Energy Storage, Residential Energy Storage
Application 2
Solar Energy Storage, Back up Power
Transport Package
Carton Box
Specification
595*400*176
Trademark
OEM
HS Code
8507600090
Production Capacity
100000PCS/Month
Product Description

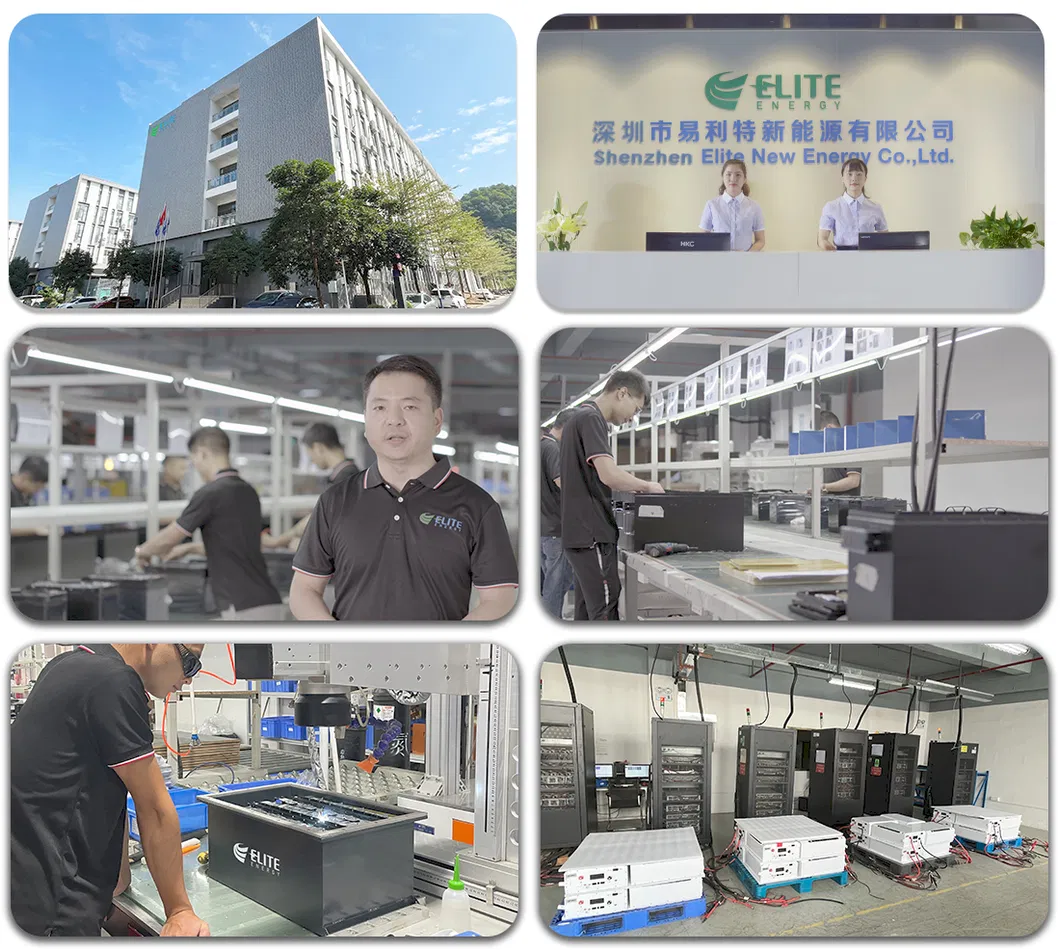

Original Lithium Ion LiFePO4 Battery Pack Manufacturer with 15+ years Experience in Energy Storage System(ESS) and Motivation Power System Industry. Including High Voltage, 48V 100Ah Stackable Low Voltage Battery Packs, PowerWall Li ion Battery Pack, All in One Home Storage Solar System Battery, Lithium Power Battery for Solar and Golf Cart Diy Modify Coversion Kit. The factory covers an Area of 10,000 Square meters, with annual production capability of 1GWH. Equipped with state-of-art facilities and equipment, certified with ISO9001, ISO14001 and ISO45001, complied with up-to-date certifications: CE RoHS, BIS, MSDS, UN38.3, the products perfectly meet international standards with most excellent performance and safety compliance, and fully qualified for high and OEM/ODM markets.
Factory Price 15kwh 20kwh 30kwh 40kwh 50kwh Stack Battery Wall Mounted Rack Mounted LiFePO4 Lithium Battery Pack for Household Solar Energy Storage
2

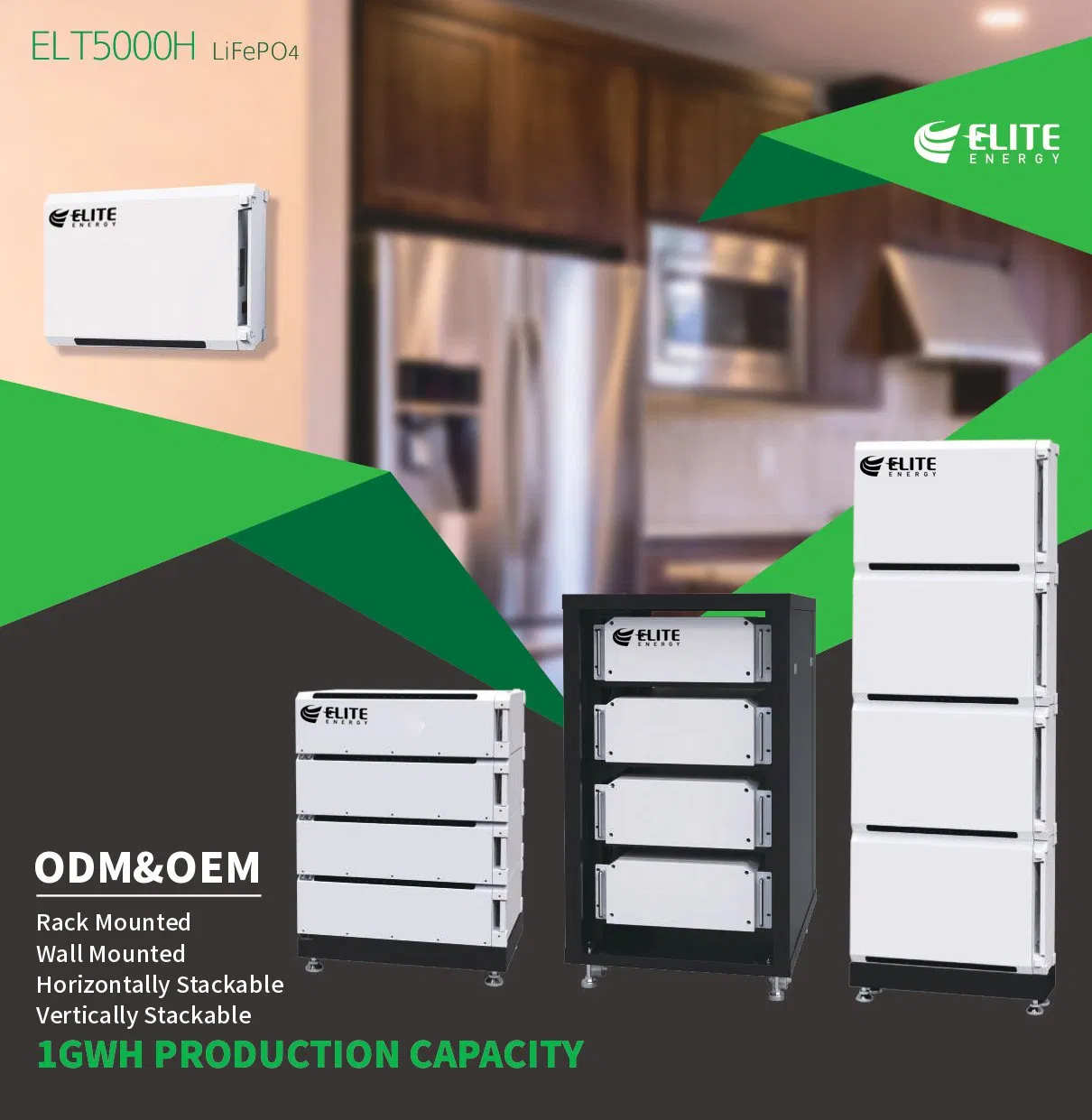

Flexible connection and 4 different installation ways by option (Side stackable, Flat stackable, Rack mounted or Wall mounted);
3
Support max. 30pcs in parallel to increase capacity up to 150kWh;
4
Wide compatible with main brand inverters, BMS with multiple communication protocols;
5
Widely applicable to residential, commercial and industrial energy storage systems;
6
With Bluetooth function, battery real-state can be monitored on Phone Bluetooth App;
7
Excellent high temperature and safety performance, with built-in smart BMS to carry on protection;
8
With CE BIS, MSDS, UN38.3 approved, etc.
| System Parameters Specification |
| Typical Model |
ELT5000H |
| Parallel Connection |
Max. 30pcs Up to 150kWh |
| Maximum Mounting Height |
<200CM |
| Battery Type |
LiFePO4 Battery Cell |
| Battery Module |
51.2V 100Ah |
| Nominal Energy |
5120Wh |
| Nominal Voltage |
51.2V |
| Operating Voltage |
40V -58.4V |
| Max. Continuous Charging/Discharging Current |
100A |
| Max. Peak Charging/Discharging Current |
150A (5s) |
| Display |
SOC LED Indicator |
| Bluetooth |
Yes, Build in BT5.0 |
| Communication Interface |
CAN/RS485/RS232 |
| Cycle Life |
≥ 6000 cycles |

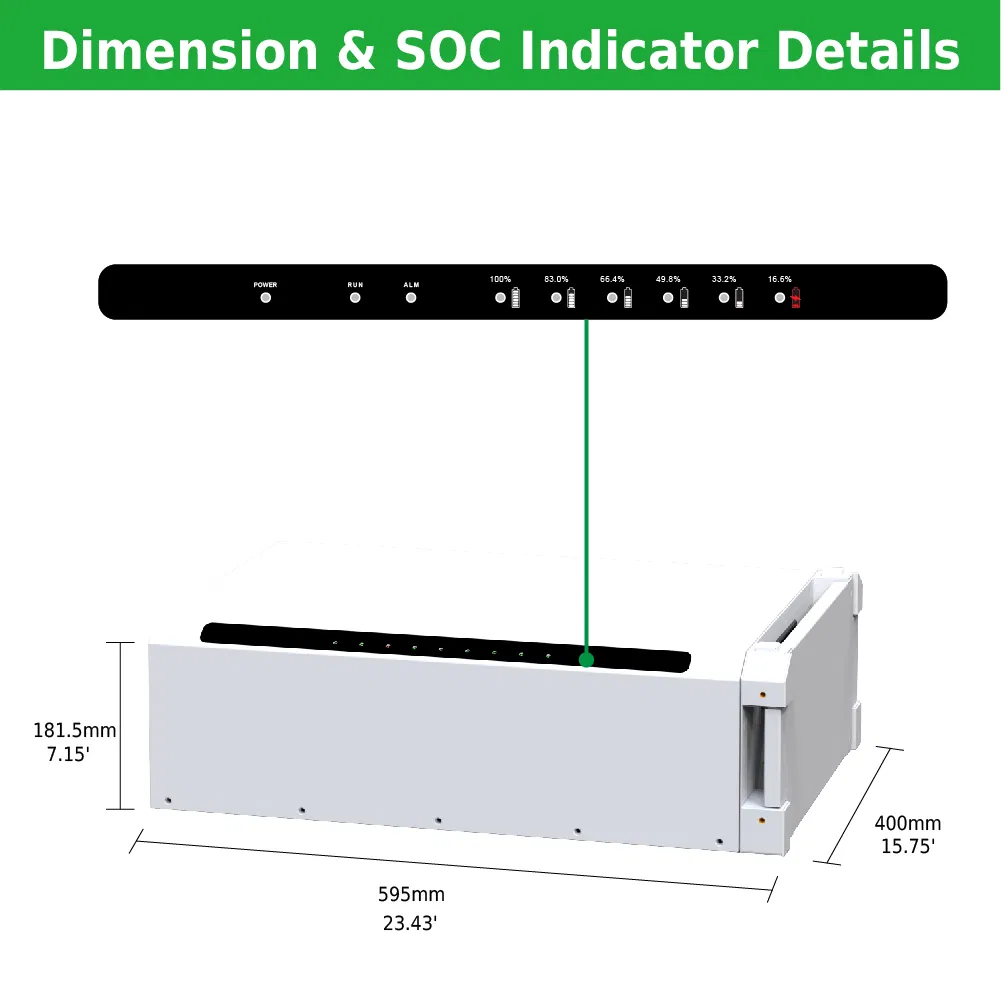

| Dimensions (W*H*D) (mm/inch) |
592*400*176mm / 23.43'*15.75'*7.15' |
| Weight (kg/lbs) |
47kg / 103.62lbs |
| Mounting Method |
Stackable, Wall Mounted or Rack Mounted |
| Operating Ambient Temperature Range |
Charge:0~55ºC / Discharge:-20~65ºC |
| Allowable Relative Humidity Range |
0% to 95% (non-condensing) |
| Cooling Method |
Natural Convection |
| Warranty |
5 Years |
Original Lithium Ion LiFePO4 Battery Pack Manufacturer with 15+ years Experience in Energy Storage System(ESS) and Motivation Power System Industry. Including High Voltage, 48V 100Ah Stackable Low Voltage Battery Packs, PowerWall Li ion Battery Pack, All in One Home Storage Solar System Battery, Lithium Power Battery for Solar and Golf Cart Diy Modify Coversion Kit. The factory covers an Area of 10,000 Square meters, with annual production capability of 1GWH. Equipped with state-of-art facilities and equipment, certified with ISO9001, ISO14001 and ISO45001, complied with up-to-date certifications: CE RoHS, BIS, MSDS, UN38.3, the products perfectly meet international standards with most excellent performance and safety compliance, and fully qualified for high and OEM/ODM markets.
Frequently Asked Questions
Q1.
Do you have MOQ (Minimum Order Quantity) Limit?
A: No, we do not have MOQ limit, 1 pieces sample order or small quantity is available.
Q2.
What about the Lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks. Customized product lead time: 3-4 weeks both for sample or bulk order. Ready-to-ship products from warehouse can ship once payment is confirmed.
Q3.
How do you ship the goods and what is the shipping time?
A: We offer multiple shipping methods: By air door to door (6-12 days) via FEDEX, UPS or DHL for urgent small orders; By sea door to door (25-50 days) or sea to delivery port (20-35 days) for bulk orders; By Air to airport (3-5 days) for urgent heavy packages.
Q4.
Does the BMS have low-temperature charging disconnect protection?
A: Yes! Our BMS features low-temperature protection cut-off to protect your battery from damage and extend its life. Low temp cut-off protection limits are 0ºC ± 4ºC (32°F ± 39.2°F) for charging, and -20ºC ± 4ºC (-4°F ± 39.2°F) for discharging.
Q5.
Do I have to buy a special charger for LiFePO4 batteries?
A: We recommend using a lithium iron phosphate 4-string (14.6V) charger. Alternatively, you can charge via photovoltaic solar panels through an MPPT controller, or use an inverter with a built-in AC to DC charging function.
Q6.
What is a BMS and how does it protect the battery?
A: A Battery Management System (BMS) protects the cells from unsafe conditions such as low/high voltage, extreme temperatures, and short circuits. It shuts off the battery to prevent damage, ensures cell balance during charge cycles, and features a high-temperature disconnect at 75°C (167°F).
