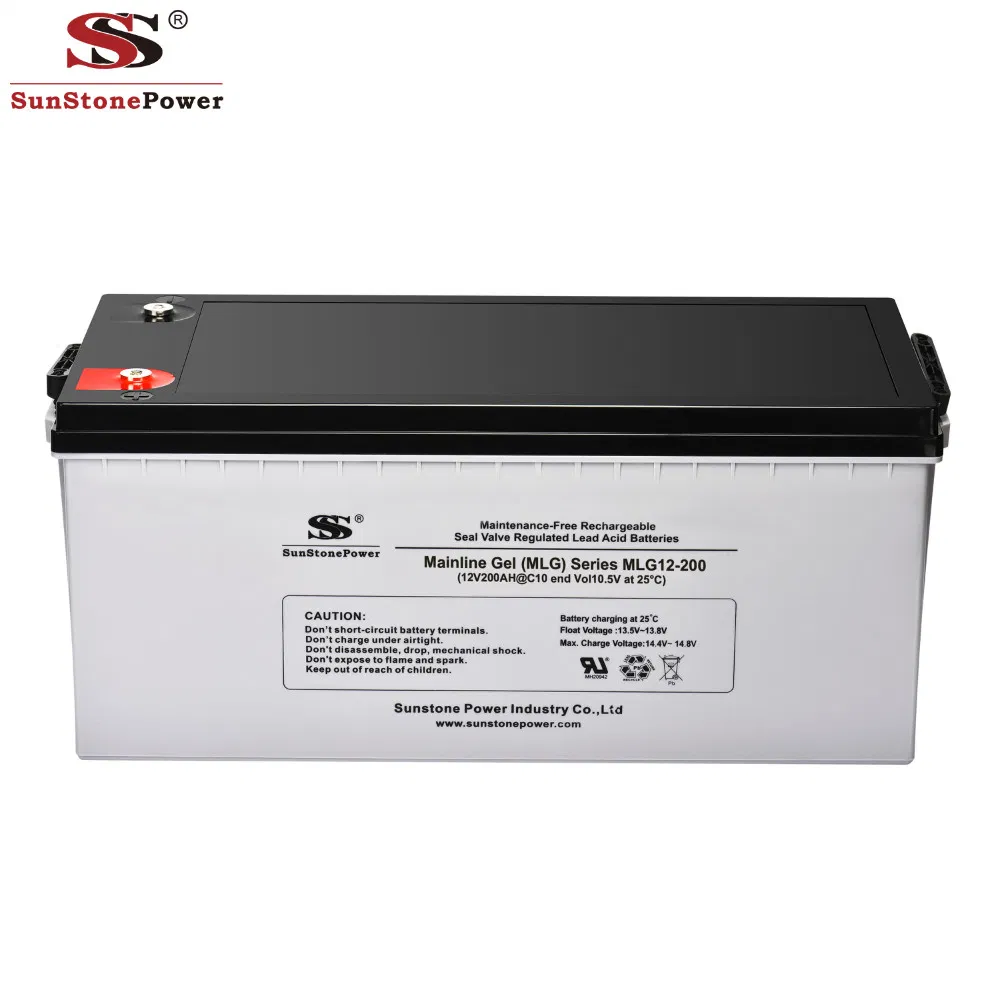

| Model NO. | MLG12-200 |
| Nominal Voltage | 12V |
| Discharge Rate | Low Discharge Rate |
| Shape | Square Battery |
| Electrolyte | Acid |
| Installation | Fixed |
| Rechargeable | Chargeable |
| Nominal Capacity | 200ah |
| Approx Weight | 60 Kg |
| Terminal | T5 or F7 |
| Sealed Type | Sealed |
| Max. Discharge Current | 2000A(5s) |
| Cycle Use | Initial Charging Current Less Than 60A |
| Standby Use | 13.5~13.8V |
| Self Discharge | Stored for up to 6 Months |
| Applications | Telecommunication System, Alarm and Security System, Backup Power/UPS/Emergency Lighting, Auto Control System |
| Transport Package | Factory Carton+Pallet |

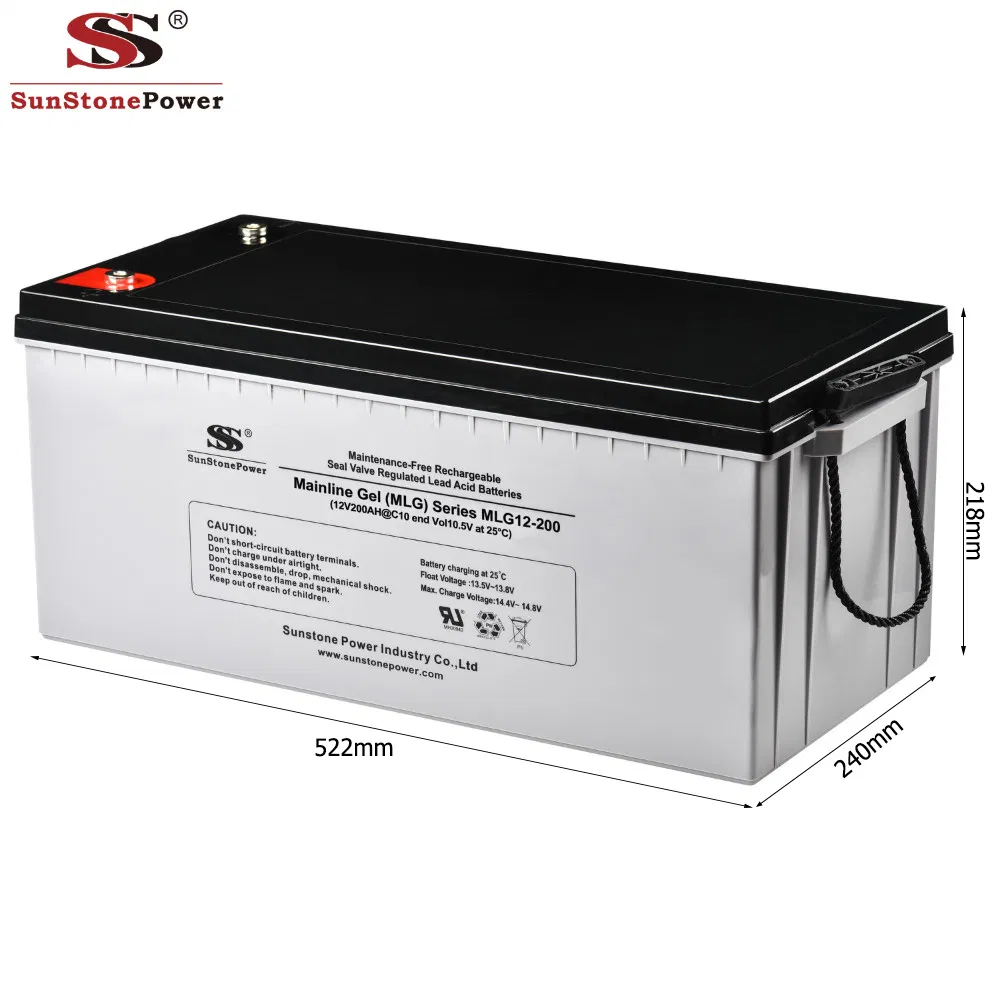

| Specification | 522*240*218mm |
| Origin | China |
| Production Capacity | 20000PCS/Week |
| Package Size | 54.20cm * 26.00cm * 26.00cm |
| Package Gross Weight | 65.000kg |
| Nominal Voltage | 12V (6 cells) |
| Nominal Capacity |
210AH (20hr, 1.80V/cell, 25°C/77°F) 200AH (10hr, 1.80V/cell, 25°C/77°F) 162AH (5hr, 1.75V/cell, 25°C/77°F) 114AH (1hr, 1.60V/cell, 25°C/77°F) |
| Internal Resistance | Approx 3.5mΩ |

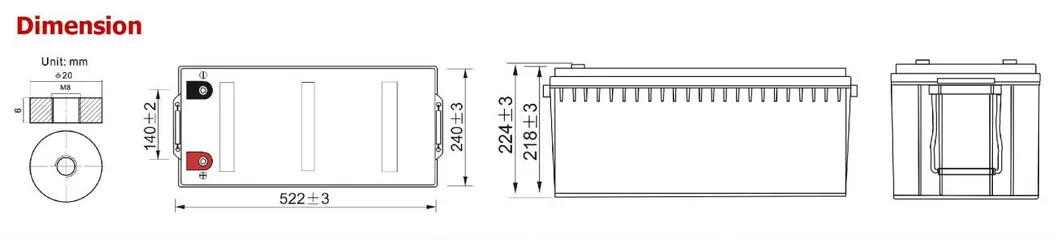

| Dimensions |
Length: 522 ± 2mm Width: 240 ± 2mm Container Height: 218 ± 2mm Total Height(with Terminal): 224 ± 2mm |
| Approx Weight | Approx 60.0Kg |
| Container Material | ABS |
| Operating Temp. Range |
Discharge: -15 to 50°C (5 to 122°F) Charge: 0 to 40°C (32 to 104°F) Storage: -15 to 40°C (5 to 104°F) |
| Nominal Operating Temp. | 25 ± 3°C (77 ± 5°F) |
| Capacity affected by Temp. |
40°C (104°F): 103% 25°C (77°F): 100% 0°C (32°F): 86% |
| Cycle Use | 14.4~14.8V (25°C/77°F) Temp. Coefficient -30mV/°C Initial Charging Current Less than 60A |
| Standby Use | 13.5~13.8V (25°C/77°F) Temp. Coefficient -20mV/°C No limit on Initial Charging Current |
