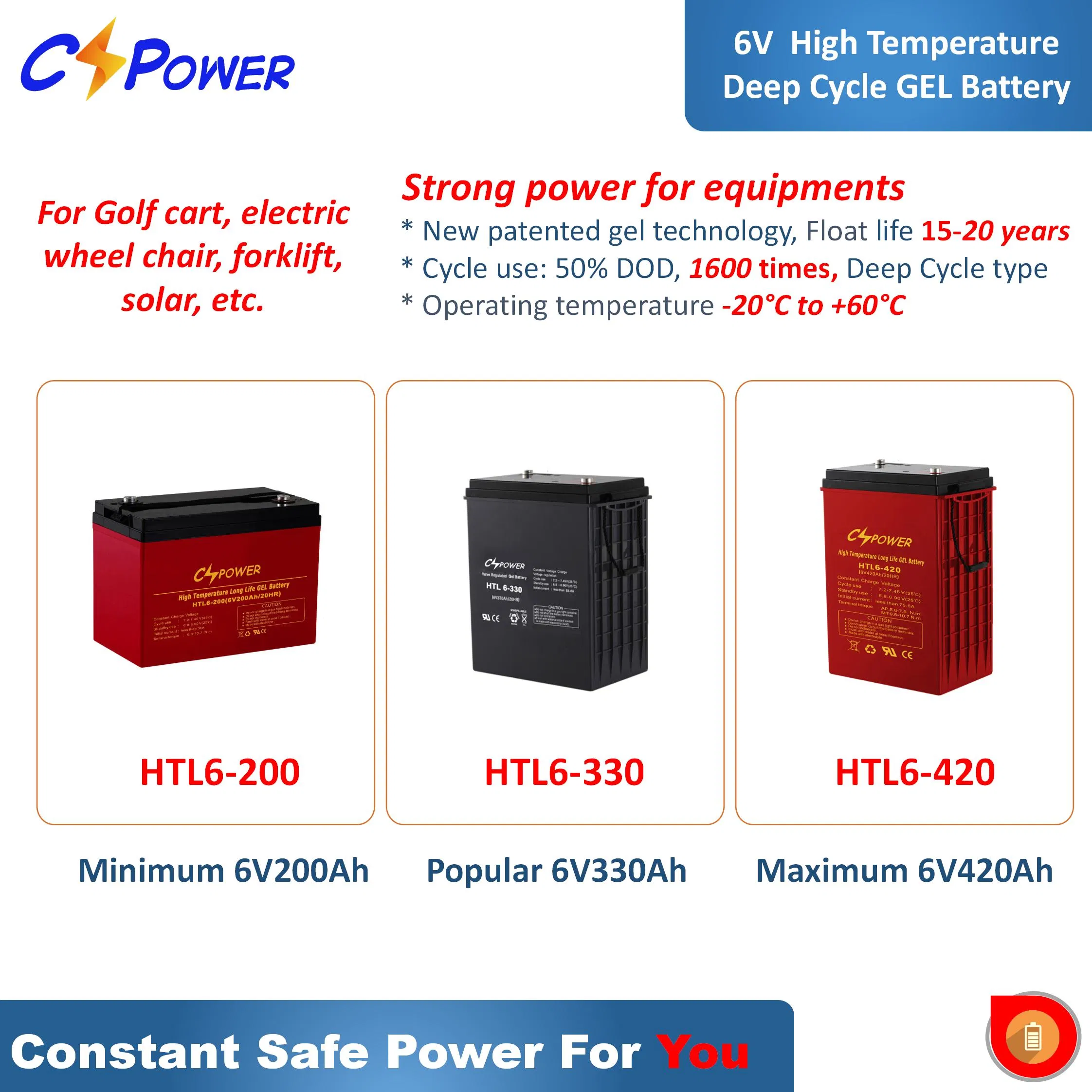

Patented High-Temp Deep Cycle Solar gel battery, featuring a long 15-20 years design life. The ideal solution for solar energy storage systems and extreme hot environments.
These deep cycle batteries are recognized as the industry standard for reliability and quality. Manufactured using advanced patented GEL technology, they deliver up to 1500-1600 cycles at 50% Depth of Discharge (DOD). The series strictly complies with international design standards including IEC60896-21/22, BS6290-4, and the Eurobat Guide.
Basic Specifications

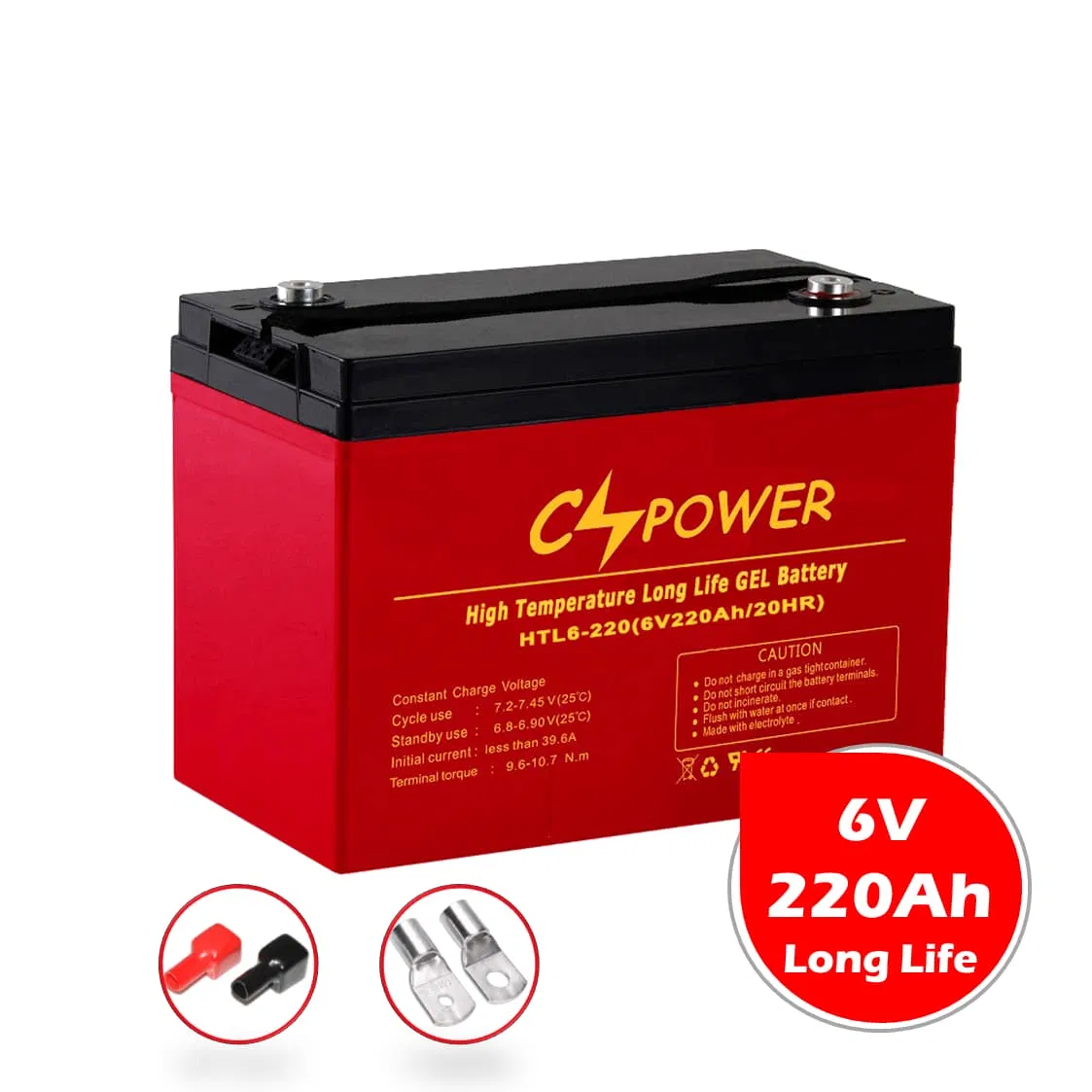

Model NO.HTL6-220 deep cycle battery
Nominal Voltage6V
Discharge RateLow Discharge Rate
ShapeSquare Battery
ElectrolyteDeep Cycle Gel Battery
InstallationFixed
RechargeableChargeable
ColorRed/Black
Battery TypeDeep Cycle Solar Gel Battery
Capacity200ah/210ah/220ah/225ah/310ah/330ah/420ah
Warranty3 Years
MaterialHigh Pure Lead 99.9994%
50% Dod1500 Cycles
Self-DischargeLess Than 3%
CertificateISO/IEC/Ce/UL
Work Temperature-20 Degree to 60 Degree
TerminalM8
Transport Package1*Battery, 1*Carton, 1*Pallet
Specification306*168*220*225mm
OriginChina
HS Code8507200000
Production Capacity100000PCS/Month
Packaging & Delivery
Package Size306.00cm * 168.00cm * 226.00cm
Package Gross Weight32.000kg
Advanced Technical Features
Environmentally friendly
Completely Maintenance-Free
Non-Spillable construction design
Wide Operating Temperature Range (-20°C ~ +60°C)
Longer Life (20 years designed life)
Explosion Proof safety structures
Valve Regulated & High Discharge Rate Capability
Low Self Discharge (Less than 3% per month)
Independent of Position installation
Ease of Shipment (Non-restricted classification)
No need for balanced charge or boost
No Memory effect

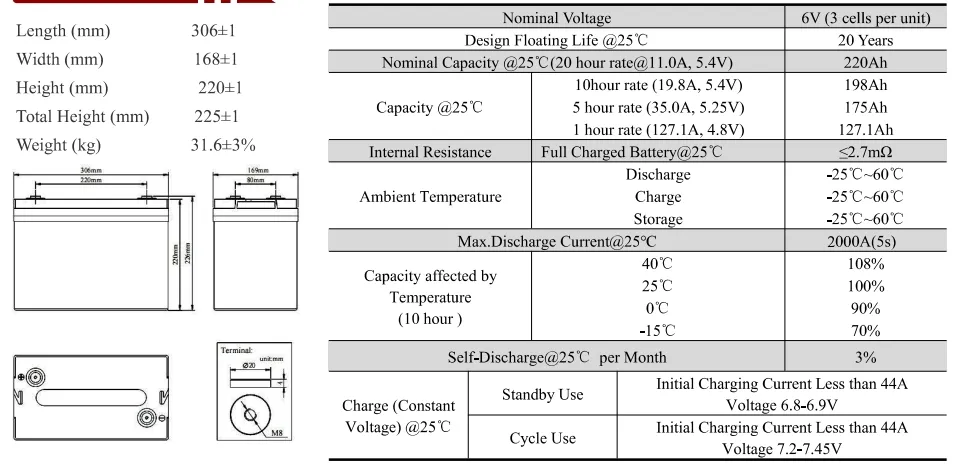

Product Parameters

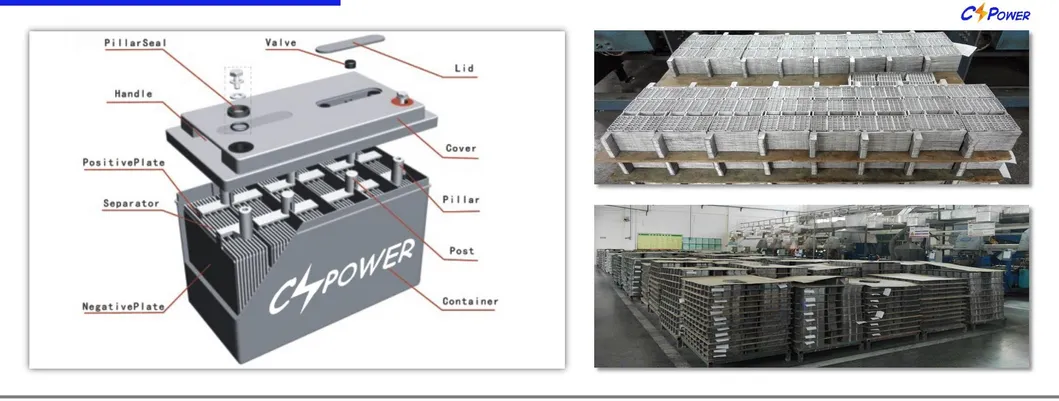

Product Structure
Component
Positive plate
Negative plate
Container & Cover
Safety valve
Terminal
Separator
Electrolyte
Pillar seal
Features
Thick high Sn low Ca grid with Special paste
Balanced Pb-Ca grid for improved recombination efficiency
Fire resistance ABS (UL94-V0 optional)
Flame Si-Rubber and aging resistance
Female Copper Insert
Advanced PVC / AGM separator for high pressure cell design
Silicon Gel
Two layers epoxy resin seal
Positive plate: Thick high Sn low Ca 3D flat pasted plate
Negative plate: Balanced Pb-Ca grid and AM with Super-C additives
Separator: Imported Amer-sil PVC separator for Gel battery
Electrolyte: Nano GEL electrolyte
Battery container and cover: Heat-resistant ABS for high temp environments
Pillar seal: 100% factory tested, proven two-layer epoxy resin seal
Relief valve: Complete with integrated flame arrestor
Assembling, Quality Control & Projects

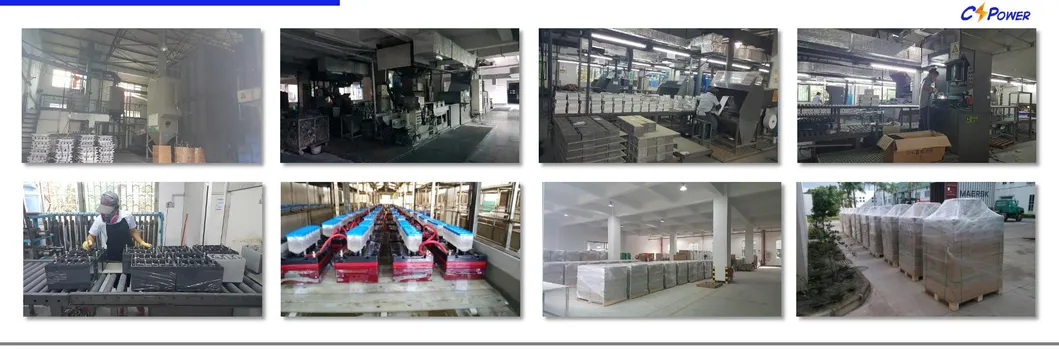

Assembling

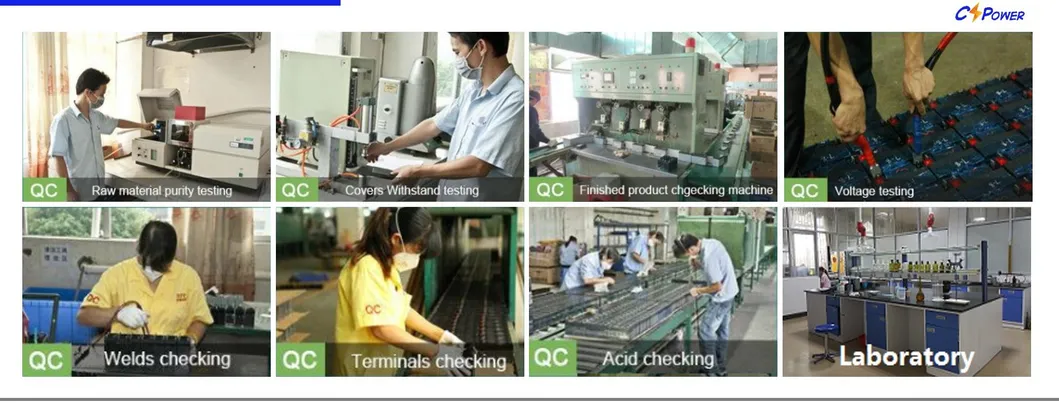

Quality Control

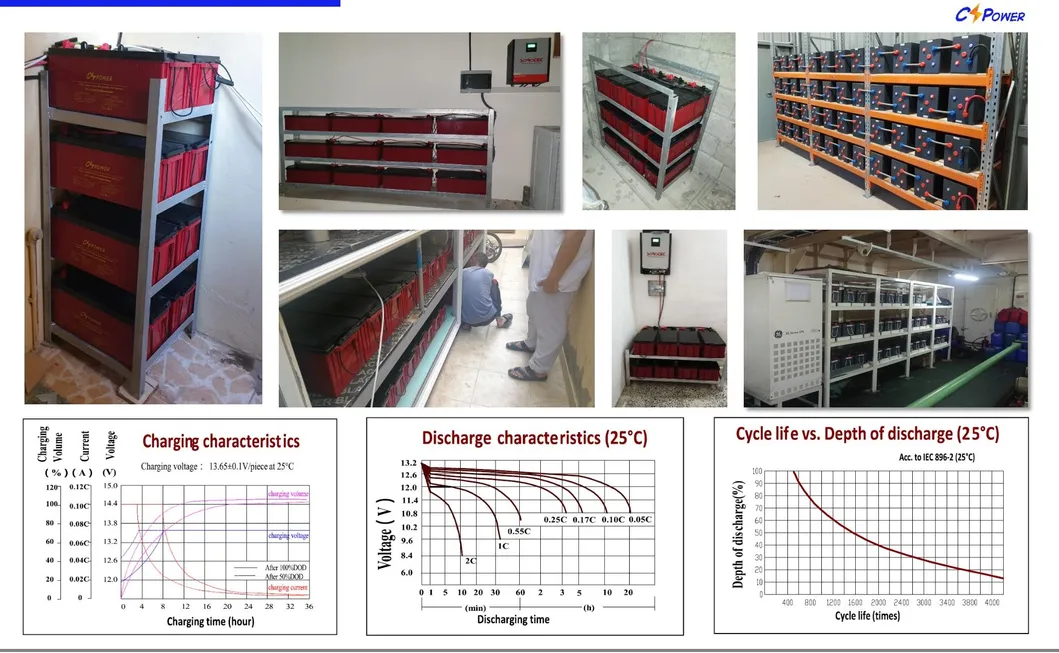

Projects
Certifications & Applications
Certifications
Applications

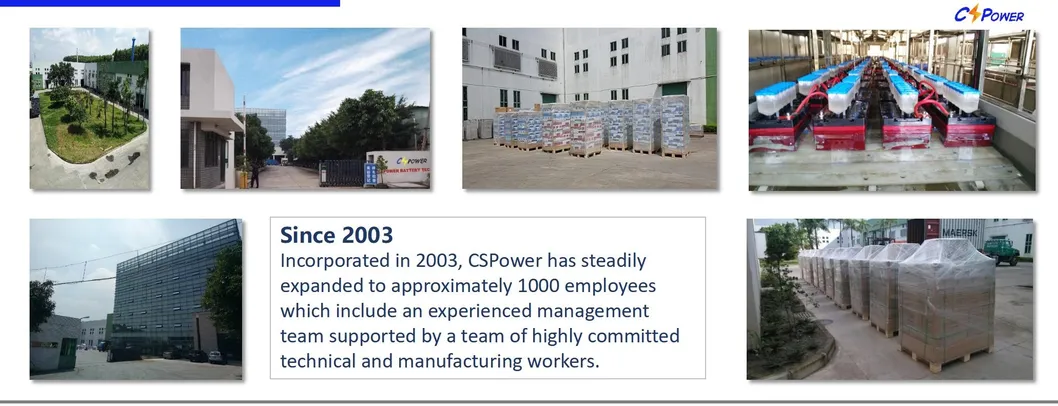

Factory
Compliance & Standards:
IEC 60896-21/22 & IEC 61427 standards
ISO9001 / ISO14001 / ISO18001 certification
Eurobat Guide Compliant (Long Life Category)
BS6290 Part 4 & GB/T 22473 compliance
CE & UL (MH63727-UL) Certification
General Fields of Application:
Electric Vehicles & Wheel Chairs
BTS & Communication Systems
Solar & Wind Power Storage Equipment
Golf Carts, Buggies & Power Tools
Uninterruptible Power Supplies (UPS) & Emergency Lighting
Customers & Packaging
Customers from 168 countries

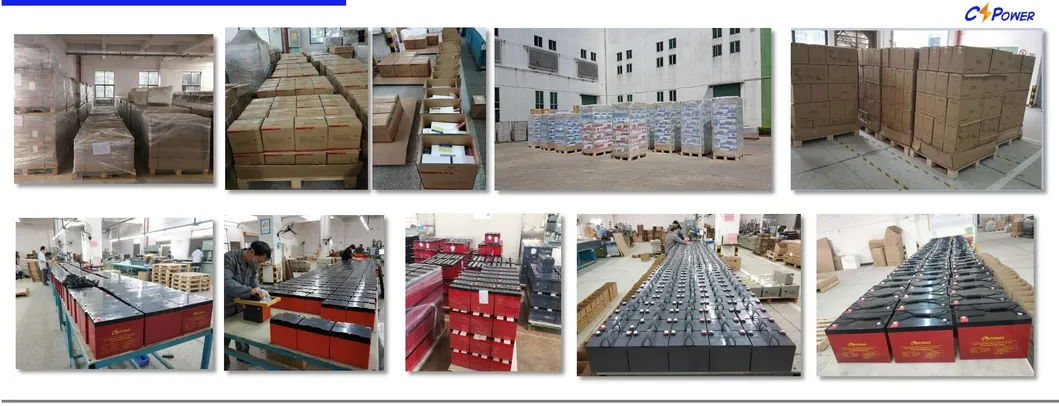

Export Packaging
Main customers include China Mobile Limited & Unicom Limited, ZTE Corporation, Delta Electronics Inc, Huawei Technologies, APC, Eaton and so on. Exported to over hundreds of countries including: USA, Brazil, Italy, Greece, Germany, Spain, Russia, Pakistan, Iran, Korea, Thailand, South Africa, Nigeria, Ghana, etc.
Free OEM/ODM Services Available
Competent at delivering specialized ODM and OEM projects according to custom real-time needs.
Product Specifications & Models
Model
Nominal Voltage (V)
Capacity (Ah)
Dimension (mm)
Net Weight
Gross Weight
Terminal
Length
Width
Height
Total Height
kgs
kgs
HTL6-200
6
200/20HR
306
168
220
225
30.3
30.5
M8

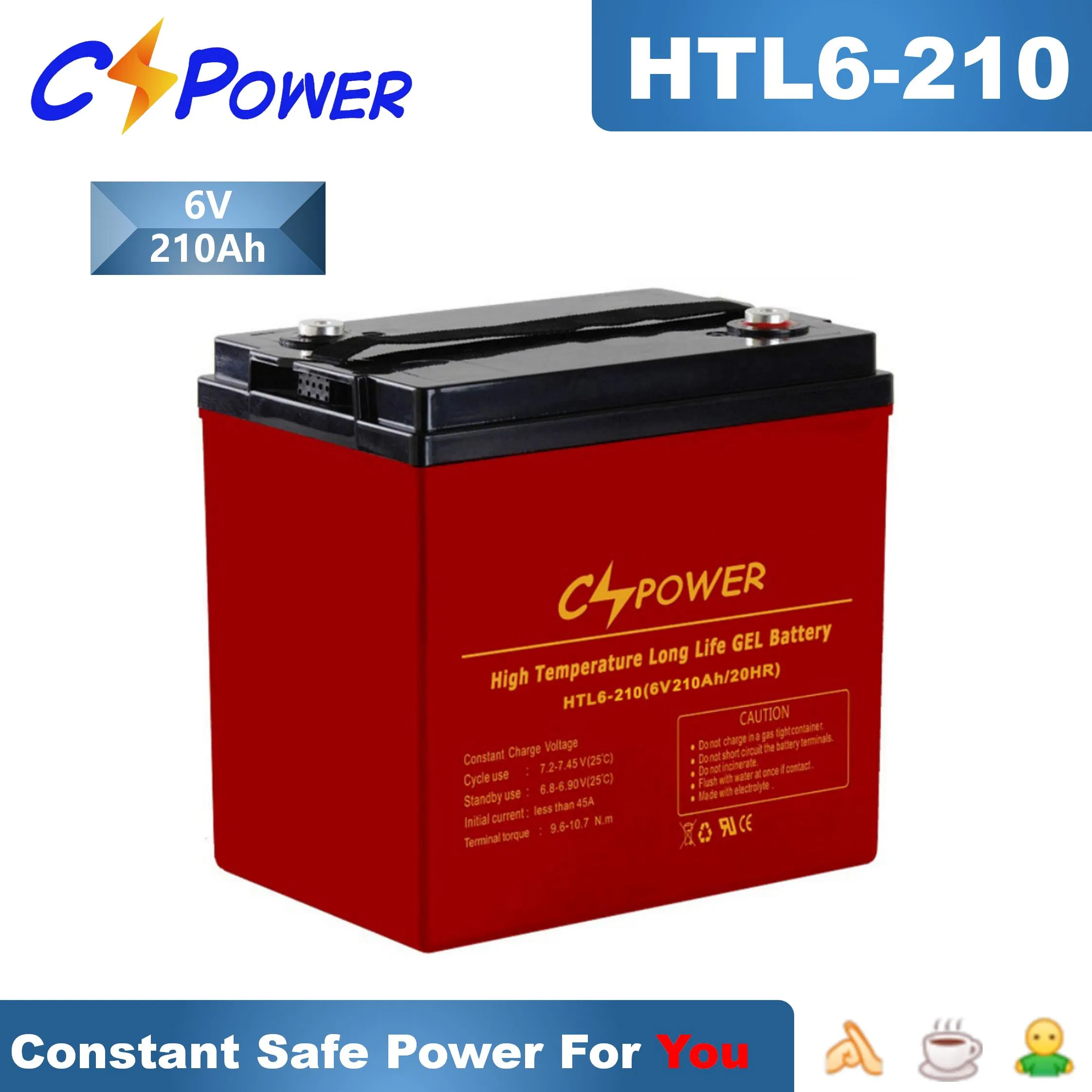

HTL6-210
6
210/20HR
260
180
247
252
29.8
30
M8
HTL6-220
6
220/20HR
306
168
220
225
31.8
32
M8

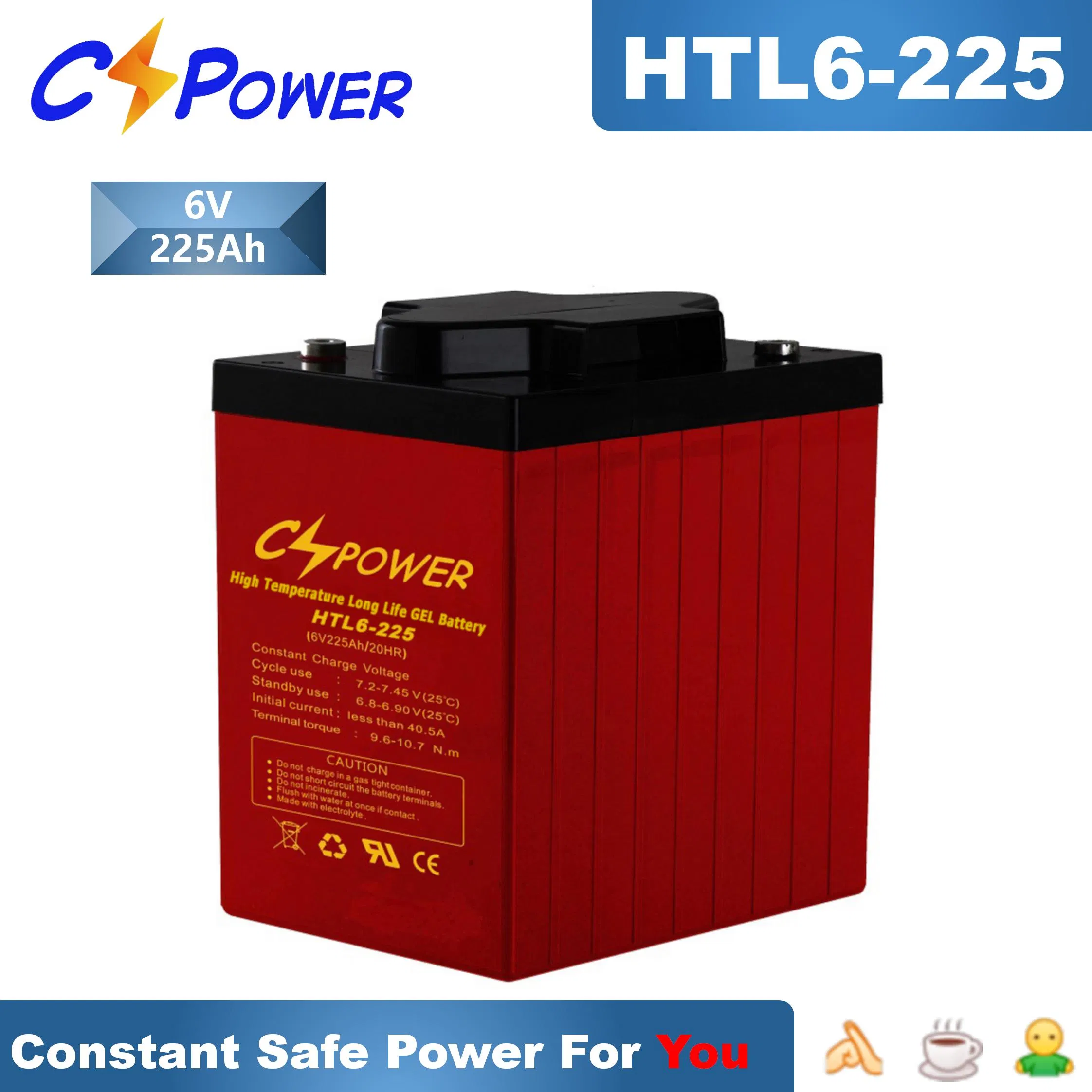

HTL6-225
6
225/20HR
243
187
275
275
30.8
31
M8

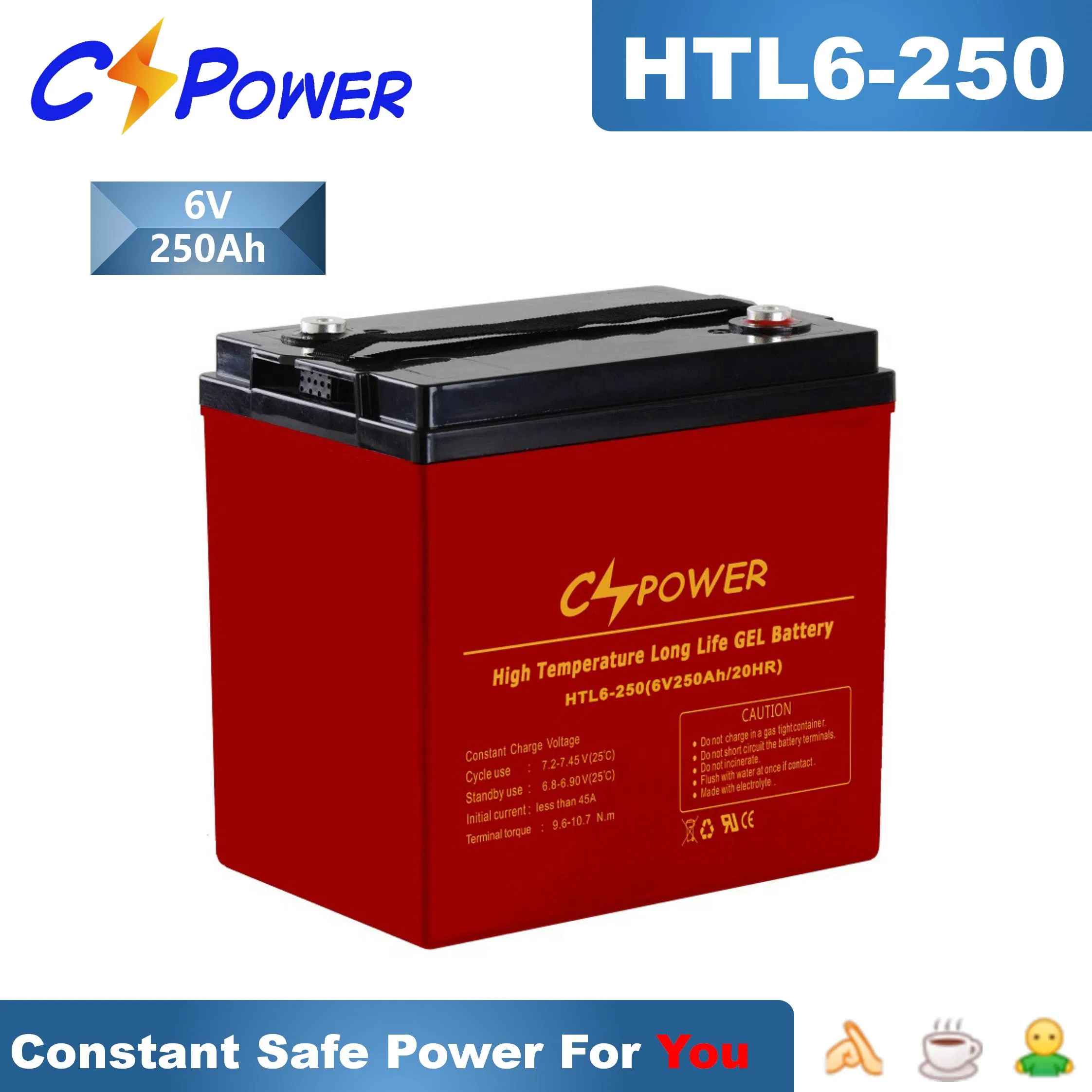

HTL6-250
6
250/20HR
260
180
265
272
34.8
35.1
M8
HTL6-310
6
310/20HR
295
178
354
360
46.3
46.6
M8
HTL6-330
6
330/20HR
295
178
354
360
46.9
47.2
M8
HTL6-380
6
380/20HR
295
178
404
410
55.6
55.9
M8
HTL6-420
6
420/20HR
295
178
404
410
57.1
57.6
M8
HTL8-170
8
170/20HR
260
182
266
271
34.3
34.8
M8
HTL8-200
8
200/20HR
260
182
295
301
38.3
38.8
M8
High Temp Solar Battery Features and Benefits:
Long life and high stability under elevated operating temperatures.
Electrolyte immobilized in gel state to prevent leakage and stratification.
Superb deep cycle life under high temperature.
Super-C additives enhance deep discharge recovery capabilities.
Excellent Partial State of Charge (PSOC) cycling performance.
Special Offer
Frequently Asked Questions (FAQ)
Q1. Can the battery be delivered by sea and air?
Yes, our batteries can be delivered both by sea and by air. We have complete MSDS and test reports certifying safe transport as non-dangerous goods.
Q2. Can I fast charge my battery?
Fast charging is not recommended as it can be harmful to the internal chemistry and overall service life of the battery.
Q3. Can I perform a partial replacement of my battery bank?
Partial battery replacement of lead acid battery banks is not recommended, as older batteries will degrade the performance of new ones.
Q4. What is the typical delivery lead time?
Usually, about 7 days for stock items, around 20 days for half container orders, and 30 days for 20ft full container volumes.
Q5. What is the shelf life of VRLA batteries and how should they be maintained?
Shelf life is limited by the self-discharge rate, which depends on temperature. VRLA batteries self-discharge less than 3% per month at 25°C (77°F). VRLA batteries should not be stored for over 6 months at 25°C without recharging. In hotter climates, recharge every 3 months. Recharge before placing into service after storage.
Q6. How does your facility control product quality?
We strictly adopt the ISO 9001 quality system. This includes Incoming Quality Control (IQC) to verify raw materials, Process Quality Control (PQC) featuring initial, in-process, and full testing, and Outgoing Quality Control (OQC) to guarantee no defective products leave the production facility.
