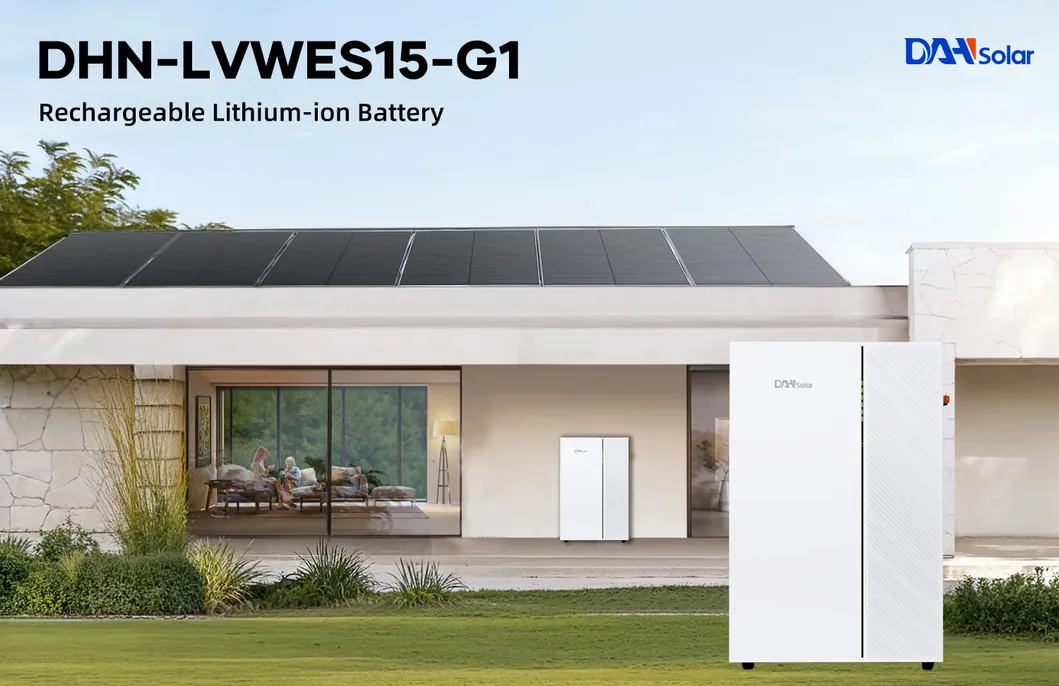

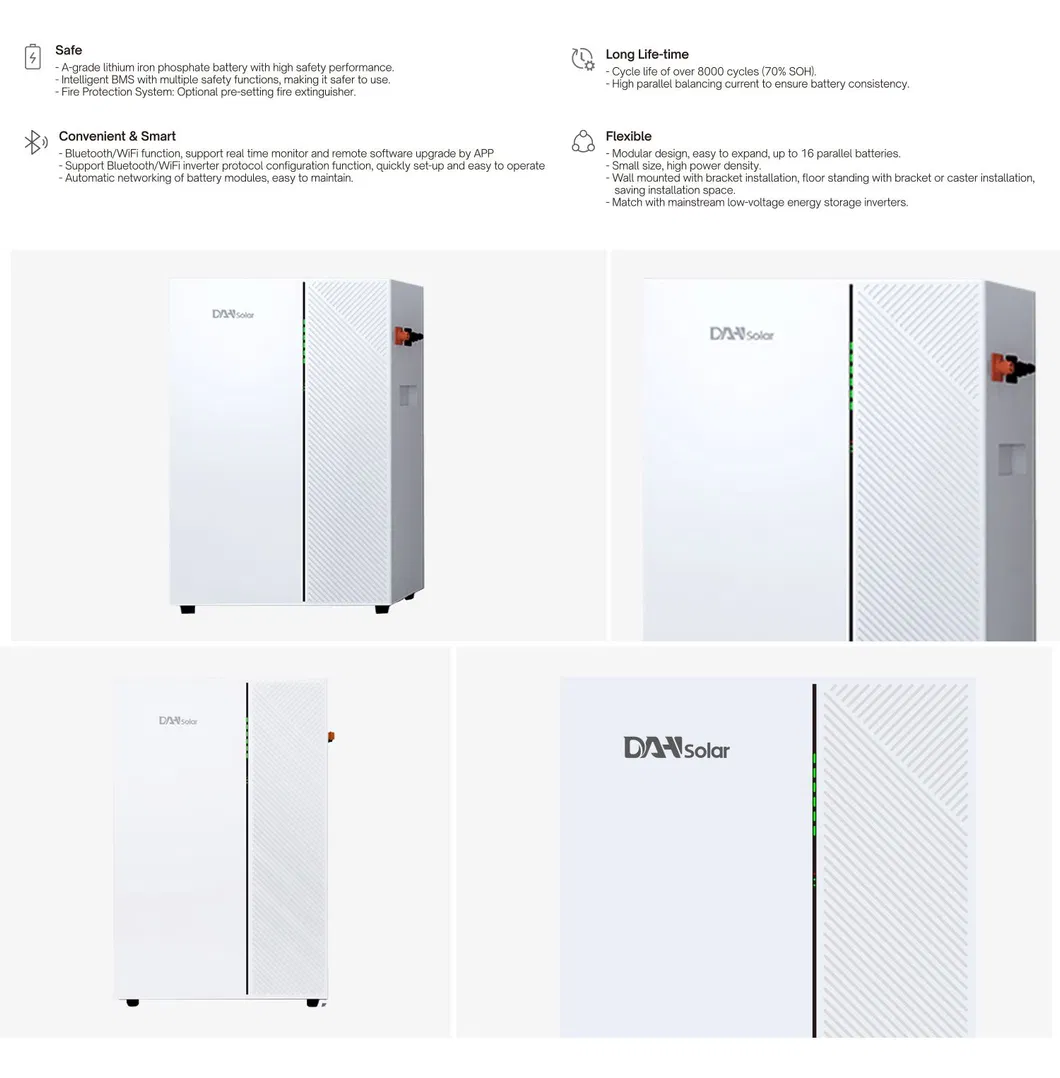

The DHN-LVWES series product is a low-voltage energy storage battery designed to provide efficient and reliable energy storage solutions for households, businesses, and specific occasions. Adopting top tier brand lithium iron phosphate battery cells, with high safety, stability, energy density, and long cycle life. Built in efficient intelligent battery management system (BMS), comprehensively monitoring and controlling the battery energy storage system to ensure its safe, stable and high-performance operation.
| Model | DHN-LVWES15-G1 |
| Main Parameter | |
| Battery Type | LiFePO4 |

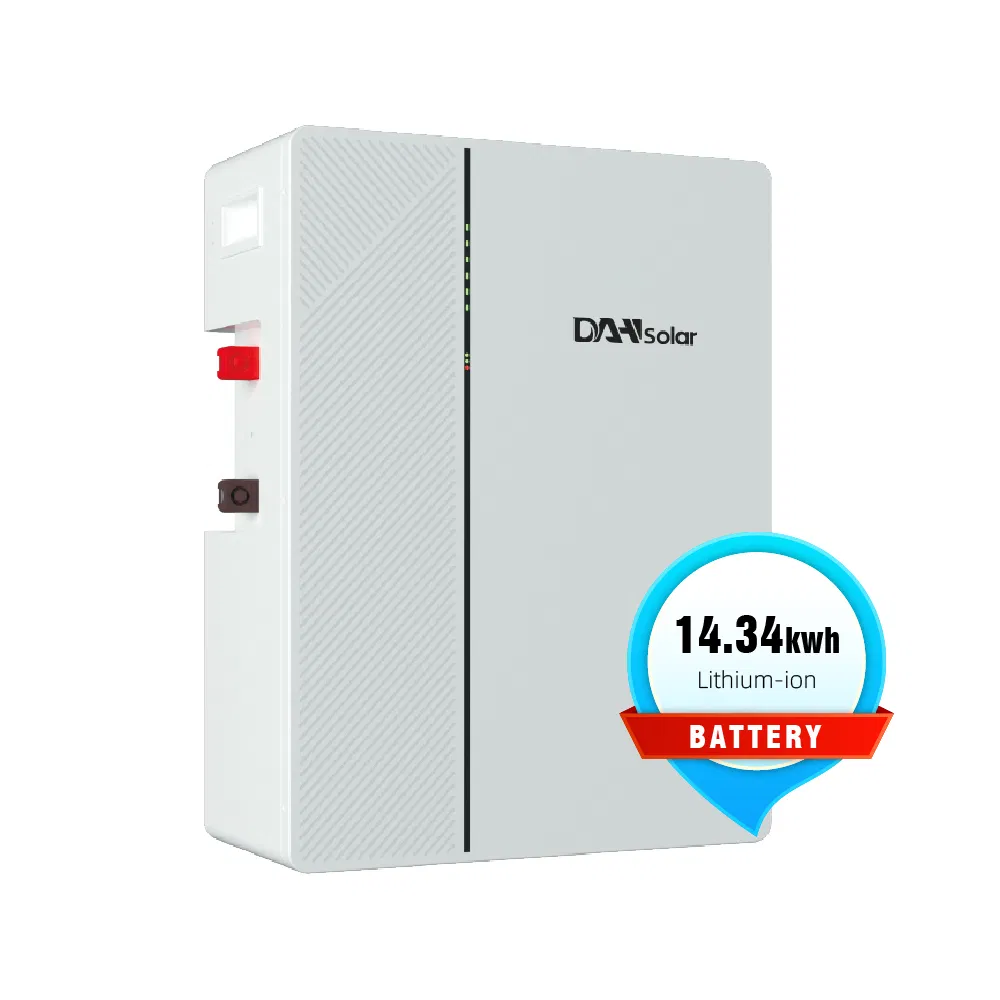

| Battery Rated Energy (kWh) | 14.34 |
| Battery Rated Capacity (Ah) | 280 |
| Scalability | Parallel connection of up to 16 units |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage(V) | 43.2~57.6 |
| Charge/Discharge Current(A)-Recommend | 140 |
| Charge/Discharge Current (A)-Max. | 200 |
| Other Parameter | |
| Recommend Depth of Discharge(%) | ≤90 |
| System Dimension(W/D/H,mm) | 520x680x232 |
| System Weight (kg) | 114 |
| Master LED Indicator | 6LED (SOC:16.6%~100%), 3LED (ON/OFF, RUN, ALARM) |
| IP Rating of Enclosure | IP20 |
| Operating Temperature(ºC) | Charge:0~55 / Discharge:-20~55 |
| Storage Temperature(ºC) | -20~35 |
| Humidity (%) | 5~95 |
| Altitude (m) | ≤2000 |
| Cycle Life(25±2ºC,0.5C/0.5C,70%EOL) | ≥8000 |

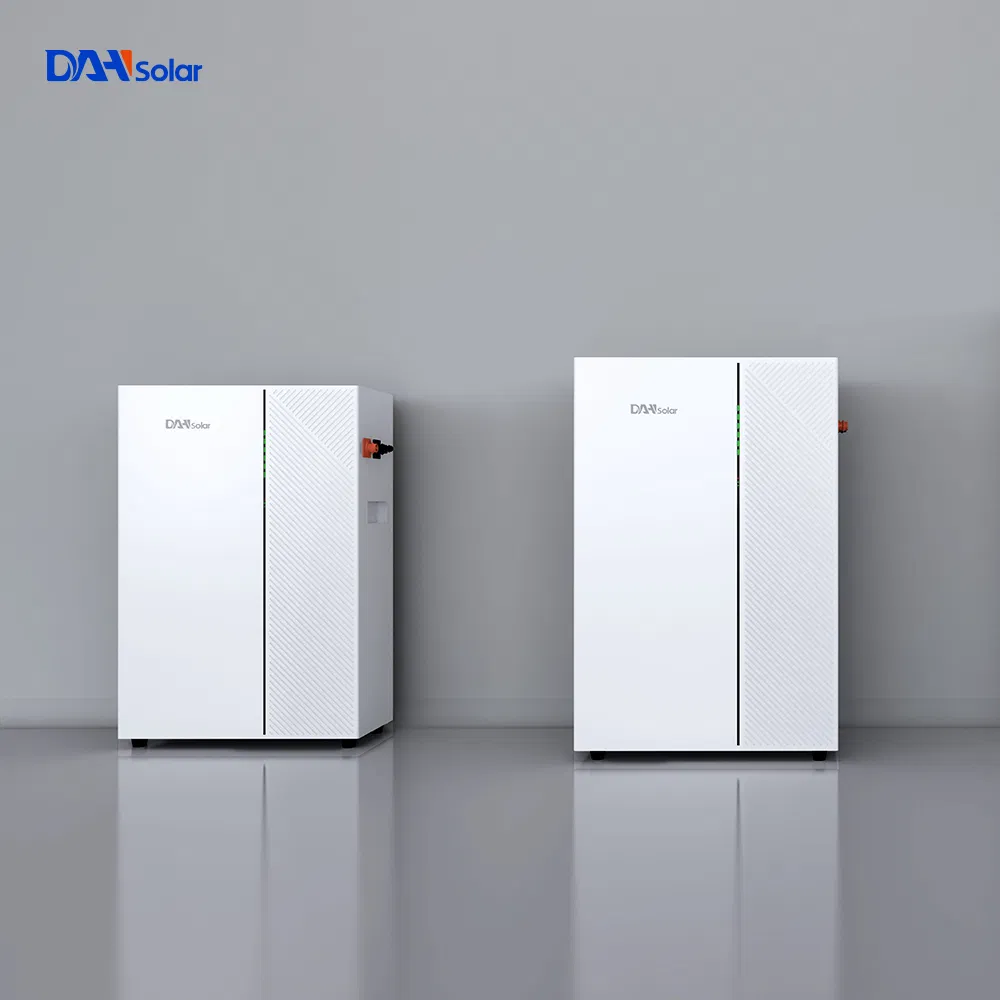

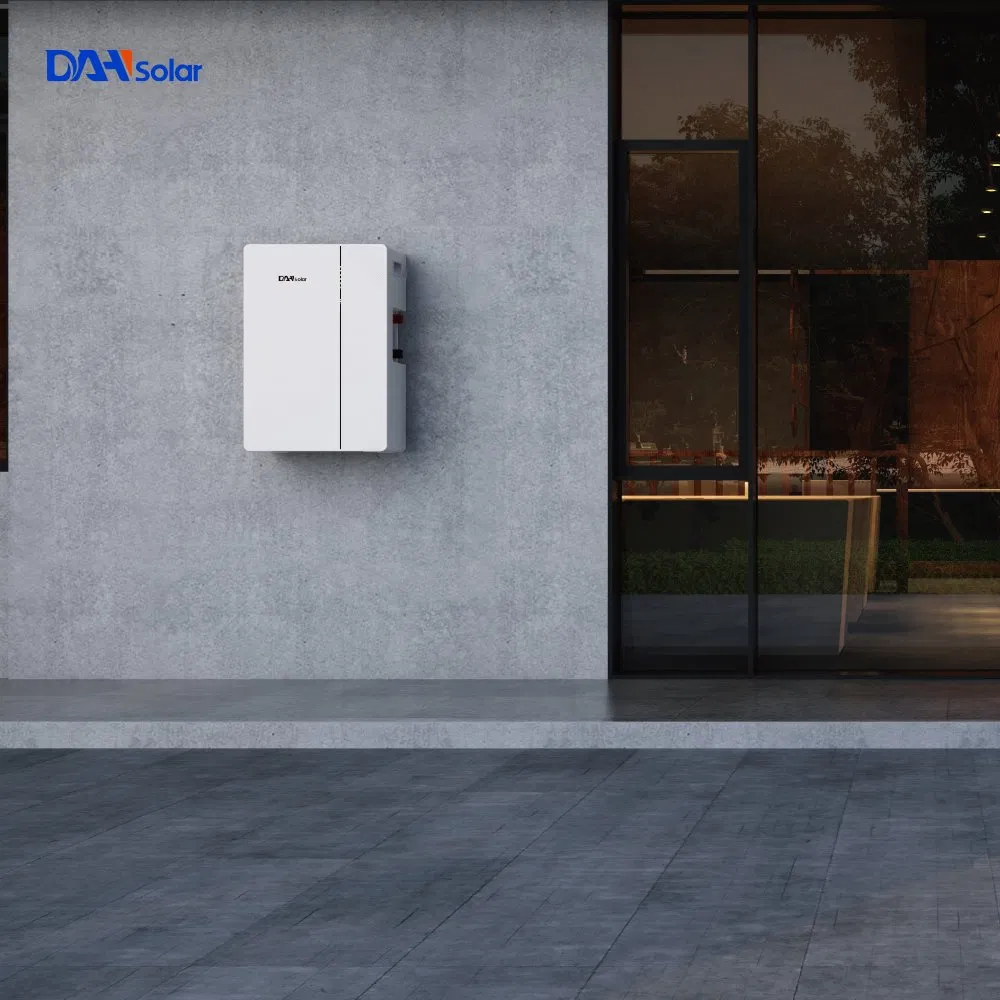

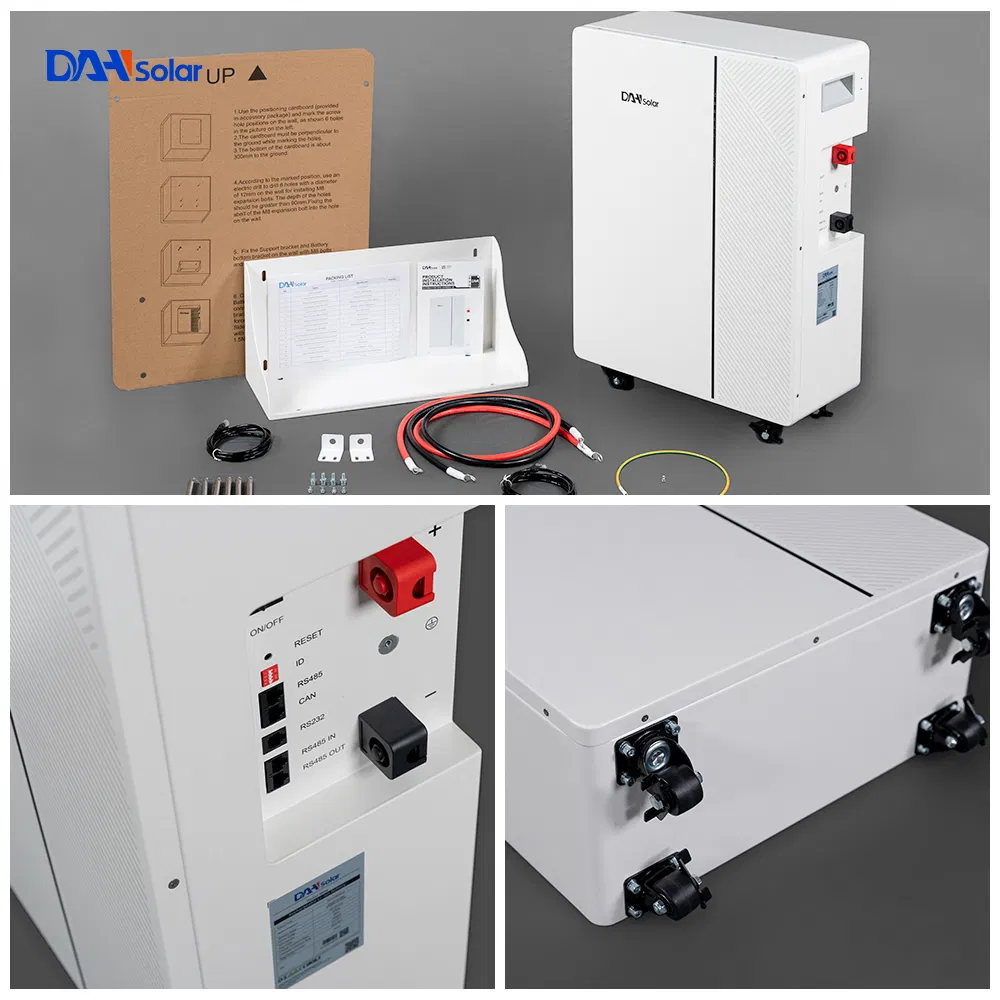

| Installation | Floor-Mounted / Wall-Mounted (optional wheel) |
| Fire Prevention System | Prefabricated whole fluorine ketone fire extinguishing device (optional) |
| Communication Methods | CAN2.0 / RS485 |
| Warranty Period (years) | 10 |
| Certification | IEC62619-CB, CE, UN38.3 |

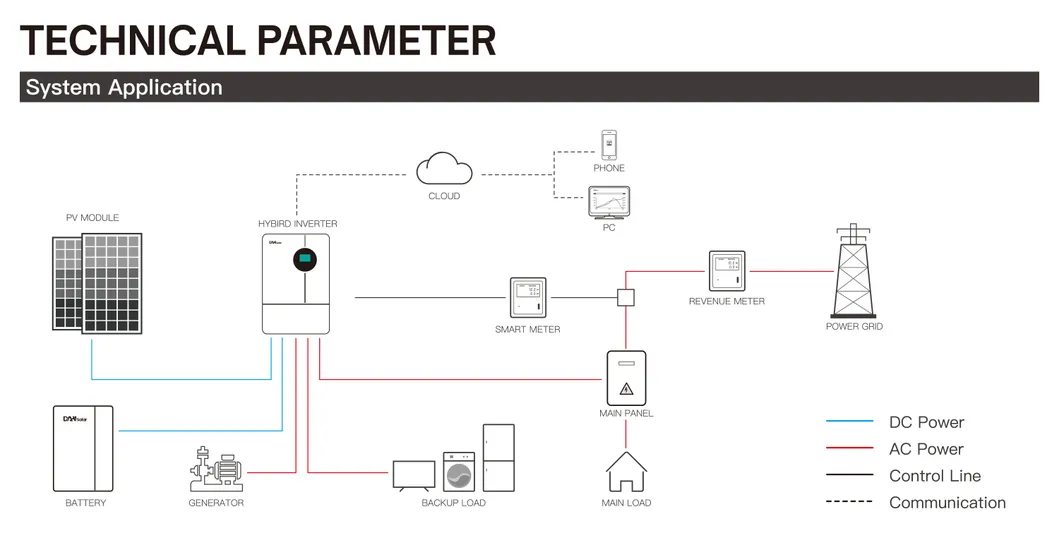

| Compatible Inverters | LUXPOWERTEK / SENERGY / SRD etc |
