35 Years Life Nickel Iron Ni-Fe 12V 60ah 200ah 250ah Deep Cycle Nickel Iron Ni-Fe Battery Solar Battery for Solar Panels

1 / 5

35 Years Life Nickel Iron Ni-Fe 12V 60ah 200ah 250ah Deep Cycle Nickel Iron Ni-Fe Battery Solar Battery for Solar Panels

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO. tn60

Nominal Voltage 1.2V

Discharge Rate Low Discharge Rate

Shape Square Battery

Electrolyte Alkaline

Installation Open Frame

Rechargeable Chargeable

Transport Package Standard Export Plywood Case

Specification as catalogue

Origin China

HS Code 8507400000

Production Capacity 8000PCS/Month

Product Description

Deep Cycle Nickel Iron Ni-Fe Battery Solar Battery

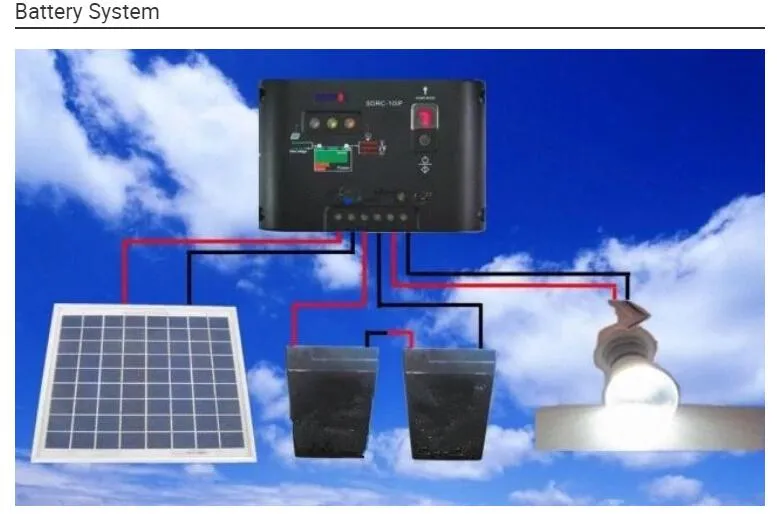

Deep Cycle Nickel Iron Ni-Fe Battery Solar Battery Bank

Professional service is provided for 12V/24V/48V battery bank systems of nickel iron batteries.

12 Volt Bank (10 cells)

12V battery systems are generally constrained to about 2500 Watts of input power.

24 Volt Bank (20 cells)

24V battery systems are excellent for off-grid applications where total space is limited.

48 Volt Bank (40 cells)

48V battery systems are modern and efficient. Lower cable amperages translate into thinner and cheaper wire, reducing concerns with over-current protection devices.

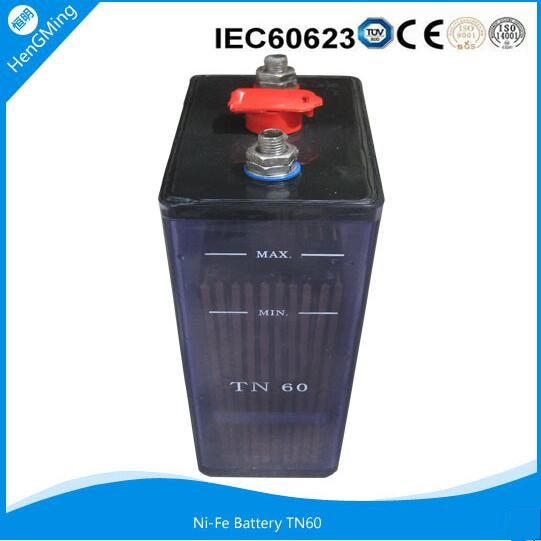

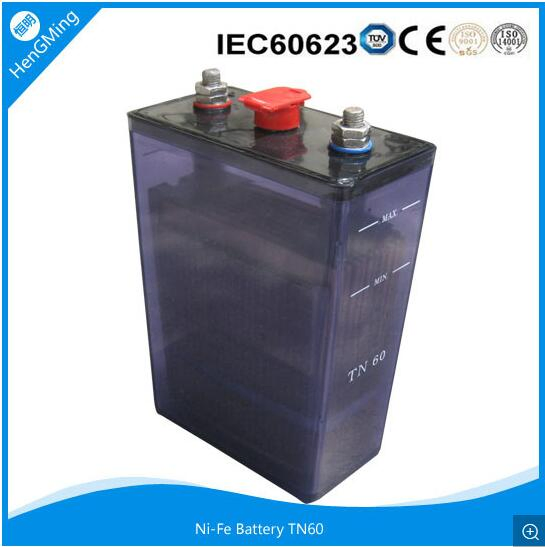

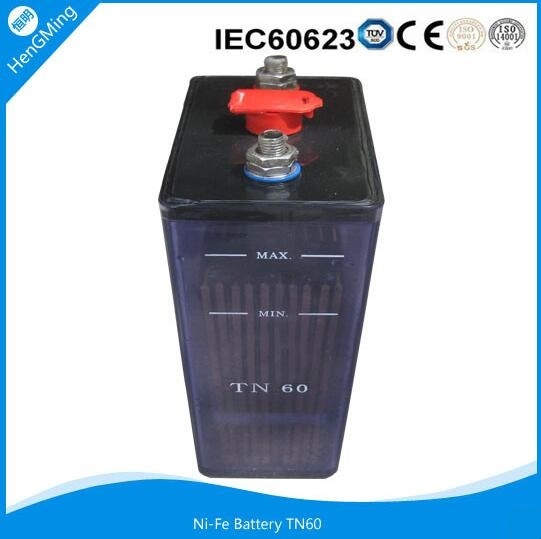

The details of TN60 are as follows:

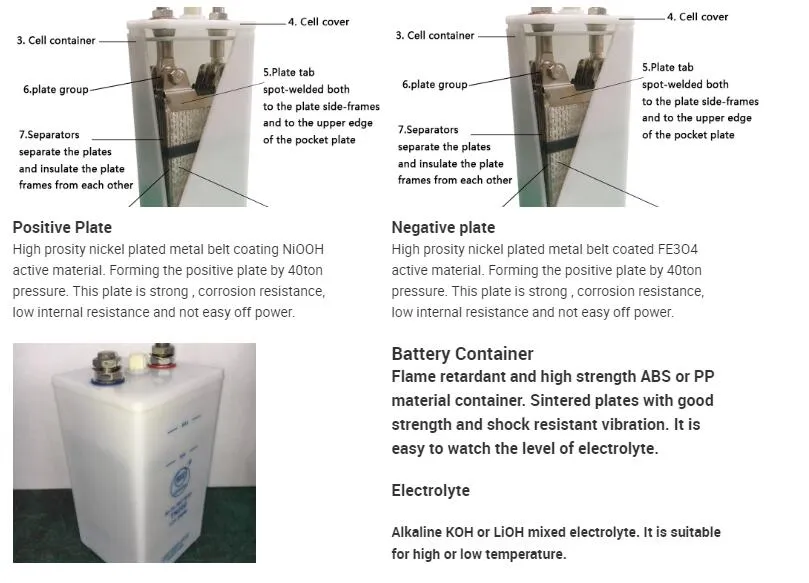

Cell Type: TN60, iron nickel, NiFe battery (rechargeable alkaline battery)
Rated Capacity: 60AH
Nominal Voltage: 1.2V
Container Material: PP
Dimensions: L=141mm, W=71mm, H=295mm
Delivery Accessories: Package includes battery connectors, vent caps, and electrolyte dry powder.

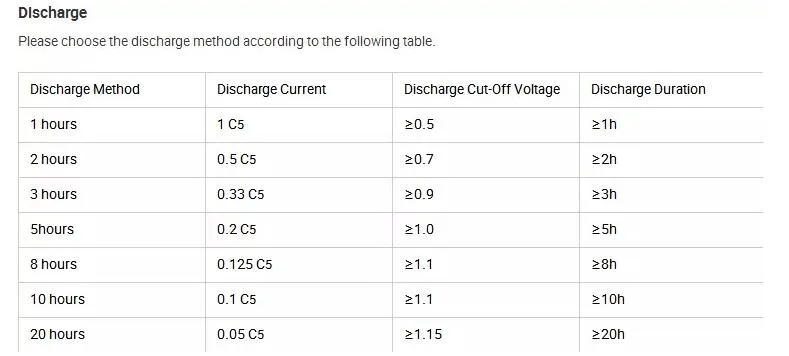

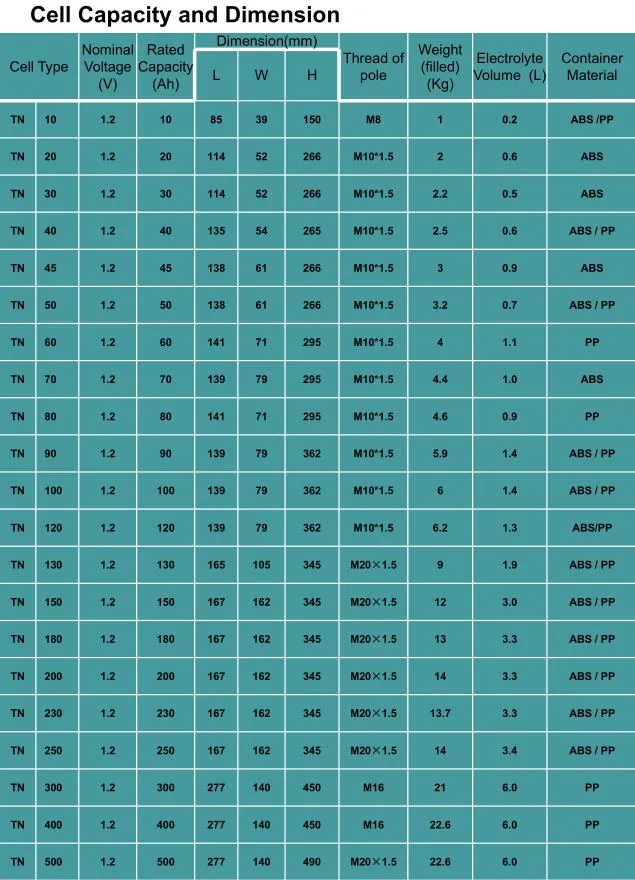

Specifications

Application

Ni-Fe rechargeable batteries are widely applicable as engine starting and standby power supply for diesel engines, DC generators, utility and electricity industries, telecommunication, locomotives, railway, metallurgy, mining industry emergency lighting, UPS, switchgear tripping and closing, wind, solar photovoltaic and other renewable energy applications.

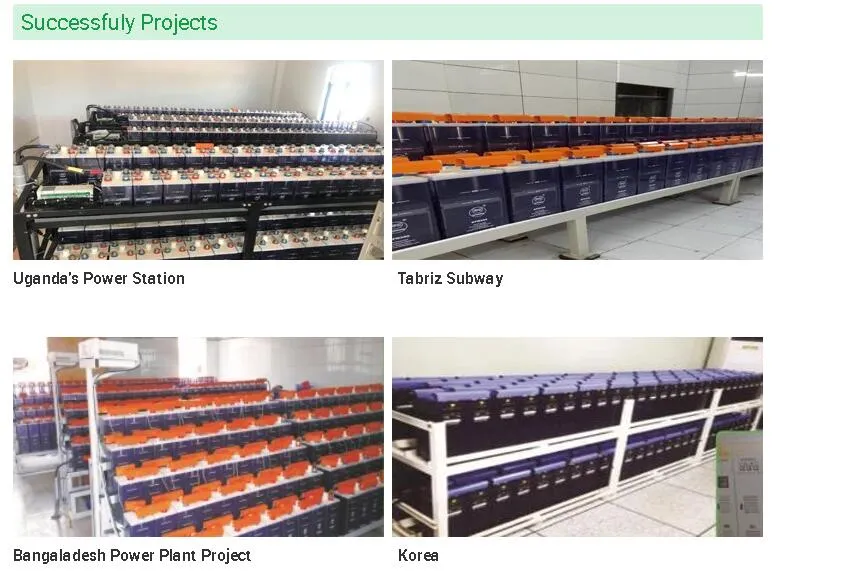

Industrial Ni-Fe Battery Bank Application

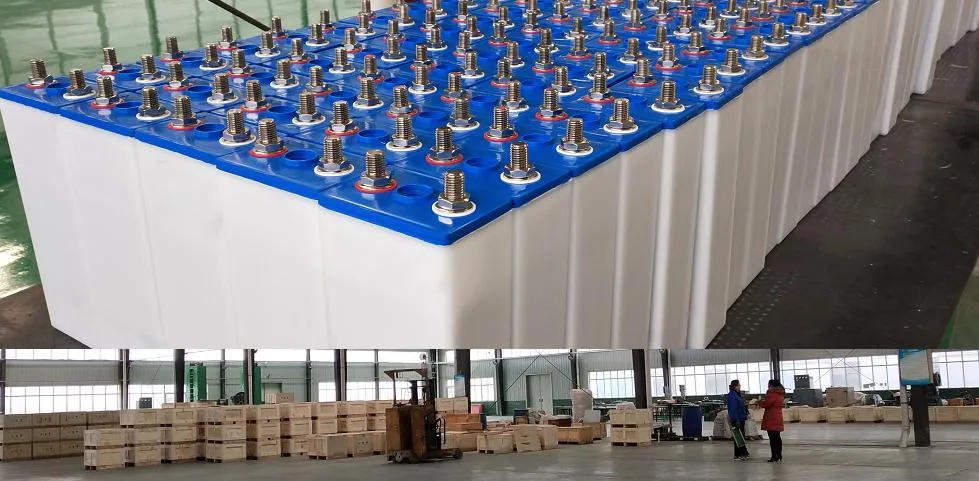

The batteries will be packed in standard export plywood cases. Electrolyte powder (KOH flakes and LiOH dry powder) will be sent with the accessories.

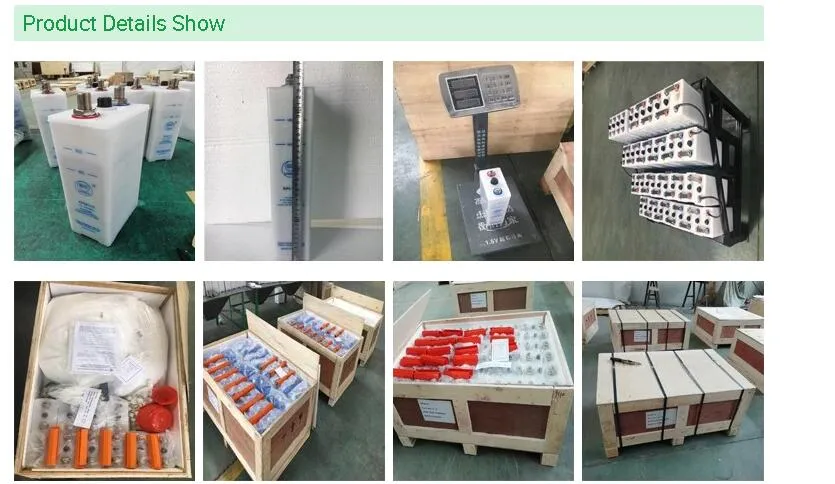

Accessories and Electrolyte Powder Packings

Our Service

1) Design Service

We can design and develop other battery models according to the customer's specific requirements.

2) OEM Service

We provide brand customization services, allowing us to print our customer's brand name and logo on the batteries.

3) Complete Set Service

We supply battery racks, cabinets, battery chargers, and related installation components based on your configurations.

Frequently Asked Questions

Q1: What are the main advantages of a Nickel-Iron (Ni-Fe) battery compared to Lead-Acid?

A: Nickel-Iron (Ni-Fe) batteries offer a significantly longer service life (typically 30–35 years), complete depth of discharge (100% DoD) capabilities without damage, high resistance to electrical abuse (overcharge/overdischarge), and are environmentally safe with no lead or acid hazards.

Q2: How do I configure the 1.2V TN60 cells to power a 12V, 24V, or 48V system?

A: Since each TN60 cell has a nominal voltage of 1.2V, you need to connect the cells in series: 10 cells for a 12V bank system, 20 cells for a 24V bank system, and 40 cells for a 48V bank system.

Q3: What accessories are shipped with the TN60 batteries?

A: Each shipment includes necessary battery connectors, vent caps, and dry electrolyte powder (comprising KOH flakes and LiOH powder) to prepare the battery system for field installation.

Q4: Can these batteries be used for solar energy storage systems?

A: Yes. Ni-Fe batteries are ideal for off-grid solar photovoltaic systems, wind power storage, and remote backup power systems because they handle deep daily cycling extremely well.

Q5: Does the performance of the TN60 battery degrade under high or low temperatures?

A: Ni-Fe batteries perform exceptionally well across wide temperature ranges due to their alkaline electrolyte chemistry, presenting a much lower risk of thermal runaway compared to other chemical technologies.

Q6: Do you support customized battery dimensions or brand logos?

A: Yes, we provide full design services to develop battery models based on custom dimensions and requirements. We also offer OEM services to print and customize customer logos directly onto the product.
