Product Description
FLAT PLATE GEL VRLA 12VDC BATTERY
GEL 24-230AH
KEY FEATURES
- Primary material is gas silicon dioxide from import.
- Fully sealed: with cover and pole double seal design to prevent leakage of electrolysis, and for the reliability of safe-valve, prevent oxygen and dust from outside enter into the battery.
- Free maintenance: with the performance of water reproduce and high sealed reaction efficiency, no need for any compensation of water during use.
- Safety: without acid leaked, reliable gas pressure venting system and equipped with anti-explosion device, which make the battery safer during use.
- Long cycle life: anti-erosion pb-ca multi-alloy, ABS plastic material and high sealed reaction efficiency to assure the service life.
- Temperature adaptability: the battery can be used safely during -25-50ºC.
- Convenient and safe: the battery has charged with load before leaving the factory, without free electrolysis, it allowed to be placed breadthways and transported by sea and railway as nonhazardous material.
- Economical: with high performance, long service life and lowest maintenance cost to offer consumers the most economical products.
TECHNICAL SPECIFICATIONS
| BATTERY MODEL |
Voltage |
Capacity |
Resistance |
Charge Voltage (VDC) |
Charge Current |
Product Size (MM) |
Product weight |
Terminal type |
| (VDC) |
(Ah) |
(mΩ) |
Equalization and Cycle |
Float |
Maximum Amp |
L |
W |
H |
T/H |
KG |
| GEL24-12 |
12 |
24 |
<=13 |
14.4-15 |
13.65 |
6Amp |
166 |
125 |
175 |
182 |
8.00 |
M6 |
| GEL26-12 |
12 |
26 |
<=11 |
14.4-15 |
13.65 |
7.5Amp |
166 |
125 |
175 |
182 |
8.50 |
M6 |
| GEL38-12 |
12 |
38 |
<=10 |
14.4-15 |
13.65 |
9.5Amp |
197 |
165 |
170 |
182 |
12.00 |
M6 |
| GEL40-12 |
12 |
40 |
<=8 |
14.4-15 |
13.65 |
12Amp |
197 |
165 |
170 |
182 |
12.00 |
M6 |
| GEL55-12 |
12 |
55 |
<=6.5 |
14.4-15 |
13.65 |
14Amp |
227 |
138 |
206 |
228 |
17.20 |
M6/L-6 |
| GEL65-12 |
12 |
65 |
<=6.1 |
14.4-15 |
13.65 |
16.25Amp |
350 |
166 |
178 |
178 |
21.00 |
M6 |
| GEL100-12D-15 |
12 |
100 |
<=5 |
14.4-15 |
13.65 |
25Amp |
330 |
173 |
220 |
240 |
27.00 |
M8 |
| GEL100-12D-17 |
12 |
100 |
<=5 |
14.4-15 |
13.65 |
25Amp |
330 |
173 |
220 |
240 |
28.50 |
M8 |
| GEL100-12M |
12 |
100 |
<=4.4 |
14.4-15 |
13.65 |
25Amp |
407 |
174 |
238 |
238 |
31.00 |
M8 |
| GEL120-12-15 |
12 |
120 |
<=4 |
14.4-15 |
13.65 |
25Amp |
407 |
174 |
238 |
238 |
33.00 |
M8 |
| GEL150-12-15 |
12 |
150 |
<=3 |
14.4-15 |
13.65 |
35Amp |
485 |
171 |
241 |
241 |
37.00 |
M8 |
| GEL150-12-17 |
12 |
150 |
<=3 |
14.4-15 |
13.65 |
35Amp |
485 |
171 |
241 |
241 |
43.00 |
M8 |
| GEL200-12-15 |
12 |
200 |
<=3 |
14.4-15 |
13.65 |
50Amp |
520 |
240 |
224 |
244 |
57.00 |
M8 |
| GEL200-12-17 |
12 |
200 |
<=3 |
14.4-15 |
13.65 |
50Amp |
520 |
240 |
224 |
244 |
63.00 |
M8 |
| GEL230-12 |
12 |
230 |
<=1 |
14.4-15 |
13.65 |
55Amp |
520 |
269 |
203 |
203 |
67.00 |
M8 |
Note:
1. 10 year Service life, ABS shell.
2. The rate capacity (10 rate hour) is the average tested by several times at 25ºC.
3. The total height of battery includes the terminal.
4. "L" terminal denotes quadrate terminal and postfix "o" terminal denotes cylindrical terminal.
5. It is to be noted that all these parameters are subject to change without notice.

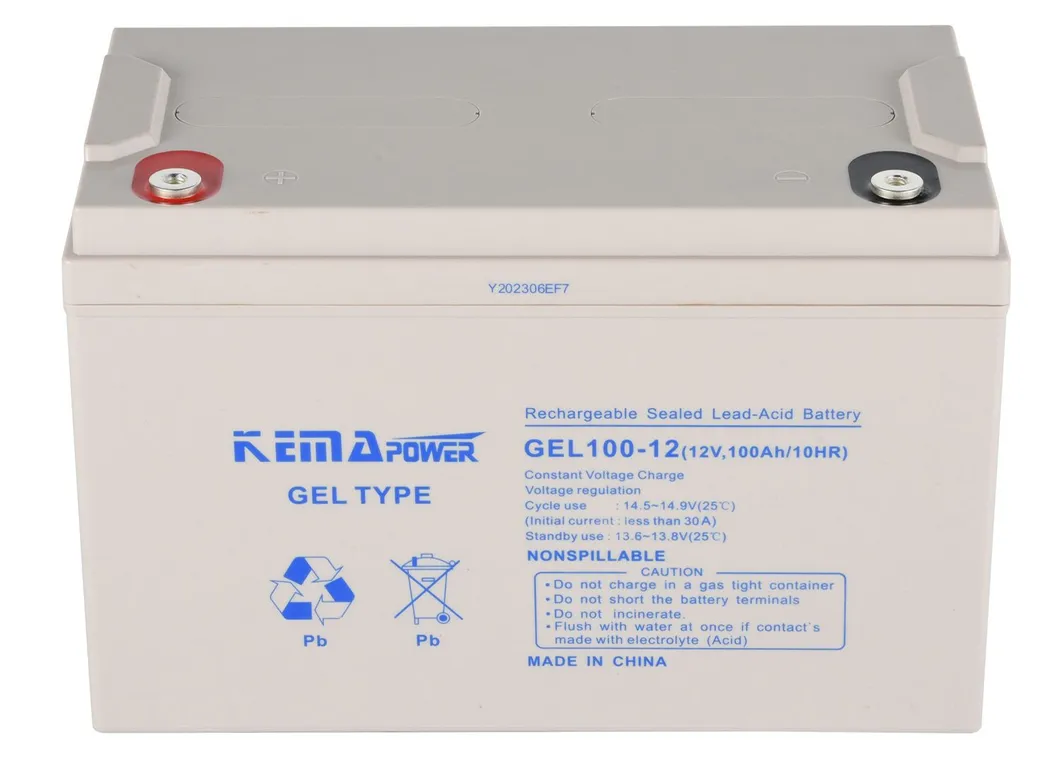

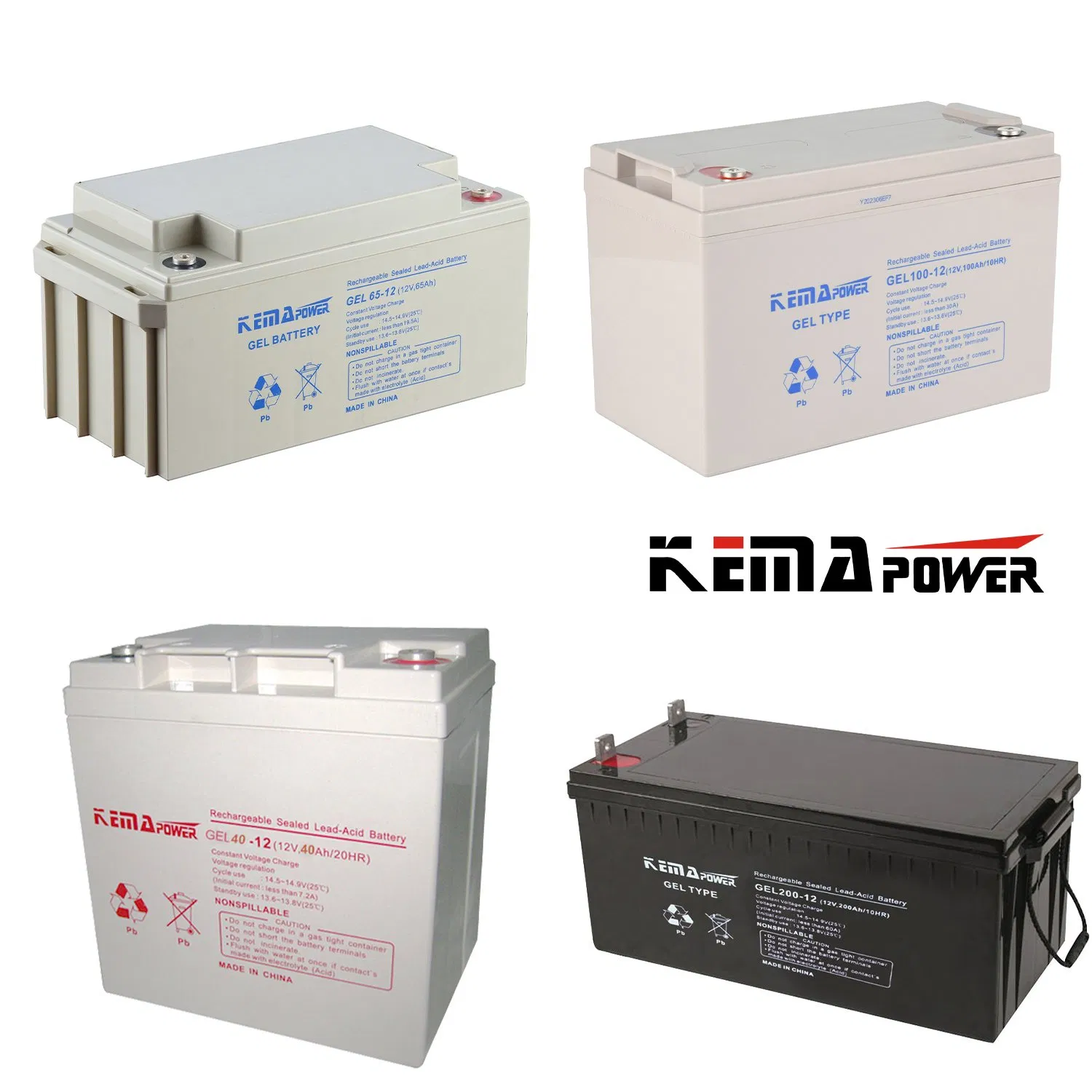

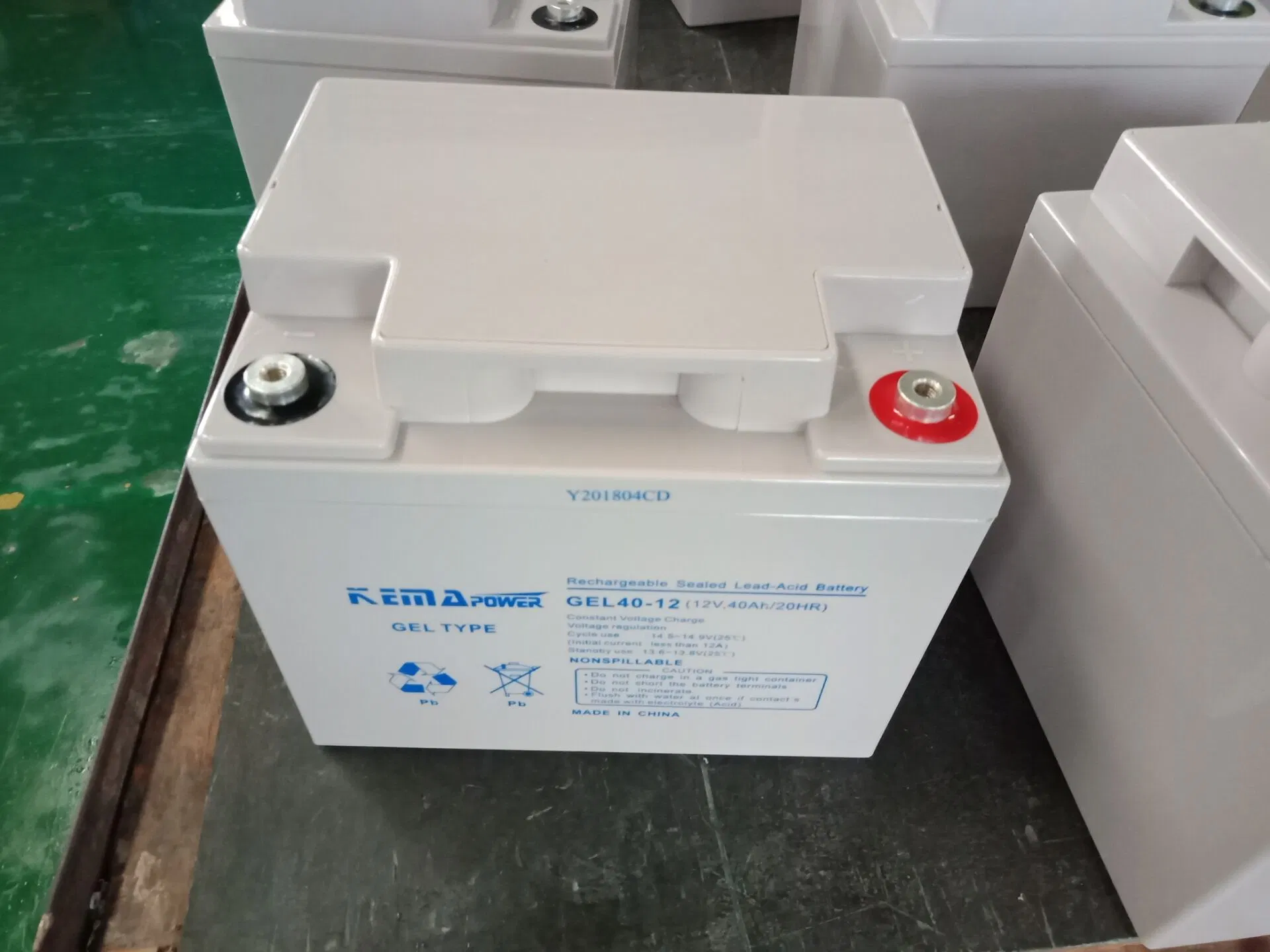

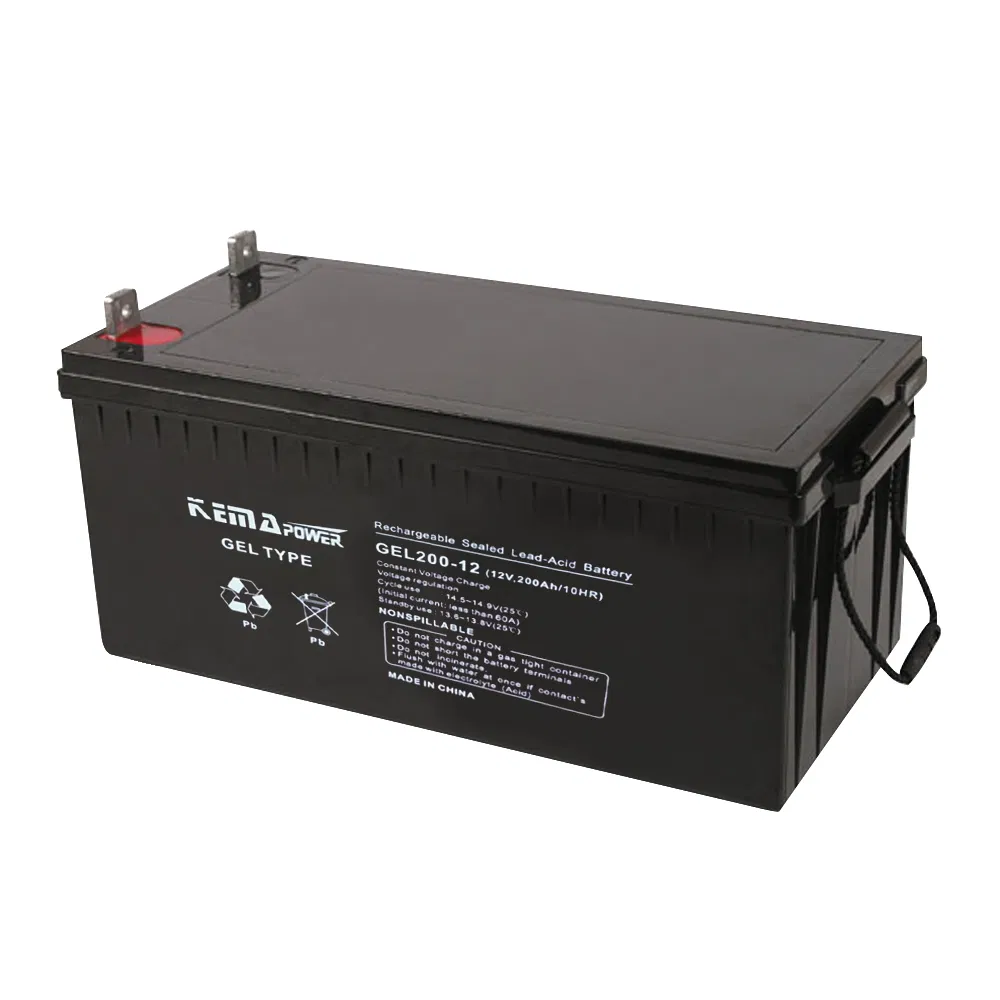

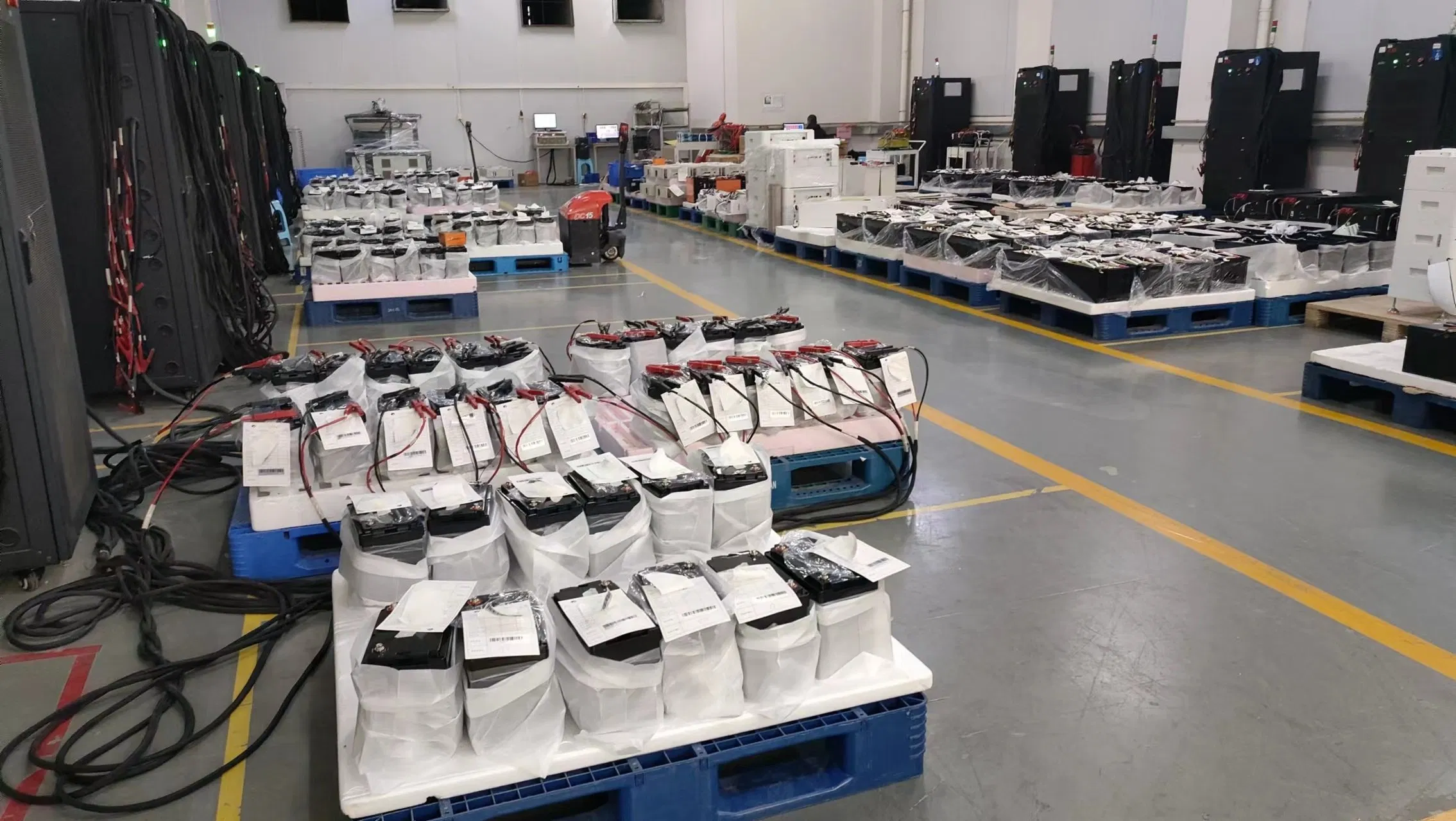

PRODUCT DISPLAY
Frequently Asked Questions
What are the main advantages of Gel VRLA batteries compared to standard lead-acid batteries?
Gel VRLA batteries use imported gas silicon dioxide to form a gel-type electrolyte. This configuration ensures they are completely leak-proof, maintenance-free (no water compensation required), and provide superior cycle life along with enhanced stability across a broad temperature range (-25ºC to 50ºC).
Does this 12V Gel battery require regular watering or maintenance?
No. The battery is completely maintenance-free. Due to its double seal design (cover and pole) and highly efficient sealed gas recombination reaction, there is no electrolyte leakage or loss, eliminating the need to add water throughout its lifecycle.
Can this Gel battery be transported easily?
Yes. Because there is no free liquid electrolyte inside the battery, it is completely secure and safe to be placed in various directions. It is certified for transport by sea and railway as non-hazardous material.
What safety mechanisms are built into these VRLA batteries?
These batteries are equipped with a highly reliable gas pressure venting system and an integrated anti-explosion device. This prevents excess pressure accumulation and blocks external oxygen and dust from entering, ensuring secure and stable operation.
What capacity options are available in this product range?
The flat plate GEL 12V VRLA battery series is available in capacities ranging from 24Ah up to 230Ah (such as GEL24-12, GEL100-12, and GEL230-12) to match different applications and load requirements.
