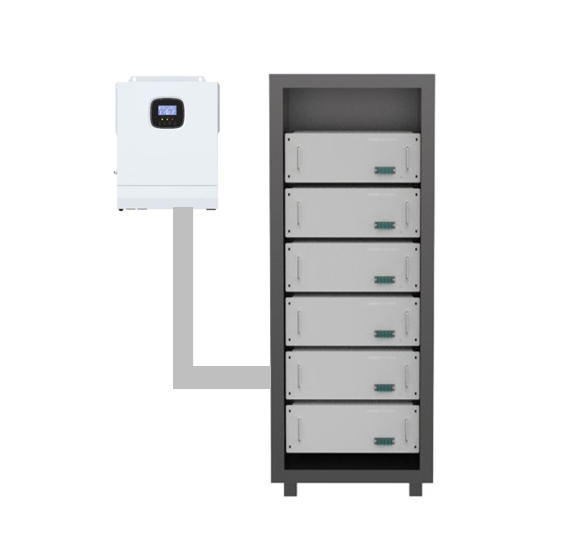

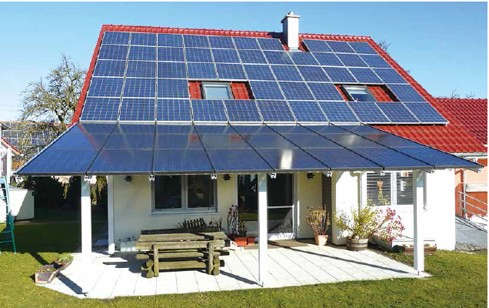

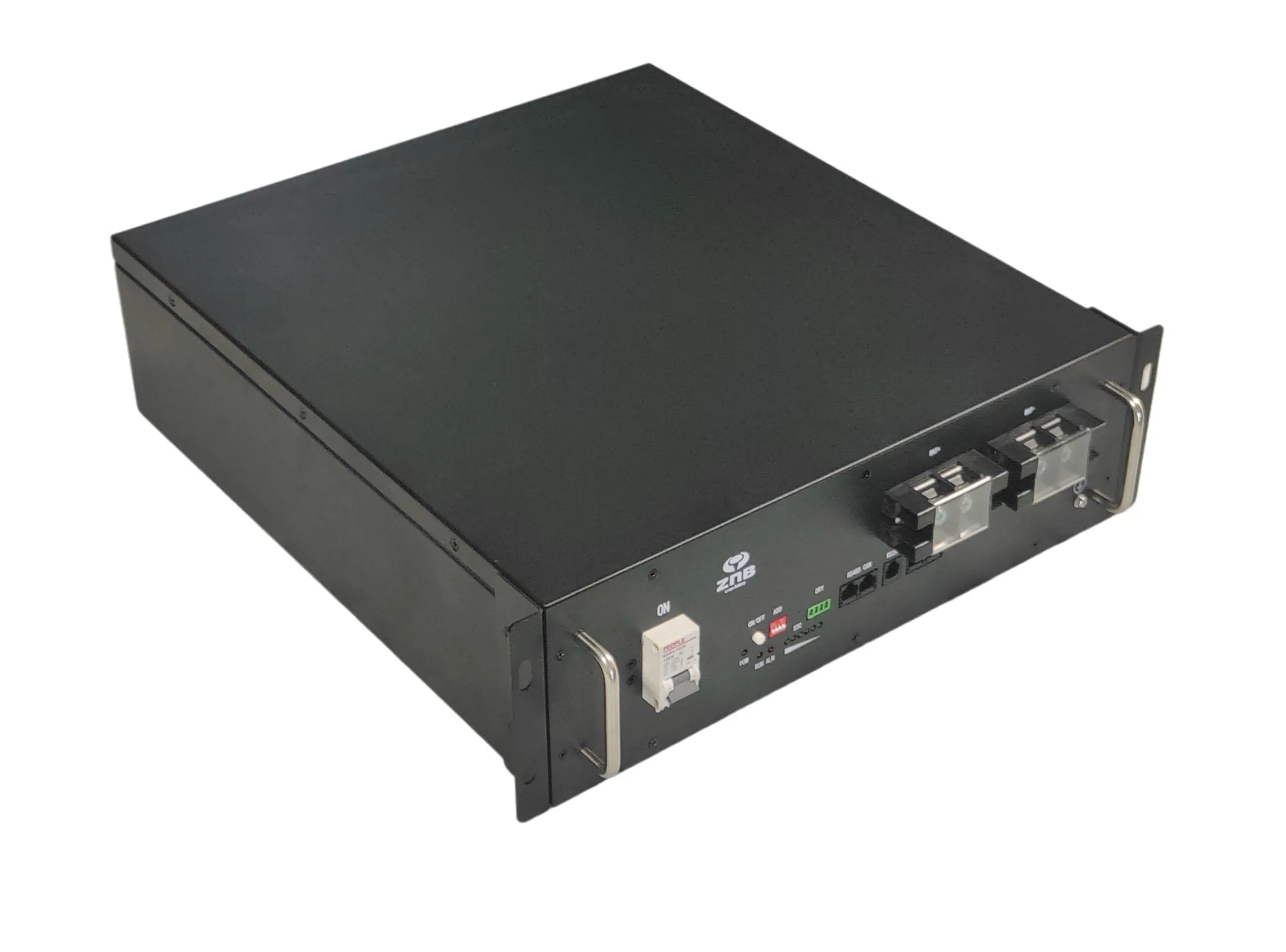

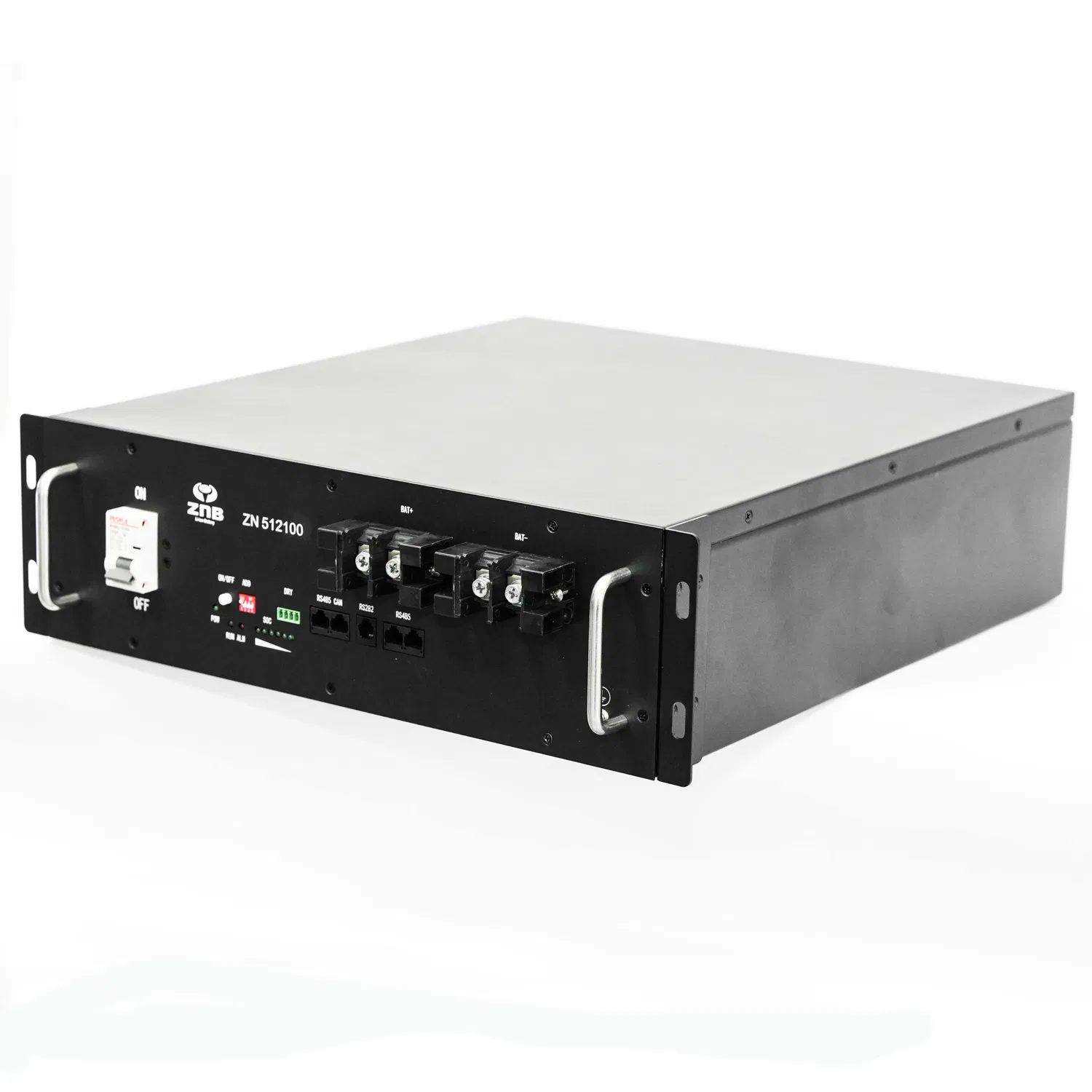

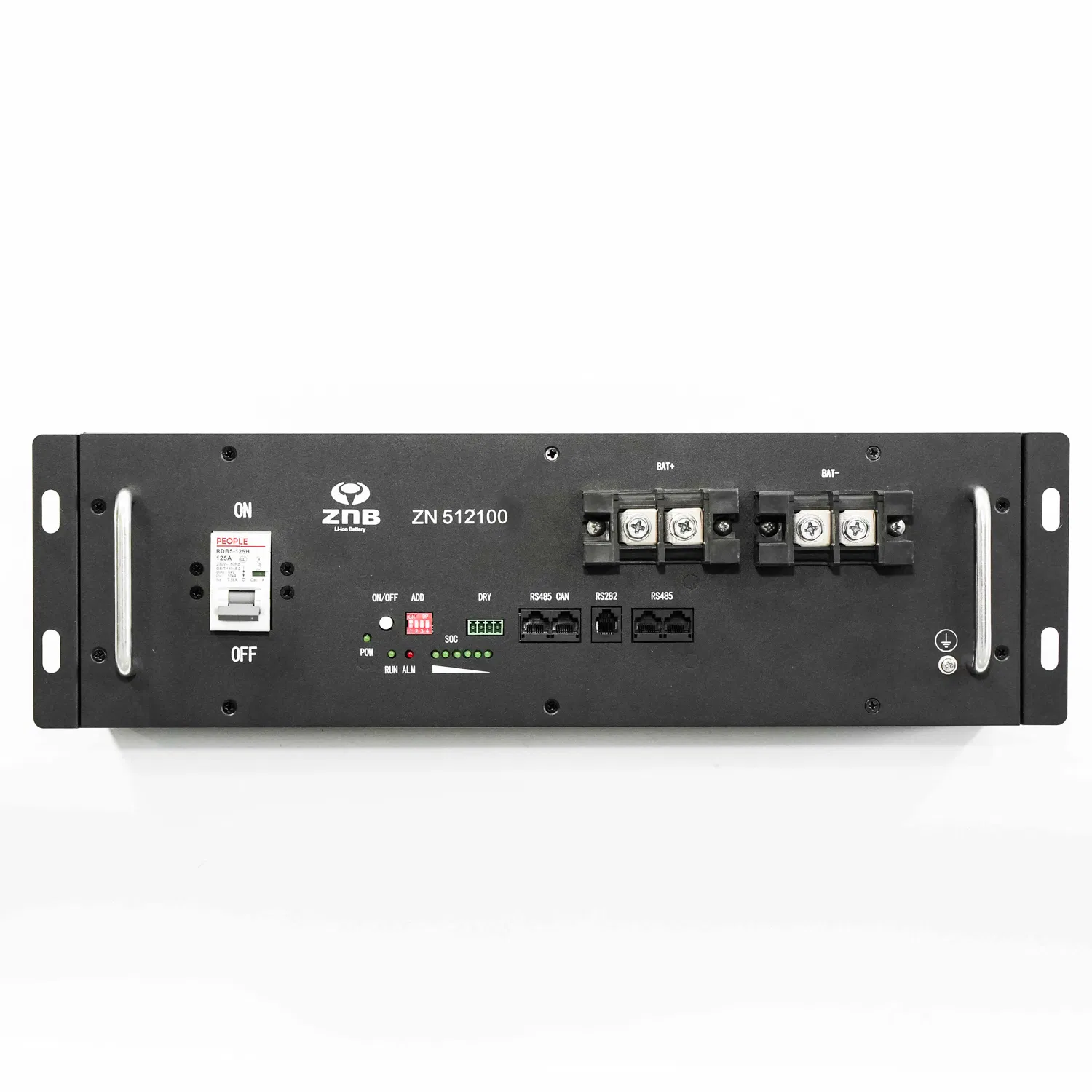

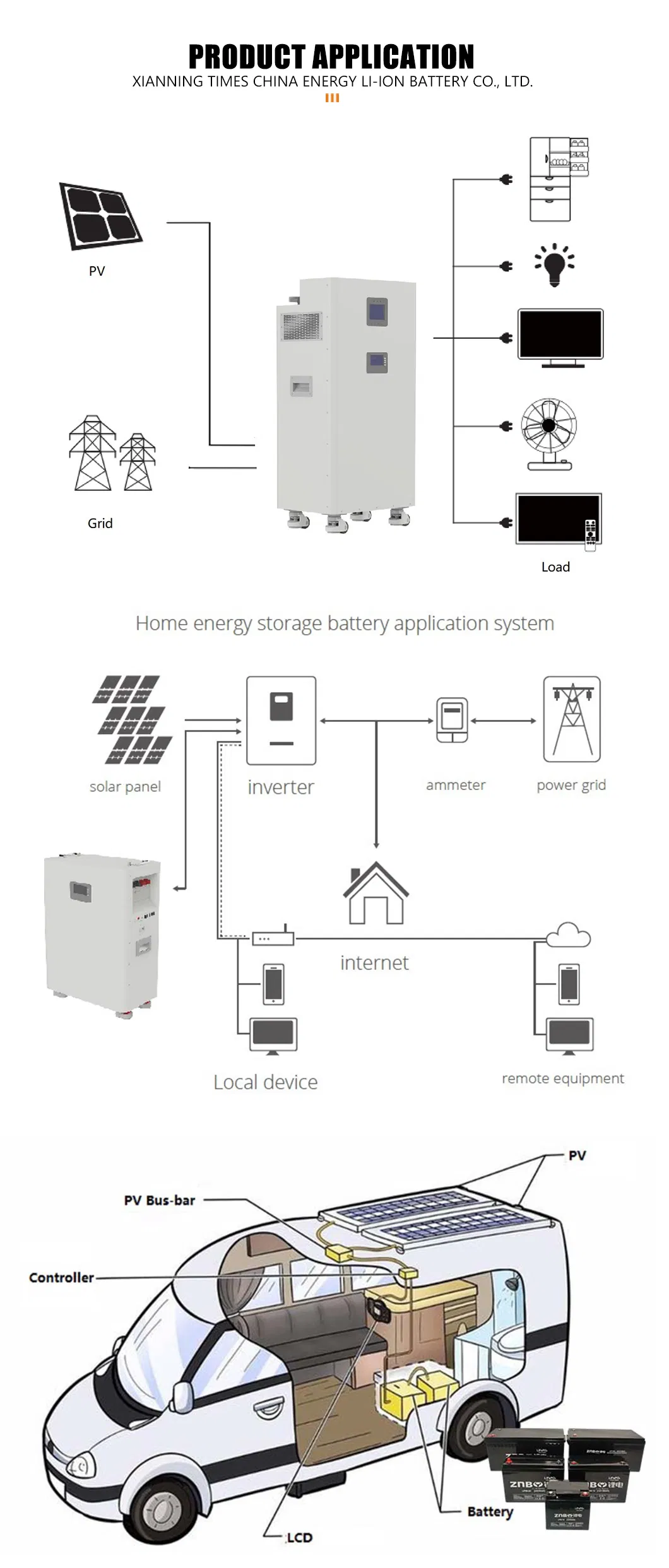

Rack-mounted LiFePO4 battery, high energy density, easy to install and expand, widely used in telecom base stations, commercial energy storage, UPS, Residential energy storage systems. LiFePo4 batteries have a long lifespan and low overall usage cost. The battery module can be used in conjunction with new inverters.
High quality A-grade lithium iron phosphate battery cells.
19 inch standard rack design. Small size, light weight.
Intelligent battery management system (BMS).
Support RS485/CAN and other communications, compatible with multiple mainstream inverters.
Modular design: supports up to 15 units in parallel.
Battery related information can be viewed through LCD display.
Easy installation and easy maintenance.
Model
ZN512100-R
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Energy
5120Wh
Charge Voltage
56V
Standard Method Current
Charge
20A
Discharge
50A
Max. Continuous Current
Charge
50A
Discharge
100A
End of Discharge Voltage
43.2V
Dimensions /mm
490*442*137mm
Weight /Kg
44Kg
Cycles Life
6000 cycles
Case Material
Steel sheets
Operating Temperature
Charge
0℃~45℃ (32~113℉)
Discharge
-20℃~60℃ (-4~140℉)
Recommended Storage Temperature & Humidity Range
-5℃~35℃, <75%RH
Product Details & Production Showcase
CAUTION & SAFETY NOTE
Children are not allowed to use the batteries.
It is forbidden to disassemble the battery.
Keep batteries or battery packs away from dangerous items or materials, such as corrosive chemicals, dangerous machinery and equipment, and high-temperature environments.
Unreasonable use of these products may cause smoke, such as external short circuits, overcharging, and high ambient temperature.
Frequently Asked Questions
Q1. Do you have a Minimum Order Quantity (MOQ) limit?
A: No, we do not have an MOQ limit. A 1-piece sample order or small quantity order is available.
Q2. What is the lead time for standard and customized products?
A: Standard product lead time: Samples take 3-7 days, while bulk orders take 3-4 weeks. Customized product lead time: 3-4 weeks for both samples and bulk orders.
Q3. How do I proceed with an order?
A: First, provide your specific requirements or applications, and we will formulate a battery solution and quote accordingly. Second, after confirming the order details and completing the deposit, we will arrange production immediately.
Q4. What specifications do you need to create a customized battery pack?
A: We need details including: 1. Battery pack size, 2. Voltage requirements, 3. Battery capacity, 4. Maximum continuous discharge/working current, 5. Cable and connector types, and 6. Whether communication protocols or Bluetooth APP integration is required.
Q5. Can I print my custom logo on the product?
A: Yes. For OEM requests, please send us your logo design and we will create labels for your product. For products designed with metal or aluminum enclosures, silk-screen printing directly onto the case is also available.
Q6. Do you supply the necessary documentation required for battery shipments?
A: Yes, we provide MSDS and UN38.3 documentation for both individual cells and completed battery packs. Additional special safety and compliant documentation (such as UL, IEC etc.) required by specific international regions can also be prepared upon request.
