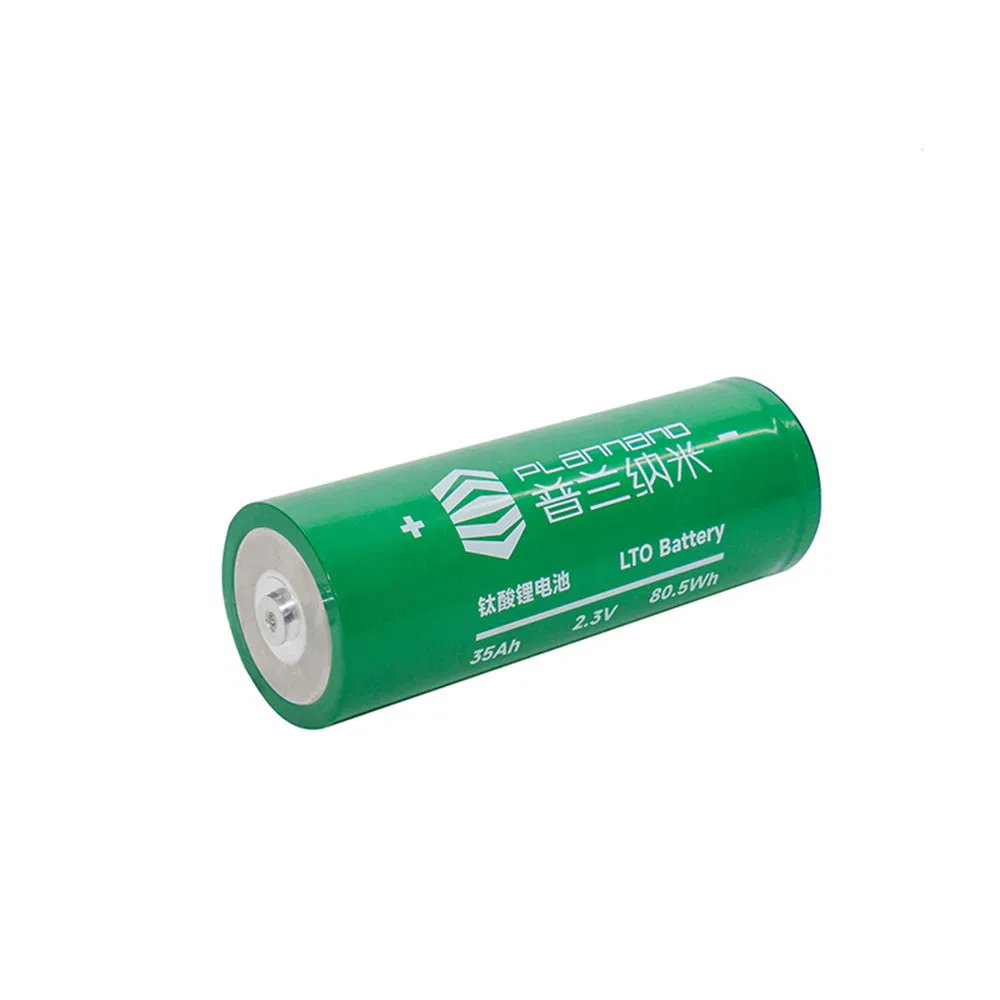

Plannano Lithium Battery Pack: Solar Lithium Titanate Battery, 2.4V 40ah Lithium-Ion Cylindrical Battery, Can Be Assembled with Ess Commercial Energy Storage Sy

Customization:	Available
Type:	Lithium Titanate Battery
Cathode Material:	Lto

Product Overview & Basic Info

Model NO. PLITR60138CWLA-30Ah-2.4V

Rechargeable Yes

Size Medium

Model Plitr60138cwla-30ah-2.4V

Nominal Energy 72wh

Weight 850g

Working Temperature -50~+65℃

Transport Package Oversea Carton Box

Specification 60*138mm

HS Code 8507600090

Production Capacity 100,000 pcs/Year

Package Size 1.46cm * 6.04cm * 6.04cm

Package Gross Weight 0.850kg

Product Showcase

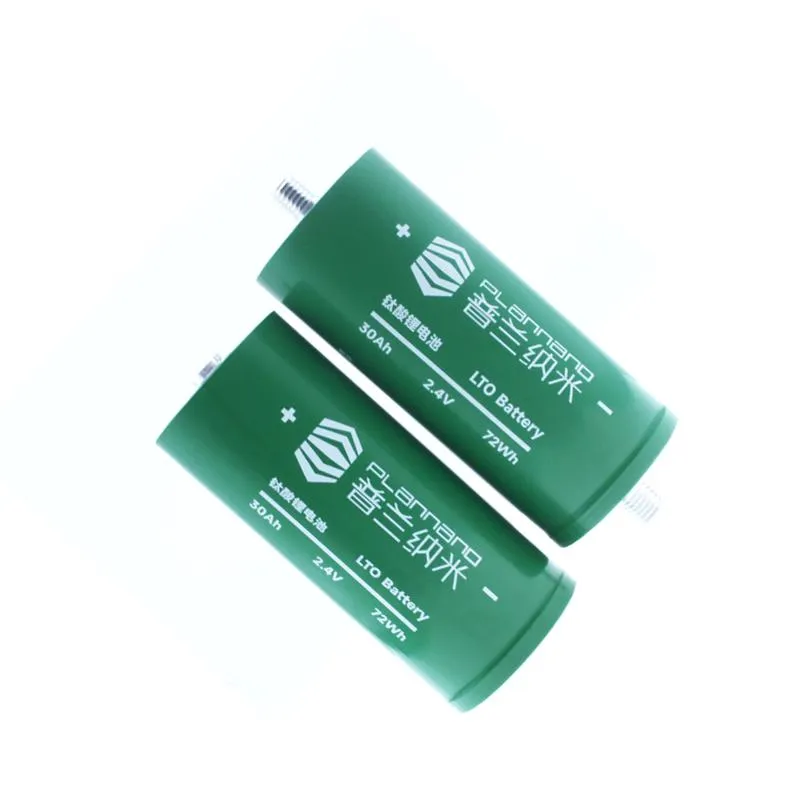

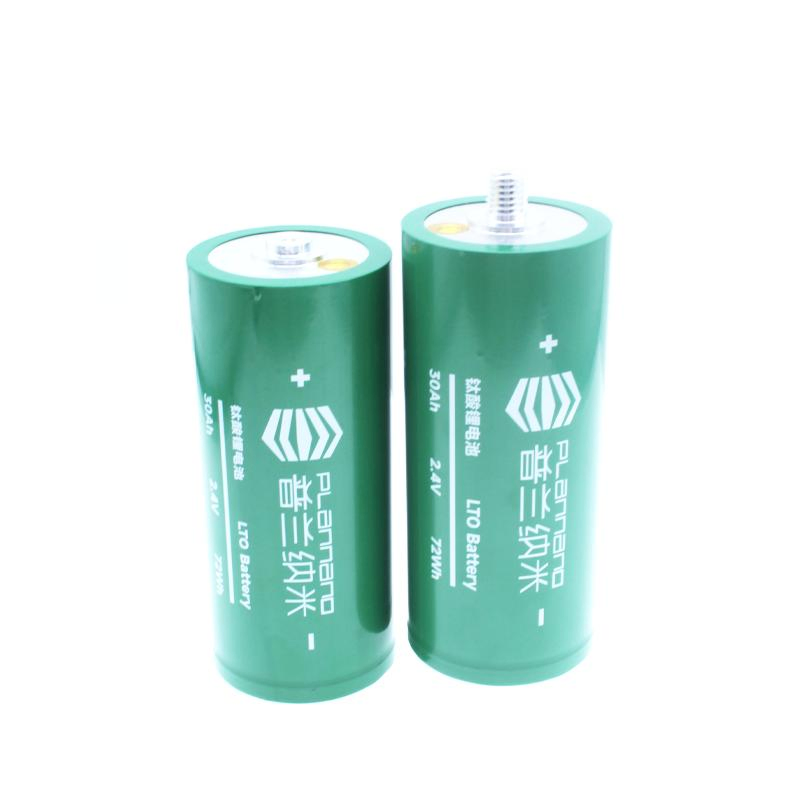

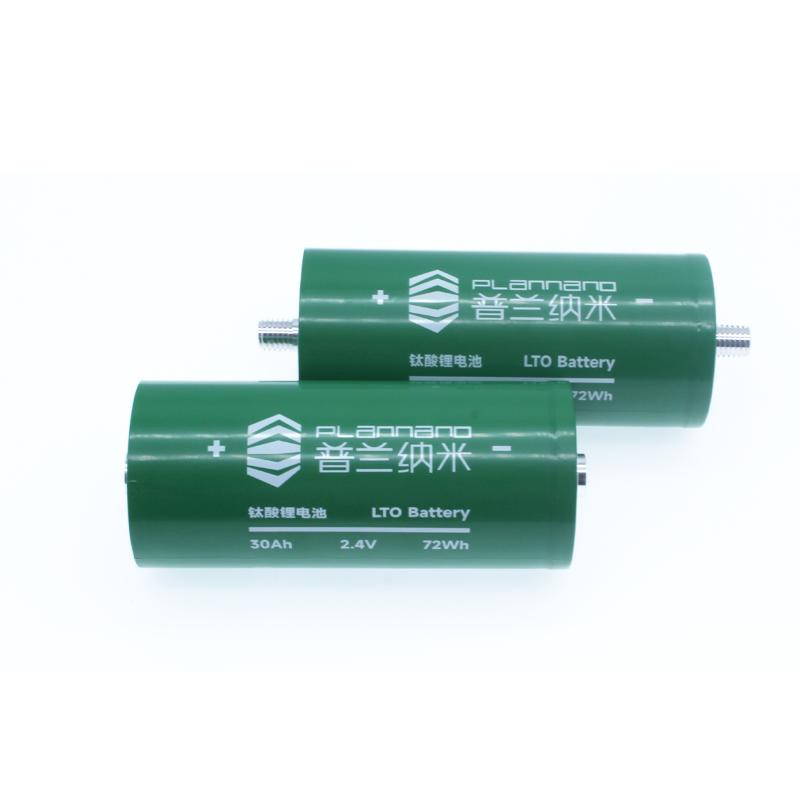

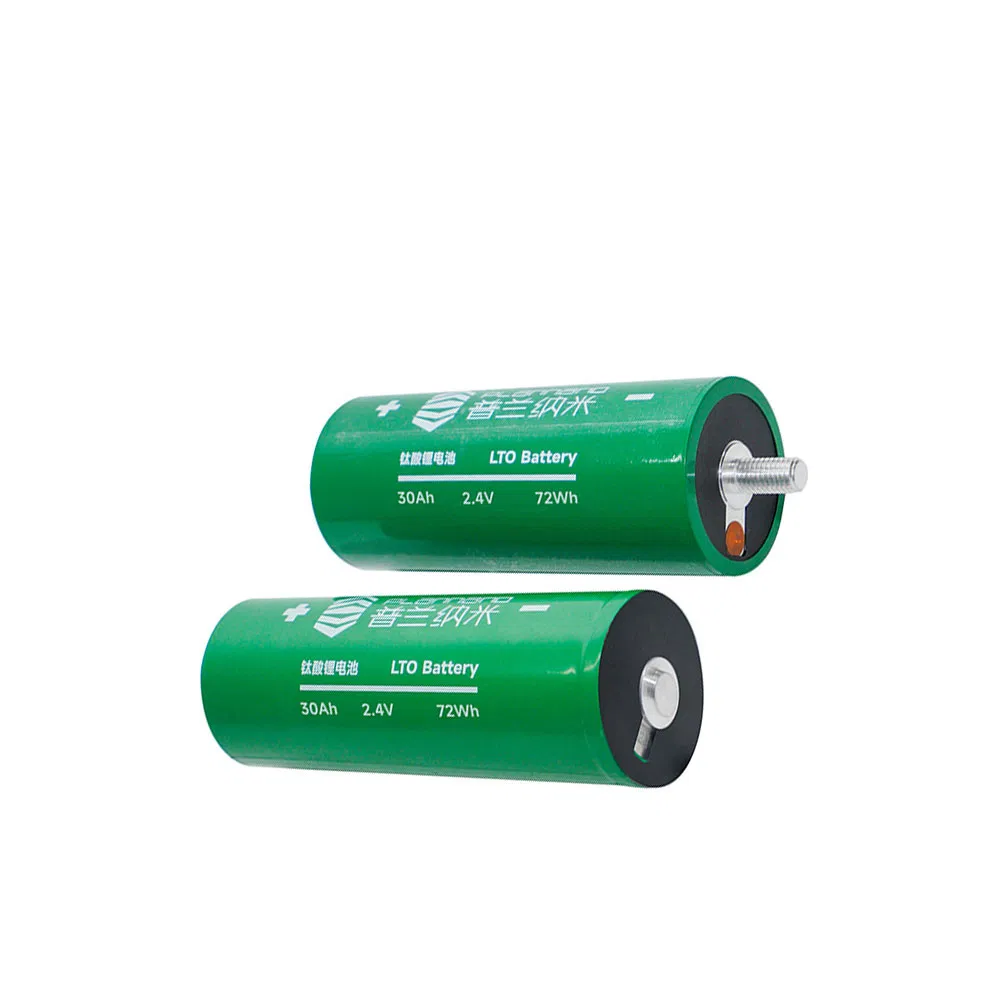

Solar Lithium Titanate Battery Pack, 2.4V 40ah Lithium-Ion Cylindrical Cell

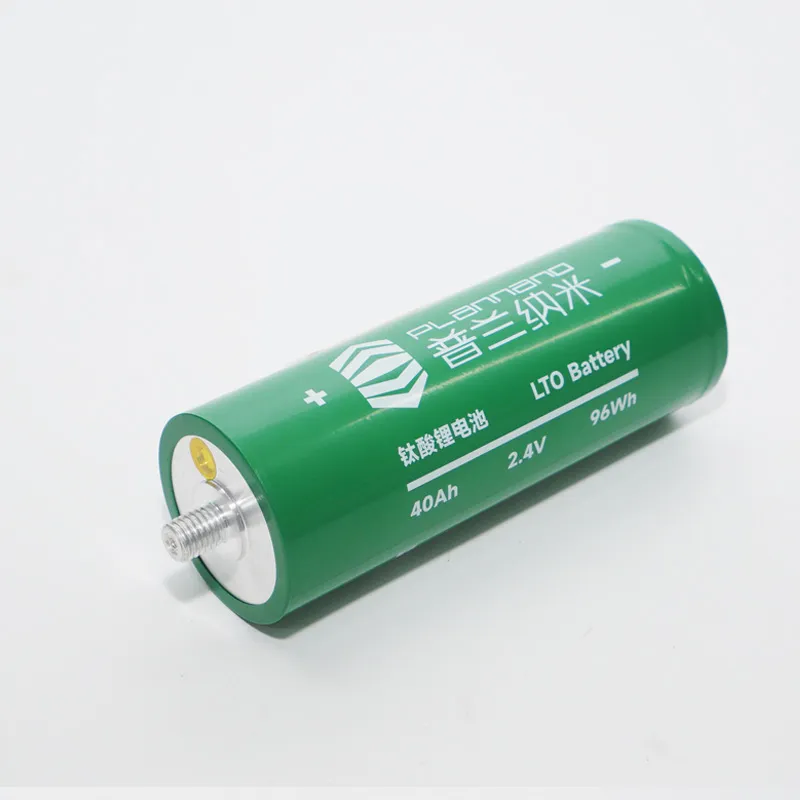

Lithium Titanate Battery Cell Assembly close-up detail display

High power output LTO battery starting solution module

Specifications chart and size illustration

Discharge capability index representation graph

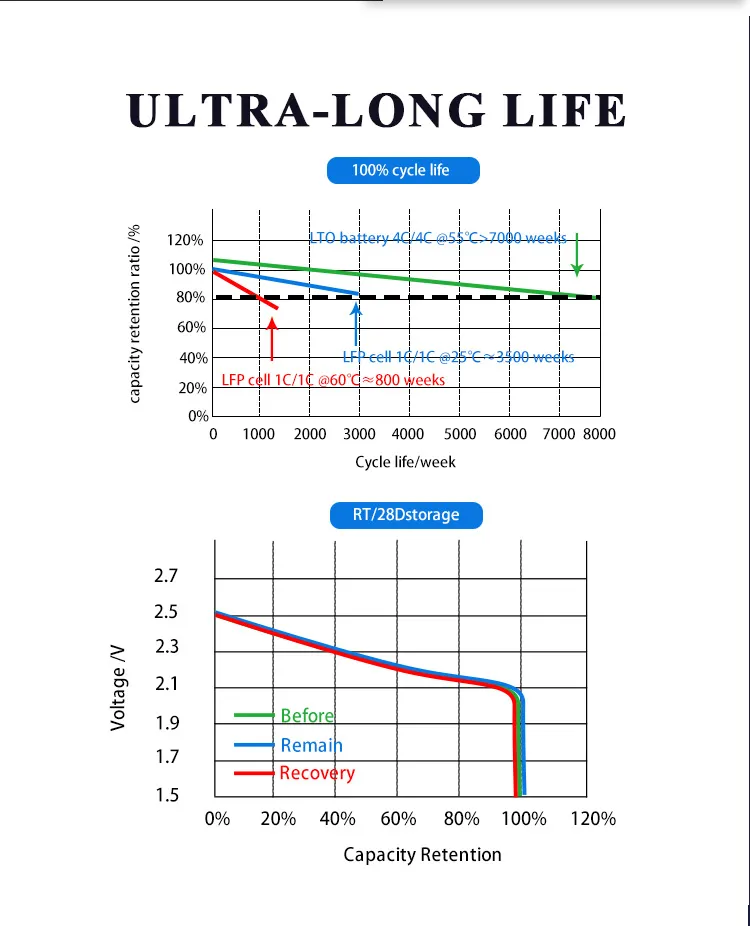

Cycle life statistics line chart for LTO batteries

Production process and assembly standard guide

Physical structure details of cell terminals

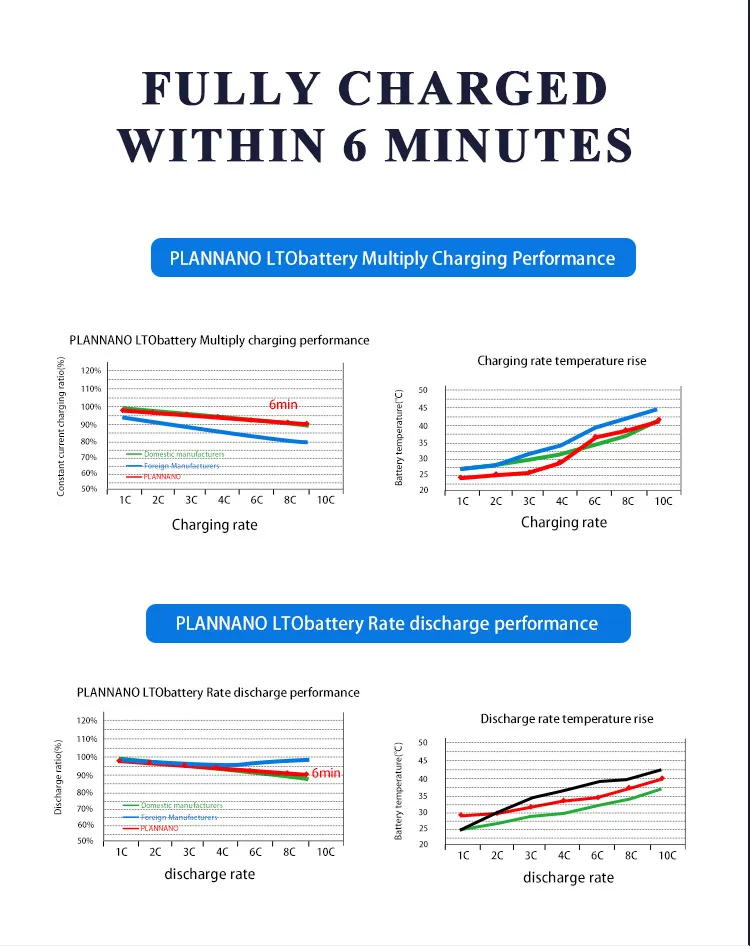

High speed fast charging testing curves report

Quality certification compliance standards page

Factory validation tests checklist schema

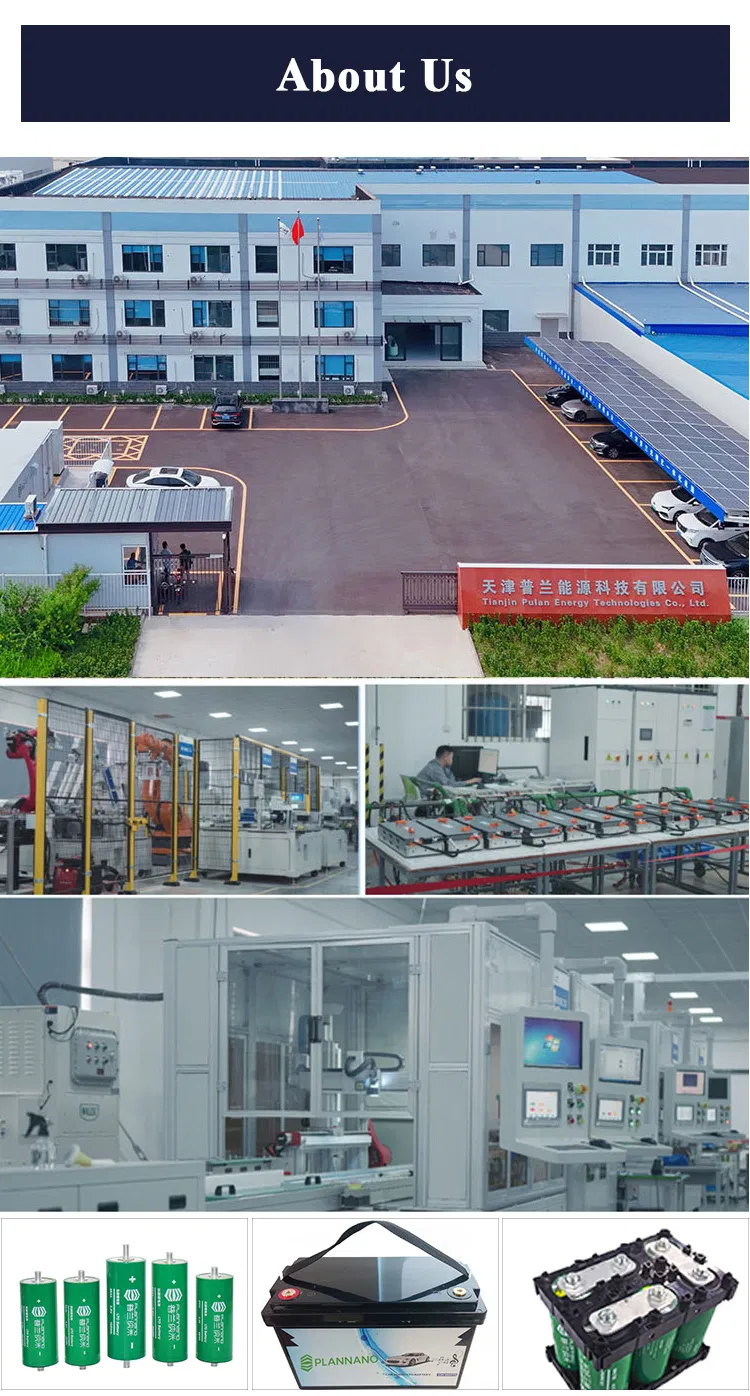

Profile

We are committed to the development and application of new nanomaterials in the field of new energy. With outstanding technical advantages and rich process experience in the fields of dry electrodes, LTO all-tab batteries, energy storage systems, and all-solid-state batteries, we realize state-of-the-art technical R&D and product development. Our core capabilities span material preparation characterization, capacitor and battery cell assembly evaluation, energy storage system assembly testing, and solid-state battery development.

Our main offerings include four major categories of products: supercapacitors, LTO batteries, industrial and commercial energy storage systems, and large-scale energy storage systems. Our products are exported to more than 50 countries and regions around the world and are widely praised by global customers.

As a leader in dry electrodes and safe energy storage systems, we utilize dry electrodes and LTO batteries as our foundation, and all-solid-state batteries as a breakthrough, to accelerate green development and set sail for a zero-carbon future.

LTO Battery Series Features

Graphene Modification & Nanomaterial Technology Advantage:

Through innovative graphene modification and nanomaterials technologies, the industrial issue of gas production at high temperatures has been successfully overcome. This implementation features advanced technology, simplified processing, and low overall cost, achieving production costs more than 20% lower than standard market products.

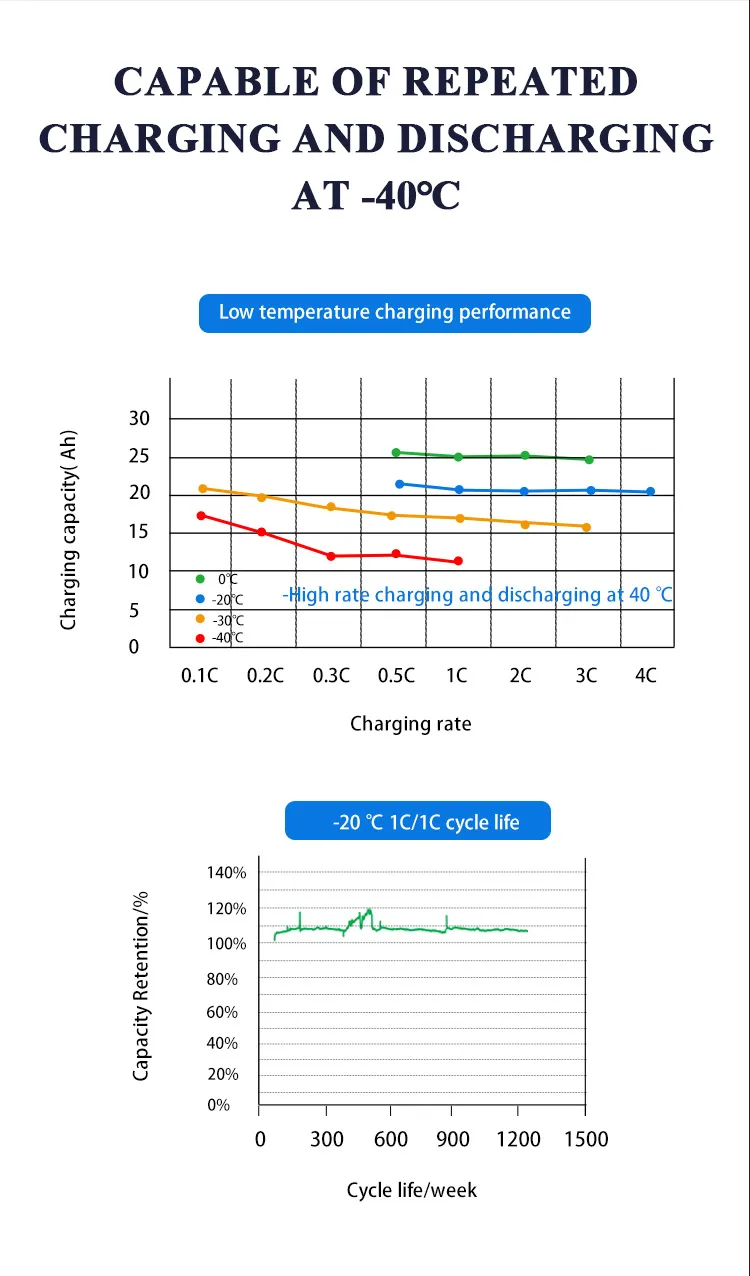

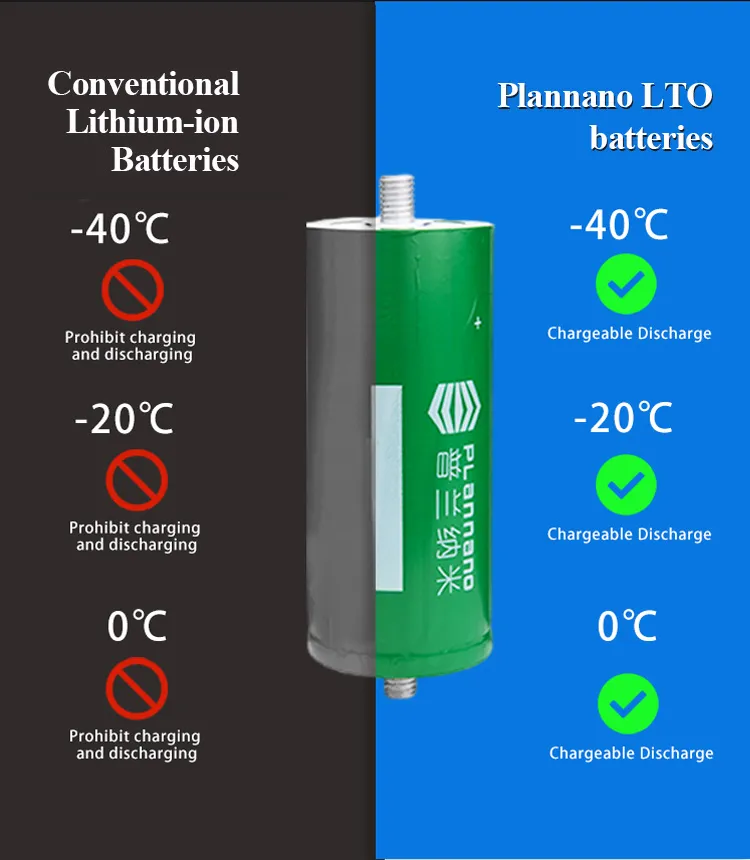

Extreme Temperature Resistance: Operates efficiently at a wide temperature range of -40°C to 60°C in ultra-low temperature, harsh environments.
High Discharge Rate: Excellent multiplier performance up to 30C high-power rapid charge and discharge.
Ultra-long Cycle Life: Reaches up to 30,000 times, greatly reducing the full life cycle operating costs.

Product Model Specification

Cell Capacities Available

20Ah, 30Ah, 35Ah, 37Ah, 40Ah, 45Ah, and 18650 formats.

Dimensional Form Factors

18650, 32140, 60100, 60138, 60165, and 66160 variants.

Application Scenarios

1. Electric Vehicles & HEVs

Widespread applications due to safety, durability, and fast charging. Particularly suited for starting modules and drive systems.

2. Public Transportation

Highly effective for buses and trams. Rapid charge characteristics reduce parking downtime and enhance system operations.

3. Energy Storage Systems (ESS)

Used to balance grid loads and store renewable solar and wind energy. High cycle life ensures structural grid longevity.

4. Industrial Applications

Ideal for backup power supplies, high-power tools, and electric forklifts because of long-life cycles and high power density.

5. Telecom Base Stations

Provides reliable backup power to communication infrastructure during grid outages, offering quick recovery charging.

6. Aerospace Equipment

Supplies reliable power for aerospace hardware, high altitude drones, and advanced satellite modules.

7. Medical Devices

Provides a highly stable and secure backup energy supply for portable medical equipment and emergency support devices.

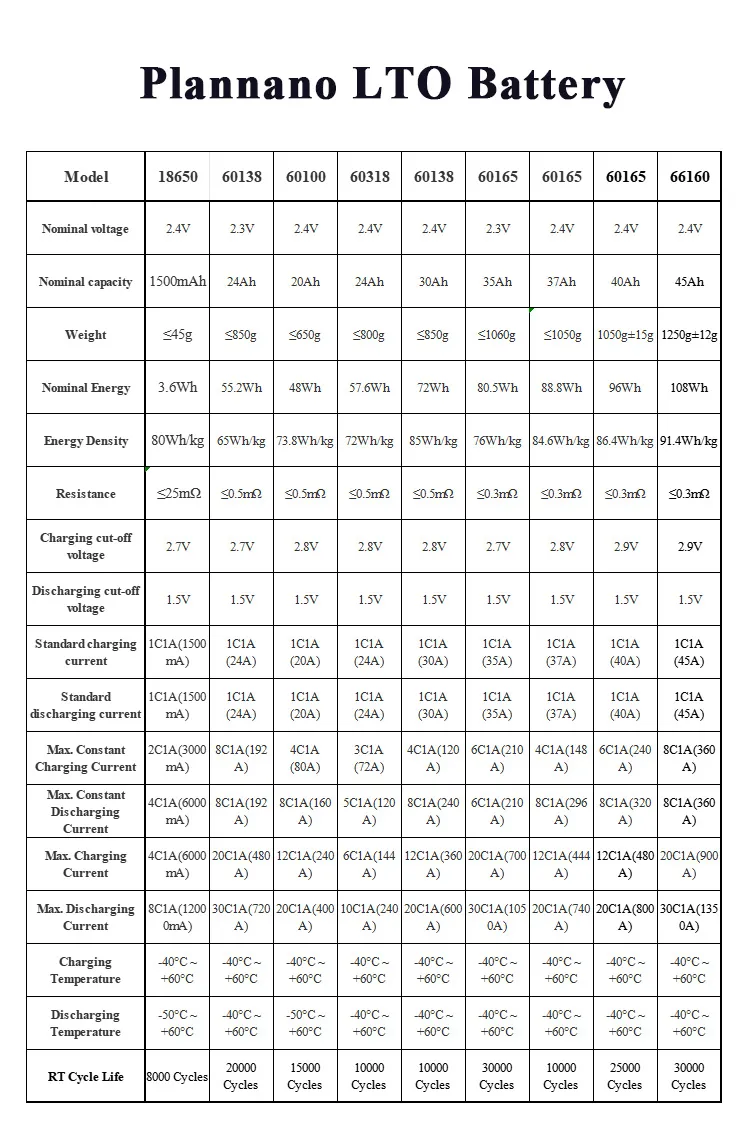

Product Parameters

Parameter	Value / Specification
Model	PLITR60138CWLA-30Ah-2.4V
Nominal capacity	30Ah
Rated voltage V	2.4 V
Resistance	≤0.5 mΩ (AC , 1000 Hz)
Energy Density	85 Wh/kg
*Dimension (HeightDiameter)**	60*138 mm
Nominal Energy	72 Wh
Max. Constant Charging Current	4C1A 120A
Max. Constant Discharging Current	8C1A 240A
Operating temperature range	-50ºC ~ 60ºC
RT Cycle Life	15,000 cycles

Frequently Asked Questions

Q1: What is the average inquiry reply time?

A1: We reply to all inquiries as soon as possible, guaranteed within 6 hours.

Q2: What is the warranty policy for the batteries?

A2: For the batteries, we offer a 2-year warranty. If any quality issues arise from our side within this period, we will handle replacements at our cost.

Q3: How are product prices determined?

A3: We provide reasonable pricing structures and suggest optimal battery parameters designed to meet our client's unique power configurations.

Q4: What is the delivery time for formal orders?

A4: We maintain a standard 7 to 15 days delivery time window for all formal battery orders.

Q5: Do you require a Minimum Order Quantity (MOQ)?

A5: We accept small MOQ orders initially to help clients test and enter their target market smoothly.

Q6: What technical support and services do you provide?

A6: Our operational framework ensures rapid, safe, and efficient support. We offer complete technical documentation, product integration support, and accept safe payment options such as TT and Western Union.
