| Model | 100K/215A-L | 100K/215A-H | 100K/215L-L | 125K/261L-H |
|---|---|---|---|---|
| Battery Parameters | ||||
| Nominal Capacity(Ah) | 280 | 280 | 280 | 314 |
| Combination Mode | 1P24S | 1P16S | 1P48S | 1P52S |
| Rated Capacity(KWh) | 215.04 | 215.04 | 215.04 | 261.248 |
| Rated Voltage(V) | 768 | 768 | 768 | 832 |
| Voltage Range(V) | 648~864 | 648~864 | 648~864 | 702~936 |
| Grid-connected / Off-line Parameters | ||||
| Rated Power(KW) | 100 | 100 | 100 | 125 |
| Max.Power(KVA) | 110 | 110 | 110 | 137.5 |
| Rated Voltage(V) | 400 | 400 | 400 | 400 |
| Rated Frequency(Hz) | 50 | 50 | 50 | 50 |
| System Parameters | ||||
| Fire Fighting Methods | Aerosol/Perfluorohexanone | Perfluorohexanone | ||
| Cooling Method | Air-cooled | Liquid-cooled | ||
| Temperature Range(ºC) | -20~50 | - | - | - |
| Communication Method | CAN/485/LAN | |||
| Fire Rating | IP54 | |||
| Altitude | ≤2000m(>2000m Reduction) | |||
| Overall Weight (Kg) | <3000 | |||
| Size(W*H*D,mm) | 1500*2050*1455 | 1500*2400*1100 | 1550*2100*1400 | 1000*2300*1350 |
A high-tech company focuses on the research and development, manufacturing, marketing and technical service of graphene-based materials and their applications in clean energy. Based on excellent technical service and support, the company is aimed to supply a complete solution to green-energy storage and products in power system for the clients.

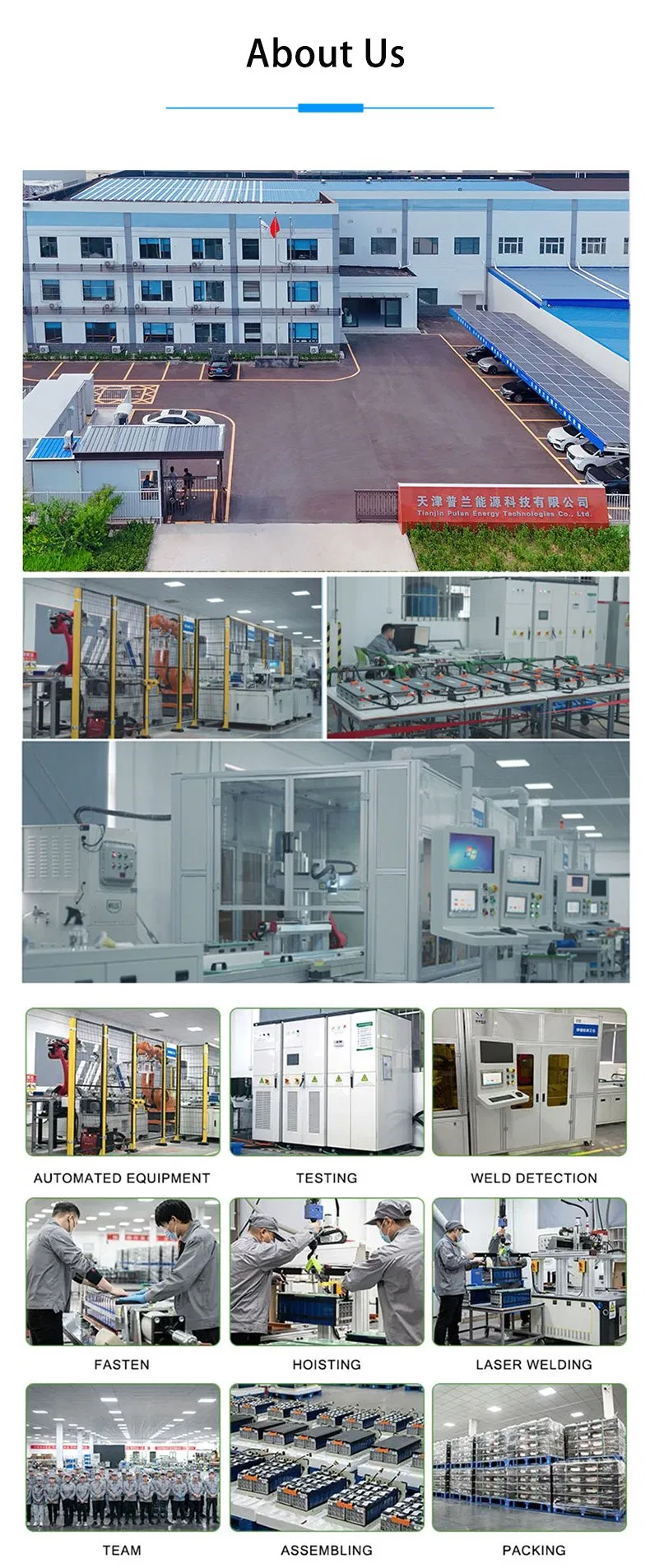

Together with research labs at top universities, the company owns high-standard test instruments, and a top-class technical and management team.

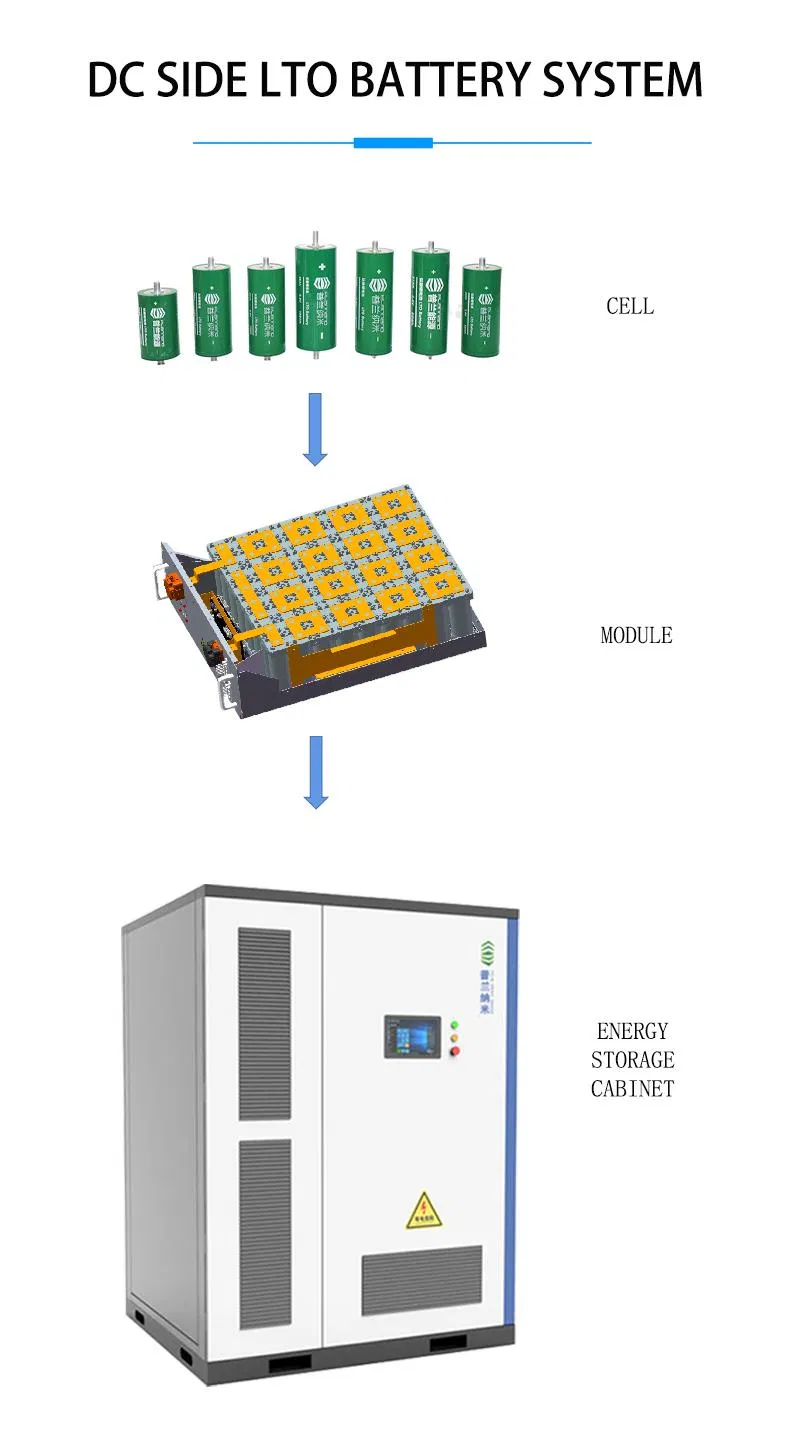

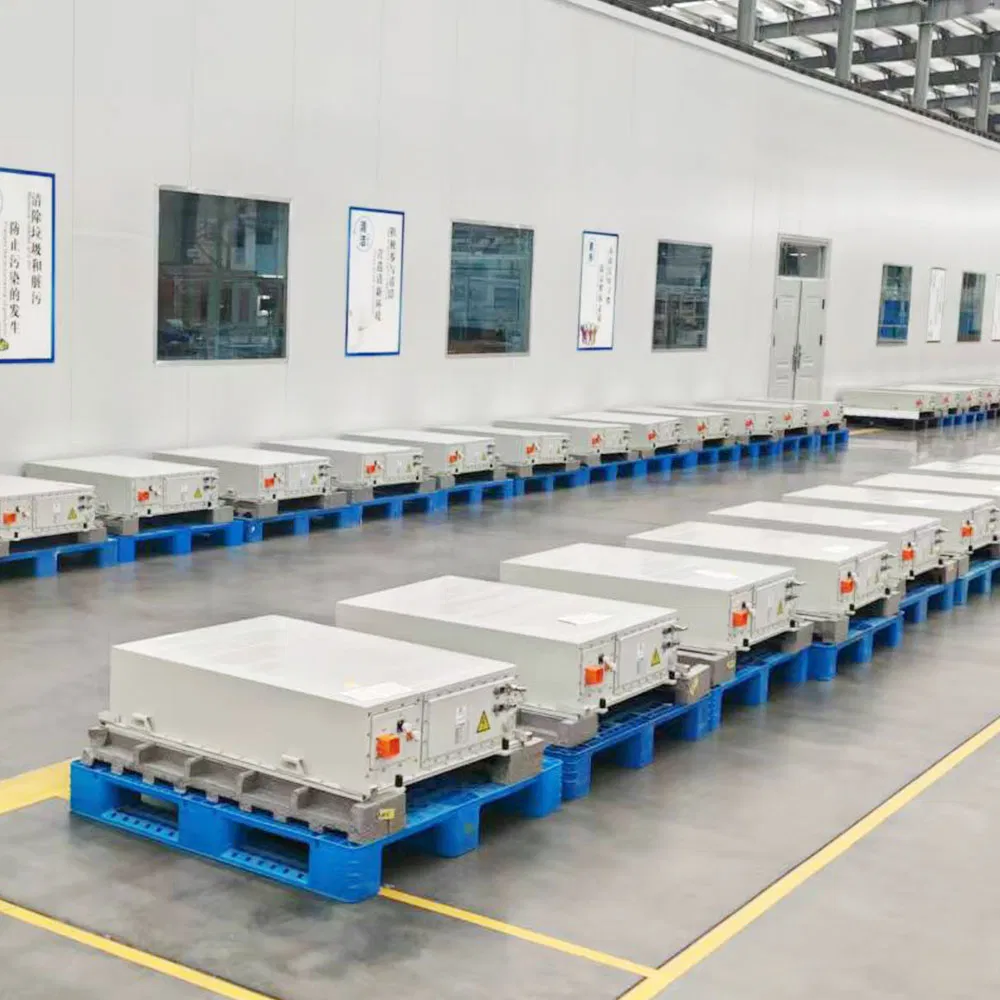

With more than 50 patents in preparation and application of graphene-based material, the company has completed the building of the production lines for the material and products and successfully developed and mass-produced such products as graphene, LTO, Si/C material, super capacitor cells ranging from 0.1F to 3000F, 16V500F/48V165F super capacitor modules, LTO battery cells and modules ranging from 20Ah to 500Ah. The main products can be widely applied to new-energy vehicles, rail transportation, smart grid, micro grid, engineering machinery, industrial energy-saving and other fields.
The company always does its utmost to make the clients satisfied and treats credibility and integrity as its foundation. Based on the newest achievements in science and technologies, the company is aimed to manufacture the most advanced clean-energy products with high quality and supply the most reliable solutions to energy-related systems. Taking the social responsibility, the manufacturer is on the way to making contribution to the development of the world green energy industry.
A: The system provides a long-term cycle life of up to 20,000 cycles, ensuring high durability and cost-effectiveness for industrial and commercial application demands.
A: Depending on the specific configuration you choose, the system supports either Air-cooled systems (for 100K/215A models) or Liquid-cooled systems (for 100K/215L and 125K/261L models) to optimize performance and safety.
A: The systems are equipped with state-of-the-art Aerosol or Perfluorohexanone fire-fighting suppression methods and carry an IP54 fire rating protection design.
A: It supports multiple interface standards including CAN, RS485, and LAN, allowing easy integration with your grid and local automation systems.
A: Yes, the system supports a wide temperature range of -20ºC to 50ºC, making it adaptable to diverse climate installations.
A: The configurations utilize 302V/280ah battery types, providing a rated capacity of 215.04 KWh to 261.248 KWh depending on the custom module setups.
