Cspower Deep Cycle Gel Htl12-200 12V 200ah Solar Battery with IEC 61427/IEC 60896/ CE Certificate

1 / 5

Cspower Deep Cycle Gel Htl12-200 12V 200ah Solar Battery with IEC 61427/IEC 60896/ CE Certificate

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO. HTL12-200 (12v 200Ah)

Nominal Voltage 12V 6V 8V

Discharge Rate 0.2-0.5c

Shape Block

Electrolyte Gel

Installation Fixed

Rechargeable Chargeable

Size L*W*H=522*240*216mm

Proof Water Proof, Non Spillable

Capacity 200ah

Weight 58.7kgs

Warranty 3 Years

Expected Float Design Life 20 Years

Delivery Time 15-25days

Export Markets Middle East, Africa, Asia, America, European

Technical Specifications

Terminal Pure Copper Screw Terminals M8

Casing ABS Fire Resistance

Depth of Discharge 50% Dod 1600 Cycles

Battery Case Color Red/Black, Dark Grey, Blue

Certificate IEC60896, IEC61427, MSDS, CE, UL

Carton Updated Strong Five-Layer Corrugated Carton

OEM Free

Transport Package Carton/Pallet

Specification CE, VDS, UL, ISO, IEC

HS Code 8507200000

Production Capacity 100000PCS/Month

Package Size 55.00cm * 22.00cm * 24.00cm

Package Gross Weight 60.000kg

Product Description

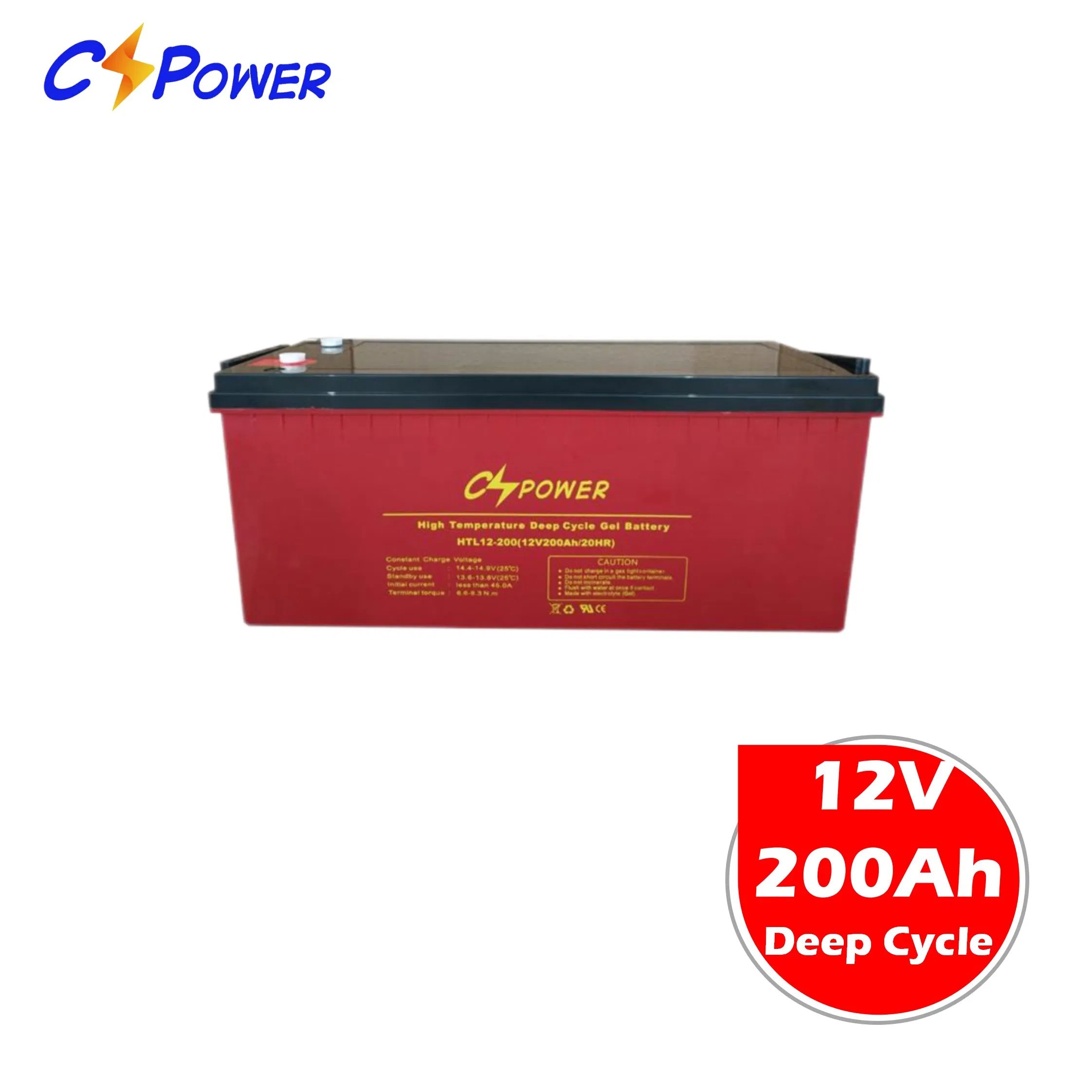

Deep Cycle Gel HTL12-200 12V 200ah Solar Battery

HTL12V Patented High-Temp Deep Cycle Solar gel battery

HTL12V Patented High-Temp Deep Cycle Solar gel battery, own 15-20years long life, your best partner for solar market and hot area.

HTL series of 12V GEL deep cycle batteries are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced patented GEL technology, Long service life designed with 15-20 years, 50% DOD 1500-1600 Cycles, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide.

Deep Cycle GEL Batteries 12V100Ah, 150Ah, 200Ah most popular models Advanced Features:

Environmentally friendly
Completely Maintenance-Free
Non-Spillable construction design
Wide Operating Temperature Range(-20°C~+60°C)
Longer Life(20years designed life)
Explosion Proof
Valve Regulated & High Discharge Rate Capability
Low Self Discharge
Independent of Position
Ease of Shipment
No need of balanced charge or boost
No Memory

Solar GEL Battery Applications:

Communication equipment
Telecommunication control equipment
Emergency lighting systems
Electric power systems
Power station
Nuclear power station
Solar powered and wind powered systems
Load leveling and storage equipment
Marine equipment
Power plants
Alarm systems
Uninterruptible power supplies
Medical equipment
Fire and security systems
Control equipment
Stand-by electric power

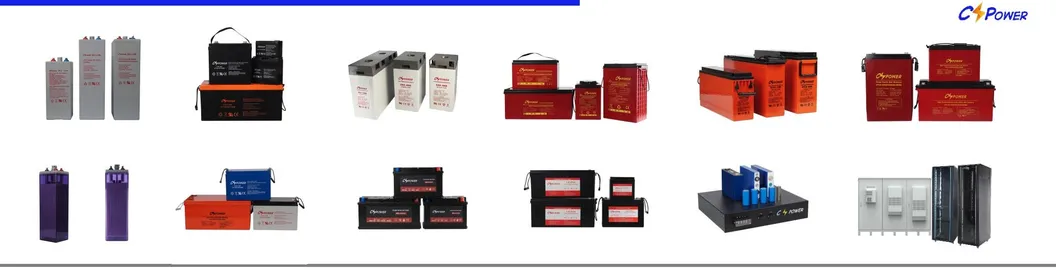

High-Temp Long life Deep cycle GEL Battery Family

Product Model

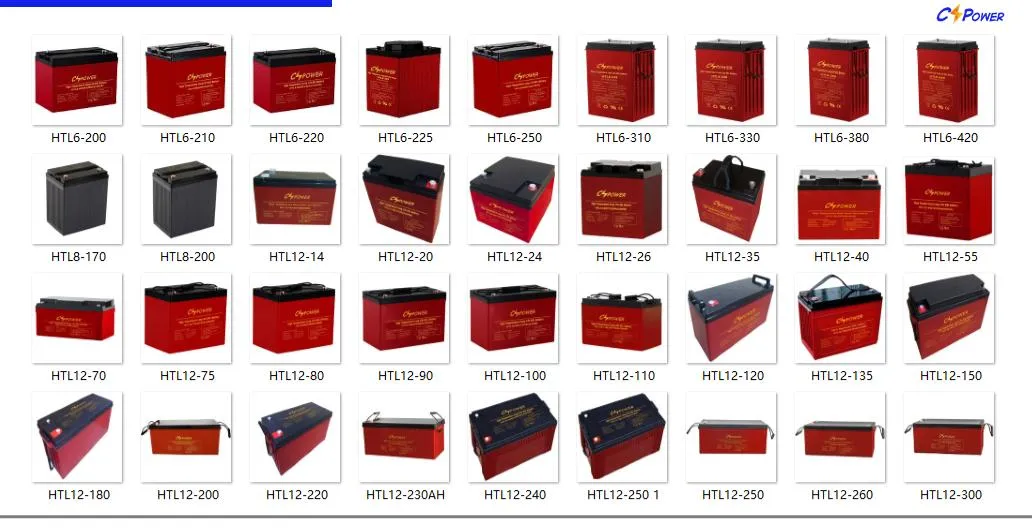

Deep cycle GEL Battery family model chart

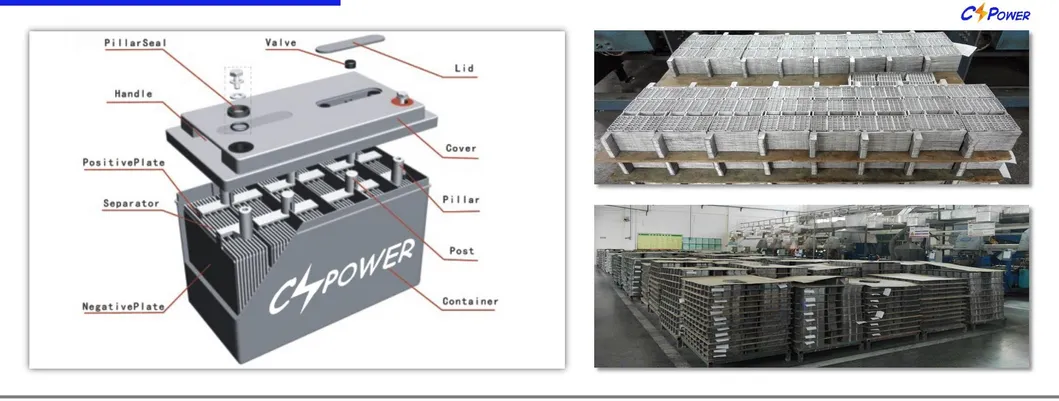

Product Structure

Deep cycle GEL Battery structure detail diagram

Component	Positive plate	Negative plate	Container & Cover	Safety valve	Terminal	Separator	Electrolyte	Pillar seal
Features	Thick high Sn low Ca grid with Special paste	Balanced Pb-Ca grid for improved recombination efficiency	Fire resistance ABS (UL94-V0 optional)	Flame Si-Rubber and aging resistance	Female Copper Insert	Advanced PVC / AGM separator for high pressure cell design	Silicon Gel	Two layers epoxy resin seal

Positive plate: Thick high Sn low Ca 3D flat pasted plate
Negative plate: Balanced Pb-Ca grid and AM with Super-C additives
Separator: Imported Amer-sil PVC separator for Gel battery
Electrolyte: nano GEL electrolyte
Battery container and cover: ABS for higher temperature
Pillar seal: 100% factory tested, proven two layers epoxy resin seal
Relief valve: Complete with integrated flame arrestor

Manufacturing & Quality Standards

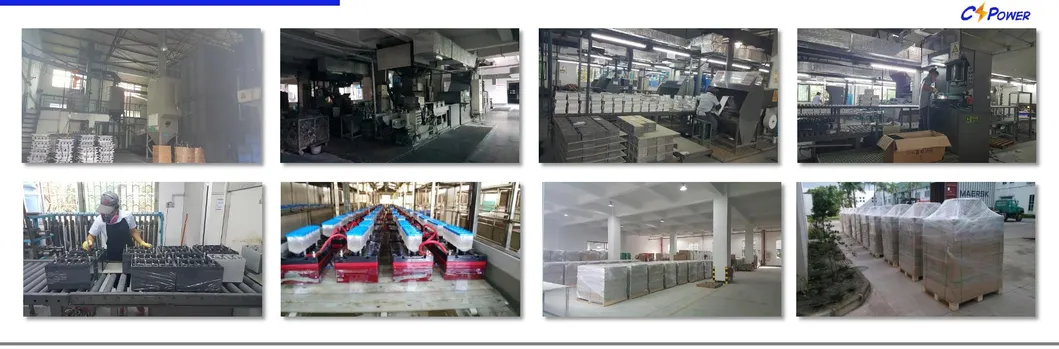

Assembling

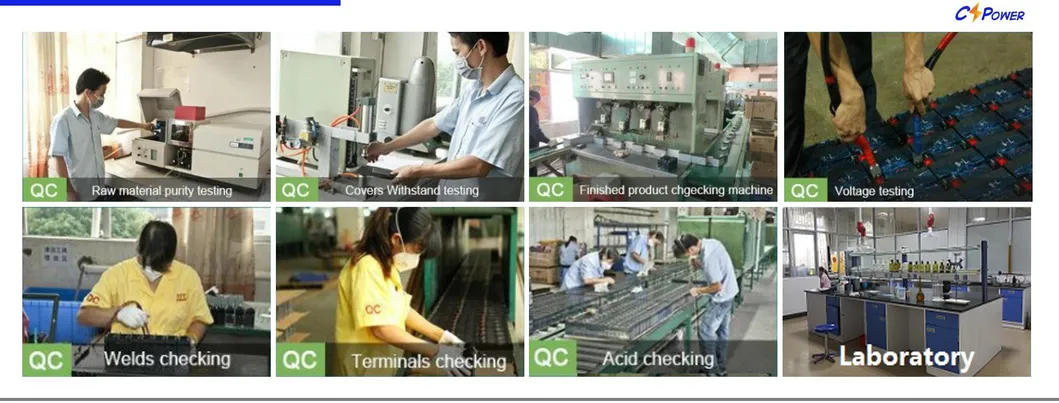

Quality Control

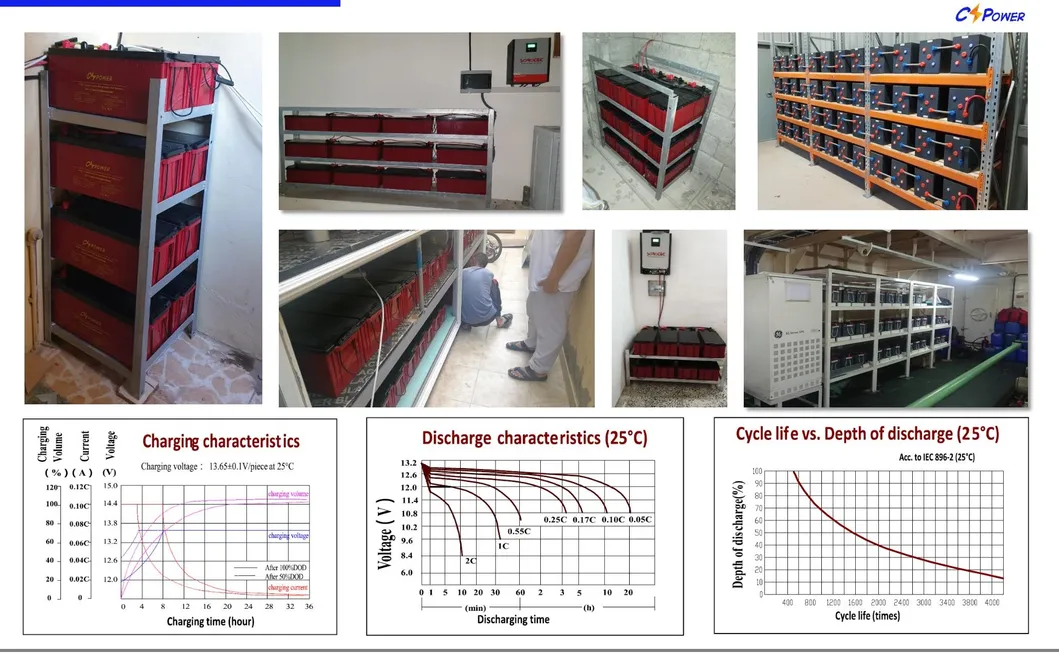

Projects

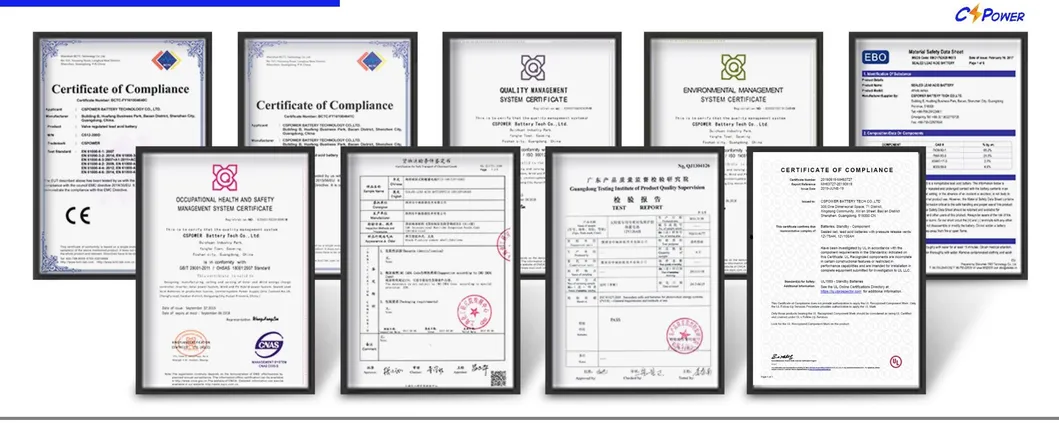

Certifications

IEC 60896-21/22
IEC 61427
ISO9001/14001/18001
Eurobat guide, long life
BS6290 part 4
GB/T 22473
CE & MH63727-UL

System Applications

Electric Vehicles & Golf Cars
BTS Stations & UPS Systems
Solar & Wind Systems
Medical Equipment
Emergency & Control Systems

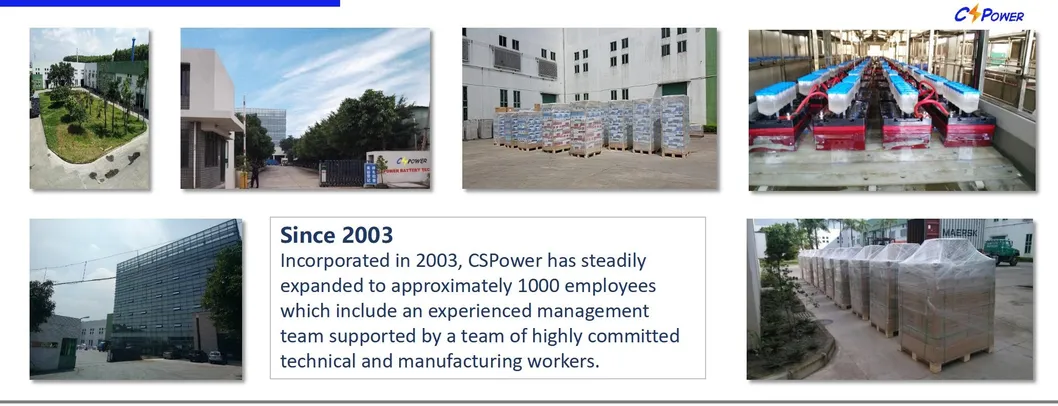

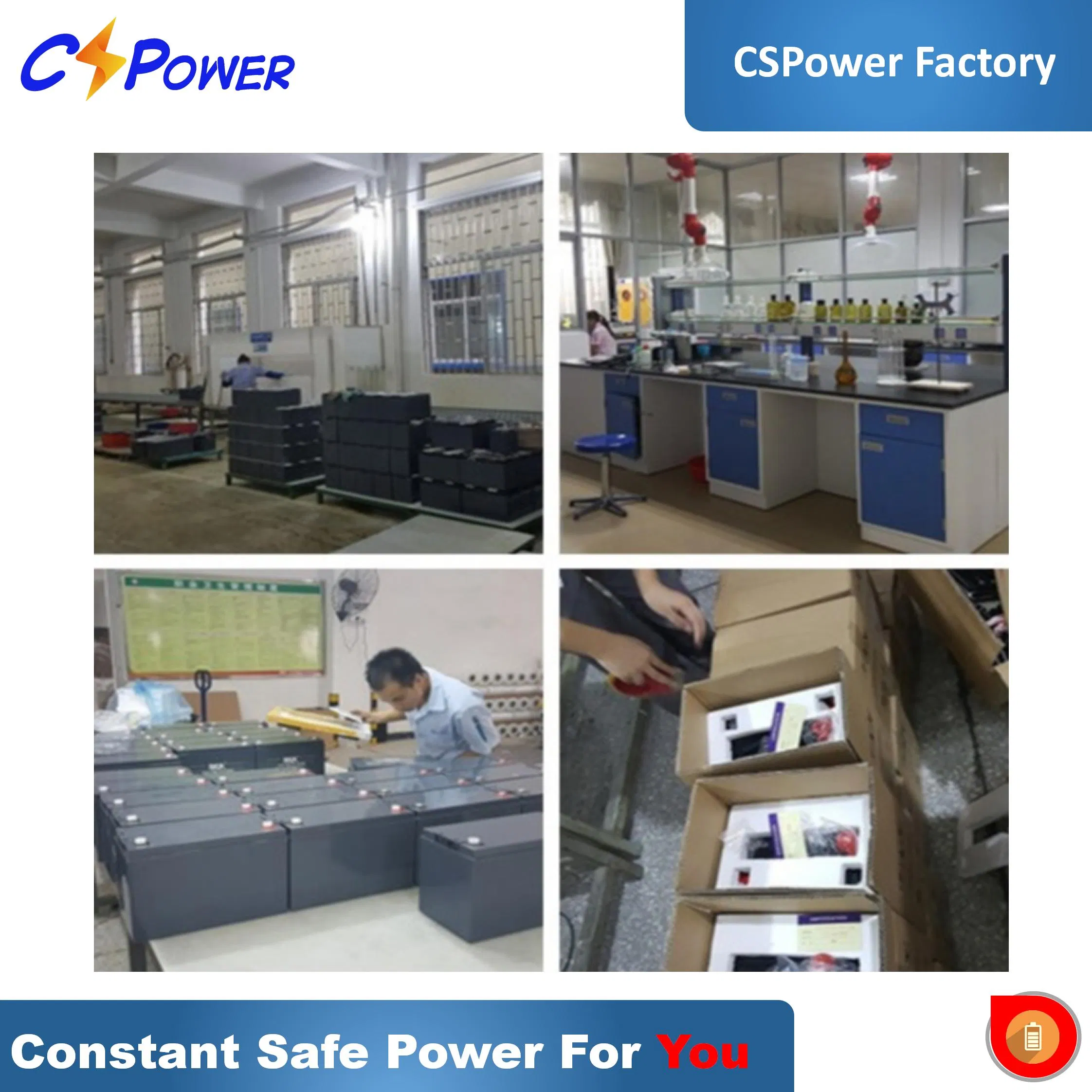

Factory Overview

Our facility is a professional manufacturer and exporter of environmentally friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Batteries, High Temperature long life GEL batteries, OPzV Batteries, Telecom Batteries, and Lithium batteries.

Global Customers

We export to over hundreds of countries worldwide, including USA, Brazil, Italy, Greece, Germany, Spain, Russia, Pakistan, Iran, Korea, Thailand, South Africa, Nigeria, Ghana, and many more.

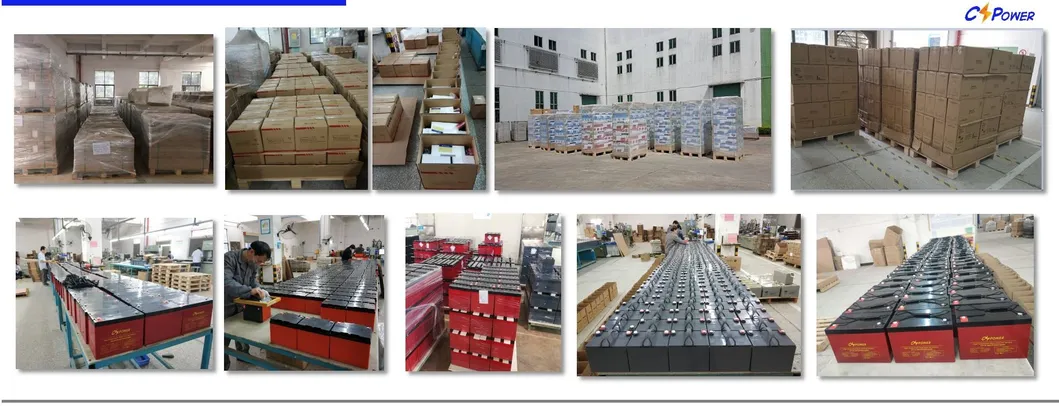

Packing & OEM Services

We handle professional ODM and OEM orders customized to meet direct customer requests. Safe packaging using heavy-duty pallets and standard export cartons ensures cargo integrity.

Product Specifications & Model List

Model	Nominal Voltage (V)	Capacity (Ah)	Dimension (mm)				Net Weight	Gross Weight	Terminal
Model	Nominal Voltage (V)	Capacity (Ah)	Length	Width	Height	Total Height	kgs	kgs	Terminal
HTL12-14	12	14/20HR	152	99	96	102	4.1	4.3	F1/F2
HTL12-20	12	20/20HR	181	77	167	167	6.3	6.5	T1/L1
HTL12-24	12	24/20HR	166	175	126	126	8.6	8.8	M6
HTL12-26	12	26/20HR	165	126	174	179	8.7	8.9	M6
HTL12-35	12	35/20HR	196	130	155	167	10.8	11.1	M6
HTL12-40	12	40/20HR	198	166	174	174	14.5	14.8	M6
HTL12-55	12	55/20HR	229	138	208	212	16.3	16.6	M6
HTL12-70	12	70/20HR	350	167	178	178	23.6	23.9	M6
HTL12-75	12	75/20HR	260	169	211	215	25.3	25.8	M6
HTL12-85	12	85/20HR	260	169	211	215	26.4	26.9	M6
HTL12-90	12	90/20HR	307	169	211	216	28.5	29	M6/M8
HTL12-100	12	100/20HR	307	169	211	216	30.5	31	M6/M8
HTL12-110	12	110/20HR	328	176	214	220	33.0	33.2	M8
HTL12-120	12	120/20HR	407	173	210	233	39.5	39.7	M8
HTL12-135	12	135/20HR	341	173	283	288	41.1	41.3	M8
HTL12-150	12	150/20HR	484	171	241	241	45.8	46	M8
HTL12-180	12	180/20HR	532	206	215	220	56.3	56.6	M8
HTL12-200	12	200/20HR	532	206	215	220	58.7	59	M8
HTL12-230	12	230/20HR	522	240	219	225	65.3	65.6	M8
HTL12-250	12	250/20HR	520	269	203	207	71.3	71.6	M8
HTL12-300	12	300/20HR	520	268	220	226	77.3	77.8	M8
HTL6-200	6	200/20HR	306	168	220	225	30.3	30.5	M8
HTL6-210	6	210/20HR	260	180	247	252	29.8	30	M8
HTL6-220	6	220/20HR	306	168	220	225	31.8	32	M8
HTL6-225	6	225/20HR	243	187	275	275	30.8	31	M8
HTL6-250	6	250/20HR	260	180	265	272	34.8	35.1	M8
HTL6-310	6	310/20HR	295	178	354	360	46.3	46.6	M8
HTL6-330	6	330/20HR	295	178	354	360	46.9	47.2	M8
HTL6-380	6	380/20HR	295	178	404	410	55.6	55.9	M8
HTL6-420	6	420/20HR	295	178	404	410	57.1	57.6	M8
HTL8-170	8	170/20HR	260	182	266	271	34.3	34.8	M8
HTL8-200	8	200/20HR	260	182	295	301	38.3	38.8	M8

Solar Battery Features & Benefits

Long life and superior stability under high temperature environments.
Electrolyte immobilized in gel state, preventing leakage and stratification.
Superior deep cycle life at high temperatures.
Uses Super-C additives for high deep discharge recovery capability.
Excellent partial state of charge (PSOC) cycling performance.

Free Gift

deep cycle battery storage battery maintenance free battery solar battery ups battery gel battery Car Battery lead acid batteries sealed lead acid battery Electric Scooter Battery 12v lead acid battery Electric Vehicle Battery lead acid battery plate Electric Bicycle Battery lead acid battery charger Motorcycle Battery vrla batteries portable power power bank solar battery storage lithium battery tubular battery

Frequently Asked Questions

QCan the batteries be delivered by sea and air?

Yes, our batteries can be delivered both by sea and by air. We have MSDS and standard test reports for safe transport as non-dangerous goods.

QCan I fast charge my battery?

Fast charging is not recommended as it can be harmful to the battery's overall service life and capacity.

QCan I perform a partial replacement on my battery bank?

Partial replacement of lead-acid battery banks is not recommended. For optimal performance, the entire bank should be replaced at the same time.

QWhat is the typical delivery lead time?

Approximately 7 days for stock items, around 20 days for half-container batches, and 30 days for 20ft full-container orders.

QWhy does the battery exhibit different capacities at different hour rates?

The capacity of a battery (in Ah) is dynamic and depends on the discharge current. Discharging at a lower current (e.g., a 20-hour rate) allows the battery to deliver more total capacity (Ah) than discharging at a high current (e.g., a 2-hour rate).

QWhat is the shelf life of a VRLA battery and how do I maintain it?

The shelf life is limited by the self-discharge rate, which is temperature-dependent. VRLA batteries self-discharge less than 3% per month at 77°F (25°C). They should not be stored for more than 6 months at this temperature without recharging. In hotter climates, they should be recharged every 3 months. Recharge before use after long storage.
