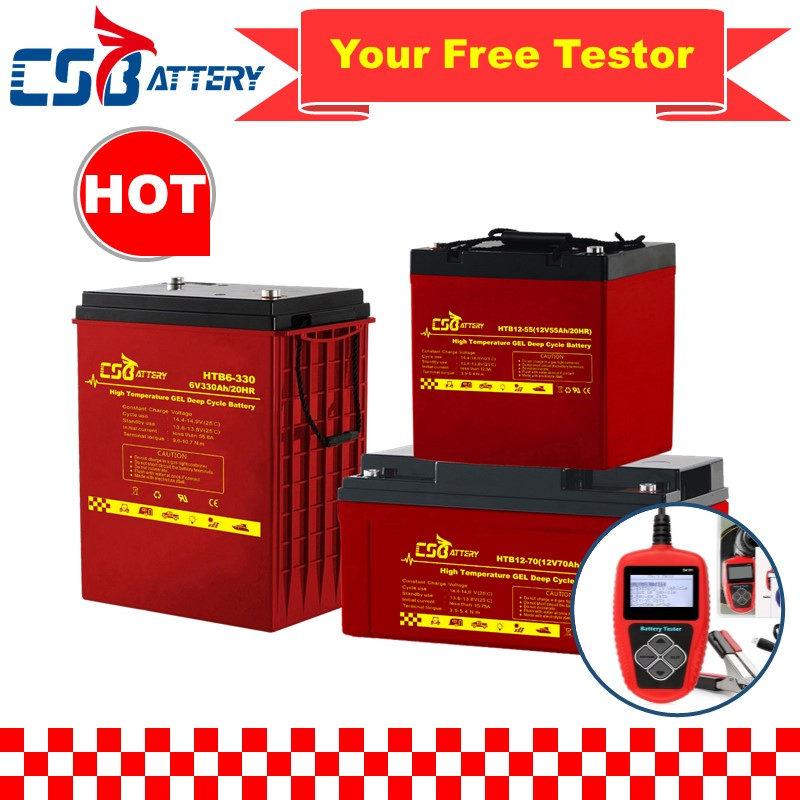

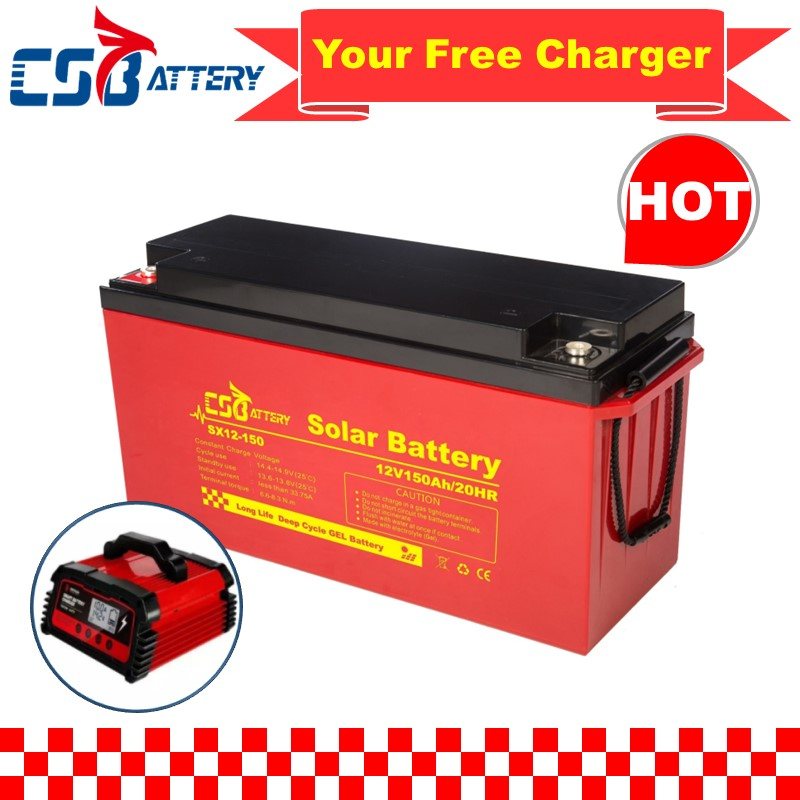

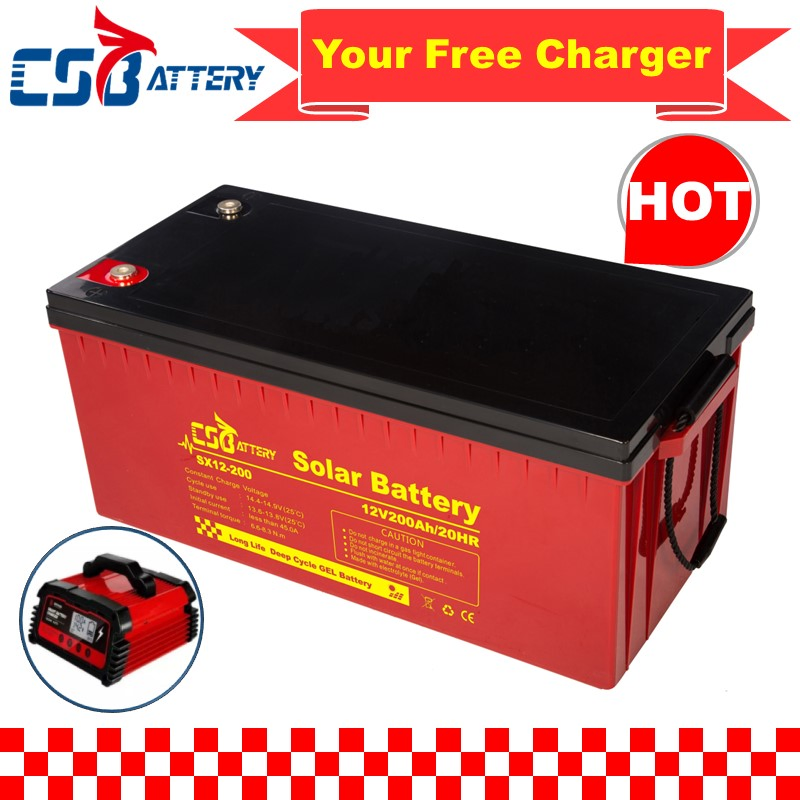

Csbattery 12V 100ah/150ah/200ah Deep-Cycle Gel Rechargeable Storage Battery for Solar Panel/Inverter/Power-Tool/UPS/Electric-Scooter/Bicycle/Vehicle/Pack/6V/Csb
HTB12V Patented High-Temp Deep Cycle Solar gel battery, own 15-20years long life, your best partner for solar market and hot area.
HTB series of 12V Solar GEL deep cycle batteries are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced patented GEL technology, Long service life designed with 15-20 years, 50% DOD 1500-1600 Cycles, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide.
Advanced Features
Environmentally friendly
Completely Maintenance-Free
Non-Spillable construction design
Wide Operating Temperature Range (-20°C~+60°C)
Longer Life (20 years designed life)
Explosion Proof
Valve Regulated & High Discharge Rate Capability
Low Self Discharge
Independent of Position
Ease of Shipment
No need of balanced charge or boost
No Memory
Applications
Communication equipment
Telecommunication control equipment
Emergency lighting systems
Electric power systems
Power station
Nuclear power station
Solar powered and wind powered systems
Load leveling and storage equipment
Marine equipment
Power generation plants
Alarm systems
Uninterruptible power supplies and stand-by power for computers
Medical equipment
Fire and security systems
Control equipment
Stand-by electric power
Product Specifications and Models
High temperature Long Life Deep Cycle 12V GEL Solar BATTERY Model list
Model
Nominal Voltage (V)
Capacity (Ah)
Dimension (mm)
Net Weight
Gross Weight
Terminal
Length
Width
Height
Total Height
kgs
kgs
HTB12-14
12
14
152
99
96
102
3.8
3.9
F1/F2
HTB12-20
12
20
181
77
167
167
6
6.1
T1/L1
HTB12-24
12
24
166
175
126
126
8.3
8.4
M6
HTB12-26
12
26
165
126
174
179
8.4
8.5
M6
HTB12-35
12
35
196
130
155
167
10.5
10.7
M6
HTB12-40
12
40
198
166
174
174
14.2
14.4
M6
HTB12-55
12
55
229
138
208
212
16
16.5
M6
HTB12-70
12
70
350
167
178
178
23.3
23.8
M6
HTB12-75
12
75
260
169
208
227
25
25.5
M6
HTB12-85
12
85
260
169
208
227
26.1
26.6
M6
HTB12-90
12
90
307
169
211
216
28.2
28.7
M6
HTB12-100
12
100
307
169
211
216
30.2
30.7
M6
HTB12-110
12
110
328
172
218
222
33.5
34
M8
HTB12-120
12
120
407
173
210
233
39.2
39.7
M8
HTB12-135
12
135
344
172
280
285
40.8
41.3
M8
HTB12-150
12
150
484
171
241
241
45.5
46
M8
HTB12-180
12
180
532
206
216
222
56
56.5
M8
HTB12-200
12
200
532
206
216
222
58.6
59.1
M8
HTB12-230
12
230
522
240
219
225
65
65.5
M8
HTB12-250
12
250
520
269
203
207
71
71.5
M8
HTB12-300
12
300
520
269
220
226
77
77.5
M8
High temperature Long Life Deep Cycle 6V 8V Solar GEL BATTERY Model list
Model
Nominal Voltage (V)
Capacity (Ah)
Dimension (mm)
Net Weight
Gross Weight
Terminal
Length
Width
Height
Total Height
kgs
kgs
HTB6-200
6
200
306
168
220
222
30
30.1
M8
HTB6-210
6
210
260
180
247
249
29.5
29.6
M8
HTB6-220
6
220
306
168
220
222
31.5
31.6
M8
HTB6-225
6
225
243
187
275
275
30.5
30.6
M8
HTB6-250
6
250
260
180
265
272
34.5
34.6
M8
HTB6-310
6
310
295
178
346
366
46
46.2
M8
HTB6-330
6
330
295
178
354
360
46.6
46.8
M8
HTB6-380
6
380
295
178
404
410
55.3
55.8
M8
HTB6-420
6
420
295
178
404
410
56.8
57.3
M8
HTB8-170
8
170
260
182
266
271
34.3
34.8
M8
HTB8-200
8
170
260
182
295
300
38.3
38.8
M8
Solar Battery Features and Benefits
Long life and super stability under high temp. environment
Electrolyte immobilized as gel state, no leakage and no stratification.
Super deep cycle life at high temperature
Use super-C additives: Deep discharge recovery capability
Super PSOC cycling performance

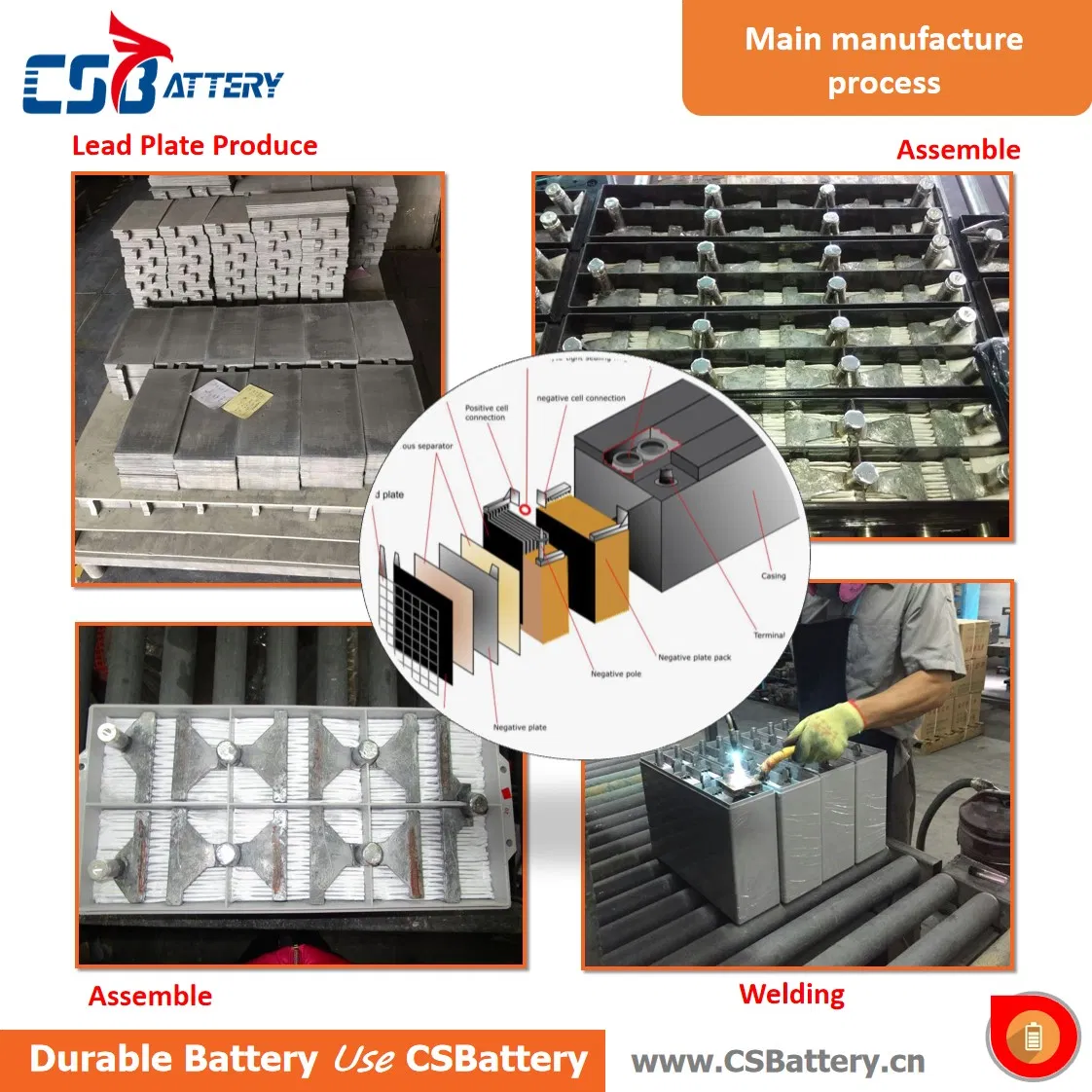

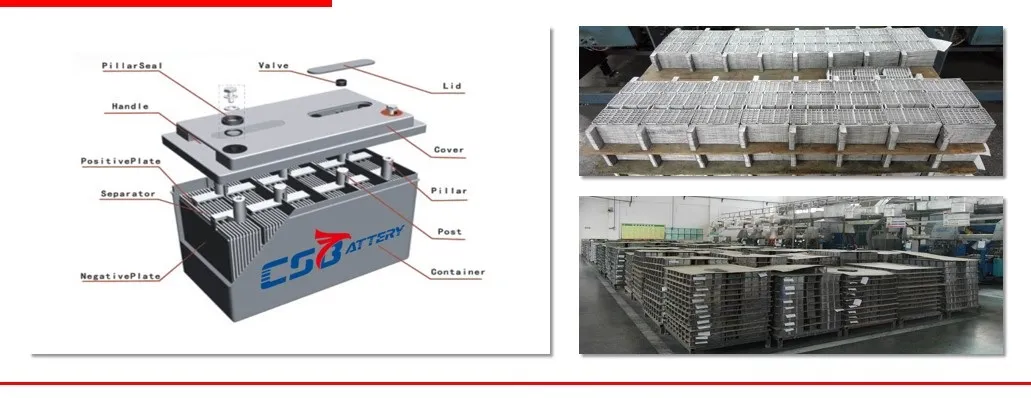

Product Structure
Component
Positive plate
Negative plate
Container & Cover
Safety valve
Terminal
Separator
Electrolyte
Pillar seal
Features
Thick high Sn low Ca grid with Special paste
Balanced Pb-Ca grid for improved recombination efficiency
Fire resistance ABS (UL94-V0 optional)
Flame Si-Rubber and aging resistance
Female Copper Insert
Advanced PVC / AGM separator for high pressure cell design
Silicon Gel
Two layers epoxy resin seal
Positive plate : Thick high Sn low Ca 3D flat pasted plate
Negative plate : Balanced Pb-Ca grid and AM with Super-C additives
Separator : Imported PVC separator for Gel battery
Electrolyte : nano GEL electrolyte
Battery container and cover : ABS for higher temperature
Pillar seal : 100% factory tested, proven two layers epoxy resin seal
Relief valve : Complete with integrated flame arrestor

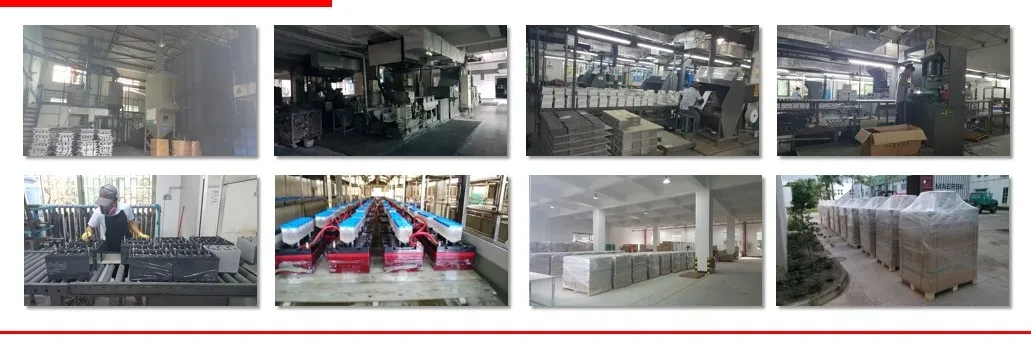

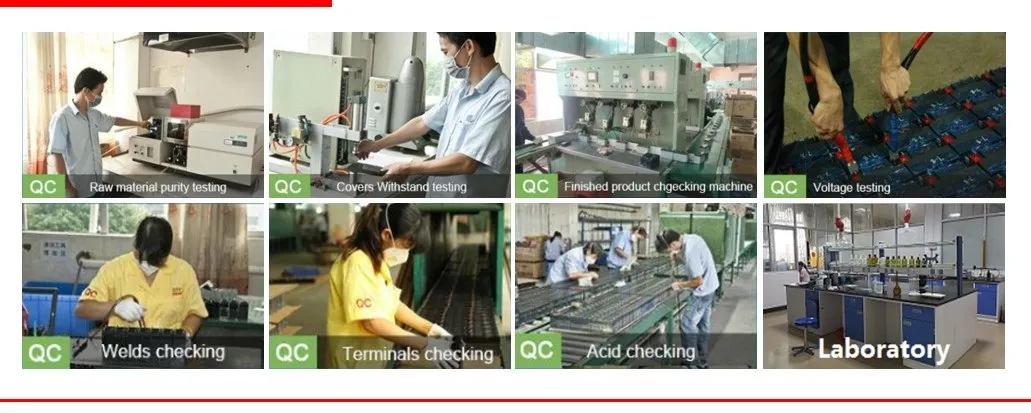

Assembling & Quality Control

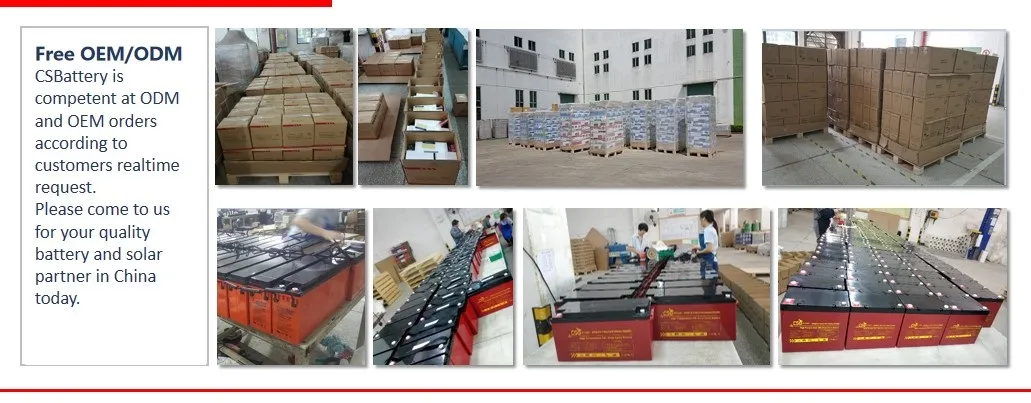

Certifications & Packing
IEC 60896-21/22
IEC 61427
ISO9001/14001/18001
Eurobat guide, long life
BS6290 part 4
GB/T 22473
CE
MH63727-UL

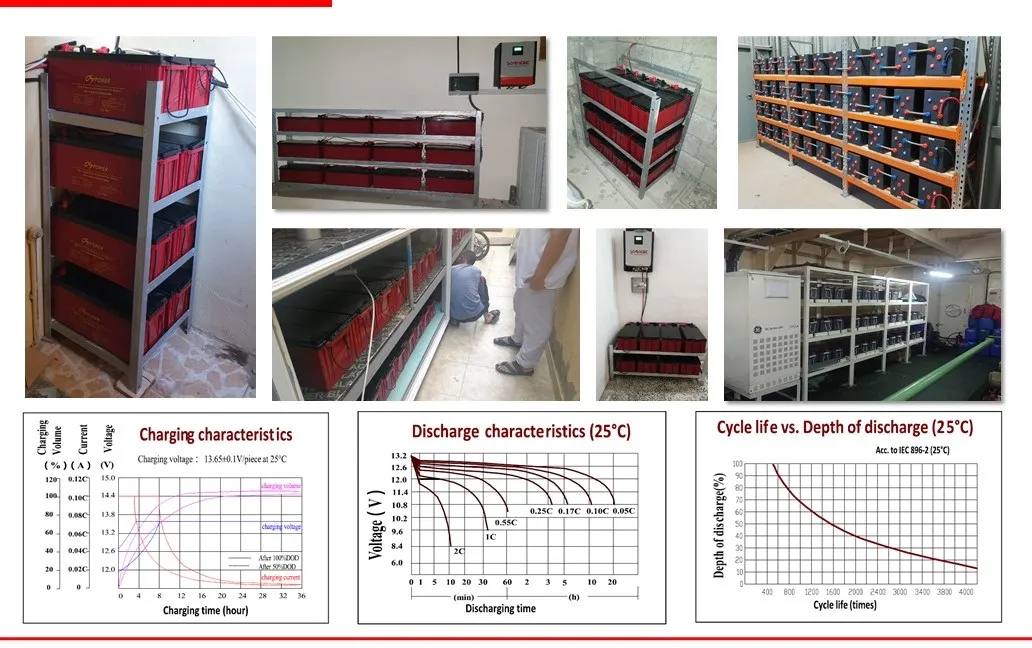

Projects & Applications
Electric Powered Vehicles
Wheel Chairs
BTS Stations
Medical Equipment
Solar and Wind
Golf Cars and Buggies
Power Tools
Control System
UPS systems
Emergency systems

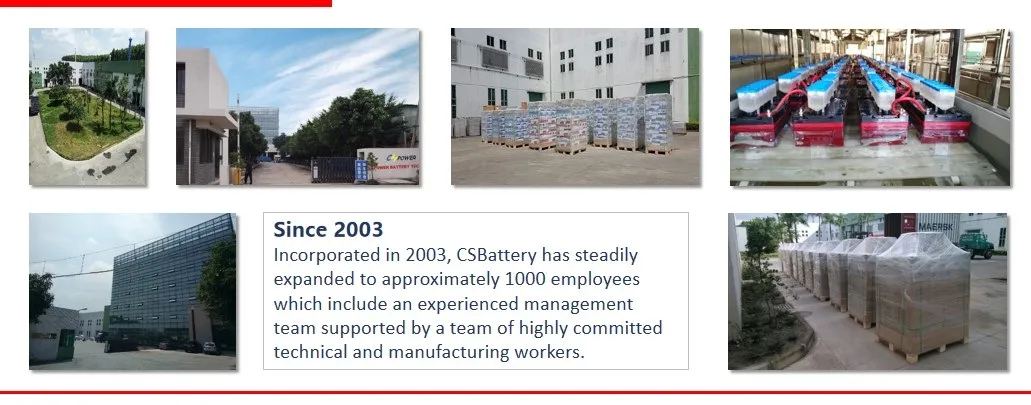

Factory & Customers
Inquiry Us And Choose Your Gift Now
Frequently Asked Questions
Q Can your battery be delivered by sea and air?
Yes, our batteries can be delivered both by sea and by air. We have MSDS and test reports for safe transport as non-dangerous products.
Q Can I fast charge my battery?
Fast charging is not recommended as it is harmful to the life cycle of the battery.
Q Can I perform a partial replacement of my batteries?
Partial battery replacement of lead acid battery banks is not recommended, as balancing old and new batteries can reduce overall system performance.
Q Why does a battery show different capacities at different hour rates?
The capacity of a battery (in Ah) is a dynamic number dependent on the discharge current. A battery discharged at a lower current (e.g., 20-hour rate) delivers more usable capacity than one discharged at a higher current (e.g., 2-hour rate).
Q What is the shelf life of VRLA batteries and how do I maintain them?
The shelf life is limited by the rate of self-discharge, which is temperature-dependent. VRLA batteries self-discharge less than 3% per month at 77°F (25°C). They should not be stored for more than 6 months without a recharge. Under hot temperatures, recharge them every 3 months.
Q How is the product quality controlled?
We utilize rigorous quality management systems. This includes Incoming Quality Control (IQC) to test raw materials, Production Quality Control (PQC) for in-process inspection and full compliance checking, and Outgoing Quality Control (OQC) to confirm no defective items leave the facility.
