Basic Info
Discharge Rate
Low Discharge Rate
Certificate
CE/IEC60623/ISO9001/ISO18001/14001
Transport Package
Plywood Case
Specification
167*162*345mm
Production Capacity
8000 Pieces/Month
Product Description

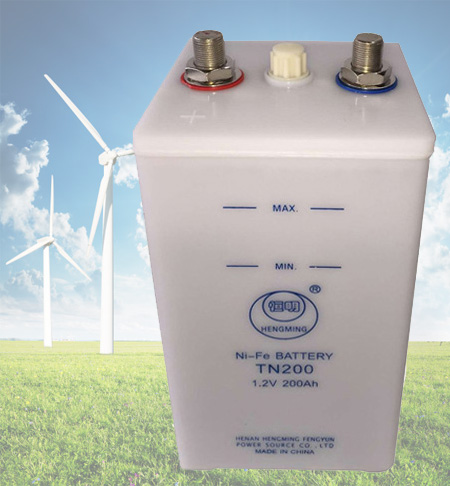

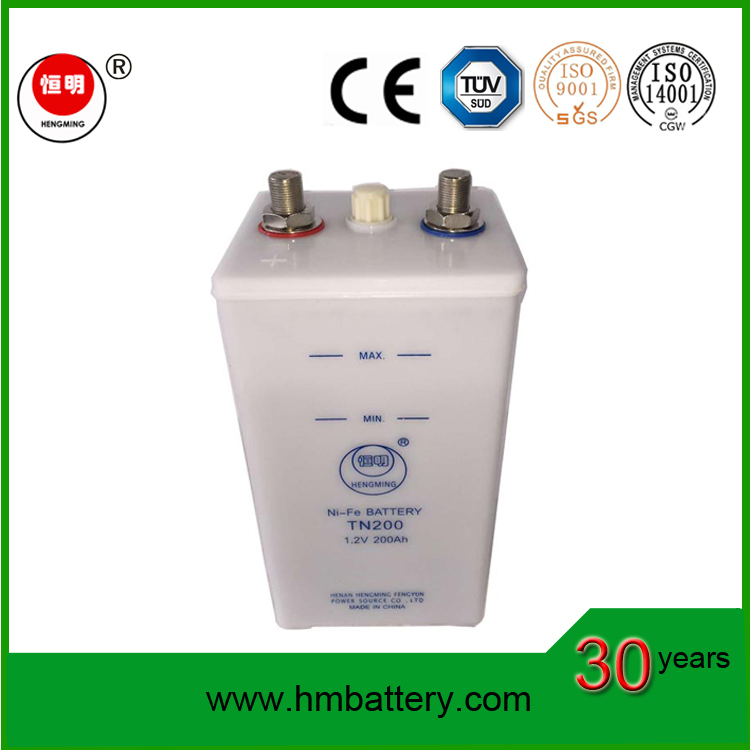

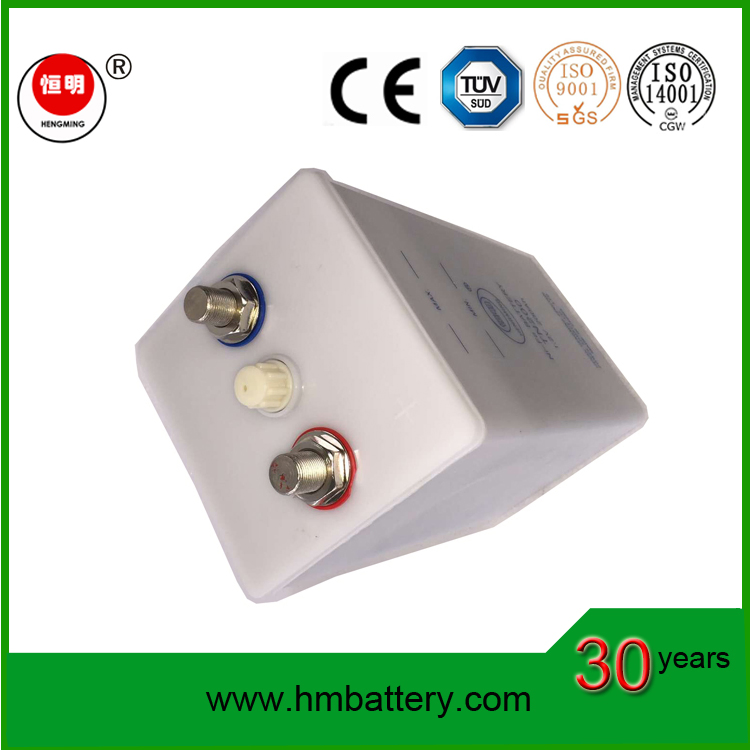

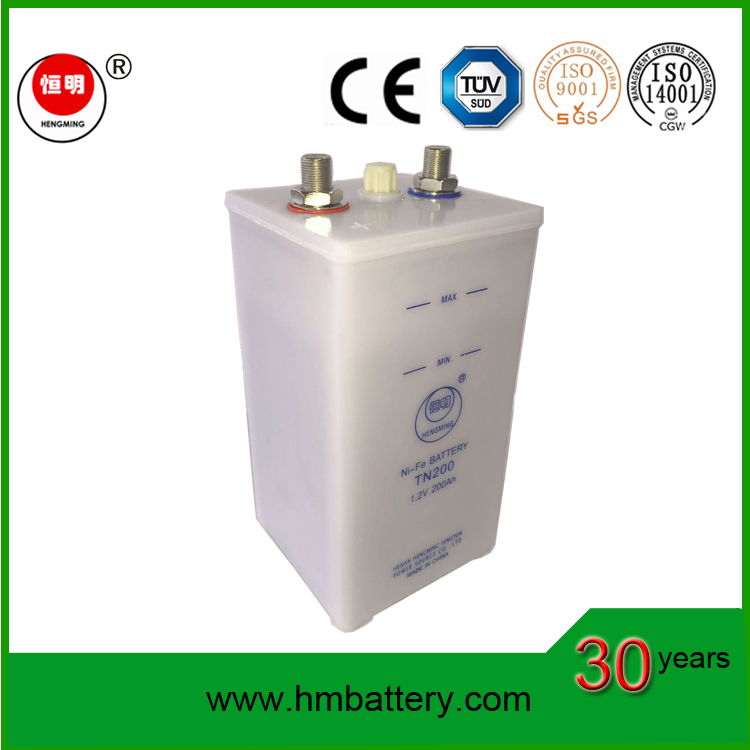

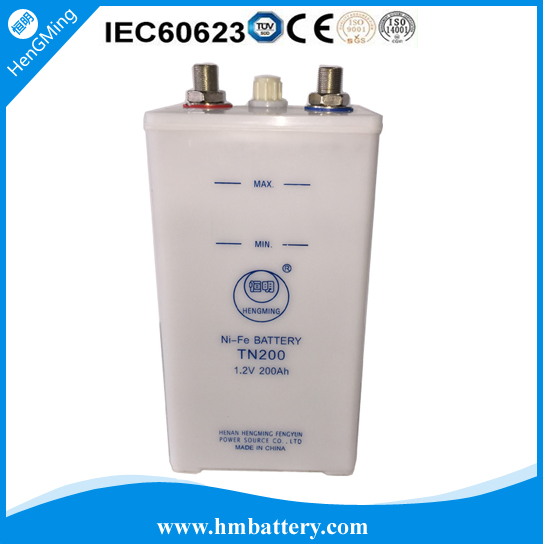

Max Life Batteries NI-FE Battery 12V 24V 48V 110V 220V Solar Batteries 10AH-1300Ah

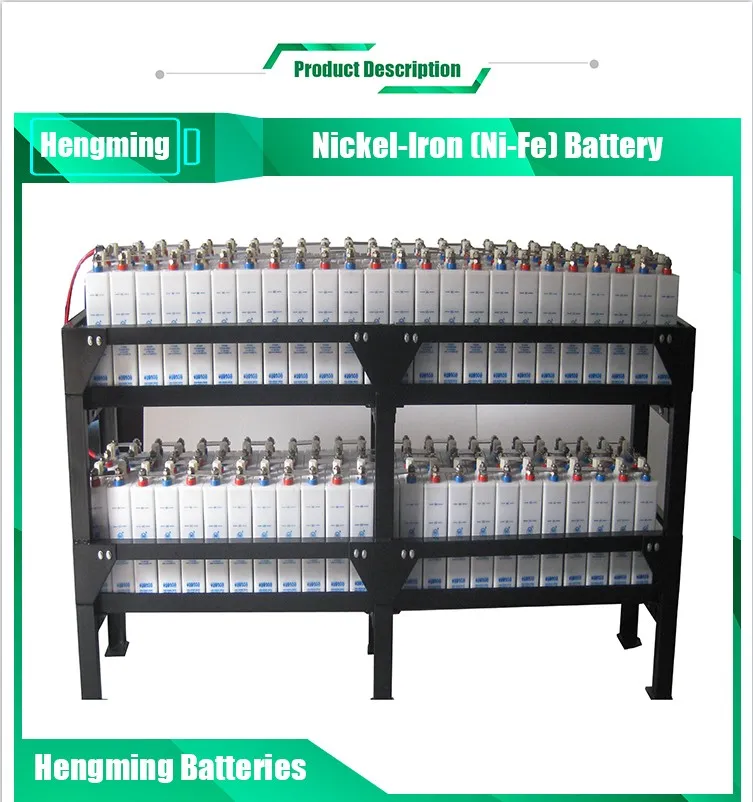

1. Product description

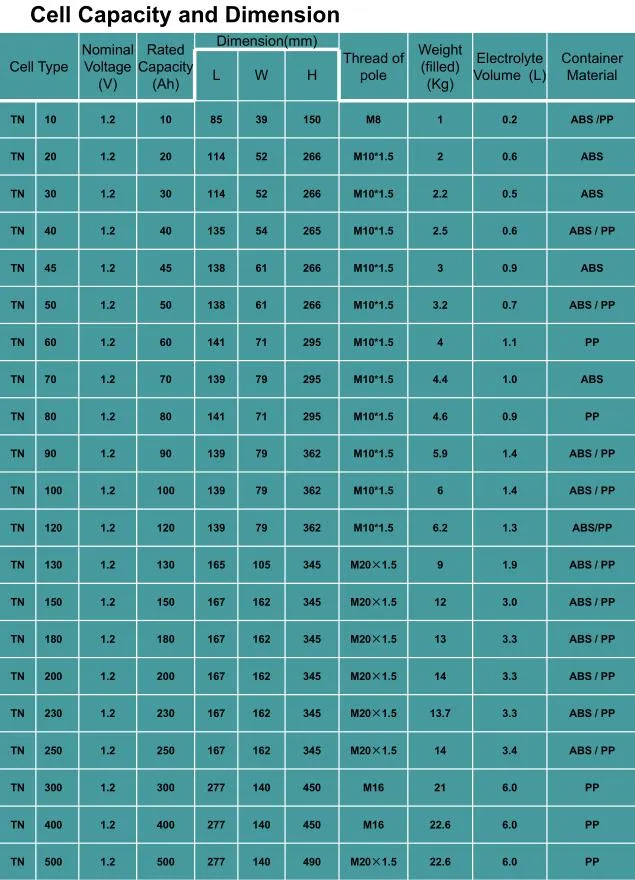

2. Type list

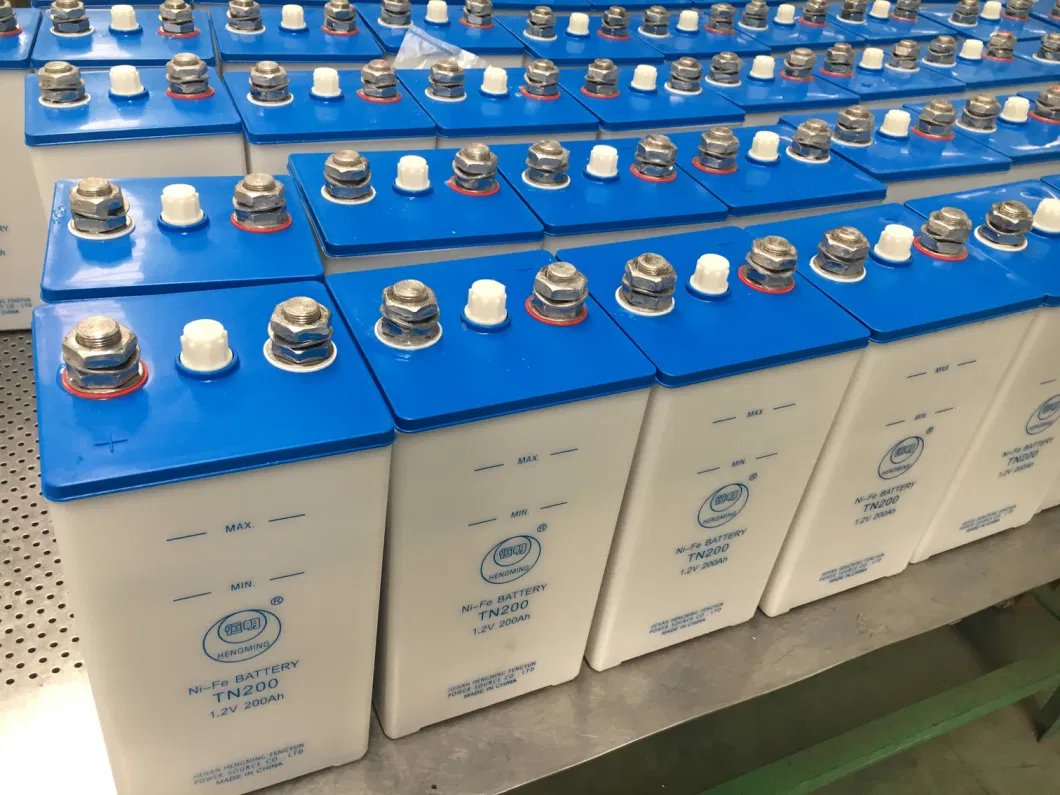

Specifications of nickel iron battery
| Model |
Nominal Voltage(V) |
Rated Capacity (Ah) |
Max. dimension(mm) |
Pole |
Weight (filled) (Kg) |
Electrolyte (L) |
Container |
|
| L |
W |
H |
| TN10 |
1.2 |
10 |
85 |
39 |
156 |
M8 |
0.8 |
0.3 |
PP |
| TN 20 |
1.2 |
20 |
82 |
43 |
258 |
M10 |
1.3 |
0.3 |
ABS |
| TN 30 |
1.2 |
30 |
135 |
54 |
265 |
M10 |
2 |
0.5 |
PP |
| TN 40 |
1.2 |
40 |
135 |
54 |
265 |
M10 |
2.4 |
0.5 |
PP |
| TN 50 |
1.2 |
50 |
138 |
61 |
266 |
M10 |
3.2 |
0.7 |
PP |
| TN 60 |
1.2 |
60 |
143 |
76 |
275 |
M10 |
4 |
1.1 |
ABS |
| TN 70 |
1.2 |
70 |
139 |
79 |
295 |
M10 |
4.4 |
1 |
ABS |
| TN 80 |
1.2 |
80 |
139 |
79 |
295 |
M10 |
4.7 |
1 |
ABS |
| TN 90 |
1.2 |
90 |
139 |
79 |
362 |
M10 |
5.9 |
1.4 |
PP |
| TN 100 |
1.2 |
100 |
139 |
79 |
362 |
M10 |
6 |
1.4 |
PP |
| TN 150 |
1.2 |
150 |
165 |
105 |
345 |
M20×1.5 |
9.3 |
2 |
PP |
| TN 200 |
1.2 |
200 |
167 |
162 |
345 |
M20×1.5 |
14 |
3.3 |
PP |
| TN 250 |
1.2 |
250 |
167 |
162 |
345 |
M20×1.5 |
14 |
3.4 |
PP |
| TN300 |
1.2 |
300 |
282 |
170 |
348 |
M20×1.5 |
22.5 |
5 |
ABS |
| TN400 |
1.2 |
400 |
282 |
170 |
348 |
M20×1.5 |
24 |
4.5 |
ABS |
| TN 500 |
1.2 |
500 |
285 |
172 |
490 |
M20×1.5 |
33.6 |
7.8 |
ABS |
| TN 600 |
1.2 |
600 |
285 |
172 |
490 |
M20×1.5 |
34 |
7.5 |
ABS |
| TN700 |
1.2 |
700 |
285 |
172 |
490 |
M20×1.5 |
40 |
9.4 |
ABS |
| TN 800 |
1.2 |
800 |
395 |
185 |
560 |
M20×1.5 |
57.5 |
15.5 |
ABS |
| TN 1000 |
1.2 |
1000 |
395 |
185 |
560 |
M20×1.5 |
- |
- |
ABS |
| TN1200 |
1.2 |
1200 |
395 |
185 |
560 |
M20×1.5 |
- |
- |
ABS |
Benefits of nickel iron battery
- Excellent charging efficiency and smooth discharge voltage
- High reliability without sudden death
- Ability to withstand ultra-high and ultra-low environmental temperatures
- Withstand physical and mechanical abuses
- Exceptionally long & reliable service life
- Pollution-free, total green energy
- Low Self-discharging
- No emission of corrosive gases, Safe from flame & explosion
- Pollution-free and excellent mechanical strength
- Convenient for installation and low maintenance
- Availability to design and manufacture other model according to user's requirements
3. Advantages of Ni-Fe Battery
- Environmentally-friendly battery production
- Temperature is kept below 35 ºC and good maintenance, cycle life of up to 3000-4000 times.
- Float charging life is more than 15 years.
- Low Self-discharging
- Convenient for installation and low maintenance
- PP/ABS container
- OEM service available
- Widely used as DC back-up power supply for railway, rolling stocks, mine tractors, petrochemical, oil and gas, electricity industries, photovoltaic and other renewable power applications.

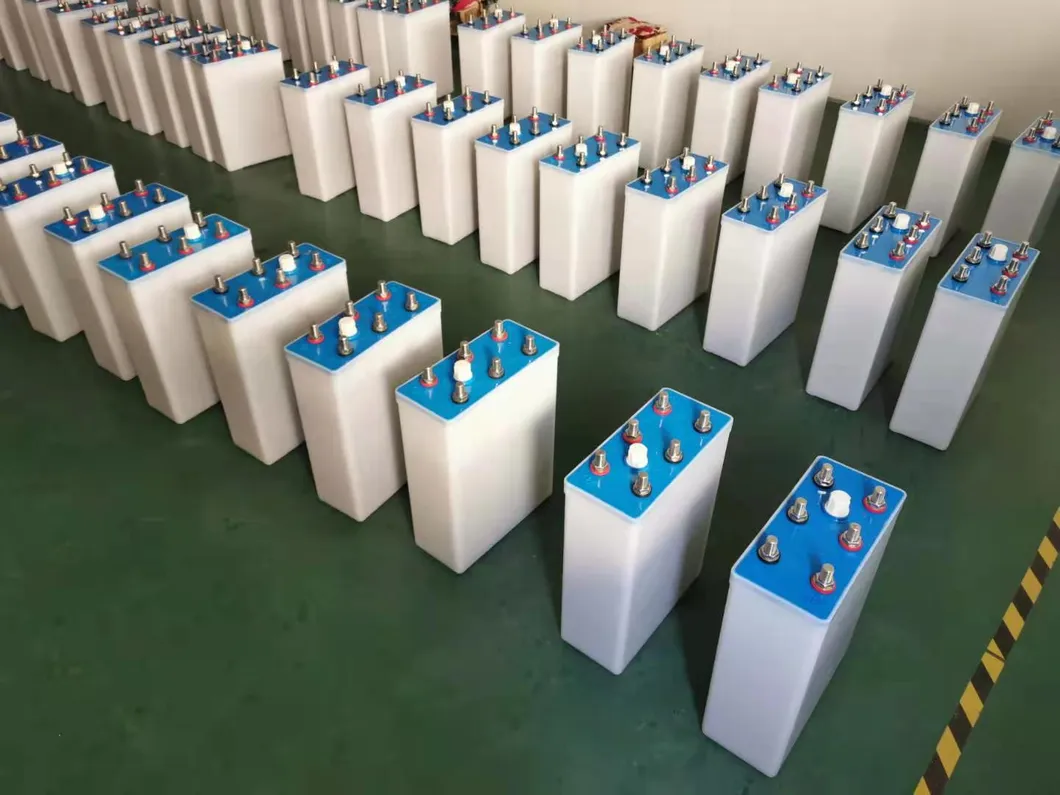

5. Packing and Shipping
The battery will be packed by plywood case. Electrolyte powder or wet electrolyte will be sent with accessories.
6. Certification
7. Why Choose Us
8. Our Service
1) Design Service:
We can design and develop other battery model according to customer's requirement.
2) OEM Service:
We can print customer's brand name and logo on the batteries.
3) Related complete set service:
Our mainly products are batteries, we can supply the battery rack or cabinet, or battery charger or related components if customers have such requirements.
Ni-cd battery, ni-fe battery, ni-mh battery welcomed by end users all over the world.
Frequently Asked Questions (FAQ)
What is a Nickel-Iron (Ni-Fe) battery?
A Nickel-Iron (Ni-Fe) battery is an alkaline rechargeable battery known for its extremely robust electrochemical structure. It utilizes nickel oxide-hydroxide for the positive plates, iron for the negative plates, and an alkaline electrolyte (typically potassium hydroxide).
What is the expected lifespan of a Ni-Fe battery?
Ni-Fe batteries are famous for their exceptionally long service life, often lasting over 15 to 20 years in float charge applications. They can withstand 3,000 to 4,000 deep discharge cycles when properly maintained.
Are Nickel-Iron batteries environmentally friendly?
Yes. Unlike lead-acid or nickel-cadmium batteries, Ni-Fe batteries do not contain toxic heavy metals like lead or cadmium, making them much more environmentally friendly and easier to recycle.
How do Ni-Fe batteries perform under extreme temperatures?
These batteries exhibit excellent thermal tolerance. They can operate reliably under both ultra-high and ultra-low environmental temperatures without suffering sudden failures or significant damage.
What kind of maintenance do Ni-Fe batteries require?
Ni-Fe batteries require low maintenance. Routine tasks mainly involve checking and topping up the electrolyte levels with distilled water to compensate for evaporation, and ensuring the battery casing remains clean and dry.
