WEIPU 5A AC/DC IP67 Solar Cable China Supplier 6 Pin Battery Circular Connector Push Locking Wire 12V Power 2 3 Connections

Product Description

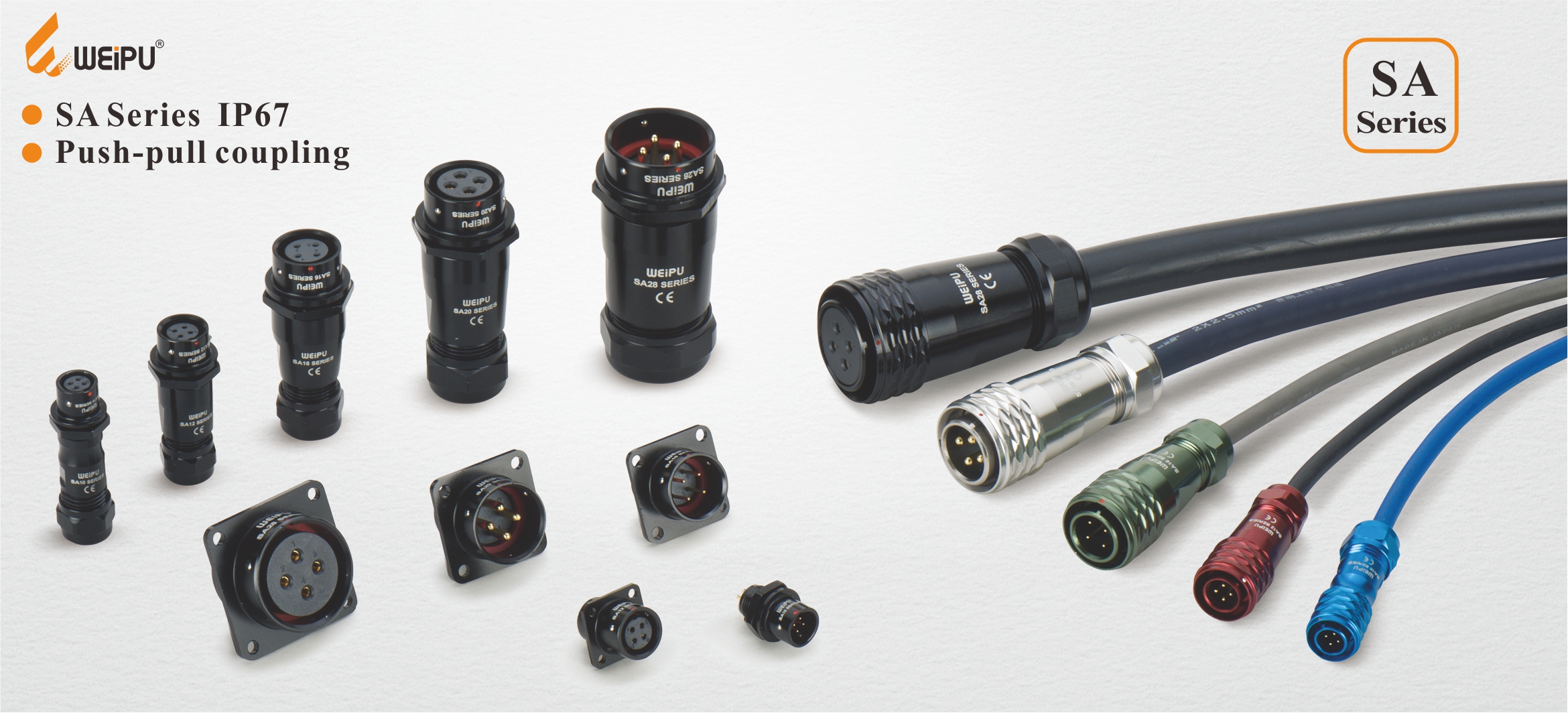

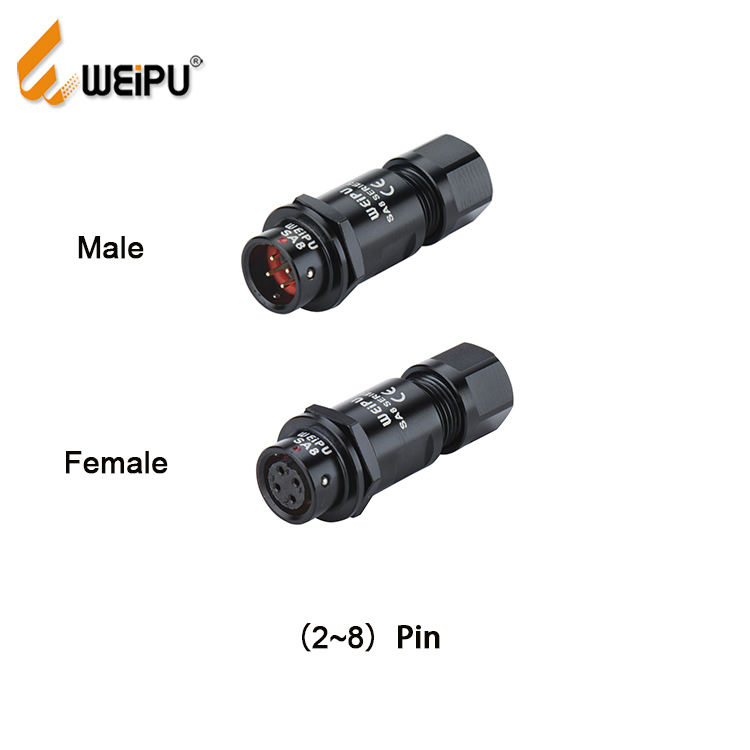

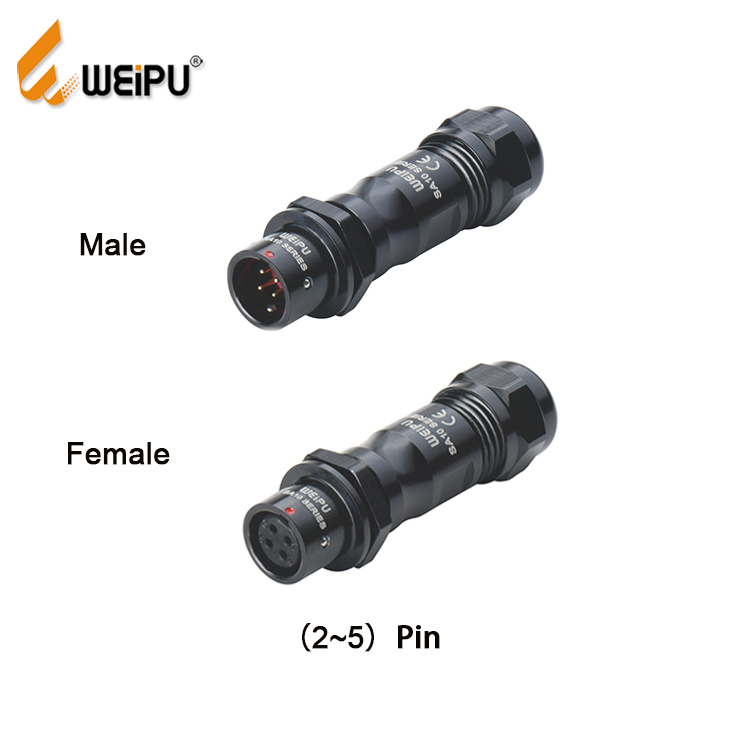

SA6/SA8/SA10 Series with multi-core (2-8 core) design to fit with different industrial needs with the following key features:

The shell of the product is made of anodized aluminum, providing it with compressive and anti-deformation properties.
The contacts are gold-plated, offering high-strength corrosion resistance and excellent electrical conductivity. They can effectively cope with changes in temperature rise caused by the current.
The product utilizes a push-pull coupling mechanism, making it easy to operate and install.
The current rating for the product is 3A/5A.
When connected, the product has an IP67 rating, making it highly resistant to dust and water.

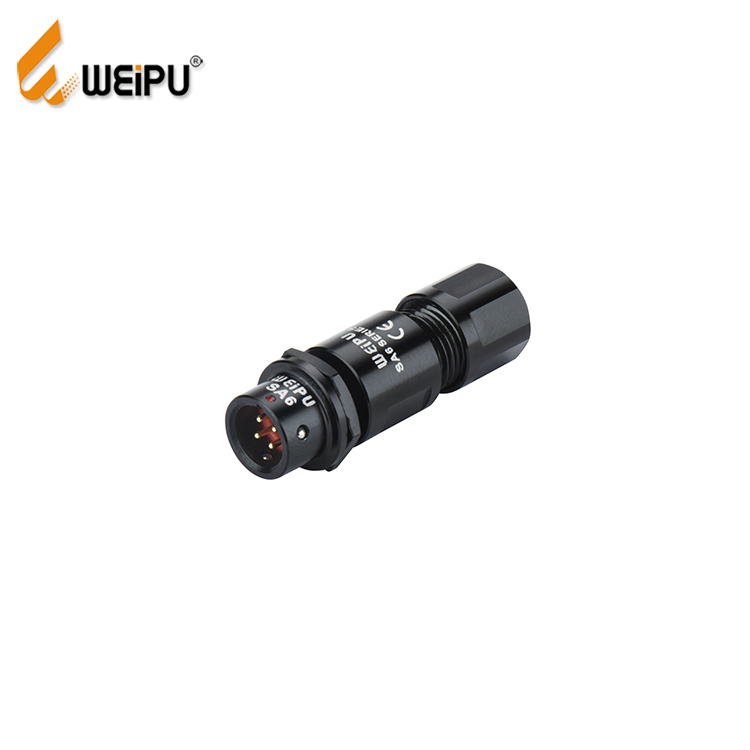

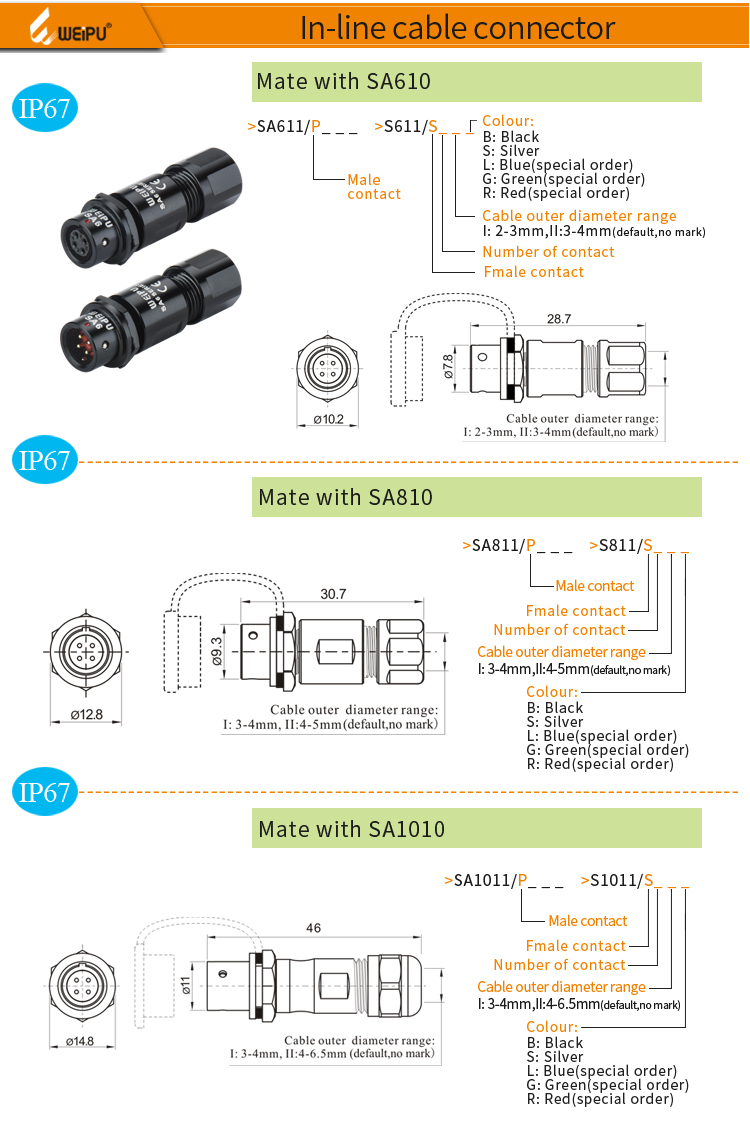

Model No.	SA611 / SA811 / SA1011
Product name	In-line cable connector
Coupling	Push-pull coupling
Shell material	Anodized aluminium
Insert material	PPS, max temperature 260℃
Contact material	Brass with gold plating
Termination	Solder
IP rating	IP67
Mating cycle	500
Temperature range	-40℃ ~ +85℃
Insulation resistance	2000MΩ

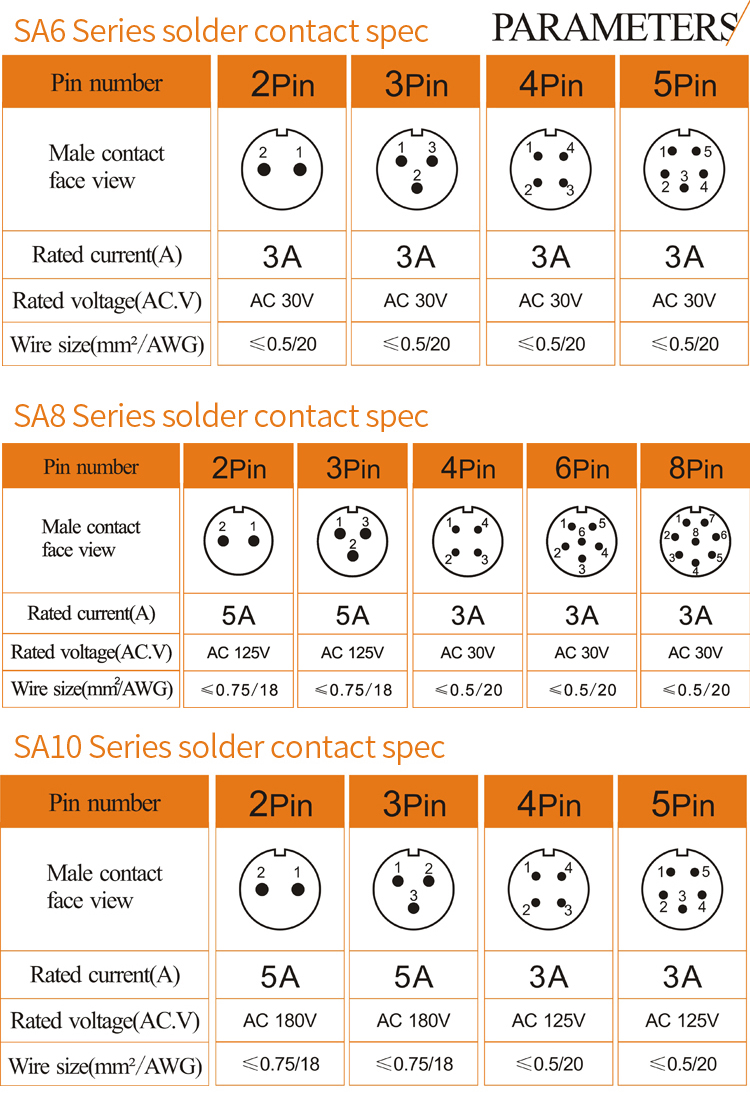

Contact spec

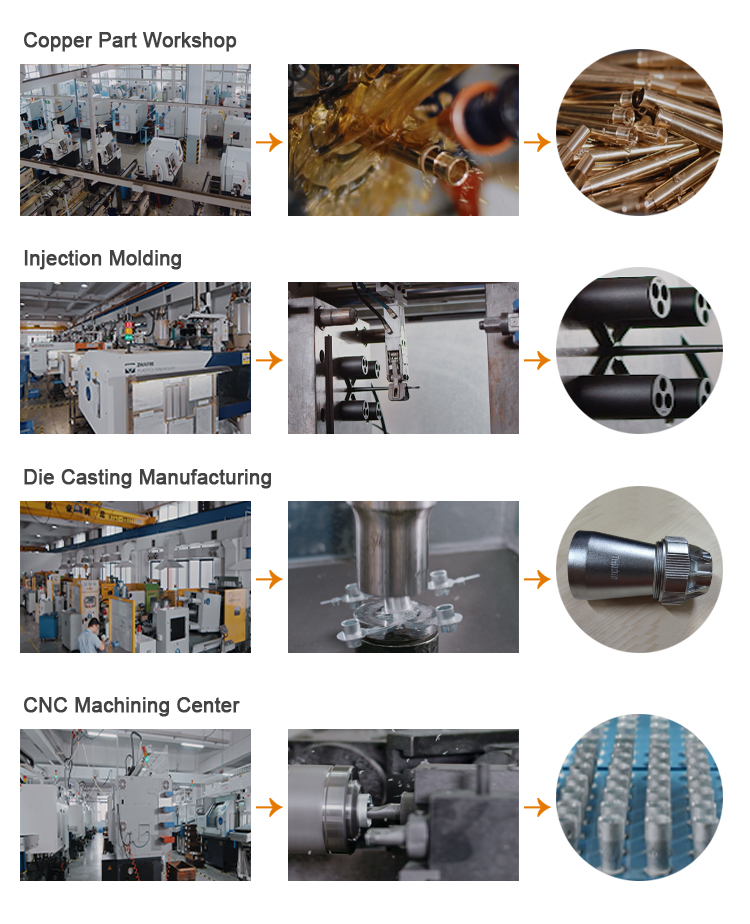

Production Process

Application Scenarios

The machine's good efficiency is based on its stable and effective operation. Connectors can perform effectively and remain stable even under extreme conditions.

Our products span various fields, including rail transit, new energy vehicles, industrial automation, energy, photovoltaics, stage lighting, exhibitions, 3C products, medical equipment, agriculture, and other areas.

Frequently Asked Questions (FAQ)

1. What are the key features of the SA6/SA8/SA10 series connectors?

They feature a multi-core (2-8 core) design, an anodized aluminum shell for compression resistance, gold-plated contacts for corrosion resistance, a secure push-pull coupling mechanism, and an IP67 protection rating.

2. What is the waterproof and dustproof rating of these connectors?

When fully connected, the SA series connectors have an IP67 rating, indicating high resistance to both dust ingress and water submersion.

3. What materials are used to construct the connector shell and contacts?

The shell is constructed from high-quality anodized aluminum to prevent deformation, while the contacts are made of gold-plated brass to ensure optimal electrical conductivity and high resistance to temperature fluctuations.

4. What is the operating temperature range for these industrial connectors?

The connectors are rated to operate reliably within a temperature range of -40°C to +85°C. Additionally, the internal PPS insert material can withstand maximum temperatures up to 260°C.

5. What industries and applications are these connectors suitable for?

They are suitable for a wide range of industrial environments, including rail transit, new energy vehicles, industrial automation, energy, photovoltaics, medical equipment, stage lighting, and agriculture.

6. What type of coupling and termination mechanism does the SA series use?

The SA series employs a push-pull coupling mechanism designed for quick and easy installation, and uses solder terminations to establish secure electrical connections.
