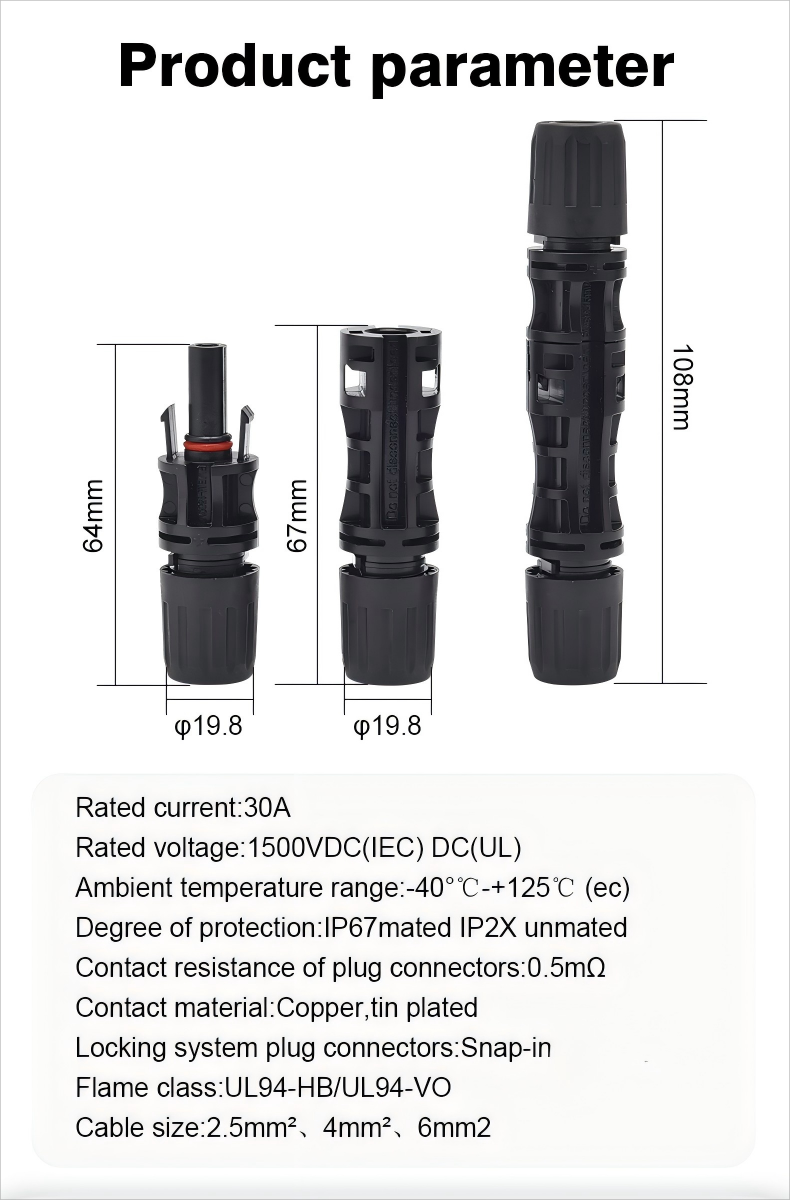

| Rated Current | 30A 50A |
| Rated Voltage | 1000V 1500V |
| Working temperature | -40° ~ +90° (IEC) |
| Degree of protection | IP67 |
| Contact Resistance | <0.5mΩ |
| Contact material | Copper, Tin plated |
| Cable Size | 2.5mm², 4mm², 6mm² |

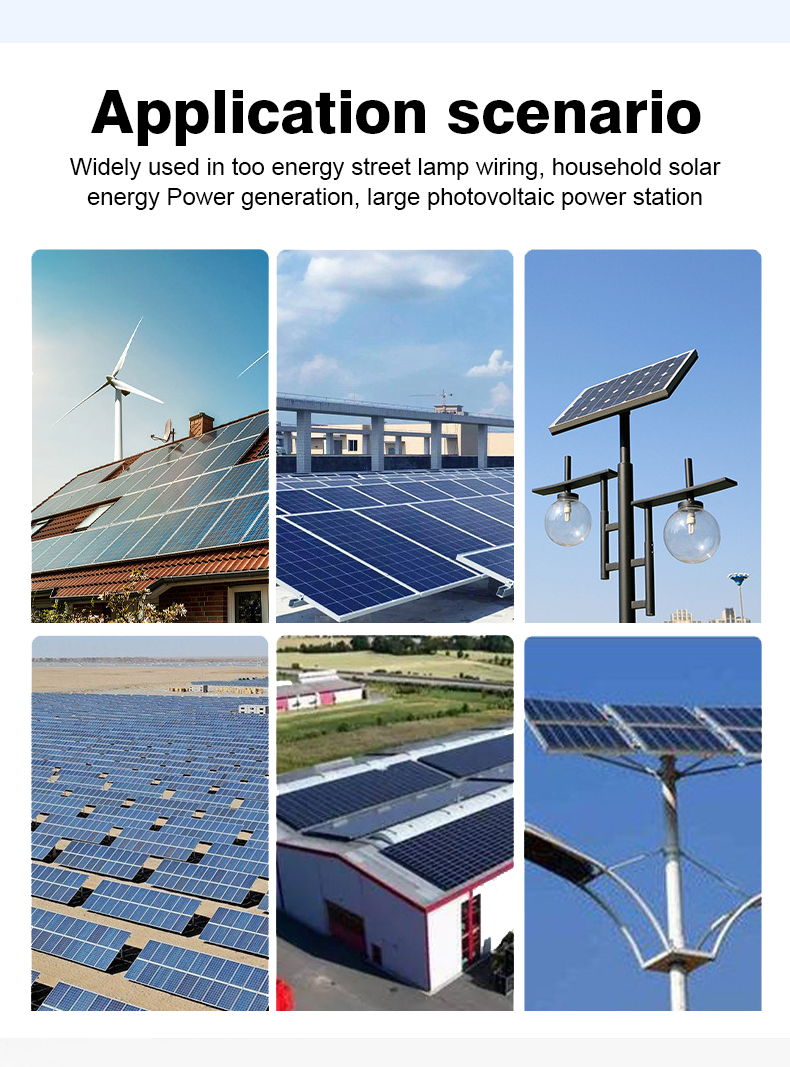

| Application | Solar Rooftop Mounting, Solar Ground Mount. |

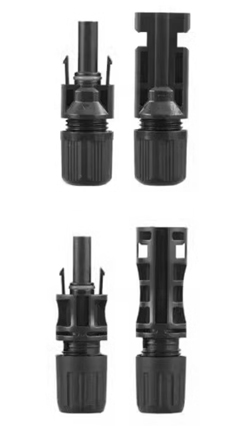

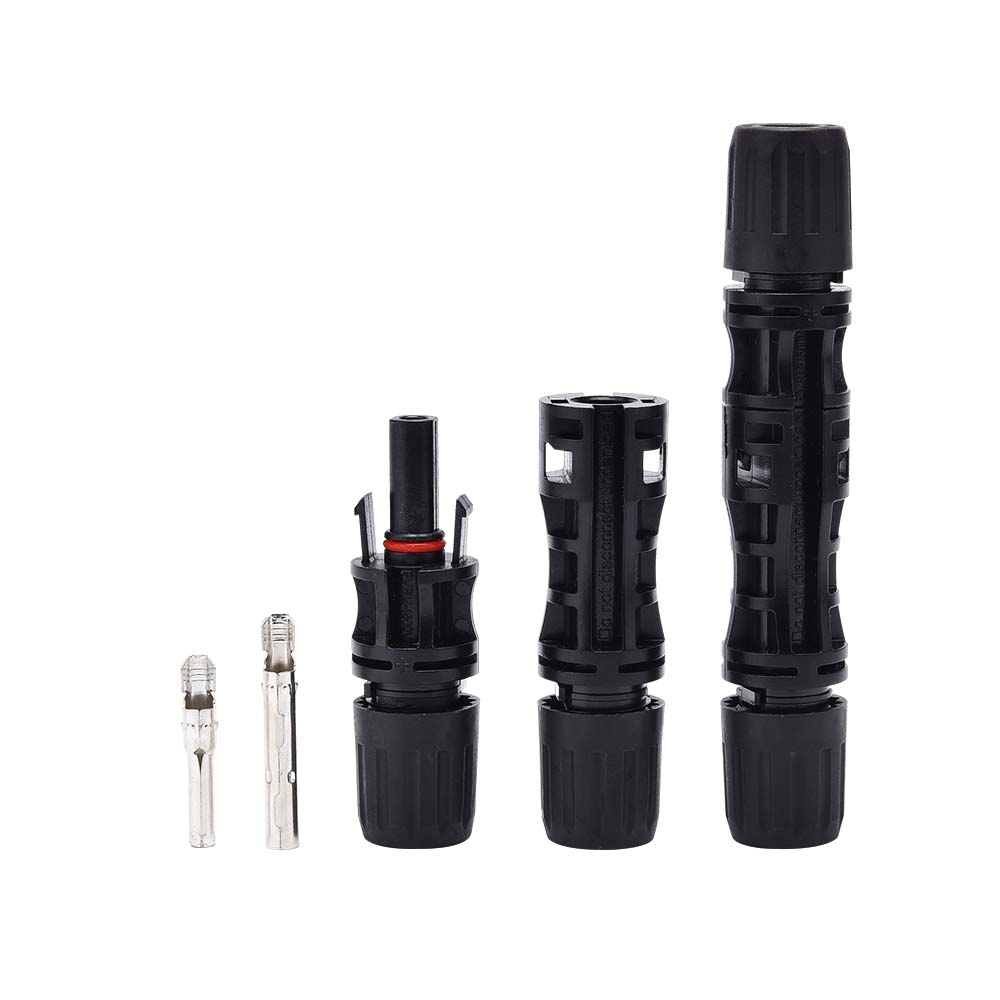

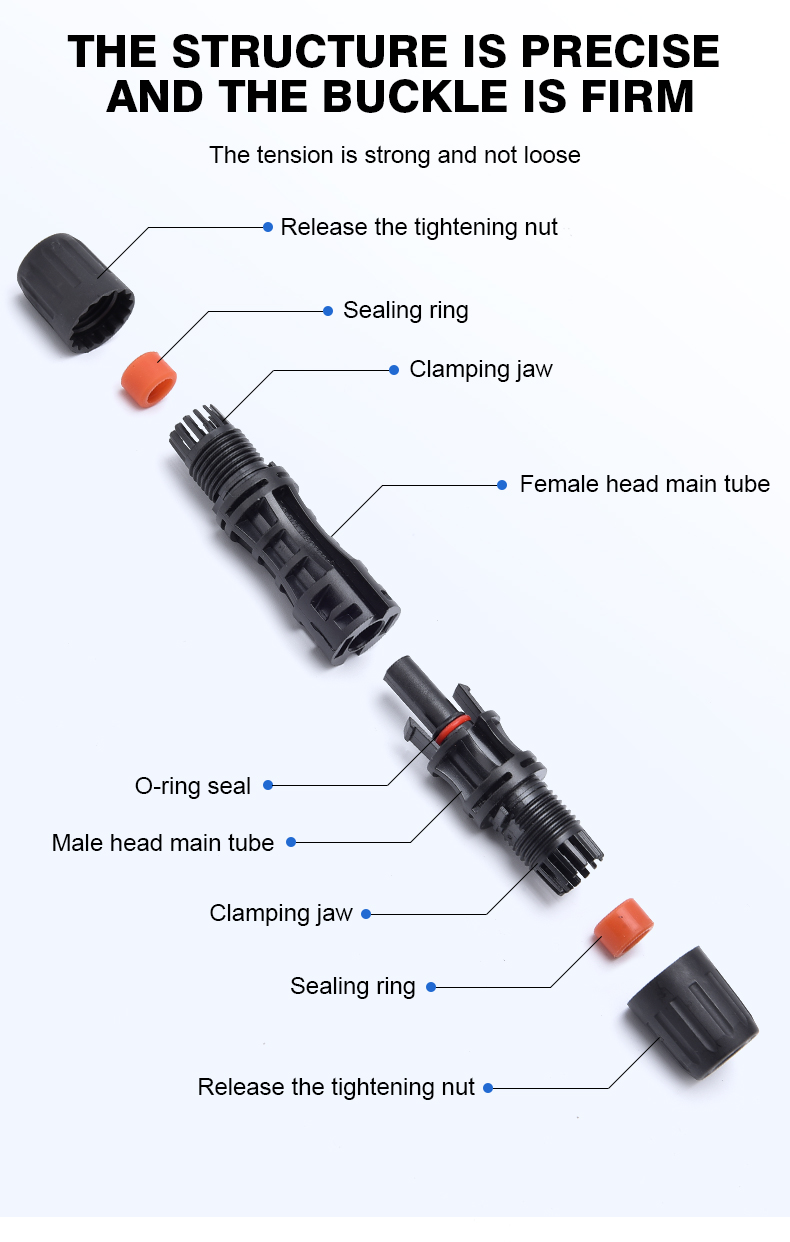

These connectors feature double seal rings and are rated at IP67 waterproof level, which provides excellent protection against water and dust build-up, making them ideal for outdoor environments.
They are compatible with PV cables of various insulation diameters including 2.5mm², 4mm², and 6mm² (equivalent to 14AWG to 10AWG).

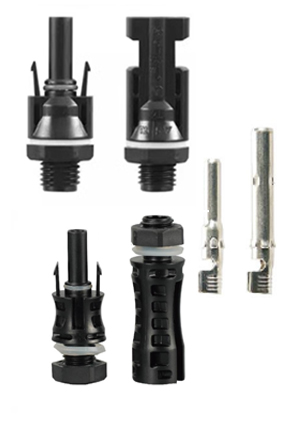

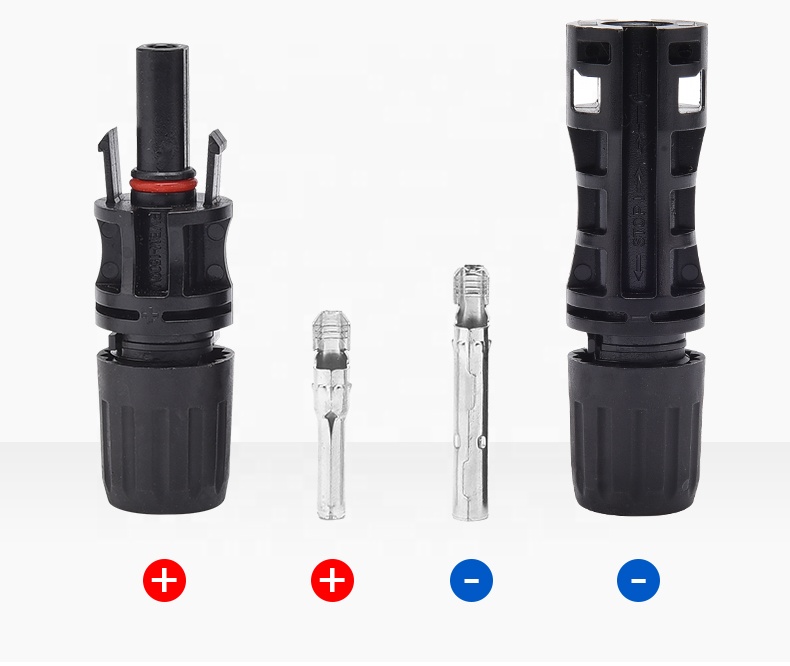

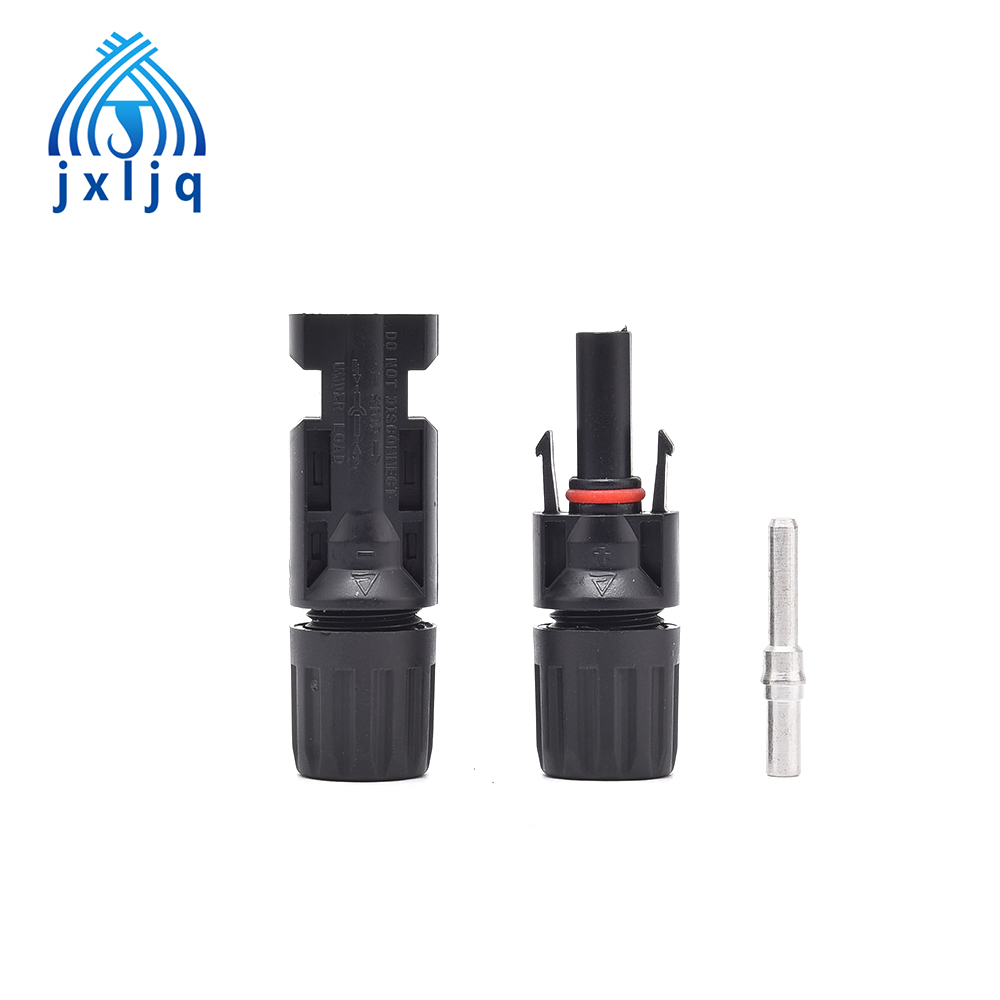

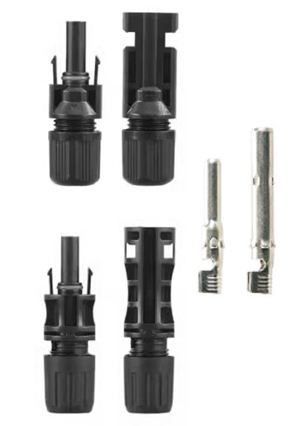

The connector body is made of premium PPO/PC materials, which ensures excellent aging resistance and UV endurance. The internal conductor pin is made of high-quality copper with tin plating for a rock-solid electrical connection.
While connection to the cable is done using standard crimping tools, plug removal can be done easily without requiring extra instruments, preventing any damage to the plugs.
They feature a rated current of 30A to 50A, and a rated voltage of TUV 1000V DC / UL 1500V DC, allowing them to operate perfectly under heavy load.

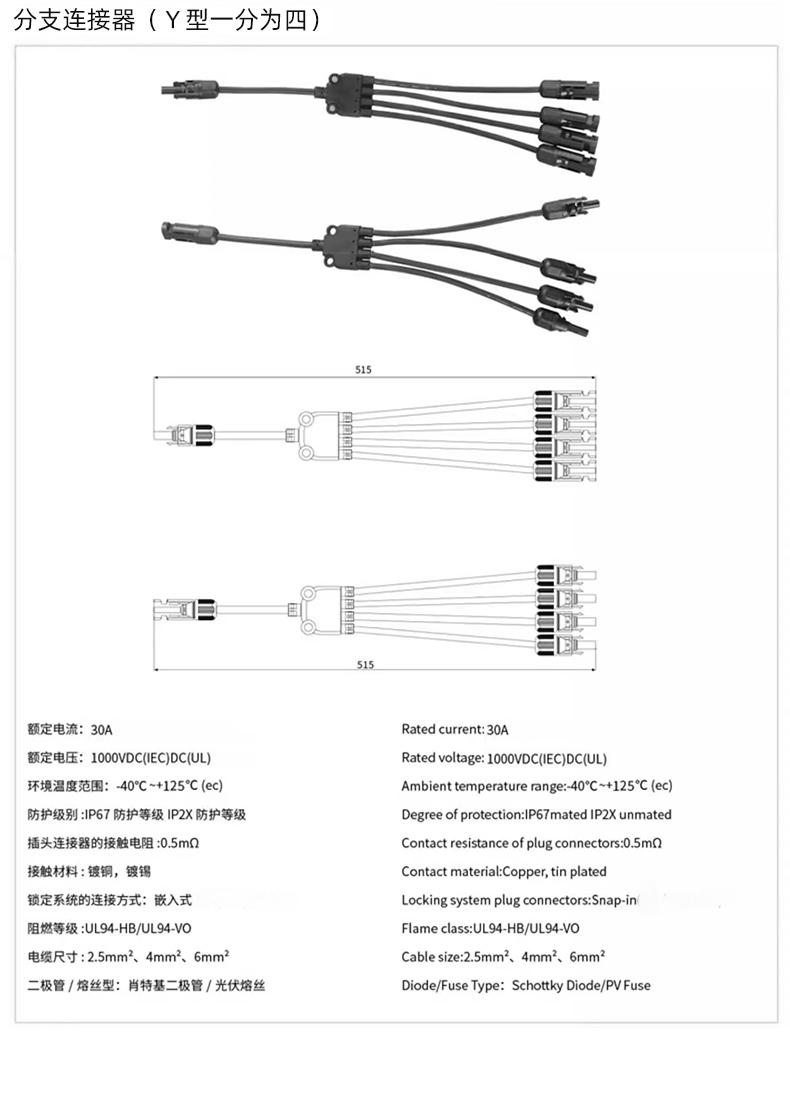

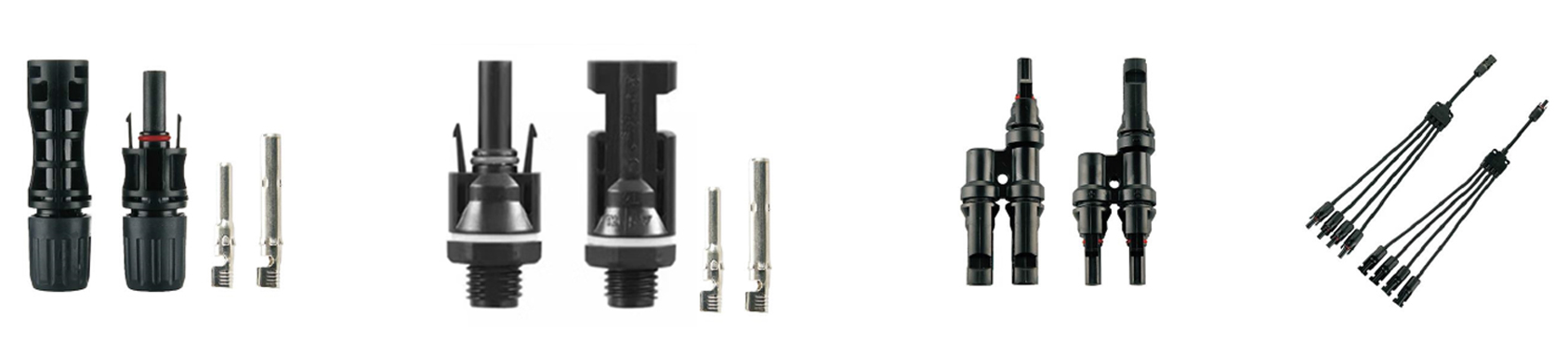

These connectors are designed for completing solar (PV) arrays, typically in parallel configurations, and are suitable for both solar rooftop mounting and solar ground mounts.
