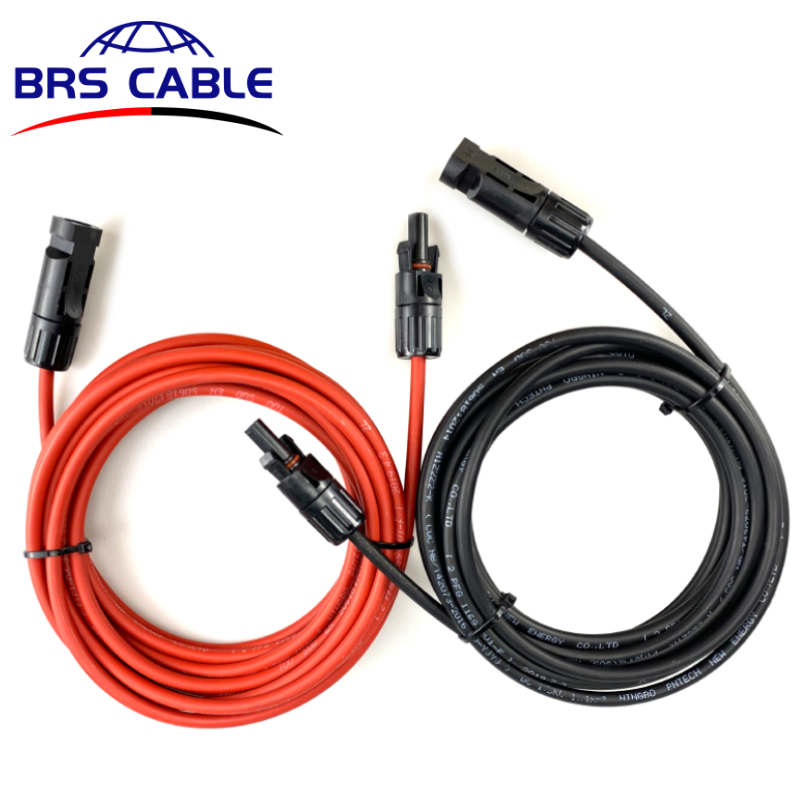

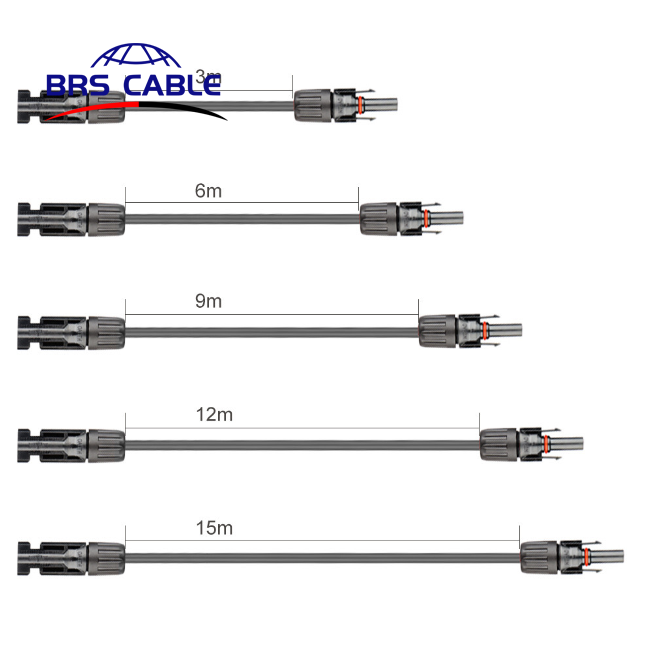

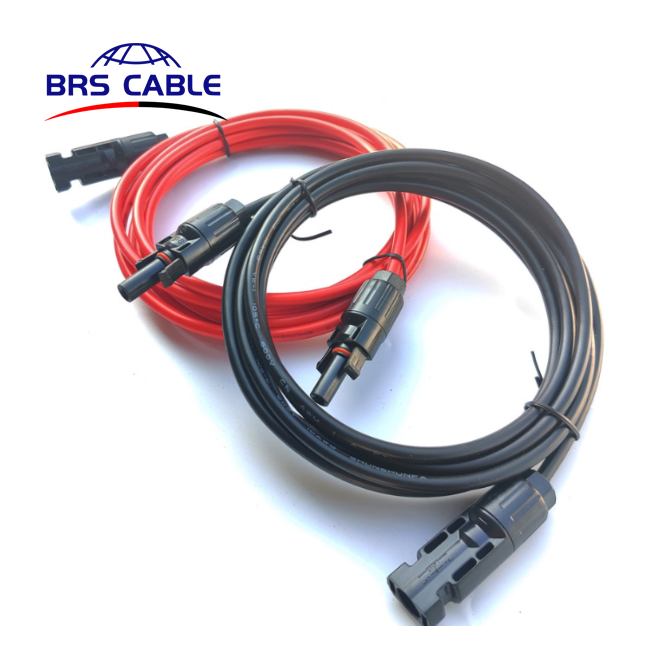

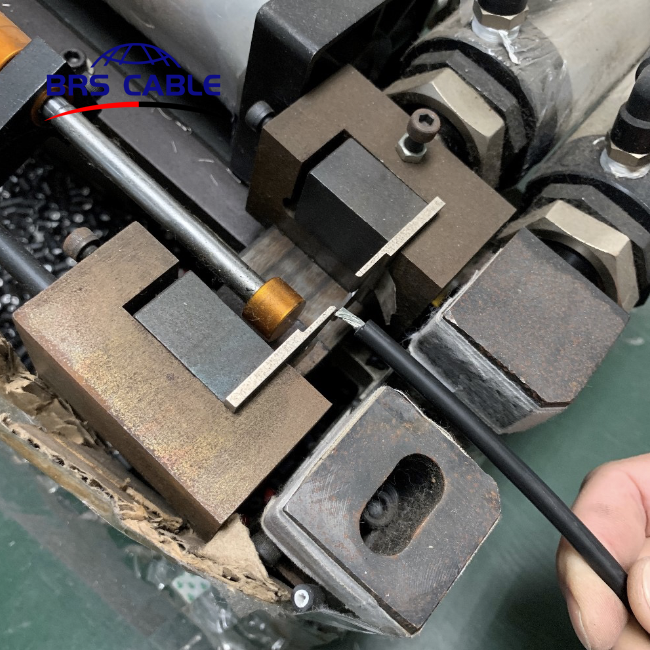

Tuv Approval Solar Extension Cable With Connector

Product Description

Products Description

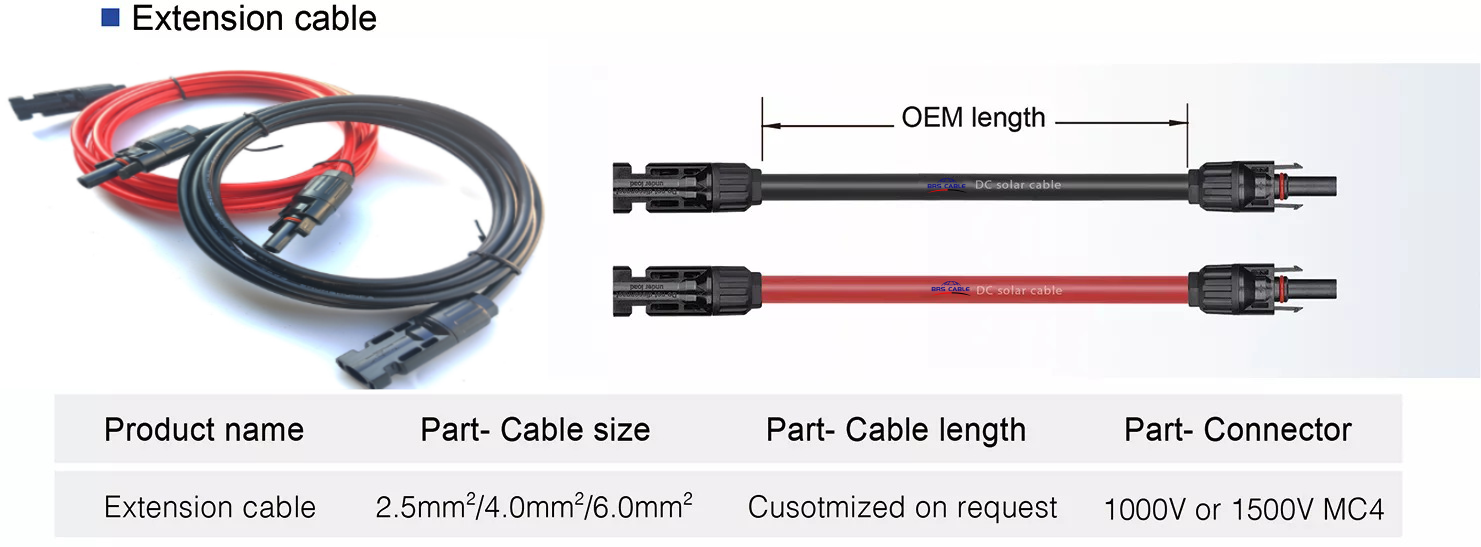

Cable Design Details
Cable Specifications Diagram

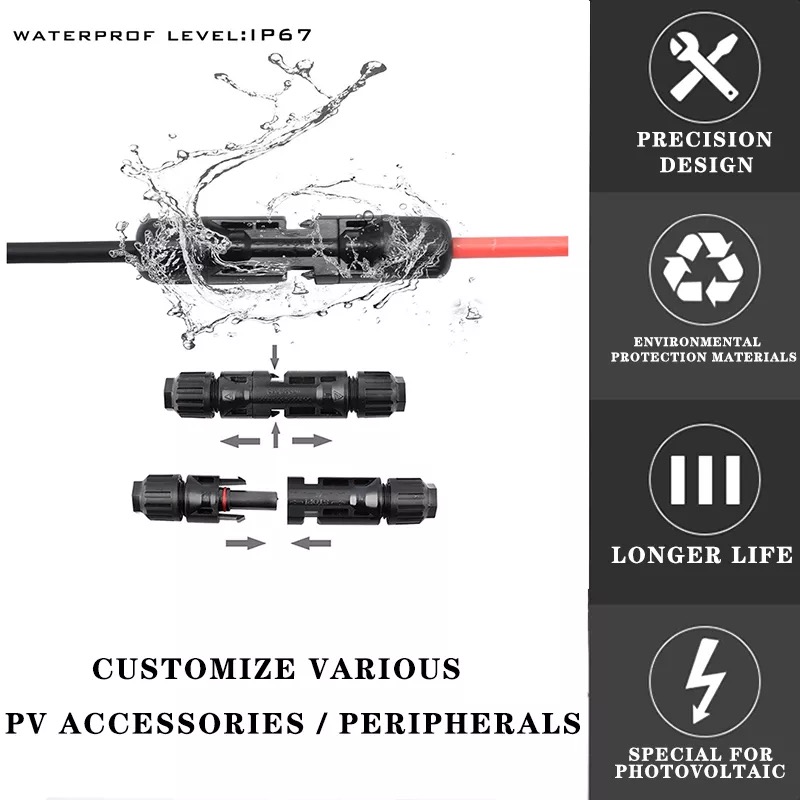

Cable Cross Section

Cable's Technical Data

Rated Voltage: 1000V/1500V DC
Certificate: TUV, CE, ISO
Insulation Material: XLPE (XLPO)
Contact Material: 99.7% Copper, Tin plated
Character: UV Resistance, Halogen-free
Ambient Temperature: -40°C~+90°C
Flame Class: EN 50625 / UL 1571
Color: Black / Red / Blue
TYPE Cross section (mm²) Wire struct (No.OD mm) Conductor diameter (mm) Outer diameter (mm) Conductor resistance (Ω/Km) Rated voltage (V AC/DC) Rated current (A)
1x2.5mm² 2.5 48x0.25 2.0 5.2 8.06 1000/1800 30
1x4.0mm² 4.0 56x0.30 2.6 6.4 4.97 1000/1800 50
1x6.0mm² 6.0 81x0.30 3.3 7.2 3.52 1000/1800 70
1x10mm² 10 74x0.40 4.4 8.3 2.12 1000/1800 95
2x2.5mm² 2.5 48x0.25 2.0 6.2x9.9 8.06 1000/1800 30
2x4.0mm² 4.0 56x0.30 2.6 6.9x11.30 4.79 1000/1800 50
2x6.0mm² 6.0 81x0.30 3.3 7.1x14.50 3.52 1000/1800 70
Cable Details Close Up
Standards Compliance: Generally conforms to CENELEC HD 22-6 31, VDE 0282, IEC 245-6, BS 6899, IS 6830/84.

Welding cable welding cable welding cable welding cable welding cable welding cable. welding cable. welding cable

Testing Specifications

Excellent flexibility to last longer in flex applications

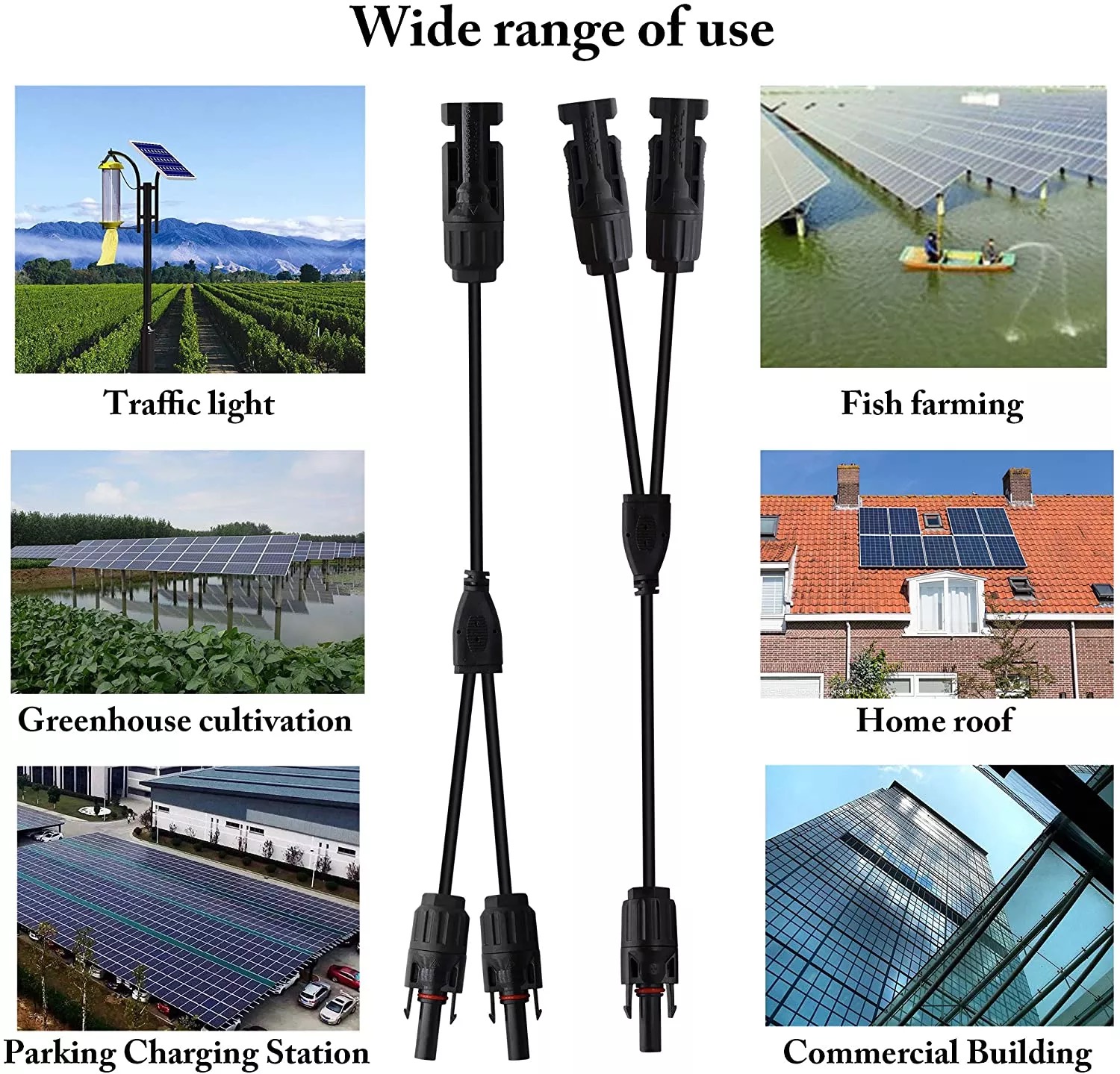

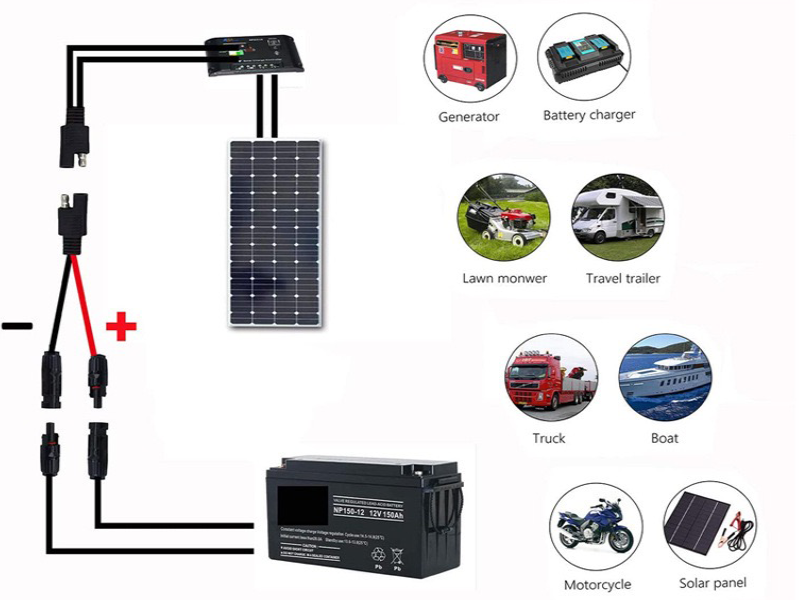

Flexible Cable Usage Example

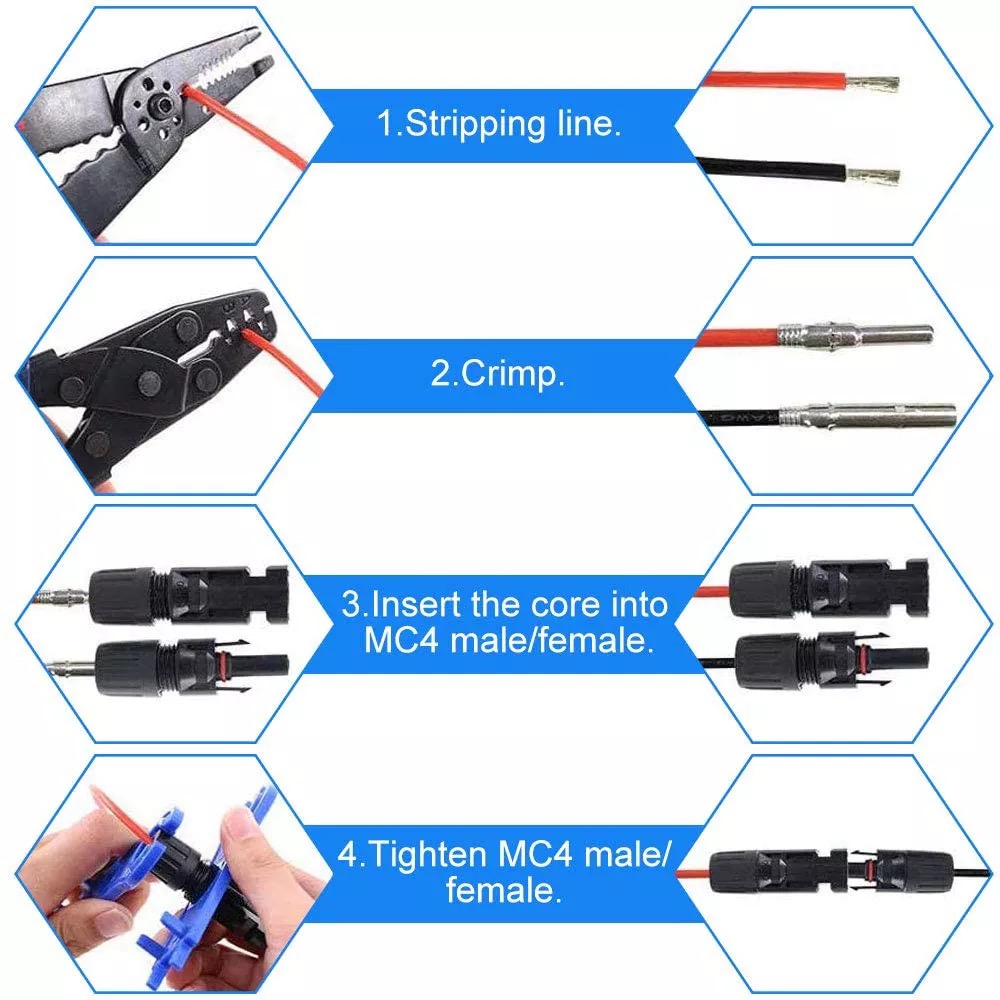

Flex Testing demonstration
Cable Spooling

Packing & Delivery

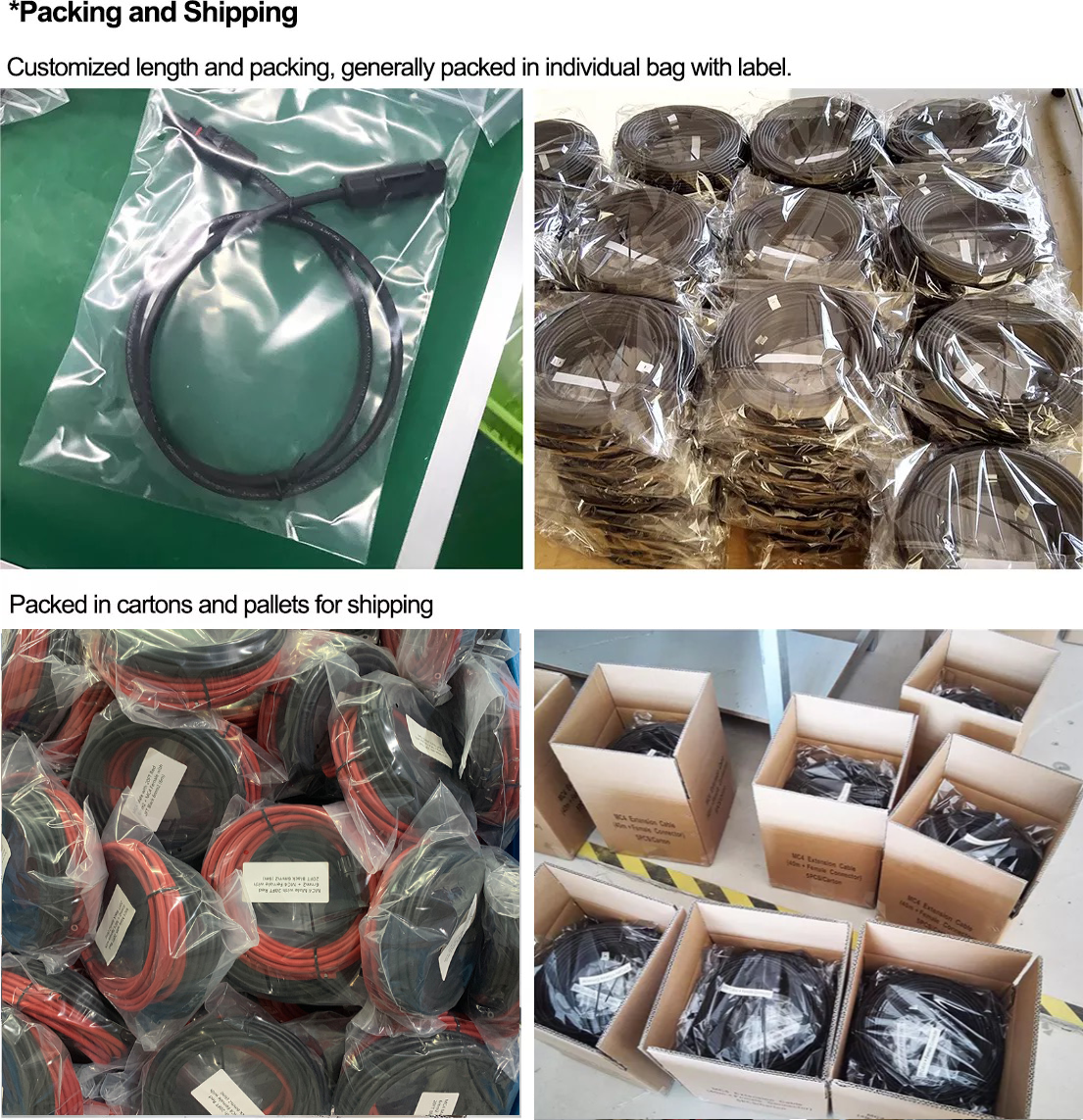

Packing Warehouse
Spool Package
Secure Delivery Logistics

Factory Profile

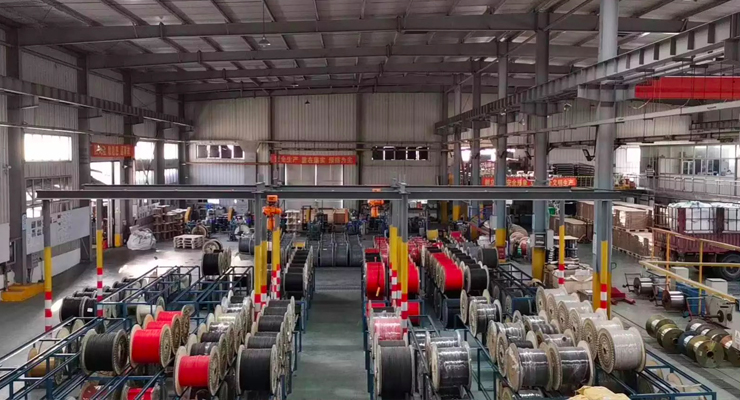

Industrial Manufacturing Unit

We are a Wire & Cable Factory. Our cables are designed to withstand harsh corrosive environments and conform to industry standards. We use the best-in-class cable material to enhance the product lifespan, weathering resistance, resistant to acid, alkali, oil, flame, gasoline, and moisture bending resistance, abrasion resistance, and performance in high and low temperature.

Product Series

Flexible Cable Series: Auto cable, Car Audio Cable, Speaker Wire, Welding Cable, Rubber Cables, Teflon & Silicone Wire, etc.
Robot Cable Series: Cable For Industrial Robot, ROV, AUV, Fiber Optic Cable, Shielding Signal Cables, Pipe Inspection Crawler, Underwater Camera, Manipulator Arm etc.
Marine Wires Series: Marine battery cable, Primary Marine Wire, Striped Marine Wire, Round Boat Cable, Duplex Boat Cable, Triplex Boat Cable, Battery Cable Assemblies etc.
Drum Cable Series: Drum Reeling Cable, Spreader Cable, Crane Flat Cable, Cable For Oil Drilling Platform, Cable For Wind Power, Pendant Cable, Acid Resistant Cable, Alkali Resistant Cable, Fire resistant Control Cable, Festoon Cable etc.
Flat Cable Series: Elevator Traveling Cable, Towline Cable/Drag Chain Cable and etc.

More than 20 varieties and 1000 products of several specifications have been exported to more than ten countries and regions such as Europe, Southeast Asia, the Middle East, Africa, and South America. All Cables we produce conform to Europe Standard and ISO9001:2015 quality management system. We have obtained CE SAA ISO9001:2015, ISO14001 Certification. All Material are RoHS compliant.

As a renowned cable manufacturer, We have a cutting-edge technology research and development, design and production team, is able to develop and customize various cables complying with customers' requirements. We are friendly to Cooper with customers and seek common prosperity and development. Order our cables, you will bring benefit and happiness together. you won't any worries during using it in your country.

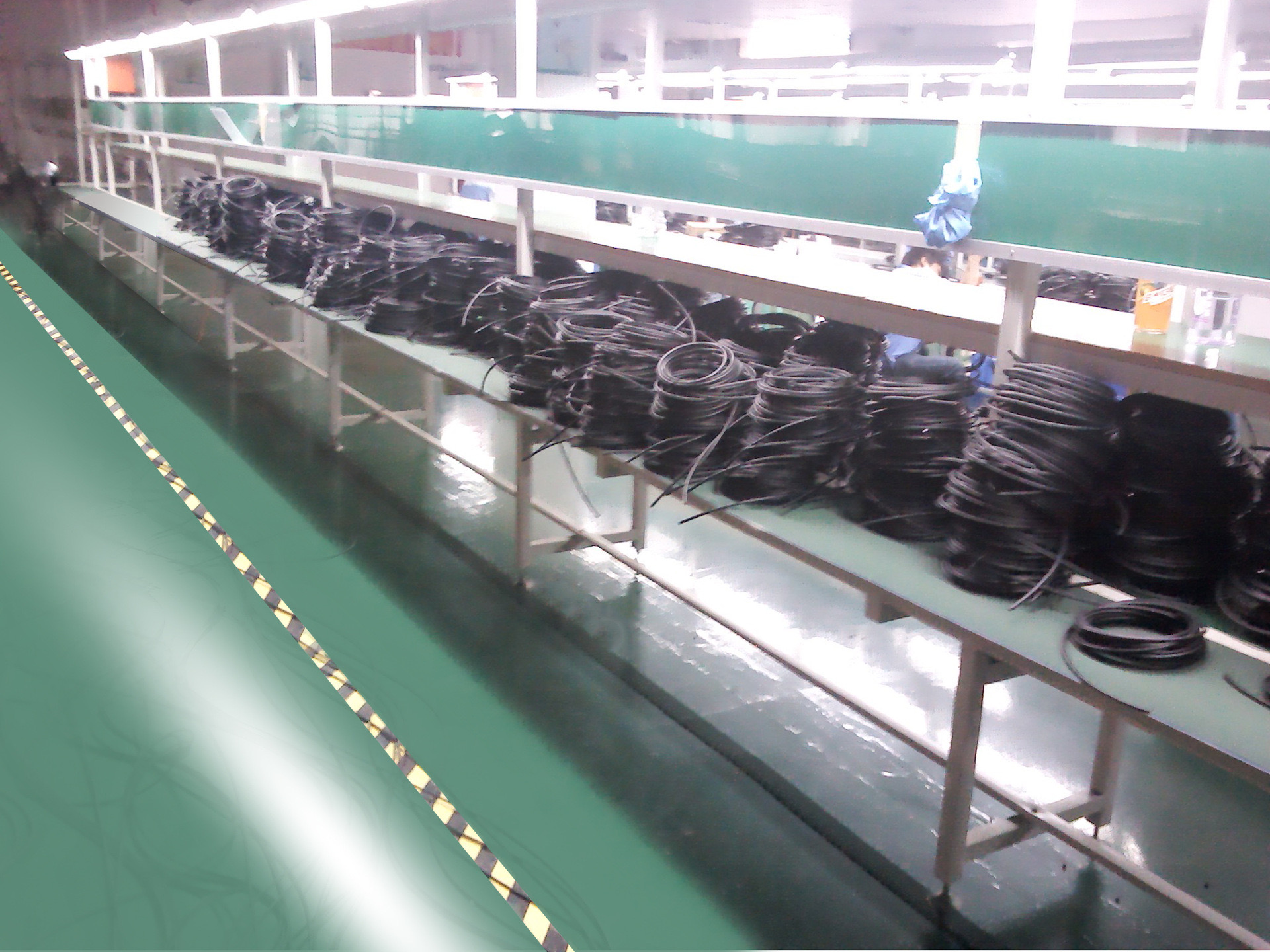

Production Facility

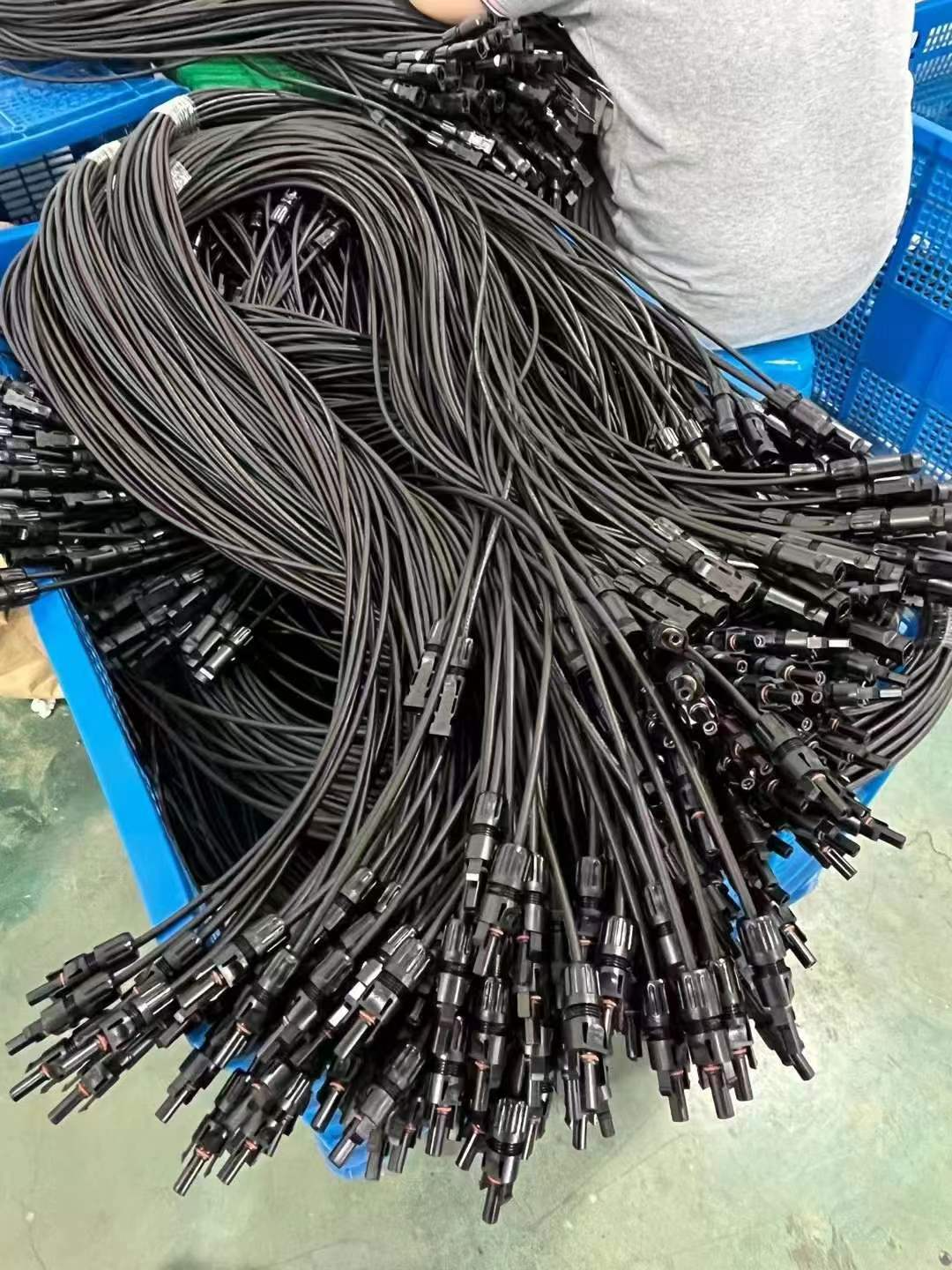

Internal Machinery View

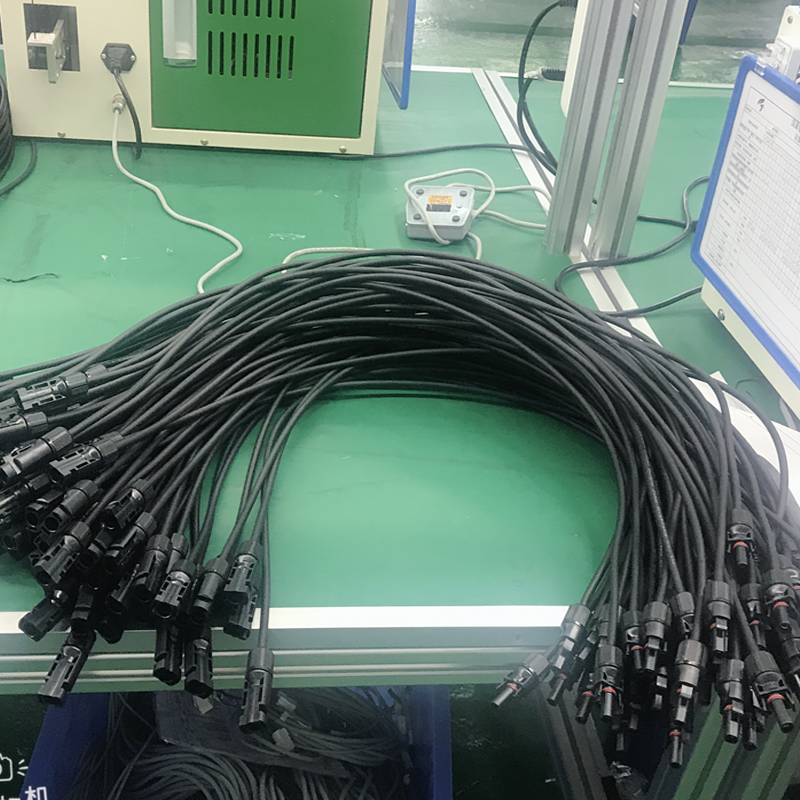

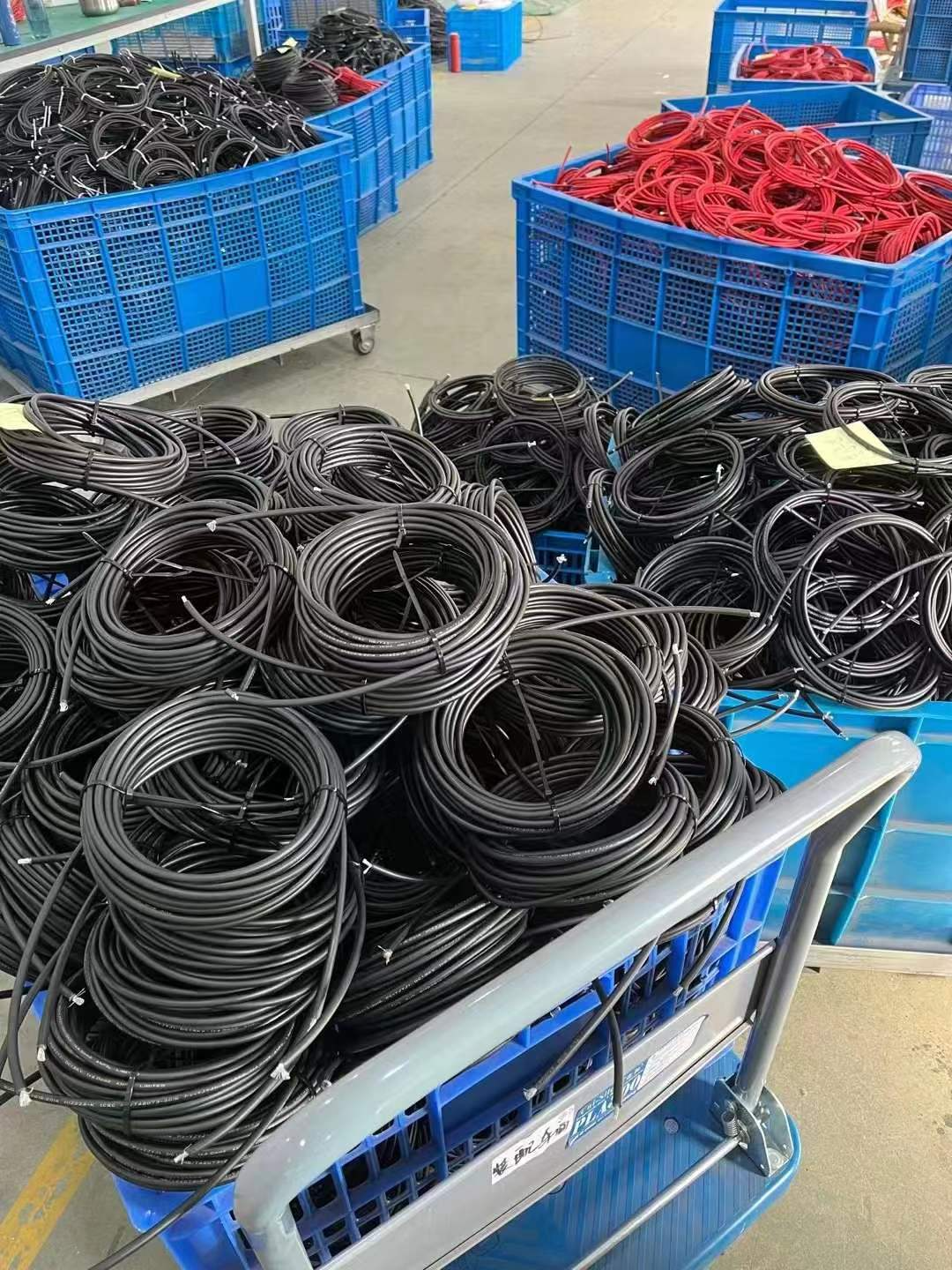

Finished Product Display

Laboratory

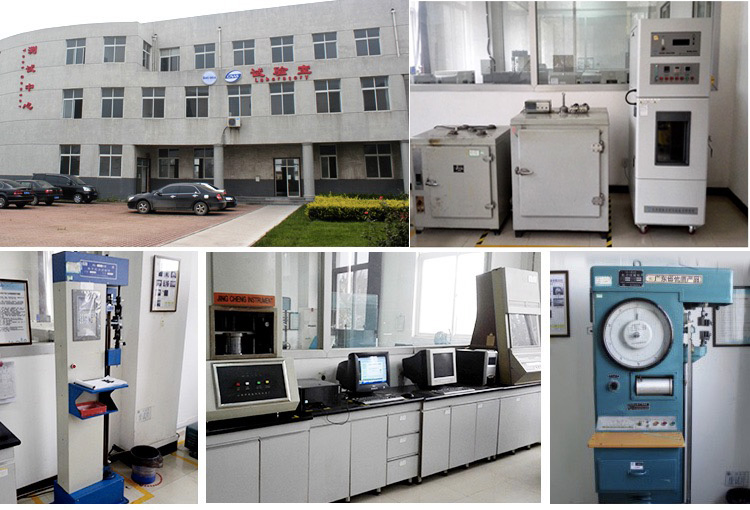

Quality Control Lab

Exhibition

Exhibition Booth

FAQ

Q1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us.
Q2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
Q3. What’s your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
Q4. Can I get a discount?
It depends on your quantity, We can make a discount. Please kindly contact us.
Q5. Does your company accept OEM production?
Yes, we can print your logo/brand name, and we even custom the quality card to promote your company.
