| Electrical Characteristics at Standard Test Conditions (STC) | |||||
|---|---|---|---|---|---|
| Model Code | TFL-210X30_10_36 | 400 | 500 | 550 | 600 |
| Maximum Power-Pm [W] | 400 | 500 | 550 | 600 | 700 |
| Open Circuit Voltage-Voc [V] | 37.89 | 42.82 | 44.94 | 45.34 | 45.54 |
| Short Circuit Current-Isc [A] | 13.52 | 14.20 | 14.4 | 14.5 | 18.81 |
| Maximum Power Current-Im [A] | 14.690 | 14.672 | 14.672 | 14.543 | 14.012 |
| Mechanical Characteristics | |||||
| Dimensions | 2279×1143×35mm (L×W×H) | ||||
| Weight | 31.2kg | ||||
| Front Glass | White toughened safety glass, 3.2mm | ||||

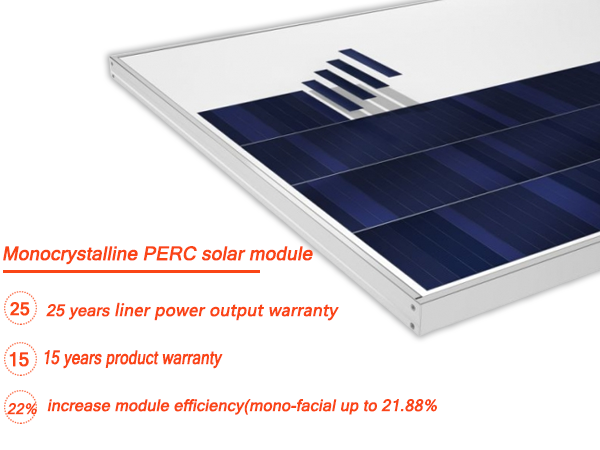

| Cells | 210*210 PERC solar cells | ||||
| Back Sheet | High weatherability backsheet | ||||
| Frame | Anodized aluminum profile | ||||
| Junction Box | IP68, TUV, two diodes | ||||
| Cable | Length 1200mm, 1×4mm² | ||||
| Connector | Compatible with MC4 | ||||
| Temperature Characteristics | |||||
| NMOT | 42.3℃(±2) | ||||
| Temperature Coefficient of Voc | -0.27%/℃ | ||||
| Temperature Coefficient of Isc | 0.04%/℃ | ||||
| Temperature Coefficient of Pm | -0.34%/℃ | ||||
| Maximum Ratings | |||||
| Maximum System Voltage [V] | DC 1500 (IEC) | ||||
| Series Fuse Rating [A] | 20 | ||||
| Maximum Surface Load Capacity [Pa] | 5,400 | ||||
| Temperature Range [°C] | -40 ~ +85 | ||||
| Withstanding Hail | Maximum diameter of 25 mm with impact speed of 23 m/s | ||||
