Product Description

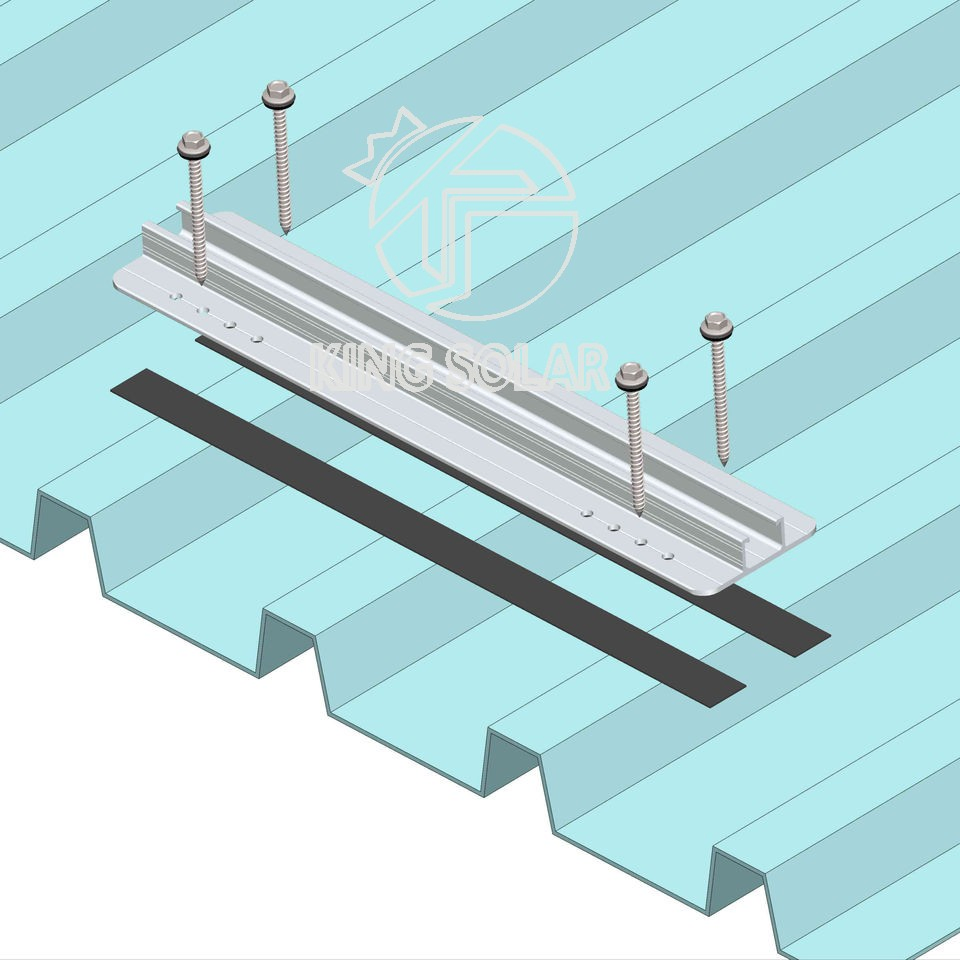

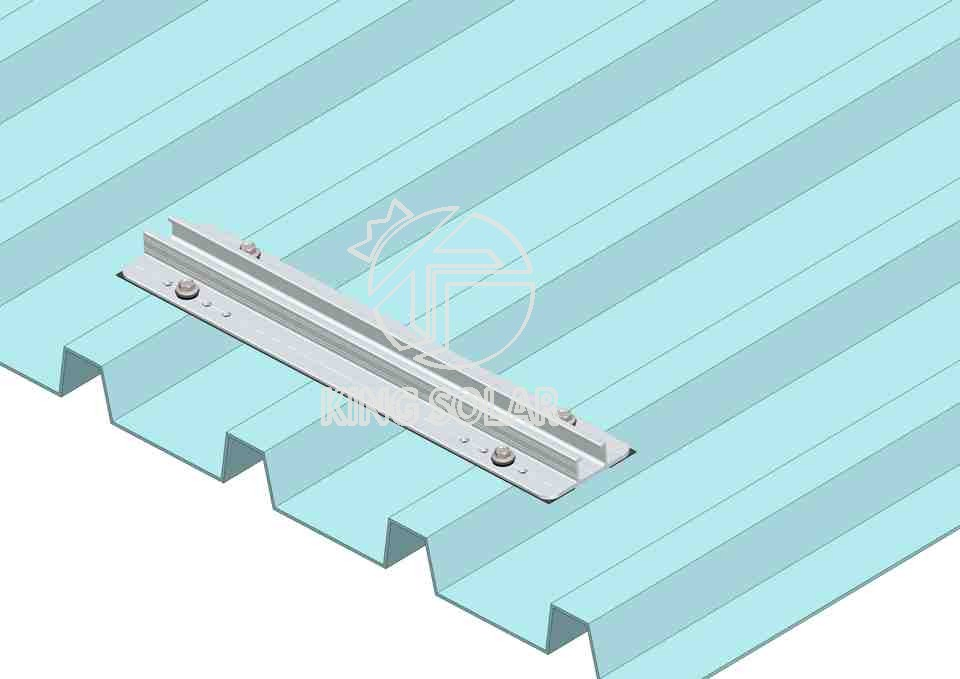

These roof solar railless mounting clamps do not require rails, which is easy to install and saves costs. This roof clamp can be used to make the roof solar structure components stable and firm.
Technical Details
| Parameter |
Specification Details |
| Material |
Anodized AL6005-T5, HDG steel Q235B, SUS304 |
| Foundation |
Tin roof |
| Warranty |
10 years warranty and 25 years service life |
| Standard |
AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006 |
| Max Wind Load |
Up to 60m/s |
| Snow Load |
Up to 1.4KN/M² |
| Applicable Module |
Framed Or Frameless, Mono-crystalline, Poly-crystalline, Double |
| Module Orientation |
Portrait or Landscape |
Product Parameters
| Specification |
Roof Clamps |
Waterproof Pad |
Hexagon Socket Head Bolt |
Hexagon Nuts (waxed) |
Flat Washer |
Spring Washer |
| Size |
50mm |
50mm |
M8X25 |
M8 |
M8 |
M8 |
| Quantity |
1 |
1 |
2 |
2 |
2 |
2 |
| Material |
Aluminium |
EPDM |
SUS304/316 |
SUS304/316 |
SUS304/316 |
SUS304/316 |
Product Advantages
01
Lightweight, easy transportation and installation, safe construction.
02
High corrosion resistance, salt tolerance.
03
Maximum pre-assembly, save construction time and labor cost.
04
Environmental protection, suitable for variety of geological conditions. It is durable and recyclable.
05
Many solutions to meet different customers' requirements.
06
Professional structural design to ensure the strength of the bracket system.
07
Lightweight stand, good flexibility and strength.
08
Flexible and easy component installation, saving labor cost and installation time.
09
Various installation methods, suitable for trapezoidal tin roof.
10
Suitable for commercial or residential use.
Packaging & Shipping
Necessary Information for Quotes
Solar Panel Dimensions: L:_____ mm, W:_____ mm, T:_____ mm
Power Details: _____ W, Frame or Frameless?
Panel Array: _____ Row x _____ Column
Wind Load: _____ m/s
Snow Load: _____ cm
Installation Angle: _____ Degree (Portrait or Landscape?)
Installation Site: Salinity control or not?
Structure Foundation: Concrete foundation or ground screws anchor?
Required Delivery Date: _____
Frequently Asked Questions
Q Do you support OEM service?
Yes, we supply both OEM and ODM service, we have been designing for the world's top EPC distributors all the time.
Q What's your delivery time?
Generally it takes 5-15 days. For customized products, the lead time will be longer, about 20 days.
Q Can you send the samples?
Yes, we provide free samples for your test.
Q How do you ship the goods and how long does it take to arrive?
For sample packages, we usually ship by DHL or FedEx, taking 3-5 days to arrive. For big orders, we usually ship by sea, which takes 7 to 30 days depending on the shipping distance.
Q How long is the warranty period?
We provide a 10-year warranty and offer a service life of up to 25 years.
Q What's the payment terms?
Our standard term is 30% deposit and 70% balance before shipping, via T/T, L/C, or other negotiable payment terms.
