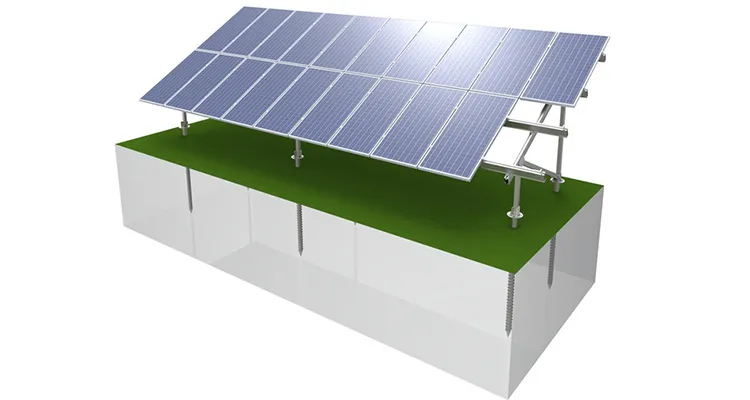

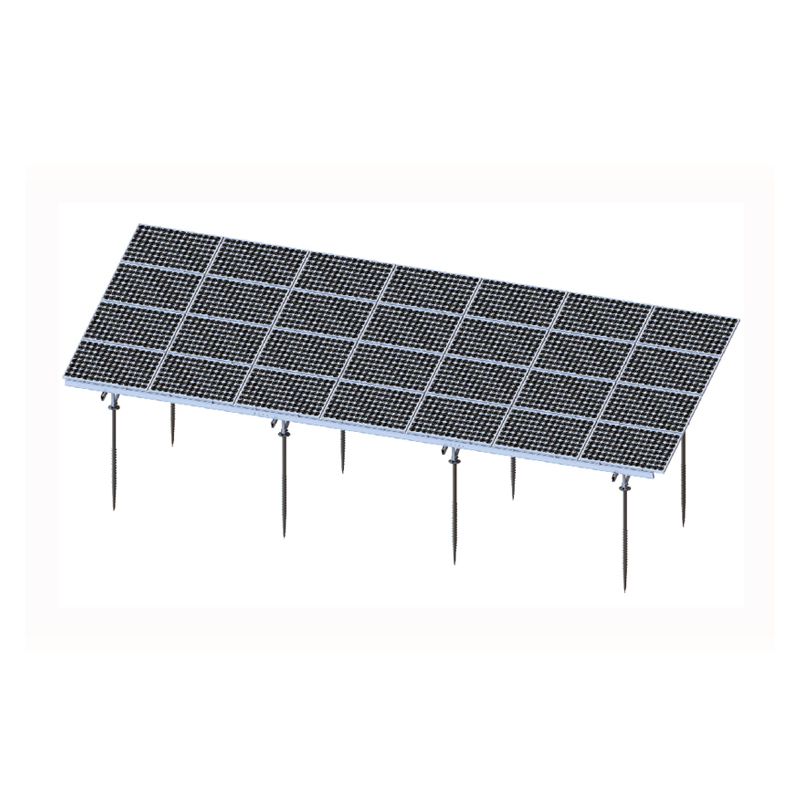

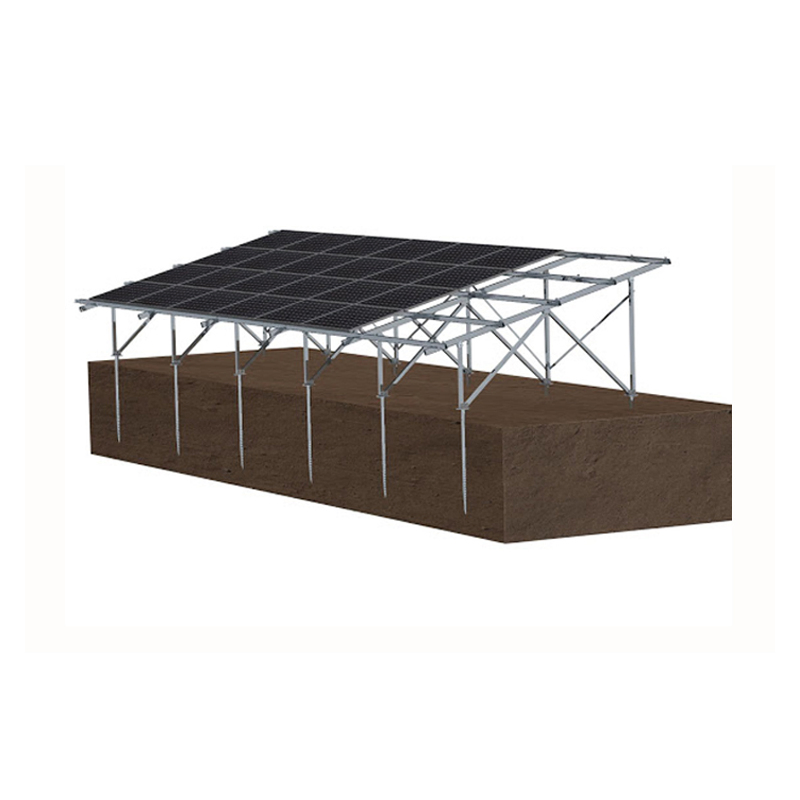

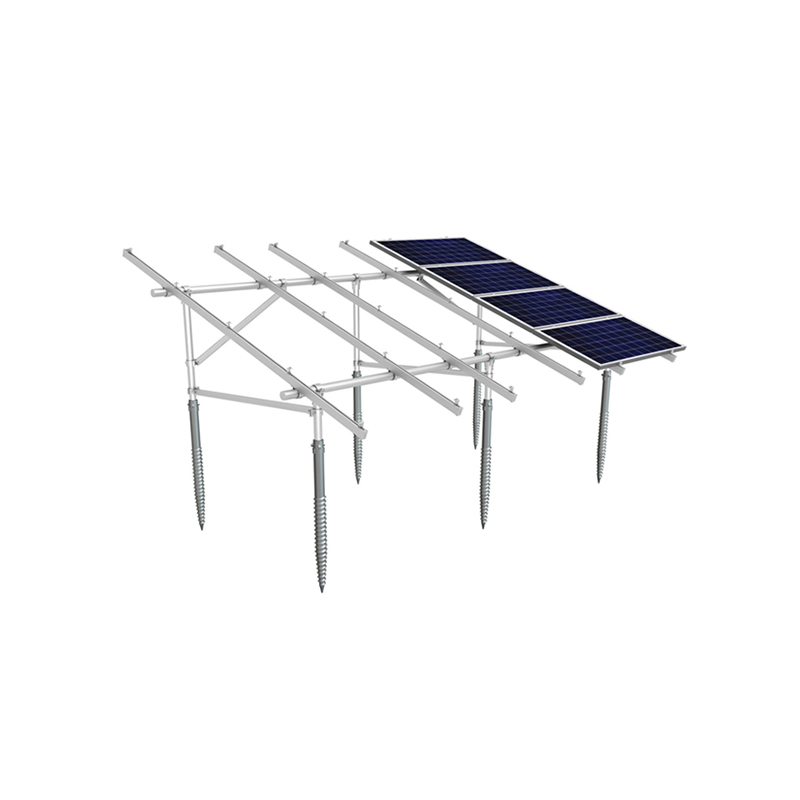

The Ground Screw Mounting Structure is widely applied for large solar farms, utilizing fixed ground screw foundations or adjustable screw piles. The unique oblique spiral design greatly ensures the structural stability required to withstand static loads.
| Installation Site | Open field |
| Wind Load | Up to 60m/s |
| Snow Load | 1.4kn/m2 |
| Tilt Angle | 0-45 deg |
| Standards | AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006 |
| Material | Anodized AL6005-T5, HDG steel Q235B, SUS304 |
| Warranty | 10 Years Warranty and 25 Years Service Life |
What are the main components of this ground solar mounting system?
The main support structural components are constructed from Anodized Aluminum AL6005-T5, Hot-Dip Galvanized Steel Q235B, and SUS304 stainless steel fasteners to ensure long-term stability and strength.
How does the system perform against extreme weather conditions?
The system is engineered according to demanding international standards (like AS/NZS1170 and DIN 1055), designed to withstand wind loads up to 60m/s and snow loads up to 1.4kn/m².
What is the expected lifespan and warranty of the mounting structures?
We provide a 10-year warranty, and the design service life is engineered to exceed 25 years under normal outdoor environments.
Can the tilt angle be customized for different geographic locations?
Yes. The tilt angle of the mounting bracket system can be configured from 0 to 45 degrees to optimize solar irradiance collection based on site coordinates.

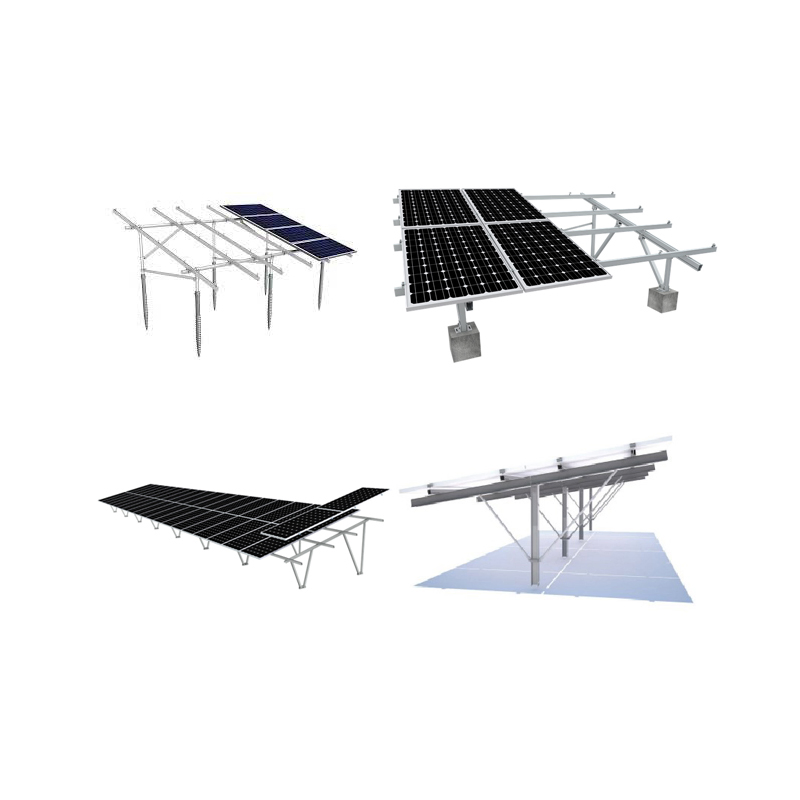

Which foundation types are compatible with this system?

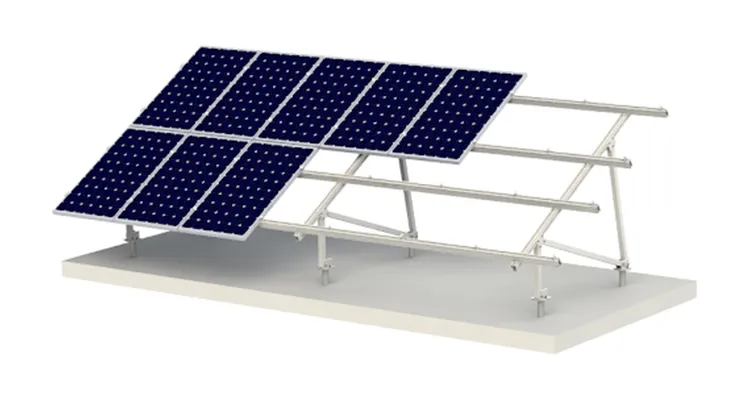

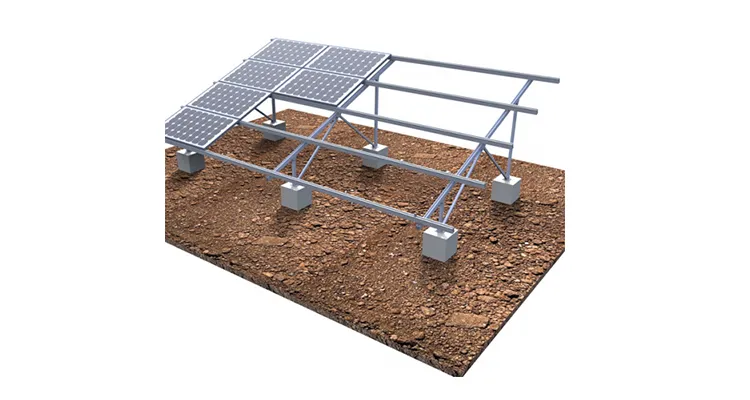

It is fully compatible with both Ground Screw Piles (for fast, excavation-free mechanical installation) and Concrete Block foundations (suitable for rocky ground or restricted excavation sites).
Is the system pre-assembled before shipping?
Yes, key structural components are highly pre-assembled at the factory. This design minimizes field drilling and cutting, ensuring a rapid, cost-effective setup on-site.
