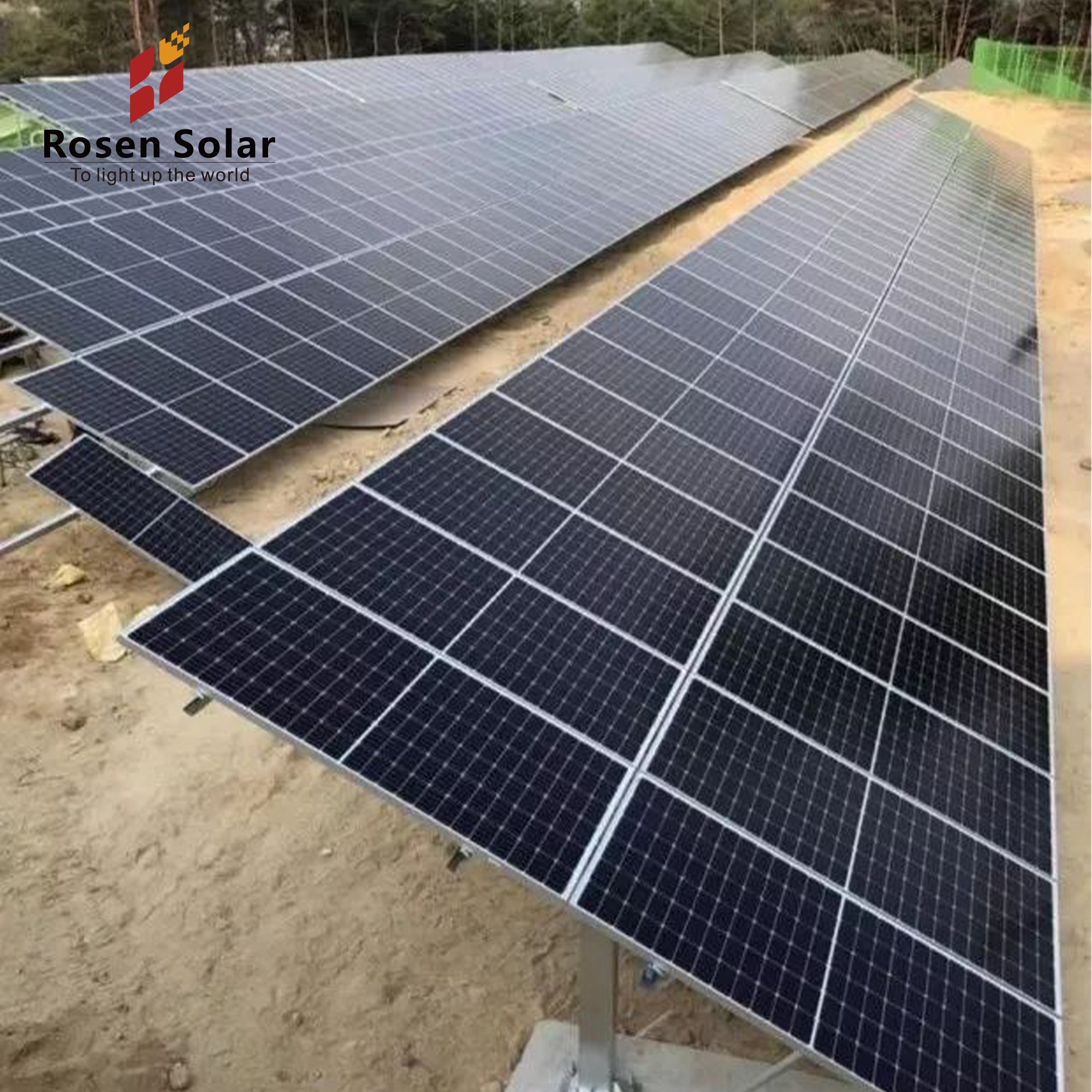

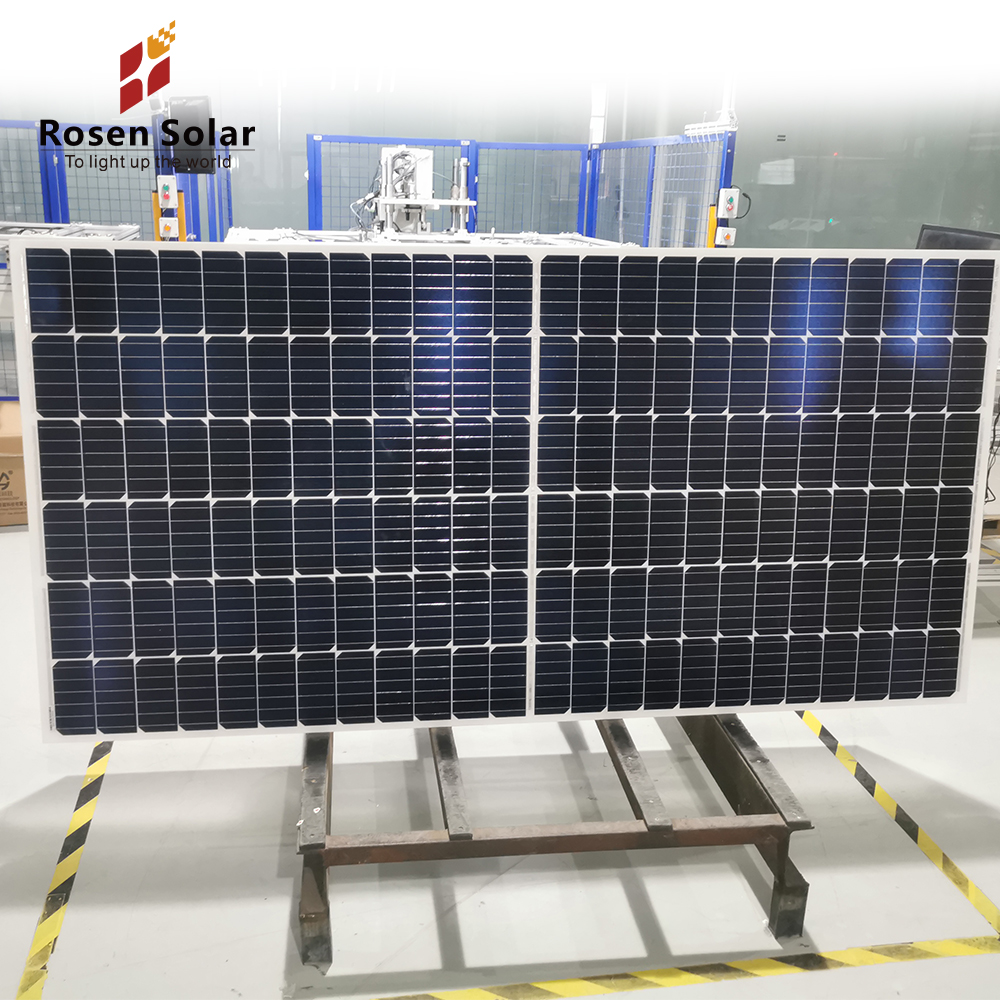

Rosen TOPCON Black 450W 550W 600W 650W 700W 750W 1000W Mono Solar Panels Bifacial PV Module Price

Panels Description

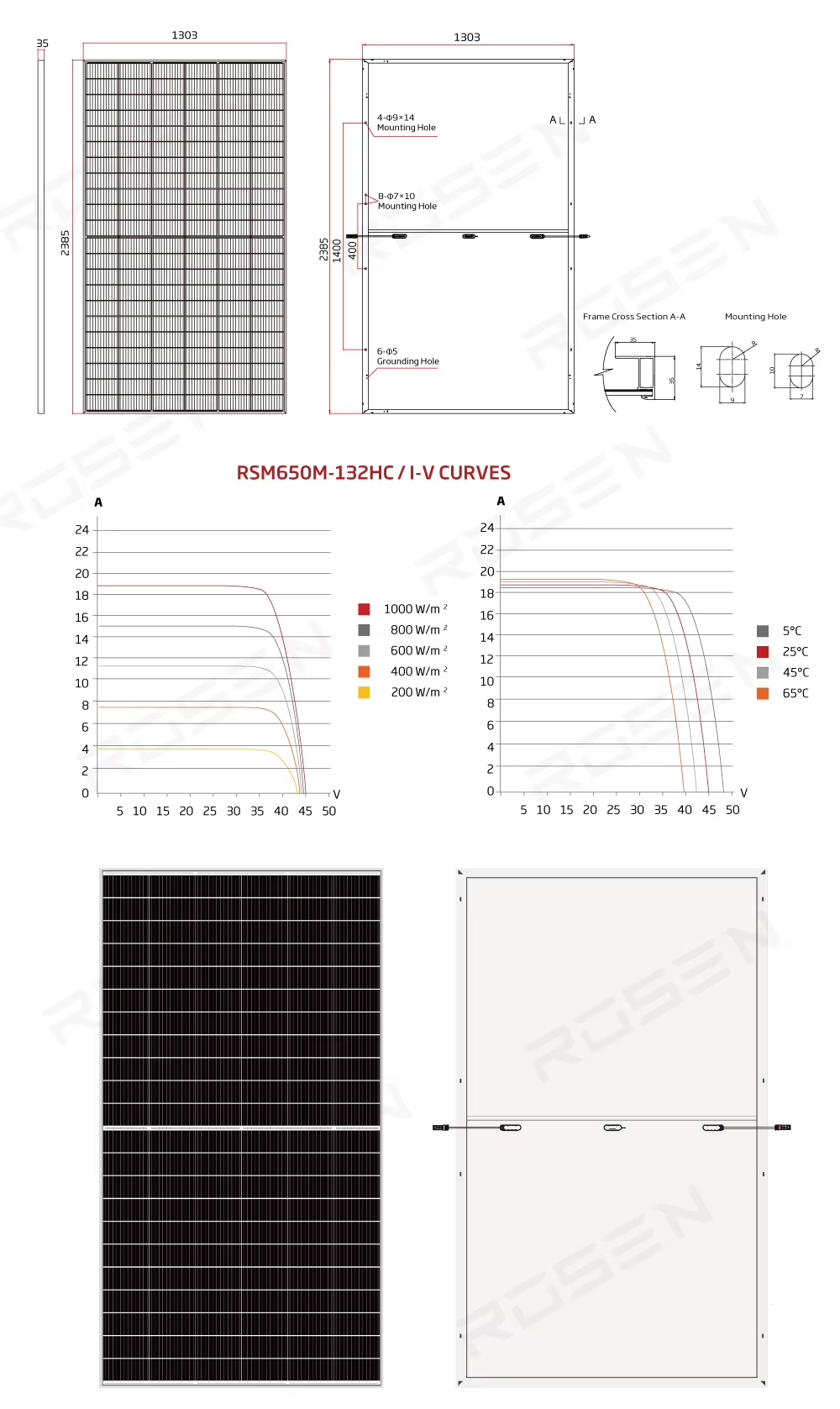

Technical Specification Datasheet

Model	RSM690-132HC	RSM700-132HC	RSM710-132HC	RSM720-132HC
Rated Maximum Power at STC	690W	700W	710W	720W
Open Circuit Voltage(Voc/V)	47.90	48.50	49.10	49.30
Maximum Power Voltage(Vmp/V)	40.00	40.40	40.80	41.20
Short Circuit Current(Isc/A)	18.25	18.31	18.37	18.43
Maximum Power Current(Imp/A)	17.26	17.33	17.41	17.48
Module Efficiency	22.2%	22.5%	22.9%	23.2%
Standard Test Condition(STC)	Irradiance 1000w/m², Cell Temperature 25 Centigrade, Air Mass 1.5

With more than 4 automatic lamination lines, professional manufacturing of solar panels covers a wide power range from 5w to 300W, 450W, 550W, 600W, 650W, 680W, 700W, 800W etc. Solar panels, like PERC, N-Type TOPCON, HJT, Shingle types etc and bifacial/double glass, single glass, full black, black frame, and frameless half cell panels Mono and Polycrystalline panels, are all available in stock. Tier 1 panels brands like Trina, JA, Jinko, Tongwei etc are available too. OEM and ODM service acceptable with the min one pallet. All certificates like TUV, CE, ISO, IEC etc are held, and technicians will provide manuals, and installation CAD SKETCH designs for roof or ground installation.

Detailed Images

EVA

High Transmittance EVA, High GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability.

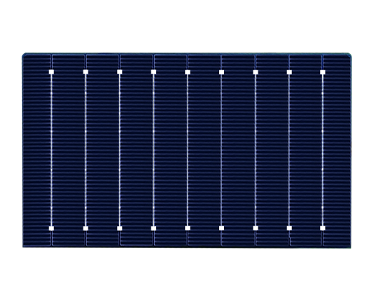

Solar Cell

5BB, 6BB, 9BB Available.
158.75cells, 166cells, 182cells, 210cells High Efficiency Cells.
Anti-Pid.

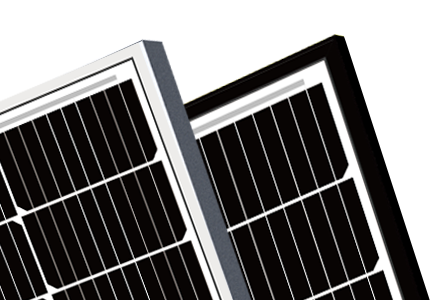

Frame

35mm 40mm Anodized Aluminium Alloy.
Black/Silver Color Optional.

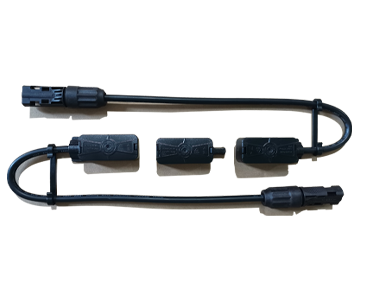

Junction-Box

IP 68 rated Waterproof.
Innovative Full-Glue-Filled.
Portrait/Landscape Length Optional.

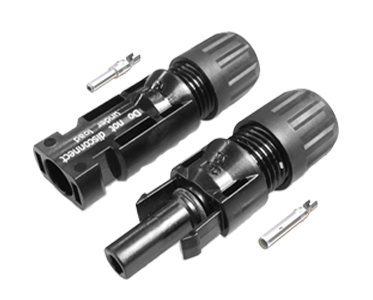

Compatible MC4

MC4 Compatible /MC4 EVO2/TS4*.
500N Tensile Strength.
Female/Male/Fuse.

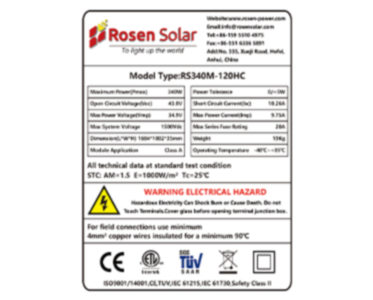

Label

Waterproof Customized Label.
OEM with your Logo.
Professional Silver Color.
Warranty 25years extendible.

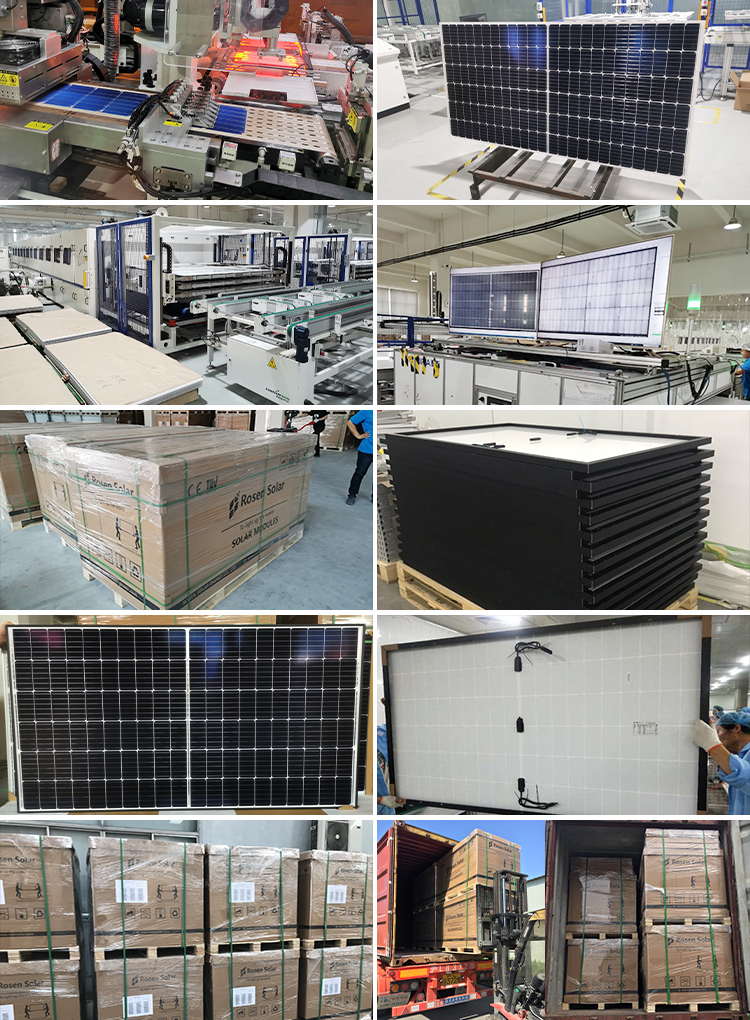

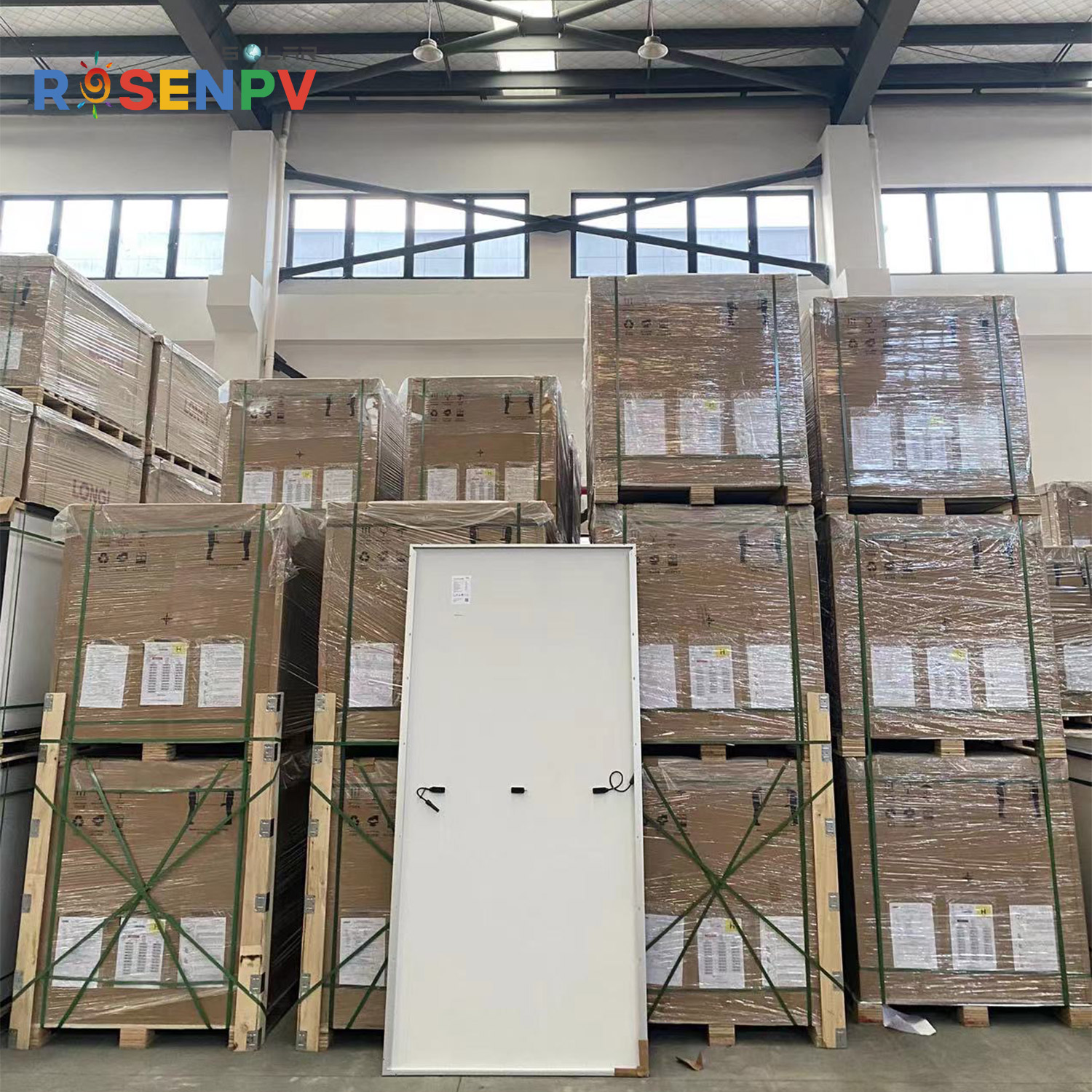

Packing & Delivery

Packing Details: In carton on pallet or wooden box

Delivery Details: 5-10 work days

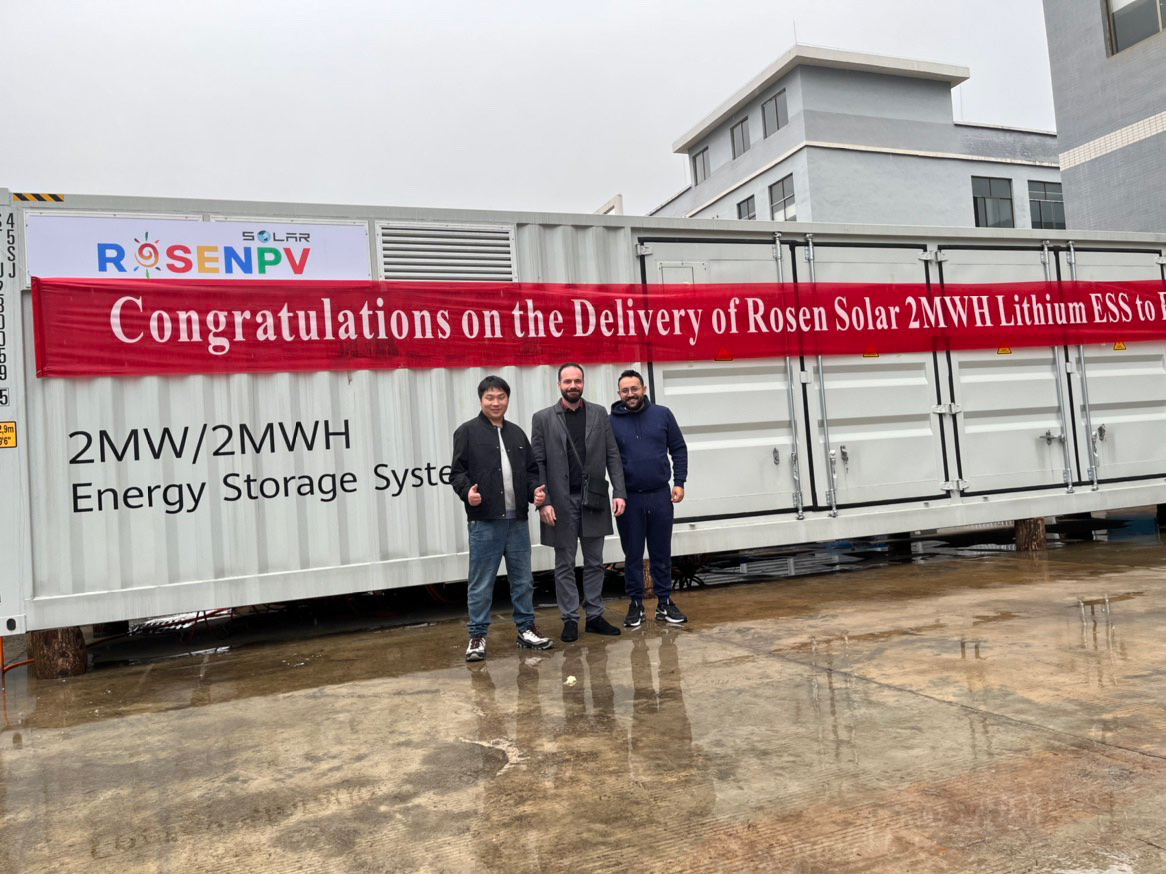

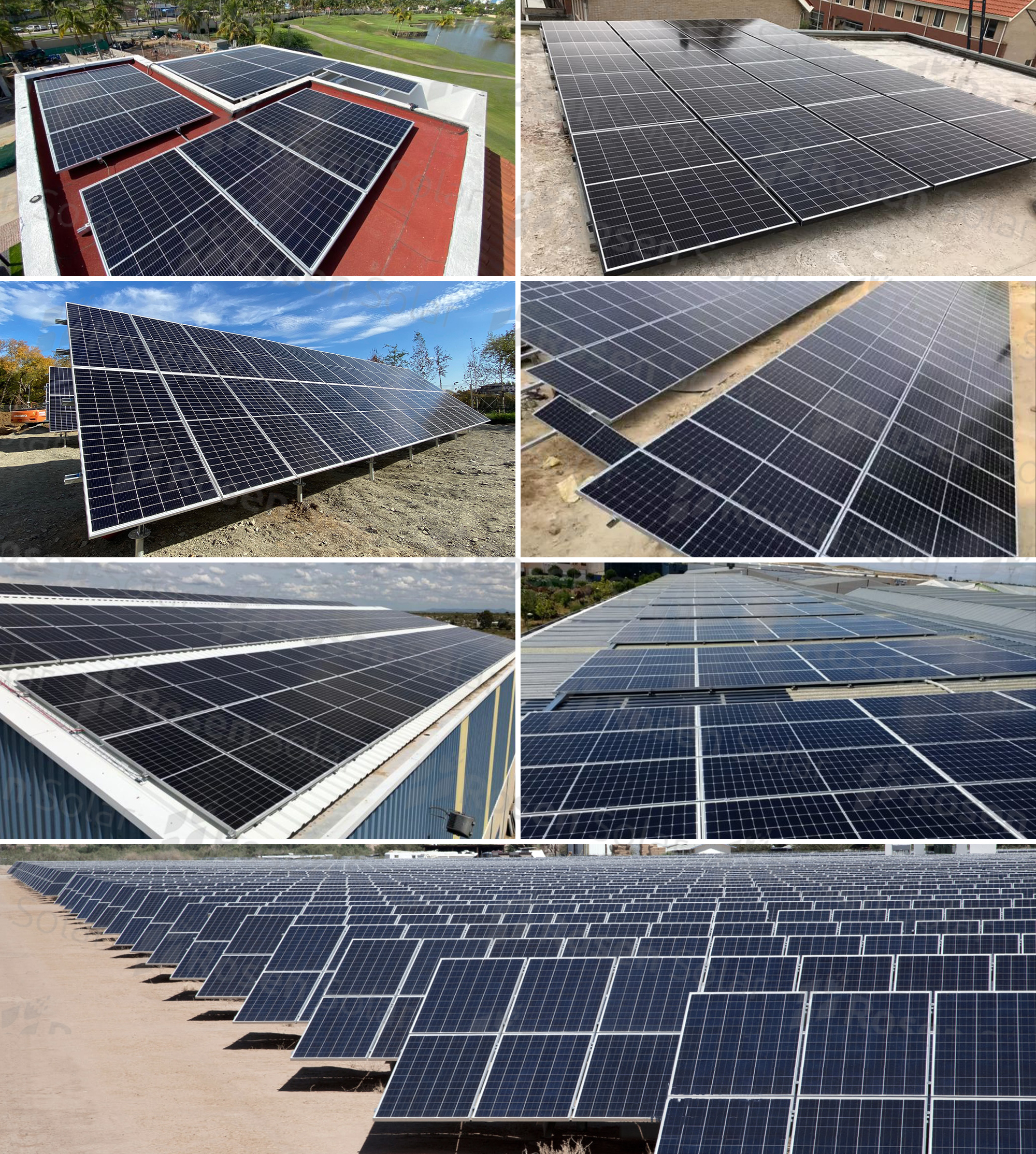

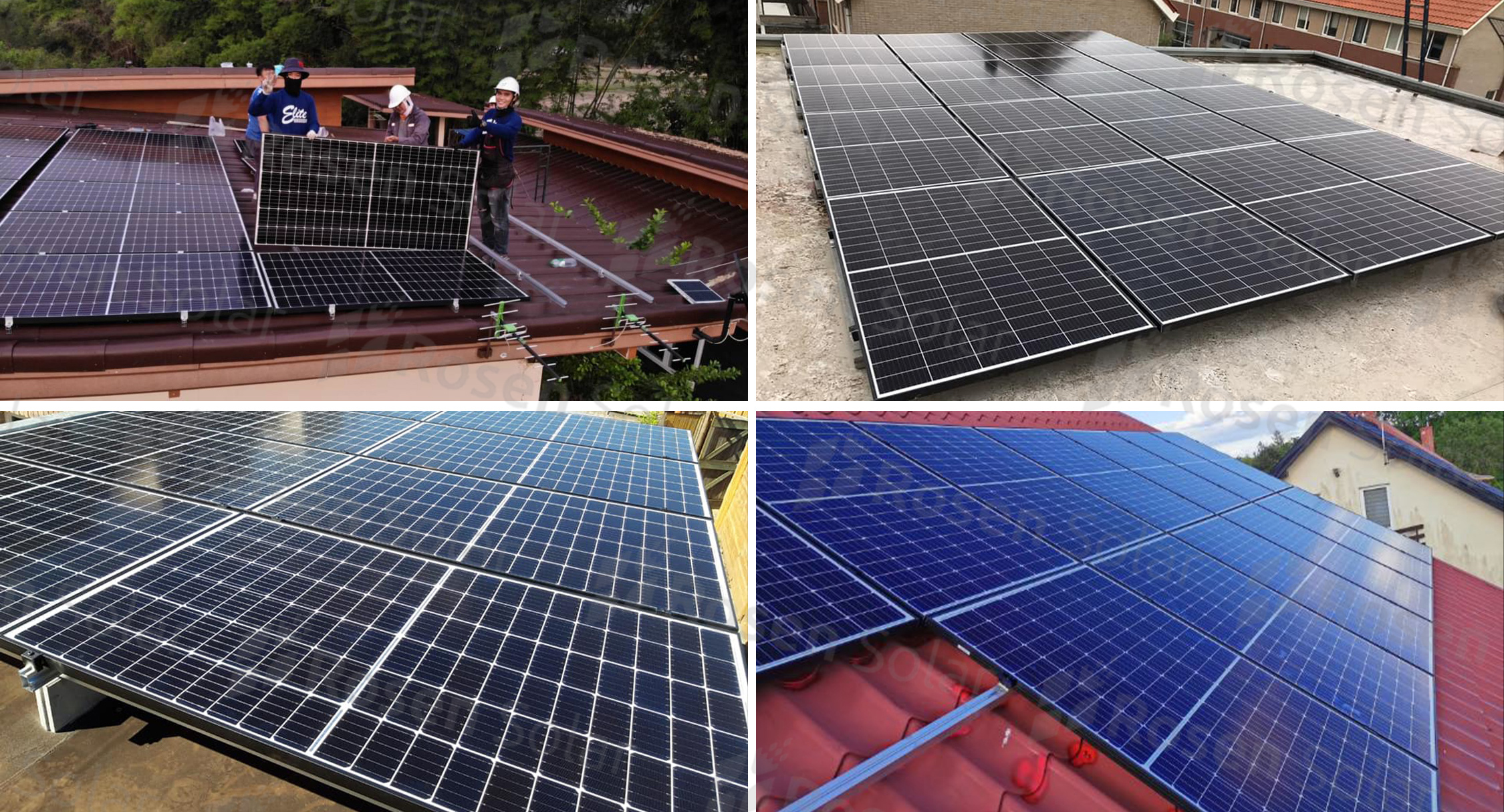

Our Projects

Frequently Asked Questions

What is a solar panel?

A solar panel is a device that converts sunlight into electricity by using photovoltaic (PV) cells. PV cells are made of materials that generate electrons when exposed to light. The electrons flow through a circuit and produce direct current (DC) electricity, which can be used to power various devices or be stored in batteries. Solar panels are also known as solar cell panels, solar electric panels, or PV modules.

Are Bloomberg Tier 1 solar panels brands available?

Yes. Tier 1 solar cells are utilized, and inventory includes various Tier 1 brands such as TW, JA, Jinko, and Tongwei.

What types of solar panels are currently manufactured?

Currently, the most installed types of panels are TOPCON N-type, featuring Bifacial (double face), Monofacial, and black options. Cell efficiency is high, with 182mm and 210mm cells supporting up to 12bb, 18bb, and 20bb (bus bar) configurations, delivering up to 700W or 800W power per panel. Other types, such as PERC, HJT, and BC, are also under active production.

How are the solar panels packed?

Typically, PV panels are packed in cartons on pallets, with a standard shipment configuration of 31 pieces per package. For long-distance transport, wooden box packaging is also available.

Which types of solar panels are used for solar systems?

Both PERC and N-type Topcon are available. Popular configurations include 400W, 450W, 550W, 620W, 650W, 700W, and 750W solar panels. All are fully compatible with standard PV systems.

What is the warranty, and is OEM/ODM service accepted?

A 25 to 30-year warranty is offered for solar panels. OEM/ODM services are fully accepted, allowing customized label designs on the panels' backsheets or cartons.
