PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm

1 / 5

PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO. HINA

Material Steel

Type Roof Bracket

Standard DIN, ASTM/ASME, JIS, En, ISO, as, GB

Finishing Zinc, HDG, Sandblasting

Certificate ISO 9001:2015

Delivery Time 7-30days

Installation Site Flat Roof, Ground

Wind Load 60m/S

Snow Load 1.6kN/M2

Panel Layout Portrait or Landscape

Transport Package 20-25kg/Cartons+900kg/Pallets

Specification SS304, AL6005-T5

Origin China

HS Code 7318159090

Production Capacity 500ton/Month

Packaging & Delivery

Package Size 20.00cm * 20.00cm * 20.00cm

Package Gross Weight 10.000kg

Product Description

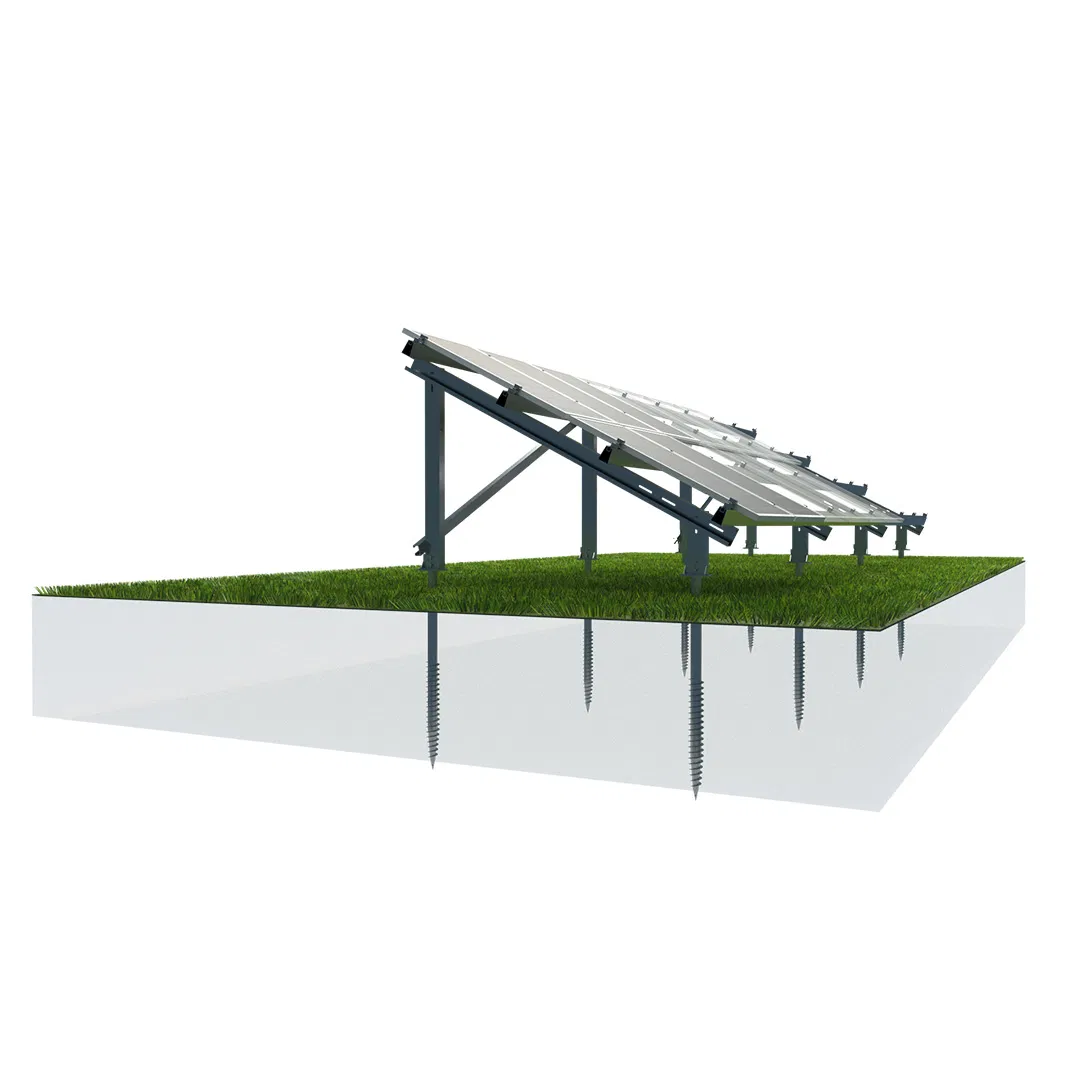

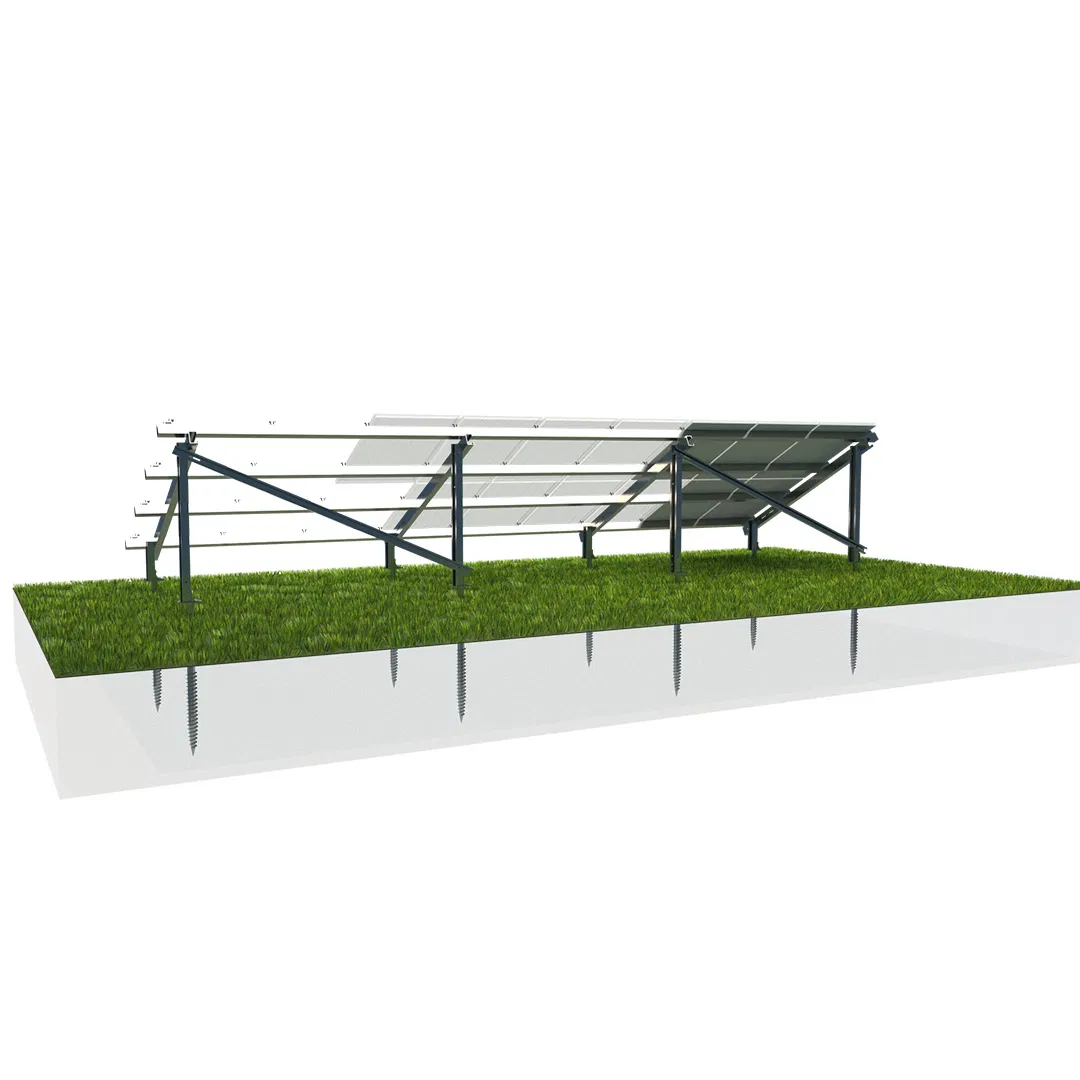

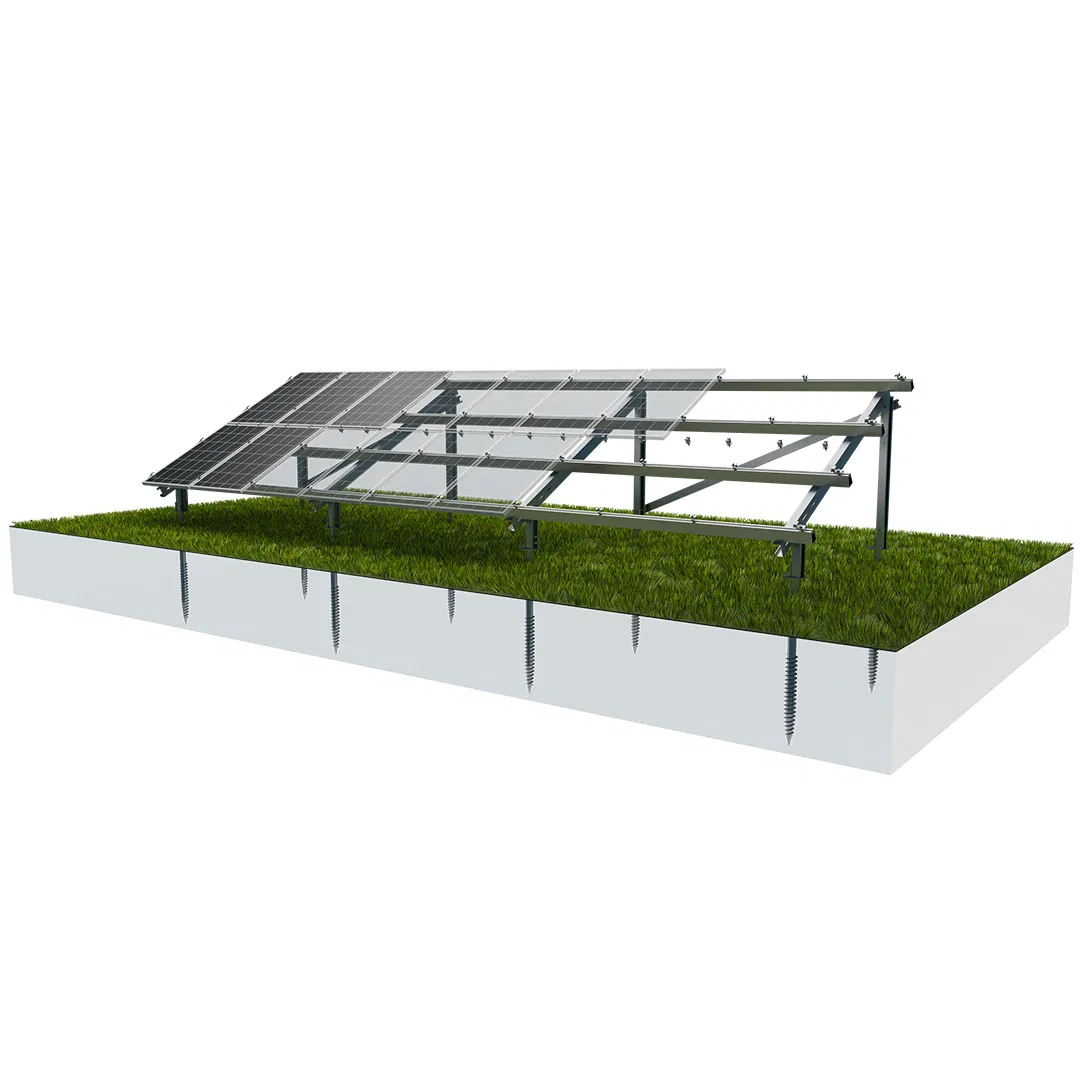

PV Solar energy power plant Structure Mounting system for Farm

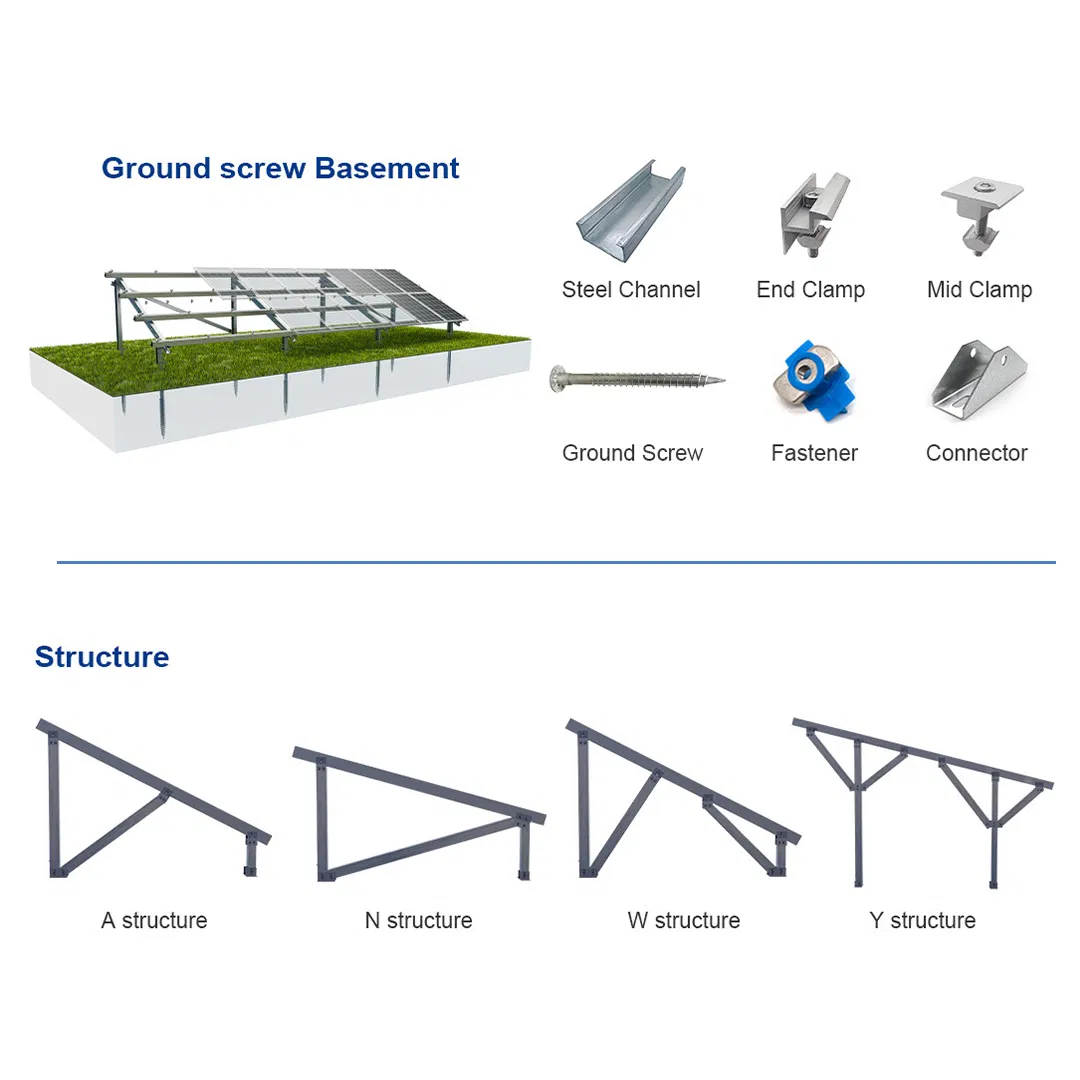

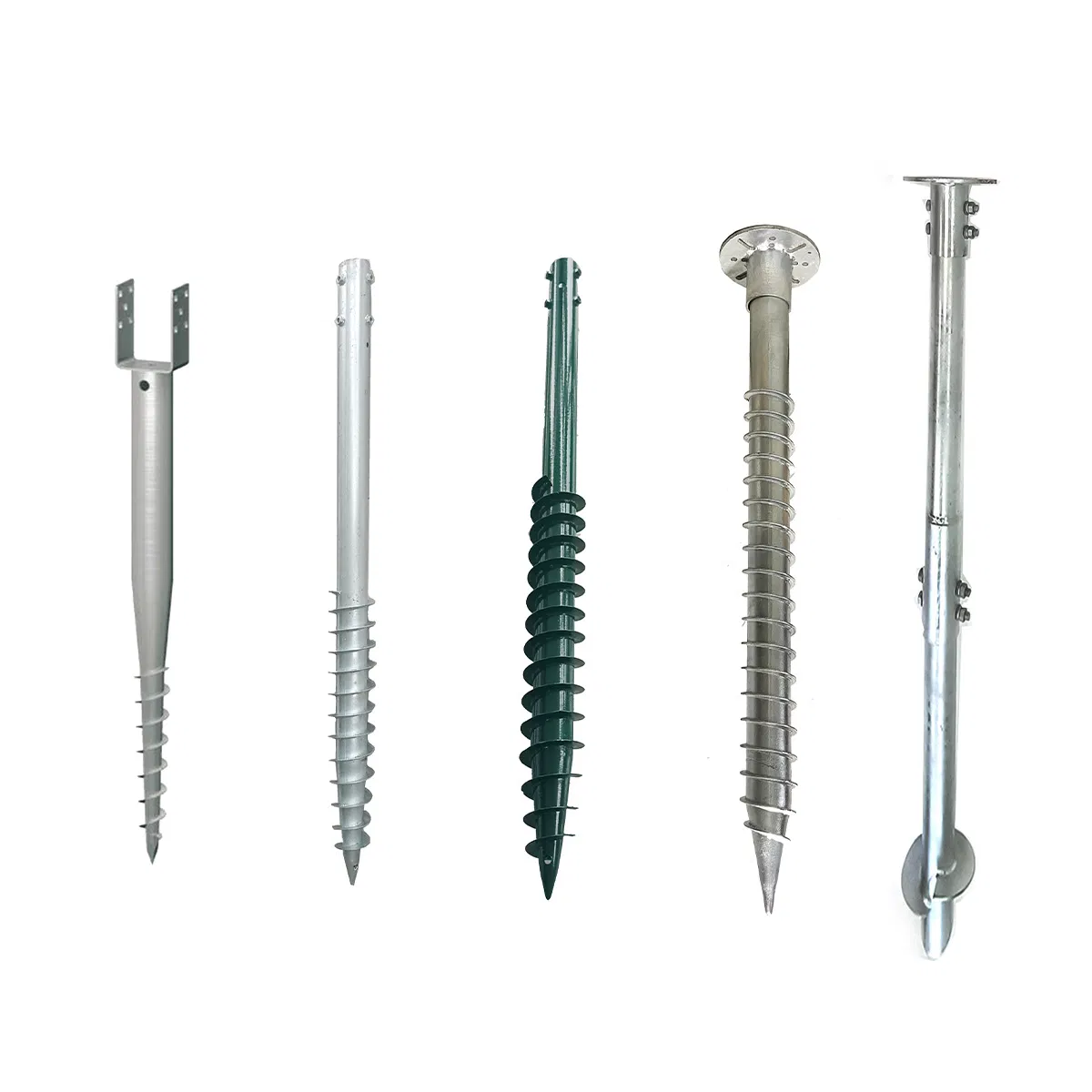

A ground screw (also known as a helical pile or screw pile) is a type of foundation used in solar mounting systems. It is a steel shaft with one or more helical blades (similar to a screw) that is drilled into the ground to provide a stable foundation for solar panels and related structures.

Technical Parameters
System Name	Solar Ground Mounting System	Design Standard	AS/NZS 1170, DIN 1055, JIS C8955:2017
Installation Site	Flat Roof, Ground	International Building Code	IBC 2009
Tilt Angle	5-10°	California Building Code	CBC 2010
Wind Load	60m/s	Hook Material	SUS304
Snow Load	1.6KN/M²	Fastener	SUS304
Applicable Solar Module	Framed	Small Components	AL6005-T5(Anodized)
Panel Layout	Portrait or Landscape	Warranty	10-year warranty

Our Services

Professional Manufacturer: All of our Fasteners are designed and manufactured according to buyers' specification and performance.
Quality is guaranteed: Durability testing and critical technical design to enhance fasteners lifetime.
Cost effective: Competitive prices with professional factory supply.
Perfect fastening solution with 10 years experiences to solve your problem: Wide range of parts selection.
Customized Ideal Fasteners: Customized services according to the samples and drawing offered.

Frequently Asked Questions (FAQ)

What types of foundations are used in this solar mounting system?

This system utilizes ground screws (helical piles or screw piles), which are steel shafts with helical blades drilled into the ground to provide a robust and stable foundation.

What materials are used for the structure and components?

The main structure is made of high-strength Steel, while fasteners and hooks are crafted from durable SUS304 stainless steel. Small components are made from anodized AL6005-T5 aluminum.

What are the wind and snow load capacities for this mounting system?

The system is designed to withstand a wind load of up to 60m/s and a snow load of up to 1.6 kN/m², making it suitable for regions with harsh weather conditions.

Which standards and codes does the system comply with?

The solar ground mounting system complies with international design standards including AS/NZS 1170, DIN 1055, JIS C8955:2017, IBC 2009, and CBC 2010.

What is the warranty period and expected delivery time?

The mounting system comes with a 10-year warranty. The standard production and delivery time ranges between 7 to 30 days.
