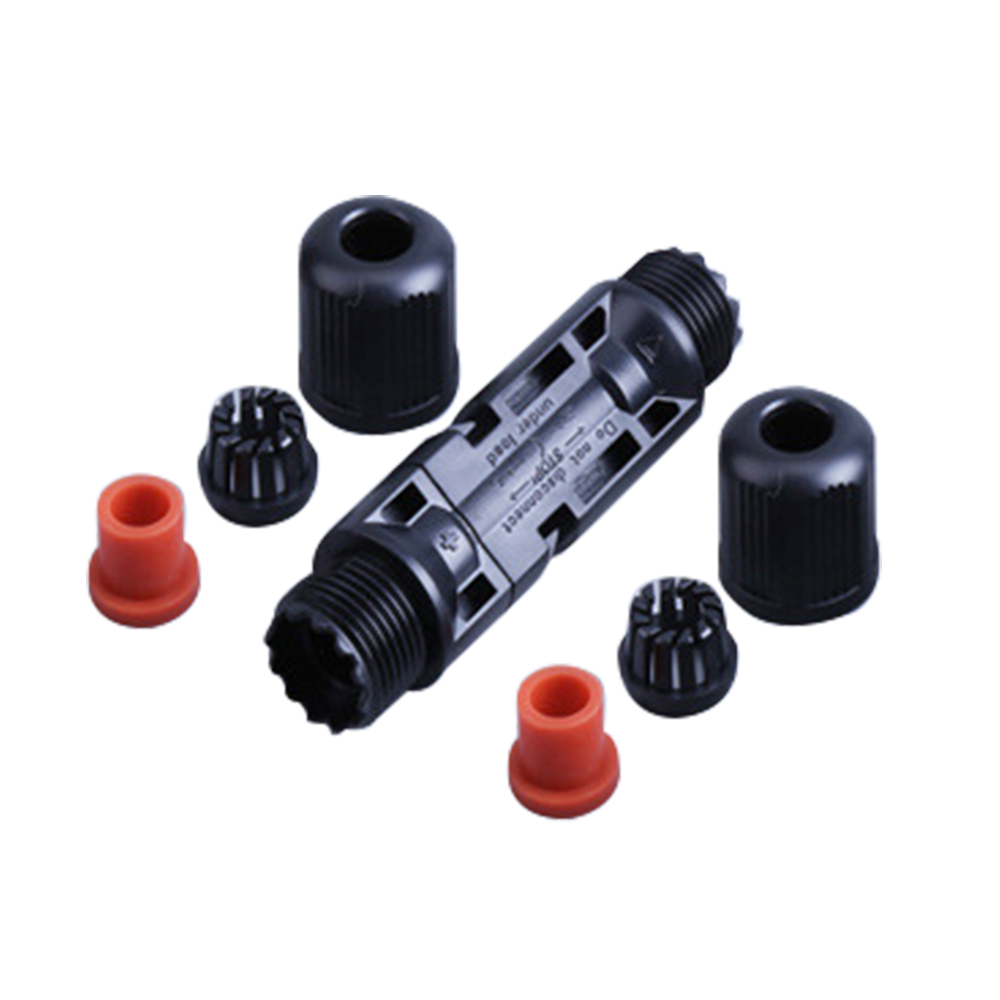

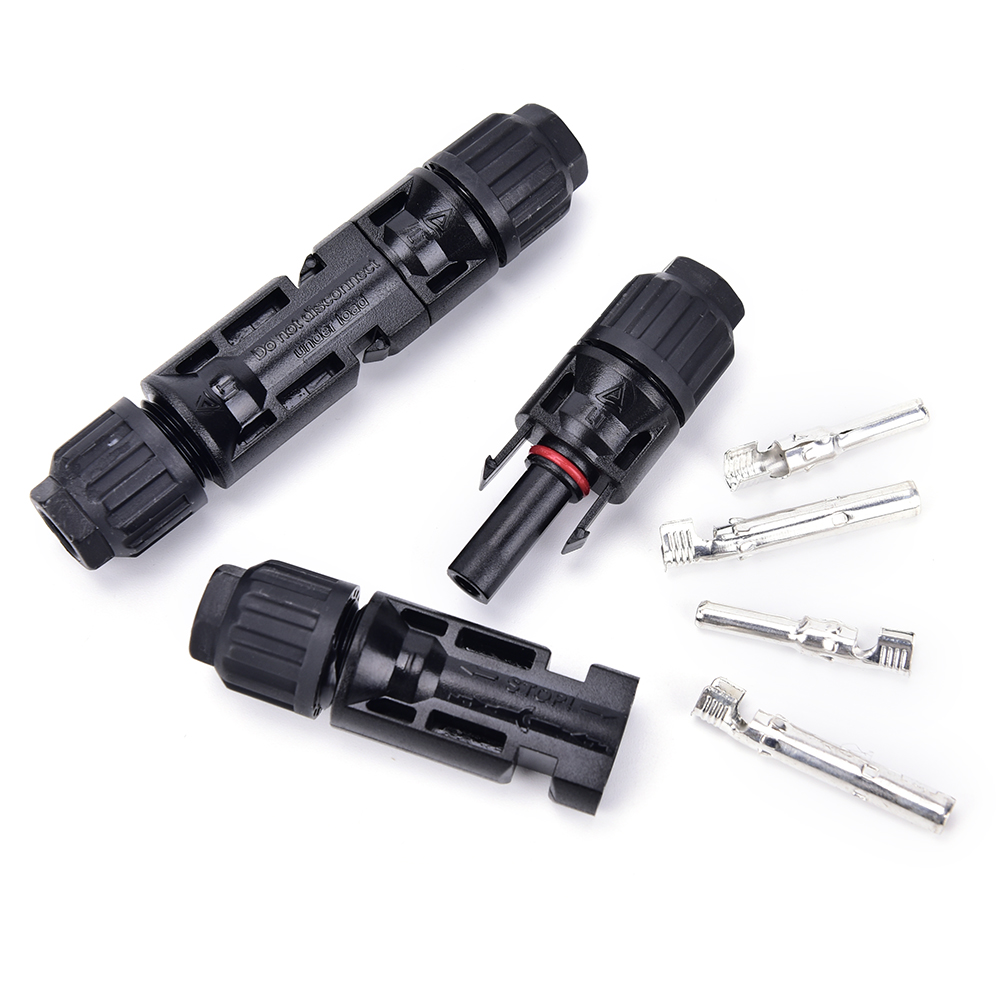

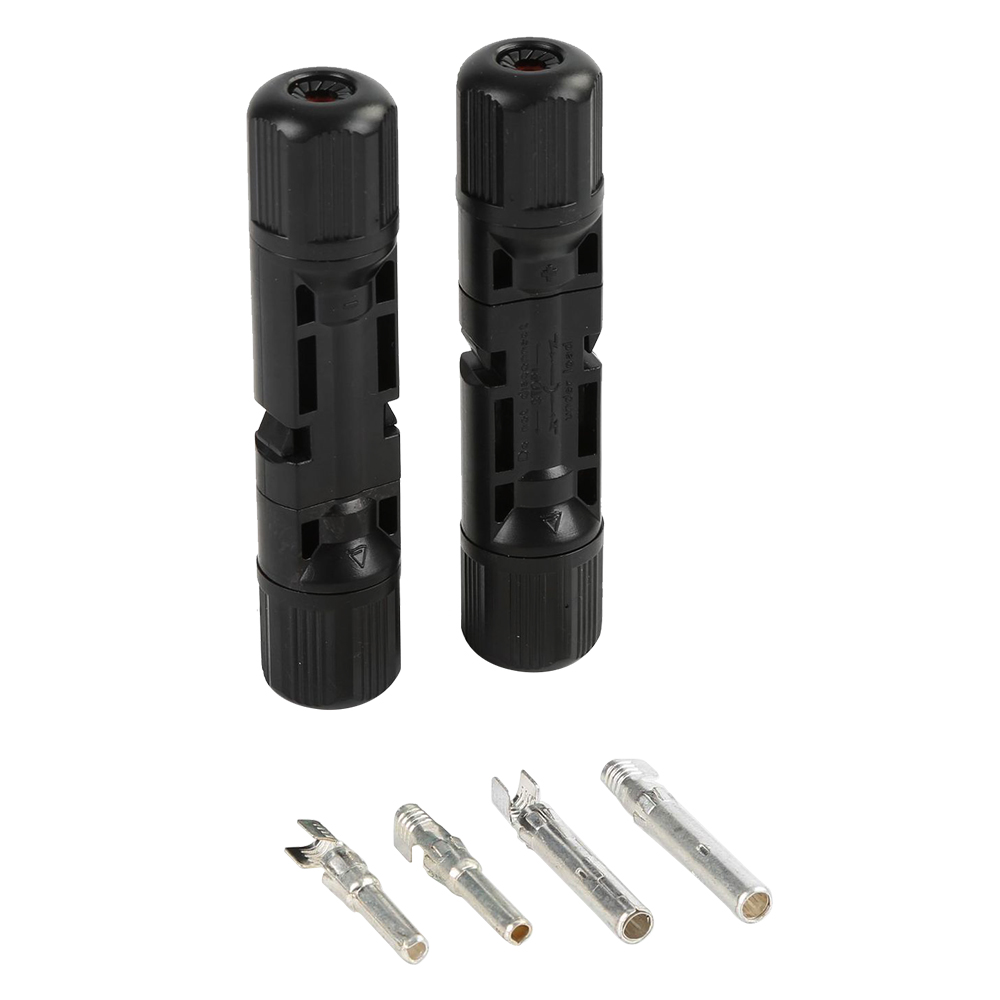

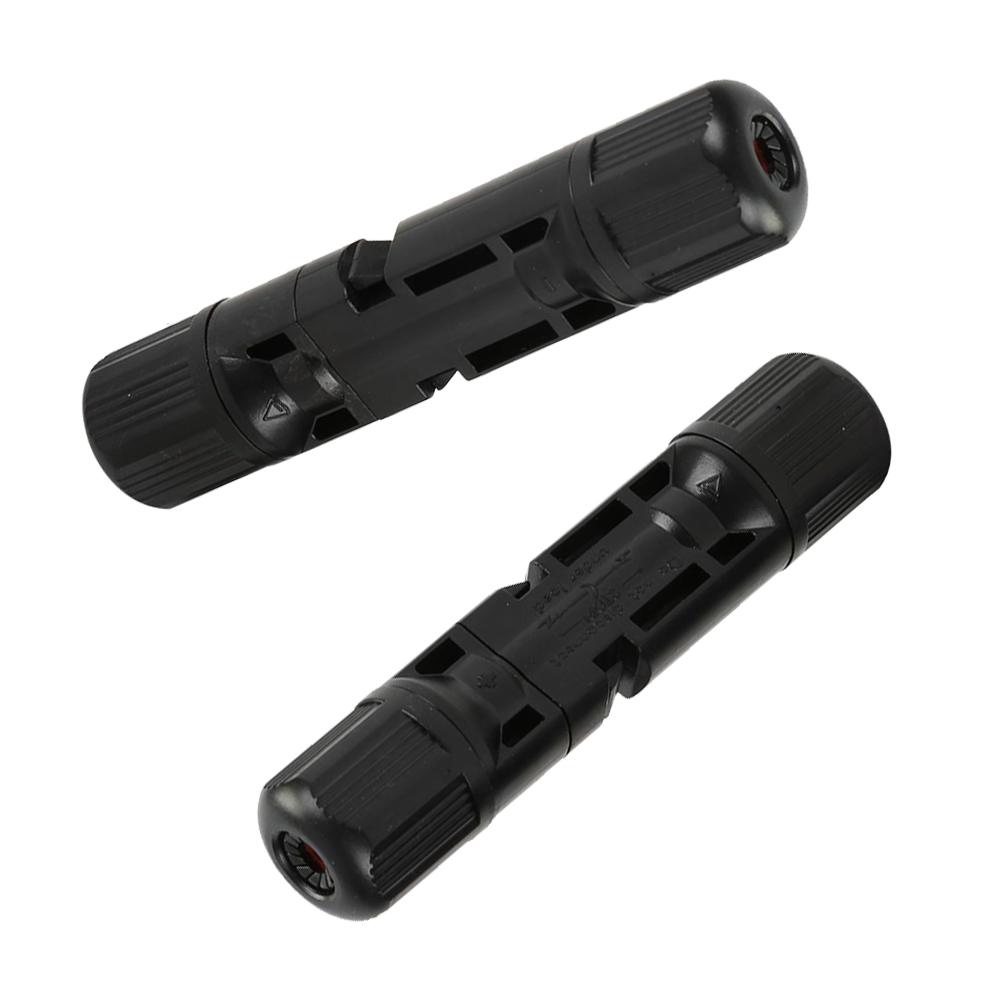

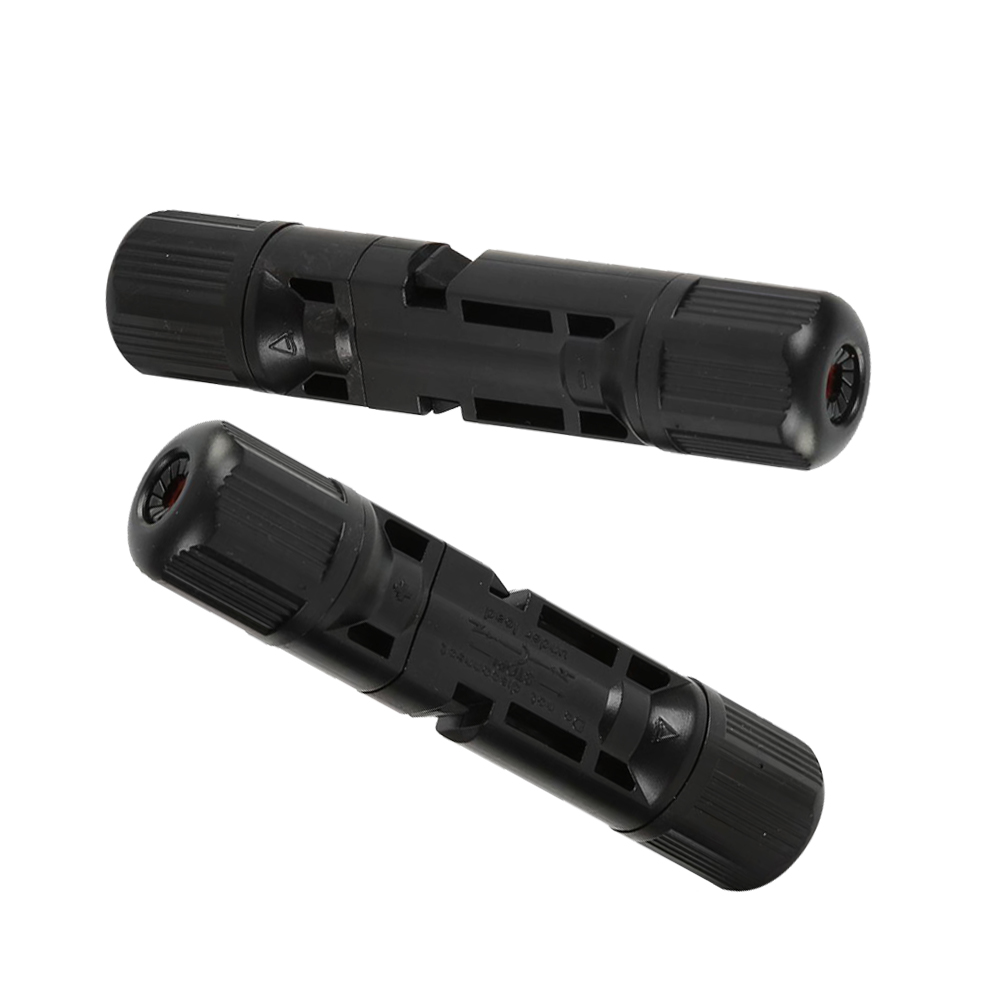

PV Connectors 30A 1000V DC Solar Panel Cable Connector for Solar PV Energy System
PV Connectors 30A 1000V DC Solar Panel Cable Connector for Solar PV Energy System
PV Connectors 30A 1000V DC Solar Panel Cable Connector for Solar PV Energy System
PV Connectors 30A 1000V DC Solar Panel Cable Connector for Solar PV Energy System
PV Connectors 30A 1000V DC Solar Panel Cable Connector for Solar PV Energy System
1 / 5
PV Connectors 30A 1000V DC Solar Panel Cable Connector for Solar PV Energy System
PV Connectors 30A 1000V DC Solar Panel Cable Connector for Solar PV Energy System
PV Connectors 30A 1000V DC Solar Panel Cable Connector for Solar PV Energy System
PV Connectors 30A 1000V DC Solar Panel Cable Connector for Solar PV Energy System
PV Connectors 30A 1000V DC Solar Panel Cable Connector for Solar PV Energy System

PV Connectors 30A 1000V DC Solar Panel Cable Connector for Solar PV Energy System

Send Inquiry

Product Description

Product Overview

ECO-PVPC CE IP67 30A 1000V DC Waterproof Male + Female M/F Connectors Set

Designed for professional PV solar panel cable accessories, these connectors offer a reliable and durable connection for your solar power system.

⚙️
Simple on-site processing and keyed housings for mating safety.
🔄
Multiple plugging and unplugging cycles for long-term use.
⚡
High current carrying capacity: Rated current up to 30A.
🛡️
CE approved with UL94-V0 flame class safety.
Technical Specifications
Safe ClassClass 2
Flame ClassUL94-V0
Contact Resistance≤5mΩ
Insertion / Withdraw Force≤50N / ≥50N
Suitable Cable2.5mm²/4mm²/6mm² (AWG14/12/10)
Locking SystemSnap-in
Protection DegreeIP67 Waterproof
Product Gallery

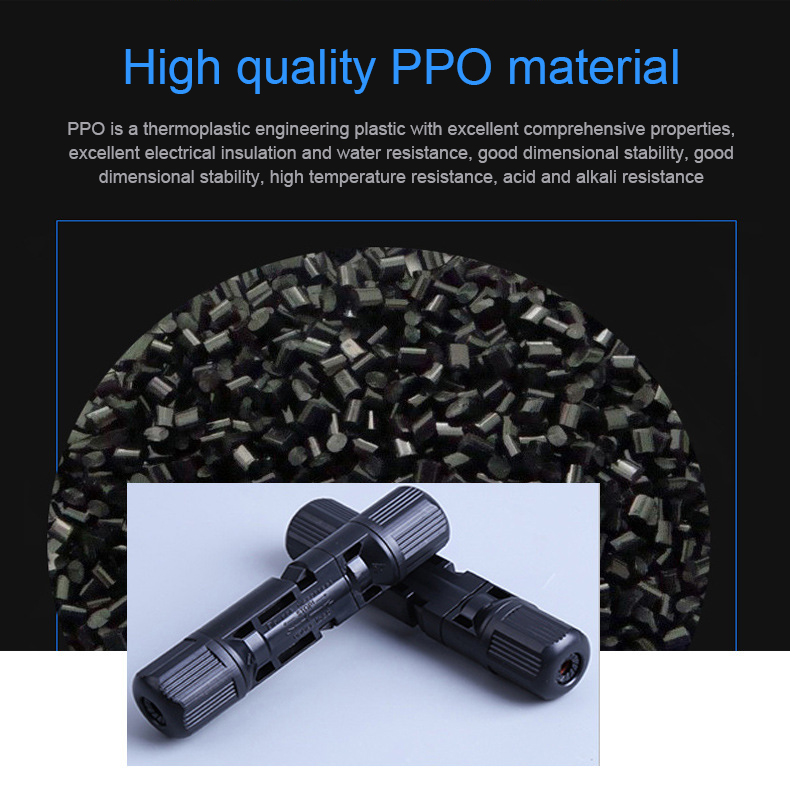

Solar Connector 1

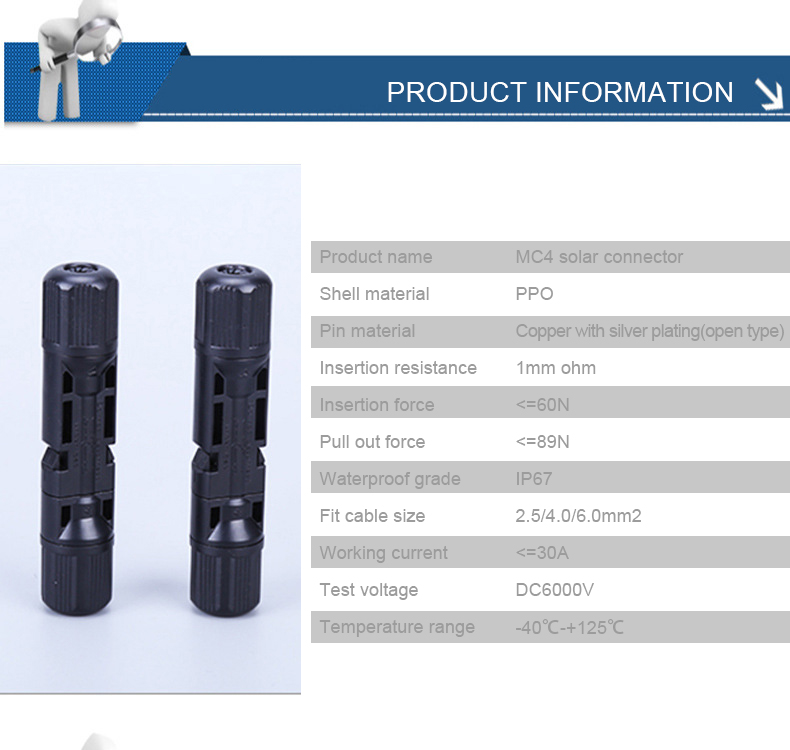

Solar Connector 2

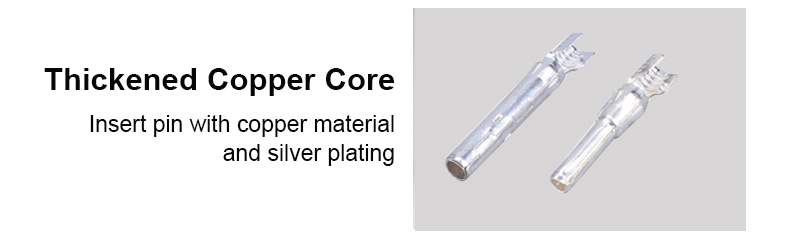

Solar Connector 3

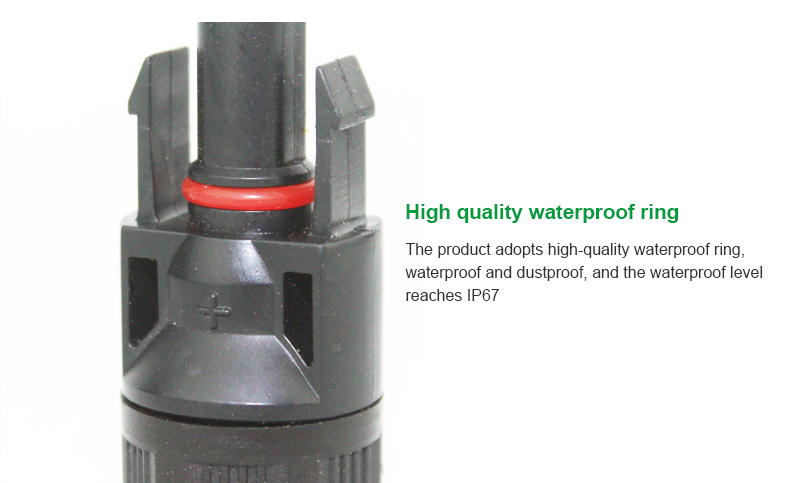

Solar Connector 4

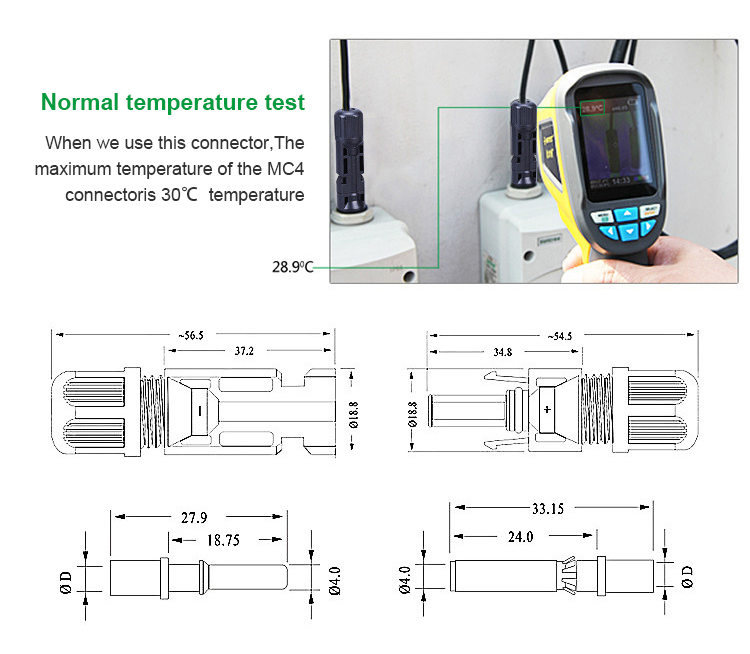

Solar Connector 5

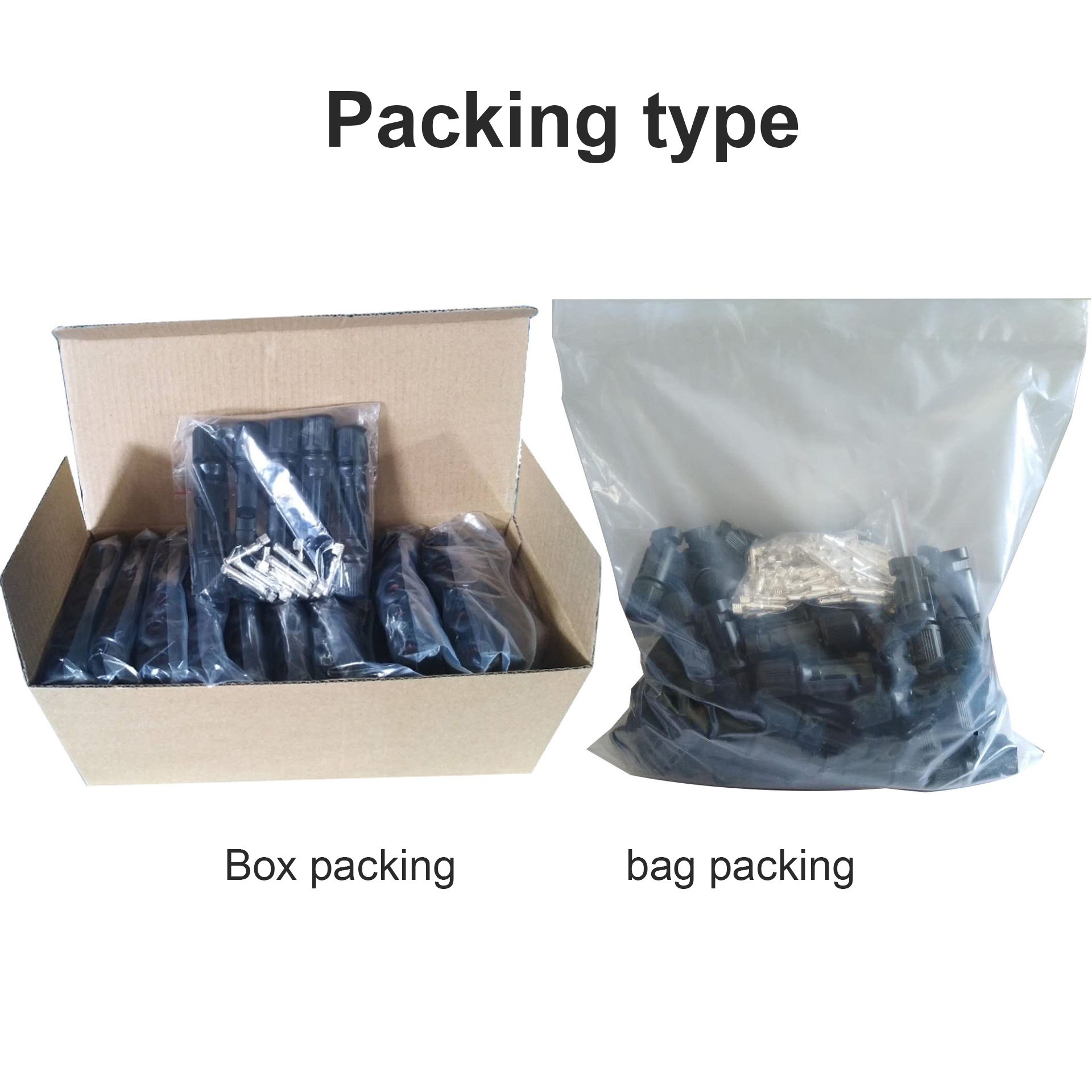

Solar Connector 6

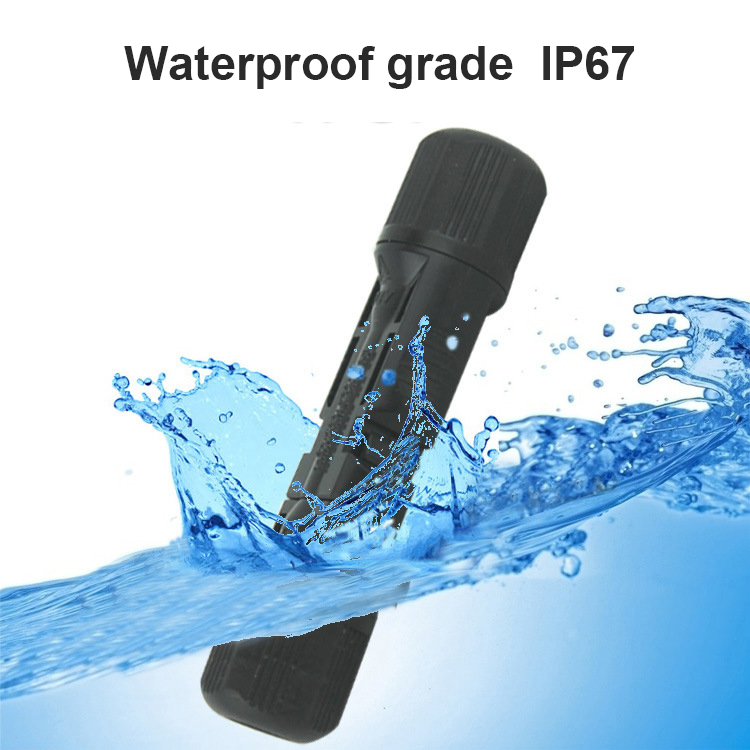

Solar Connector 7

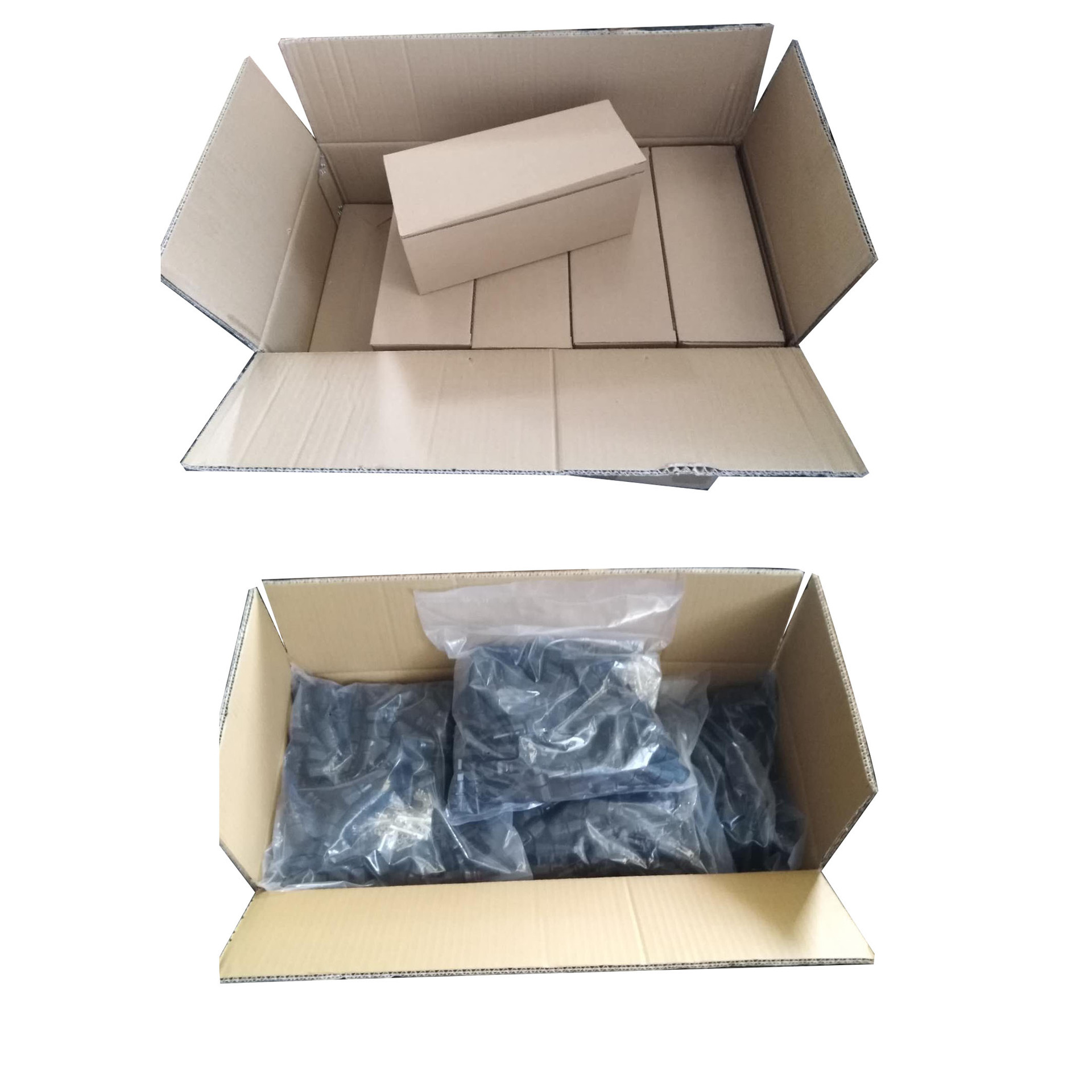

Solar Connector 8
Detailed View
Packaging & Logistics

1. Standard price based on neutral color box packing. OEM options available for large orders.

2. Shipping terms vary by order volume, with flexible options for EXW and FOB.

3. DDU/DDP services available for warehouse delivery.

Packaging Info
Quality Control
Frequently Asked Questions
What is the waterproof rating for these connectors?
The connectors are rated IP67, making them completely dust-tight and capable of withstanding temporary immersion in water, ideal for outdoor solar installations.
What cable sizes are compatible with this set?
They are suitable for PV cables with cross-sections of 2.5mm², 4mm², and 6mm² (equivalent to AWG 14/12/10).
Are these connectors CE certified?
Yes, these connectors are CE approved and manufactured to meet high safety standards for solar power systems.
What is the maximum current and voltage they can handle?
They are designed to handle a rated current of up to 30A and a system voltage of up to 1000V DC.
Is the material flame retardant?
Yes, the housing material meets the UL94-V0 flame class standard, ensuring high fire safety for your installation.
Can I customize the logo or packaging?
We offer customization (OEM) for color boxes and logo printing for orders reaching 2000pcs. Please provide your details for quick customization.
