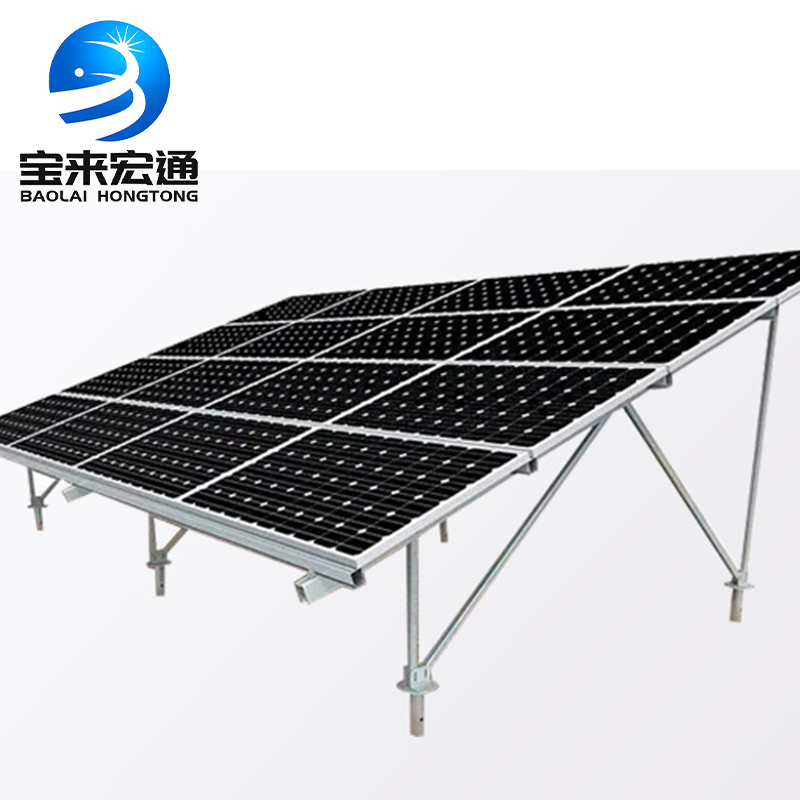

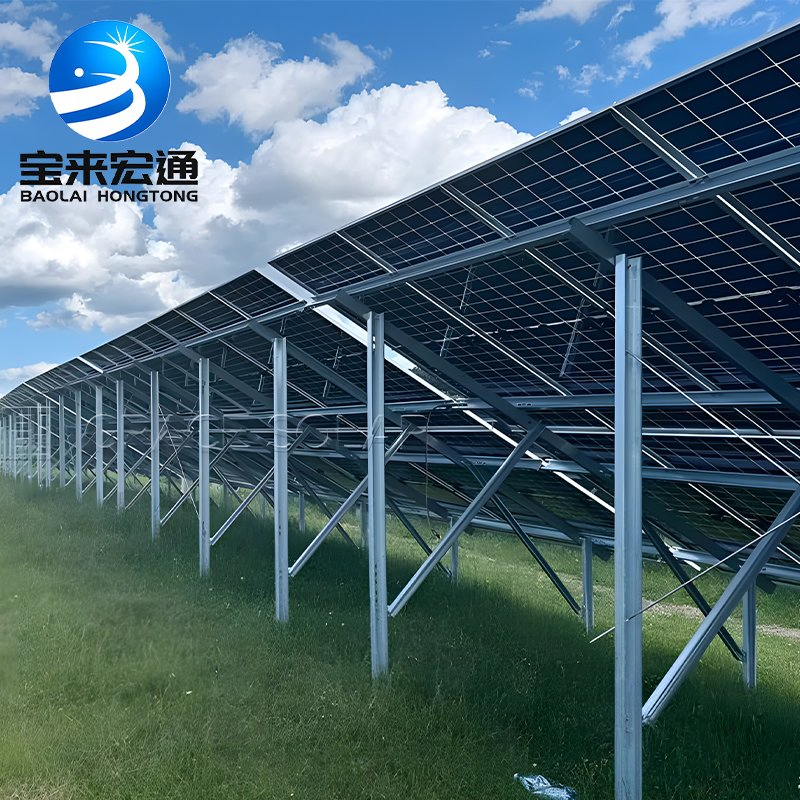

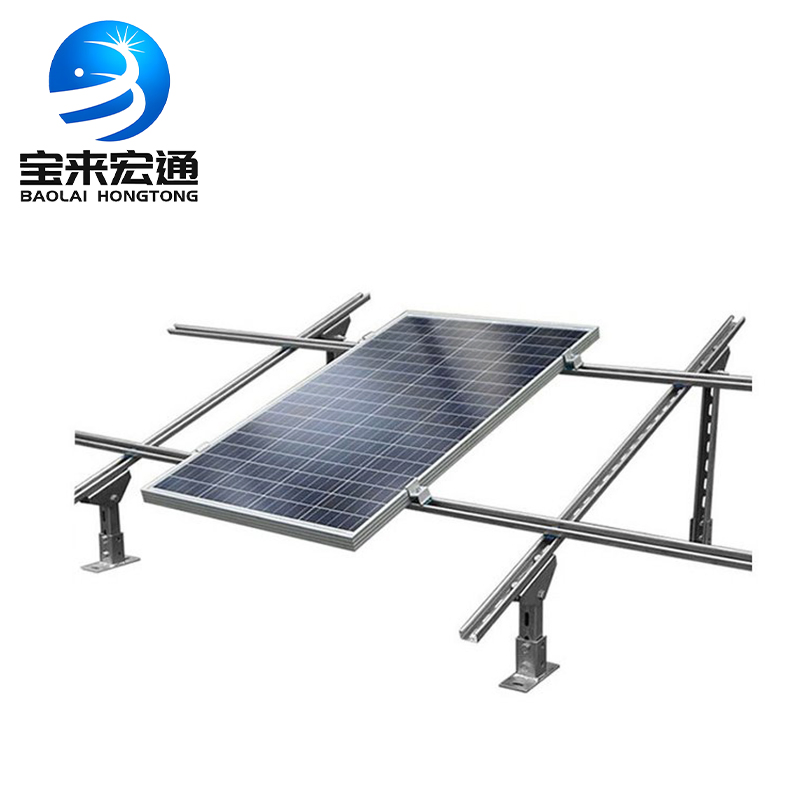

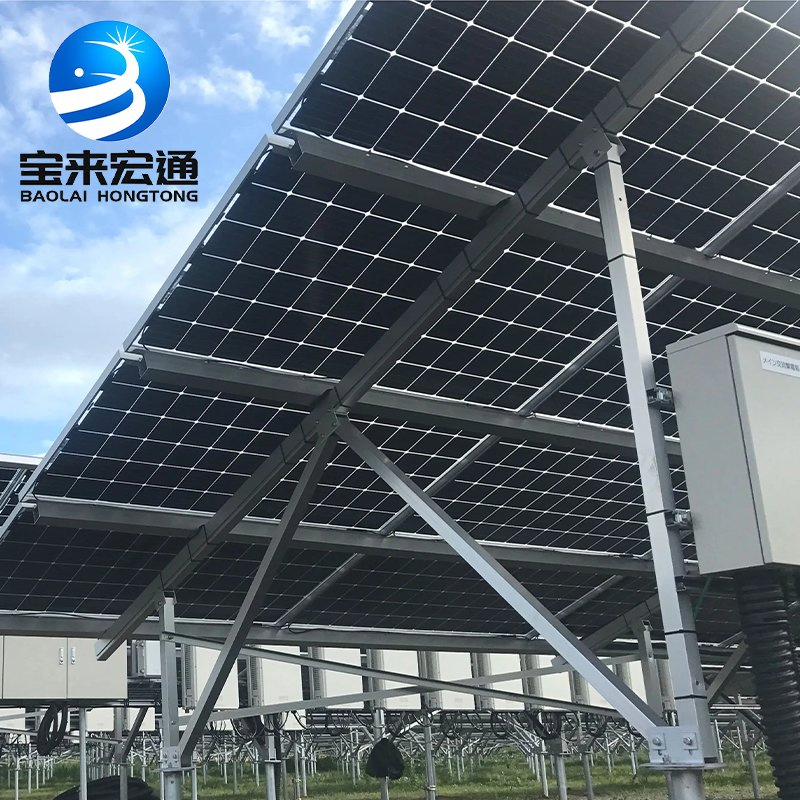

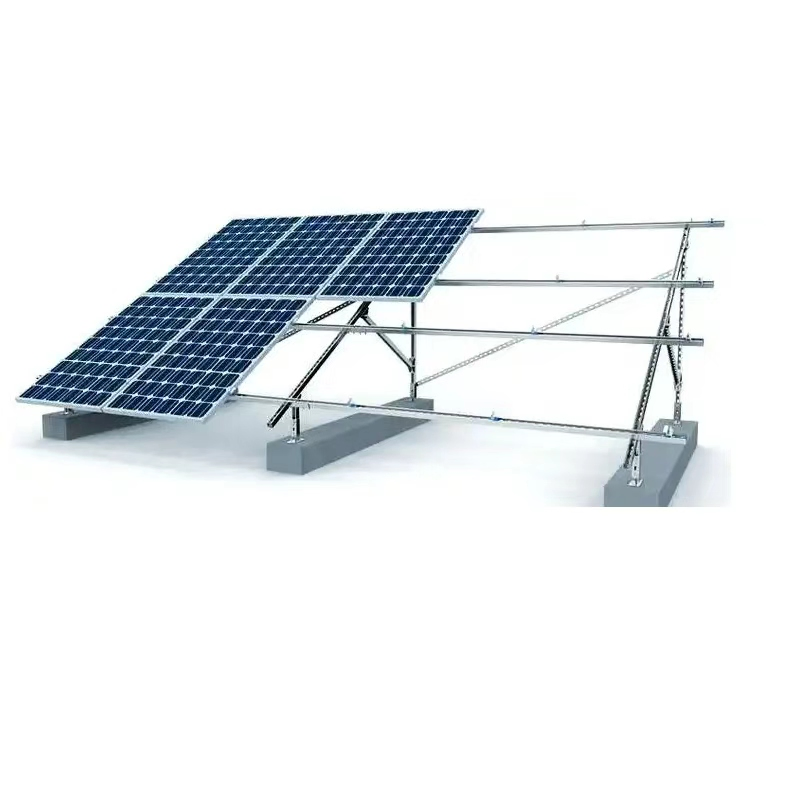

Hot-DIP Galvanized Double Column Solar Panel Mounting System

1 / 5

Hot-DIP Galvanized Double Column Solar Panel Mounting System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Overview

Model NO.

BLHT-GS03

Material

Steel

Type

Ground Bracket

Surface Treatment

Hot DIP Galvanized, Zinc-Al-Mg Coating

Wind Load Capacity

up to 60 M/S

Snow Load Capacity

up to 1.4 kN/M²

Panel Orientation

Portrait or Landscape

Colour

Natural or Silver

Transport Package

Export Standarded

Specification

Standard / Customized

📦 Packaging & Delivery

Package Size

200.00cm * 100.00cm * 100.00cm

Package Gross Weight

2000.000kg

📄 Product Description

Solar ground mounting system is a reliable and cost-effective solution for installing solar panels on the ground. It consists of sturdy steel structures that securely support the solar panels while withstanding extreme weather such as wind and snow. The piles are varied, allowing for customized installation on various types of terrain.

With excellent durability and structural stability, PV ground mounting systems are widely used in residential, commercial, and utility-scale solar projects.

⚙️ Specification

Specification Item	Details
Product Name	Ground Mount Solar Racking System
Keywords	Solar Ground Mount, Photovoltaic Bracket
Material	Steel
Steel Grade	Q235B/Q355B
Surface Treatment	Hot Dip Galvanized, Zinc-Al-Mg Coating
Coating Thickness	Normally 65μm, As Customer Required
Application	Residential, Commercial, Utility-Scale
Key Features	Anti-Corrosion, Easy Install, Stable
Installation Type	Ground Mounted
Foundation Type	Concrete, Ground Screw, Helical Piles
Panel Orientation	Portrait or Landscape
Tilt Angle	Adjustable 5°-60°
Wind Load Capacity	Up to 60 m/s
Snow Load Capacity	Up to 1.4 kN/m²
Lifespan	25+ Years
Warranty	10 Years Warranty, 25 Years Service Life
Certification	GB, ISO9001, As Customer Required
Panel Compatibility	Compatible With Most Panels
Color	Silver/Gray
Package	Export Standard

👍 Product Advantages

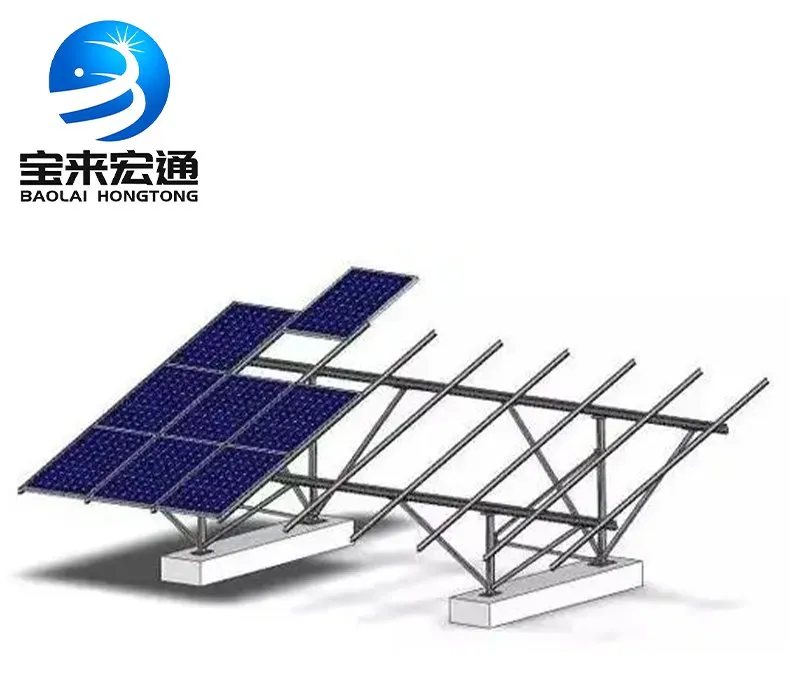

🌍 Terrain Universal Adaptability

Compatible with flat ground, hillsides, deserts, and other complex terrains; no large-scale ground leveling required, reducing early site renovation costs by 40%.

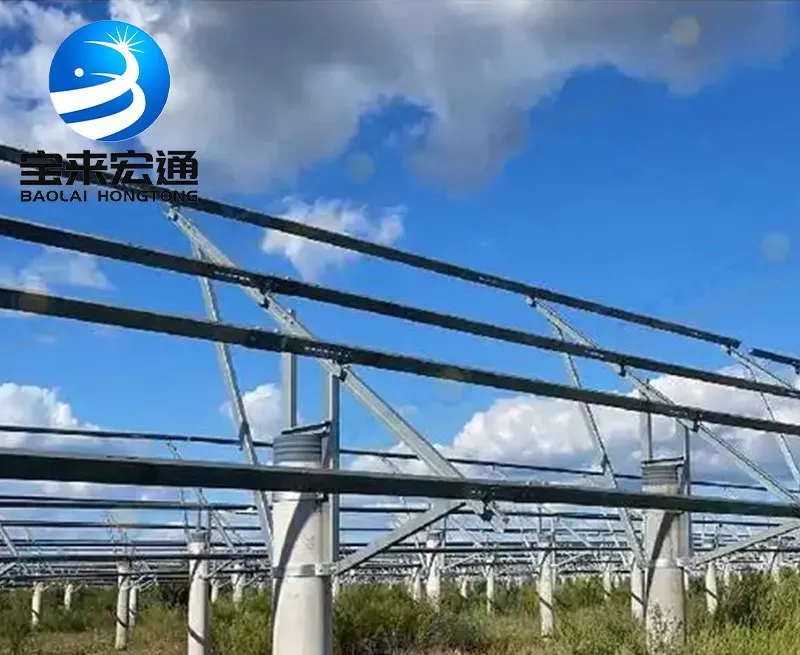

🍊 High-Strength Wind & Load Resistance

Adopts hot-dip galvanized steel pile foundation + triangular stable structure; wind resistance up to 60m/s, snow load resistance up to 1.4KN/m² ensuring stable operation in extreme weather.

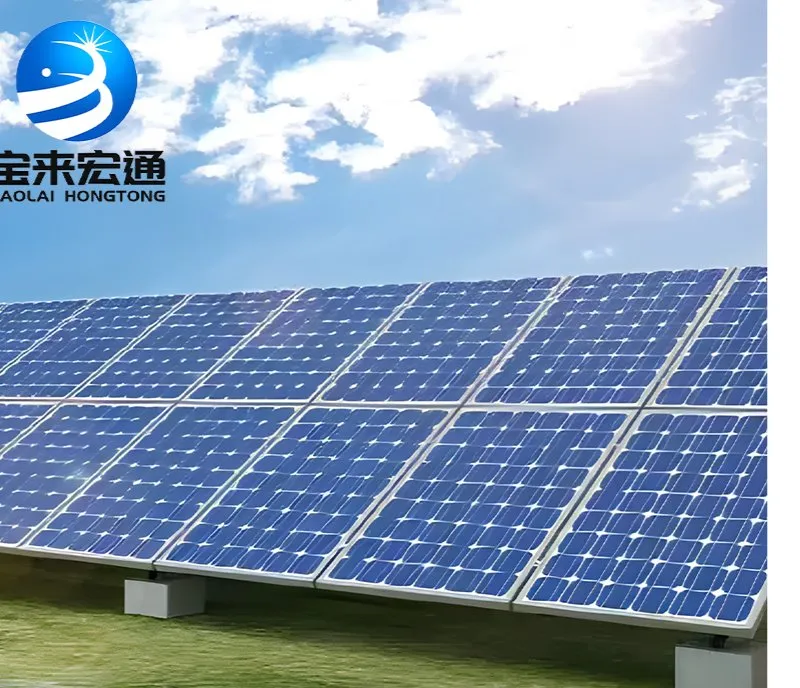

✏️ Customized Structural Design

Flexible adjustment of height, span, and inclination; compatible with agricultural complementary, fishery complementary, and ecological restoration projects to meet diverse project demands.

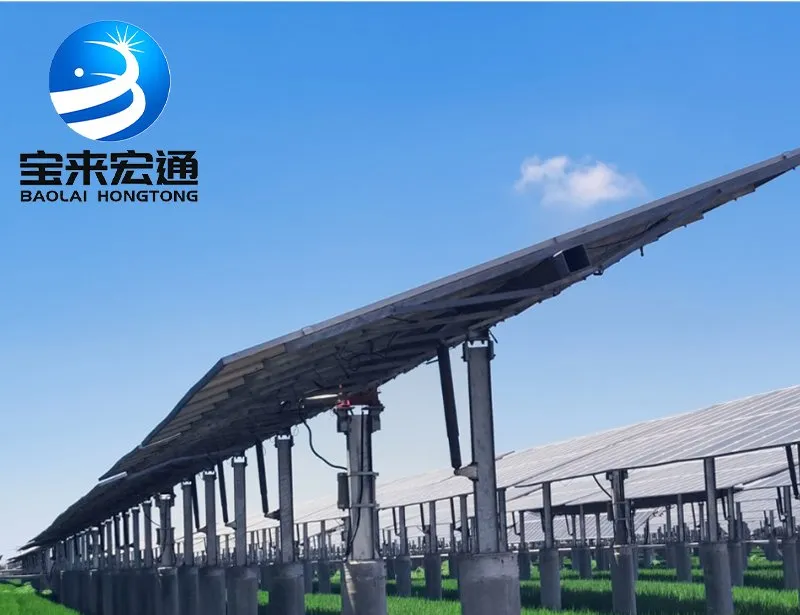

💸 Low-Cost Long-Term Maintenance

Corrosion-resistant and rust-proof materials, no regular maintenance required; the service life of the whole system is up to 25 years, minimizing long-term operation costs.

🔩 Product Components

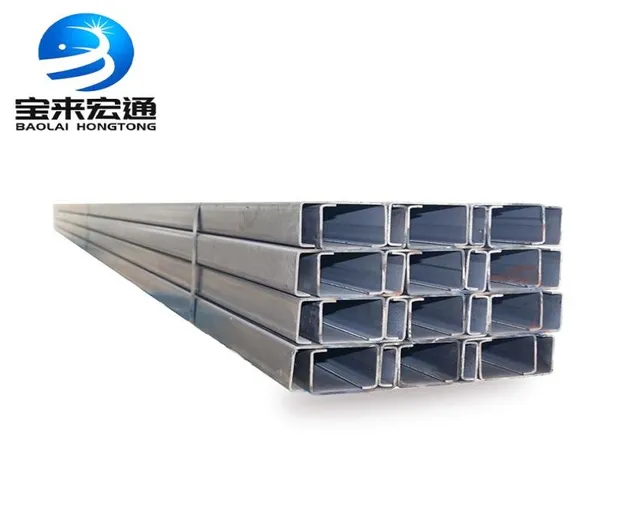

C-shaped steel

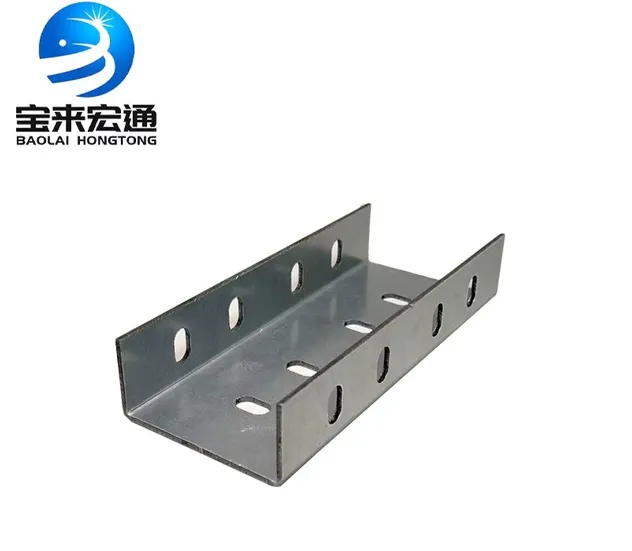

Purlin Connector

Base

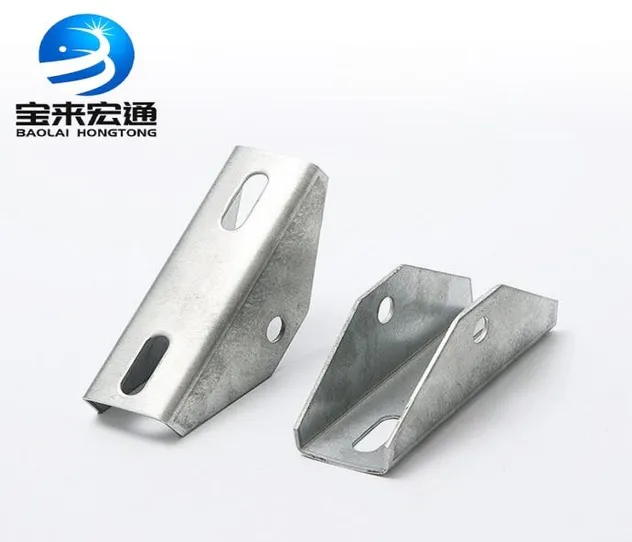

Triangle Connector

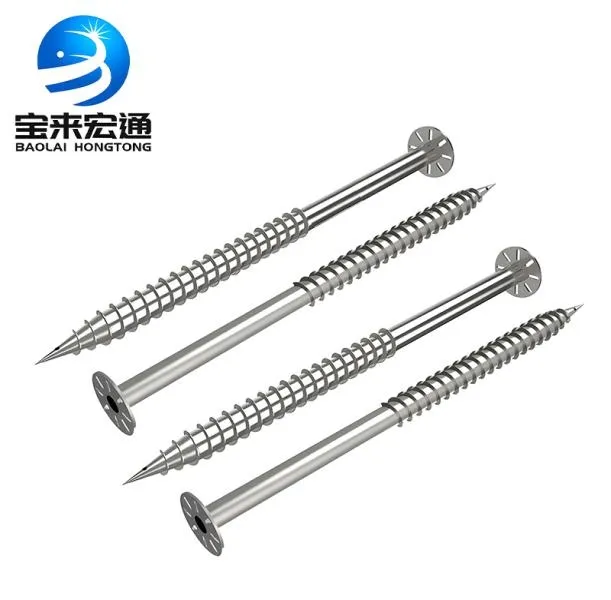

Ground Nail

Hose Clamp

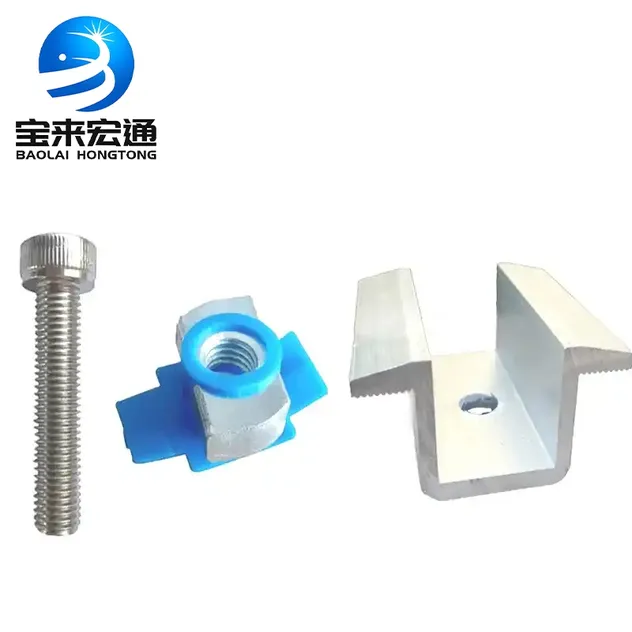

Mid Clamp

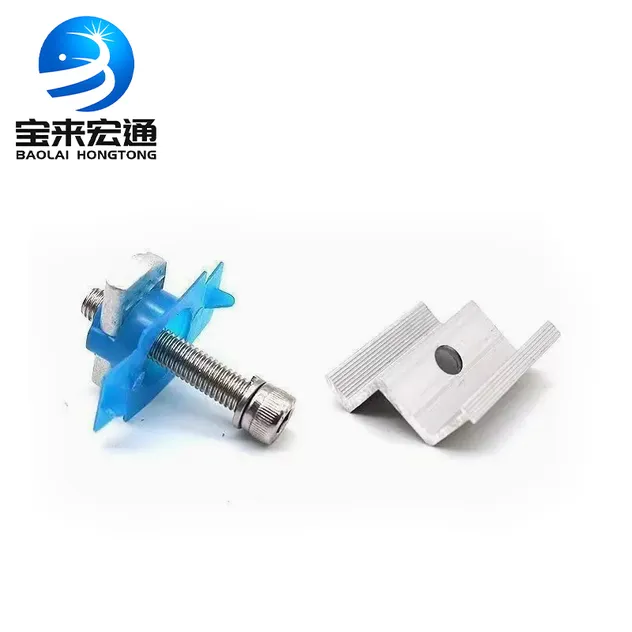

End Clamp

Accessories

🏭 Production & Quality Profile

❓ FAQ

Q1. Are you a factory or a trading company?

A1. We are a factory specializing in producing solar mounting systems, and we also have our own trading operations.

Q2. Can I customize the design and size?

A2. Yes, all the designs can be customized, and the size can be the same as you asked. OEM and ODM are available.

Q3. Where is your factory located? Can I visit there?

A3. Our factory is located in China. Welcome to visit our factory.

Q4. Is the price the same as what you list?

A4. As solar mounting systems are customized products, we need to know your exact size and quantity to give a formal quotation. So please feel free to contact us.

Q5. What is the warranty and lifespan of this ground mounting system?

A5. The system offers a 10-year warranty and has a service life design of 25+ years, ensuring long-term maintenance-free operation.

Q6. What wind and snow loads can the racking system withstand?

A6. Our solar ground mounting system supports wind load capacities up to 60 m/s and snow load capacities up to 1.4 kN/m², making it highly stable in extreme weather.
