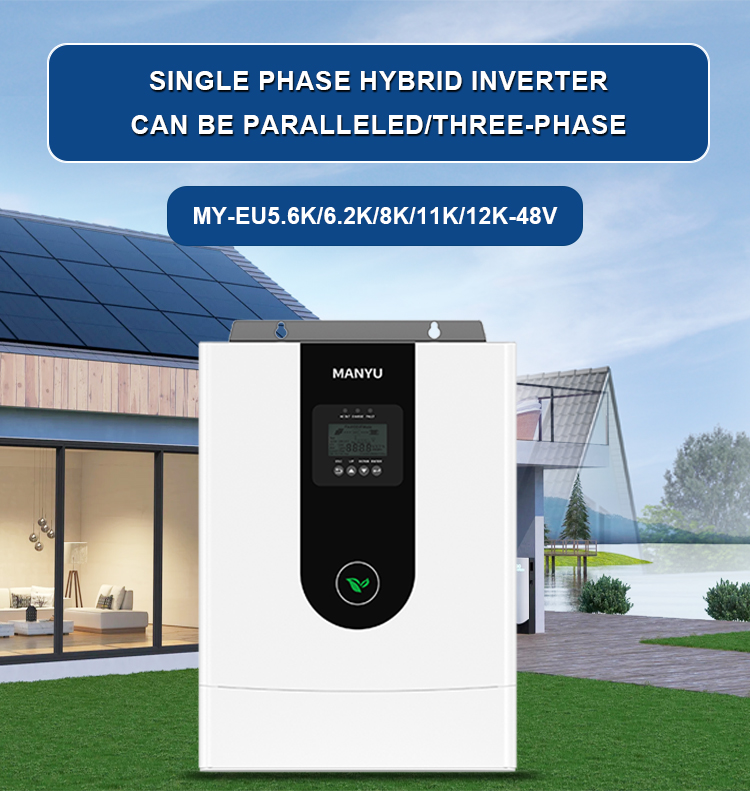

| Model | MY-EU12K-48V / MY-EU12K-48VP | MY-EU8K-48V / MY-EU8K-48VP | MY-EU5.6K-48V / MY-EU5.6K-48VP |
|---|---|---|---|
| Support Type | ( can be paralleled / three-phase ) | ( parallel / three-phase ) | ( can be paralleled / can be three-phase ) |
| Parallel Mode | |||
| Allowed parallel quantity | 2~6 units | ||
| Mains mode | |||
| Rated input voltage | 220/230Vac | ||
| Input voltage range | (170Vac~280Vac)±2% (UPS mode) / (90 Vac-280Vac)±2% (APL mode) | ||
| Frequency | 47±0.3Hz~55±0.3Hz (50Hz); 57±0.3Hz~65±0.3Hz (60Hz) | ||
| Overload / short circuit protection | Breaker | ||
| Maximum efficiency | >95% | ||
| Conversion time (bypass and inverter) | 10ms (typical) | ||
| AC reverse feeding protection | Have | ||
| Maximum bypass overload current | 63A | 63A | 40A |
| Inverter mode | |||
| Output voltage waveform | Pure sine wave | ||
| Rated output power (VA) | 11000 | 8000 | 5600 |
| Rated output power (W) | 11000 | 8000 | 5600 |
| Power Factor | 1 | ||
| Rated output voltage (Vac) | 230Vac | ||
| Output voltage error | ±5% | ||
| Output frequency range (Hz) | 50Hz±0.3Hz / 60Hz±0.3Hz | ||
| Maximum efficiency | >92% | ||
| Overload protection | (102% < load < 125%)±10%: error & shutdown output after 5 mins; (125% < load < 150%)±10%: error & shutdown output after 10s; load > 150%±10%: error & shutdown output after 5s | ||
| Peak Power | 22000VA | 16000VA | 11000VA |
| Motor load capacity | 7HP | 6HP | 3HP |
| Output short circuit protection | Breaker | ||
| Bypass circuit breaker specifications | 63A | 63A | 40A |
| Rated battery input voltage | 48V (minimum starting voltage 44V) | ||
| Battery voltage range | 40.0Vdc~60Vdc±0.6Vdc | ||
| Power saving mode | Load ≤ 25W enters power saving mode | ||
| Mains charging | |||
| Battery Type | Lead acid or lithium battery | ||
| Maximum charging current (adjustable) | 120A | 120A | 60A |
| Charging current error | ±5Adc | ||
| Voltage range | 40-60Vdc | ||
| Short circuit protection | Circuit Breakers and Fuses | ||
| Circuit breaker specifications | 63A | 63A | 40A |
| Solar Charging | |||
| Maximum PV open circuit voltage | 500Vdc | ||
| PV operating voltage range | 100-500Vdc | ||
| MPPT number | 2 | 1 | |
| MPPT voltage range | 120-450Vdc | ||
| Maximum PV input power | 5500W*2 (11000W) | 5500W*2 (11000W) | 6000W |
| Maximum PV input current | 22A*2 | 22A*2 | 22A |
| Solar charging current range (adjustable) | 0-150A | 0-150A | 0-100A |
| Charging short circuit protection | Blown fuse | ||
| Wiring protection | Reverse polarity protection | ||
| Maximum hybrid charging current (PV+AC) | |||
| Maximum hybrid charging current (adjustable) | 0-150A | 0-150A | 0-100A |
| Certification Specifications | |||
| Specification Certification | CE(IEC62109-1.2) | ||
| EMC certification level | EN61000-6-1, EN61000-6-3 | ||
| Operating temperature range | -15°C to 55°C | ||
| Storage temperature range | -25°C ~ 60°C | ||
| Humidity range | 5% to 95% (three-conformal coating protection) | ||
| Noise | ≤60dB | ||
| Heat dissipation | Forced air cooling, adjustable wind speed | ||
| Communication interface | USB / RS485 / WIFI / GPRS / dry node control | ||
| Size (L*W*D) | 540x350x120mm | 460mm*305mm*115mm | |
| Weight (kg) | 16 | 15 | 10.8 |
