A high-tech enterprise focusing on the R&D of core parts such as on/off board chargers & DCDC for new energy vehicles (EV, PHEV, etc.). The core team members have rich working experience with backgrounds in overseas education. The developed products (OFBC, OBC & DCDC) have excellent performance and a dominant position in the market.

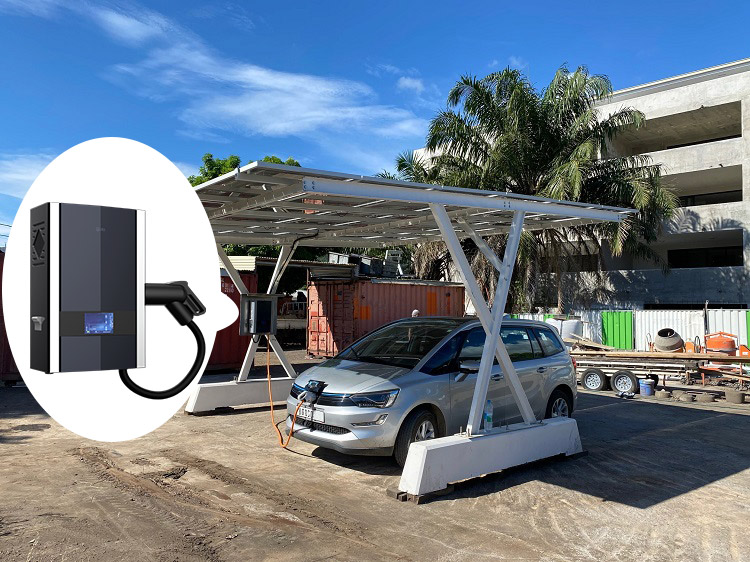

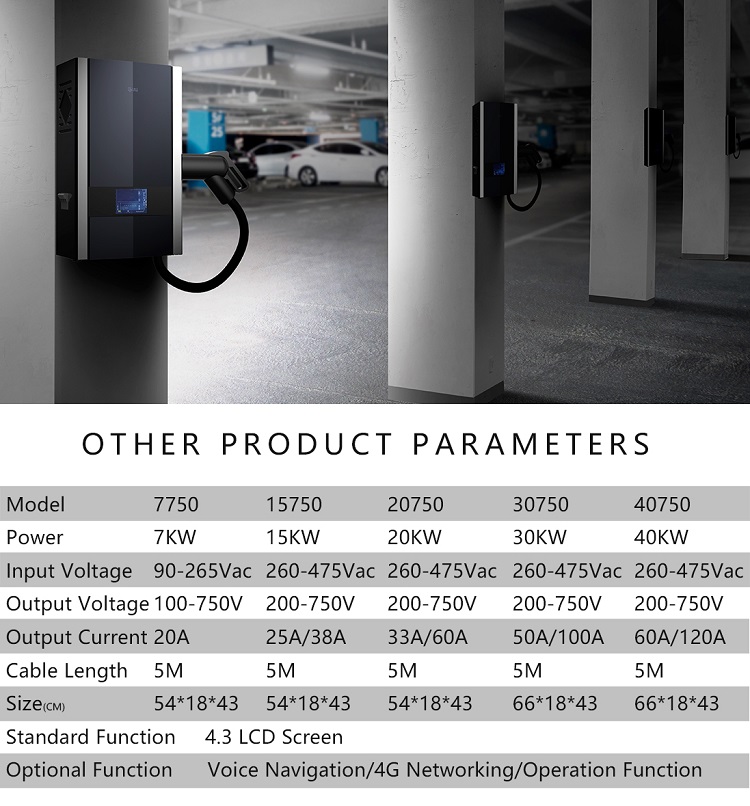

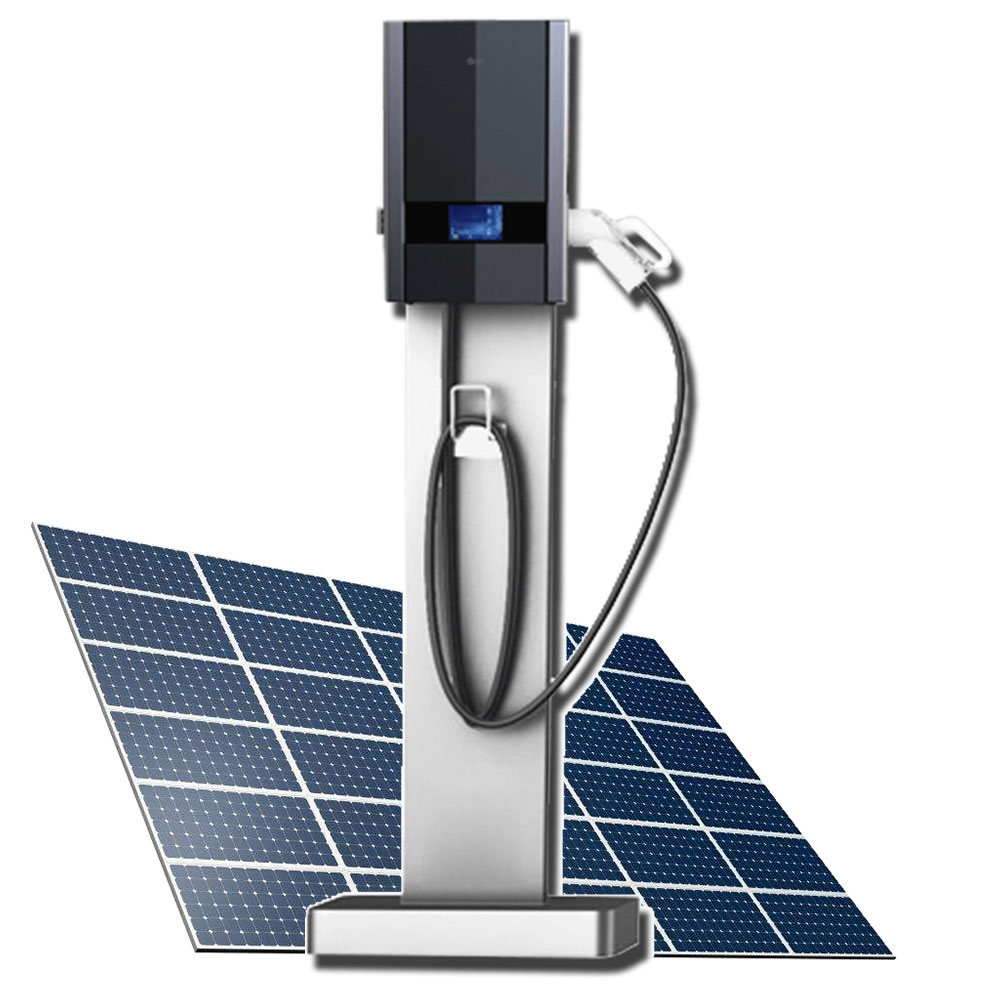

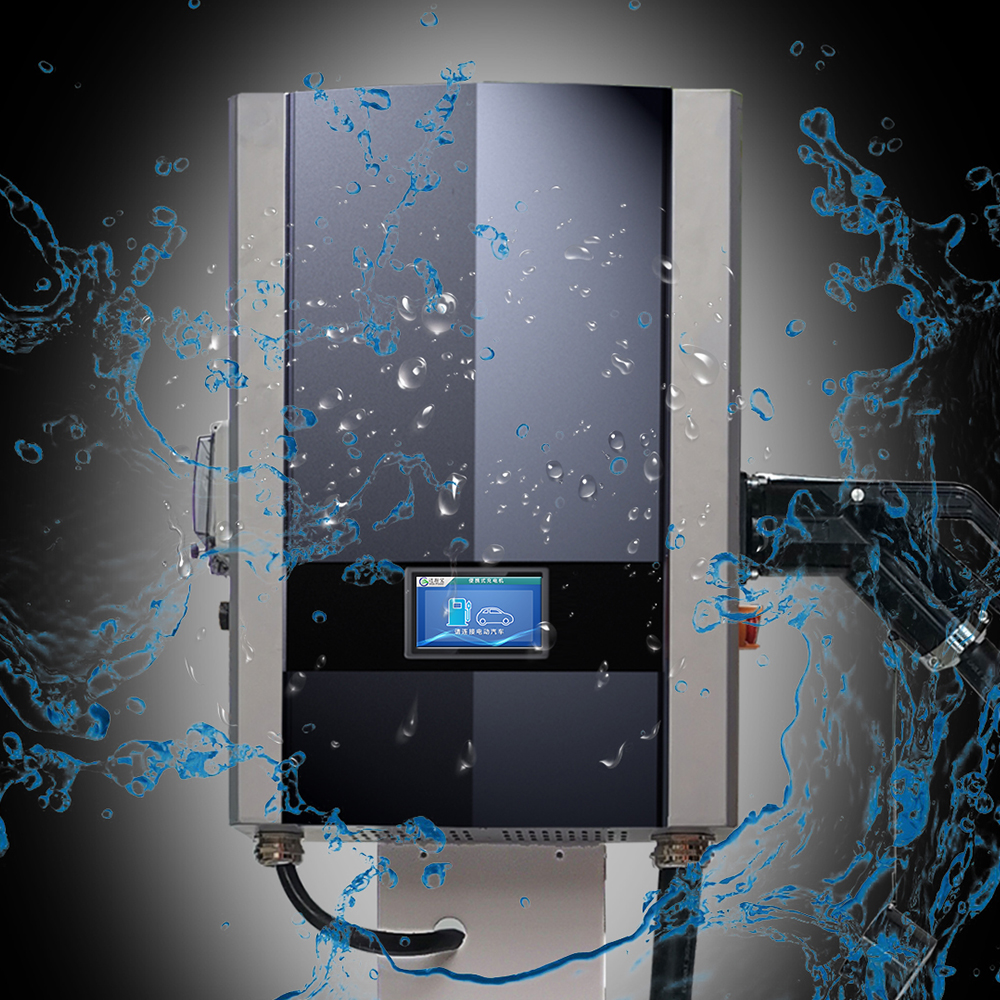

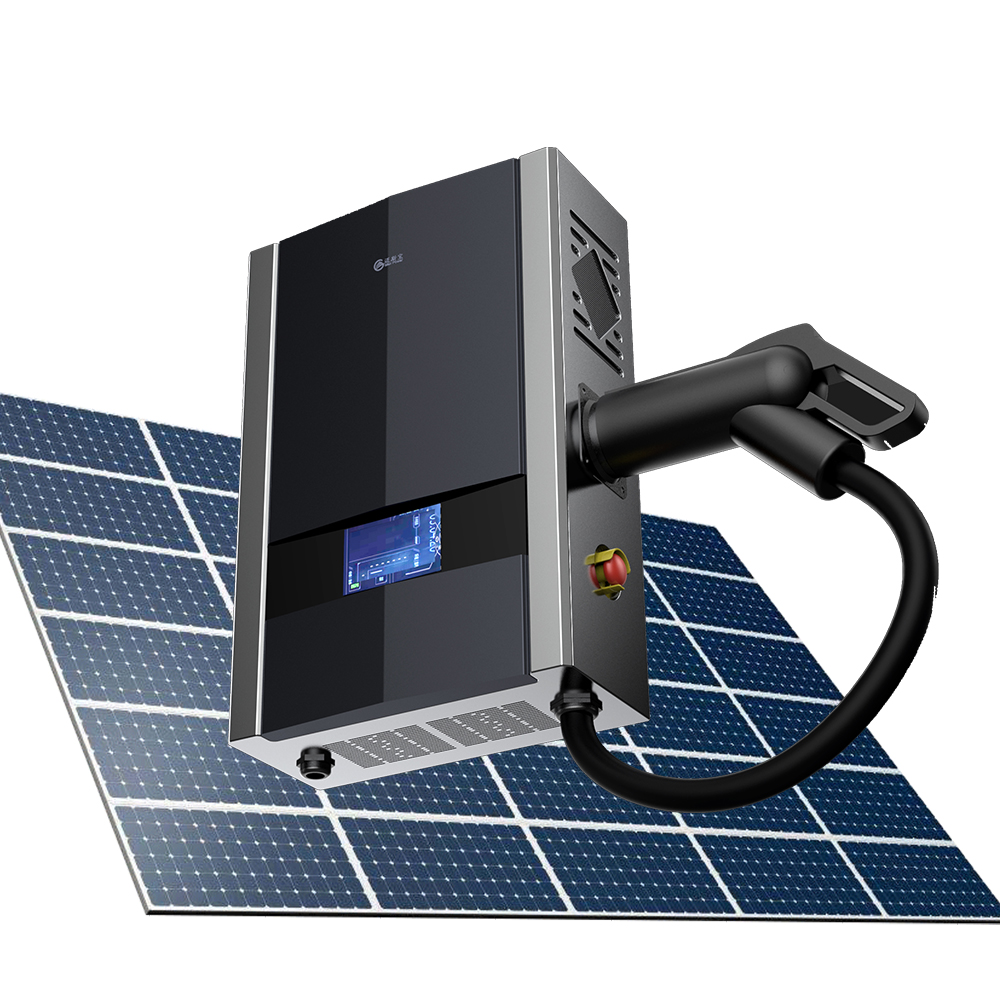

This charger is great for mounting in your garage, business, racing, or RV park. It is very useful to have as a backup charger for use on the race track, in a tow truck, in an SUV, trailer or anywhere you need power. This affordable 7-40 KW DCFC is perfect to install for charging electric vehicles at maximum speed. Take on road trips through rural areas with RV or industrial areas being the main power sources for EV travelers. This unit will greatly speed up your or your customers' charging.
Note: All product outward appearance, the color take the material object as, the picture only supply the reference.
| Parameter Specifications | Details (15KW) | |
|---|---|---|
| Model | 15KW | |
| AC Input | ||
| Input Rating | 380Vac±10% | |
| AC Input Connection | 3P + N +PE, Wye connection | |
| Max. Input Current | 30A | |
| Frequency | 50 / 60 Hz | |
| Power Factor | >0.99 @ full load | |
| Efficiency | 95% | |
| DC Output | ||
| Output Voltage Range | 200-750Vdc | |
| Max. Output Power | 15KW | |
| Max. Output Current | 38A | |
| User Interface | ||

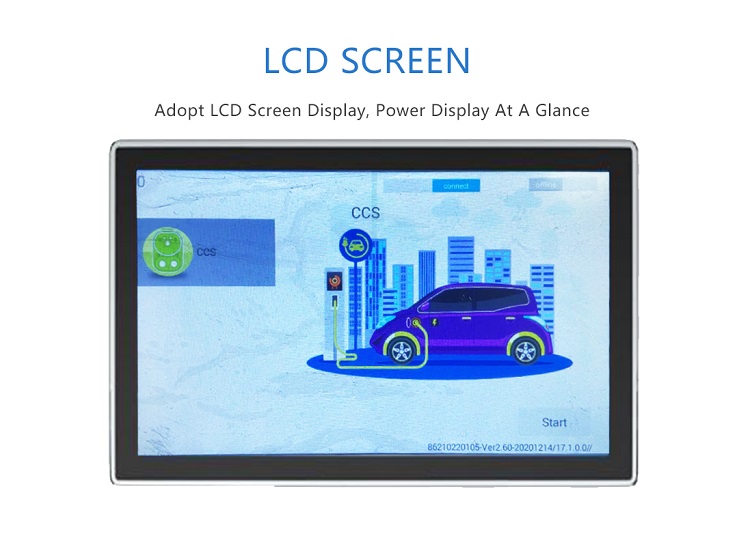

| TFT-LCD Touch Panel | Yes (swiping card without TFT-LCD Touch Panel) | |
| Push Buttons | Yes | |
| Interface | Yes | |
| Packing Info | ||
| Dimension | W: 548×378×160mm | U: 1500×520×250mm | |

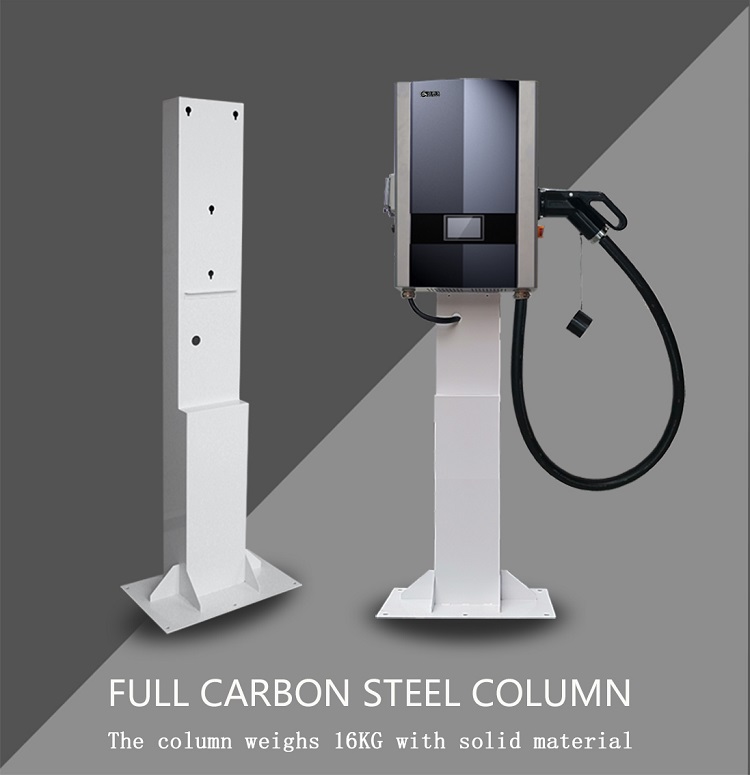

| Weight | Wall-mounted: 30KG | Upright: 35KG | |
| Environmental | ||
| Operating Temperature | -40 ~ 85°C, 25°C (TYPE) | |
| Humidity | 5% - 90% RH, non-condensing | |
| Altitude | 2000m | |

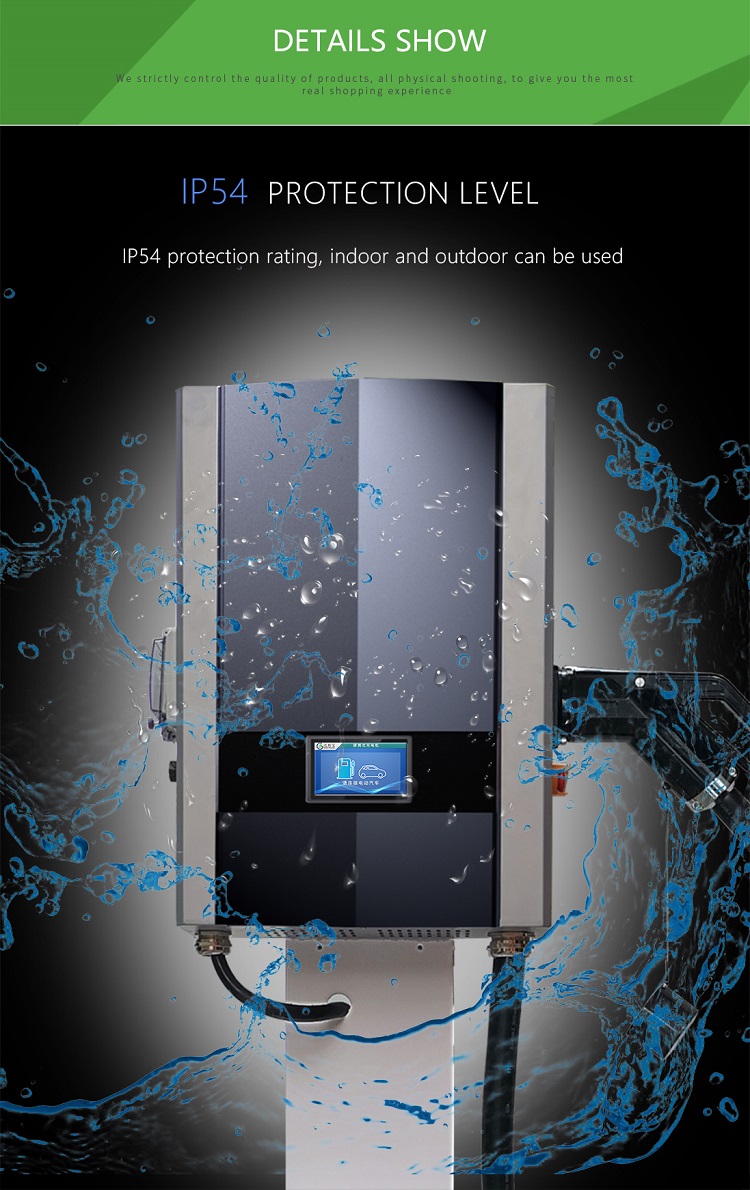

| IP Level | IP54 | |
| Mechanical & Standards | ||

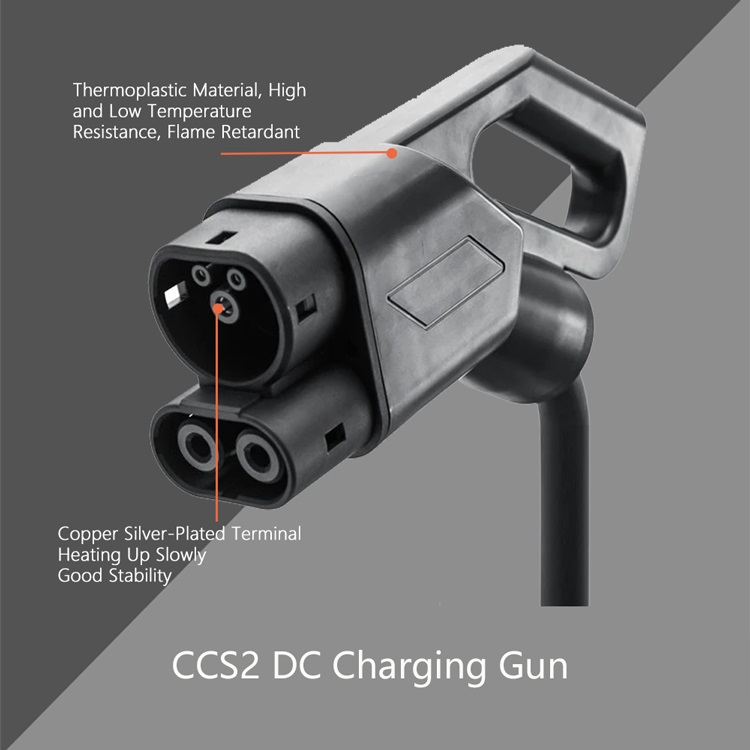

| Cable Length | 5M (CHAdeMO), 5M (CCS), 5M (GB/T) Customized acceptable | |
| Regulation | EN61851-1 | |
| Regulation & Protocols | ||
| Certification | CE, ROHS | |
| Charging Protocol | CHAdeMO 2.0 / DIN 70121 / ISO15118 / IEC61851-23, IEC61851-24 | |
