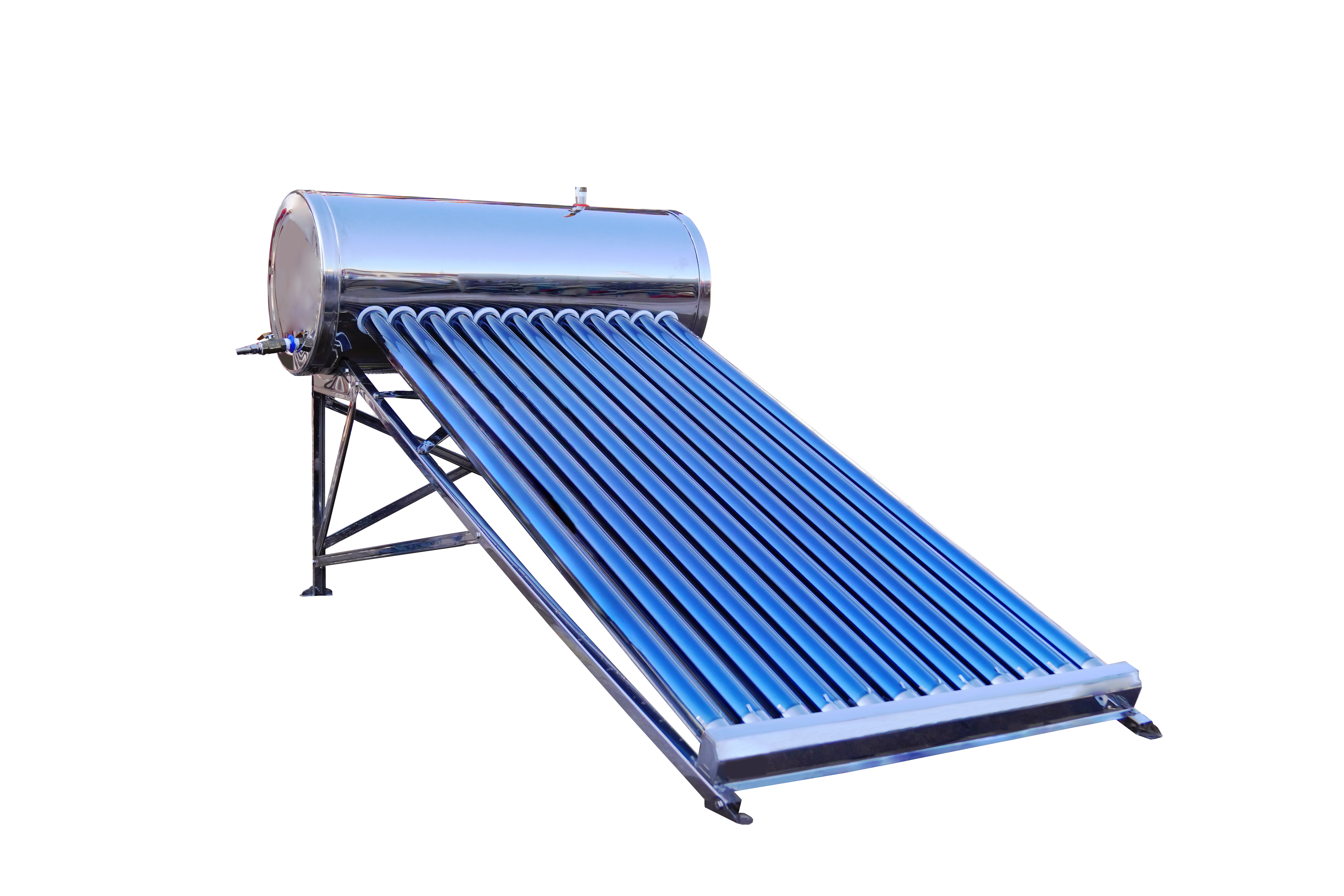

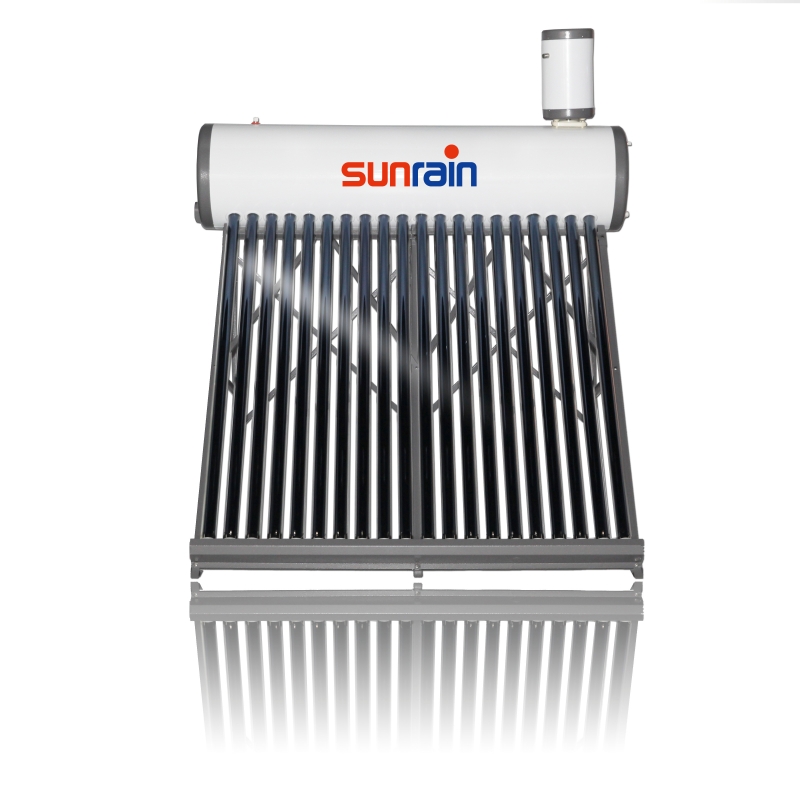

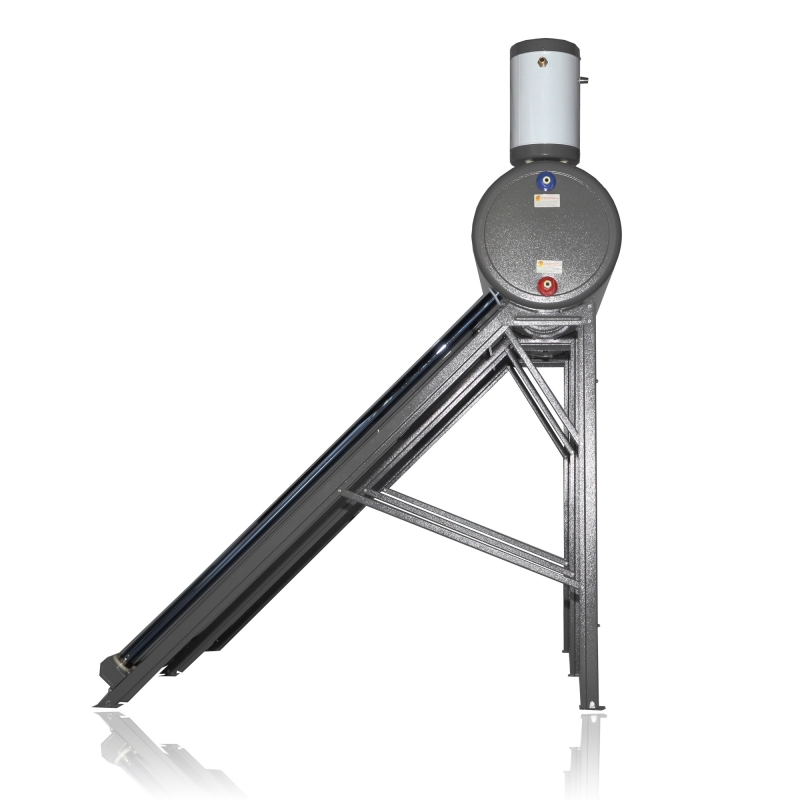

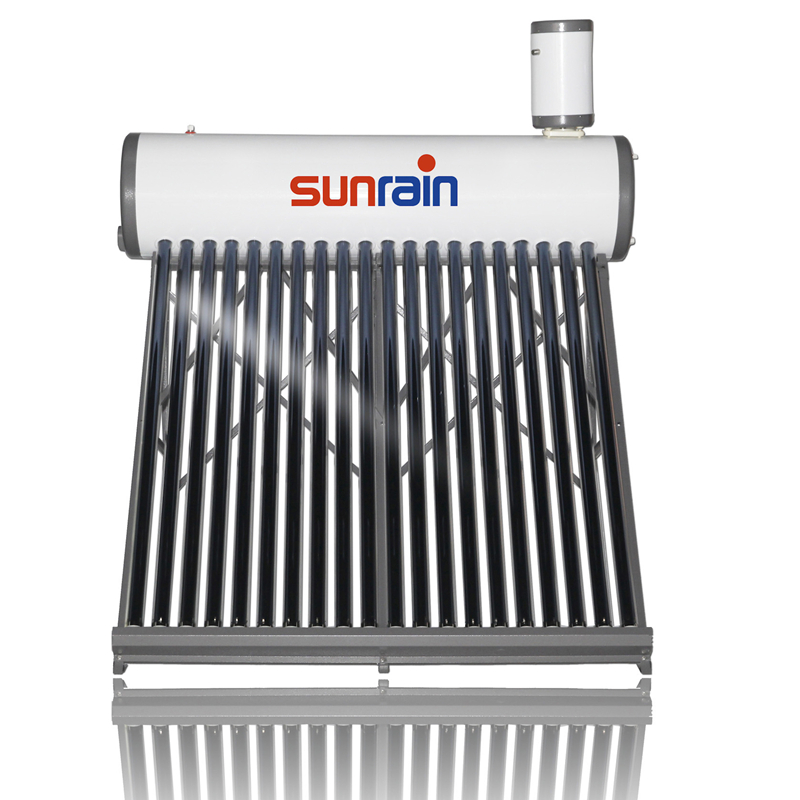

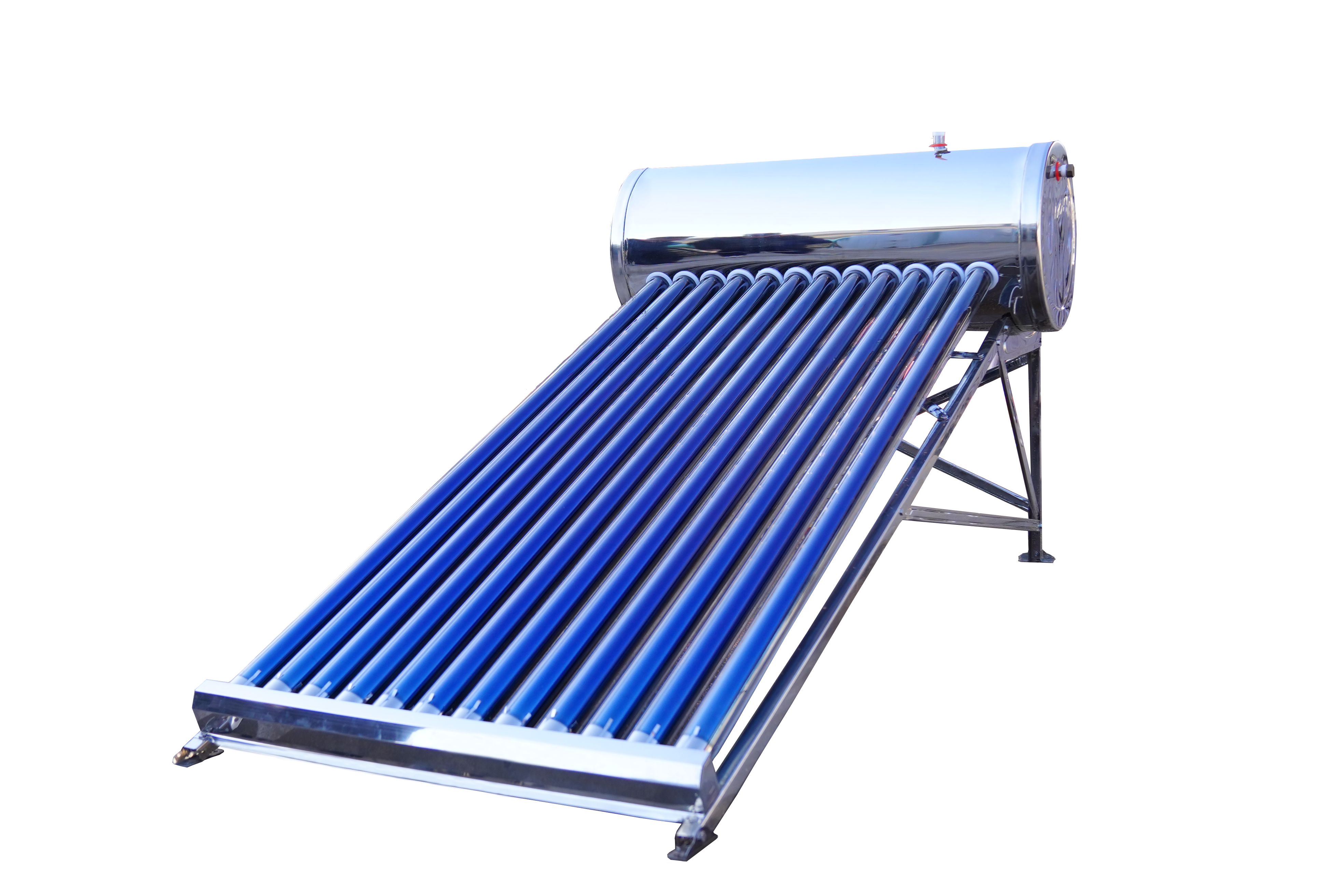

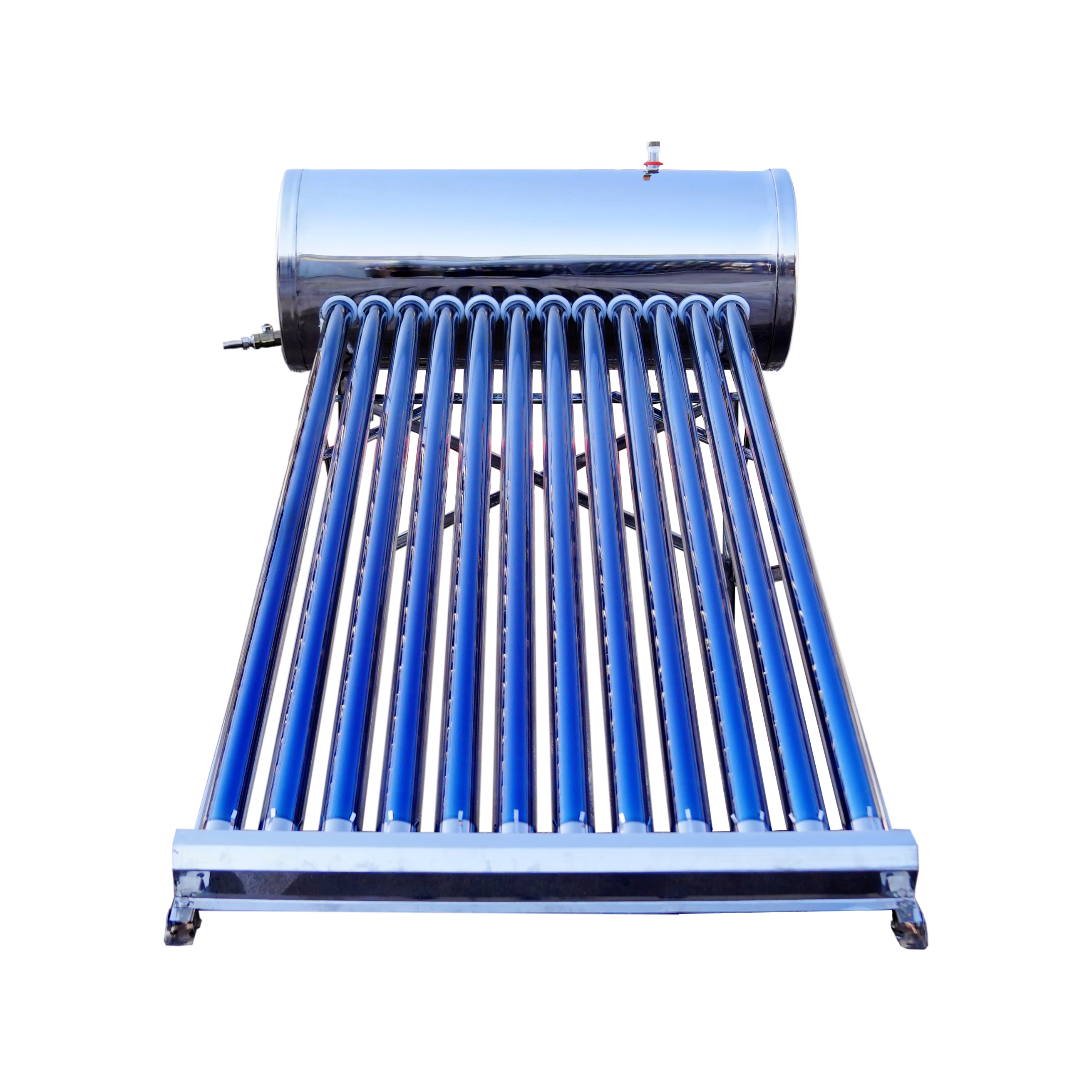

Solar water heating systems, or solar thermal systems, use energy from the sun to warm water for storage in a hot water cylinder or thermal store. Water in the heat exchangers will be heated quickly.
| Model | TZ58/1800-15E | TZ58/1800-20E | TZ58/1800-25E | TZ58/1800-30E |
|---|---|---|---|---|
| Volume | 150L | 200L | 250L | 300L |
| Material of inner tank | 0.5mm SUS304 | |||
| Material of insulation | 40mm Polyurethane | |||
| Electric resistance | 1.5KW | |||
| Copper coil | φ12mm | |||
| Working pressure | ≤0.6MPa | |||
| Max testing pressure | 1.0MPa | |||
| Size of pipe connection | G 1/2" | |||
| Angle of frame | 23°/30°/45° | |||
| 20GP/40GP/40HC Loading Qty | 36/75/89 | 28/59/70 | 23/49/58 | 20/42/49 |

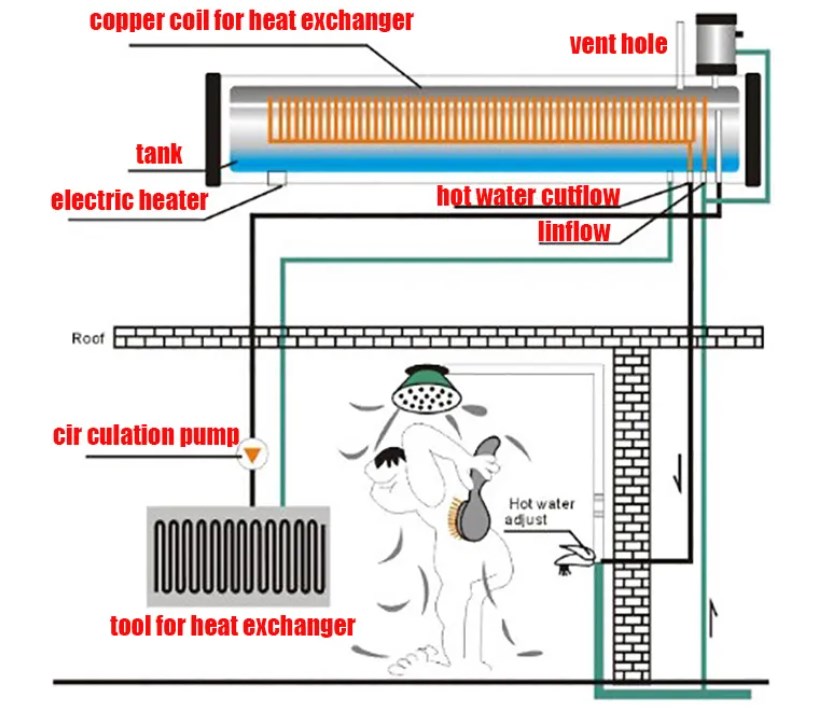

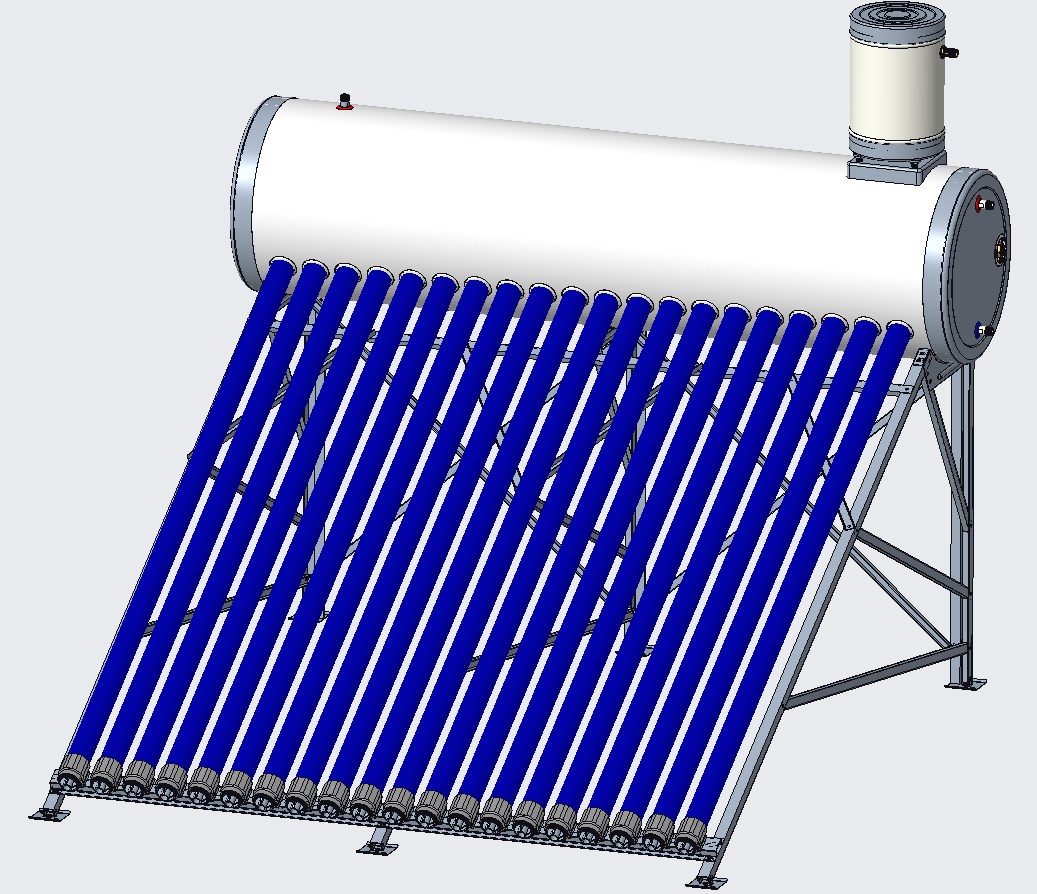

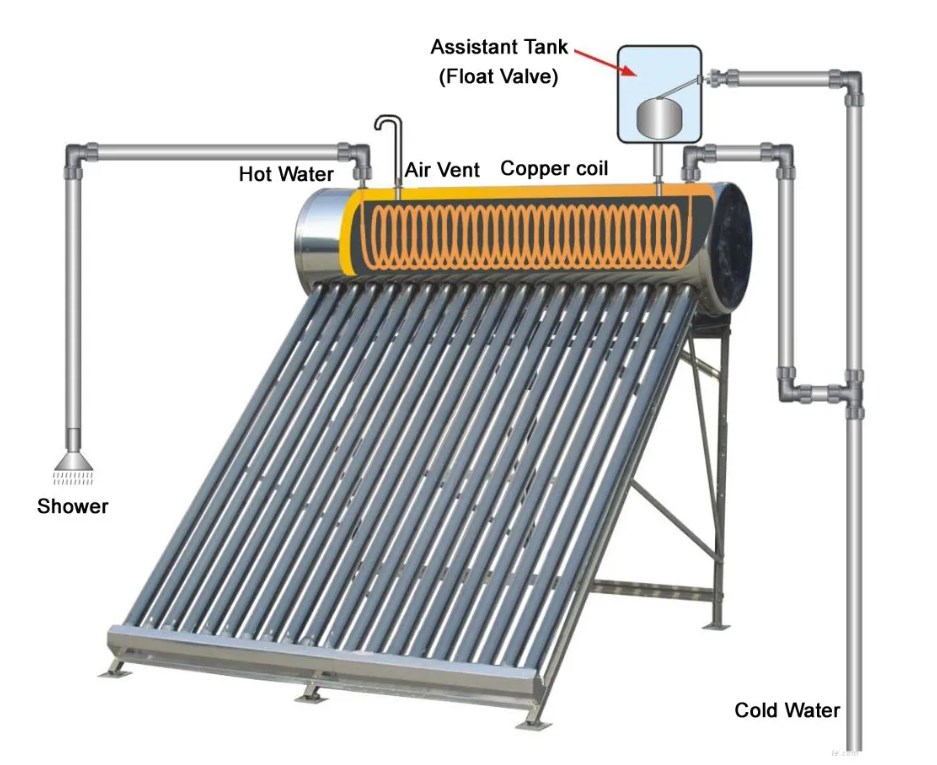

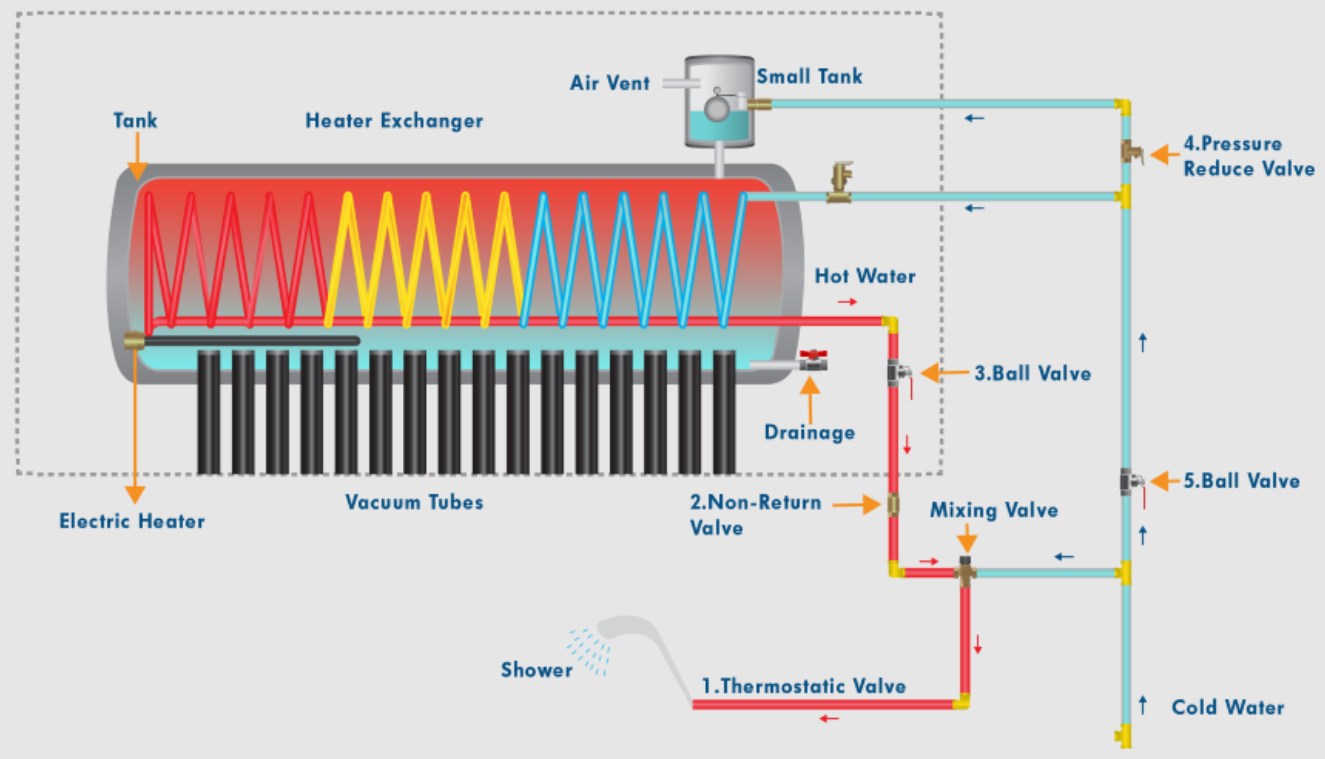

We can supply complete plumbing fittings for your installation, 3D design, easy for installation.

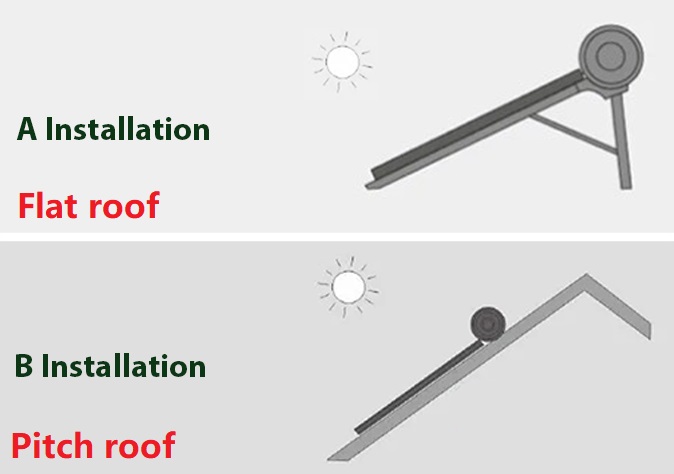

The solar water heater can be installed for both flat roof and pitch roof:

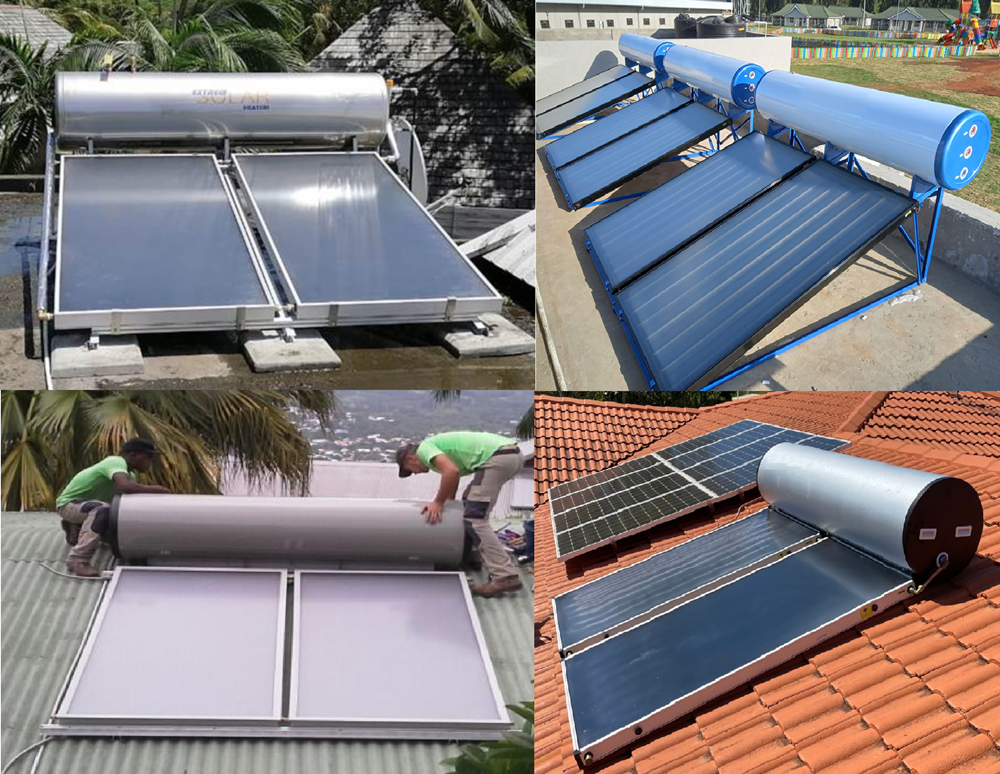

Pictures of our customer installations:
We have achieved numerous successful projects and held exhibitions overseas. Many international product certificates have also been obtained.

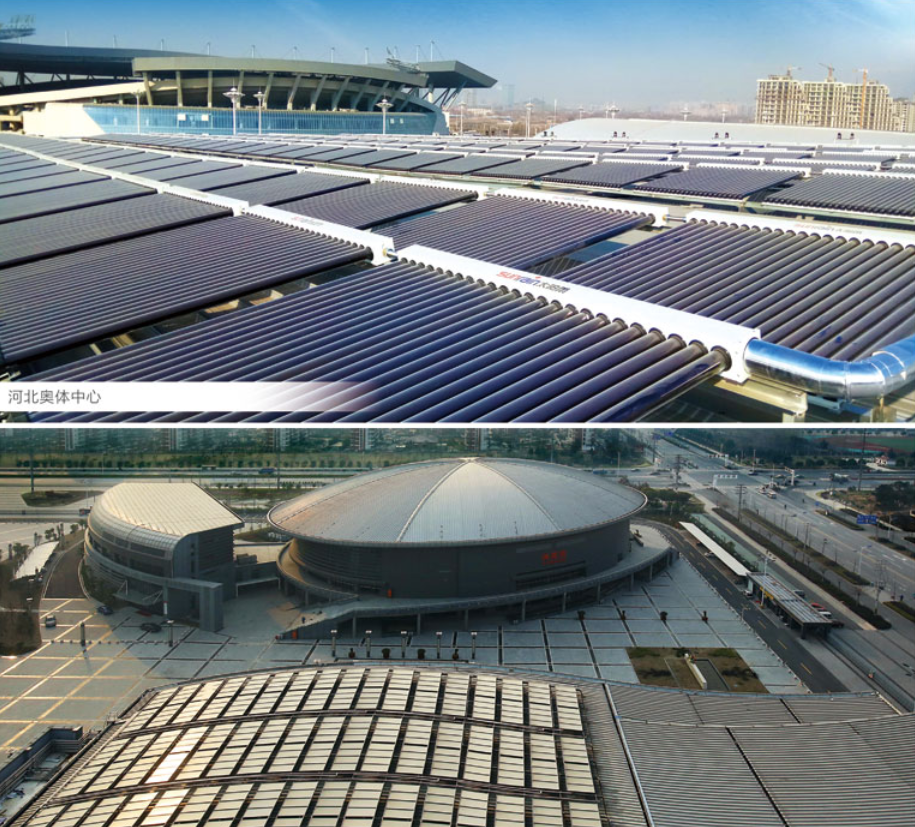

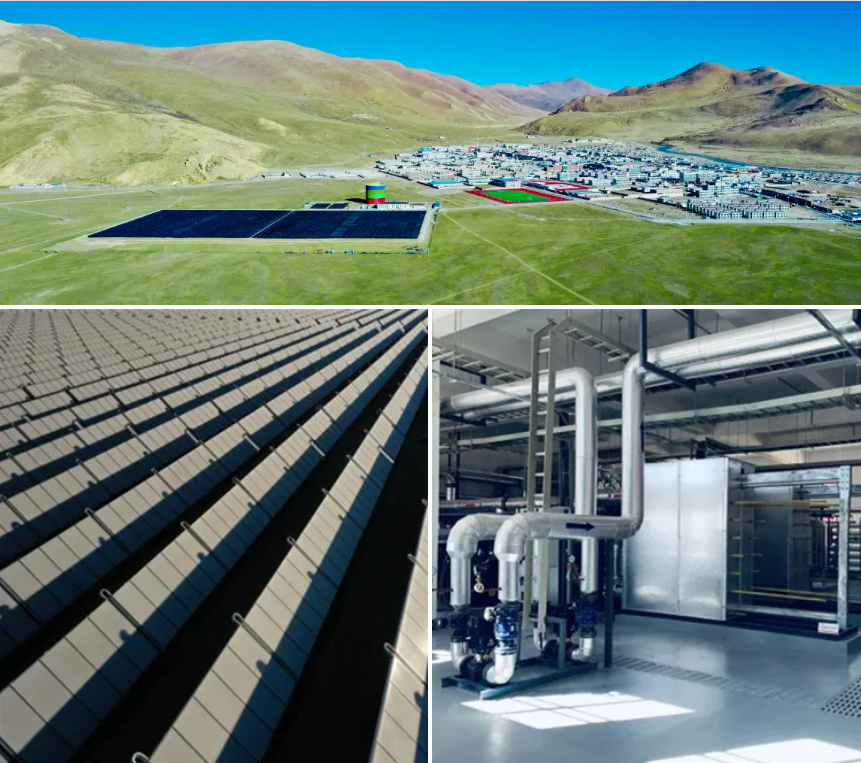

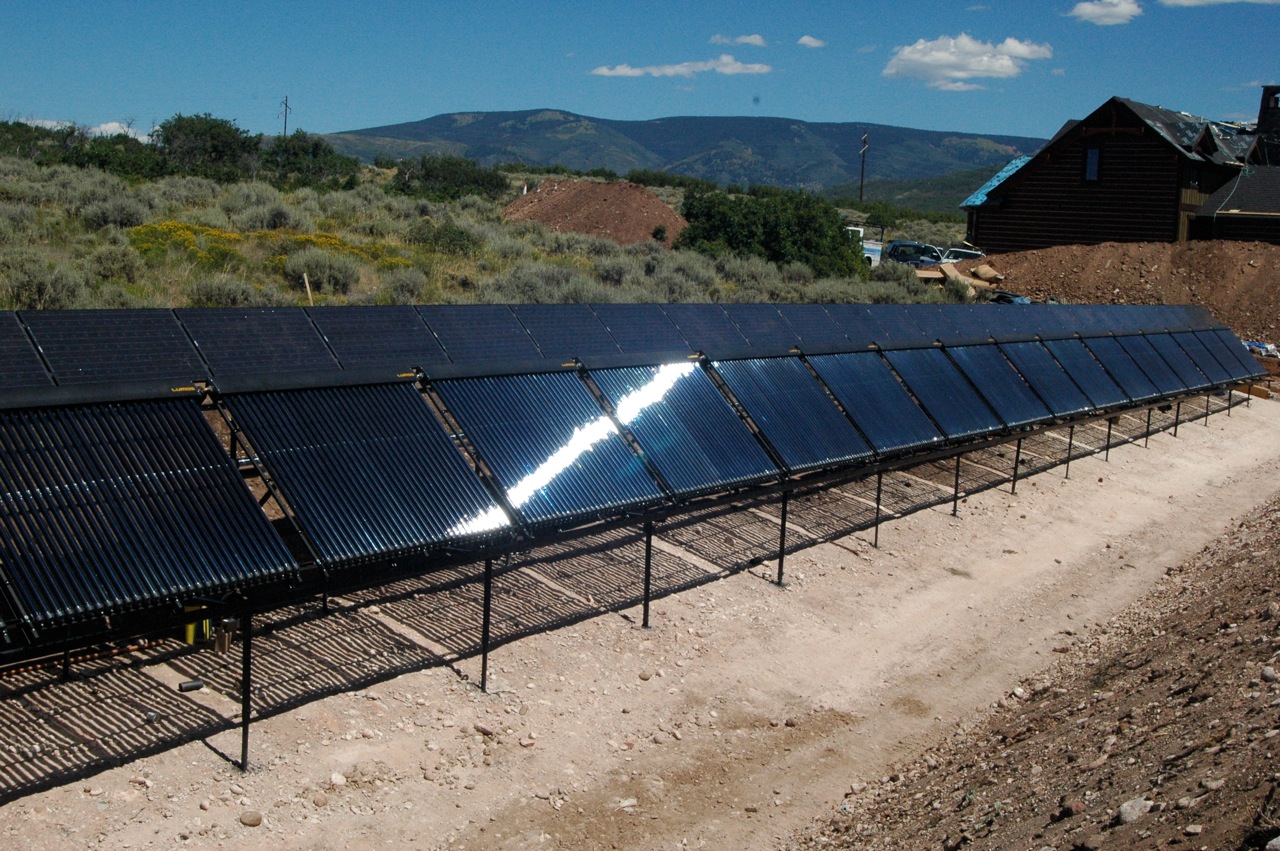

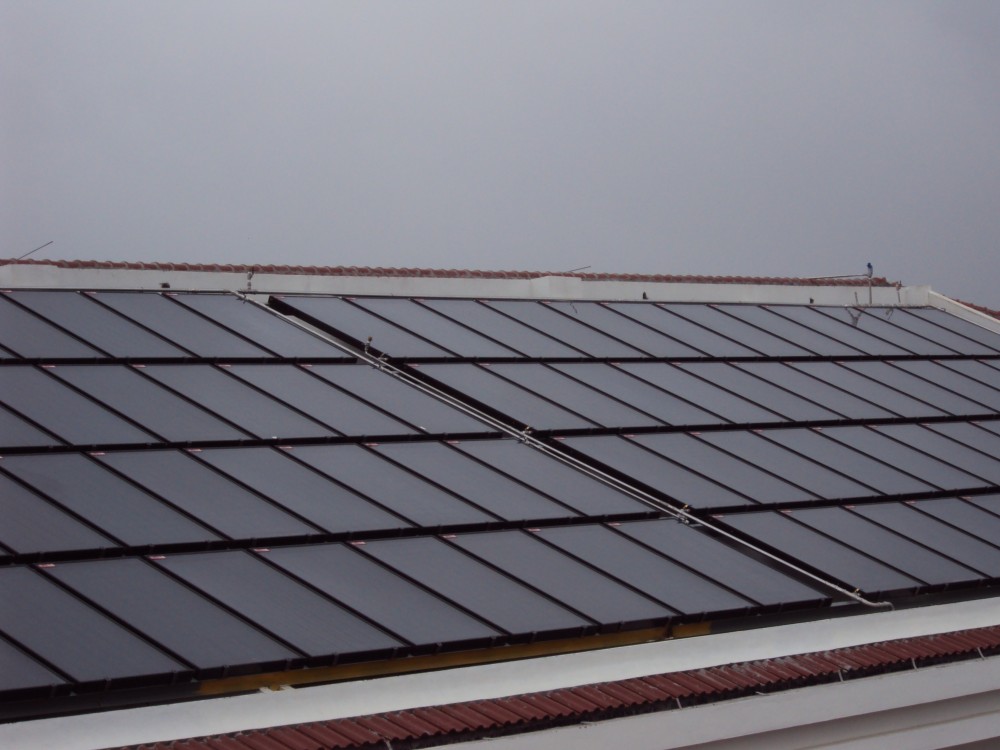

Successful projects
Successful exhibitions
We are a professional solar water heater manufacturer with rich experience and complete R&D, production, sales, and service supply. Welcome to visit our factory.
Our main products include solar water heaters, solar flat panel collectors, heat pump water heaters, heat pump dryers, swimming pool heat pumps, heat pump top kits, EVI heat pumps, etc. which can meet different demands from industrial, commercial, and residential applications.
LCL orders require 100% T/T payment. Container orders require a 30% T/T deposit, and the remaining 70% T/T before loading. L/C and OA payment options are also available.
LCL orders/Sample orders are processed within 20 days. Full container orders are shipped within 35 days.
We offer a 3 or 5-year warranty along with long-term technical support.

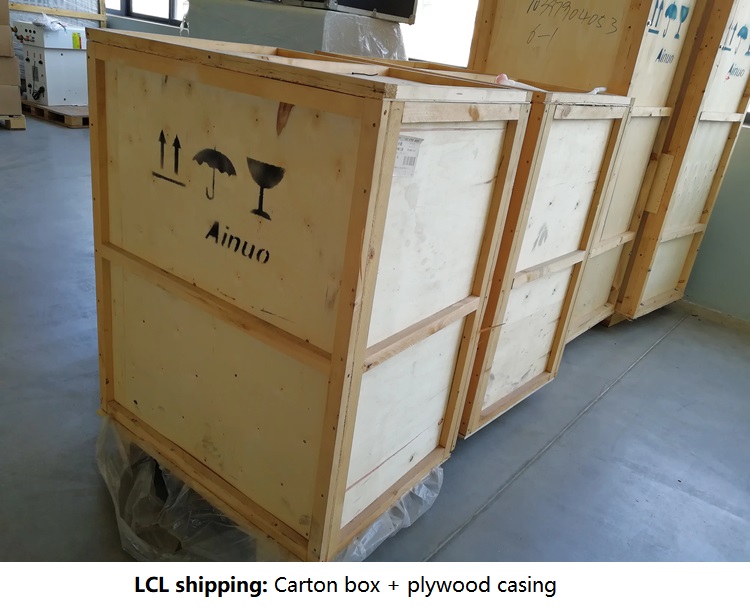

LCL orders/Sample orders are packed securely in plywood cases. Full container orders are packed in high-quality export cartons.
