Product Description

Solar Water Heater Product Range
Solar Water Heater Details
Product Models & Parameters
Model Tubes QTY (PCS) Capacity (Liters) Packing Size (m³) Loading Quantity Sets (20FT/40HQ)
JN-SS-5808 8 80 0.260 107/261
JN-SS-5810 10 100 0.320 87/212
JN-SS-5812 12 120 0.420 66/161
JN-SS-5815 15 150 0.495 56/137
JN-SS-5818 18 180 0.576 48/118
JN-SS-5820 20 200 0.700 40/97
JN-SS-5824 24 240 0.768 36/88
JN-SS-5830 30 300 1.050 26/64
JN-SS-5836 36 360 1.120 25/60
JN-SS-5840 40 400 1.280 20/53
Technical Specifications
Inner Tank Stainless Steel 304 2B
Outer Tank Stainless Steel 201
Insulation layer 55mm thick high density polyurethane foam.
Vacuum Tube 58-1800mm three target golden purple solar vacuum tube
Frame Stainless Steel 201 1.2 to 1.5 mm thick
Frame Angle ( 45/35/28/20) degrees suitable to flat and sloping roof
Tank Diameter 460mm
Commercial Terms
Warranty 5 Years
Delivery Time Delivery time within 10 days after receiving deposit
Packing Standard Export Packing
Payment Term TT/LC
Other free services Free installation manual in English, put logo on tank, cartons, and tubes

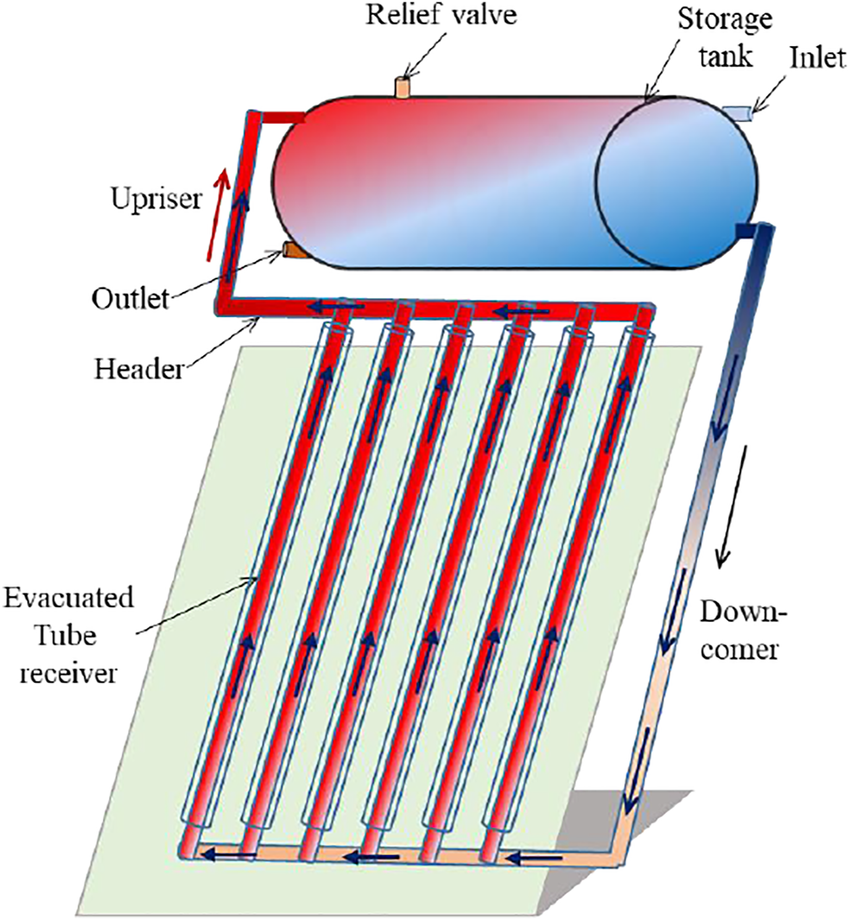

Solar Water Heater Structure Diagram

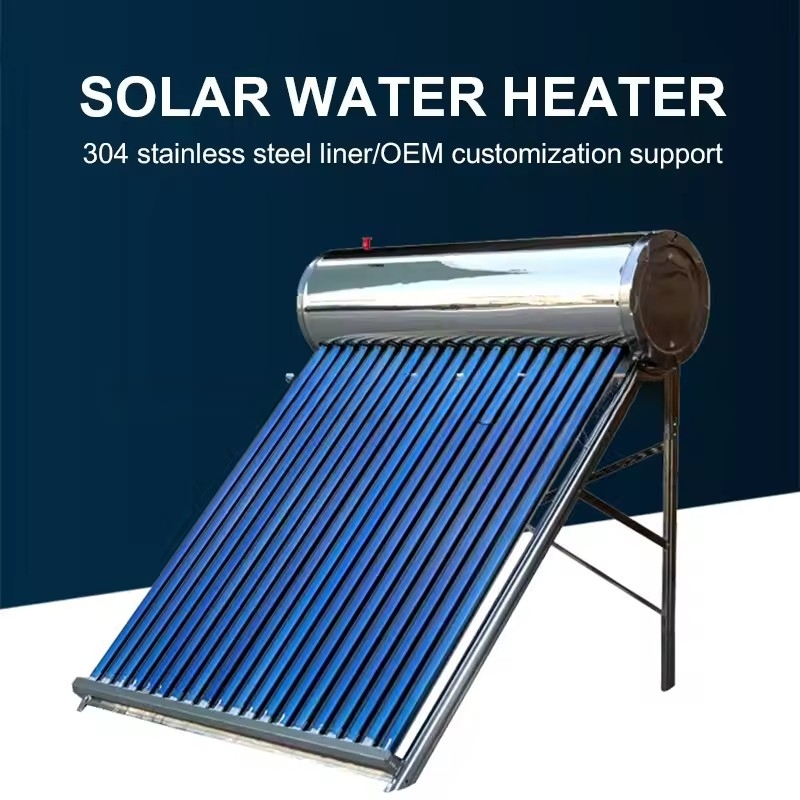

Production Process 1

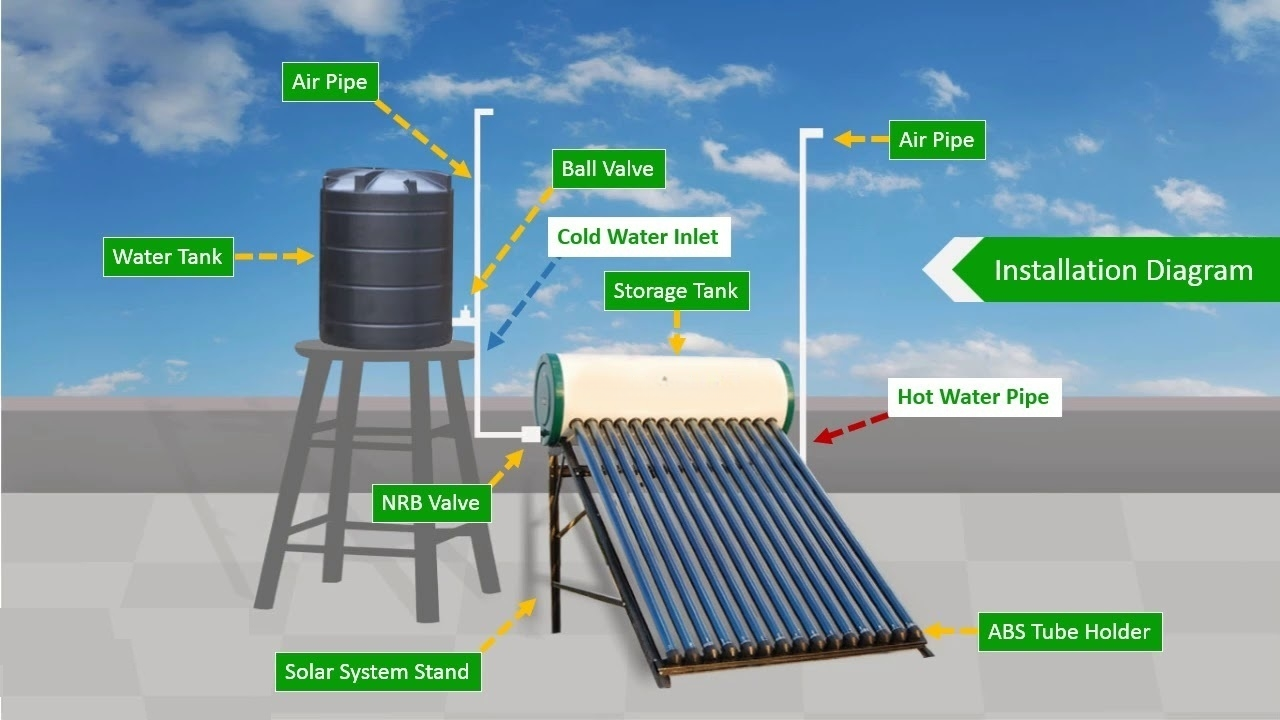

Production Process 2

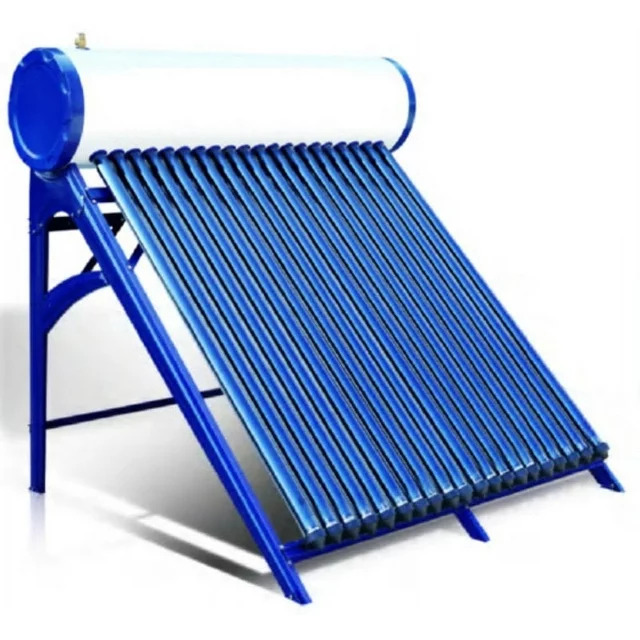

Production Process 3

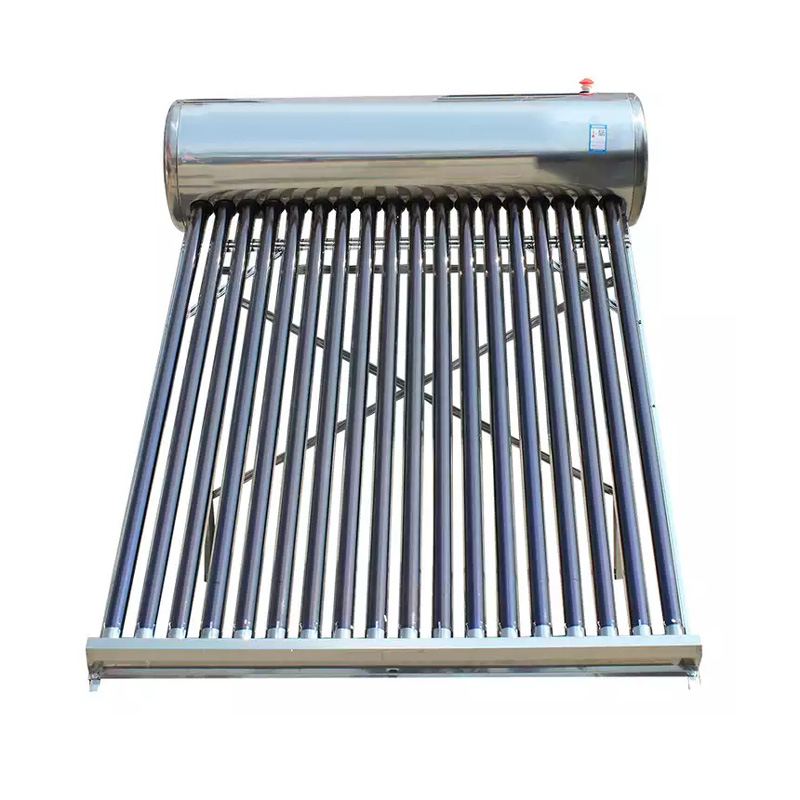

Production Process 4

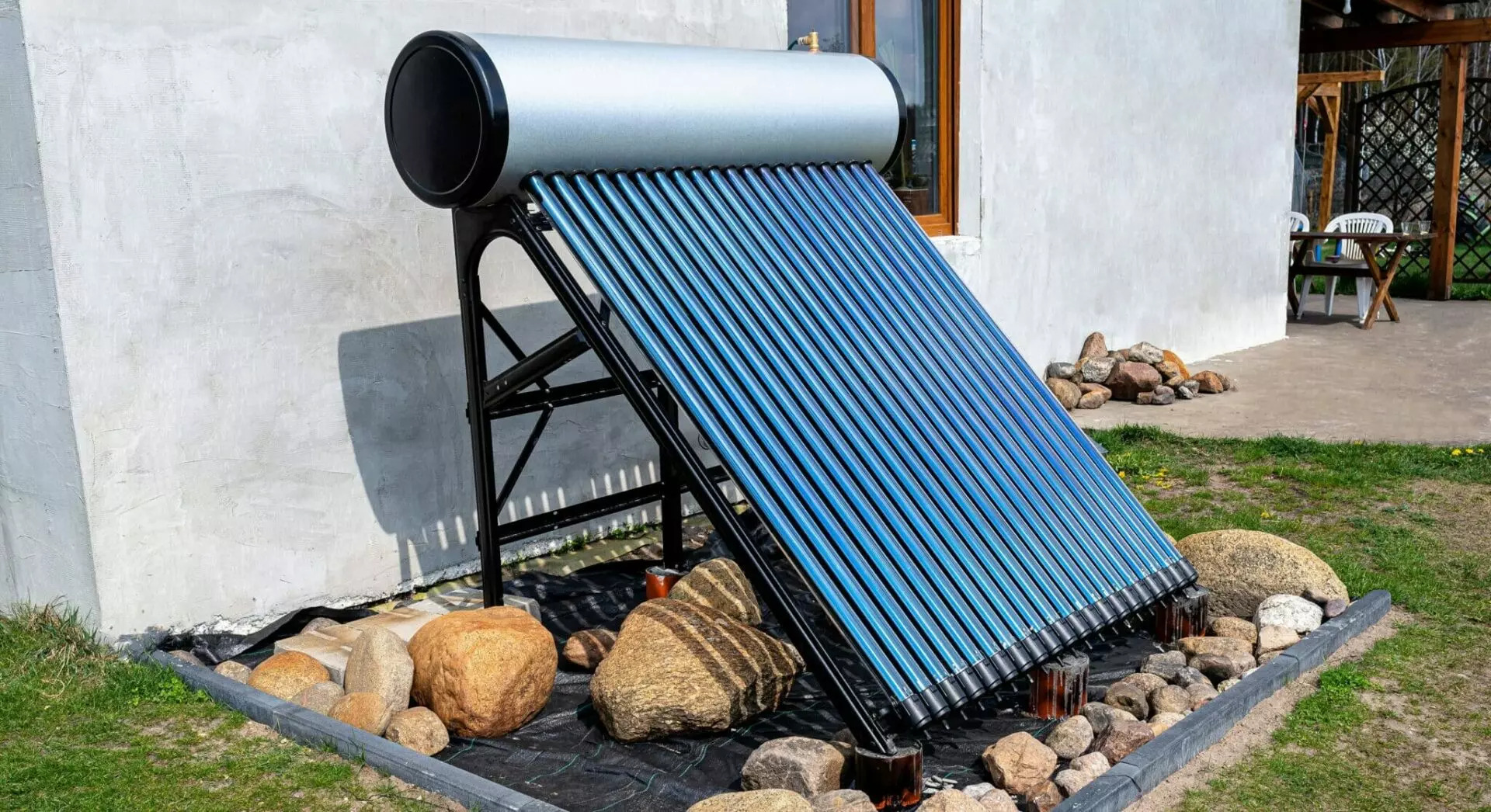

Production Process 5
Production Process 6

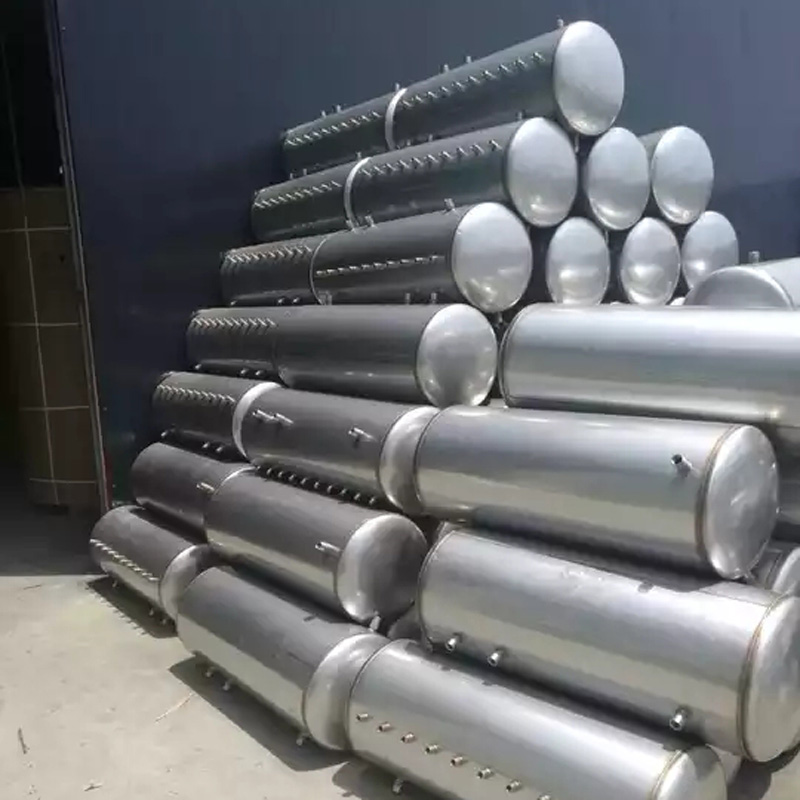

Production Process 7

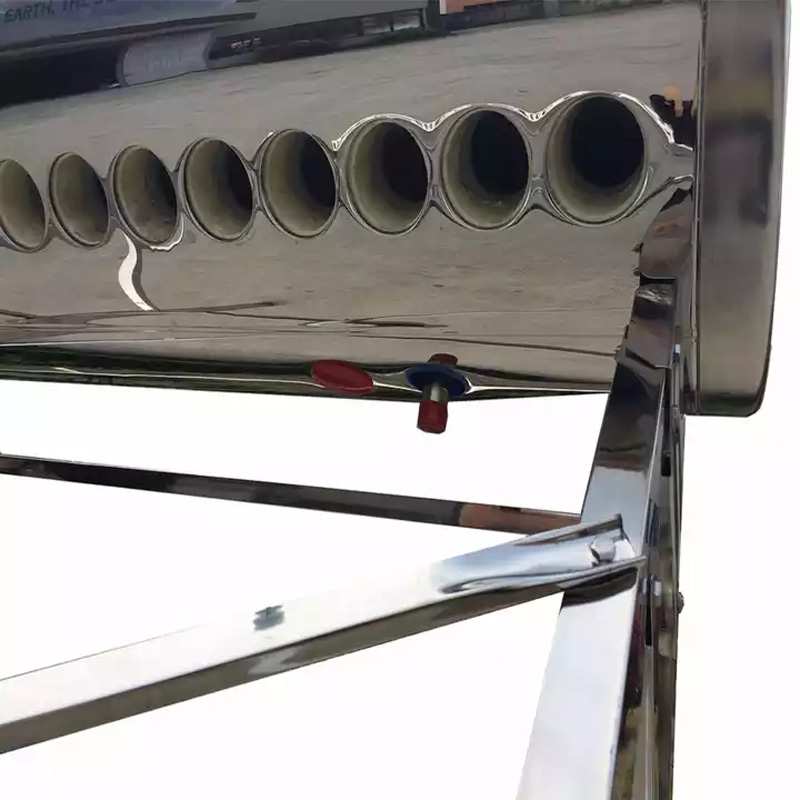

Production Process 8

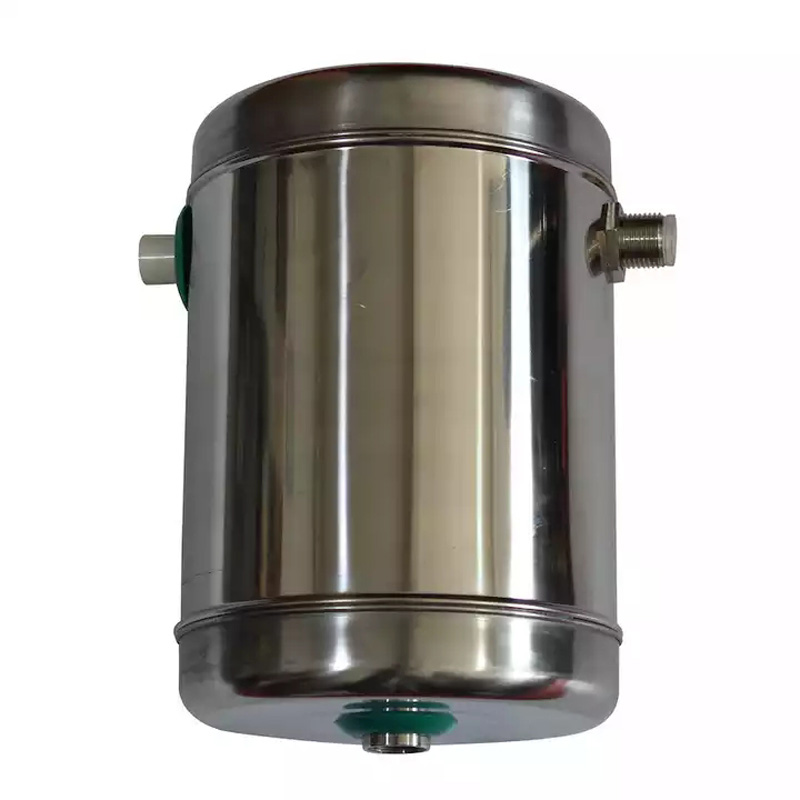

Production Process 9
Production Process 10
Solar System Schematic
Product Categories Overview
Product Quality Certificate
Factory Testing Facility
Packaging and Loading
Frequently Asked Questions
What types of heat pumps are available?
We manufacture on/off heat pumps, DC frequency conversion heat pumps, air source heat pumps, water-water heat pumps, swimming pool heat pumps, high temperature heat pumps, and other customized heat pump solutions.
What are the advantages of air source heat pumps over other water heaters?
They avoid the leakage, dry heating, and high power consumption risks of traditional electric water heaters. They also eliminate the typical hazards of gas water heaters, such as harmful gas emissions, installation limits, and start-up issues. They offer high efficiency, energy savings, all-weather operation, safety, and environmental protection.
What is the monthly manufacturing capacity?
The monthly production output for heat pump water heaters is approximately 3,000 units.
What is the typical delivery lead time?
Generally, delivery takes 20 to 30 days after receiving the advance payment. The exact lead time depends on the specific project and order requirements.
What training and support are provided for agents, distributors, and OEMs?
Comprehensive training services are available, including sales training, heat pump and solar system product training, after-sales service training, maintenance machine operation training, large air cooler or heating project design training, internal parts exchange, and testing procedure training.
Where are air source heat pumps typically applied?
Because air source heat pumps save about 70% energy, they are widely used for home heating, central cooling and heating systems, and hot water supply in hotels, restaurants, hospitals, schools, bath centers, residential buildings, and industrial plants.
