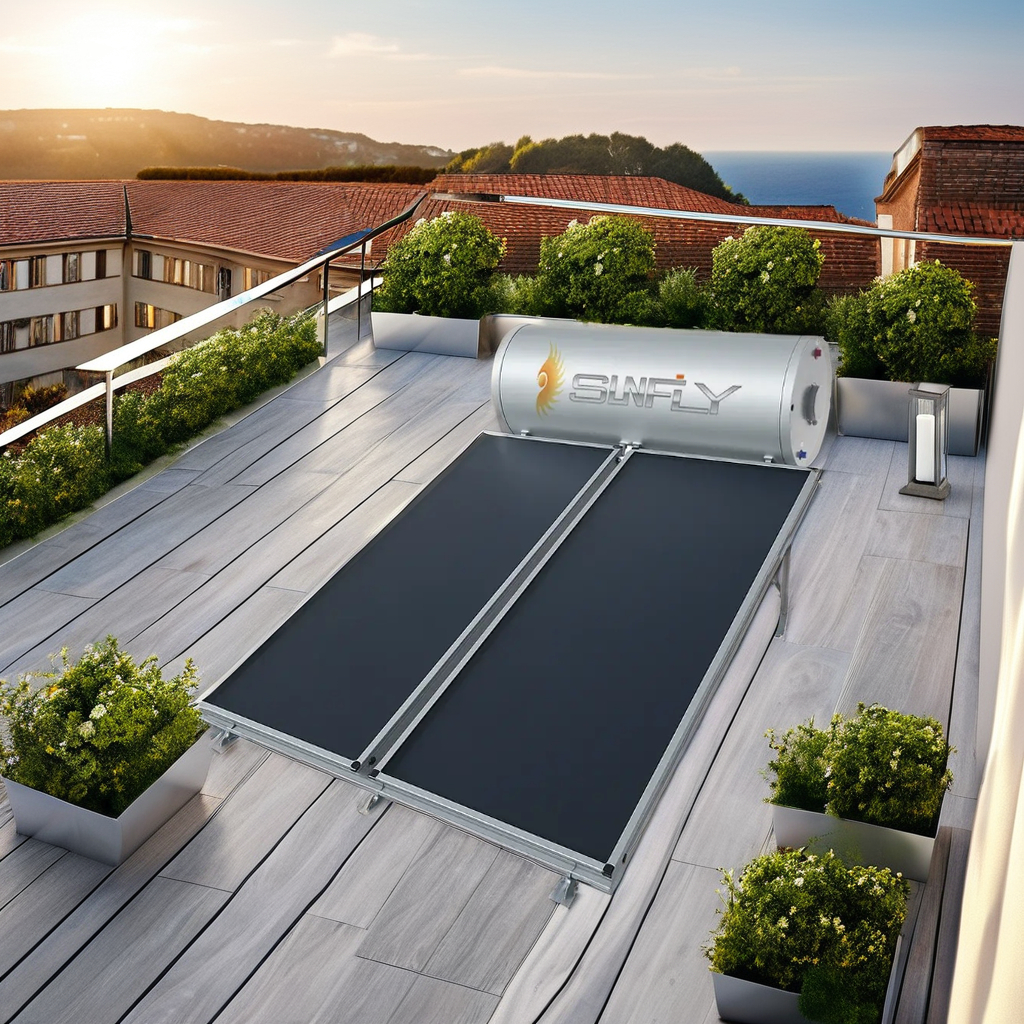

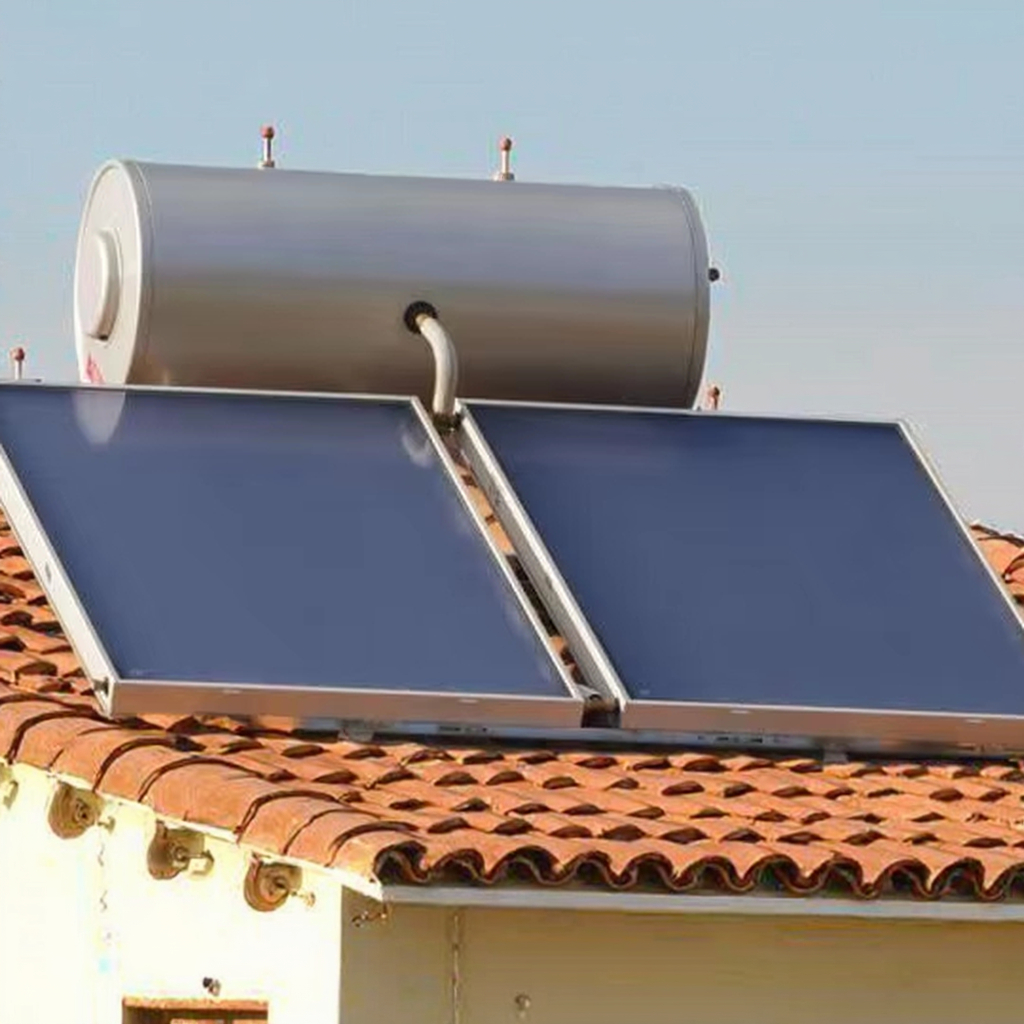

Popular Product 300L Flat Panel Solar Water Heater for Outdoor Safe and Comfortable Hot Water Heating Thermal Roof System

Product Description

Solar Water Heater Showcase

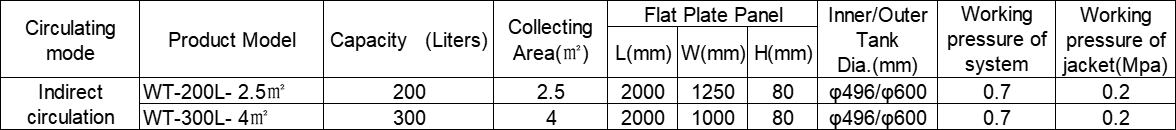

Compact Solar System Layout

Compact pressurized flat plate panel solar water heater

  • Easy installation, integration with building perfectly.
  • Durable, safe and reliable.
  • The pressure to run.
  • Antifreeze scale, defrost the snow.
  • Anti-plot dew, no rivets.

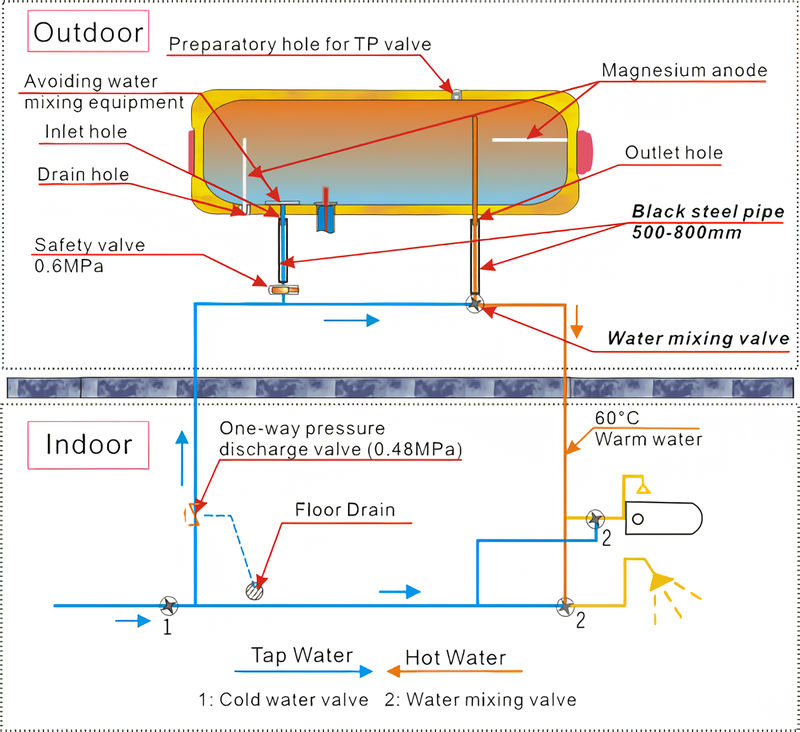

Dimensional Drawing Product Structure System Specification Diagram
Component & Part Specification details
Water Tank Inner Tank Special Steel Plate With Enamel Coating(2.5mm thick), same as jacket tank
Outer Tank Color Steel Plate(0.4mm thick)
Insulation Layer Polyurethane foam(50mm thick)
Electric Heater 1.5KW and 2KW (220V,50H)
Flat Plate Panel Cover Tempered Glass 3.2mm
Absorber Aluminium Plate/Copper
Coating Selective absorb painting
Insulation Rock wool and PU
Sealing profile EPDM
Bracket Galvanized steel with plastic spraying (1.5mm/2mm thick)

Flat Plate Panel — The Australia standard

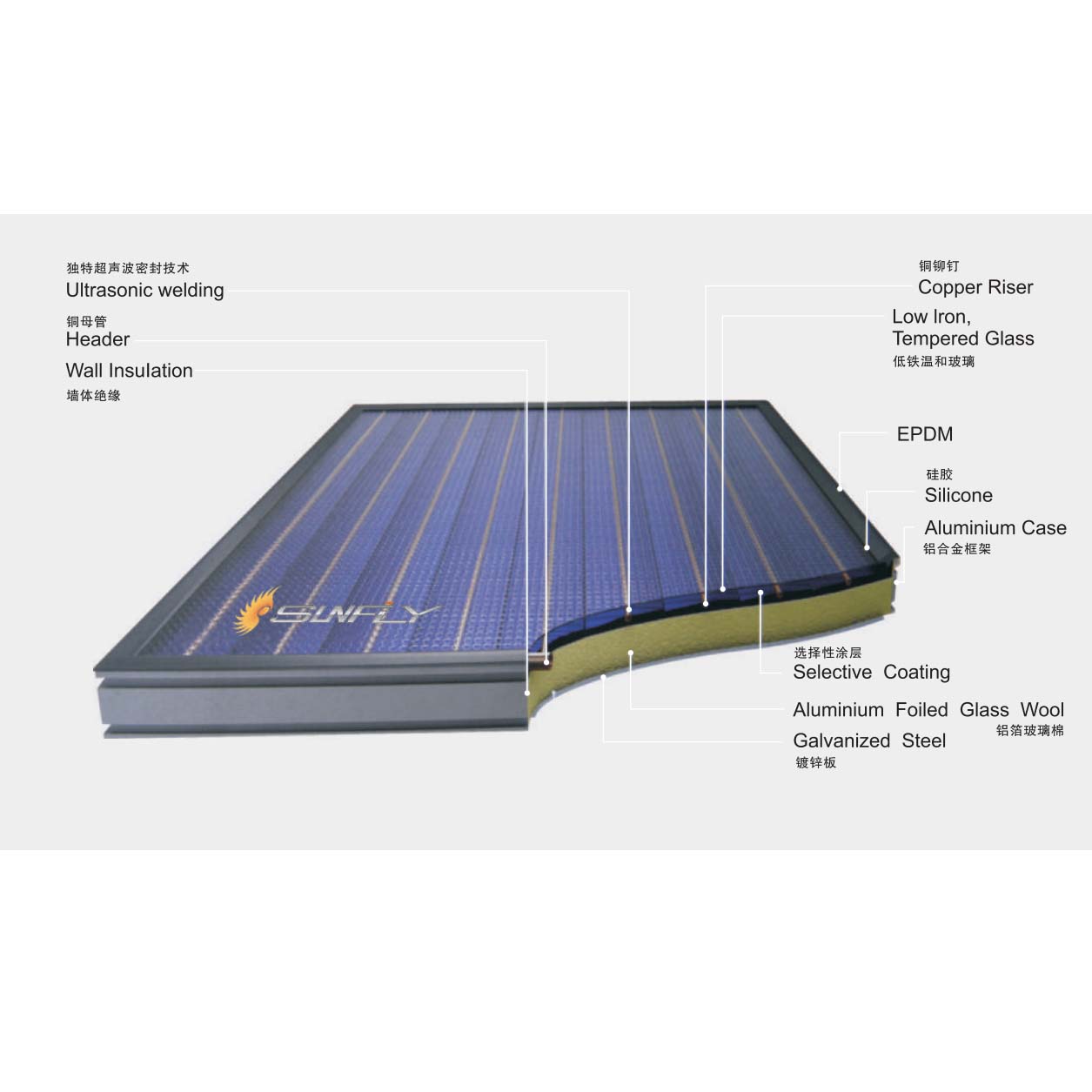

Australian Standard Flat Plate Absorber

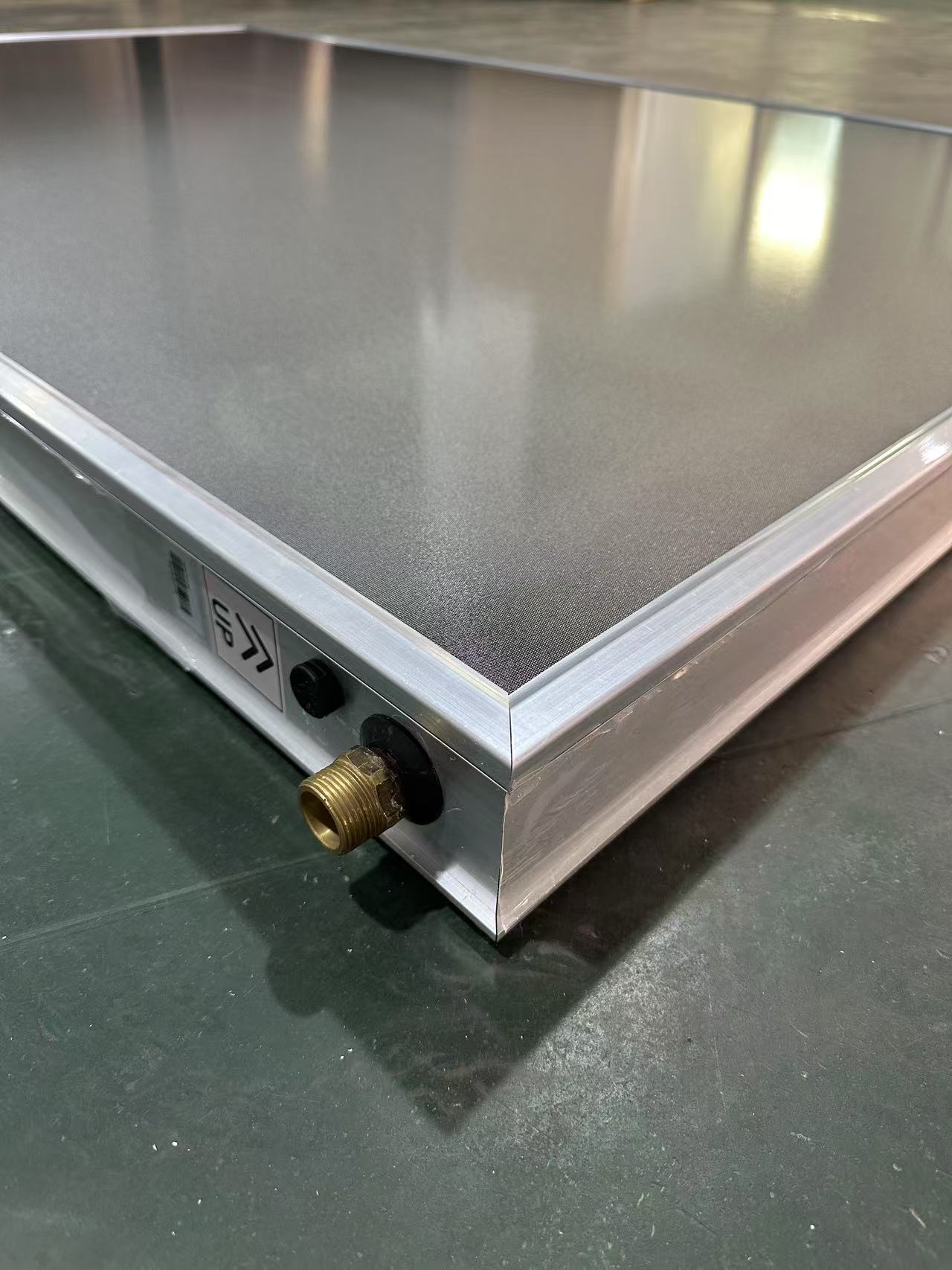

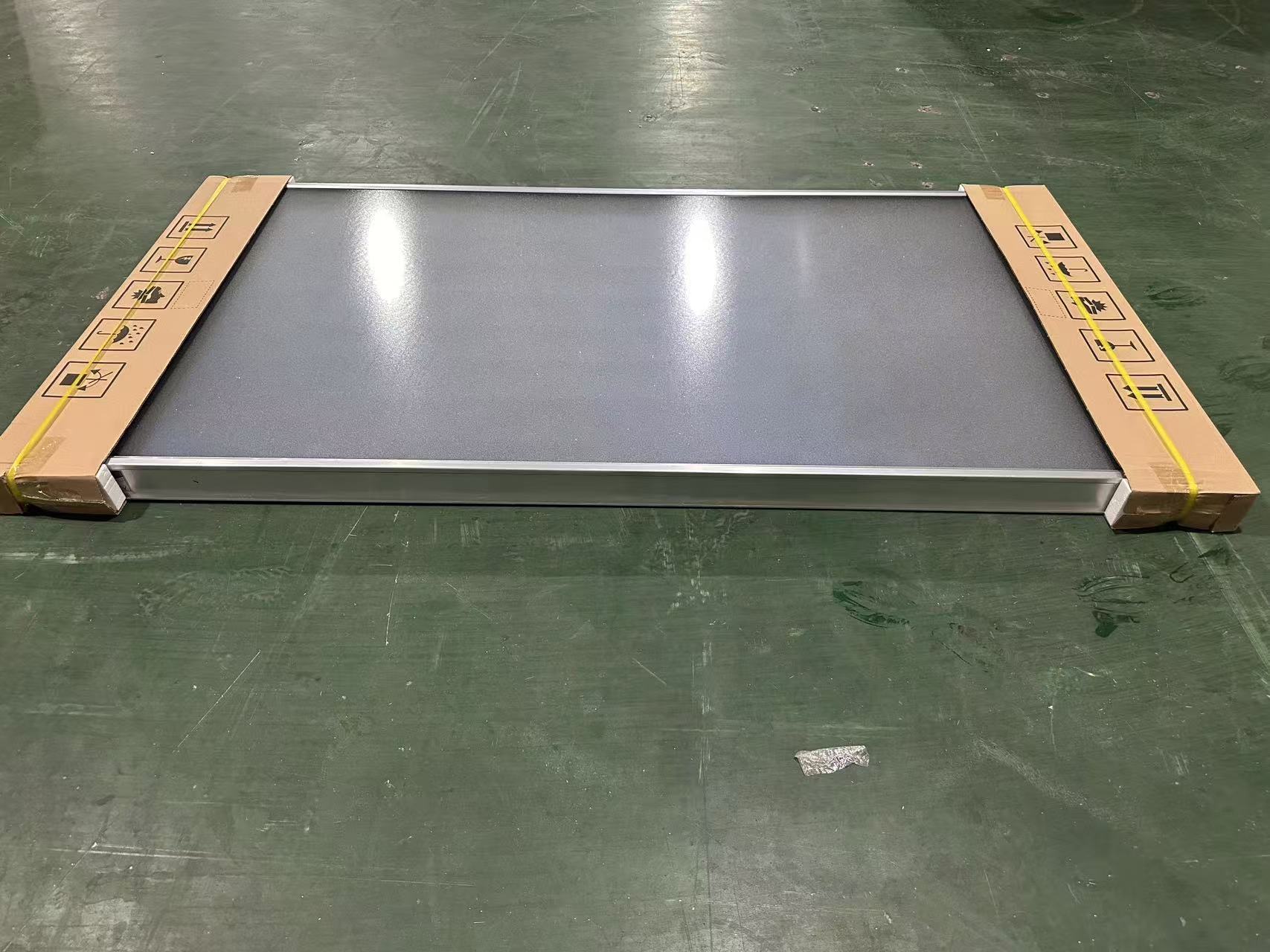

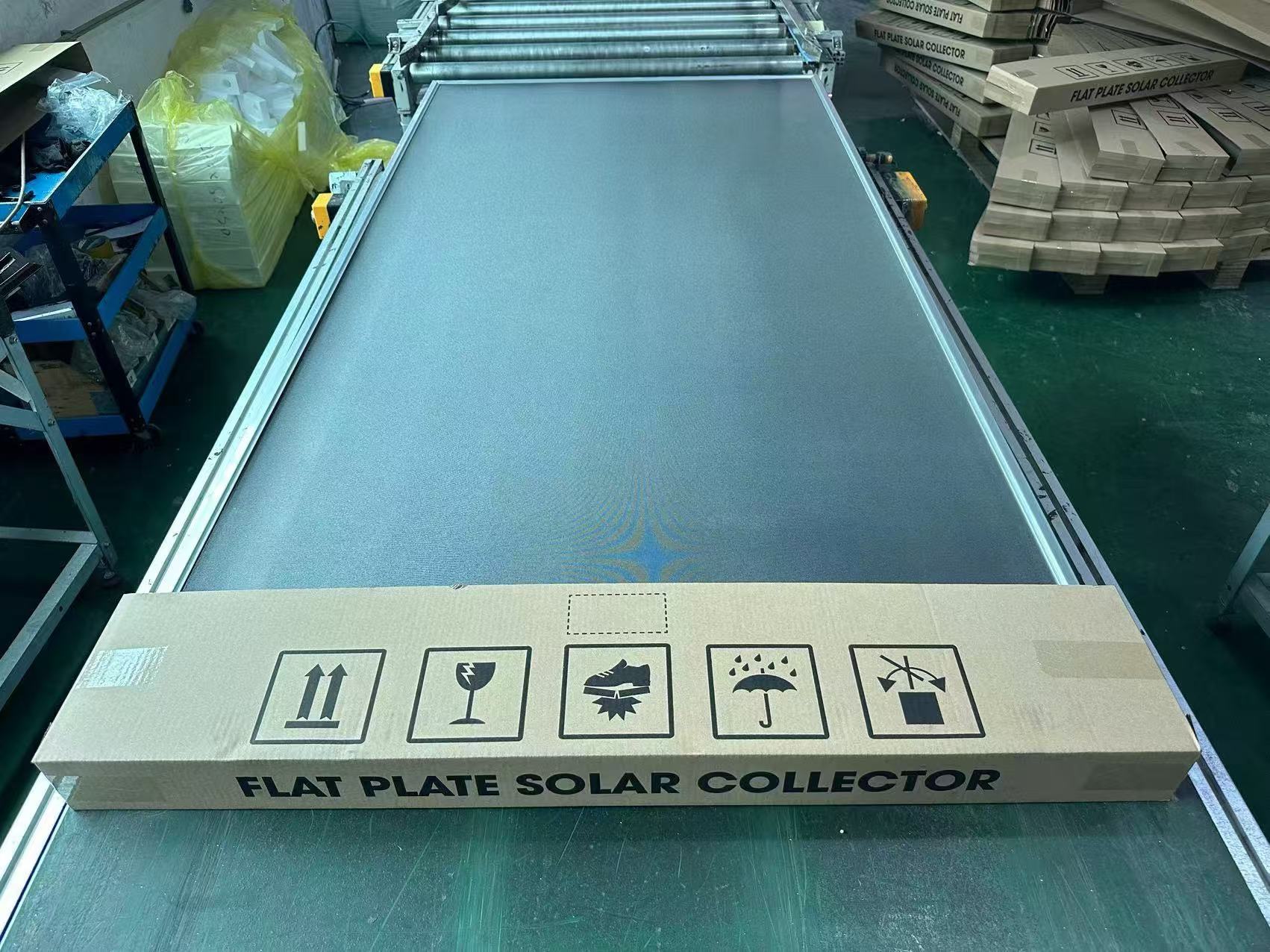

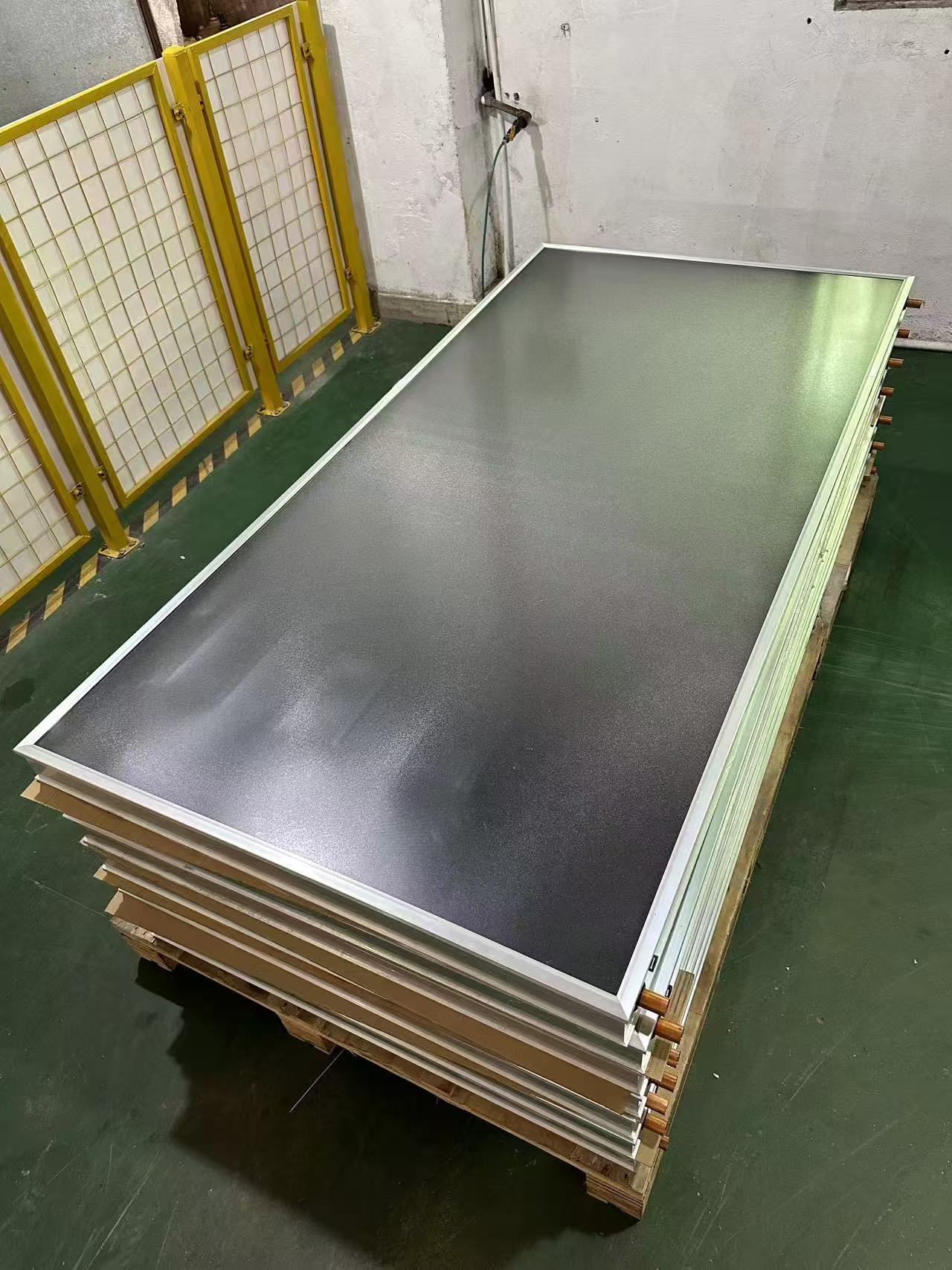

Production Detail 1 Production Detail 2 Production Detail 3

Water Tank — European standard

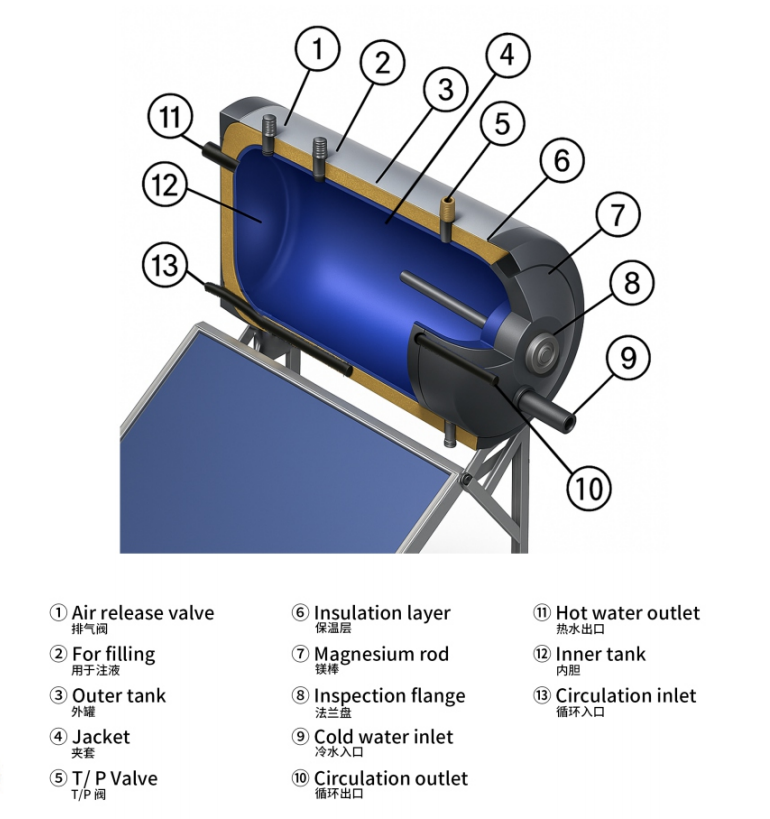

European Standard Water Tank Diagram

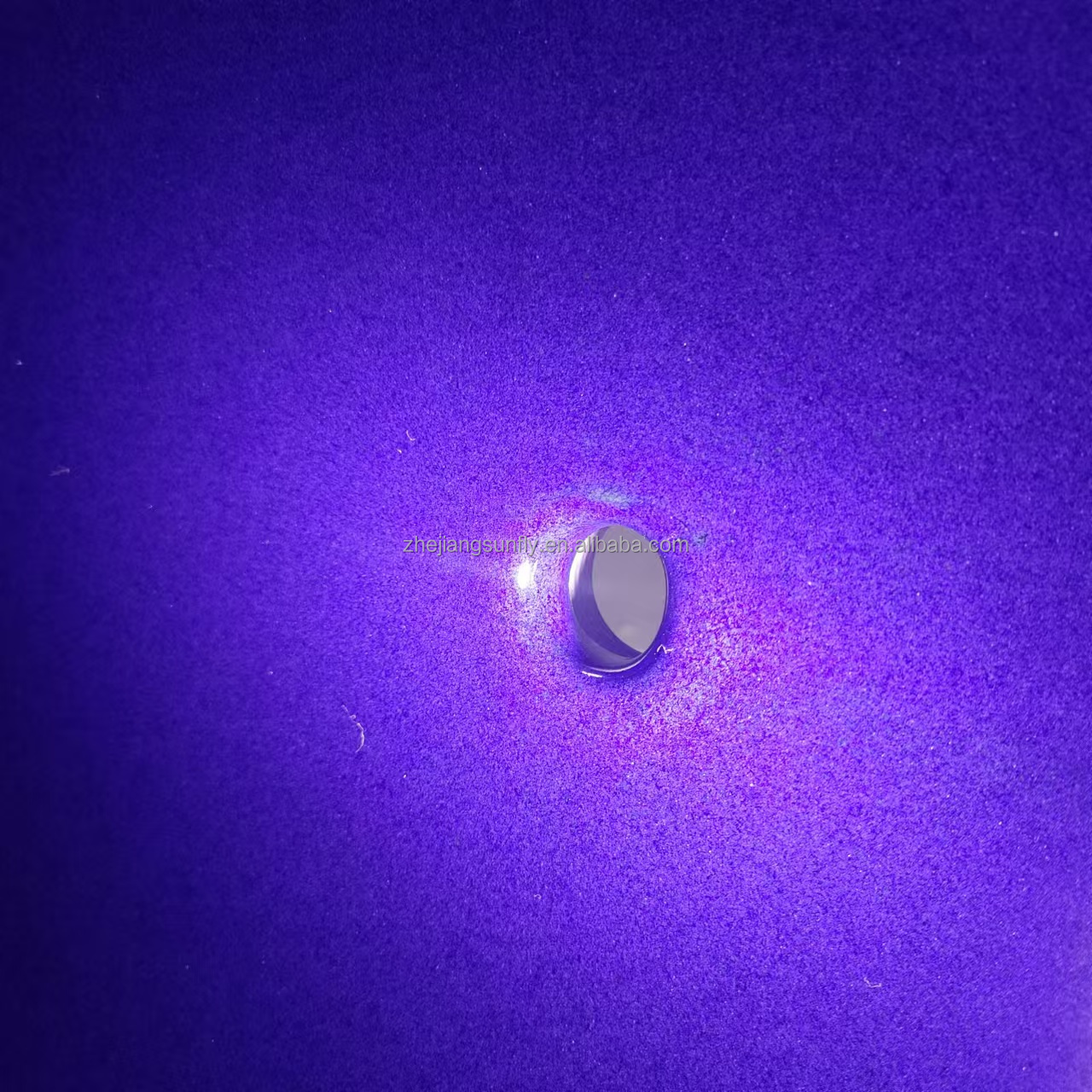

Inner Tank Detail

Inner Tank

Special Steel Plate with Enamel Coating. Adaptable to various water qualities and has a long service life. Designed with a replacement port, making it more convenient for replacement and maintenance.

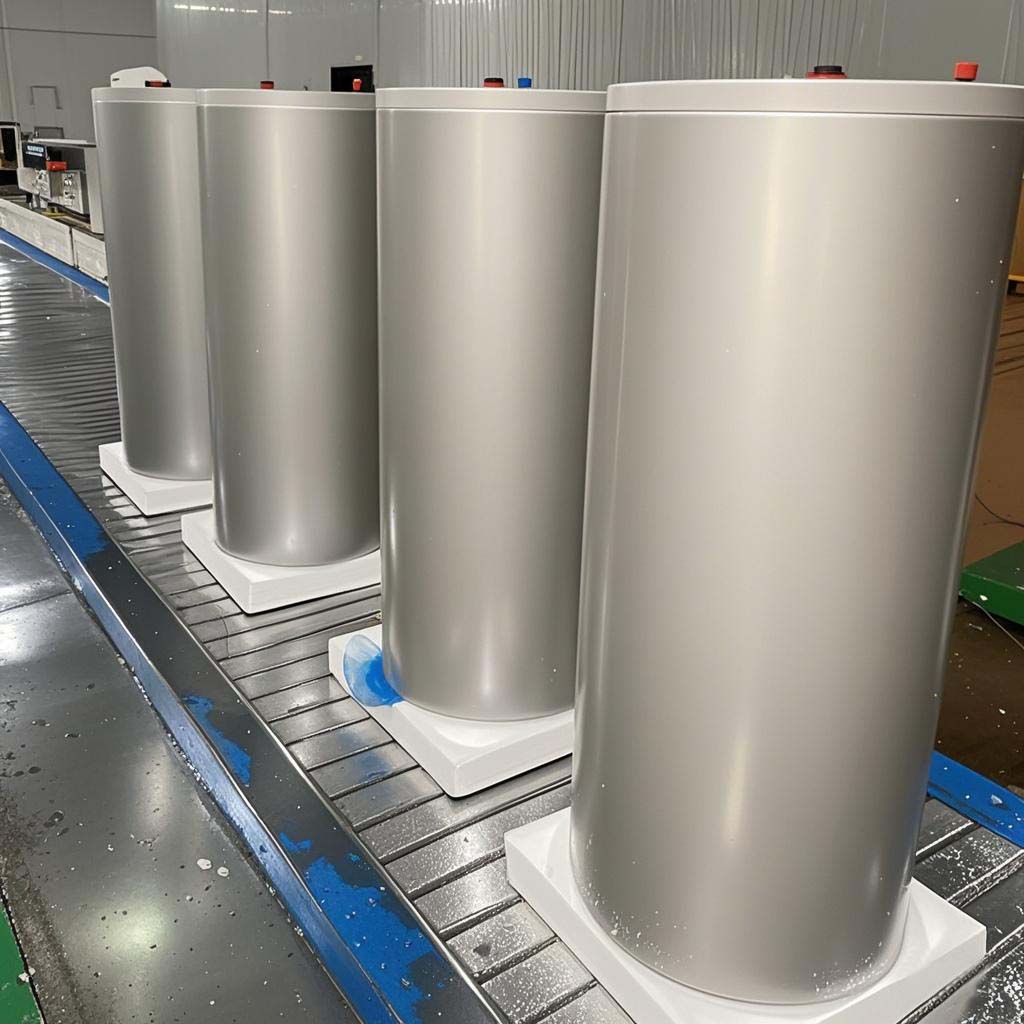

Outer Tank Detail

Outer Tank

Color Steel Plate, designed to withstand harsh weather conditions, ensuring long-term performance. Equipped with efficient insulation layers to minimize heat loss, keeping water warm for extended periods.
Manufacturing quality testing

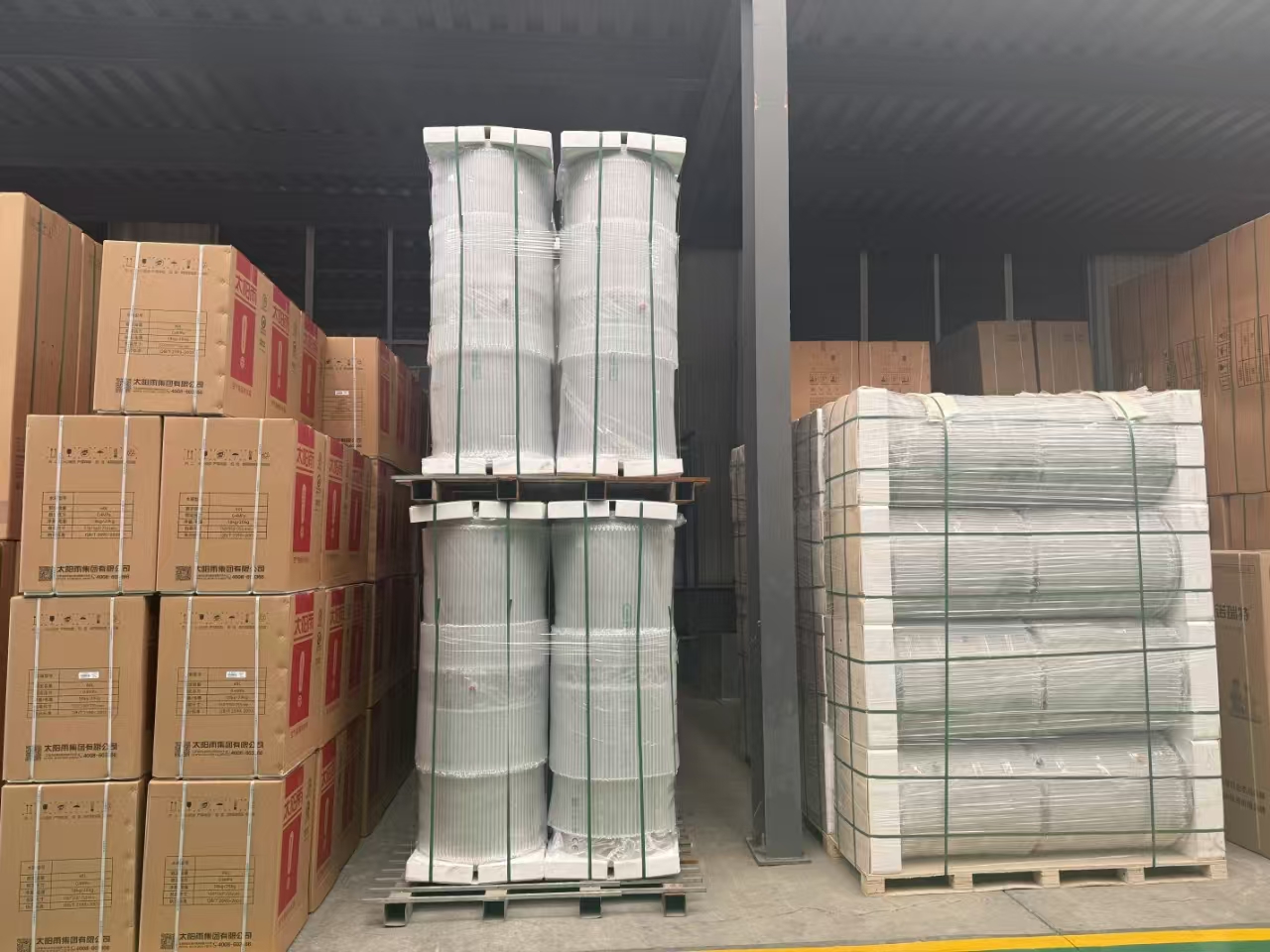

Process details 1 Process details 2 Process details 3 Process details 4

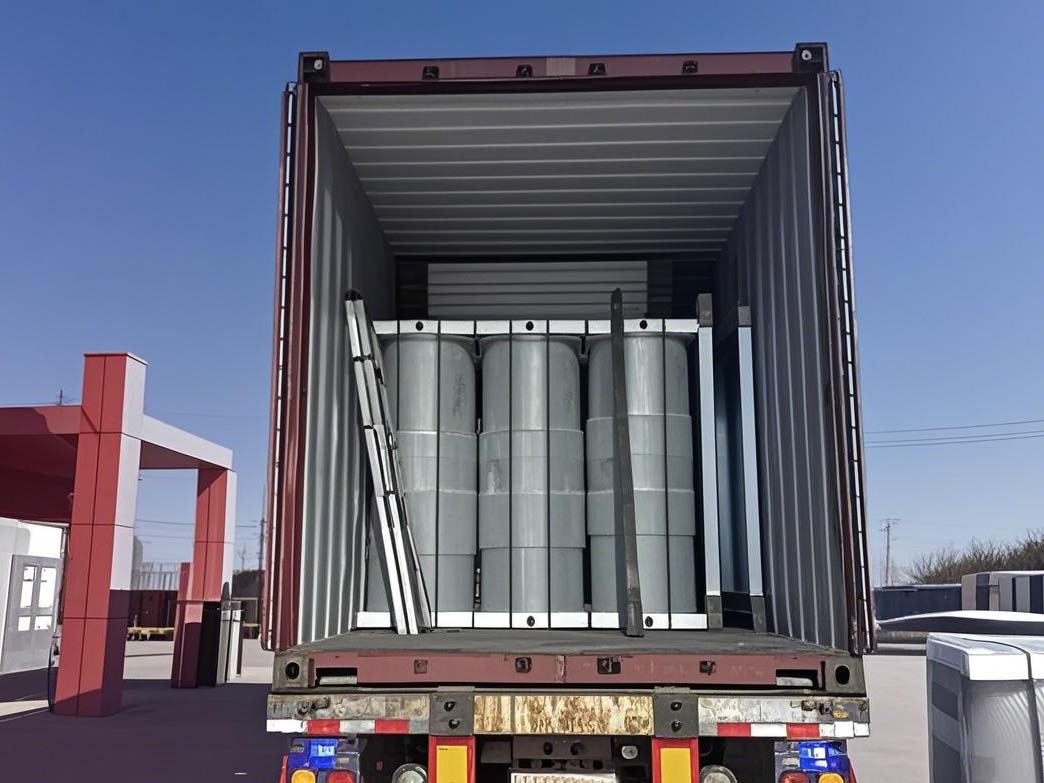

  • Fast delivery / Ex factory 100% inspection Complete transport service chain
  • Secure installation and use

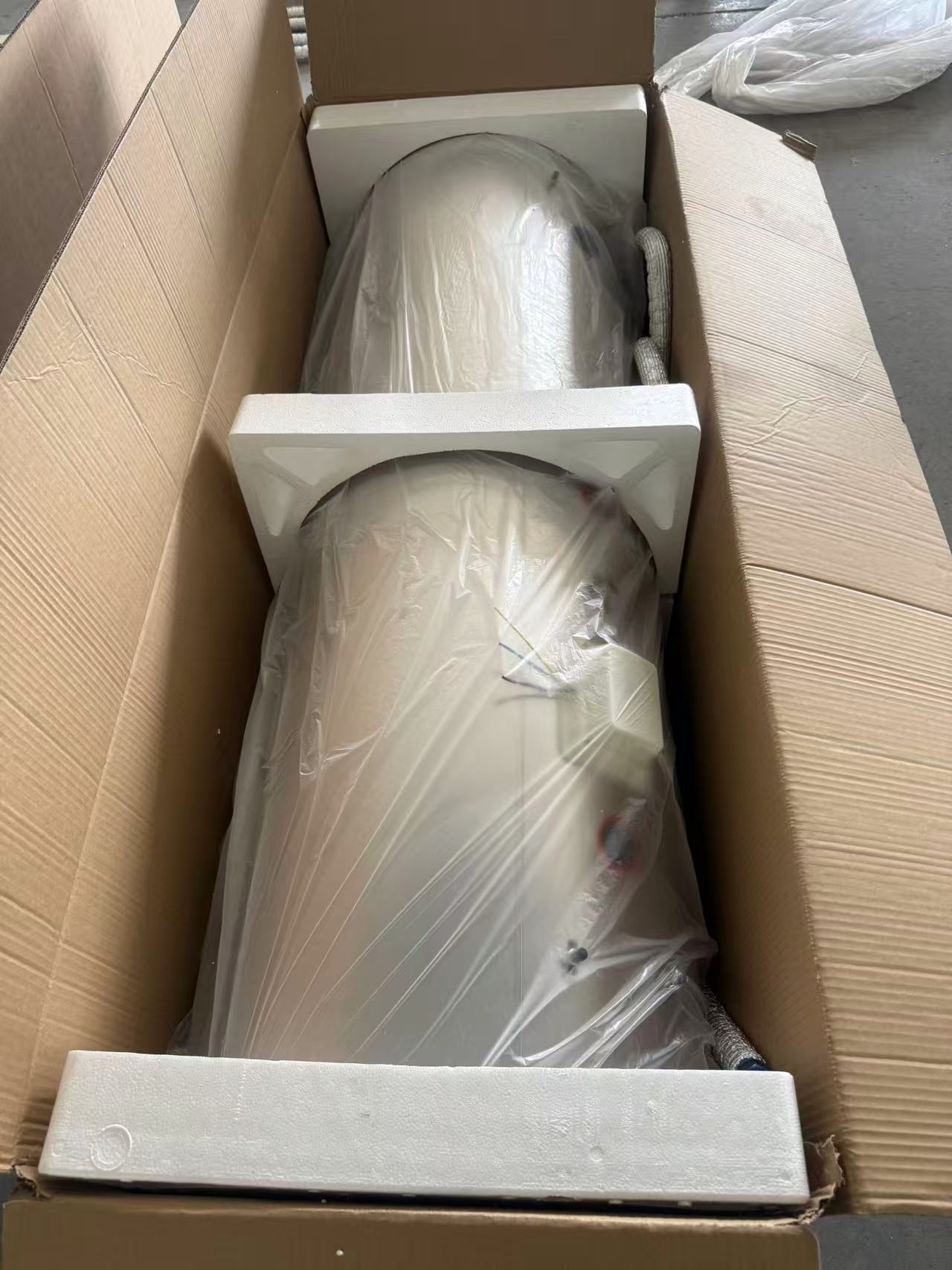

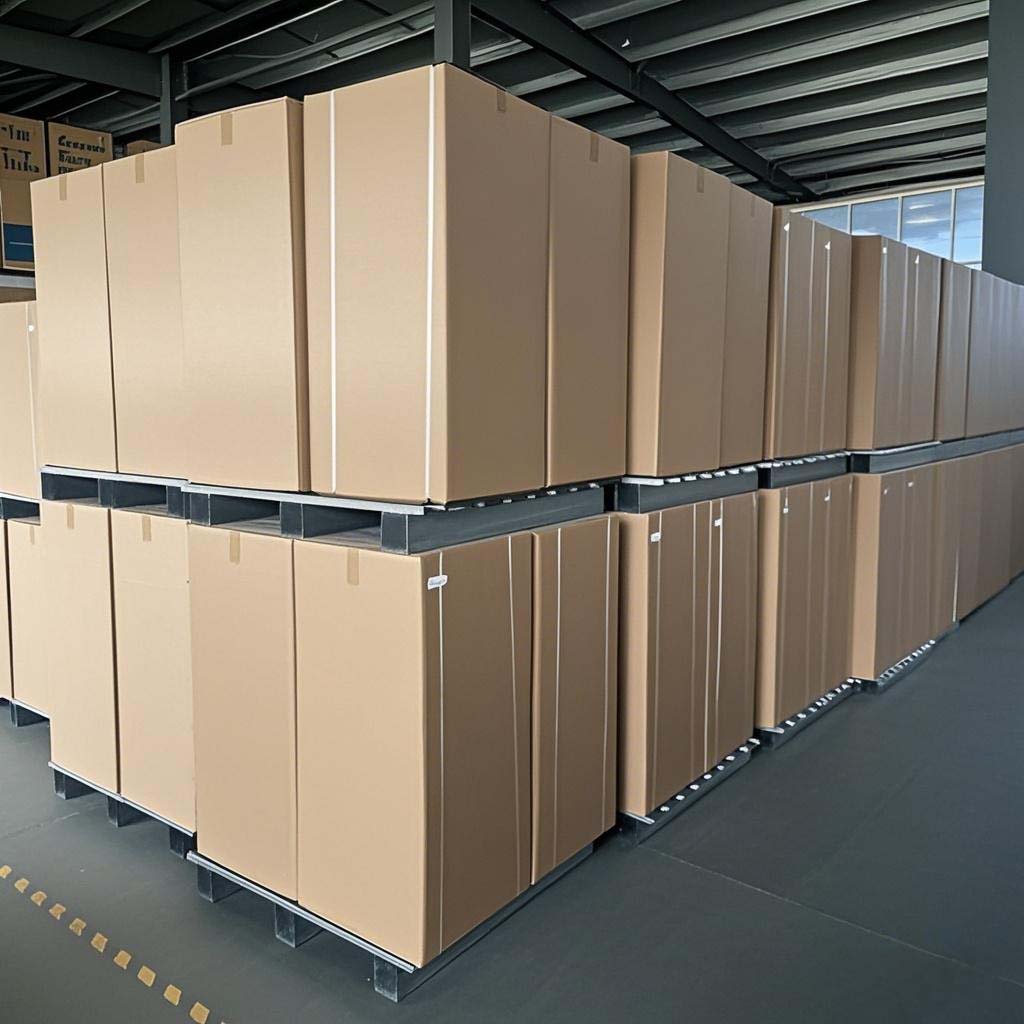

  • Cartons and wooden frames are packed to protect the goods from wear and tear in transit

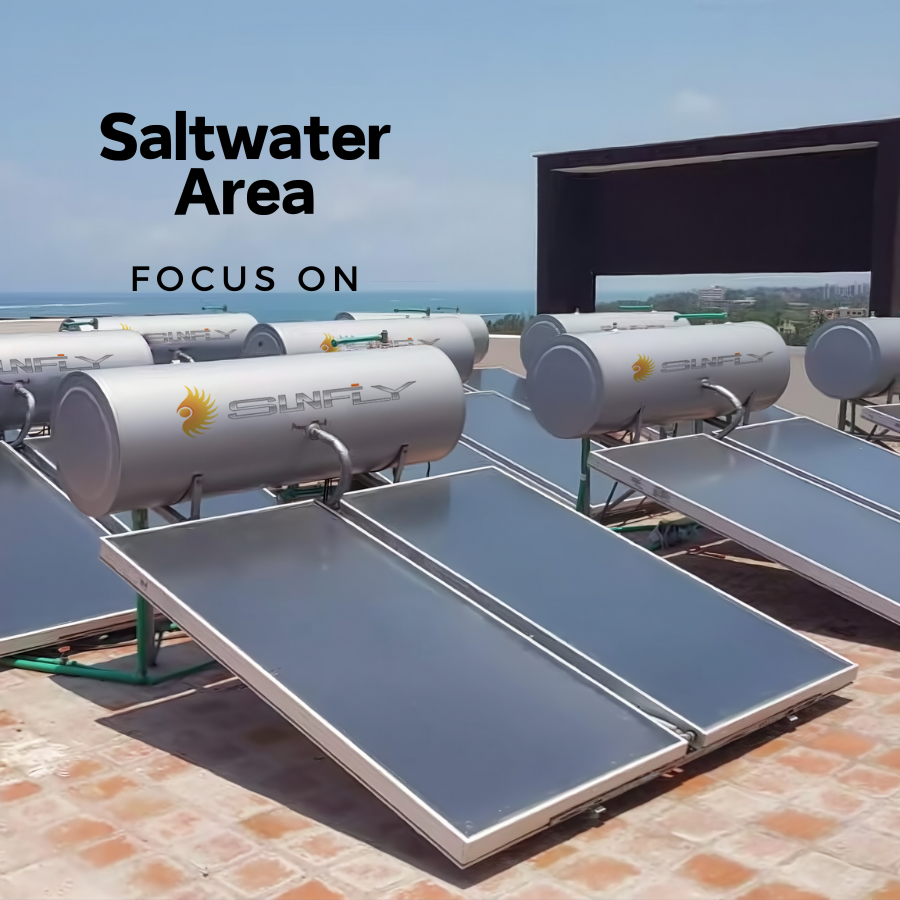

Successful Project

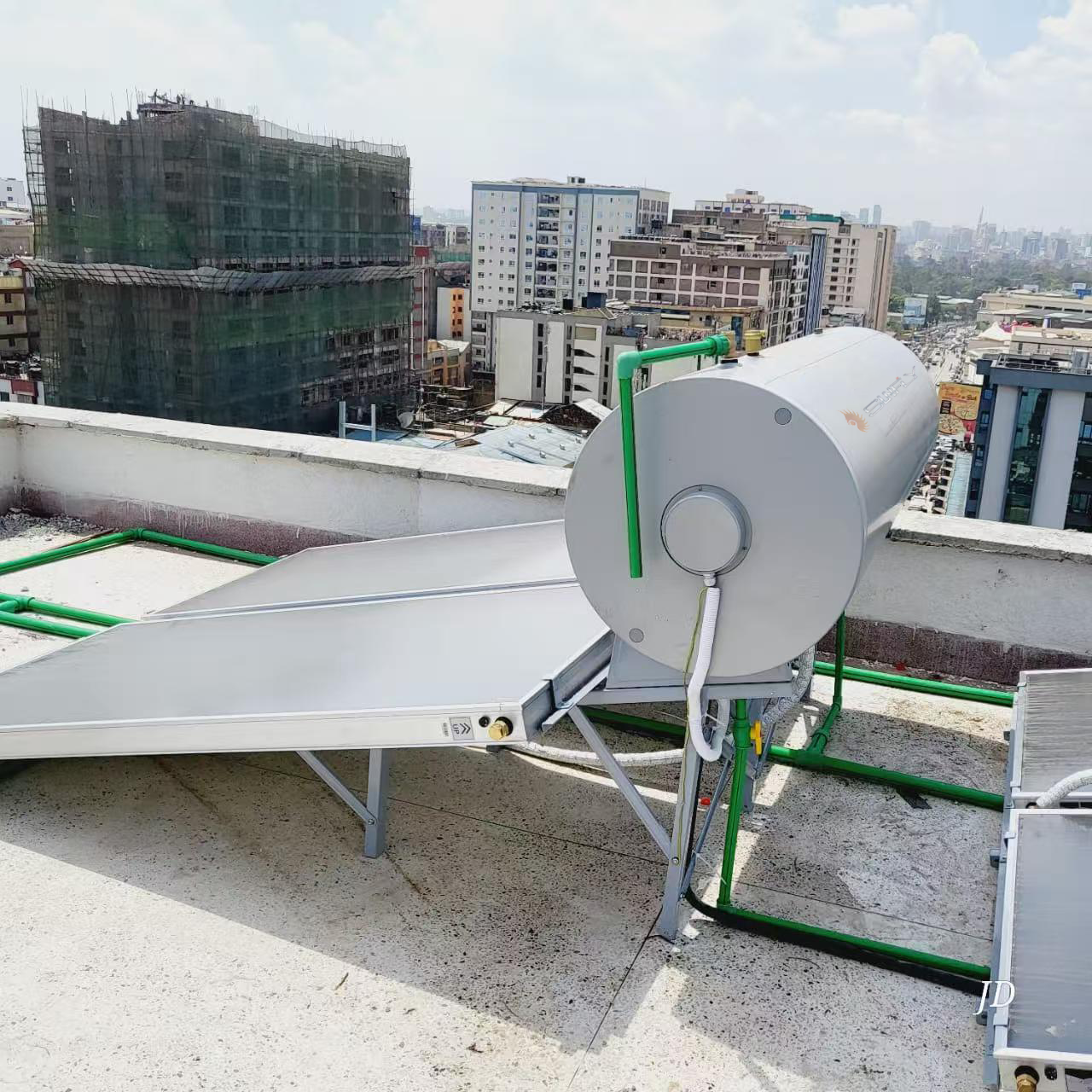

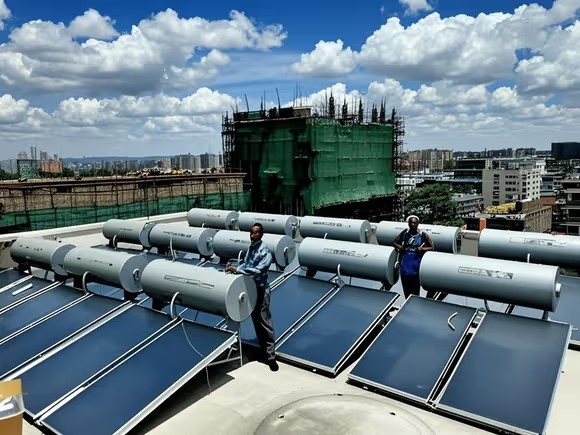

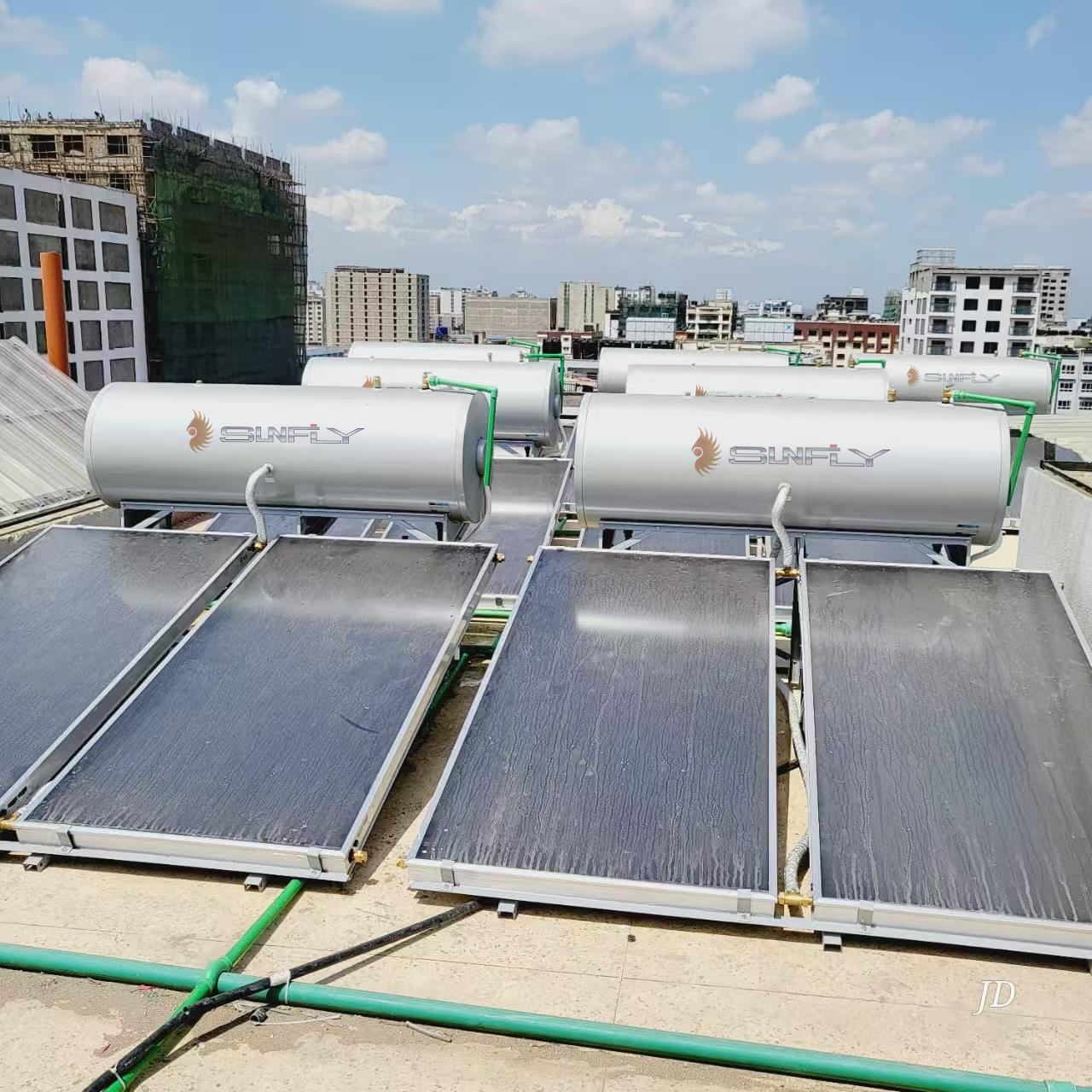

Project Case 1 Project Case 2 Project Case 3 Project Case 4

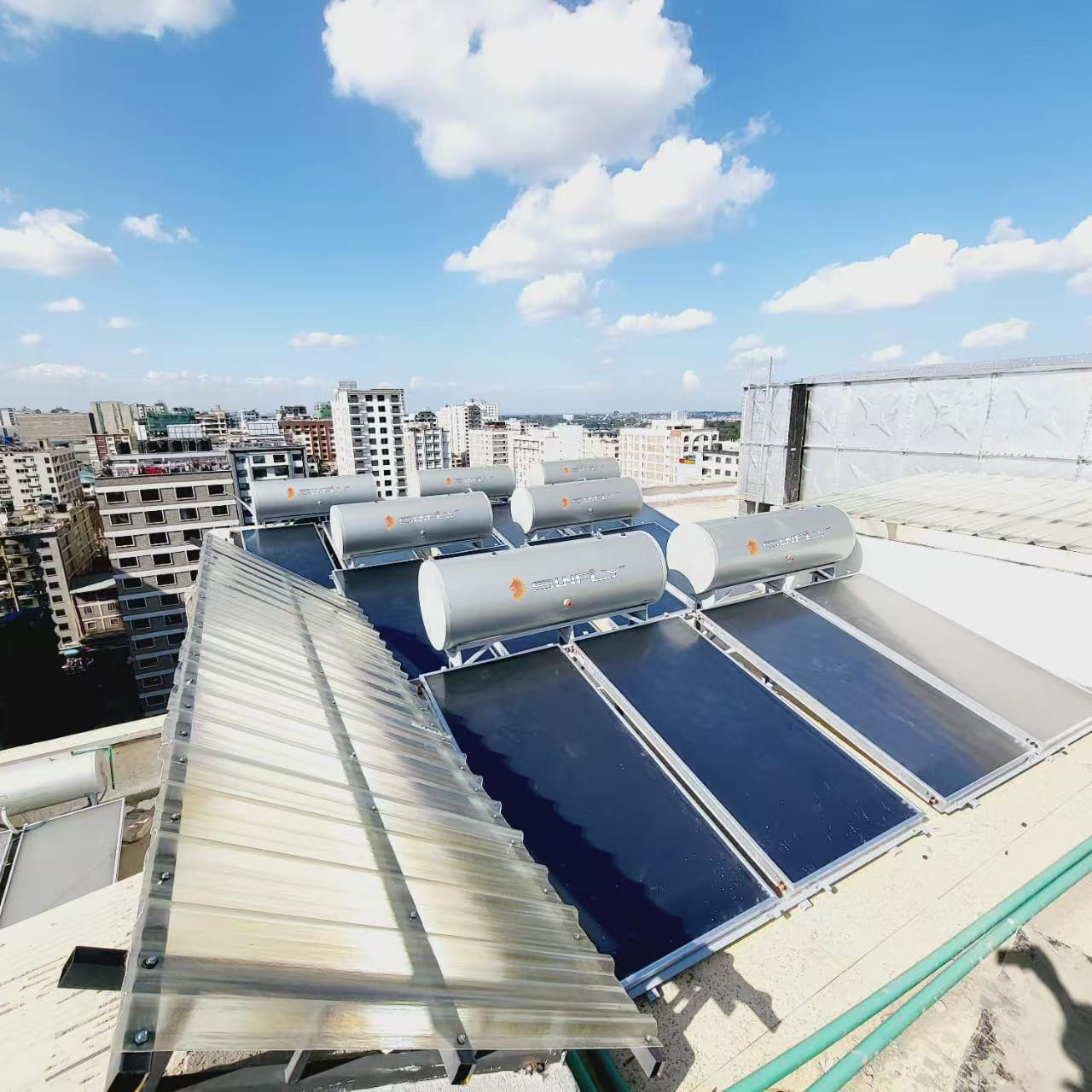

Project Site View
System Flowchart Details

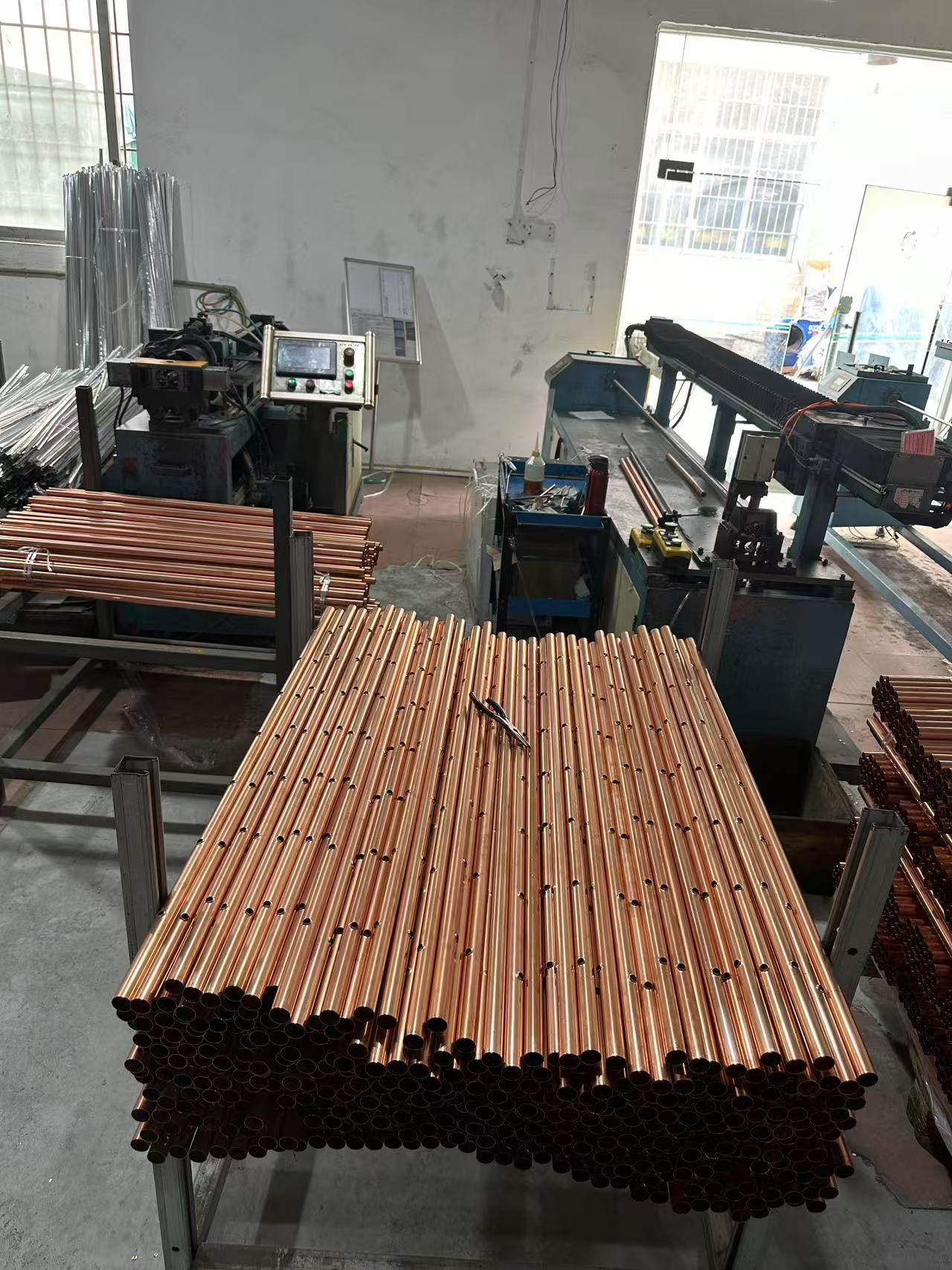

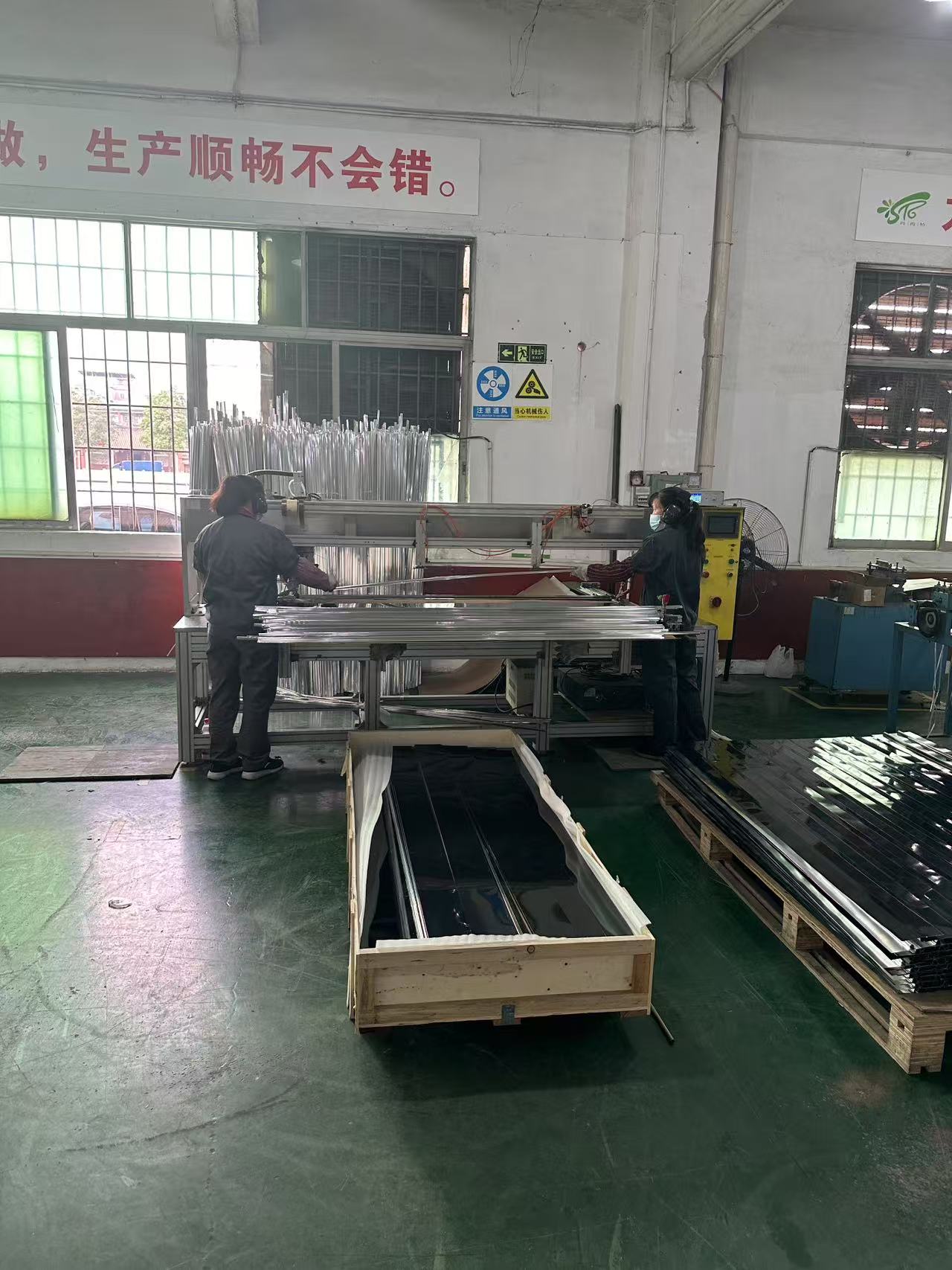

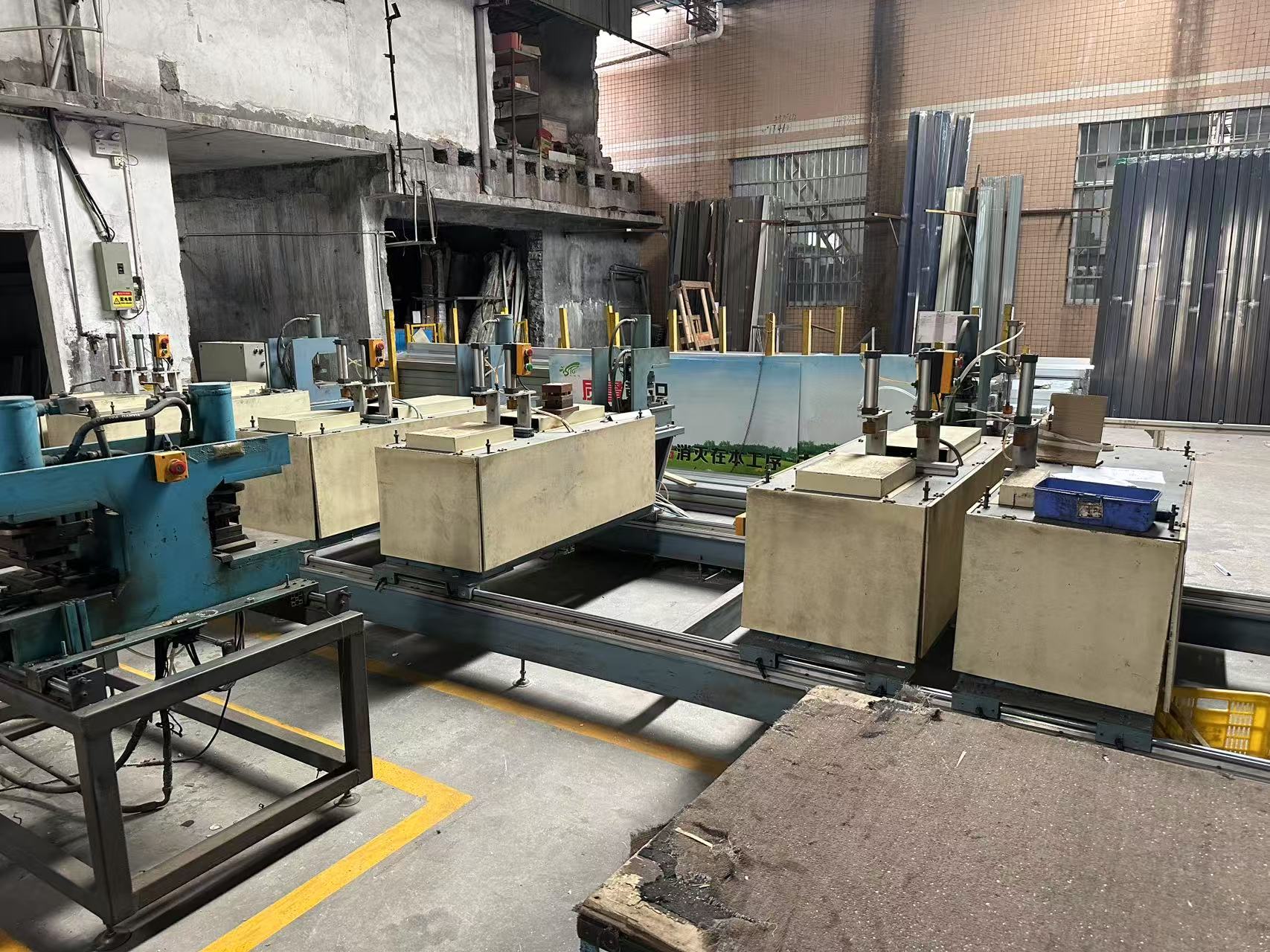

Flat Plate Install 1 Flat Plate Install 2 Flat Plate Install 3
Project Site Installation 1 Project Site Installation 2 Project Site Installation 3
Project Site Installation 4 Project Site Installation 5 Project Overview Finish
Frequently Asked Questions
Are you a manufacturer?

Yes, we are a factory that produces solar water heaters. The main products are compact pressurized flat plate panel solar water heaters, vacuum tube solar water heaters, gas solar water heaters, etc.

What's the minimum order quantity?

1 set, please feel free to contact us.

How about the warranty?

The warranty time of each of our products is different, and the longest product can even reach 10 years.

What is your packing standard?

LCL order/Sample order in wooden case. Full container order in high quality export carton.

What are your payment terms?

We usually accept T/T. Less order quantity 30% deposit, 70% balance after bill of Lading, etc.

How do I know your products are safe and reliable?

All of our products are rigorously tested and meet international safety and quality standards. From fire-resistant materials to child-proof designs, we ensure that each product is made to protect your home.
