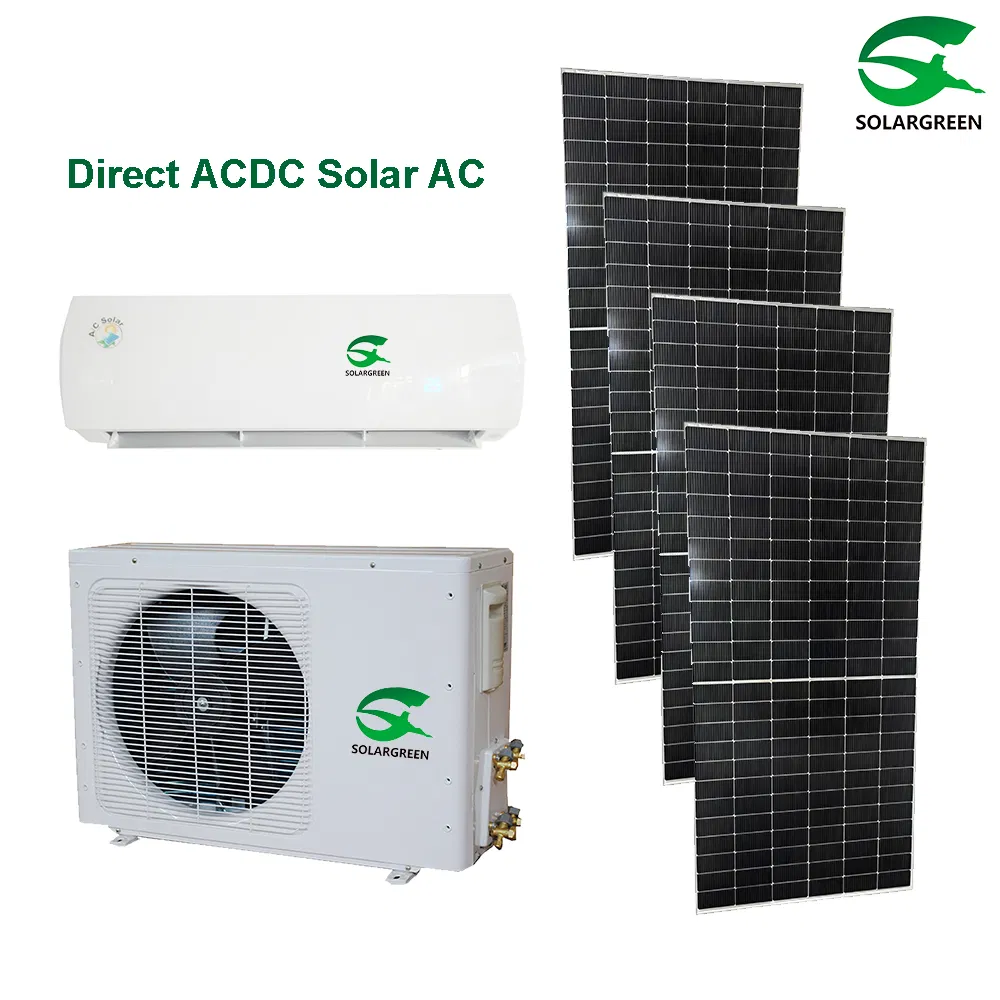

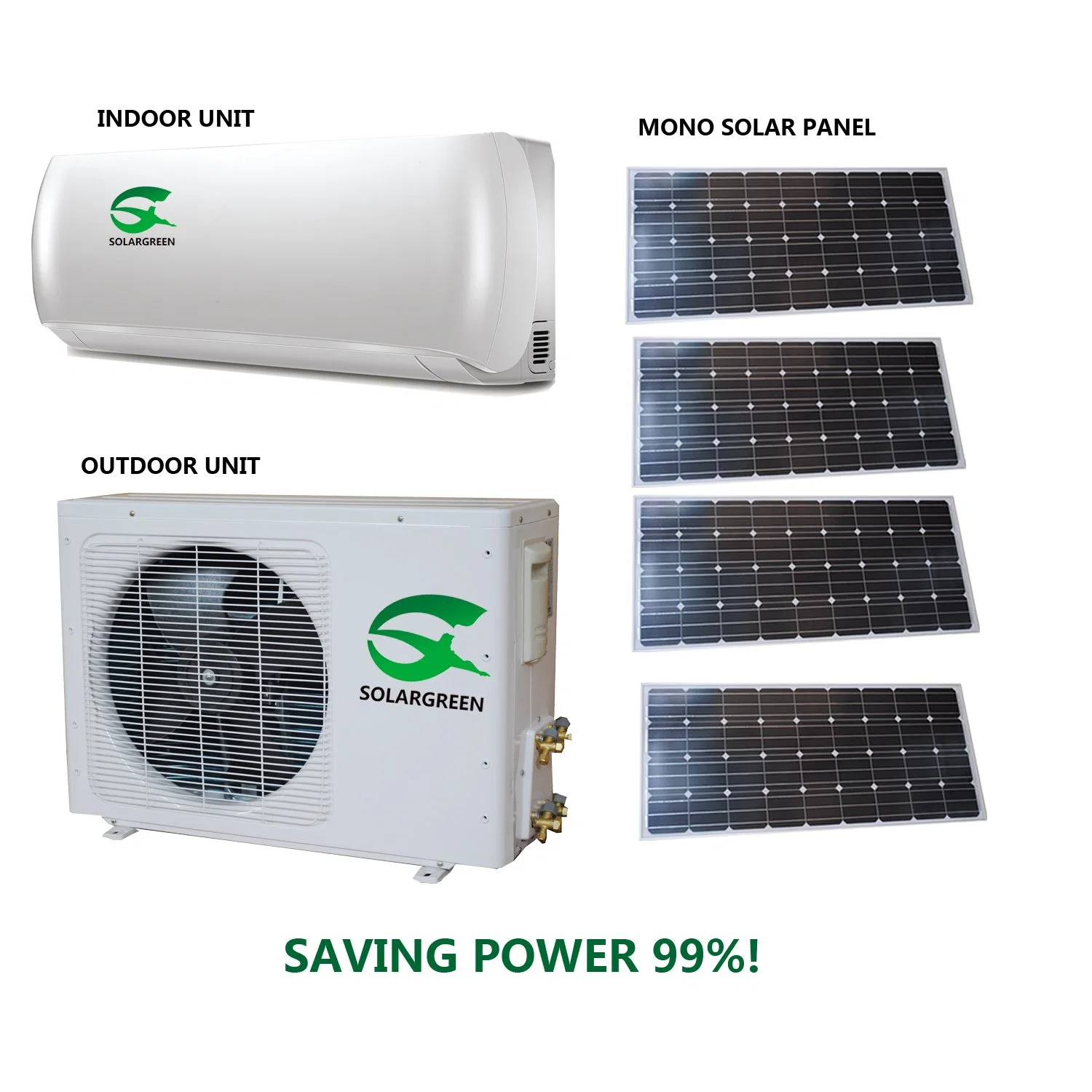

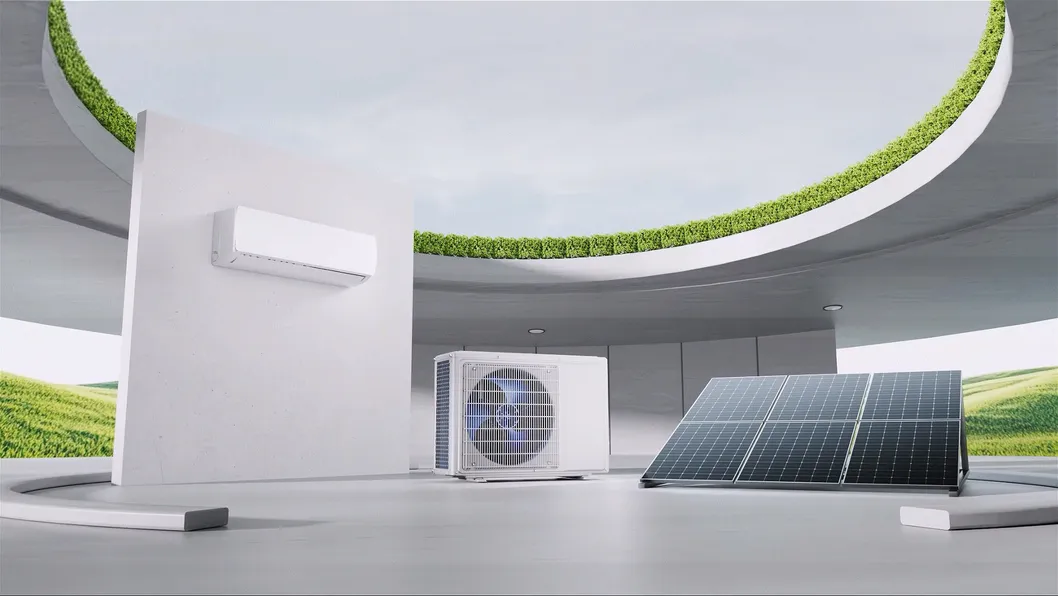

12000BTU Acdc on Grid Solar Panel Air Conditioner Saving Power 90%

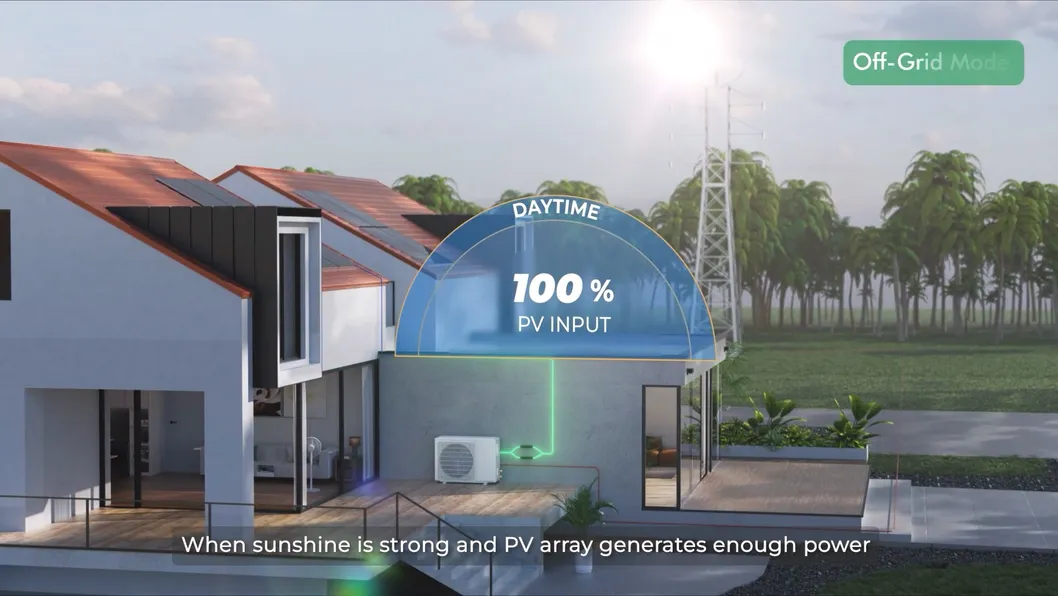

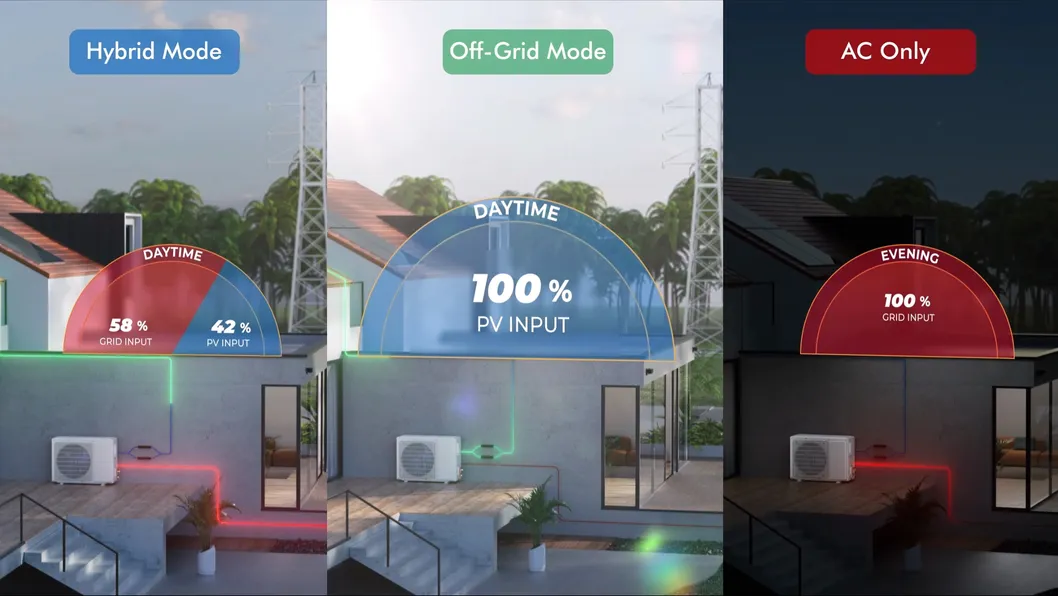

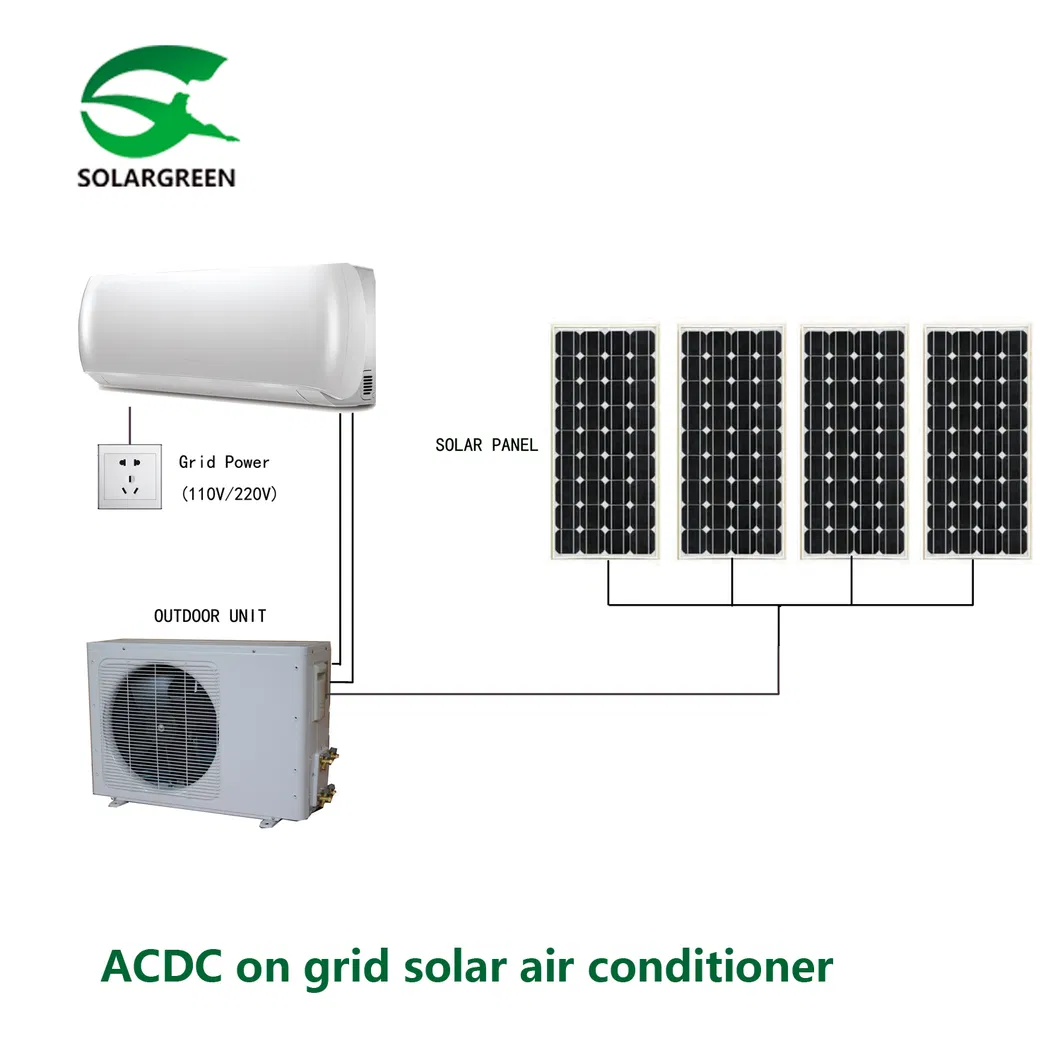

1. ACDC DC inverter air conditioner: Solar panel directly connection with air conditioner for off grid using in day time and using grid power in night time automatically.

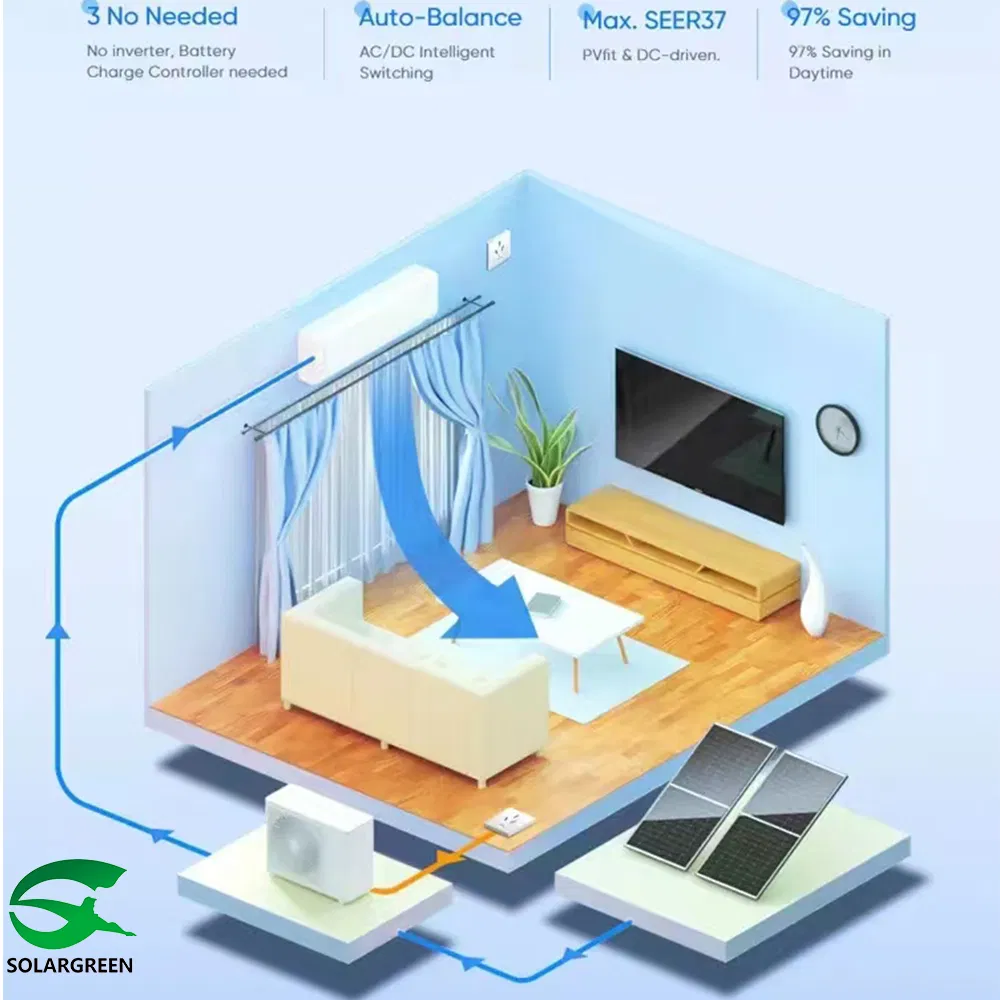

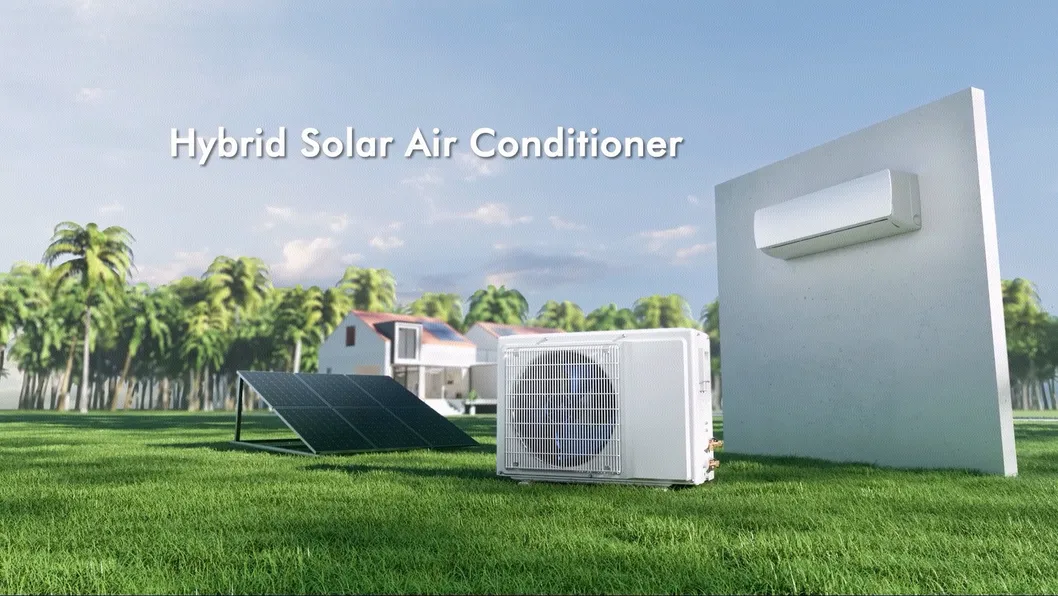

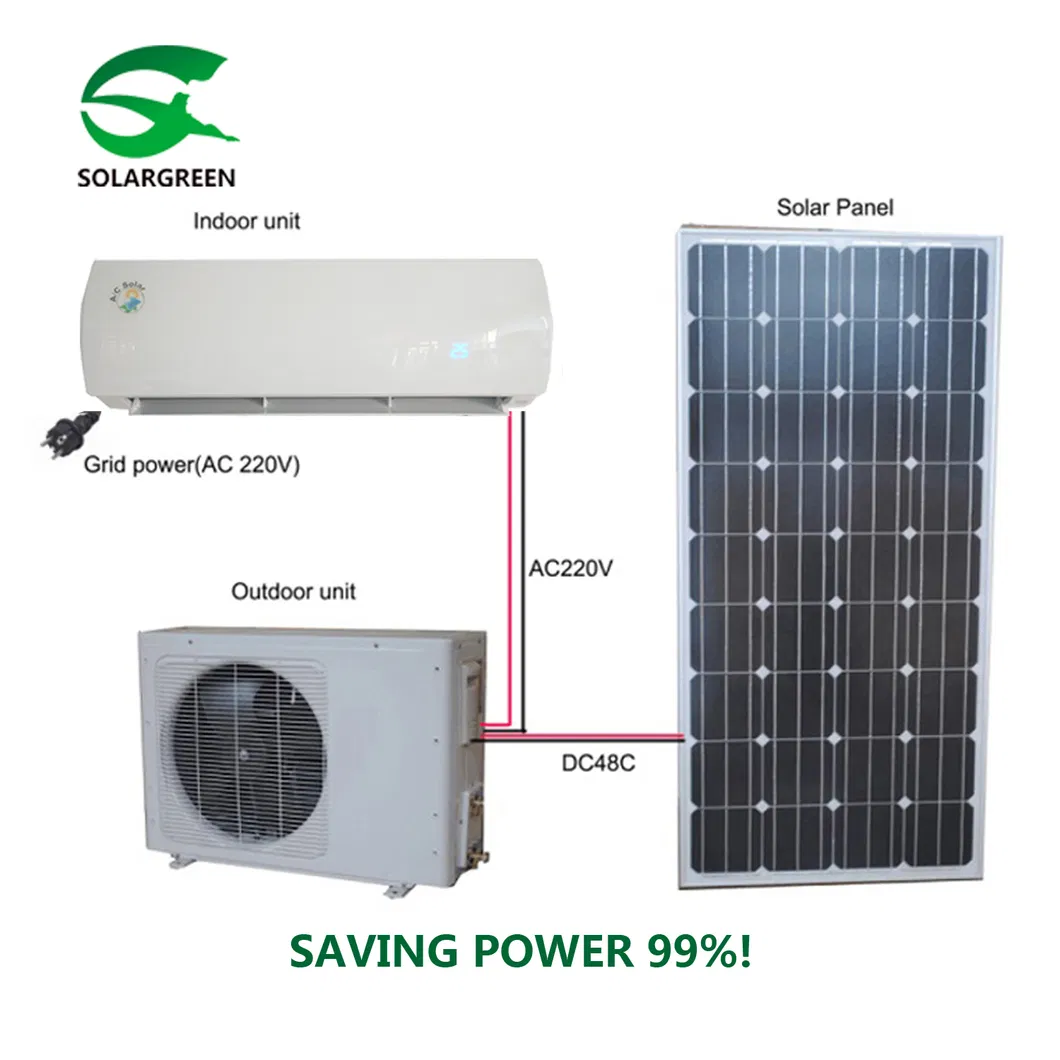

2. Hybrid AC/DC On grid solar air conditioner: The system priority consume DC power from solar PV panel to supply fan motor and compressor of outdoor unit directly without any extra inverter, controller or battery. And then outdoor unit give power and signal to start indoor unit.
This hybrid system is specially designed for biggest operation air conditioner by solar power in strong sunlight place when daylight. During sunlight Peak hours, it can save up to 90% and more. This hybrid system must connect 220V city power and is not designed for off-grid operation.
| ACDC on/off grid DC inverter type Solar Air-Conditioner with Wifi & Power Consumption Display | |||||||
| Model No. | KF(R)-26GW/OF | KF(R)-35GW/OF | KF(R)-52GW/OF | KF(R)-72GW/OF | KF(R)-100GW/OF | ||
| Power Supply | 220-240V/50/60Hz | 220-240V/50/60Hz | 220-240V/50/60Hz | 220-240V/50/60Hz | 220-240V/50/60Hz | ||
| DC Voltage Input | DC90-380V | DC90-380V | DC90-380V | DC90-380V | DC90-380V | ||
| Capacity | Ton | 0.75ton | 1ton | 1.5ton | 2ton | 3ton | |
| Horse Power | HP | 1 HP | 1.5 HP | 2 HP | 3 HP | 4 HP | |
| Performance Details | |||||||
| Cooling Capacity | Btu/h | Capacity Range | 9000 (3100~10600) | 12000 (3200~12600) | 18000 (5100~19500) | 24000 (6800~25600) | 36000 (8500-410000) |
| W | Nominal | 2600 (940~3300) | 3400 (1000~3770) | 5100 (1250-5910) | 7030 (1990~7500) | 9000 | |
| Heating Capacity | Btu/h | Capacity Range | 10000 (3100~10600) | 13000 (3200~12600) | 20000 (5100~19500) | 26000 (6800~25600) | 33000 |
| W | Nominal | 2900 (940~3400) | 3700 (1000~3900) | 6000 (1250-6100) | 7530 (1990~7800) | 10000 | |
| Noise Level | Indoor | dB(A) | ≤40 | ≤42 | ≤44 | ≤46 | ≤48 |
| Outdoor | dB(A) | ≤50 | ≤52 | ≤55 | ≤58 | ≤60 | |
| Air Circulation | m³/h | 450 | 550 | 750 | 1050 | 1250 | |
| Suitable Area | m² | 10~15 | 12~25 | 20~35 | 25~45 | 35~55 | |
| EER | W/W | 4.5 | 4.5 | 4.5 | 4.4 | 4.3 | |
| SEER | Btu/h/w | 34 | 34 | 34 | 33 | 32 | |
| HSPF | Btu/h/w | 5.8 | 6 | 4.9 | 4.8 | 4.7 | |
| Operating Range | C / F | 16C-31C / 5F-122F | |||||
| Design pressure | PSI | 550 / 340 | |||||
| Refrigerant Oil | - | VG74 | |||||
| Refrigerant | - | R410A | |||||
| Compressor | - | SANYO DC INVERTER COMPRESSOR (ROTARY) | |||||
| Liquid / Gas Side Connection | Inch | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 1/4" / 1/2" | 1/4" / 1/2" | |
| DC Connection / Wire | - | MC4 / AWG 10/12 | |||||
| Power Consumption | |||||||
| Rated Power Input | W | 0-550 | 0-700 | 0-950 | 0-1250 | 0-1550 | |
| Rated Current | A | 0-2.54 | 0-3.82 | 0-4.32 | 0-6.32 | 0-6.32 | |
| Dimensions & Weight | |||||||
| Indoor Unit Dim. | NET | mm | 775*260*210 | 775*260*210 | 990*320*210 | 990*320*210 | 1080×320×240 |
| Shipping | mm | 840*325*265 | 840*325*265 | 1070*395*285 | 1070*395*285 | 1150×420×320 | |
| Outdoor Unit Dim. | NET | mm | 790*260*540 | 790*260*540 | 850*300*700 | 850*300*700 | 865*310*710 |
| Shipping | mm | 910*370*610 | 910*370*610 | 950*400*750 | 950*400*750 | 1025*395*790 | |
| Indoor Weight | Net / Gross | kg | 11/13 | 13/15 | 17/19 | 19/21 | 21/23 |
| Outdoor Weight | Net / Gross | kg | 38/40 | 45/48 | 48/55 | 56/62 | 58/70 |
| Solar Panel Requirement | |||||||
| Solar Panels Requirement | Optional | 2 * 500W | 3 * 500W | 4 * 500W | 5 * 500W | 7 * 500W | |
| On grid PV Solar Air-Conditioner (without panel and bracket) | ||||||
| Power Supply: 208~240V, 50/60HZ | ||||||
| Model No. | KF(R)-26GW/NH | KF(R)-35GW/NH | KF(R)-52GW/NH | KF(R)-72GW/NH | ||
| Capacity | Ton | 0.75ton | 1ton | 1.5ton | 2ton | |
| Horse Power | HP | 1 Horse Power | 1.5 Horse Power | 2 Horse Power | 3 Horse Power | |
| Performance Details | ||||||
| Cooling Capacity | Btu/h | Nominal | 9000 | 12000 | 18000 | 24000 |
| W | Nominal | 2600 | 3500 | 5200 | 7200 | |
| Heating Capacity | Btu/h | Nominal | 10000 | 13000 | 20000 | 27000 |
| W | Nominal | 2800 | 3700 | 5400 | 7900 | |
| Noise Level | Indoor | dB(A) | ≤40 | ≤42 | ≤44 | ≤46 |
| Outdoor | dB(A) | ≤50 | ≤52 | ≤55 | ≤58 | |
| Air Circulation | m³/h | 450 | 550 | 750 | 1050 | |
| Suitable Area | m² | 10~15 | 12~25 | 20~35 | 25~45 | |
| EER | W/W | 5.2 | 4.7 | 4.5 | 4.4 | |
| SEER | Btu/h/w | 35 | 34 | 34 | 33 | |
| HSPF | Btu/h/w | 12 | 12 | 13 | 14 | |
| Operating Range | C / F | 16C-31C / 5F-122F | ||||
| Design pressure | PSI | 550 / 340 | ||||
| Refrigerant Oil | - | VG74 | ||||
| Refrigerant | - | R410A | ||||
| Compressor | - | ROTARY | ||||
| Liquid / Gas Side Connection | Inch | 1/4" / 3/8" | 1/4" / 1/2" | 1/4" / 1/2" | 1/4" / 1/2" | |
| DC Connection / Wire | - | MC4 / AWG 10/12 | ||||
| Power Consumption | ||||||
| Rated Power Input | W | 450 | 750 | 950 | 1250 | |
| Rated Current | A | 2.05 | 3.41 | 4.32 | 5.68 | |
| Dimensions & Weight | ||||||
| Indoor Unit Dim. | NET | mm | 775*260*210 | 775*260*210 | 990*320*210 | 990*320*210 |
| Shipping | mm | 840*325*265 | 840*325*265 | 1070*395*285 | 1070*395*285 | |
| Outdoor Unit Dim. | NET | mm | 790*260*540 | 790*260*540 | 850*300*700 | 850*300*700 |
| Shipping | mm | 910*370*610 | 910*370*610 | 950*400*750 | 950*400*750 | |
| Indoor Weight | Net / Gross | kg | 11/13 | 13/15 | 17/19 | 19/21 |
| Outdoor Weight | Net / Gross | kg | 38/40 | 45/48 | 48/55 | 56/62 |
| Solar Panel Option | ||||||
| MAX SOLAR PANEL | Optional | 2x250W / 36V | 3x250W / 36V | 4x250W / 36V | 4x300W / 36V | |
Can I have a sample order for Solar air conditioner?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
Sample needs 7-20 days, mass production time needs 3-6 weeks.
Do you have any MOQ limit for air conditioner order?
Low MOQ, 1pc for sample checking is available.
How to proceed an order for solar air conditioner?
Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products.
How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will repair them and resend them to you or provide the new parts to replace and ship with new containers. And we can discuss the solution including re-call according to real situation.
