Product Description
HYBRID SOLAR AIR CONDITIONER is the GENUINE ACDC air conditioner, cutting your electricity bills, and saving money!
-- How?
-- HYBRID SOLAR AIR CONDITIONERs are generated completely by SOLAR DC POWER.
-- How?
-- By adjusting the inner voltage of the air conditioner itself to suit the input voltage of solar panels or batteries. Our frequency control technology is the most awesome part to realize that!
-- Amazing!
-- Besides, during work, the air conditioners are mainly supported by SOLAR, and assisted by Utility as auxiliary power.
-- Wow!
-- Yes! The technology offers genuine HYBRID ACDC SOLAR AIR CONDITIONERs.
There're 3 capacities available: 9000BTU/12000BTU/18000BTU. Here comes the specs of 24000BTU, corresponding to Model RC-24ADC/FC as follows:
| Model No. |
RC-ADC12GW-XA |
RC-ADC18GW-XA |
RC-ADC24GW-XA |
| Power Supply |
Solar Power |
V |
DC90-380V MAX.15A |
| AC Power Connected |
V |
200-230V(50/60Hz) |
| Cooling |
Capacity |
Btu/h |
12000 |
18000 |
24000 |
| Inverter Capacity Range |
Btu/h |
3099-12987 |
3482-19389 |
4294-25280 |
| Power Input |
kW |
0.98 |
1.51 |
1.87 |
| Rated Current(AC) |
A |
4.46 |
6.2 |
8 |
| SEER |
|
22 |
20 |
20 |
| EER |
|
12.6 |
12.1 |
12.1 |
| Heating |
Capacity |
|
12,000 |
17,200 |
23,800 |
| Inverter Capacity Range |
Btu/h |
3753~13306 |
4435~19789 |
5100~23542 |
| Power Input |
kW |
1.12 |
1.29 |
1.82 |
| Rated Current |
A |
5.93 |
6.08 |
8.08 |
| HSPF |
|
11 |
10 |
11 |
| COP |
|
12.1 |
11.6 |
12.7 |
|
Dehumidification |
pt/h |
1.3L/h |
1.9L/h |
2.3L/h |
| Indoor Air Flow - (Hifan) |
cfm |
660 |
1080 |
1210 |
| Indoor Noise dB(A) (Hifan) |
dB(A) |
40 |
45 |
47 |
| Max Refrigeration Pipe Length |
ft/m |
15 |
15 |
15 |
| Max Refrigeration Pipe Rise/Fall |
ft/m |
5 |
5 |
5 |
| Max Elevation Difference |
|
15 |
15 |
15 |
| Design Pressure |
psig |
550 / 340 |
550 / 340 |
550 / 340 |
| Connection |
Type |
flare |
flare |
flare |
| Connection Wiring |
AWG |
4*18AWG |
4*18AWG |
4*18AWG |
| Operation temperature |
Indoor (Cooling/Heating) |
ºF |
60.8 - 89.6/ 60.8 - 89.6 |
60.8 - 89.6/ 60.8 - 89.6 |
60.8 - 89.6/ 60.8 - 89.6 |
| Outdoor (Cooling/Heating) |
ºF |
50- 125.6/5-104 |
50- 125.6/5-104 |
50- 125.6/5-104 |
| Indoor Unit |
Dimension(W*D*H) |
mm |
895×300×203 |
1000×310×240 |
1130×320×245 |
| Packing(W*D*H) |
mm |
1080×385×327 |
1080×385×327 |
1195*310*390 |
| Net/Gross Weight |
kg |
9/11.1 |
12.5/14.5 |
15.5/17.5 |

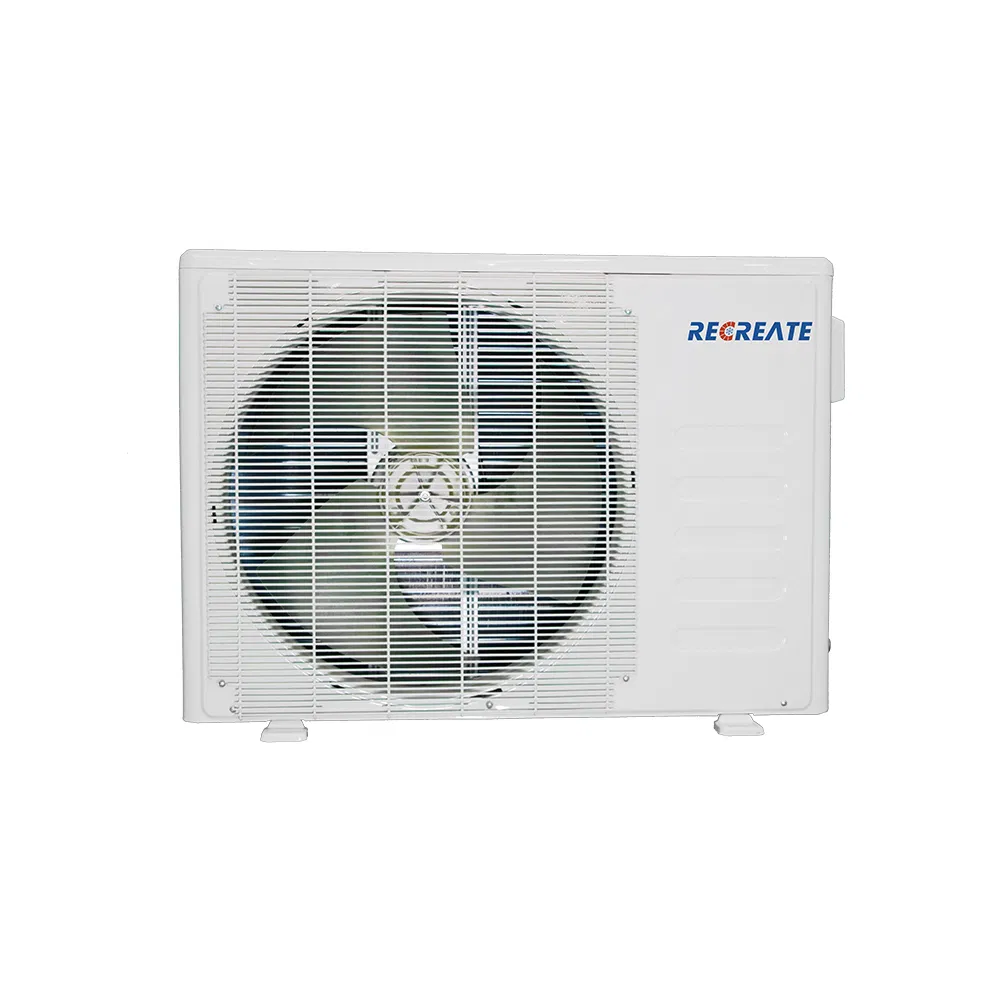

| Outdoor Unit |
Dimension(W*D*H) |
mm |
795×290×555 |
795×290×555 |
860×304×733 |
| Packing(W*D*H) |
mm |
910×400×630 |
910×400×630 |
1005×450×820 |
| Net/Gross Weight |
kg |
31/35 |
35/39 |
51/55 |
| Approvals |
|
CB/GCC/ Performance Certified |
| Container Load 20'/40'/40'HQ |
|
84/177/206 |
78/171/179 |
54/115/128 |

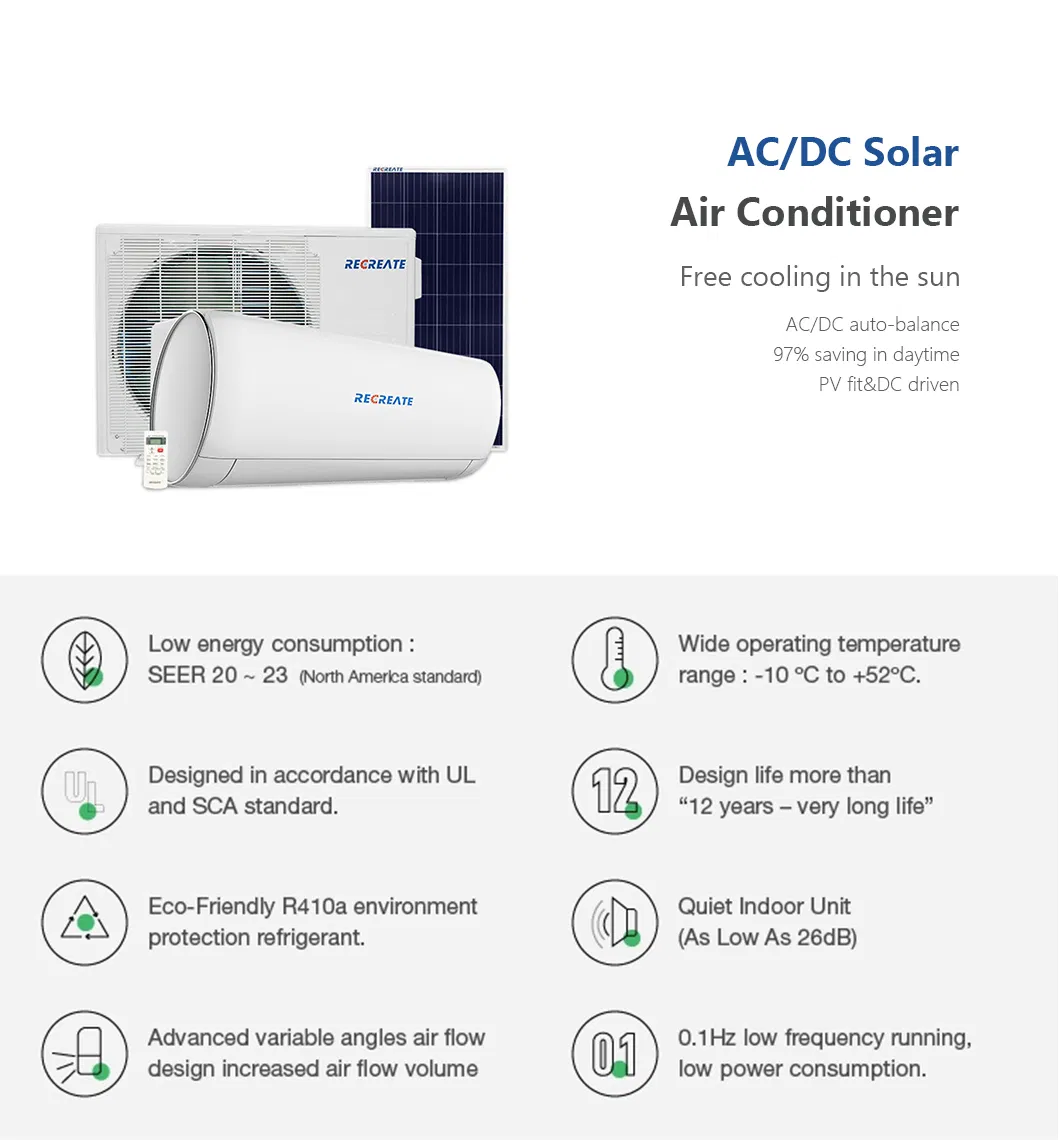

Solar Air Conditioner Description
What Is Solar Air Conditioner

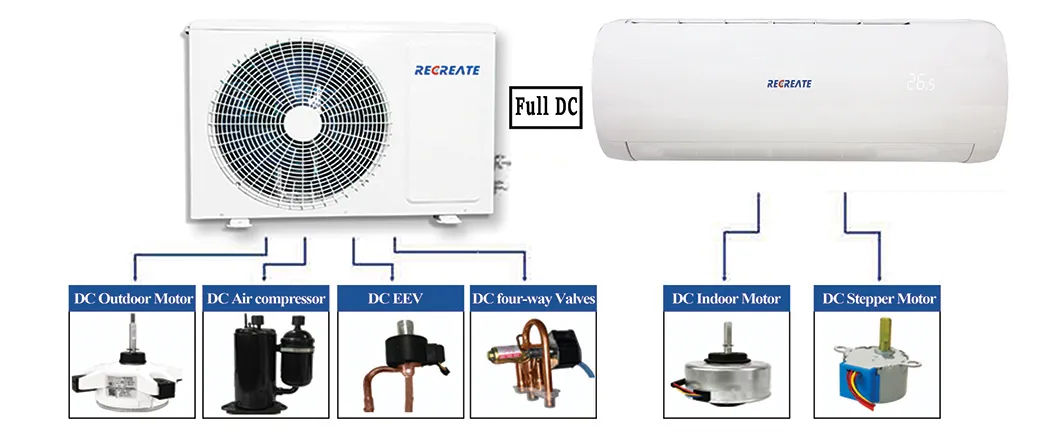

Hybrid Solar air conditioner is engineered from the ground up for use with solar. All electrical components are DC powered including compressor, high-efficiency DC fan motors, DC valves & solenoids, etc.
The system uses a VRF (Variable Refrigerant Flow) controller and frequency driver in conjunction with multiple sensors and an algorithmic control circuit to raise and lower the unit's capacity in real-time based on conditions as they change. Hybrid Solar air conditioners are more powerful and use less energy than a fixed speed air conditioner.

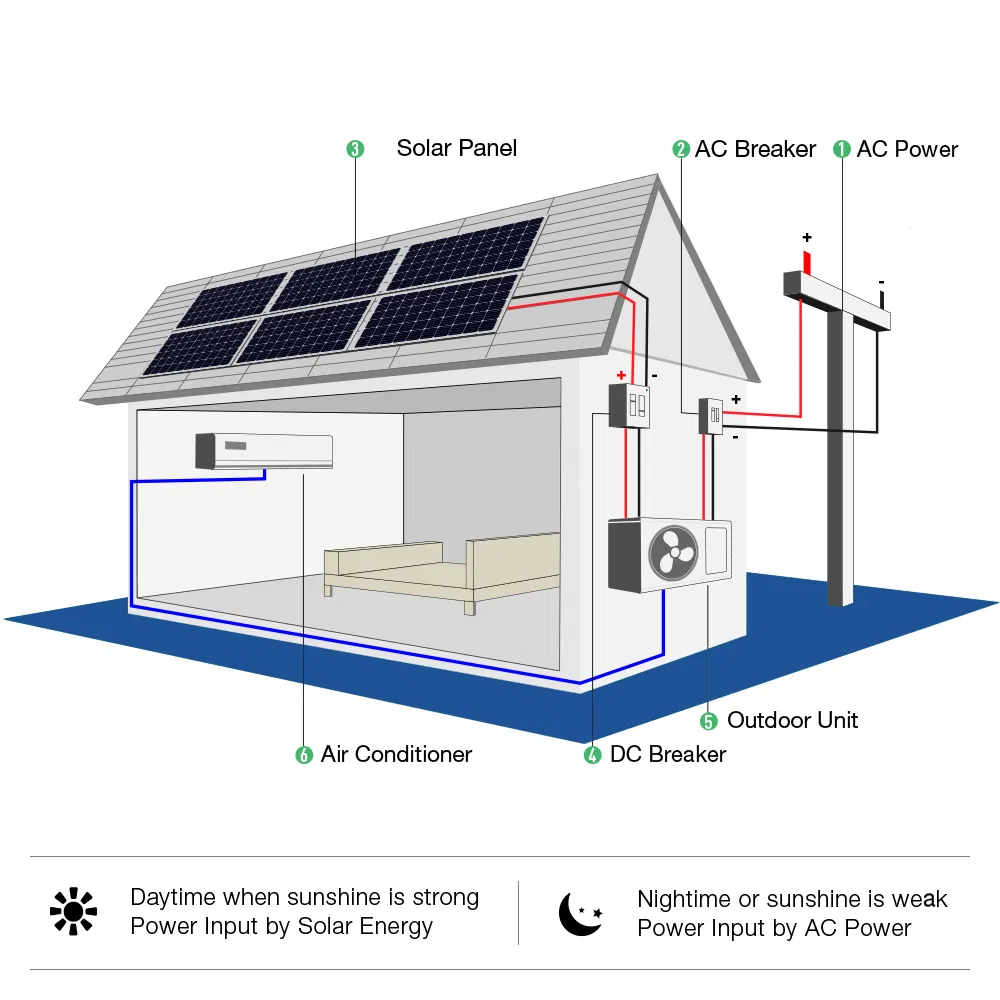

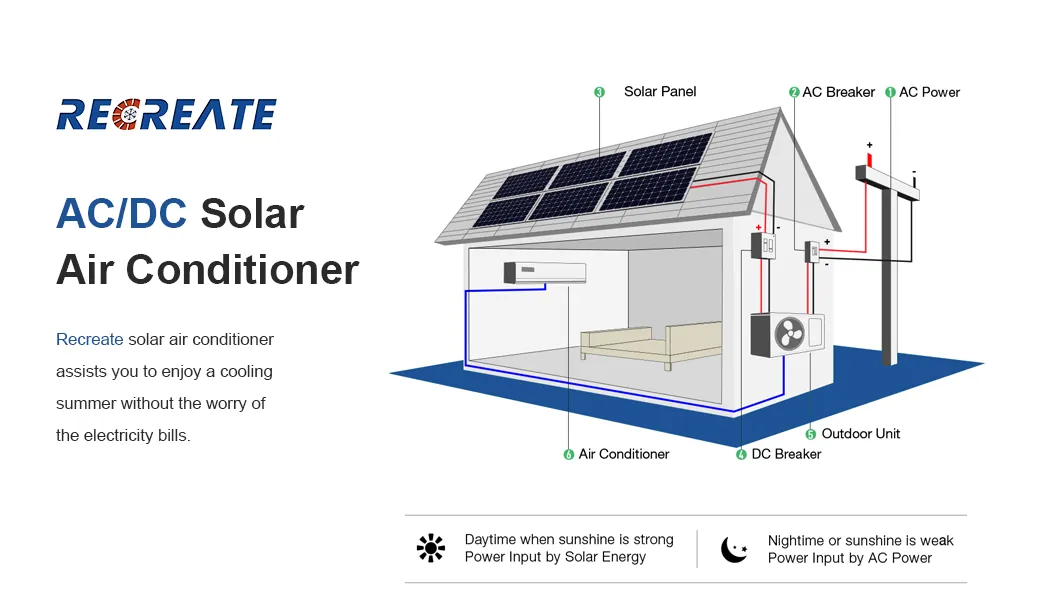

Featuring the solar direct drive technology (SDDA), the Solar Hybrid unit can use Solar DC generated power or mains AC generated power, or a combination of both as required. This means that the Hybrid requires NO batteries, NO inverter, NO controller and need only a few PV panels to deliver a huge saving. Under optimum conditions, this can save up to 97% of your mains power usage.
The SDDA will use as much solar energy as is available and this solar energy directly replaces the equivalent amount of AC power from the mains provider. Under enough solar power conditions, the Hybrid can operate normally without AC generated power.
Benefits of ACDC Hybrid
- Connects Directly to the Solar Panel: Runs on up to 100% solar power directly in daytime that would save you up to 97% of your power bill.

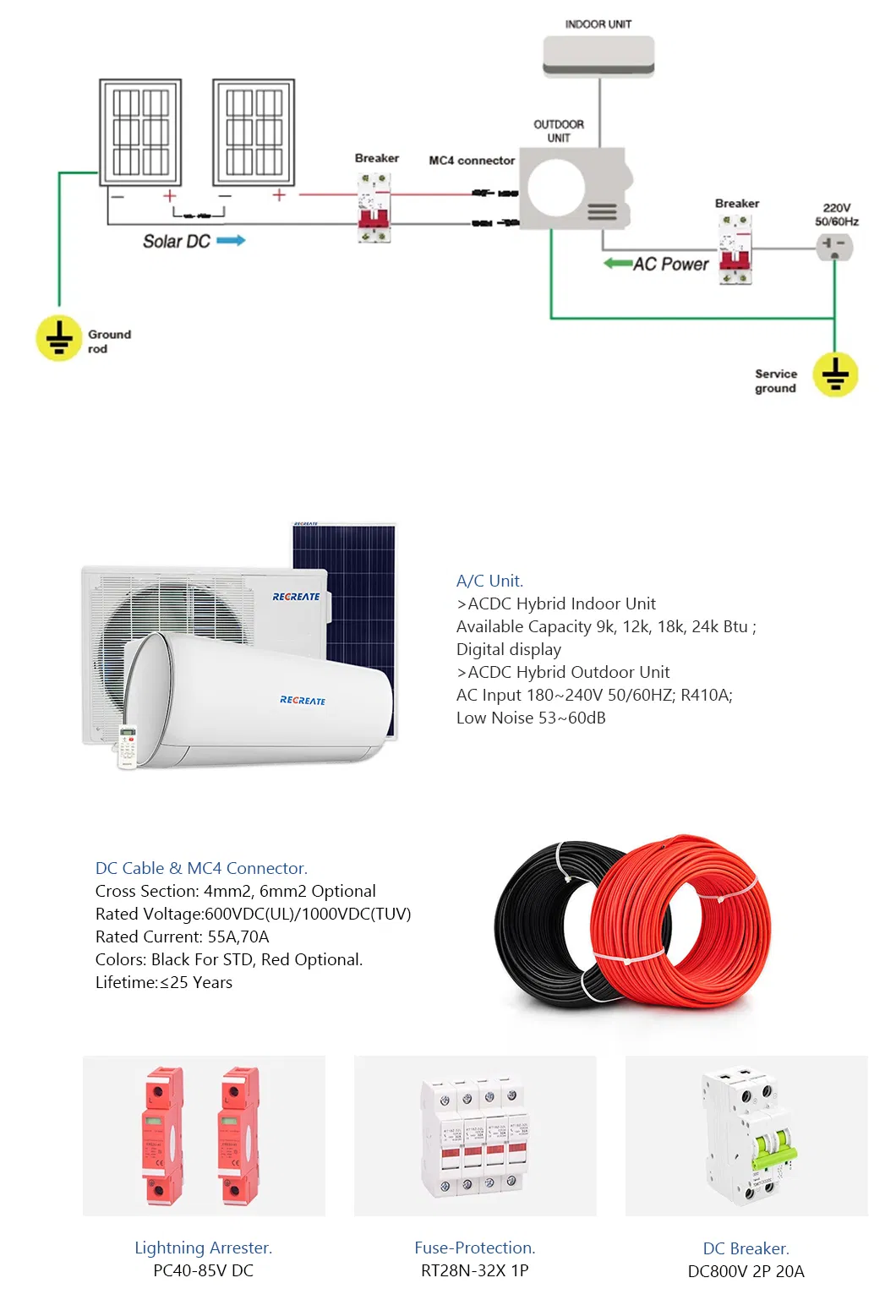

- Easy Solar Connections: Connection from the solar panels to the Solar Hybrid outdoor is very simple with a terminal block mounted in the outdoor unit for the positive and negative cables straight from the solar panels.
- Super applicability: Wide operating temperature range -10ºC to +52ºC, Meet T3 work environment Wide operating AC voltage range AC 160V-250V, meet the remote network voltage instability area.
- Super energy-saving and Super Cooling performance: Super Cooling performance is ensured by big compressor together with the greatest heat exchange system. SEER up to 36 with solar, 22 without solar.
Common Application
home / office / school / remote telecom station / desert location / island location / bus station...
Frequently Asked Questions
How does a Hybrid ACDC Solar Air Conditioner work?

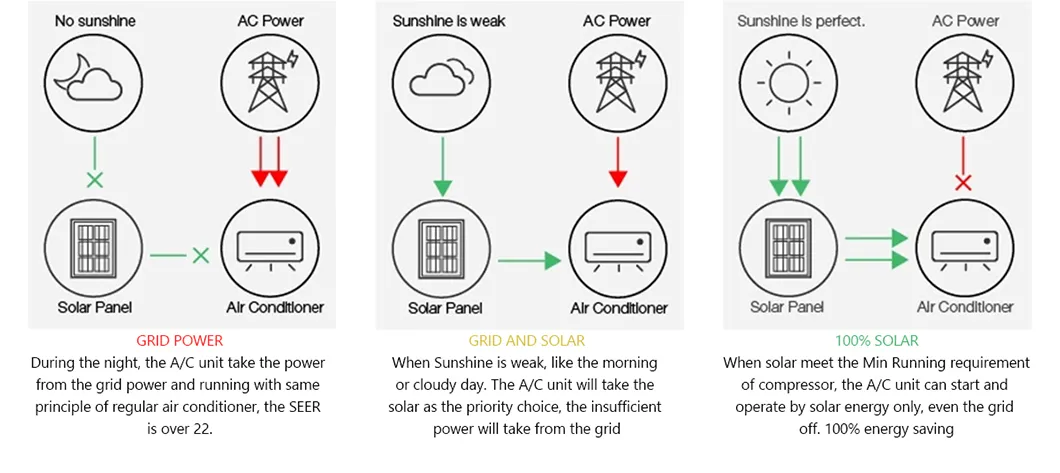

It runs directly on Solar DC power during the day by adjusting the inner voltage of the unit to suit the input from solar panels. The system automatically switches between solar DC power and grid AC power (or uses a combination of both) to keep the unit running optimally.
Does this hybrid solar air conditioner require batteries or an inverter?
No, the system operates using Solar Direct Drive Technology (SDDA), meaning it does not require batteries, an inverter, or a solar charge controller, which significantly reduces setup costs and maintenance.
How much power bill savings can I expect?
Under optimum conditions, the hybrid system runs on up to 100% solar power directly in the daytime, which can save you up to 97% of your mains power usage.
Can the system operate in extreme weather conditions?
Yes, it features a wide operating temperature range from -10ºC to +52ºC (meeting T3 work environments) and handles a wide AC voltage input range (AC 160V-250V) to accommodate areas with unstable power grids.
What cooling capacities are available?
The solar air conditioner is available in multiple capacities, specifically 9,000 BTU, 12,000 BTU, 18,000 BTU, and 24,000 BTU options to suit different room dimensions and cooling requirements.
