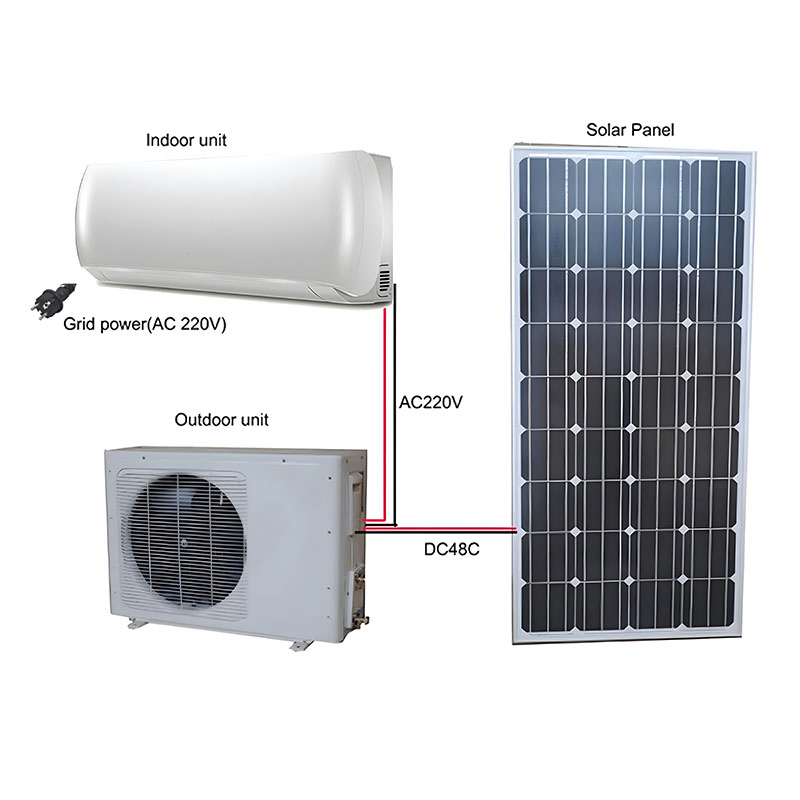

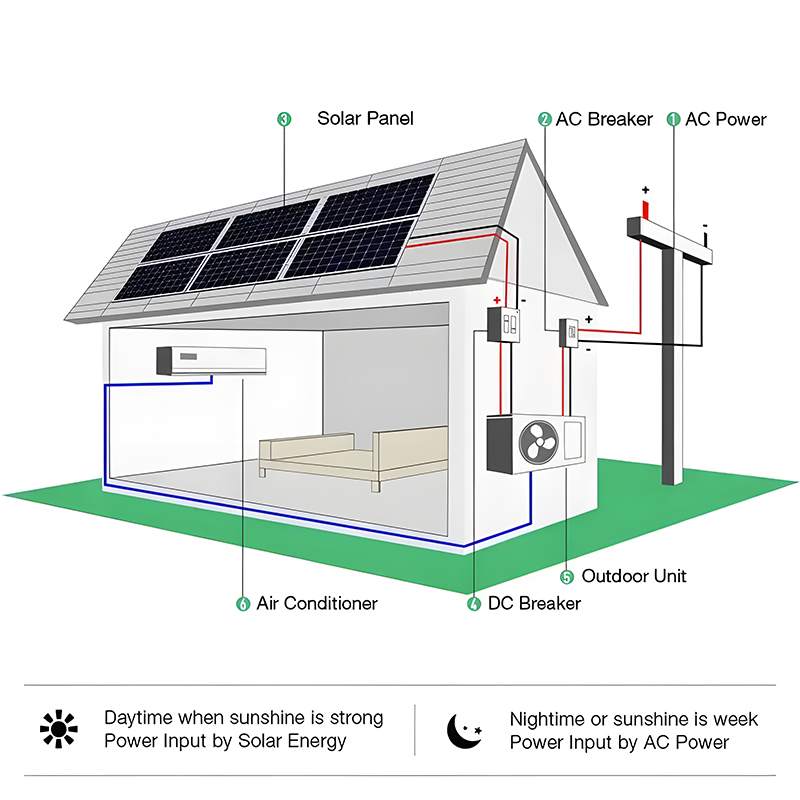

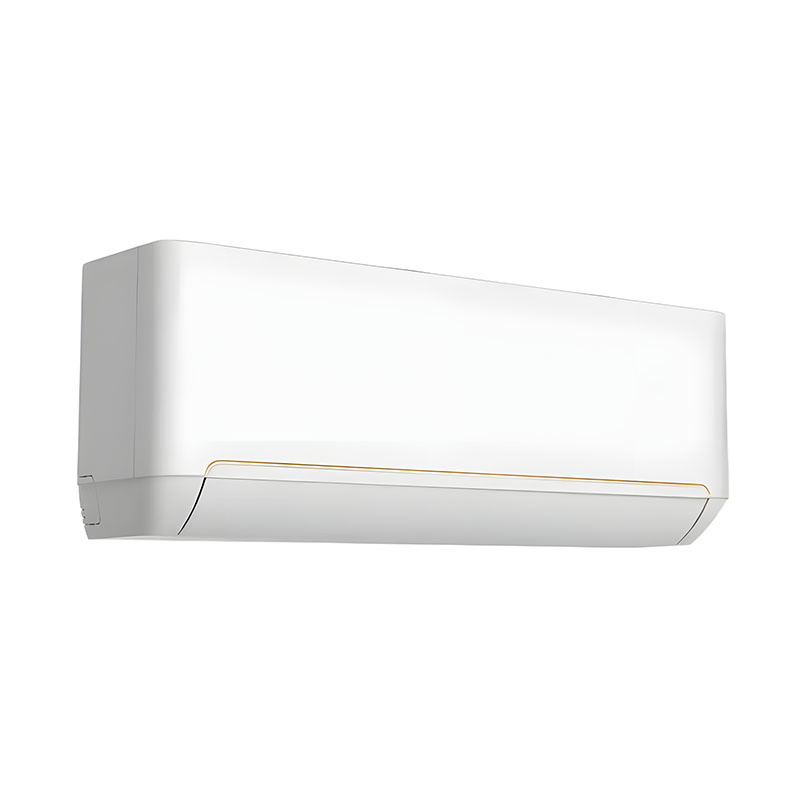

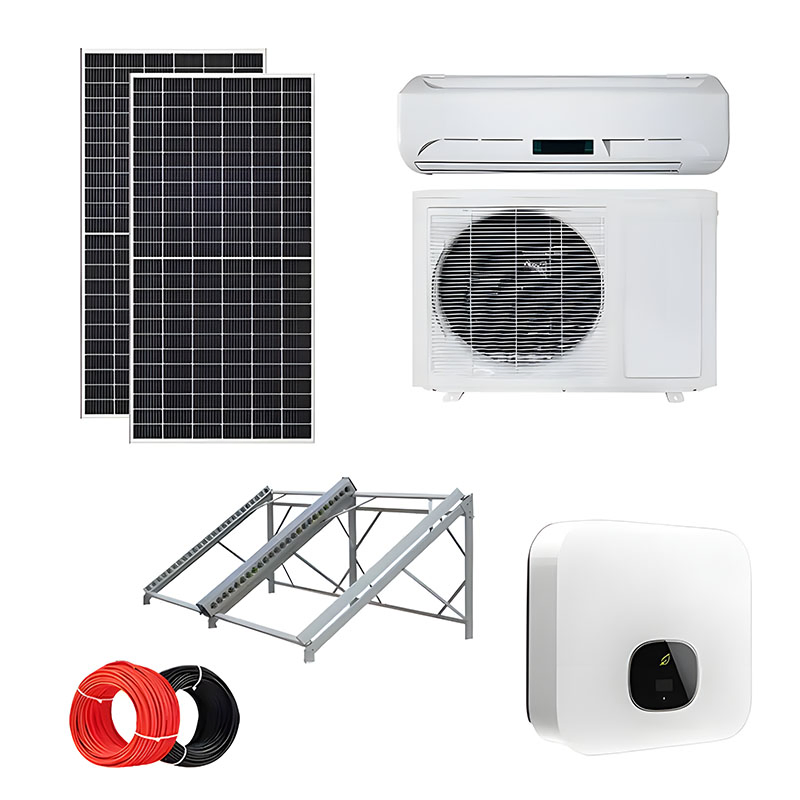

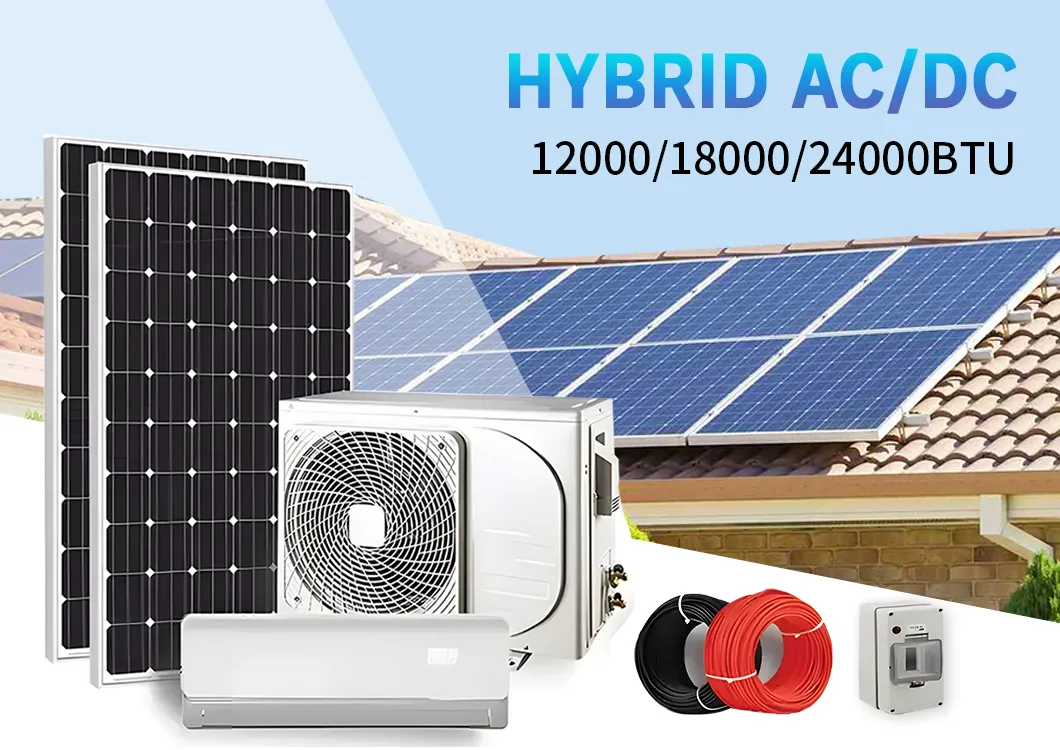

| T1/T3 Hybrid ACDC Solar Air Conditioner | |||||
| Model | Unit | 12000BTU | 18000BTU | 24000BTU | |
| Power Supply | AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60H |
| DC Power (PV in Series) | V | 80-380V | 80-380V | 80-380V | |
| DC Power Current | A | </=12A | </=12A | </=12A | |
| Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series | |
| Rated Cooling | Capacity | W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) |
| BTU | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) | ||
| Power input | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) | |
| Rated Heating | Capacity | W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) |
| Power input | W | 1170(190-1700) | 1770(220-2500) | 2290(300-3500) | |
| T1 EER (WW)Y(BTUW) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 | |
| COP (WW)Y(BTUW) | / | 3.50/11.95 | 3.45/11.75 | 3.40/11.60 | |
| Dehumidification capacity | Lh | 1.3 | 1.7 | 2.5 | |
| Compressor | Model | / | WHP04200 | WHP05600 | 5RD198 |
| Type | / | 2xRotary Inverter | 2xRotary Inverter | 2xRotary Inverter | |
| Brand | 1 | Highly | Highly | Panasonic | |
| Indoor fan motor | Model | BLDC-15W | BLDC-45W | BLDC-45W | |
| Indoor noise level (Turbo) | dB(A) | ≤42.5 | ≤46 | ≤50 | |
| Indoor unit | Dimension(WxHxD) | mm | 840x205x295 | 1080x330x237 | 1080x330x237 |
| Packing (WxHxD) | mm | 920x290x360 | 1140x300x382 | 1140x300x382 | |
| Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | 15.0/18.5 | |
| Outdoor fan motor | Model | / | BLDC-40W | BLDC-55W | BLDC-75W |
| Outdoor noise level | dB(A) | ≤52 | ≤55 | ≤58 | |
| Outdoor unit | Dimension(WxHxD) | mm | 802x564x323 | 802x564x323 | 900x700x337 |
| Packing (WxHxD) | mm | 910x622x405 | 910x622x405 | 1006x755x418 | |
| Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 | |
| Refrigerant type | / | R410A | R410A | R410A | |
| Max Design pressure | MPa | 4.3/1.5 | 4.3/1.5 | 4.3/1.5 | |
| Refrigerant copper pipe | Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | 1/2 1/4 |
| Max. refrigerant pipe length | m | 15 | 20 | 25 | |
| Max. difference in level | m | 8 | 10 | 10 | |
| Refrigerant connction copper pipe length | m | 3 | 4 | 4 | |
| Connection wire length | m | 4 | 5 | 5 | |
| Electronic Expansion Valve | / | Yes | Yes | Yes | |
| Loading QTY 40" Hg/ 20GP | Sets | 200/85 | 160/75 | 115/50 | |
