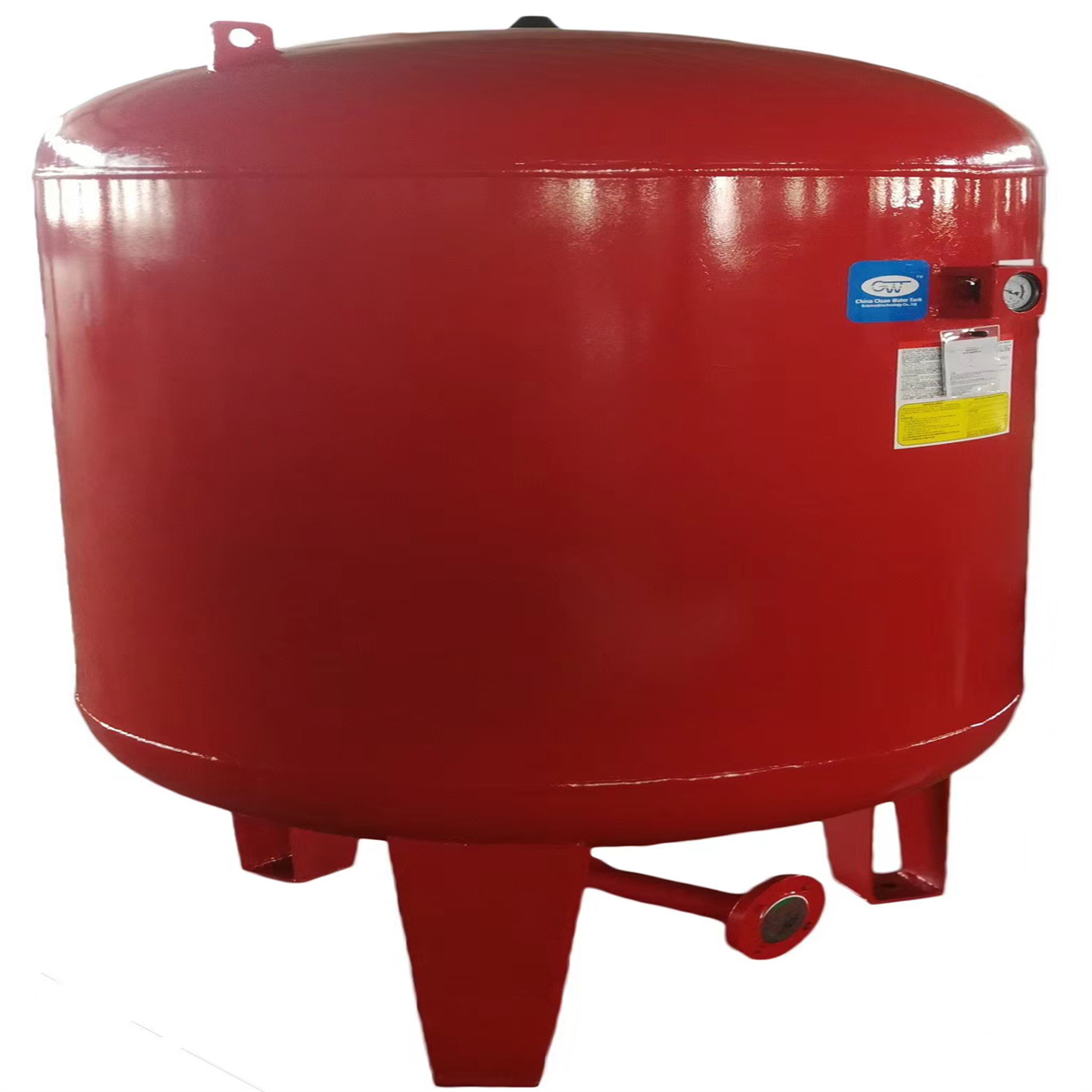

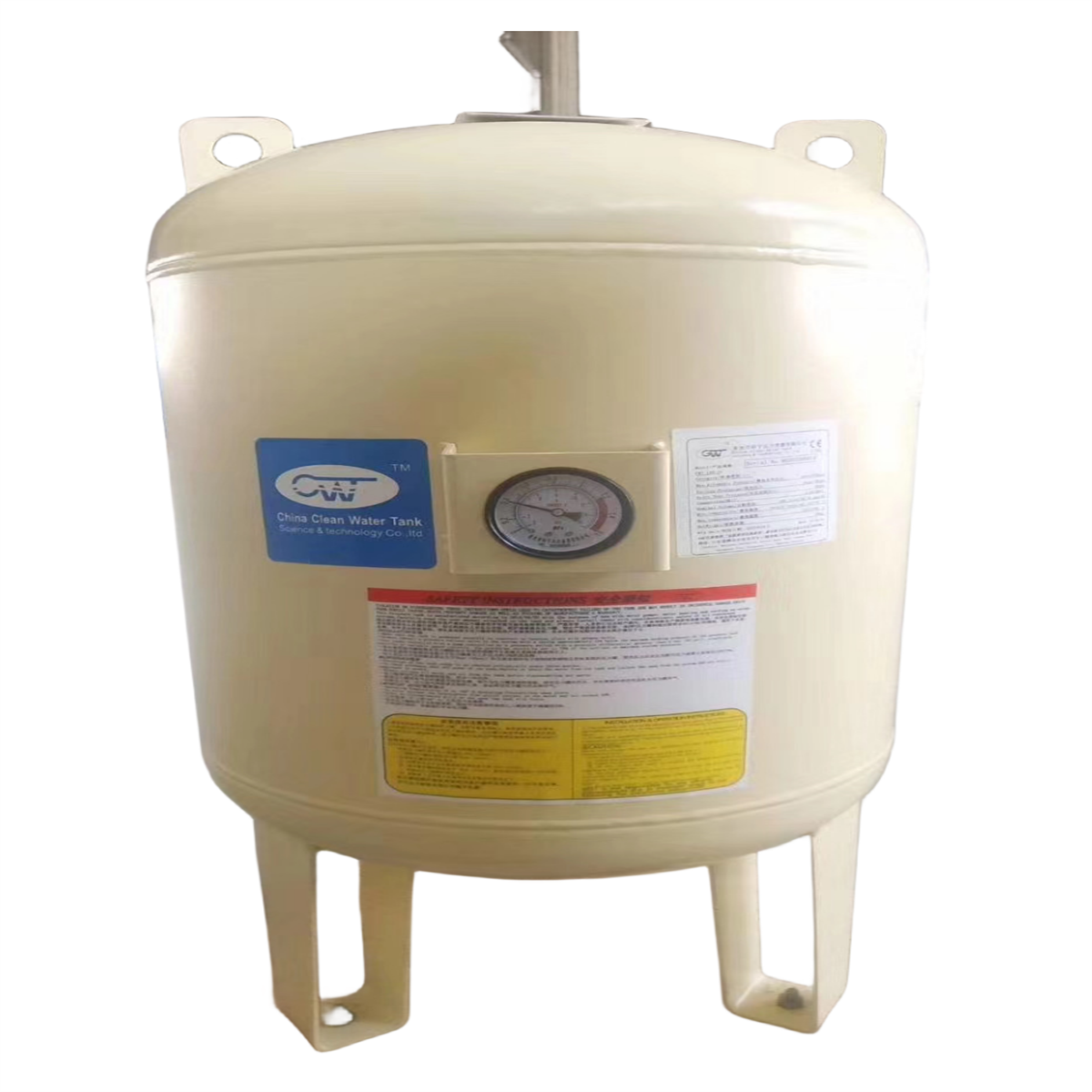

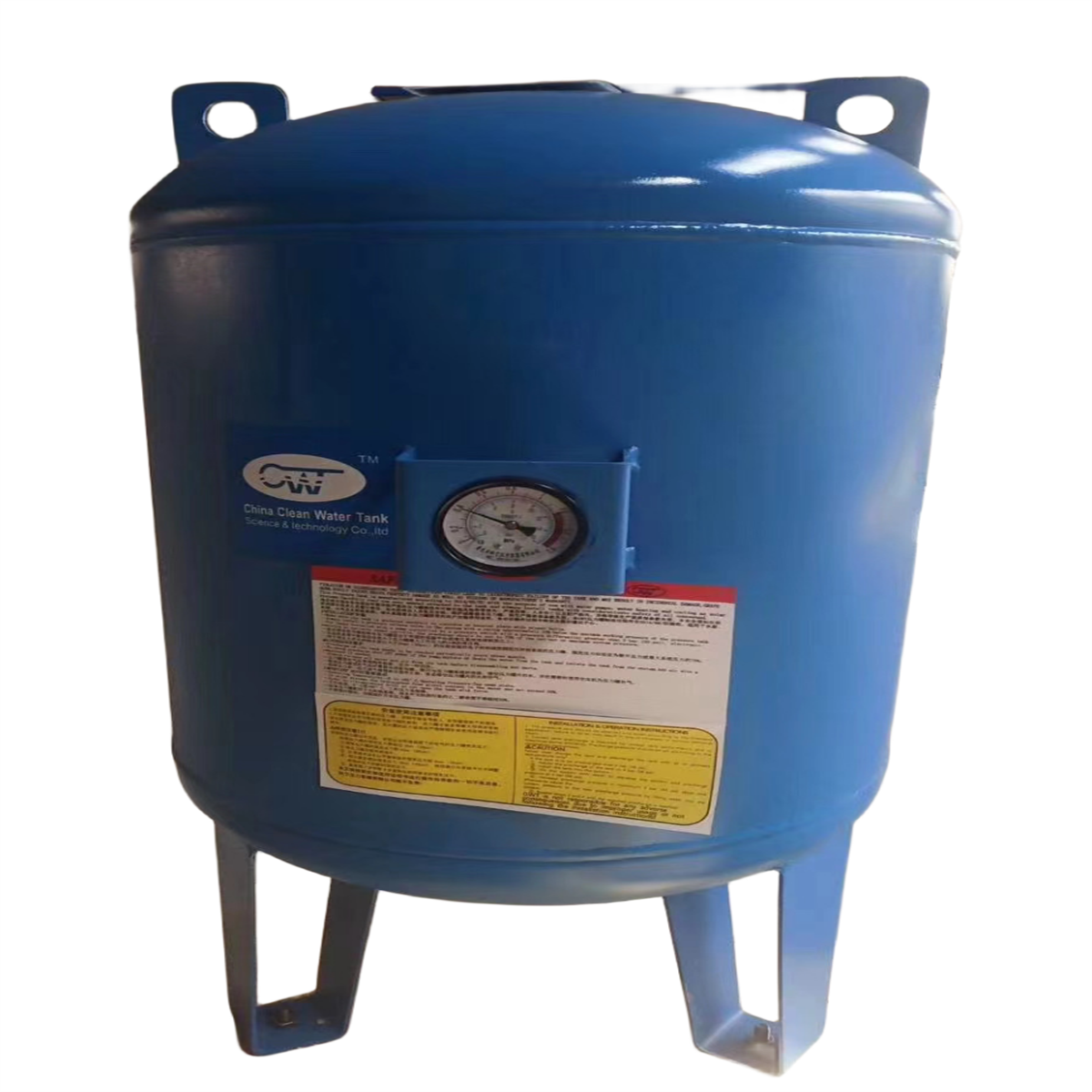

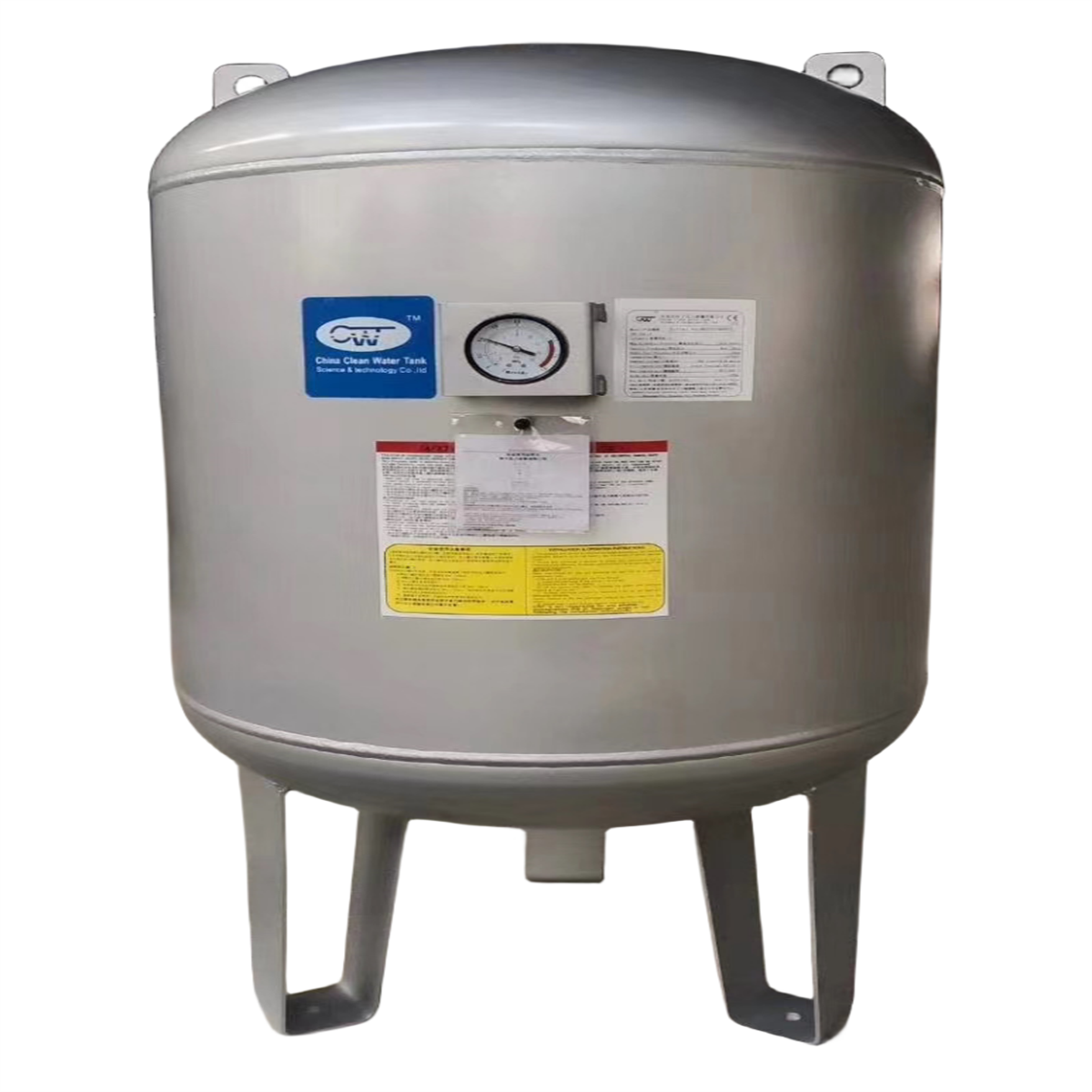

High Quality Steel Solar Water Pressure Tank Booster New Steel Pressure Vessel For Sunlight Water Pressure

Product Description

Products Description

Along with constant rise of land prices in densely populated cities, high rise buildings continuously are gushing out. This high rise housing trend increases energy required for water supply & corresponding green gas emission. Therefore it is necessary to evolve methods which result into energy savings.

High rise buildings pose a huge challenge when it comes to design of efficient water supply systems. This high rise housing trend increases energy required for water supply & corresponding green gas emission. Therefore it is necessary to evolve methods which result into energy savings and Optimizing energy requirement of water supply systems and is a way towards sustainable high rise development.

Products Description

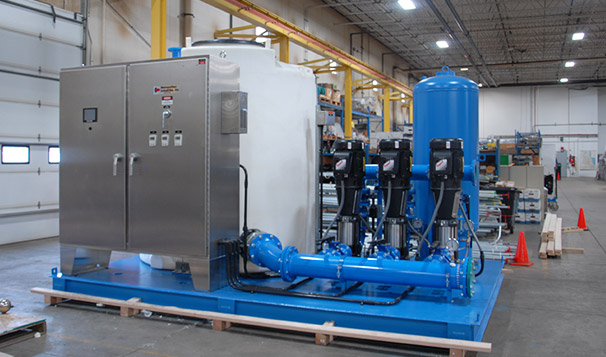

Water Purification Pressure Vessel

The water purification pressure vessel is a crucial component of high-rise building's non-negative pressure water supply system. It contributes significantly to continuous water supply, energy conservation, and noise reduction.

Vertical or Horizontal unit
Maximum working pressure 25Bar / 2.5MPa (362.5 PSI)
Carbon Steel or Stainless Steel Shell
Tank can be made to ASME / PED / GB Standards
ASME PED GB Stamp available as an option
Capacity up to 20,000 liters (5000 gal.)
Compatible with Most Systems of Plumbing, RO, Hydronic Heating etc.
Domestic Producer Supplying Epdm or Heavy-duty Butyl bladder Imported from Italy
20-40 psi air pre-charged in the tank
Bladder Tank filling kit provided if required
Details Images

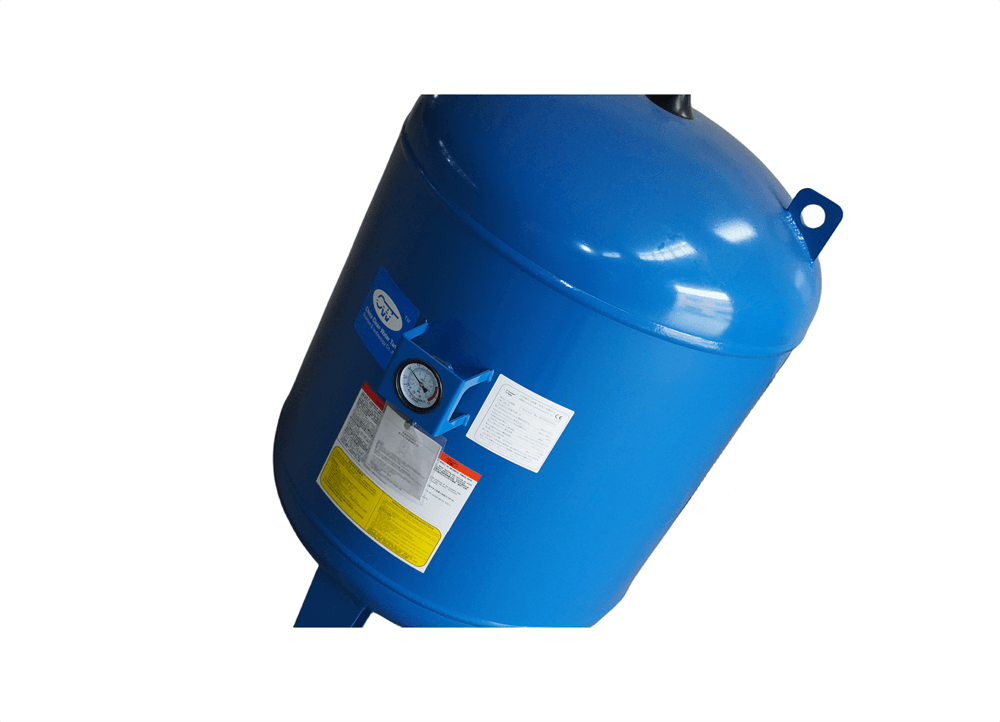

Welding processing
High-quality welding seam processing technology originates from German argon arc welding technology.

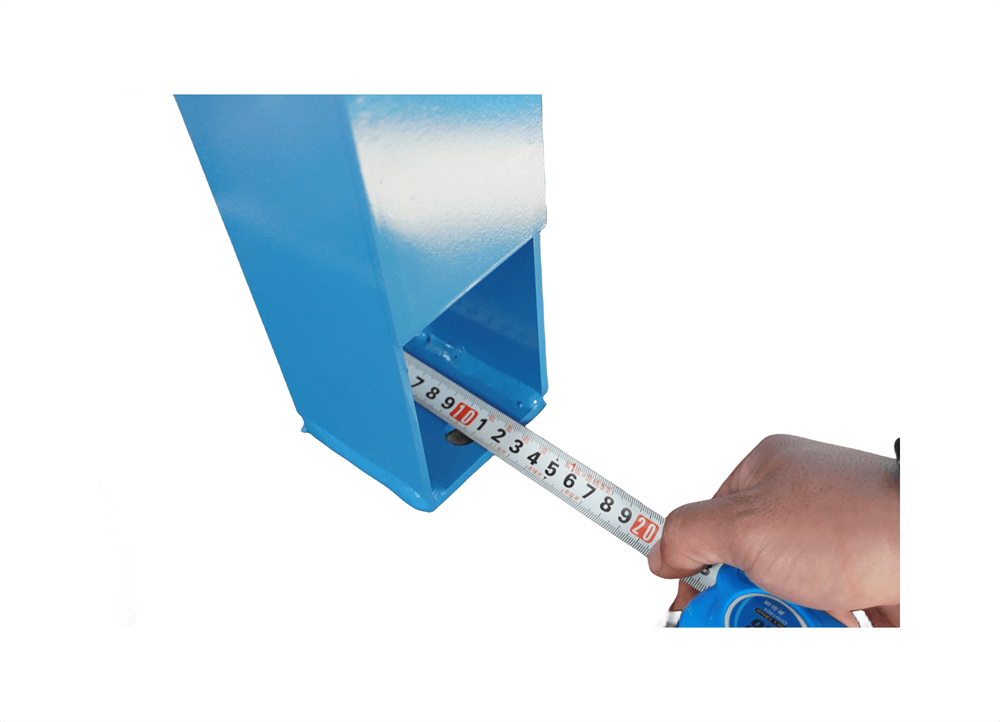

Legs design
The legs are also made of the best steel and have independent design patents.

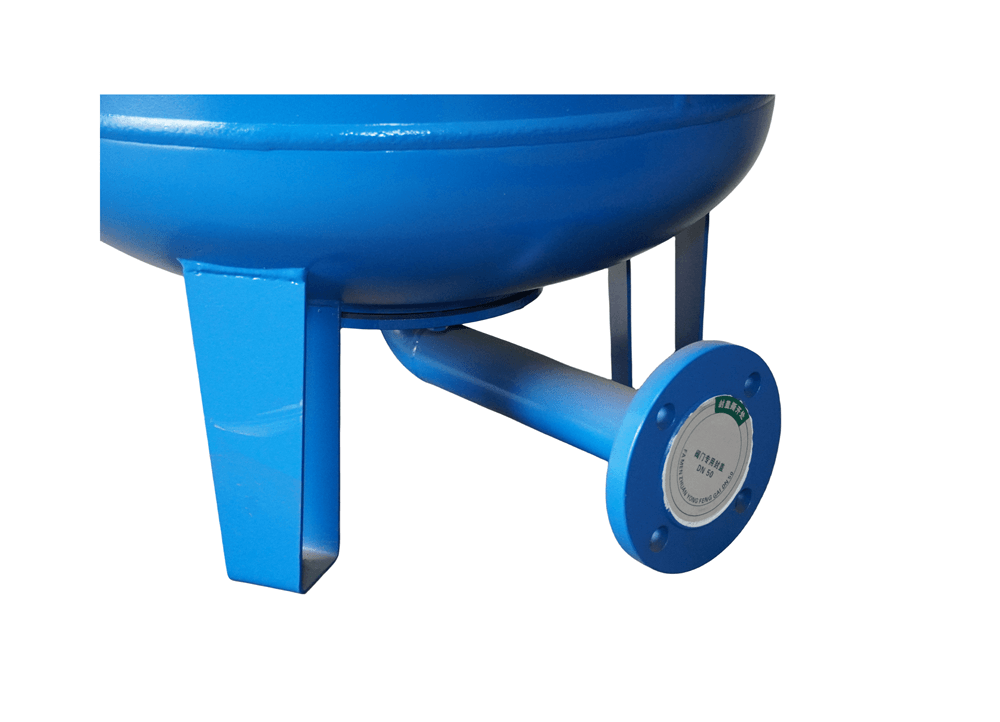

Interfaces treatment
The interfaces have undergone strict anti-corrosion treatment and special protective accessories have been installed to ensure safe transportation and storage.

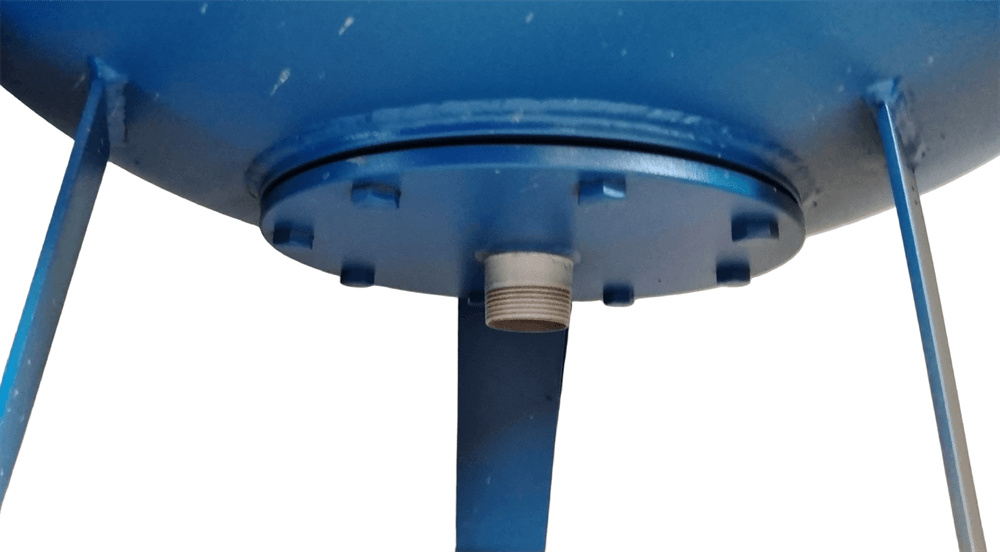

Bottom flange
The bottom flange fits perfectly. Rich assembly experience and perfect assembly technology ensure that the flange and shell are perfectly combined.

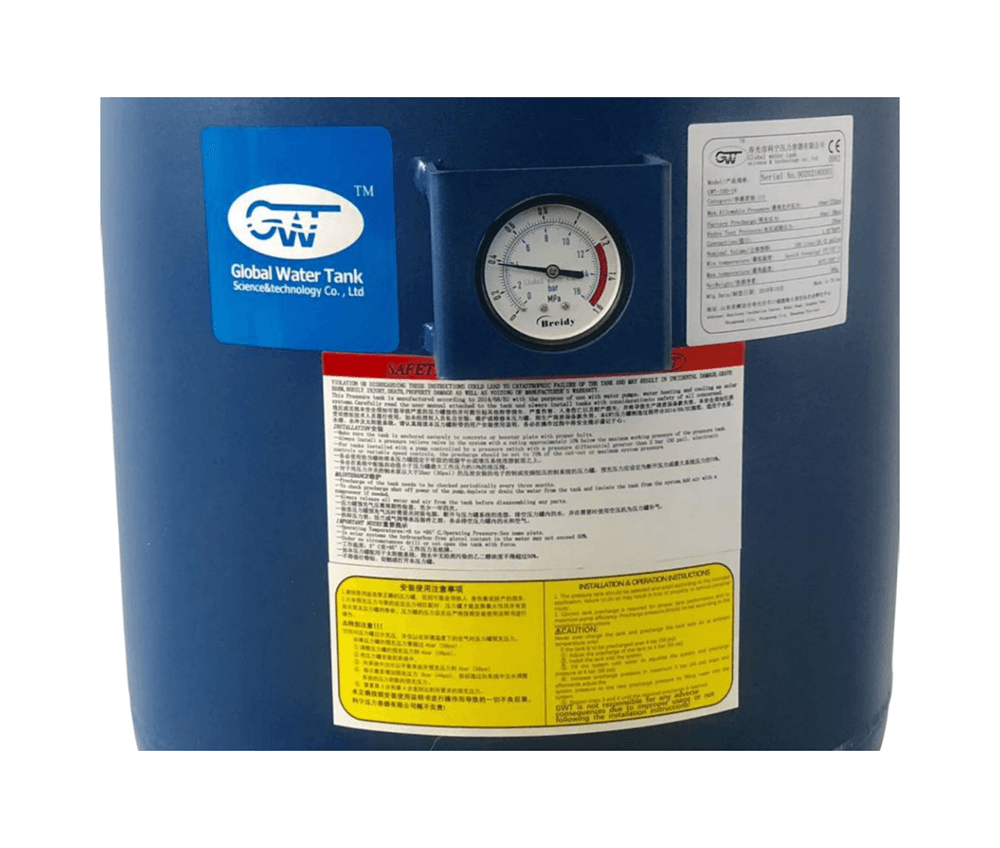

Pressure gauge
Pressure gauge imported from Taiwan with excellent performance.

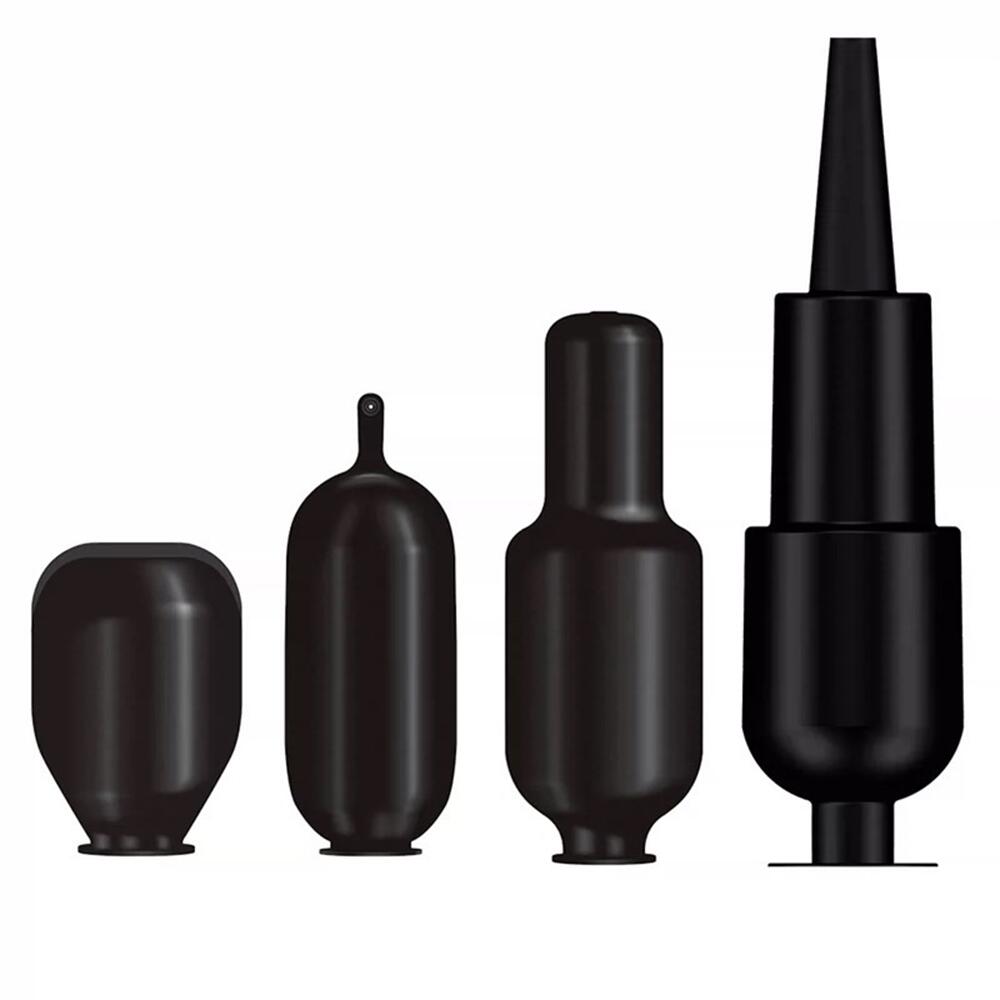

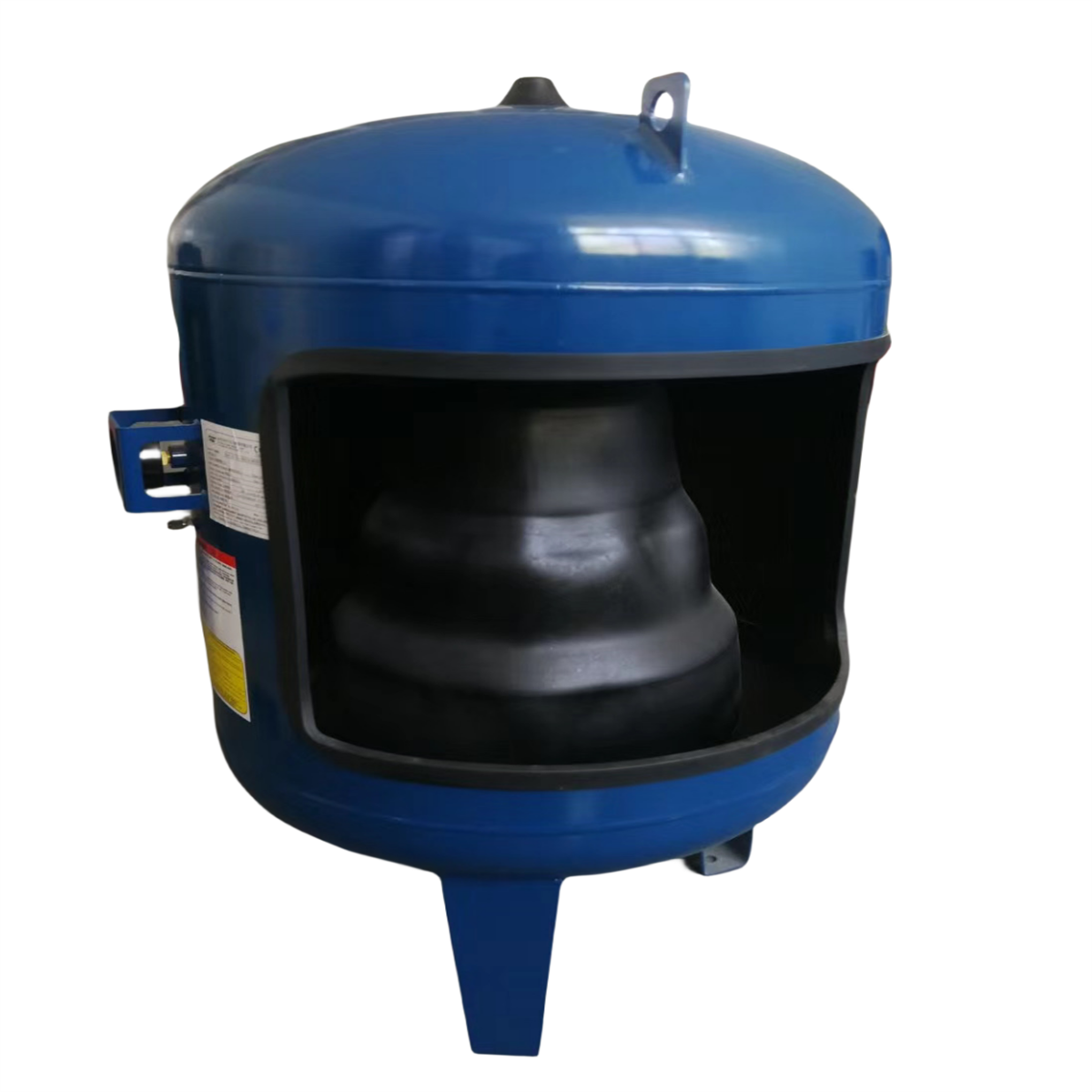

Bladder Membrane
The high-quality bladder (Membrane) imported from Italy not only perfectly integrates with the tank shell, but also ensures a long service life.
Product Parameters
Item Height (mm) Diameter (mm) Weight (kg) Interface Material (Part No) Volume (Litre) Max Pressure (bar)
CWT-80-10 950 380 13.3 1” 90065 T=3 80 10
CWT-100-10 1000 380 15.8 1” 90066 T=3 100 10
CWT-150-10 1110 461 30 1” 90103 T=3.5 150 10
CWT-200-10 1110 613 60 1.25” 90104 T=3.5 200 16
CWT-300-10 1250 662 72 1.25” 90105 T=3.5 300 16
CWT-500-10 1540 762 110 1.25” 90106 T=4 500 10
CWT-750-10 1800 762 130 1.25” 90107 T=4 750 10
CWT-850-10 1935 812 145 1.25” 90108 T=4 850 10
CWT-1000-10 2340 812 183 2” 90109 T=4 1000 10
CWT-1500-10 2400 966 272 2” 90110 T=5 1500 10
CWT-2000-10 2480 1116 347 2” 90111 T=5 2000 10
CWT-3000-10 2810 1220 488 2.5” 90112 T=5 3000 10
CWT-4000-10 3100 1520 800 2.5” 90113 T=6 4000 10
CWT-5000-10 3550 1520 900 2.5” 90114 T=6 5000 10
Certifications
The factory has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, D1/D2(<10MPa) Pressure vessel special equipment manufacturing license, simple pressure vessel special equipment type test certificate, domestic hygiene approval for drinking water safety products, PED H model 2014/68/EU (EU certification) and other certificates, is a national science and technology innovation cultivation enterprise.
Cert 1
Cert 2
Cert 3
Comprehensive Certificate Info
Clean Water Tank Technology Overview

Specializing in the research and development, manufacturing, processing, sales, and maintenance of pressure expansion tanks, air/water storage tanks, air energy storage tanks, water hammer tanks, heat/cold energy storage tanks, steady flow tanks for non-negative pressure water supply equipment, and coupled tanks.

Materials processed include carbon steel, stainless steel, duplex steel, and others. The products are mainly used for constant pressure frequency conversion water supply equipment, no-negative pressure water supply equipment, heating systems, solar energy, floor heating, fire fighting, air energy, air conditioning, and large water supply systems (waterproof hammer). They perform the critical functions of energy saving, pressure stabilizing, waterproof hammer mitigation, energy storage, and environmental protection, as well as prolonging the service life of the pump and pipeline system, to ensure the stable operation of the water supply system.

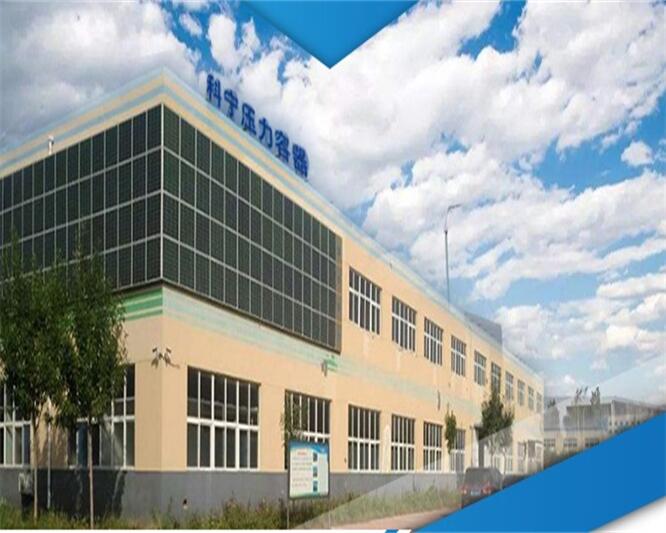

Tank Production Overview
Workshop View

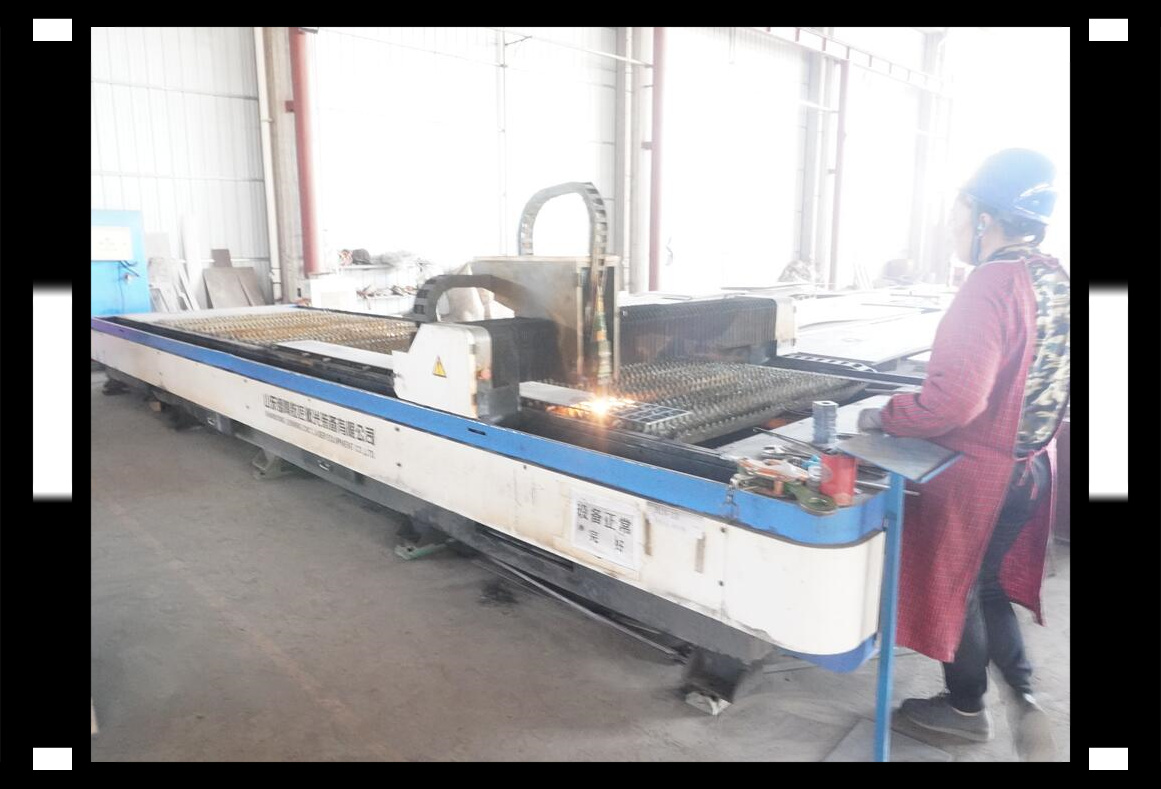

Workshop View 1

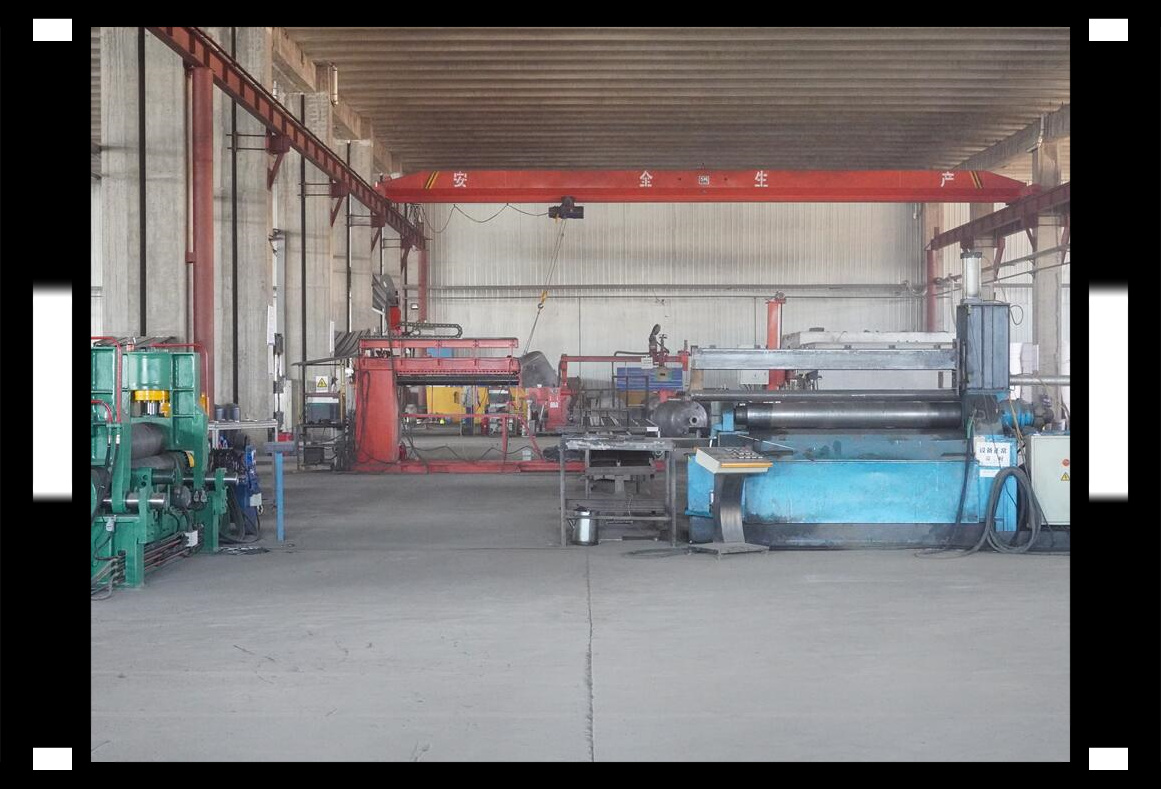

Workshop View 2

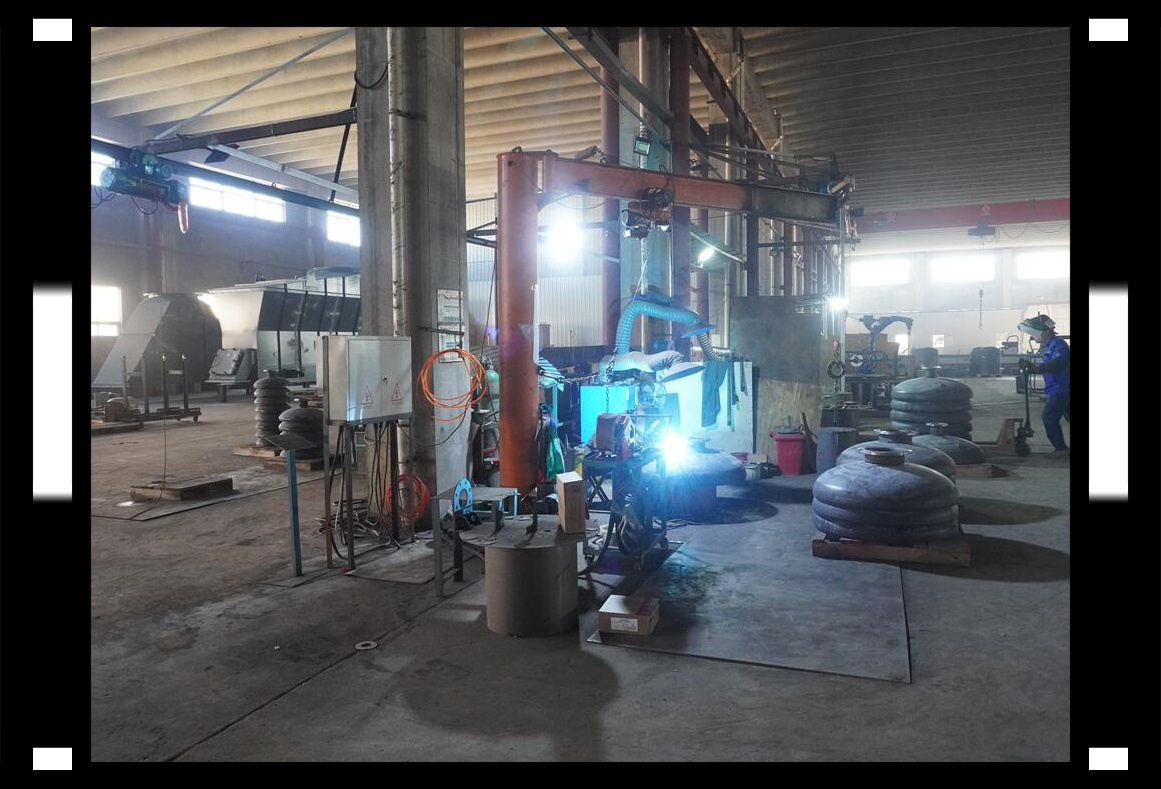

Workshop View 3

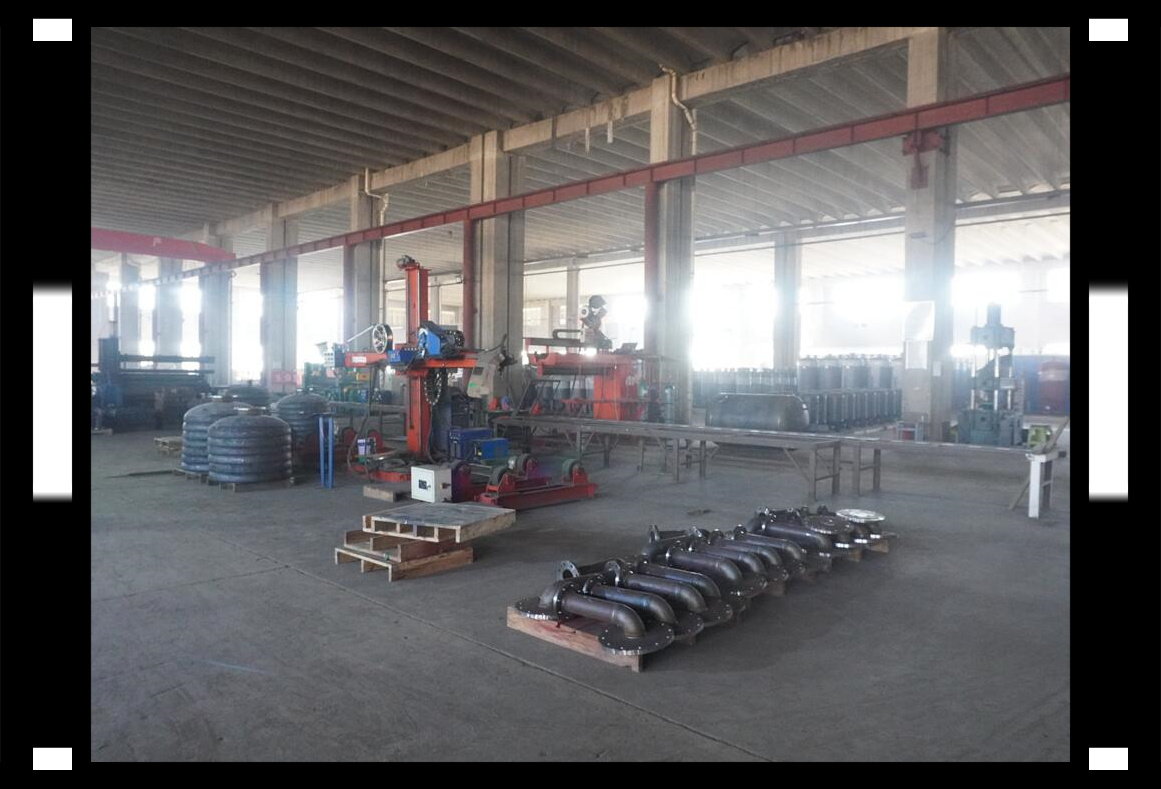

Workshop View 4

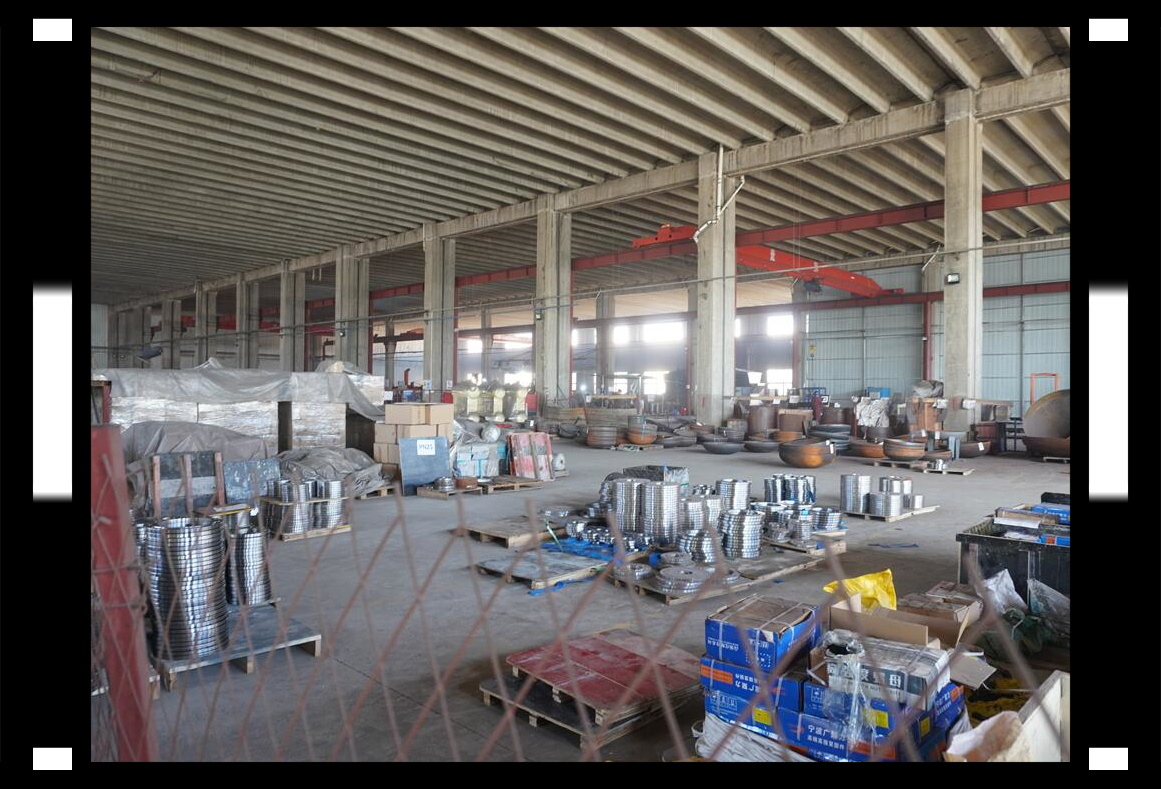

Workshop View 5

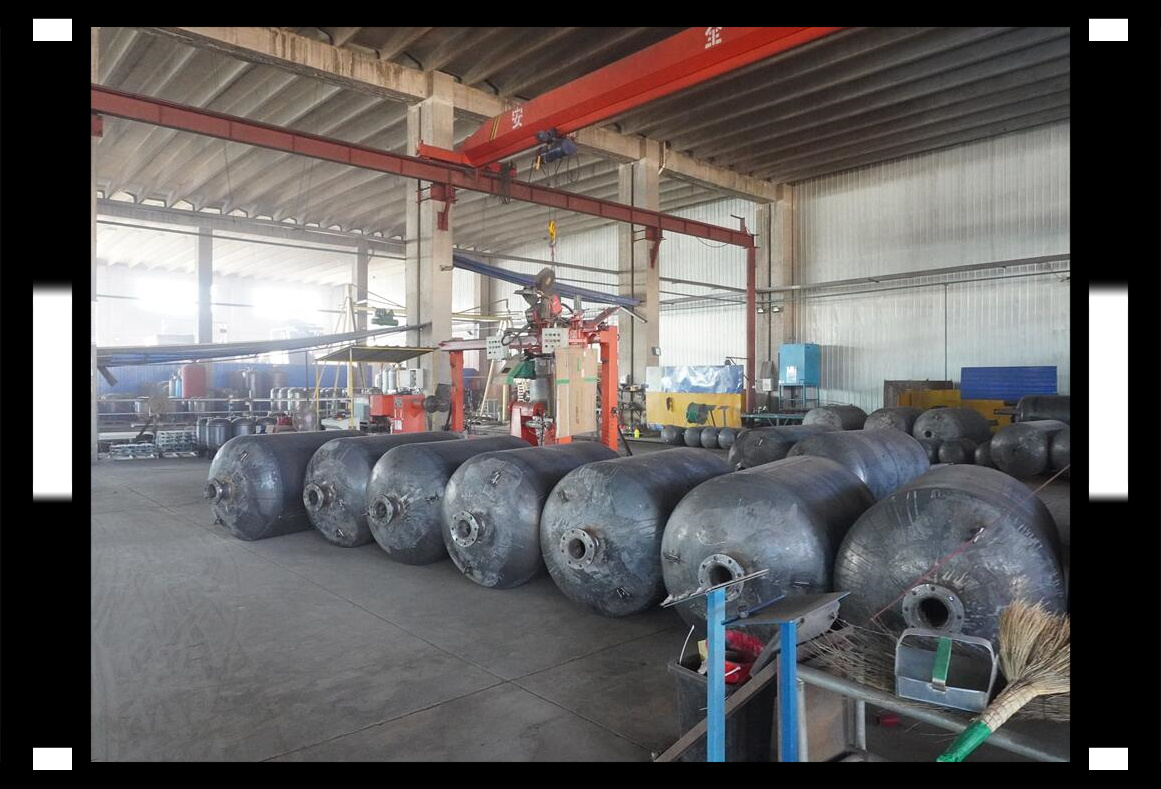

Workshop View 6

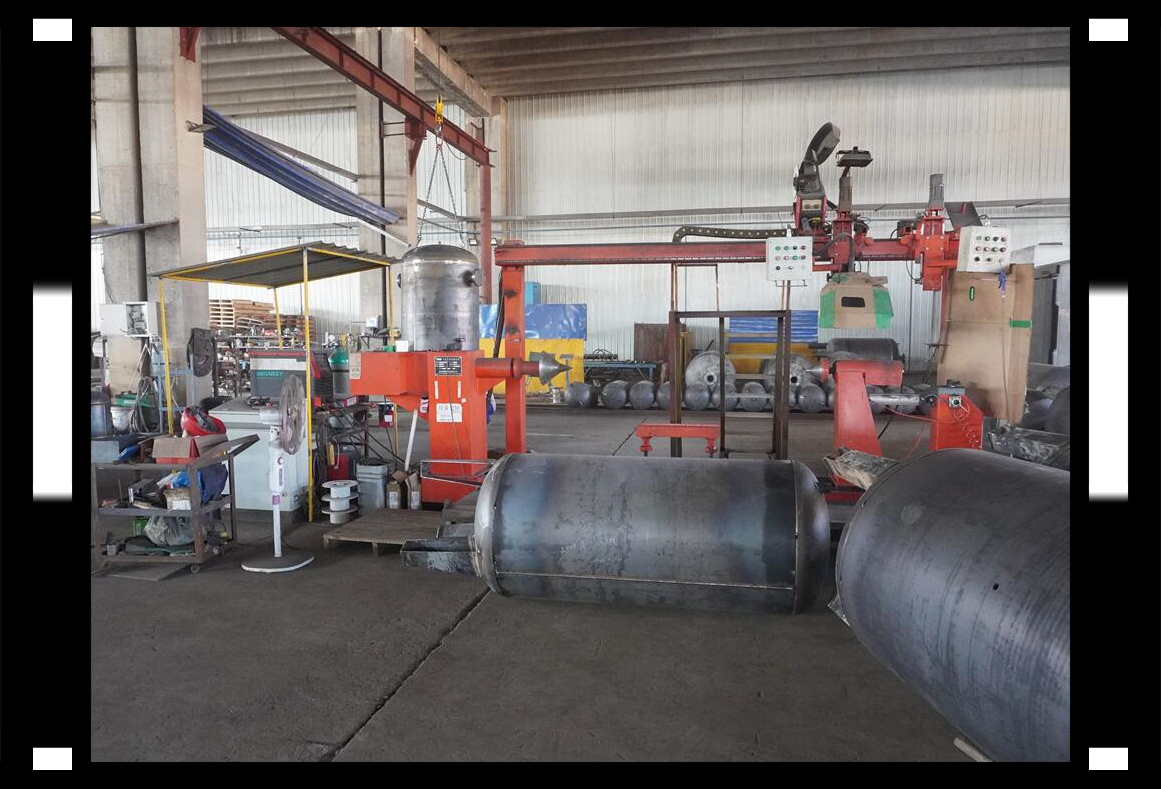

Workshop View 7

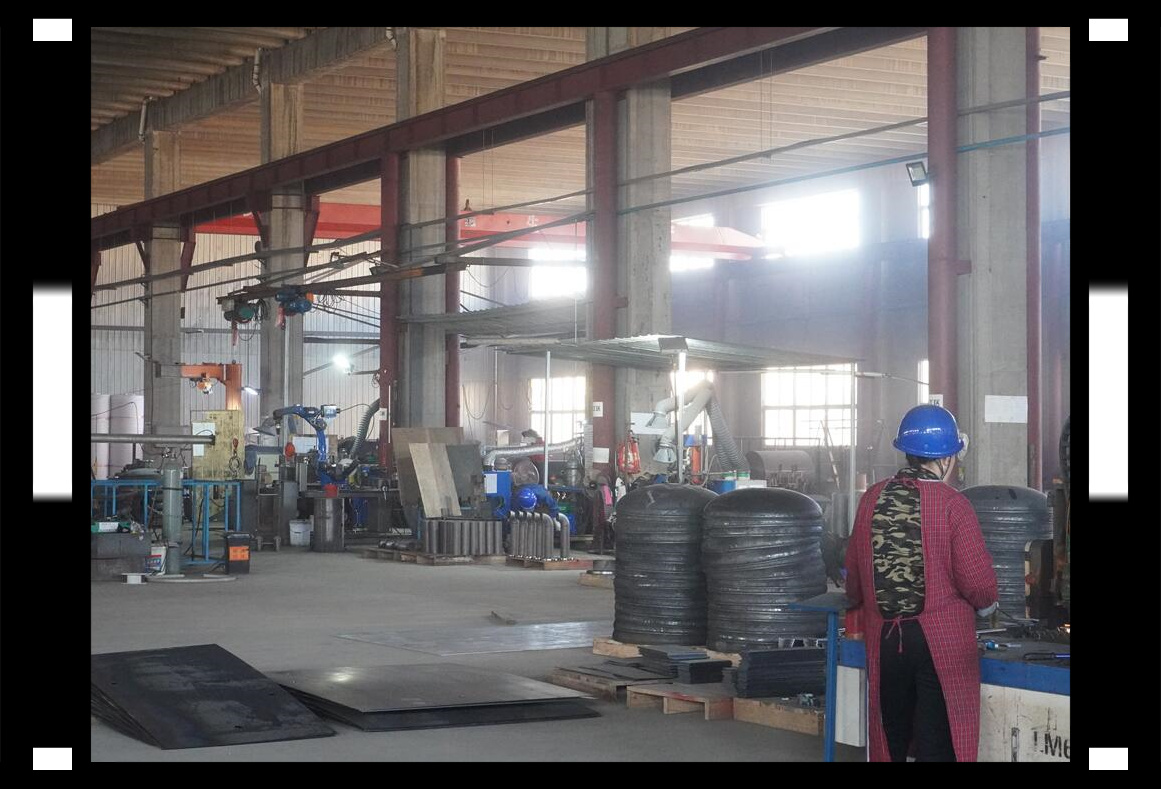

Workshop View 8
Why Choose Us
01
After Service
7*24 hours service online
Regular visits of tank users
Customization of tank solutions
02
Factory Show
100+ skilled workers
20,000 square meters area
5+ years production experience
03
Prompt Delivery
Supply original spare parts freely
Equipped with high stand accessories
Supply complete set of water supply system solution
04
Technical Support
Quick answer of technical questions
Custom-made design of water system
On-site installation guidance & debugging
05
Company Honor
Patent design of tank
Class A tank manufacturer in China
ASME, EAC, CE, ISO9001 audit system
Frequently Asked Questions
What are the main applications of these pressure expansion tanks?
Our tanks are primarily used for constant pressure frequency conversion water supply systems, non-negative pressure water supply equipment, heating systems, solar energy, floor heating, fire fighting, air energy, air conditioning, and large water supply systems (providing protection against water hammer).
What materials and design standards are used for tank manufacturing?
We use high-grade carbon steel, stainless steel, and duplex steel. The tanks can be manufactured in compliance with ASME, PED, and GB standards. ASME/PED/GB stamps are available as optional configurations.
How do these vessels contribute to energy conservation?
In high-rise developments, water supply systems require substantial energy. These pressure vessels stabilize system pressure, mitigate water hammer damage, and store energy, which optimizes energy requirements, reduces overall power usage, and lowers corresponding greenhouse gas emissions.
What certifications does the manufacturing plant hold?
The manufacturing facilities hold ISO9001 (Quality Management), ISO14001 (Environmental Management), ISO45001 (Occupational Health & Safety), D1/D2 (<10MPa) Pressure Vessel Special Equipment Manufacturing License, Simple Pressure Vessel Special Equipment Type Test Certificate, domestic hygiene approvals for drinking water safety, and EU certification (PED H model 2014/68/EU).
Are custom sizes and specific components available?
Yes. We support custom-made tank design solutions with volumes up to 20,000 liters (5,000 gallons) and working pressures up to 25 Bar. We also configure them with Italian-imported EPDM or heavy-duty Butyl bladders, high-performance Taiwan-imported pressure gauges, and pre-charged air setups.
What technical support and after-sales service do you provide?
We provide 7*24 hours online support, regular site visits for users, system custom design configurations, free supply of original spare parts, and on-site installation guidance and debugging assistance.
