Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
1 / 5
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU

Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU

Customization: Available
Type: Solar Air Conditioner
Capacity: 18000BTU
Send Inquiry

Product Description

Basic Info
Model NO. RC-ADC18GW/XA
Usage Room
Indoor Machine Noise 24-35dB
Certification CE, CCC, RoHS, UR
China Energy Efficiency Standard Level 1
Cooling/Heating Cooling/Heating
Power Source AC / DC
Power Type AC / DC
Condition New
Indoor Unit Size 1075*310*385
Outdoor Unit Size 910*400*630
Application Area 24-32 M²
Product Name Solar Air Conditioner
Indoor Unit Gw 14.50 Kg
Indoor Unit Nw 12.50 Kg
Outdoor Unit Gw 39.00 Kg
Outdoor Unit Nw 35 Kg
Transport Package Carton / Box
Specification 0.328 m²
Trademark OEM
Origin China
HS Code 8415102100
Production Capacity 5000units/Year
Packaging & Delivery
Package Size 107.50cm * 42.00cm * 109.00cm
Package Gross Weight 68.500kg
Product Description
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
What Is Solar Air Conditioner

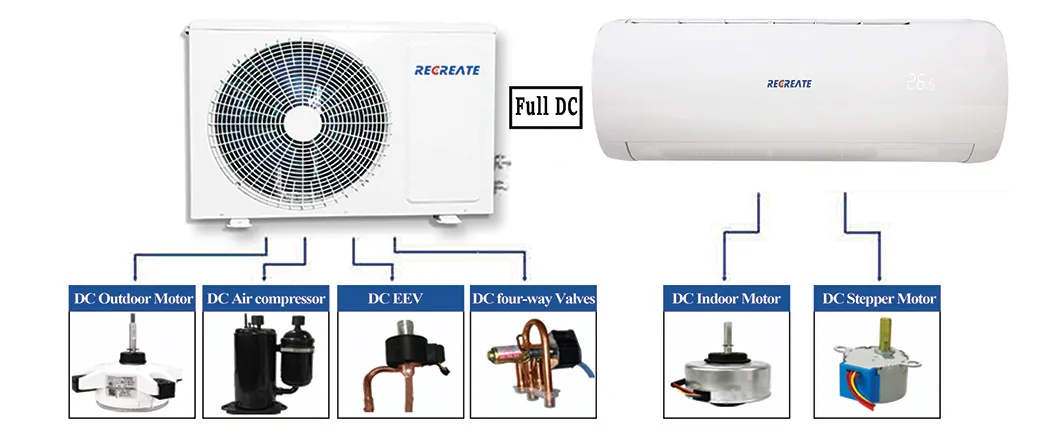

Hybrid Solar air conditioner is engineered from the ground up for use with solar. All electrical components are DC powered including compressor, high-efficiency DC fan motors, DC valves & solenoids, etc.
The system uses a VRF (Variable Refrigerant Flow) controller and frequency driver in conjunction with multiple sensors and an algorithmic control circuit to raise and lower the unit's capacity in real-time based on conditions as they change. Hybrid Solar air conditioner are more powerful and use less energy than a fixed speed air conditioner.

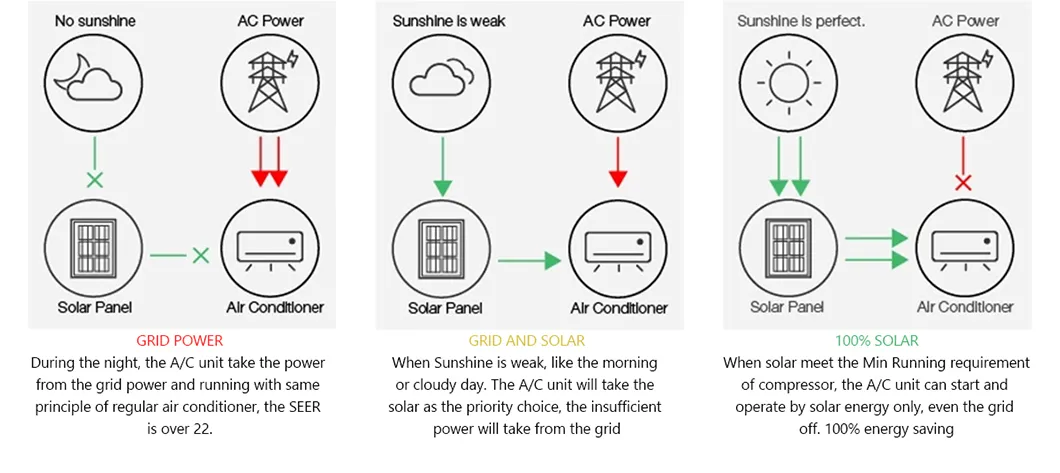

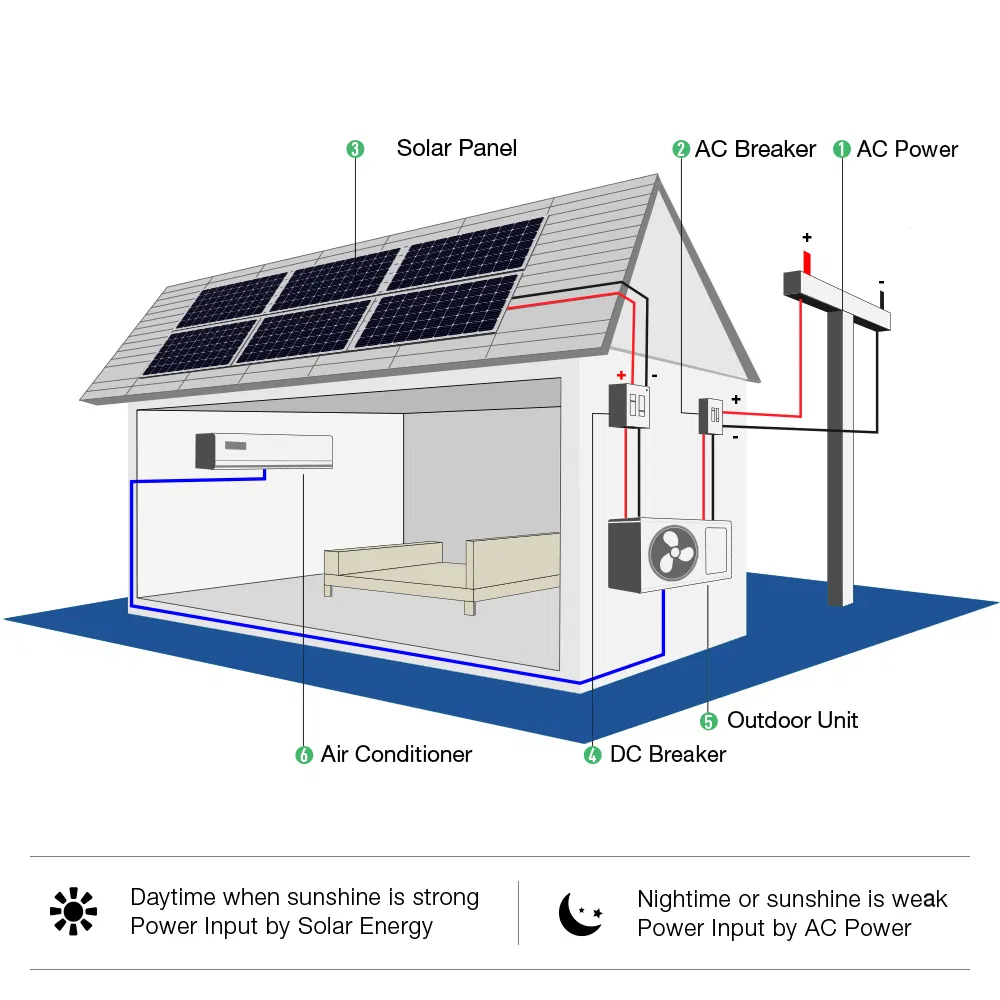

Using Solar direct drive technology (SDDA) the Solar Hybrid unit can use Solar DC generated power or mains AC generated power, or a combination of both as required. This means that the Hybrid requires NO batteries, NO inverter, NO controller and need only a few PV panels to deliver a huge saving. Under optimum conditions, this can save up to 97% of your mains power usage.

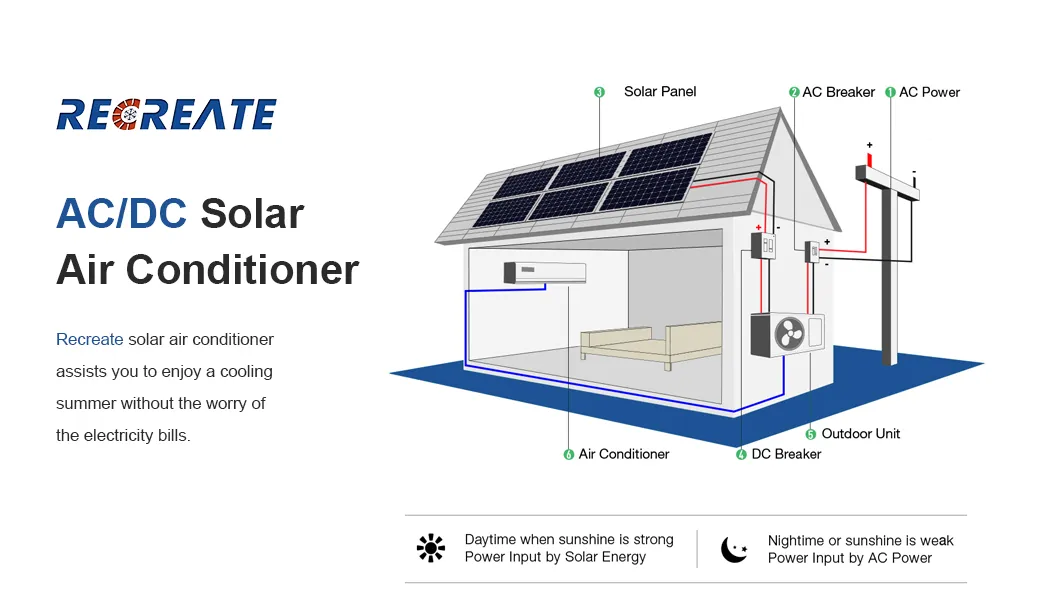

The SDDA will use as much solar energy as is available and this solar energy directly replaces the equivalent amount of AC power from the mains provider. Under enough solar power conditions, the Hybrid system can operate normally without AC generated power.
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU

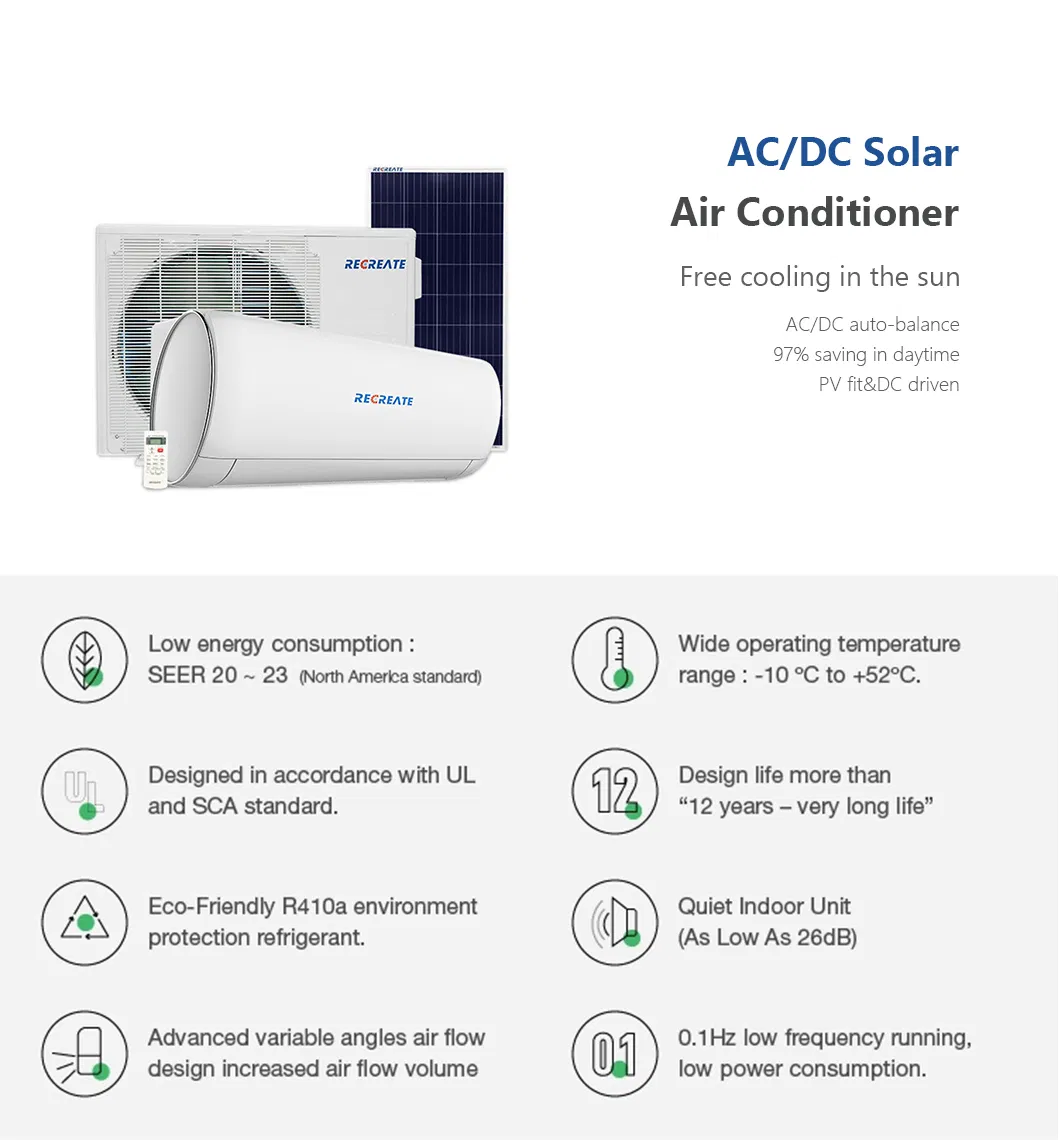

Benefits of ACDC Hybrid
  • Connects Directly to the Solar Panel: Runs on up to 100% solar power directly in daytime that would save you up to 97% of your power bill.

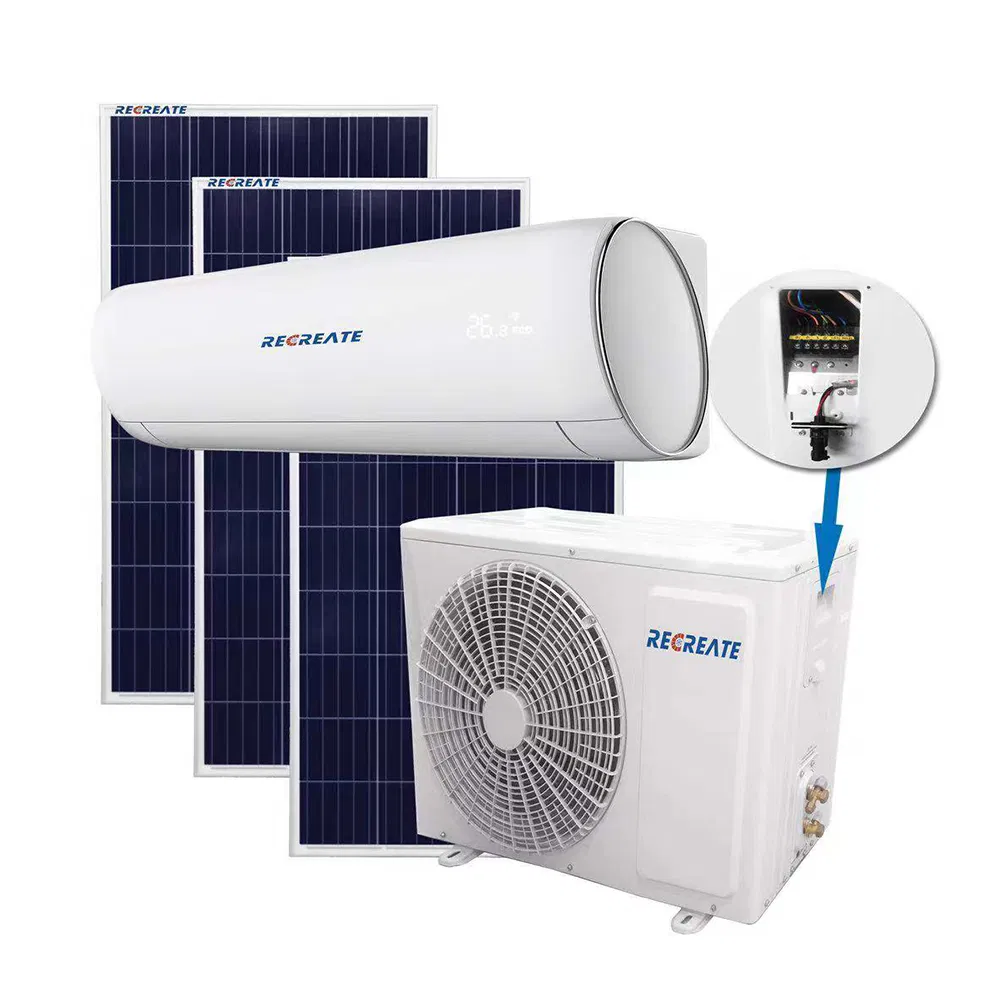

  • Easy Solar Connections: Connection from the solar panels to the Solar Hybrid outdoor unit is very simple with a terminal block mounted in the outdoor unit for the positive and negative cables straight from the solar panels.
  • Super applicability: Wide operating temperature range -10ºC to +52ºC, Meet T3 work environment Wide operating AC voltage range AC 160V-250V, meet the remote network voltage instability area.
  • Super energy-saving and Super Cooling performance: Super Cooling performance is ensured by big compressor together with the greatest heat exchange system. SEER up to 36 with solar, 22 without solar.
Common Application
Home Office School Remote Telecom Station Desert Location Island Location Bus Station
A/C Unit Description
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Model No. RC-ADC12GW-XA RC-ADC18GW-XA RC-ADC24GW-XA
Power Supply Solar Power V DC90-380V MAX.15A
AC Power Connected V 200-230V(50/60Hz)
Cooling Capacity Btu/h 12000 18000 24000
Inverter Capacity Range Btu/h 3099-12987 3482-19389 4294-25280
Power Input kW 0.98 1.51 1.87
Rated Current(AC) A 4.46 6.2 8
SEER   22 20 20
EER   12.6 12.1 12.1
Heating Capacity   12,000 17,200 23,800
Inverter Capacity Range Btu/h 3753~13306 4435~19789 5100~23542
Power Input kW 1.12 1.29 1.82
Rated Current A 5.93 6.08 8.08
HSPF   11 10 11
COP   12.1 11.6 12.7
  Dehumidification pt/h 1.3L/h 1.9L/h 2.3L/h
Indoor Air Flow - (Hifan) cfm 660 1080 1210
Indoor Noise dB(A) (Hifan) dB(A) 40 45 47
Max Refrigeration Pipe Length ft/m 15 15 15
Max Refrigeration Pipe Rise/Fall ft/m 5 5 5
Max Elevation Difference   15 15 15
Design Pressure psig 550 / 340 550 / 340 550 / 340
Connection Type flare flare flare
Connection Wiring AWG 4*18AWG 4*18AWG 4*18AWG
Operation temperature Indoor (Cooling/Heating) ºF 60.8 - 89.6/ 60.8 - 89.6 60.8 - 89.6/ 60.8 - 89.6 60.8 - 89.6/ 60.8 - 89.6
Outdoor (Cooling/Heating) ºF 50- 125.6/5-104 50- 125.6/5-104 50- 125.6/5-104
Indoor Unit Dimension(W*D*H) mm 895×300×203 1000×310×240 1130×320×245
Packing(W*D*H) mm 1080×385×327 1080×385×327 1195*310*390
Net/Gross Weight kg 9/11.1 12.5/14.5 15.5/17.5
Outdoor Unit Dimension(W*D*H) mm 795×290×555 795×290×555 860×304×733
Packing(W*D*H) mm 910×400×630 910×400×630 1005×450×820
Net/Gross Weight kg 31/35 35/39 51/55
Approvals   CB/GCC/ Performance Certified
Container Load 20'/40'/40'HQ   84/177/206 78/171/179 54/115/128
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU

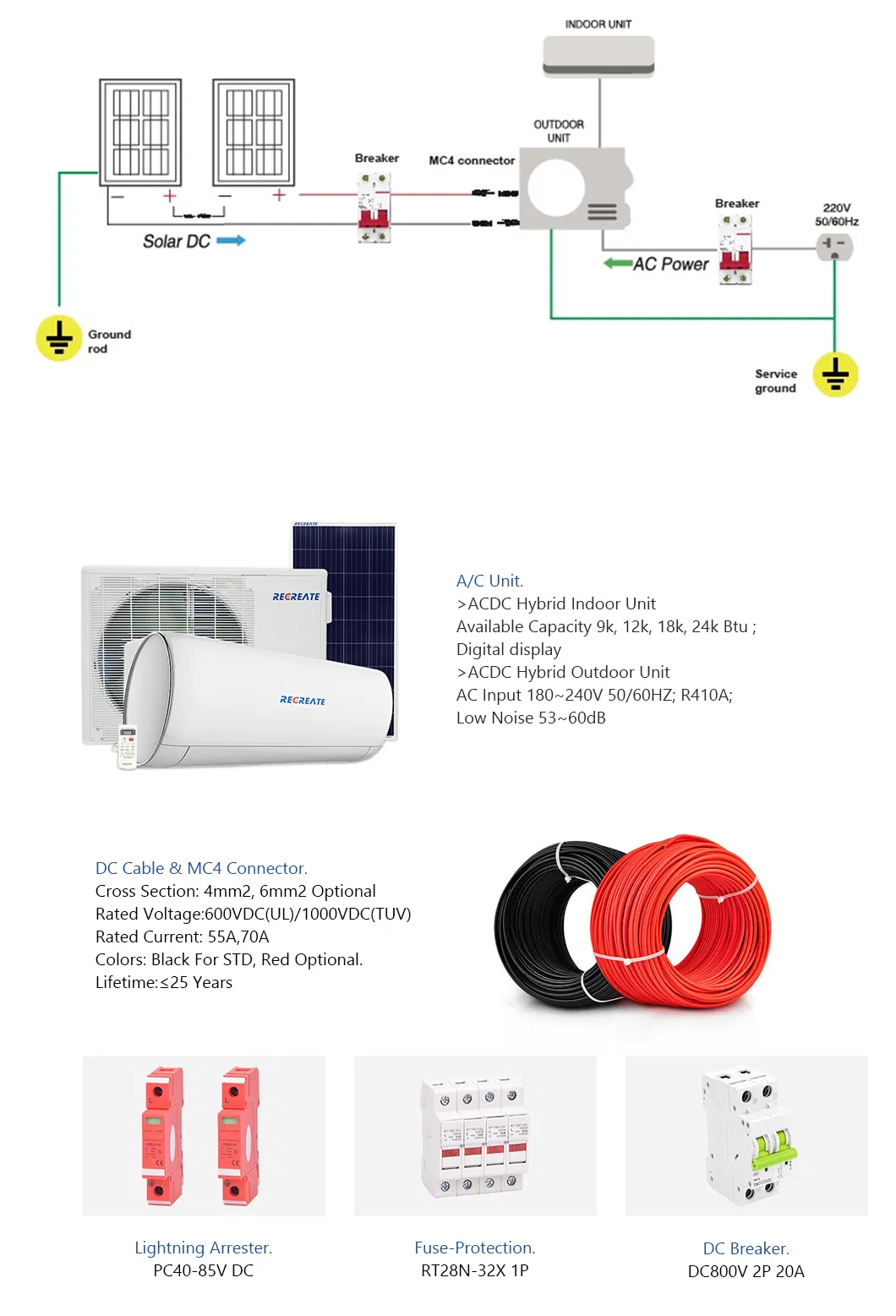

Solar Part Description
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Certificate
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU

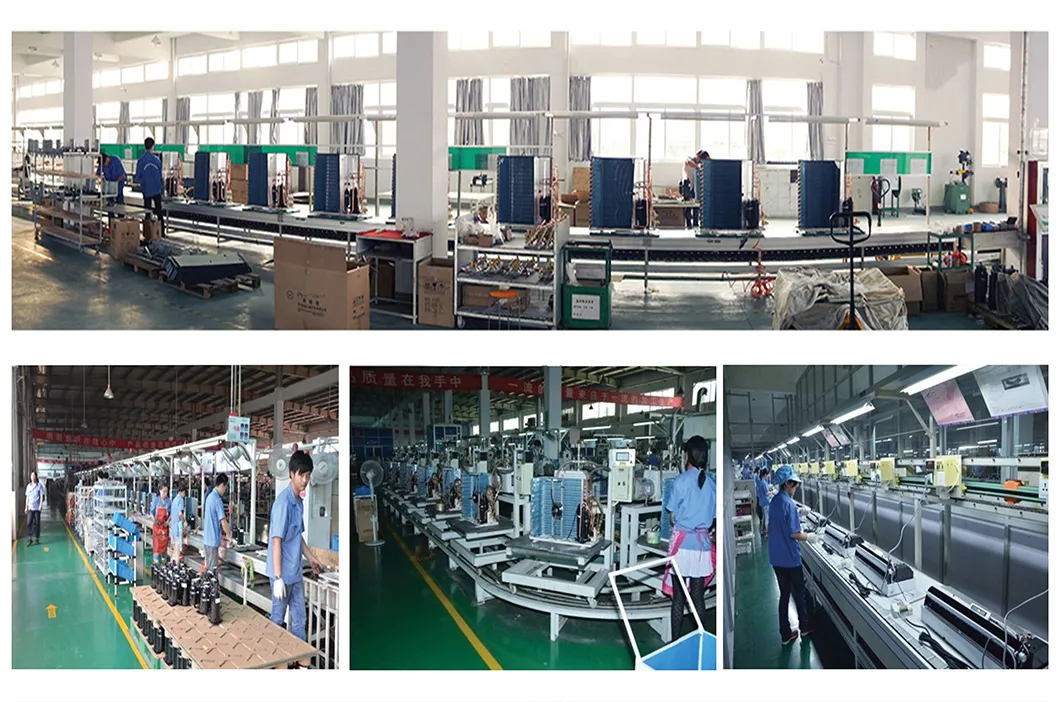

Our Factory
Saving Power 90% Acdc on Grid Solar Air Conditioner 18000BTU
Frequently Asked Questions (FAQ)
How does the ACDC Hybrid Solar Air Conditioner work?
The ACDC Hybrid Solar Air Conditioner connects directly to solar PV panels. It utilizes Solar Direct Drive Technology (SDDA) to prioritize clean solar energy during the day. If solar power is insufficient or at night, it seamlessly supplements power from the AC mains grid without needing an inverter or batteries.
Do I need to install batteries or a solar inverter?
No, this system does not require any batteries, solar inverters, or external controllers. The solar panel cables connect directly to the terminal block in the outdoor unit, making the installation simple and highly cost-effective.
How much money can I save on power bills?
Under optimum sunshine conditions, the Hybrid Solar Air Conditioner can save up to 97% of your mains power usage during peak daytime hours, running almost entirely on free solar energy.
Can the unit operate when there is no solar power?
Yes. On cloudy days or at night, the system automatically transitions to run on standard AC grid power (160V-250V). It functions as a highly efficient conventional VRF inverter air conditioner.
What are the environmental operating limits of this system?
The unit features a wide operating temperature range from -10ºC to +52ºC, designed to meet T3 work environment requirements. It also supports unstable power grids with a wide AC input voltage range.
