| Category | Parameter / Item | SSL-S-SOR-Type1-10m | SSL-S-SOR-Type1-8.4m |
|---|---|---|---|
| Pole Structure | Material | 6063 Aluminium Profile | |
| Dimensions | Φ 220mm*4mm*10000mm | Φ 220mm*4mm*10000mm | |
| Shape | Squircle | ||
| Coating | Hot-dip galvanized/electrostatic spray (color customizable) | ||
| Lighting Performance | Material | Aluminum Alloy | |
| Power(W) | 120W | 90W | |
| CCT(K) | 5000K | ||
| Efficiency (Lm/W) | 150LM/W | ||
| CRI (Ra) | Ra ≥ 70 | ||
| Integral Luminous Flux | 18000LM | 13500LM | |
| Battery Technology | Material | Lithium-Ion | |
| Capacity | 12V/120Ah | 12v90Ah | |
| Operating Temperature | -20° C to 75° C | ||
| PV Components | Type | Shingling Technology | |
| Efficiency | ≥ 15.6% | ||
| Open Circuit Voltage | 40.2V | ||
| Operating Voltage | 33.4V | ||
| Short-Circuit Current | 1.59A | ||
| Operating Current | 1.5A | ||
| Operating Temperature | -30° C to 85° C | -40° C to 85° C | |

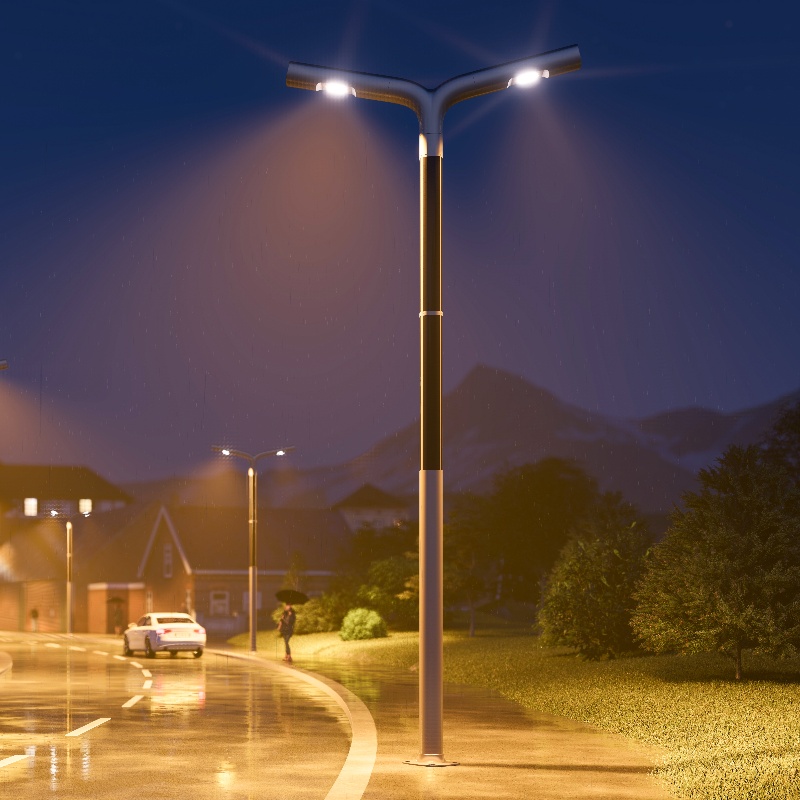

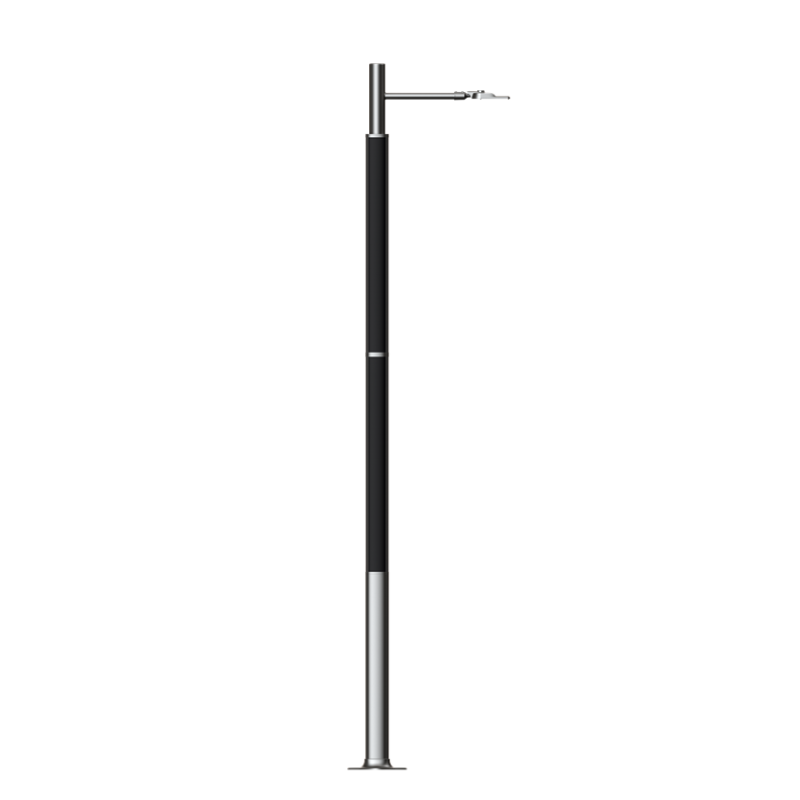

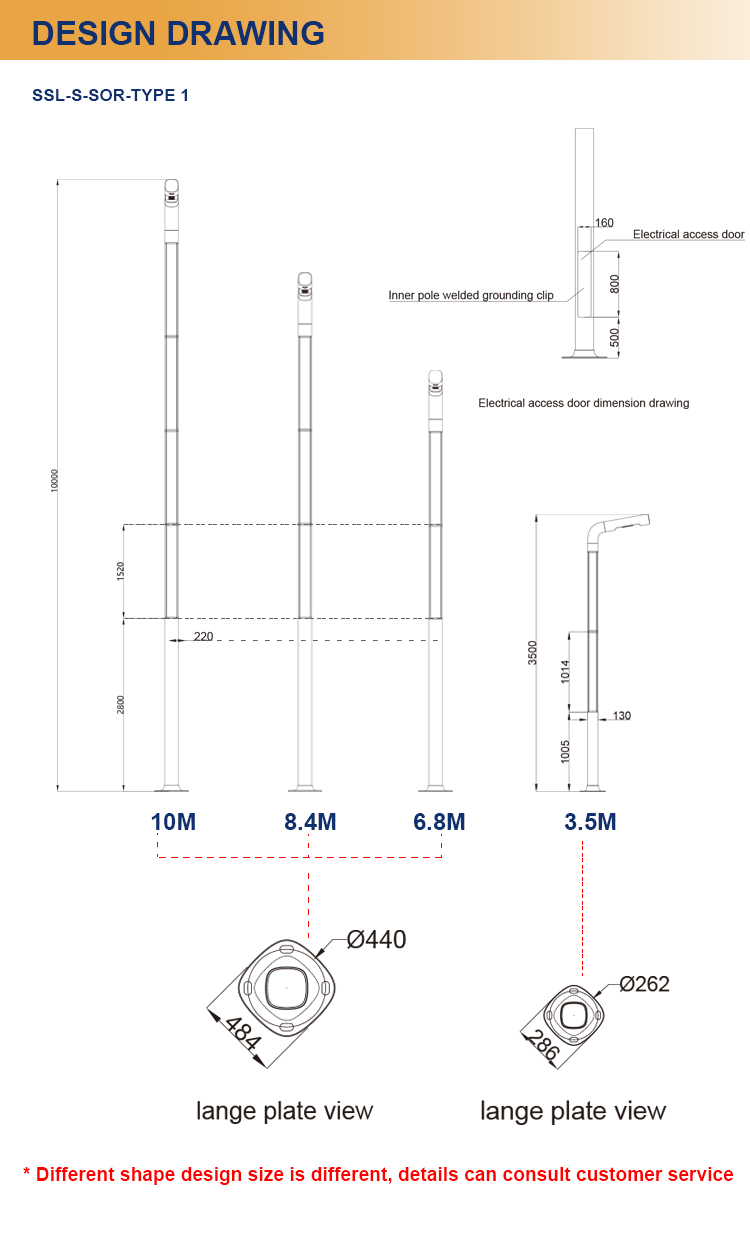

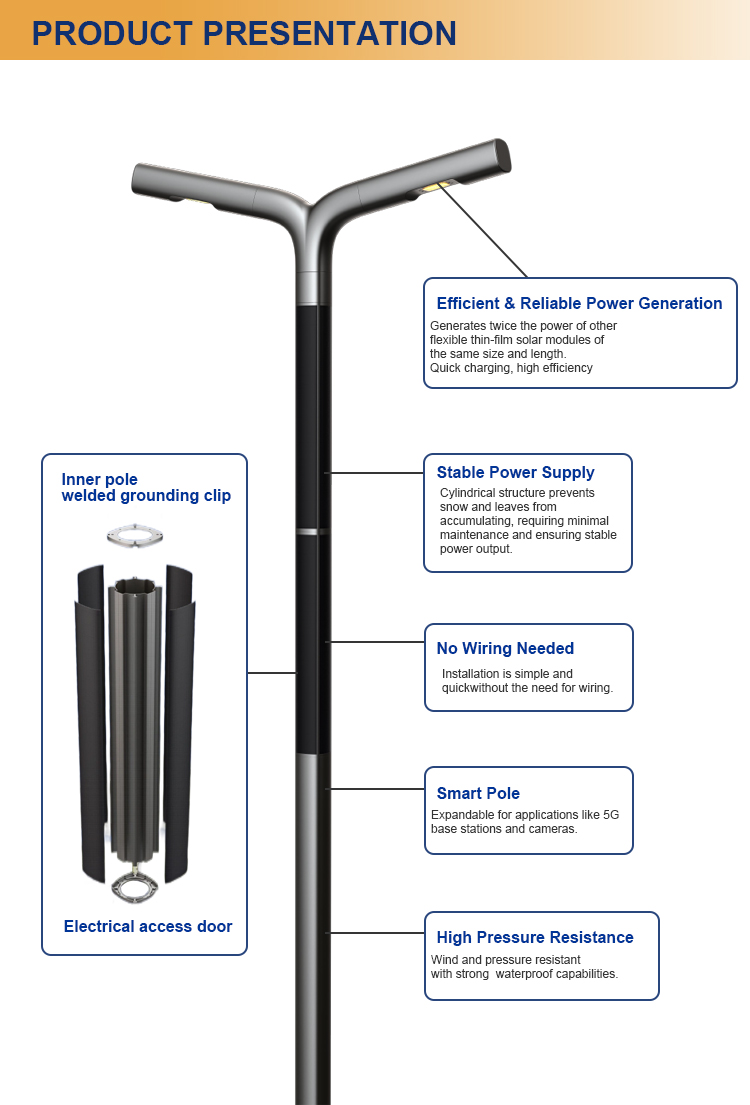

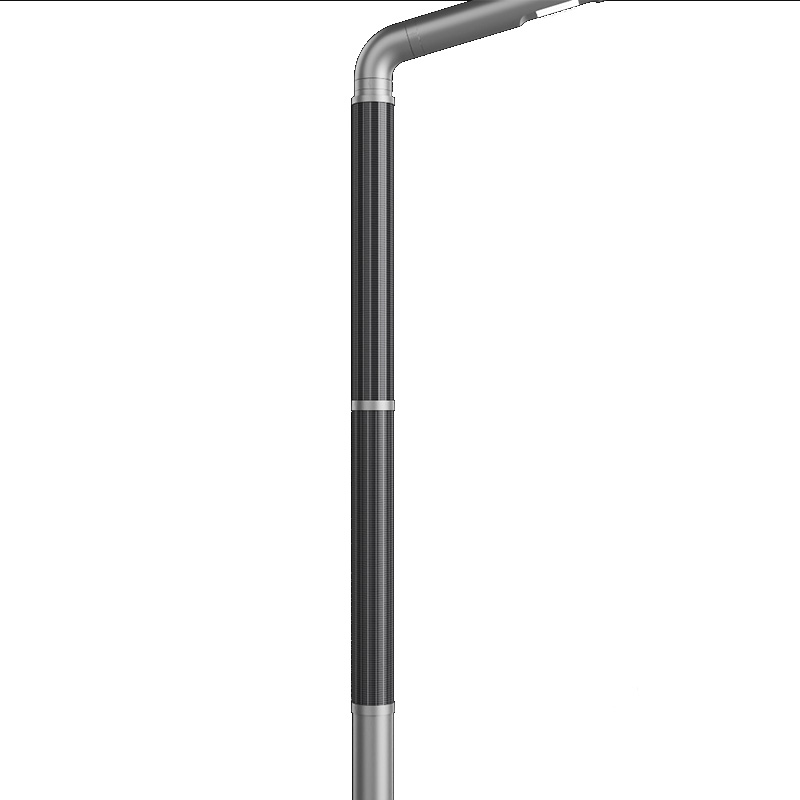

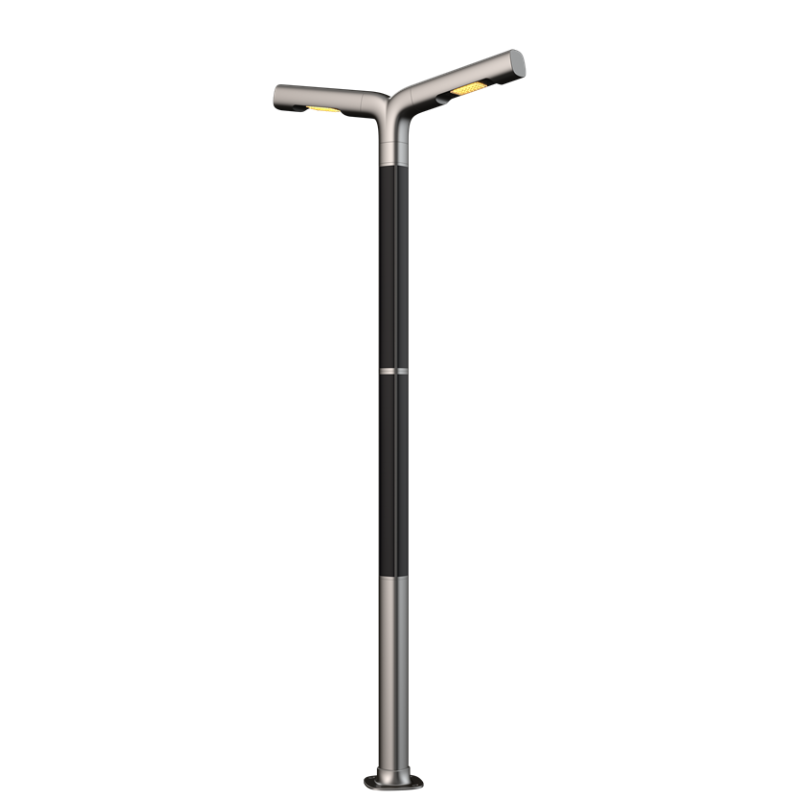

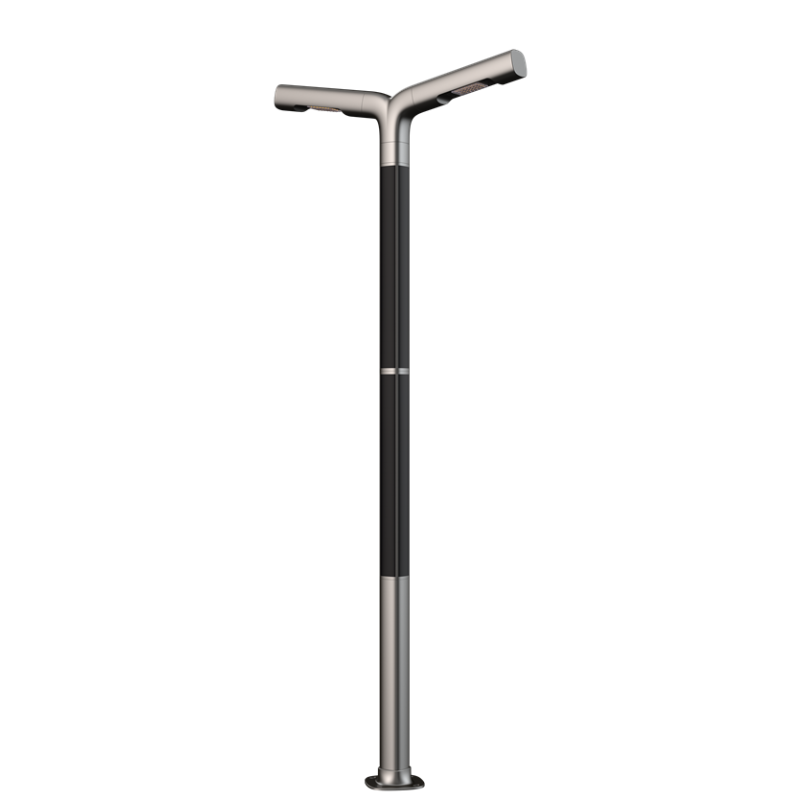

The structural light poles are made from durable 6063 Aluminium Profile and designed in a modern Squircle shape. They feature customizable coatings, supporting both hot-dip galvanized and electrostatic spray options.
The LED lighting system operates at a color temperature (CCT) of 5000K, with high-efficiency outputs of 150LM/W. The 10-meter pole option delivers 120W (18000LM) of flux, while the 8.4-meter option offers 90W (13500LM) of flux, both featuring a Color Rendering Index (CRI) of Ra ≥ 70.
These systems utilize stable and high-capacity Lithium-Ion batteries. Depending on the model configuration, they offer 12V/120Ah or 12V/90Ah, capable of operating smoothly in temperatures ranging from -20° C up to 75° C.

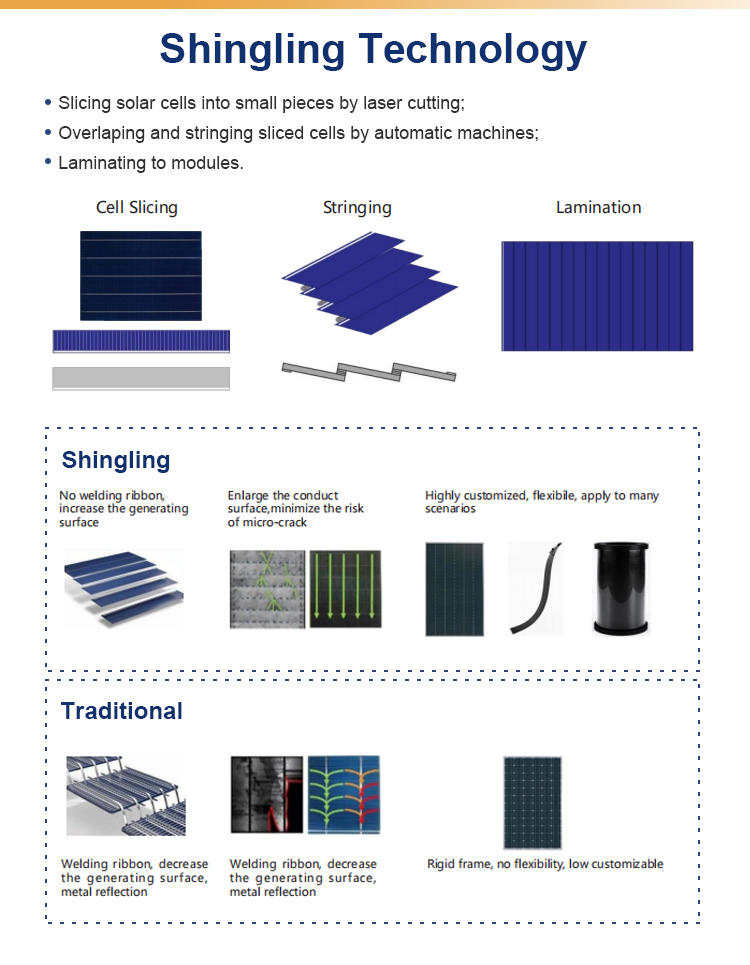

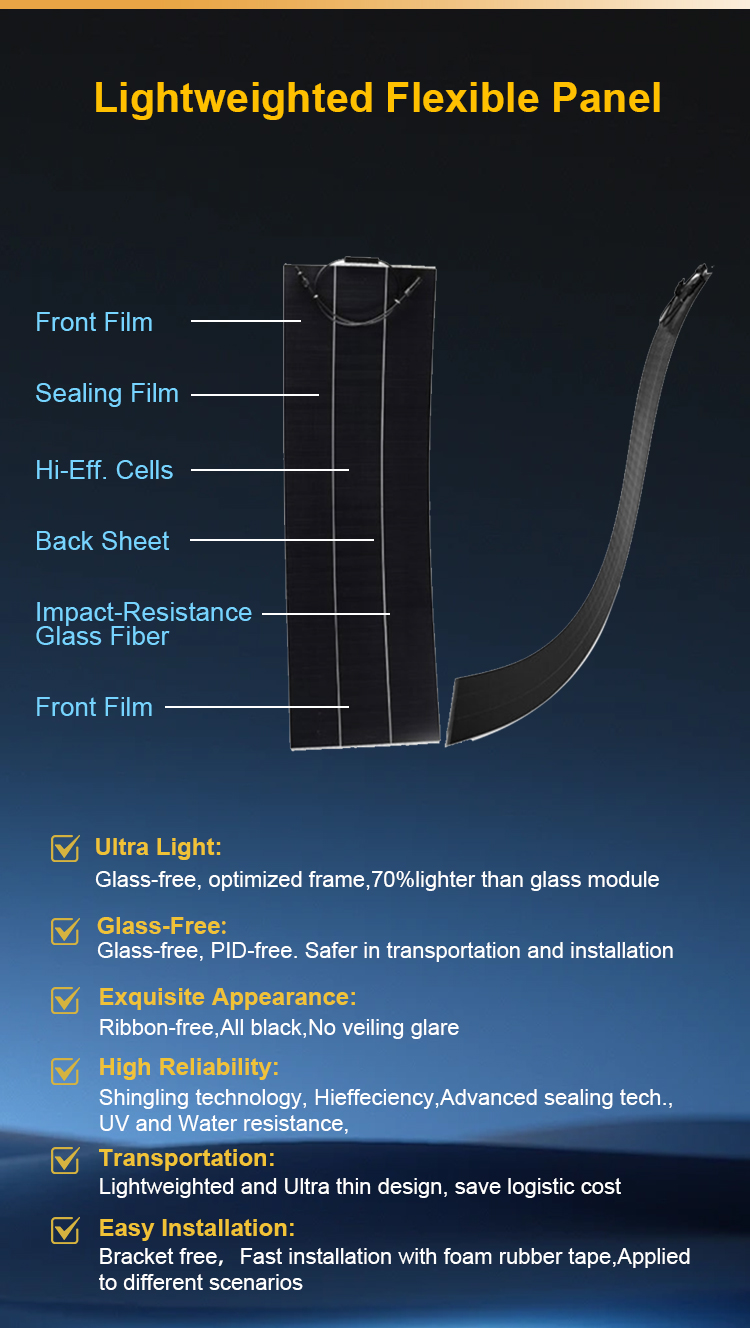

The integrated solar panel system employs Shingling Technology to achieve high efficiency of ≥ 15.6%. This advanced structure ensures stable operation and steady energy intake even under partial shading conditions.
The PV components are built to withstand extreme temperatures, operating from -30° C to 85° C (and up to -40° C for the 8.4m configuration), while the internal Lithium-Ion batteries are rated for operation between -20° C and 75° C.
