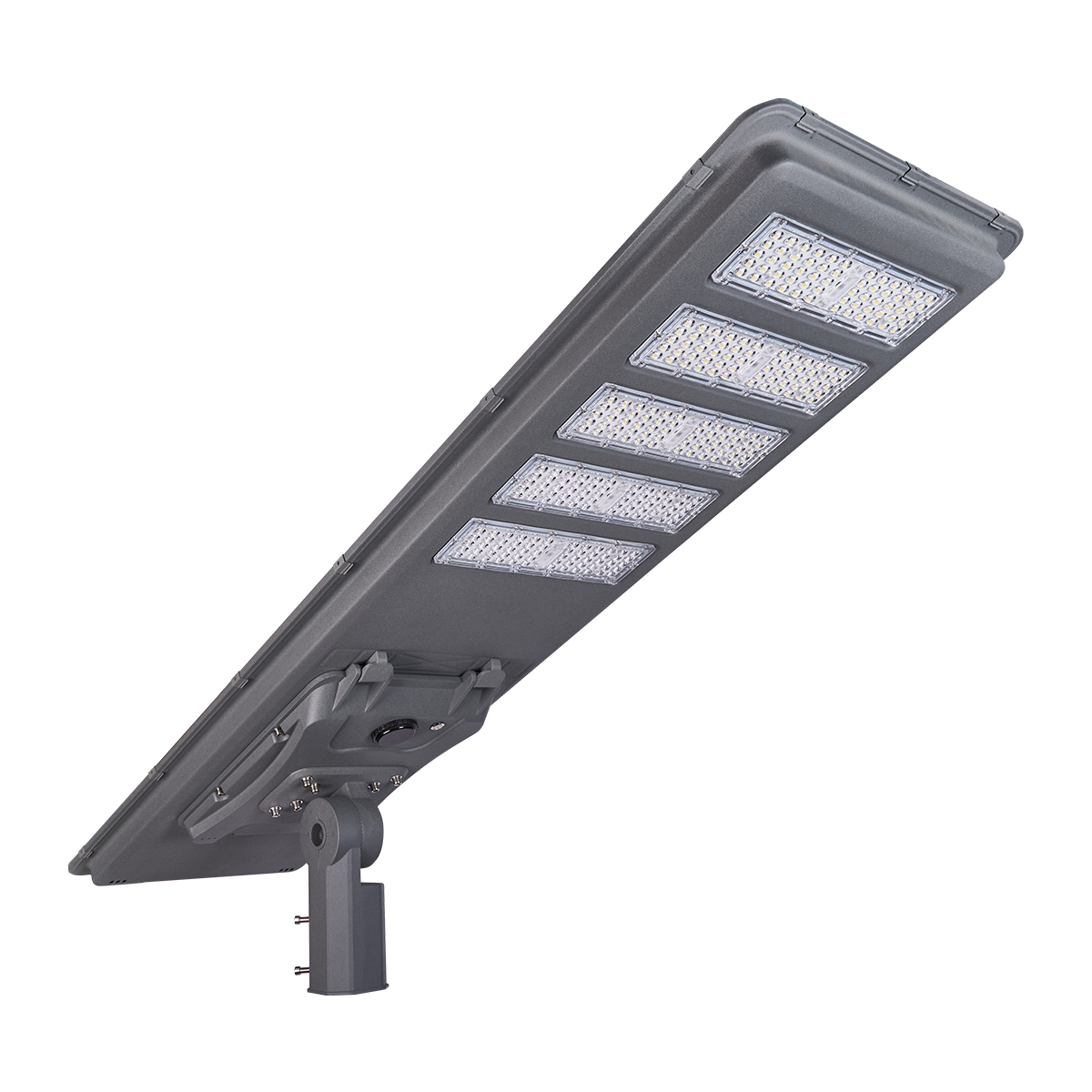

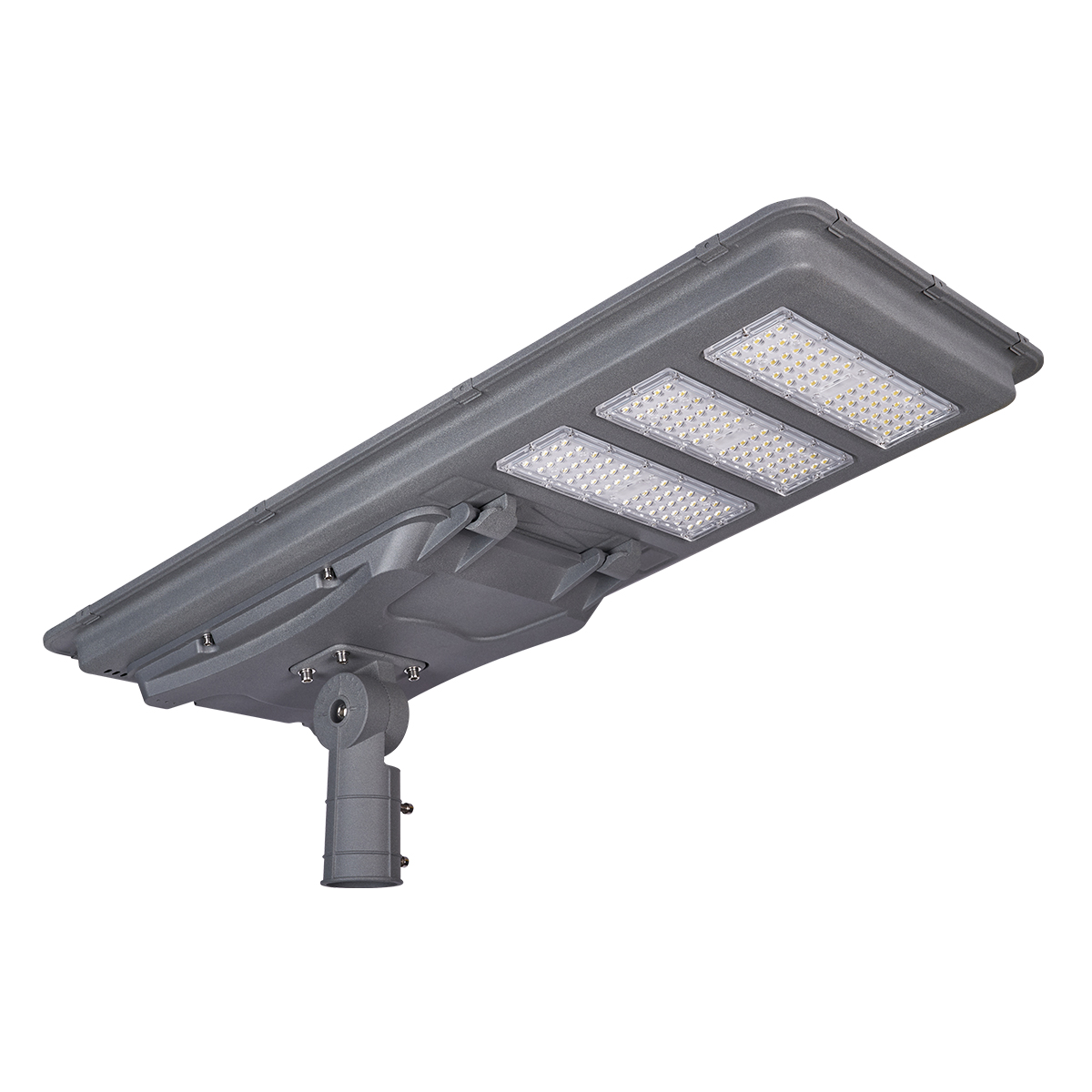

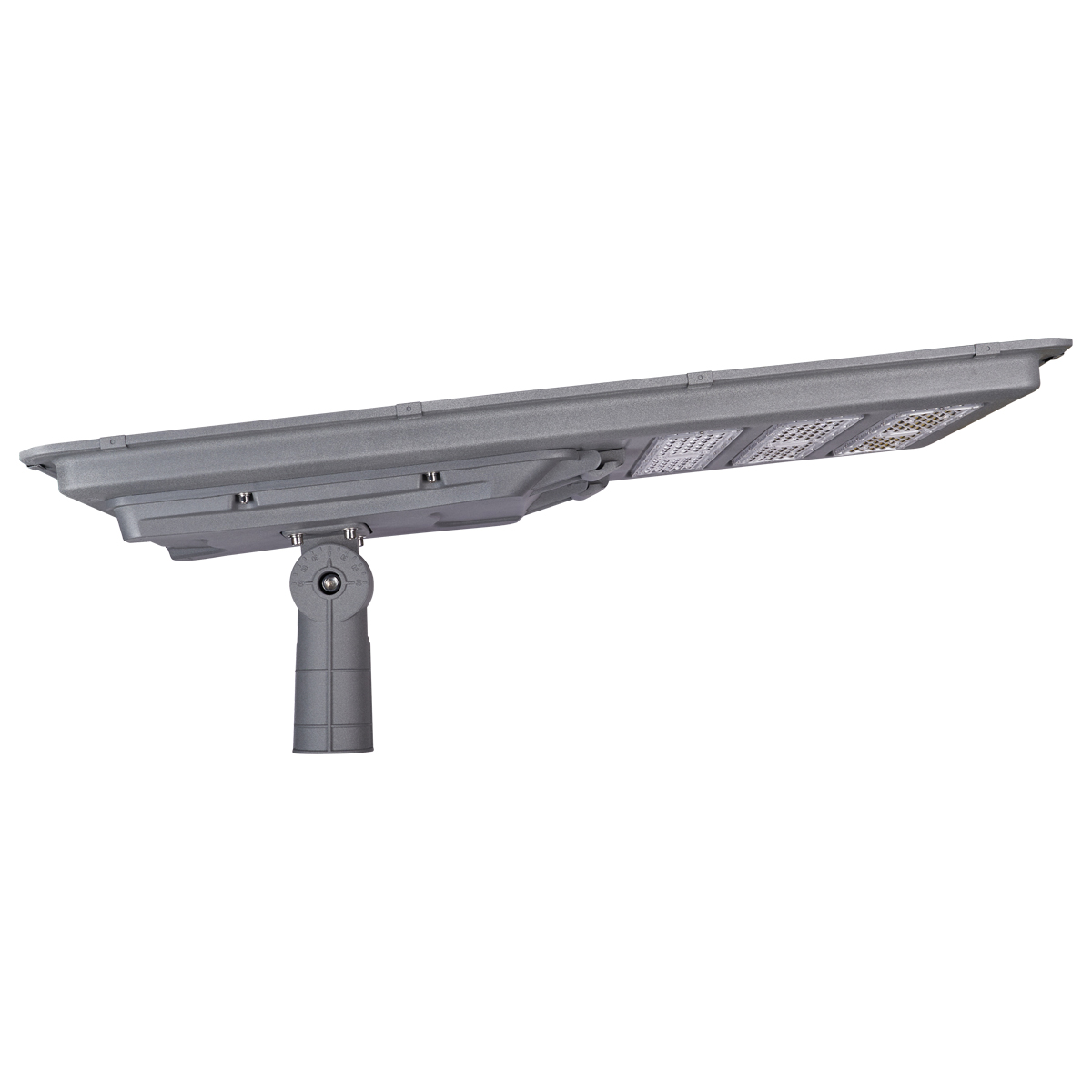

All in One IP65 3M 5M 6M 8M 9M Installation Height Solar Street Light

1 / 5

All in One IP65 3M 5M 6M 8M 9M Installation Height Solar Street Light

Send Inquiry

Product Description

Key Features

Easy to install and maintain, with replaceable battery compartment.
Lithium LifePO4 battery, long lasting can support 4-7 rainy days.
Cycle times up to 2000+, high temperature resistance 60℃.
High lumen up to 200lm/w.

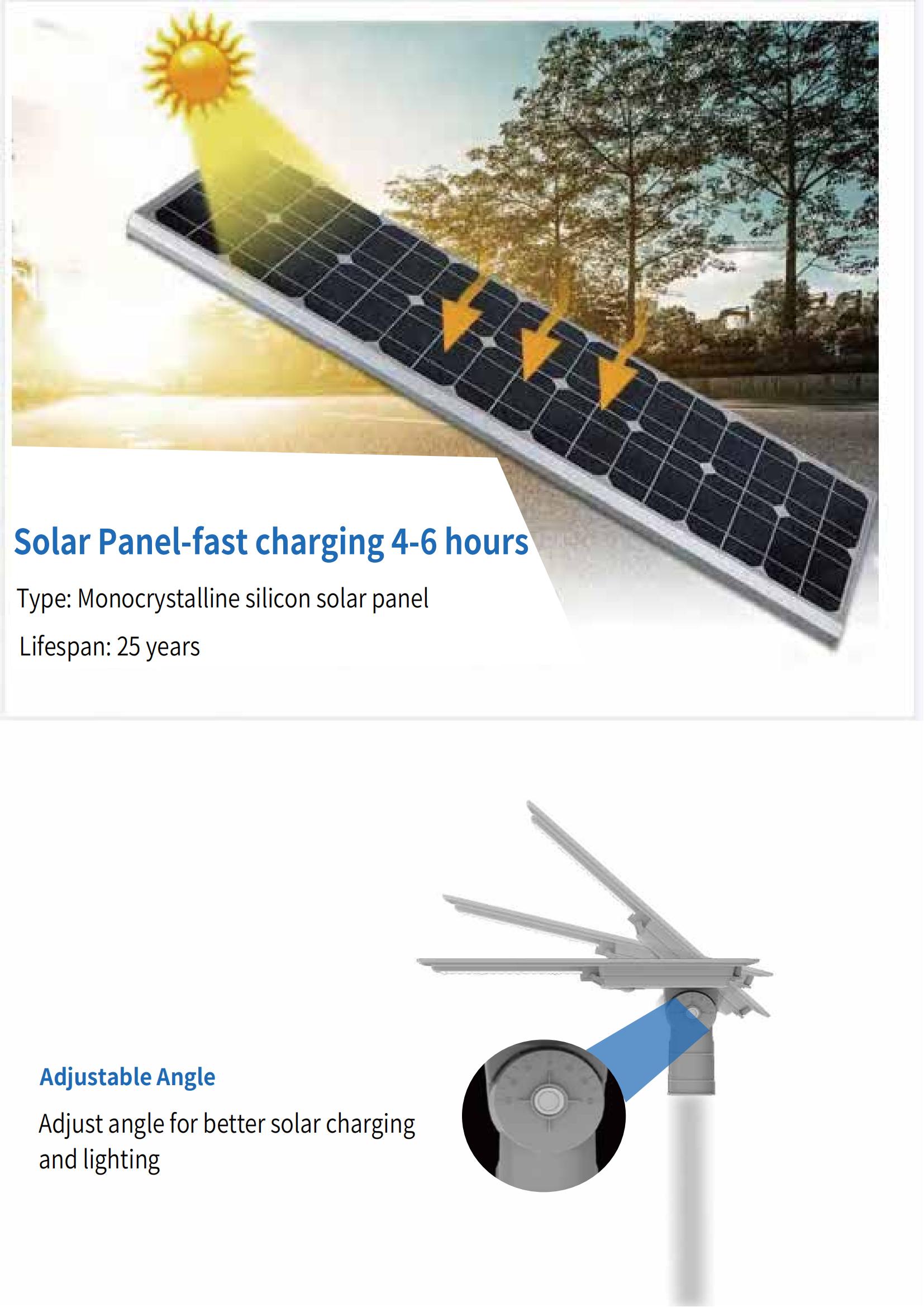

Monocry-silicon solar panel with MPPT controller for fast charging 4-6 hours.
Lifespan up to 50,000 hours.
Optical Lens : High transmittance, soft light, long life.

Model Specifications

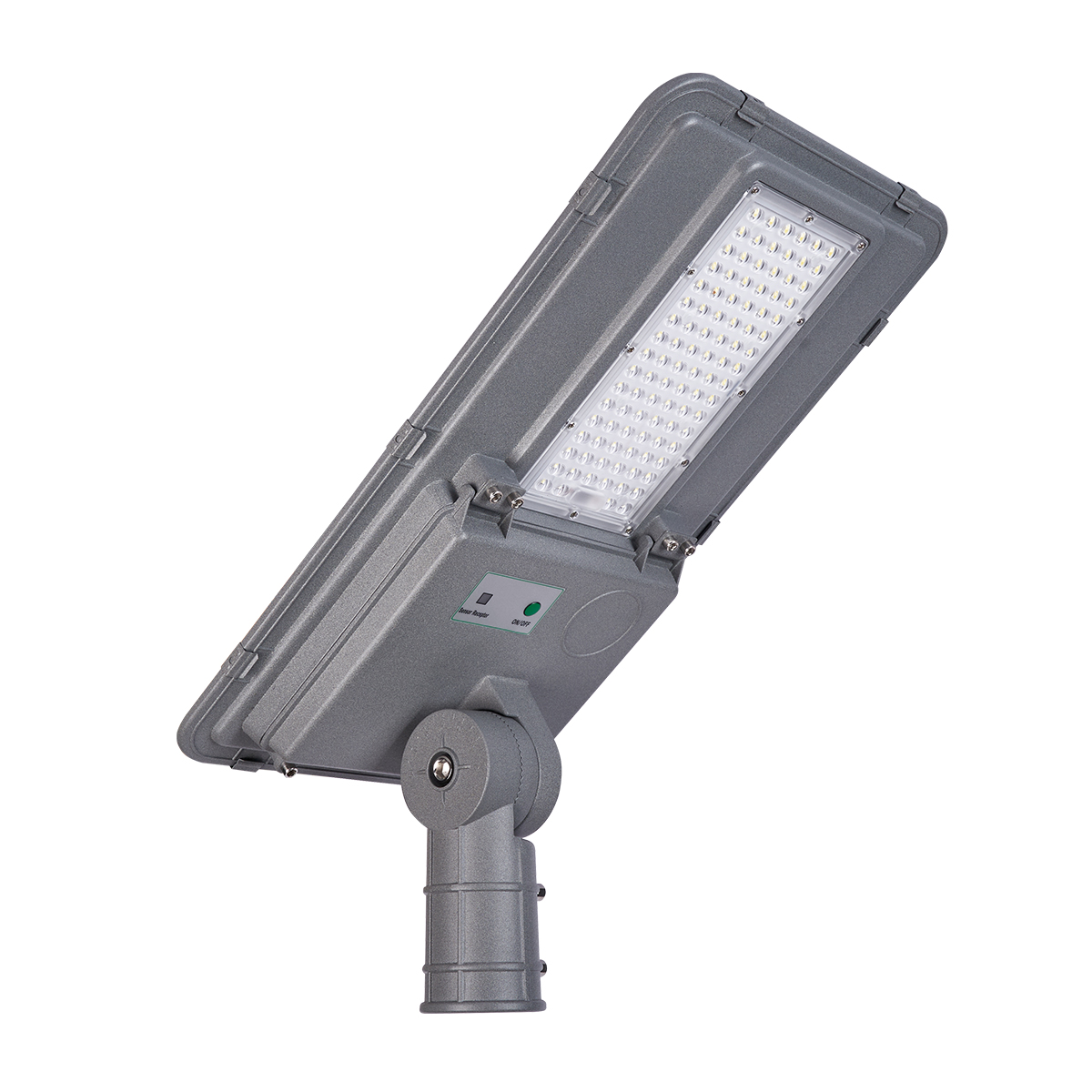

Model No	GH-LKD-15W
Solar Panel Mono.	6V/25W
Solar Panel Size	500*279mm
Battery	Lithium LiFePO4 3.2V 24AH
LEDs	Imported Beads 100pcs
Installation Height	4M

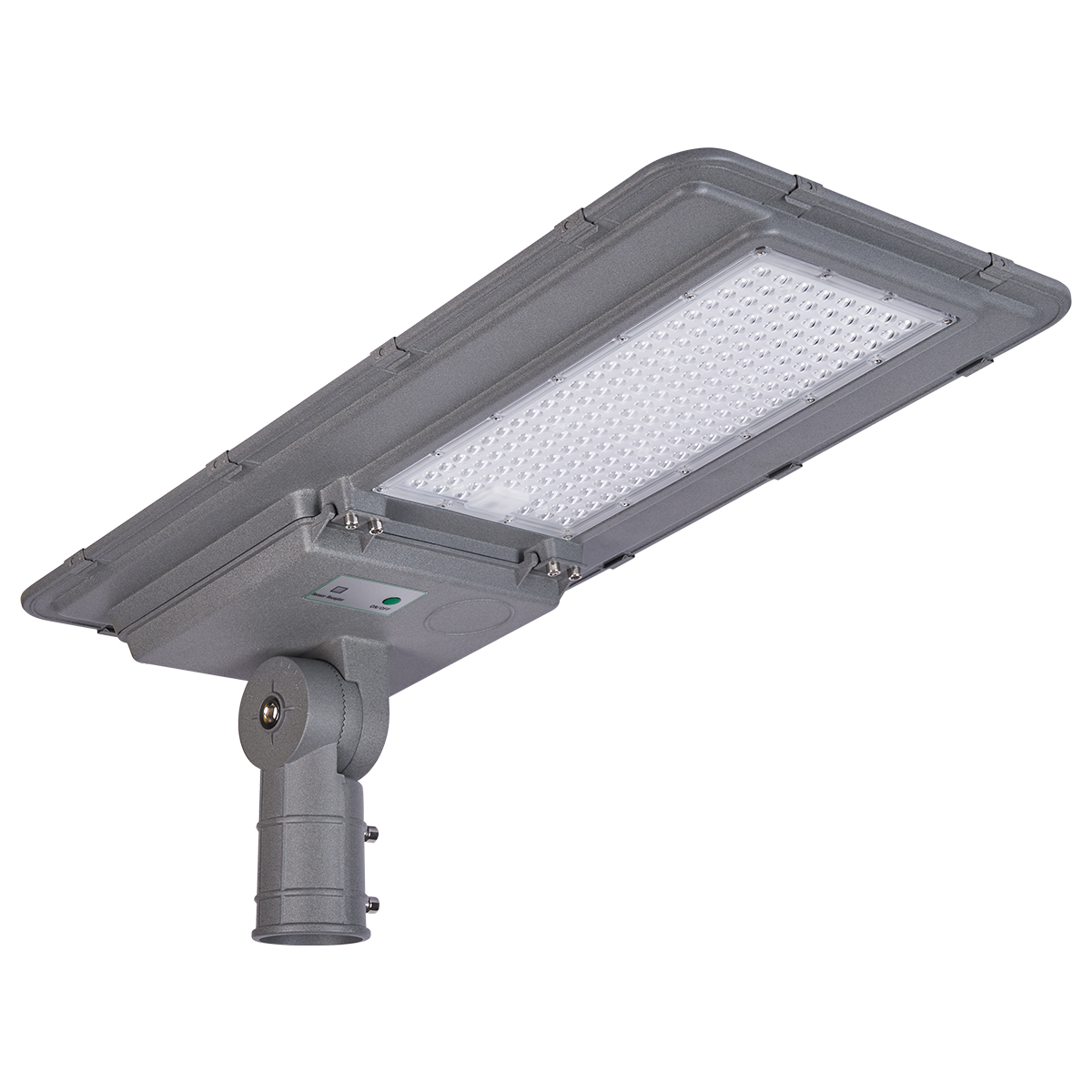

Model No	GH-LKD-20W
Solar Panel Mono.	6V/35W
Solar Panel Size	605*323mm
Battery	Lithium LiFePO4 3.2V 32AH
LEDs	Imported Beads 180pcs
Installation Height	5M

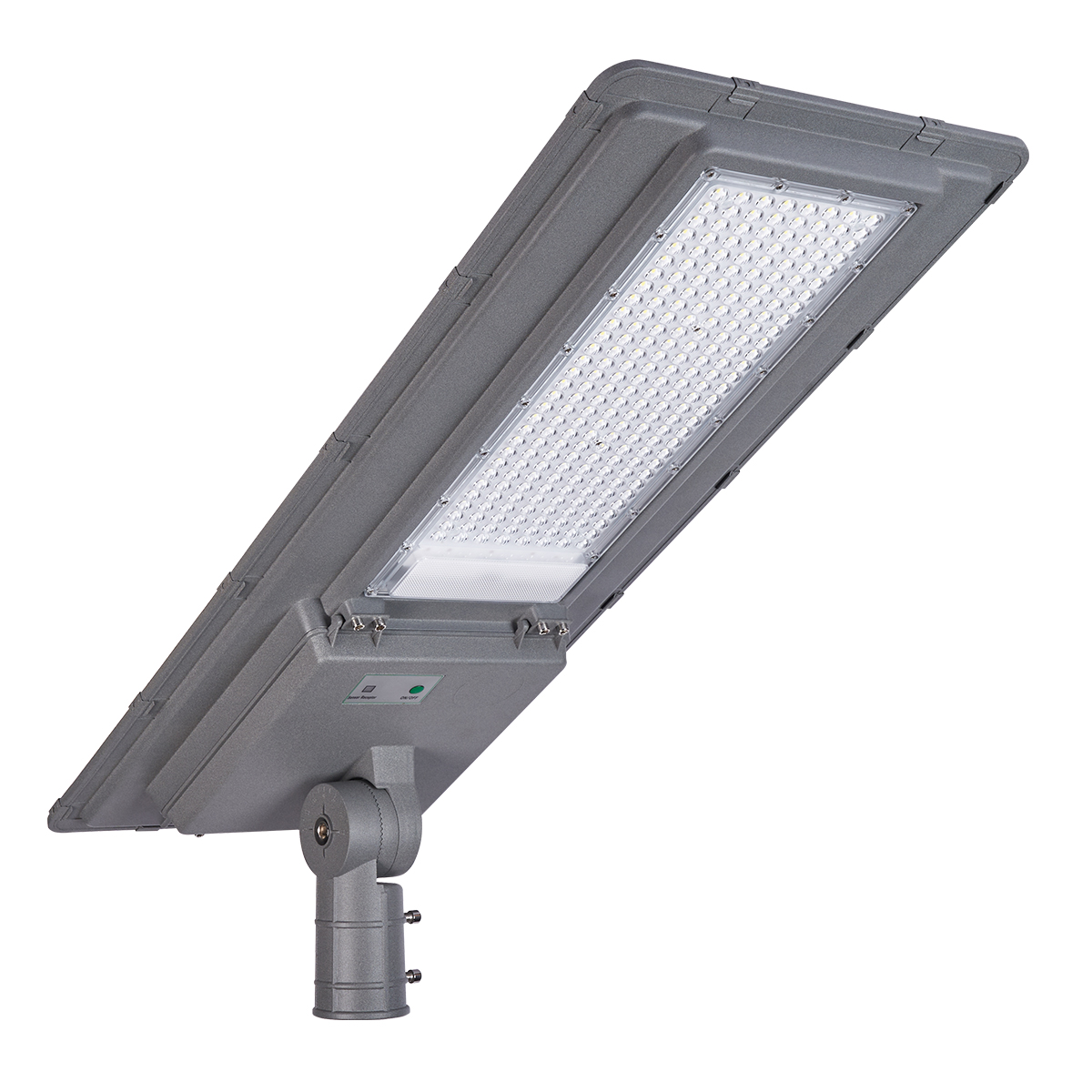

Model No	GH-LKD-30W
Solar Panel Mono.	6V/50W
Solar Panel Size	842*341mm
Battery	Lithium LiFePO4 3.2V 72AH
LEDs	Imported Beads 240pcs
Installation Height	6M

Model No	GH-LKD-40W
Solar Panel Mono.	18V/60W Mono-crystalline
Solar Panel Size	887*400MM
Battery	Lithium LifePO4 battery 3.2V 100AH
LEDs	Imported Beads 240pcs
Installation Height	8M

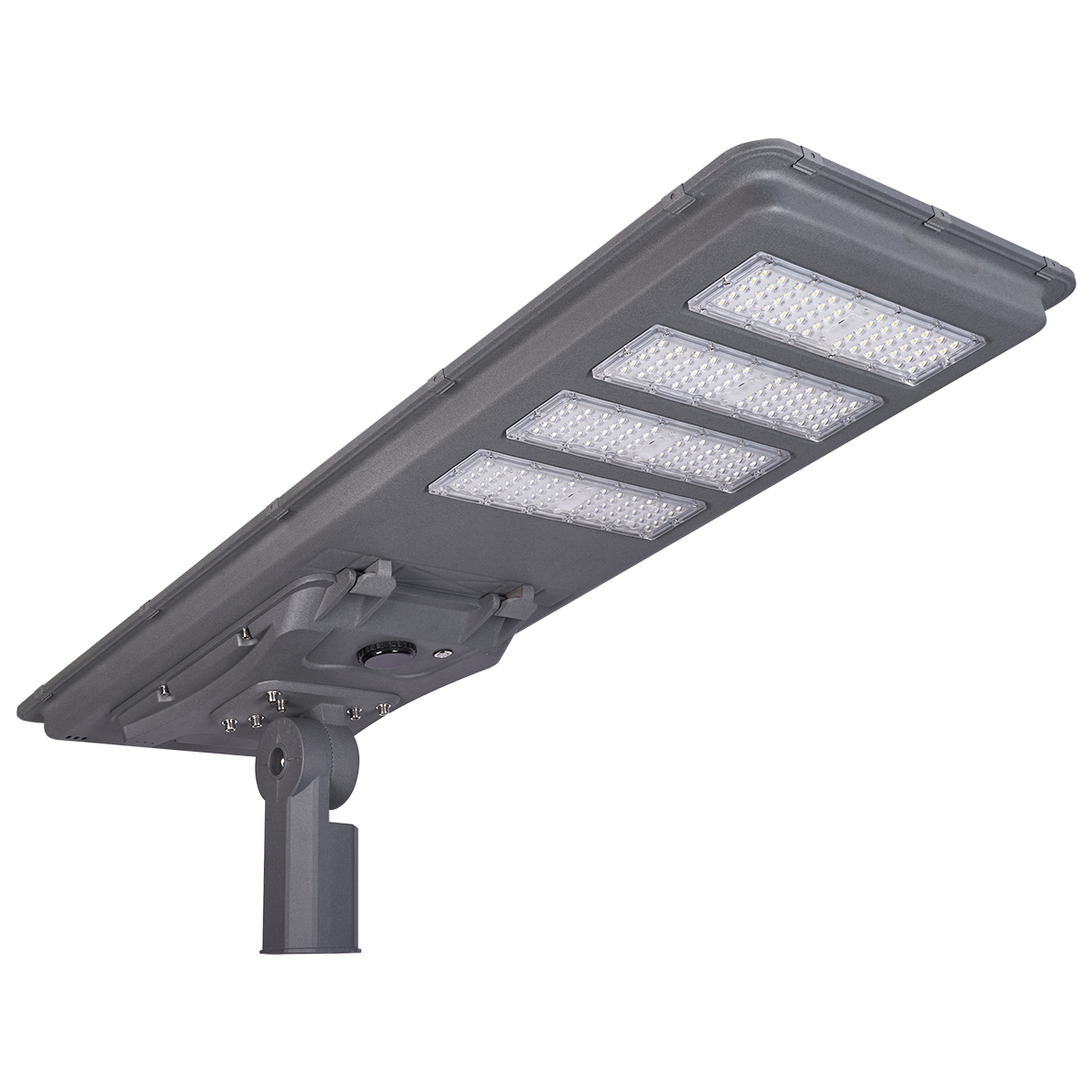

Model No	GH-LKD-60W
Solar Panel Mono.	18V/80W Mono-crystalline
Solar Panel Size	1160*400MM
Battery	Lithium LifePO4 battery 12.8V 36AH
LEDs	Imported Beads 240pcs
Installation Height	10M

Model No	GH-LKD-80W
Solar Panel Mono.	18V/100W Mono-crystalline
Solar Panel Size	1435400
Battery	Lithium LifePO4 battery 12.8V, 42AH
LEDs	Imported Beads 240pcs
Installation Height	12M

Technical Parameters

Solar panel Lifespan	25 years
Battery lifespan	> 2000 times cycle charging
CRI	>80
IP Grade	IP65
Luminous	210lm/w
Beam Angle	TYPE I-140°70°, TYPE II-90°150°, TYPE III-150°*80°
Charge Time	4-6 Hours
Discharge Time	induction mode：48H, full power：14H support 3-7 rainy days
Controller	PWM/MPPT
Warranty	3 Years
Certificate	CE/RoHs, IP65, LM80
Lighting Method	Microwave induction + Segmented time control + intelligent control

Detailed Features

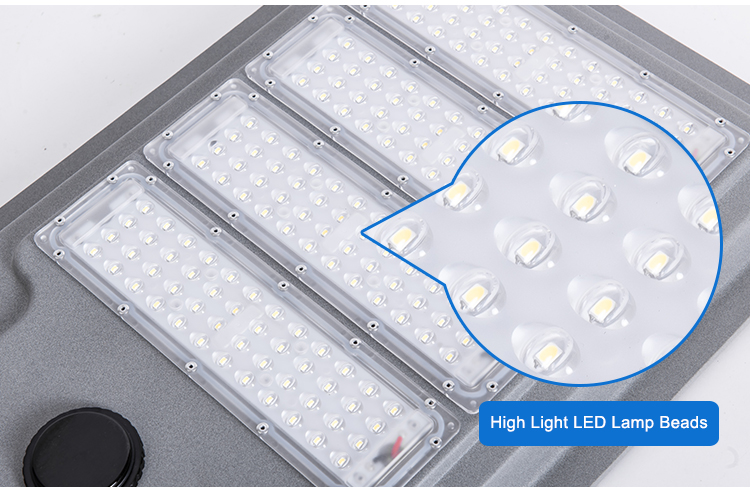

High Quality LED Chips

High thermal conductivity, low light decay, pure light color, no ghosting, light efficiency up to 200lm/w

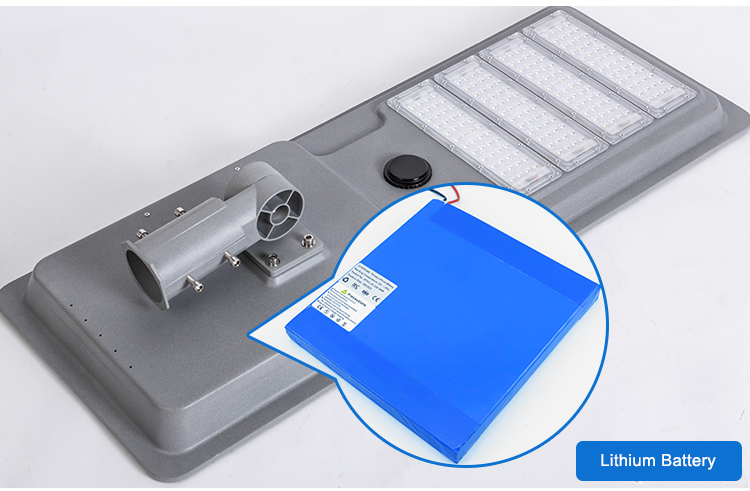

Lithium LifePO4 Battery

The battery can be replaced. Long lasting can support 4-7 rainy days. 2500 times charge and discharge at 80% DOD battery

Aluminum Display stand

Using anti-oxidation 6063 die-cast aluminum shell, high hardness, fast heat dissipation, thick anti-corrosion paint treatment

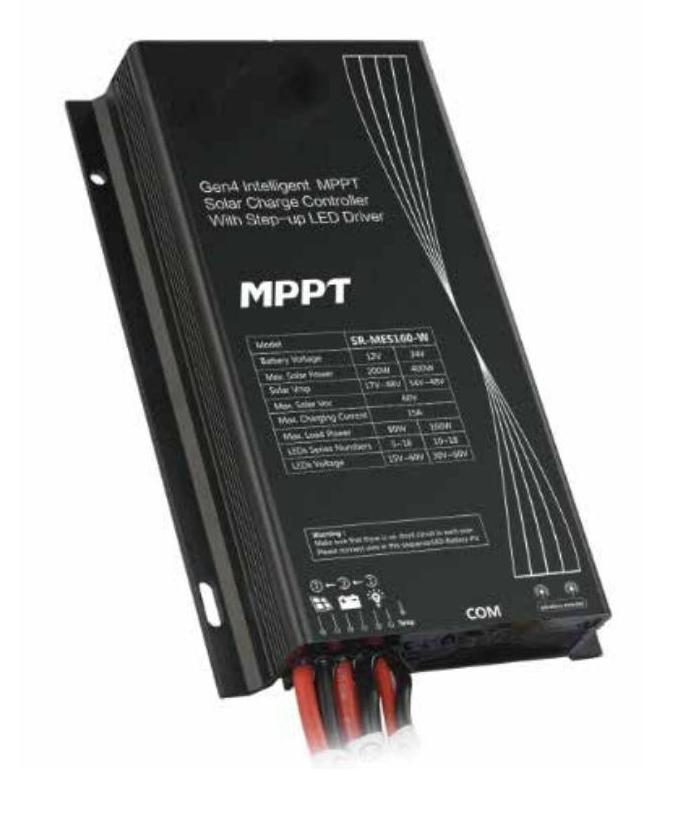

Intelligent Controller

MPPT maximum power tracking technology, with tracking efficiency up to 99.5%. And charging efficiency up to 96%. Intelligent power regulation and automatic load. Power regulation make the operation of the whole system more efficient, energy-saving and stable.

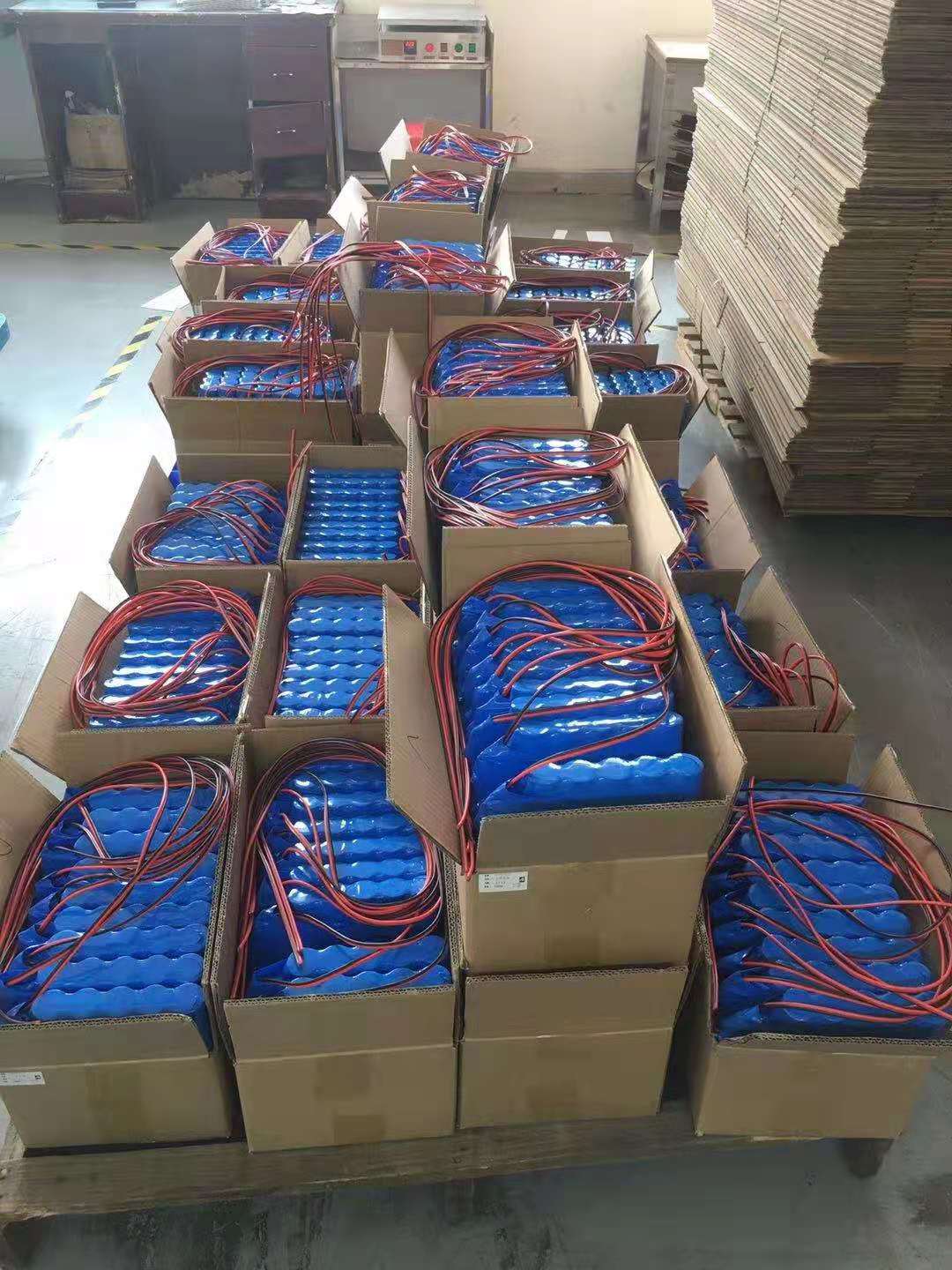

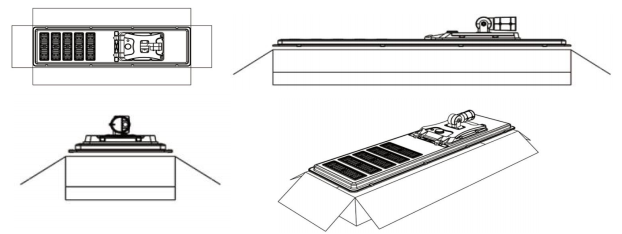

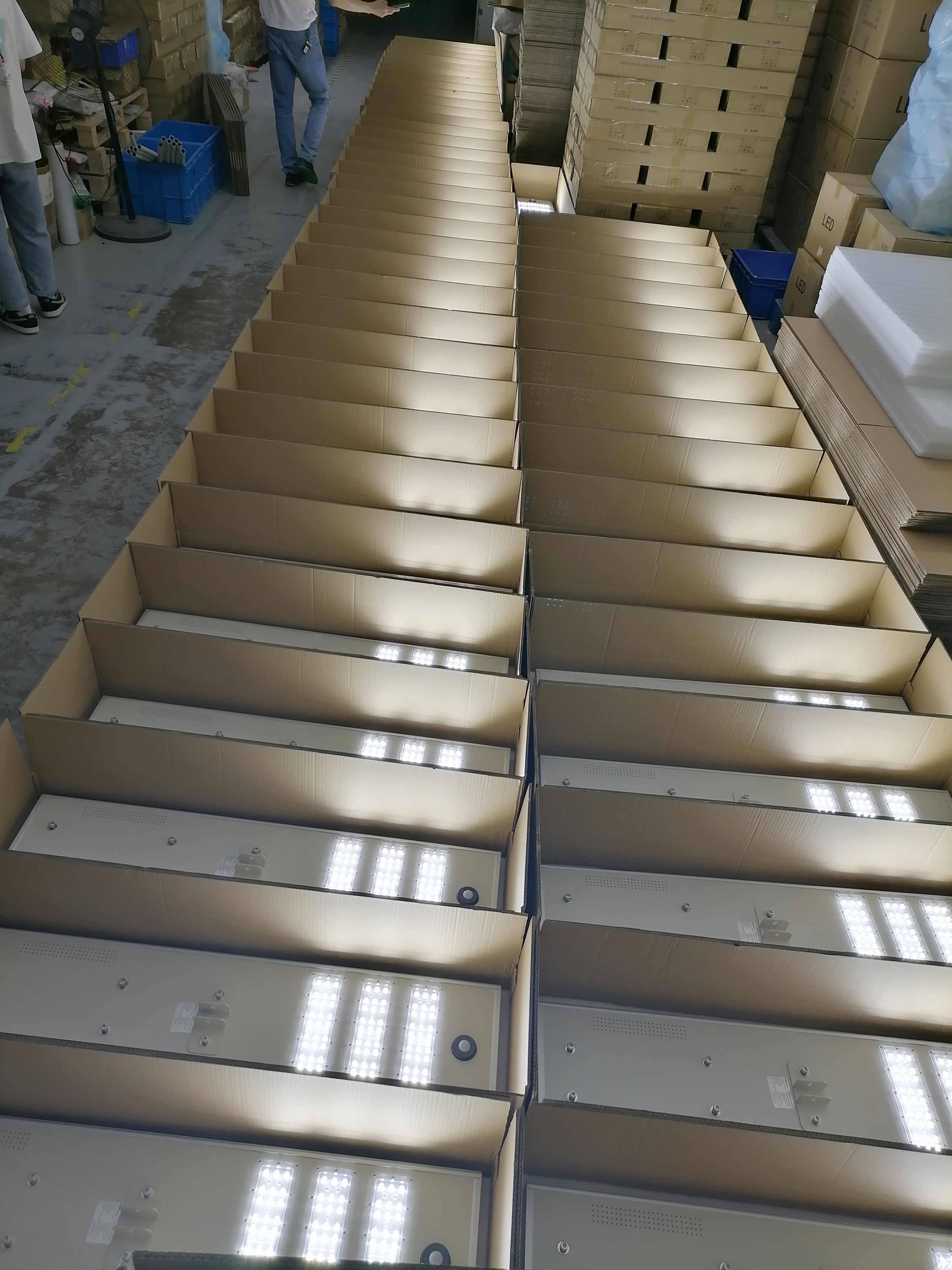

Package Details

Power	Product Size	Net Weight	Gross Weight	Packing Size
15W	552282130mm	10KG	11KG	570350235mm
20W	657325130mm	12.4KG	13.4KG	670395235mm
30W	860350130mm	15.2KG	16.2KG	910410280mm

Related Products

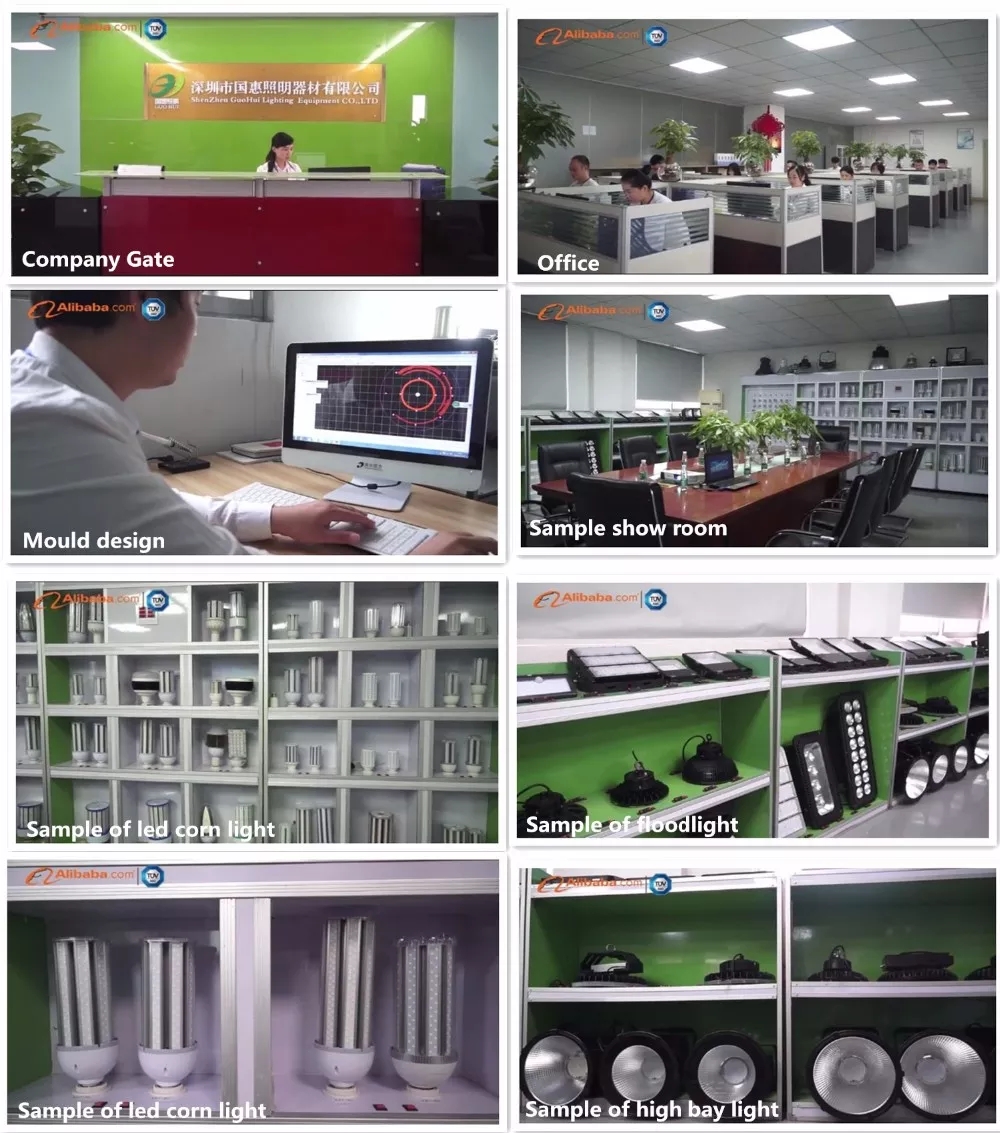

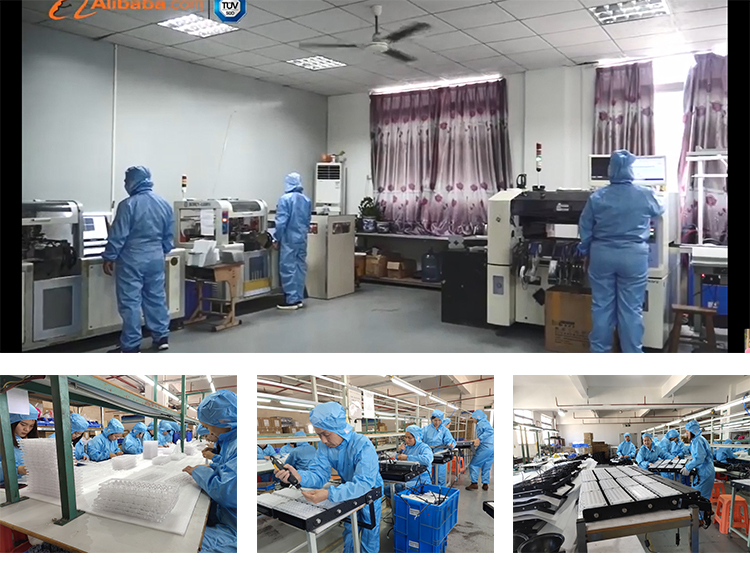

Factory Show

Frequently Asked Questions

Q Can I have a sample order for led light?

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q What about the lead time?

Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.

Q Do you have any MOQ limit for led light order?

Low MOQ, 1pc for sample checking is available.

Q How do you ship the goods and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q Do you offer guarantee for the products?

Yes, we offer 3-5 years warranty to our products.

Q How to deal with the faulty?

Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new light with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

OEM and ODM is highly welcome! Our factory also can customize with client's requirements.
