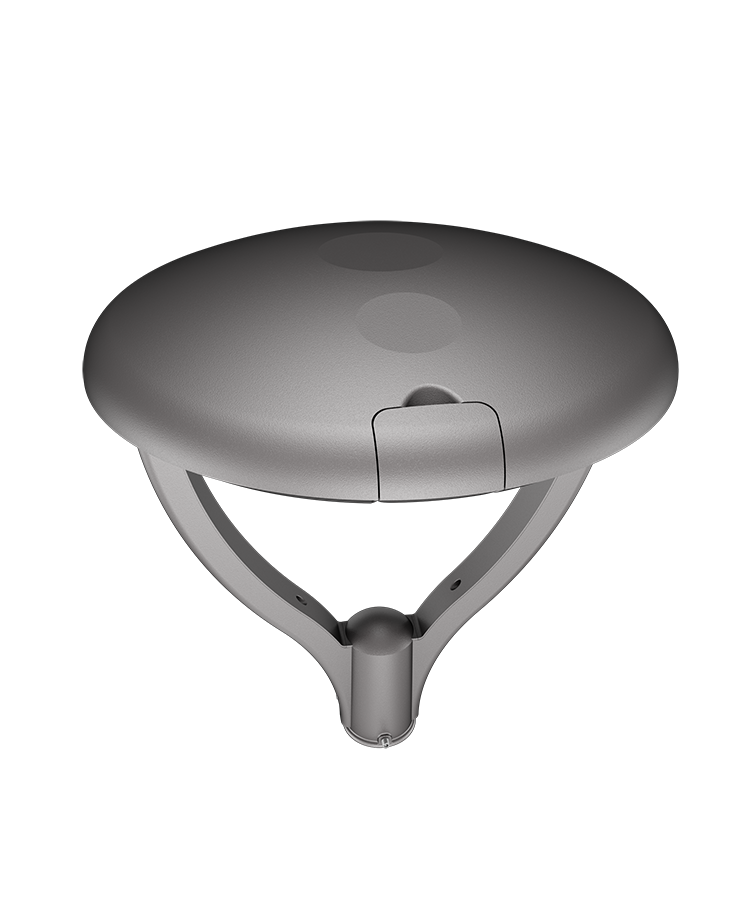

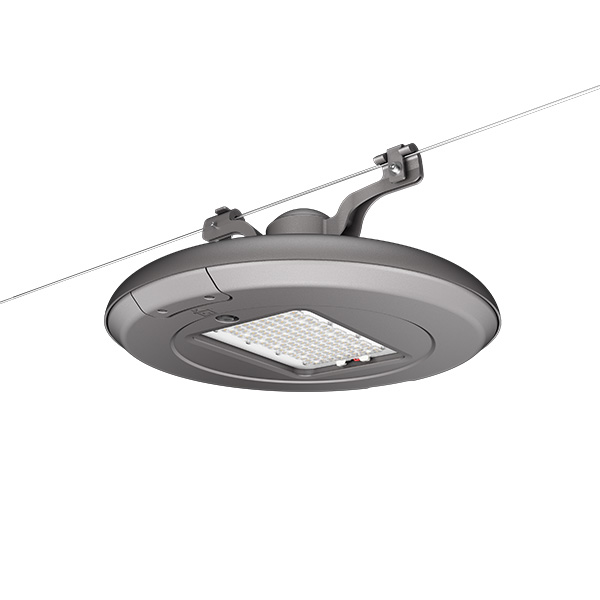

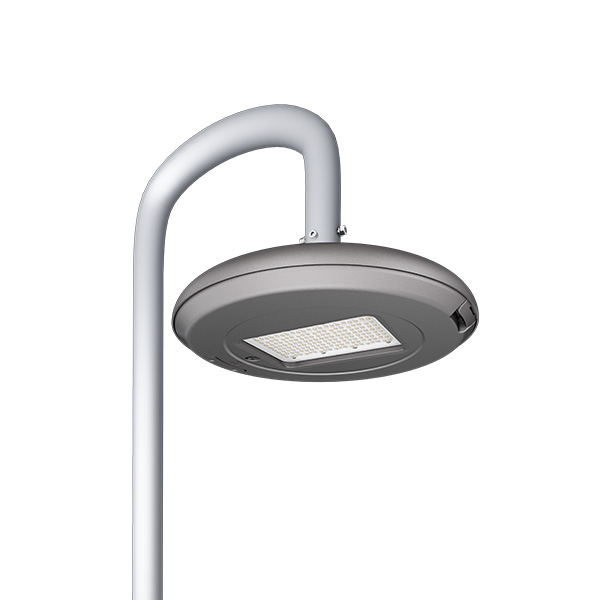

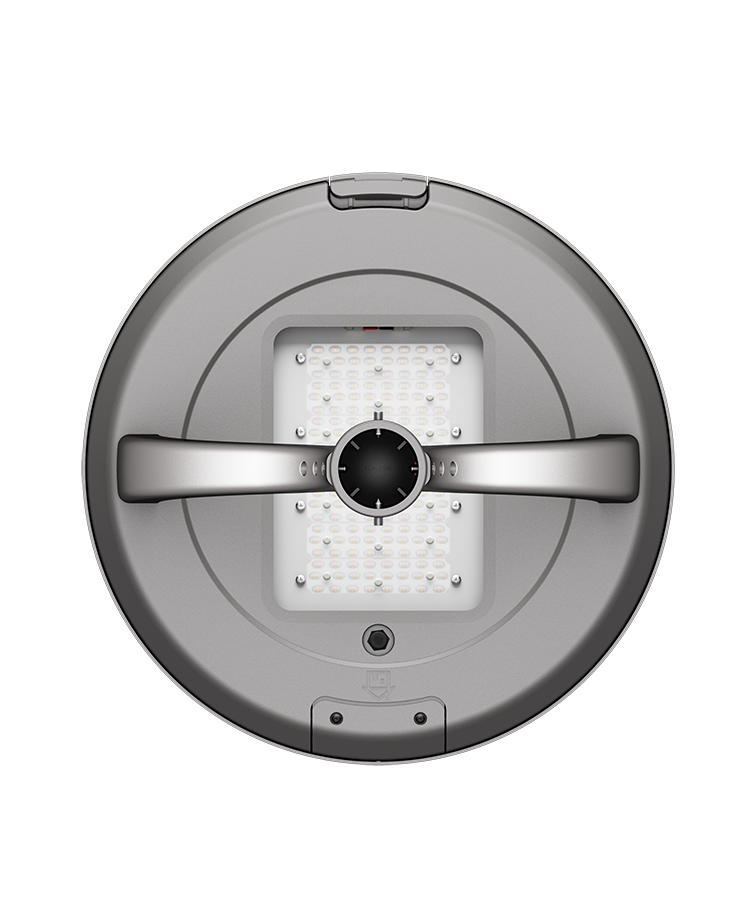

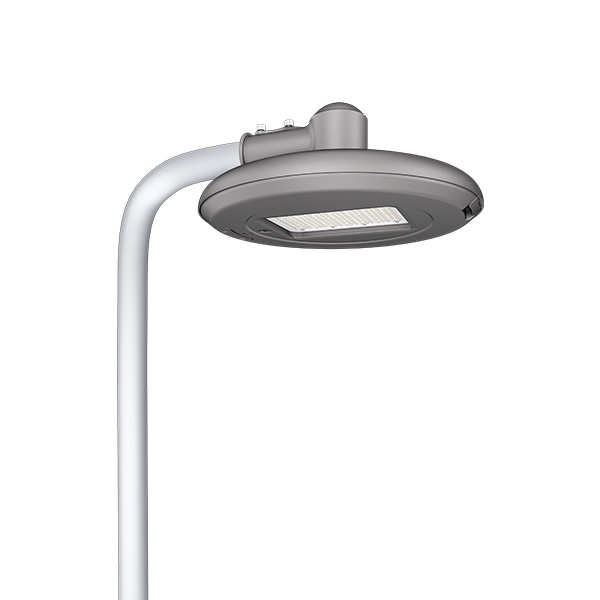

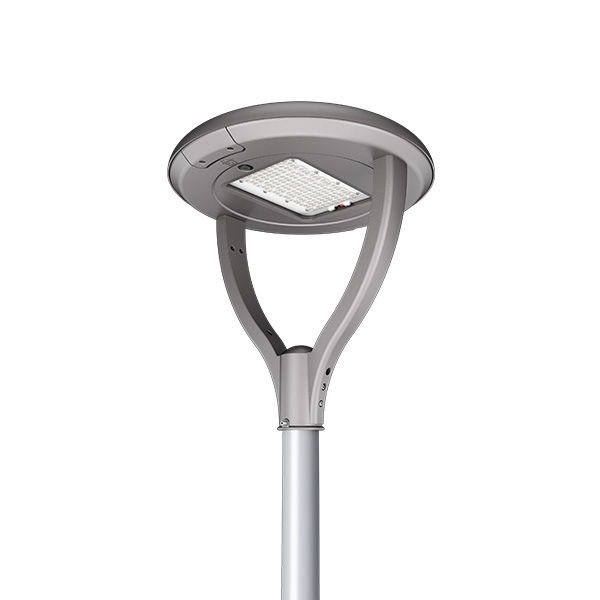

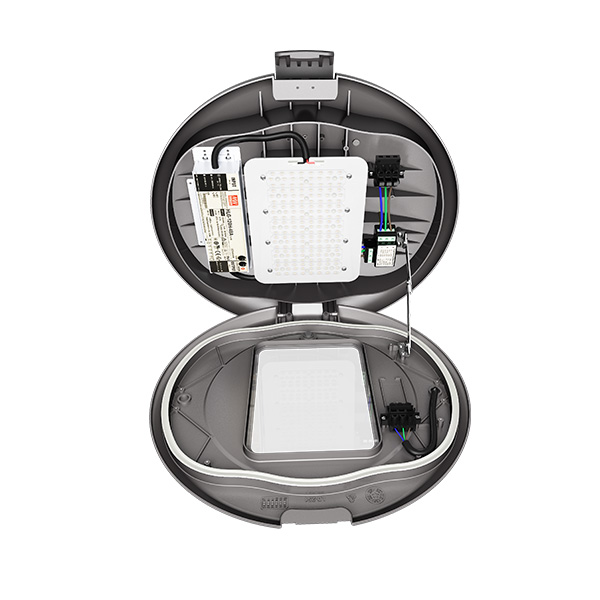

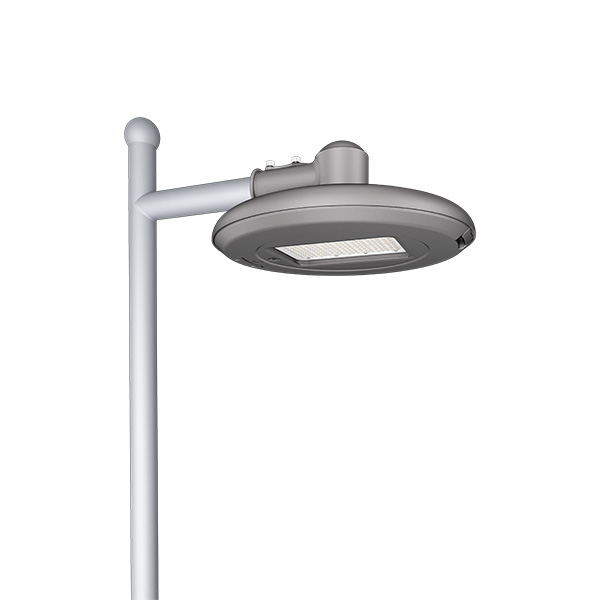

| Parameters | Round LED street light LM series |
|---|---|
| Nominal Wattage | 27W, 37W, 56W, 70W, 90W, 120W |
| Input Voltage | 100-277VAC or 347VAC or 480V or 12-24VDC |
| LED Brand | Lumileds |
| Driver Brand | Meanwell or Inventronics |
| Power Factor | >0.95 |
| THD | <20% |
| Power Efficiency | >90% |
| Operating Temperature | -40℃ ~ +50℃ |
| Efficacy | 120-150lm/W |
| CCT | 3000K/4000K/5000K/5700K |
| Min CRI | 70 ( 80 optional) |
| Rating | IP66 IK08 |
| SPD | 10KV( 20KV optional) |
| Optic | Type I, Type II, Type III, Type V |
| Color Options | Deep Grey |
| Dimming Options | 1-10V or DALI or PWM or Timer |
| Control Options | Photocell or Smart control |

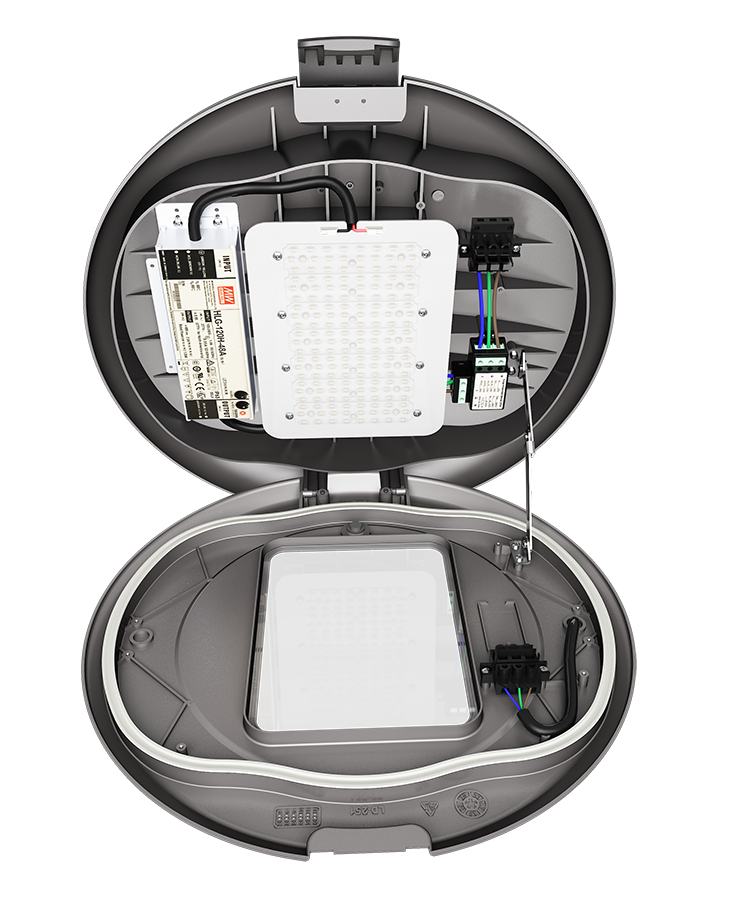

| Body | Die-cast aluminum Housing |
| Cover | Tempered glass |
| Protection | Class I( Class II optional) |

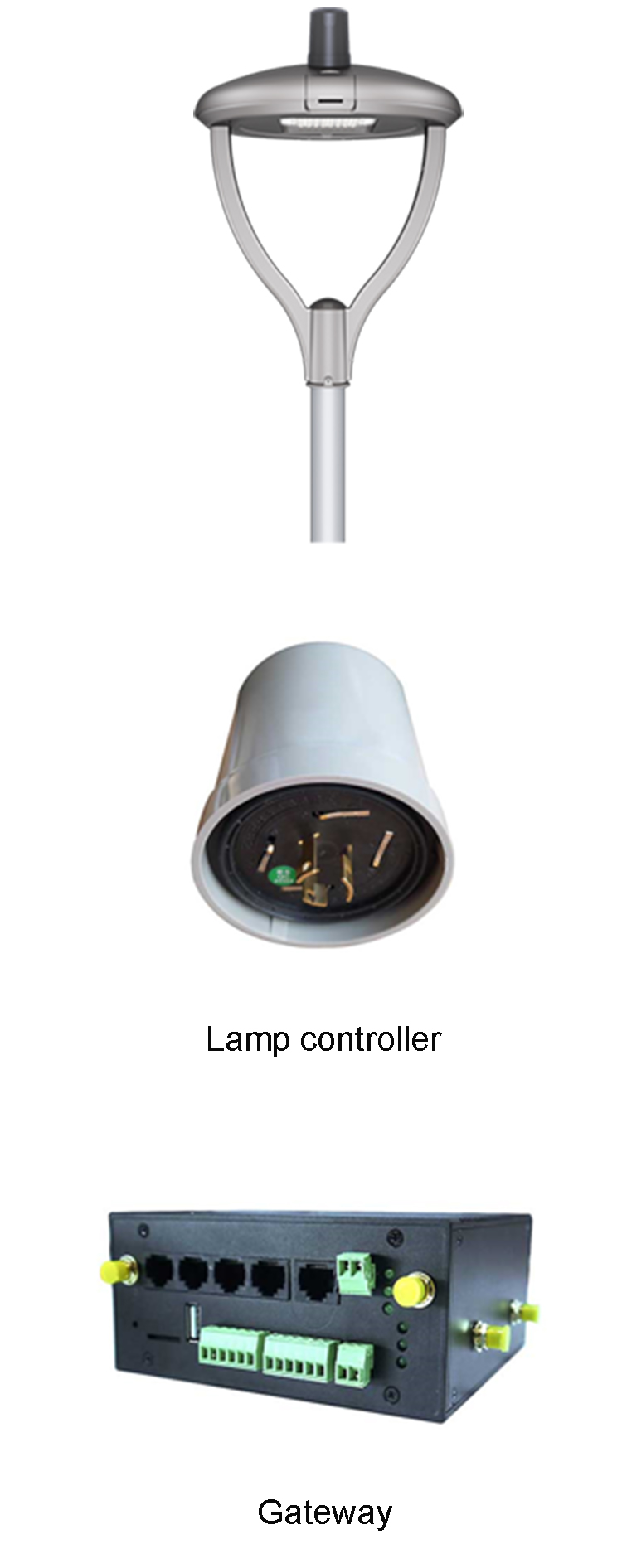

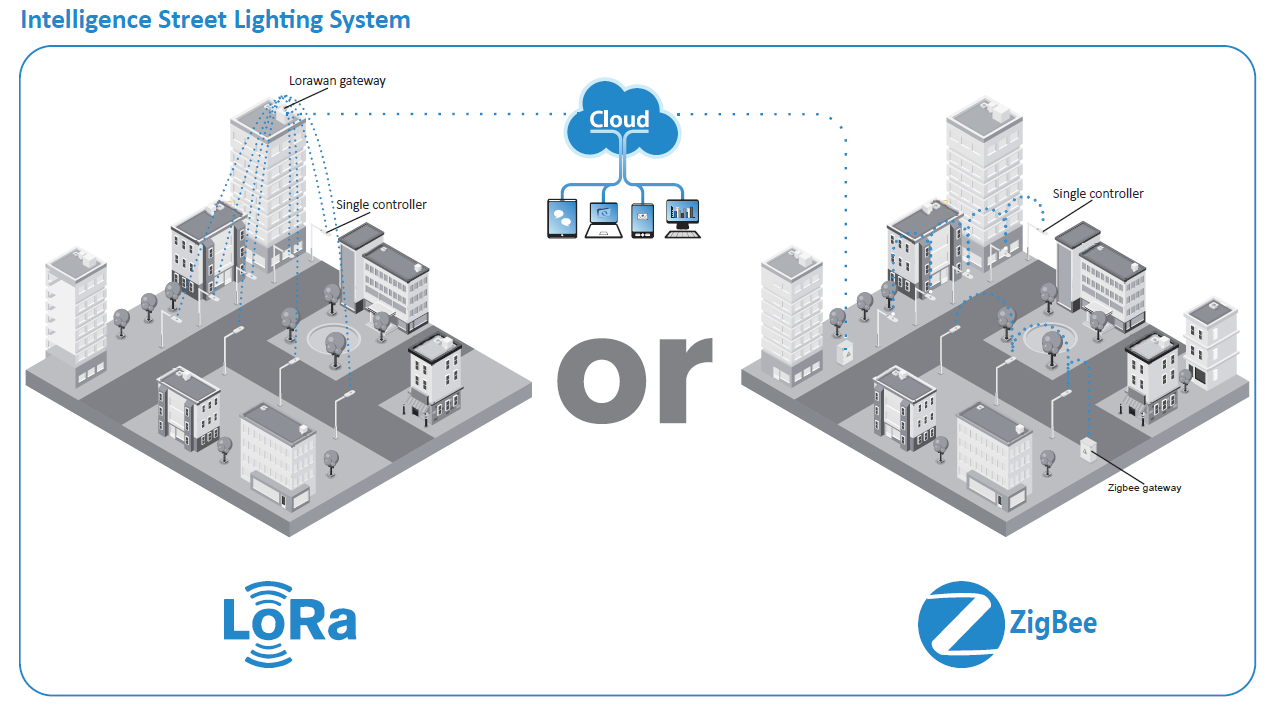

A total solution is provided for the intelligence street lighting system. The street light intelligence system is made up of software, gateway, and a single light controller. The gateway is installed in the distribution cabinet, and the single light controller is installed in the lighting terminal. It proceeds with communication via GPRS/CDMA/WCDMA wireless network or cable network & monitor center and proceeds with communication via ZIGBEE/LORA.
Gateway can control each single light controller via receiving, executing, forwarding PC management software, which can control each lamp’s switching on/ off or dimming, then save electric energy. It can also monitor the lamps’ electric energy to achieve failure lamps function. Gateway can built-in DO to achieve street light loop control, it can connect with other equipment to collect local illumination, temperature and other information, feedback to PC management software and achieve to monitor the current information.
At present, all series of LED street lights can be combined with the intelligence street lighting system.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A: Samples within 3 days, big order within 1-2 weeks.
A: Low MOQ, 1pc for sample checking is available.
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Yes, we offer 3-7 years warranty to our products.
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
